chart开发指导

chart为图表组件，用于呈现线形图、柱状图和量规图界面。具体用法请参考chart。

创建chart组件

在pages/index目录下的hml文件中创建一个chart组件。

<!-- xxx.hml -->
<div class="container">
  <chart class="chart-data" type="line" options="{{lineOps}}" datasets="{{lineData}}"></chart>
</div>

/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  background-color: #F1F3F5;
}
.chart-data {
  width: 700px;
  height: 600px;
}

// xxx.js
export default {
  data: {
    lineData: [
      {
        data: [763, 550, 551, 554, 731, 654, 525, 696, 595, 628, 791, 505, 613, 575, 475, 553, 491, 680, 657, 716]
      }
    ],
    lineOps: {
      xAxis: {
        min: 0,
        max: 20,
        display: false,
      },
      yAxis: {
        min: 0,
        max: 1000,
        display: false,
      },
      series: {
        lineStyle: {
          width: 15,
        },
      }
    },
  }
}

zh-cn_image_0000001181974568

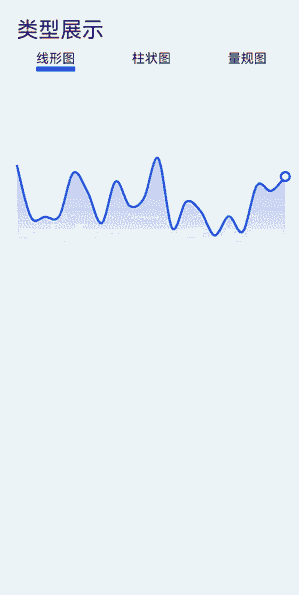

设置图表类型

chart组件通过设置type属性定义图表t类型，如将图表设置为柱状图。

<!-- xxx.hml -->
<div class="container">
  <div class="container">
    <div class="switch-block">
      <text class="title">
        {{ title }}
      </text>
    </div>
    <tabs class="tabs" index="0" vertical="false" onchange="changes">
      <tab-content class="tabcontent" scrollable="true">
        <tabs >
          <tab-bar class="tab-bar" mode="fixed"style="margin-bottom: 50px;">
            <text class="tab-text">线形图</text>
            <text class="tab-text">柱状图</text>
            <text class="tab-text">量规图</text>
          </tab-bar>
          <tab-content>
            <div class="bar-block" style="margin-left: 30px;">
              <chart class="chart-data" type="line" ref="linechart" options="{{ lineOps }}" datasets="{{ lineData }}">
              </chart>
            </div>
            <div class="bar-block">
              <chart class="data-bar" type="bar" id="bar-chart" options="{{ barOps }}" datasets="{{ barData }}">
              </chart>
            </div>
            <div class="chart-block">
              <chart type="gauge" ></chart>
            </div>
          </tab-content>
        </tabs>
      </tab-content>
    </tabs>
  </div>
</div>

/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  justify-content: center;
  background-color: #F1F3F5;
}
.tab-bar{
  background-color: #F1F3F5;
}
.chart-data {
  width: 700px;
  height: 600px;
}
.title{
  margin-left: 50px;
  margin-top: 50px;
  font-size: 50px;
}
.line-block{
  align-items: center;
  justify-content: center;
}
.bar-block{
  align-items: center;
  justify-content: center;
}
.chart-block{
  width: 90%;
  margin-left: 30px;
}

// xxx.js
export default {
  data: {
    title: "类型展示",
    barData: [
      {
        fillColor: '#3848e8',
        data: [763, 550, 551, 554, 731, 654, 525, 696, 595],
      }
    ],
    lineData: [
      {
        strokeColor: '#0081ff',
        fillColor: '#cce5ff',
        data: [763, 550, 551, 554, 731, 654, 525, 696, 595, 628, 791, 505, 613, 575, 475, 553, 491, 680, 657, 716],
        gradient: true,
      }
    ],
    lineOps: {
      xAxis: {
        min: 0,
        max: 20,
        display: false,
      },
      yAxis: {
        min: 0,
        max: 1000,
        display: false,
      },
      series:{
        lineStyle: {
          width: "5px",
          smooth: true,
        },
        headPoint: {
          shape:"circle",
          size: 20,
          strokeWidth: 5,
          fillColor: '#ffffff',
          strokeColor: '#007aff',
          display: true,
        },
        loop:{
          margin: 2,
          gradient: true
        }
      },
    },
    barOps: {
      xAxis: {
        min: 0,
        max: 20,
        display: false,
        axisTick: 10,
      },
      yAxis: {
        min: 0,
        max: 1000,
      },
    },
  },
}

zh-cn_image_0000001227423251

说明： chart不支持显示每个点的值。

设置图表属性

chart组件在options属性中设置对x轴、y轴和数据序列参数的设置，在datasets属性里添加对线条颜色、填充颜色、填充渐变颜色和绘制点集的设置。

<!-- xxx.hml -->
<div class="container">
  <chart class="chart-data" type="line" options="{{lineOps}}" datasets="{{lineData}}"></chart>
</div>

/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  background-color: #F1F3F5;
}
.chart-data {
  width: 700px;
  height: 600px;
}

// xxx.js
export default {
  data: {
    //线形图数据
    lineData: [
      {
        strokeColor: '#0081ff',
        fillColor: '#cce5ff',  //填充色
        data: [463, 250, 251, 254, 431, 354, 225, 396, 295, 328, 491, 205, 313, 275, 475, 553, 491, 380, 357, 416],
        gradient: true,
      }
    ],
    lineOps: {
     //x轴参数设置
      xAxis: {
        min: 0,
        max: 20,
        display: false,
      },
     //y轴参数设置
      yAxis: {
        min: 0,
        max: 1000,
        display: false,
      },
     //数据序列参数设置
      series: {
        //线样式设置
        lineStyle: {
          width: "5px",
          smooth: true,
        },
        //线最前端位置白点的样式和大小
        headPoint: {
          shape: "circle",
          size: 20,
          strokeWidth: 5,
          fillColor: '#ffffff',
          strokeColor: '#007aff',
          display: true,
        },
        //设置屏幕显示满时，是否需要重头开始绘制
        loop: {
          margin: 2,
          gradient: true
        }
      }
    },
  },
}

说明： - options只支持柱状图和线形图设置参数，量规图不生效。

  • datasets只支持柱状图和线形图设置数据集合，量规图不生效。

  • series只有线形图支持。

添加数据

通过chart组件的append方法，实现动态添加数据。

<!-- xxx.hml -->
<div class="container">
  <stack class="chart-region">
    <chart class="chart-data" type="line" ref="linechart" options="{{lineOps}}" datasets="{{lineData}}"></chart>
  </stack>
  <button value="Add data" onclick="addData"></button>
</div>

/* xxx.css */
.container {
  flex-direction: column;
  justify-content: center;
  align-items: center;
  background-color: #F1F3F5;
}
.chart-region {
  height: 400px;
  width: 700px;
}
.chart-data {
  width: 700px;
  height: 600px;
}
button {
  width: 100%;
  height: 50px;
  background-color: #F4F2F1;
  text-color: #0C81F3;
  margin-top: 30px;
}

// xxx.js
export default {
  data: {
    lineData: [
      {
        strokeColor: '#de0b6e',
        fillColor: '#bb09a3',
        data: [763, 550, 551, 554, 731, 654, 525, 696, 595, 628, 791, 505, 613, 575, 475, 553, 491, 680, 657, 716],
        gradient: true,
      }
    ],
    lineOps: {
      xAxis: {
      min: 0,
      max: 20,
      display: false,
      },
      yAxis: {
        min: 0,
        max: 1000,
        display: false,
      },
      series: {
        lineStyle: {
          width: "5px",
          smooth: true,
        },
        headPoint: {
          shape: "circle",
          size: 20,
          strokeWidth: 5,
          fillColor: '#ffffff',
          strokeColor: '#f8145c',
          display: true,
        },
        loop: {
          margin: 2,
          gradient: true,
        }
      }
    },
  },
  addData() {
    this.$refs.linechart.append({
    serial: 0,
      data: [Math.floor(Math.random() * 400) + 200]
    })
  }
}

zh-cn_image_0000001221913395

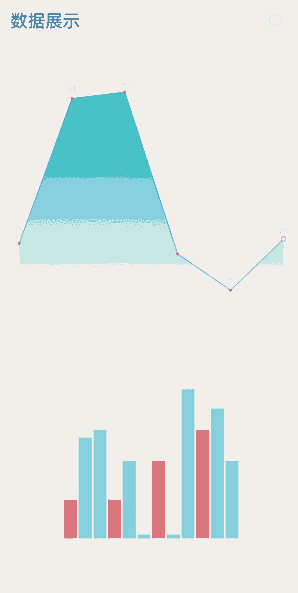

场景示例

开发者可以根据开关Switch的状态来选择数据展示的状态，当Switch状态为true时，通过定时器来实现数据的动态展示。

<!-- xxx.hml -->
<div class="container">
  <div class="container">
    <div class="switch-block">
      <text class="title">{{ title }} </text>
      <switch class="switch" showtext="{{ showText }}" allow-scale="{{ allowScale }}"onchange="change">
      </switch>
    </div>
    <tabs class="tabs" index="0" vertical="false" onchange="changes">
      <tab-content class="tabcontent" scrollable="true">
        <div>
          <tabs class="tabs" index="0" vertical="false" onchange="changes">
            <tab-content class="tabcontent" scrollable="true">
              <div class="line-class">
                <div class="bar-block">
                  <chart class="chart-data" type="line" ref="linechart" options="{{ lineOps }}"
                  datasets="{{ lineData }}">
                  </chart>
                </div>
                <div class="bar-block">
                  <chart class="data-bar" type="bar" id="bar-chart" options="{{ barOps }}"datasets="{{ barData }}">
                  </chart>
                </div>
             </div>
           </tab-content>
         </tabs>
       </div>
       <div>
         <div class="container">
           <list class="todo-wrapper">
             <list-item for="{{ barData }}" class="todo-item">
               <text class="todo-title">{{ $item.data }}</text>
             </list-item>
           </list>
           <list class="todo-wrapper">
             <list-item for="{{ lineData.data }}" class="todo-item">
               <text class="todo-title">{{ $item.value }}</text>
             </list-item>
           </list>
         </div>
       </div>
      </tab-content>
    </tabs>
  </div>
</div>

/* xxx.css */
.container{
  display:flex;
  flex-direction:column;
  background-color: #F1F3F5;
}
.line-class{
  display: flex;
  flex-direction: column;
}
.title{
  font-size: 40px;
  margin-left: 40px;
}
.switch-block {
  margin-top: 30px;
  width: 98%;
  height: 80px;
  display: flex;
  justify-content: space-between;
}
.switch{
  font-size: 40px;
}
.bar-block {
  margin-top: 80px;
  margin-left: 40px;
  position: relative;
  width: 90%;
  border-radius: 10px;
  background-color: #25FAB27B;
  height: 40%;
  justify-content: center;
}

// xxx.js
export default {
  data: {
    interval: null,
    title: "数据展示",
    allowScale: true,
    dataLength: 30,
    barGroup: 3,
    lineData: null,
    lineOps: {
      xAxis: {
        min: 0,
        max: 5
      },
      yAxis: {
        min: 0,
        max: 100
      },
      series: {
        lineStyle: {
        width: '1px',
      },
        headPoint: {
          shape: 'circle',
          size: 10,
          strokeWidth: 2,
          fillColor: '#ffffff',
          strokeColor: '#8477DF'
        },
        loop: {
          margin: 2
        }
      }
    },
    barData: [
      {
        fillColor: '#97CF0A2C',
        data: [20, 20,40, 56]
      },
      {
        fillColor: '#6D0A7ACF',
        data: [52, 40, 2, 67]
      },
      {
        fillColor: '#6A0ACFA1',
        data: [56, 2, 77, 40]
      }
    ],
    barOps: {
      xAxis: {
        min: 0,
        max: 20,
        axisTick: 5
      },
      yAxis: {
        min: 0,
        max: 100
      }
    }
  },
  onInit() {
    this.changeLine();
  },
  change(e) {
    if (e.checked) {
      this.interval = setInterval(() => {
        this.changeLine();
        this.changeBar();
      }, 1000)
    } else {
      clearInterval(this.interval);
    }
  },
  changeLine() {
    var dataArray = [];
    for (var i = 0; i < this.dataLength; i++) {
      var nowValue = Math.floor(Math.random() * 99 + 1);
      var obj = {
        "value": nowValue,
        "description": nowValue + "",
        "textLocation": "top",
        "textColor": "#CDCACA",
        "pointStyle": {
          "shape": "circle",
          "size": 5,
          "fillColor": "#CF0A2C",
          "strokeColor": "#CF0A2C"
        }
      };
      dataArray.push(obj);
    }
    this.lineData = [
      {
        strokeColor: '#0081ff',
        fillColor: '#FF07CDC4',
        data: dataArray,
        gradient: true,
      }
    ]
  },
  changeBar() {
    for (var i = 0;i < this.barGroup; i++) {
      var dataArray = this.barData[i].data;
      for (var j = 0;j < 4; j++) {
        dataArray[j] = Math.floor(Math.random() * 99 + 1);
      }
    }
    this.barData = this.barData.splice(0, this.barGroup + 1);
  },
  changes(e) {
    console.log("Tab index: " + e.index);
  },
}

zh-cn_image_0000001179018876

相关实例

针对chart开发，有以下相关实例可供参考：
