Photo Capture Practices (C/C++)

Before developing a camera application, request permissions by following the instructions provided in Requesting Camera Development Permissions.

This topic provides sample code that covers the complete photo capture process and the API calling sequence. For details about a single process (such as device input, session management, and photo capture), see the corresponding C/C++ development guide links provided in Requesting Camera Development Permissions.

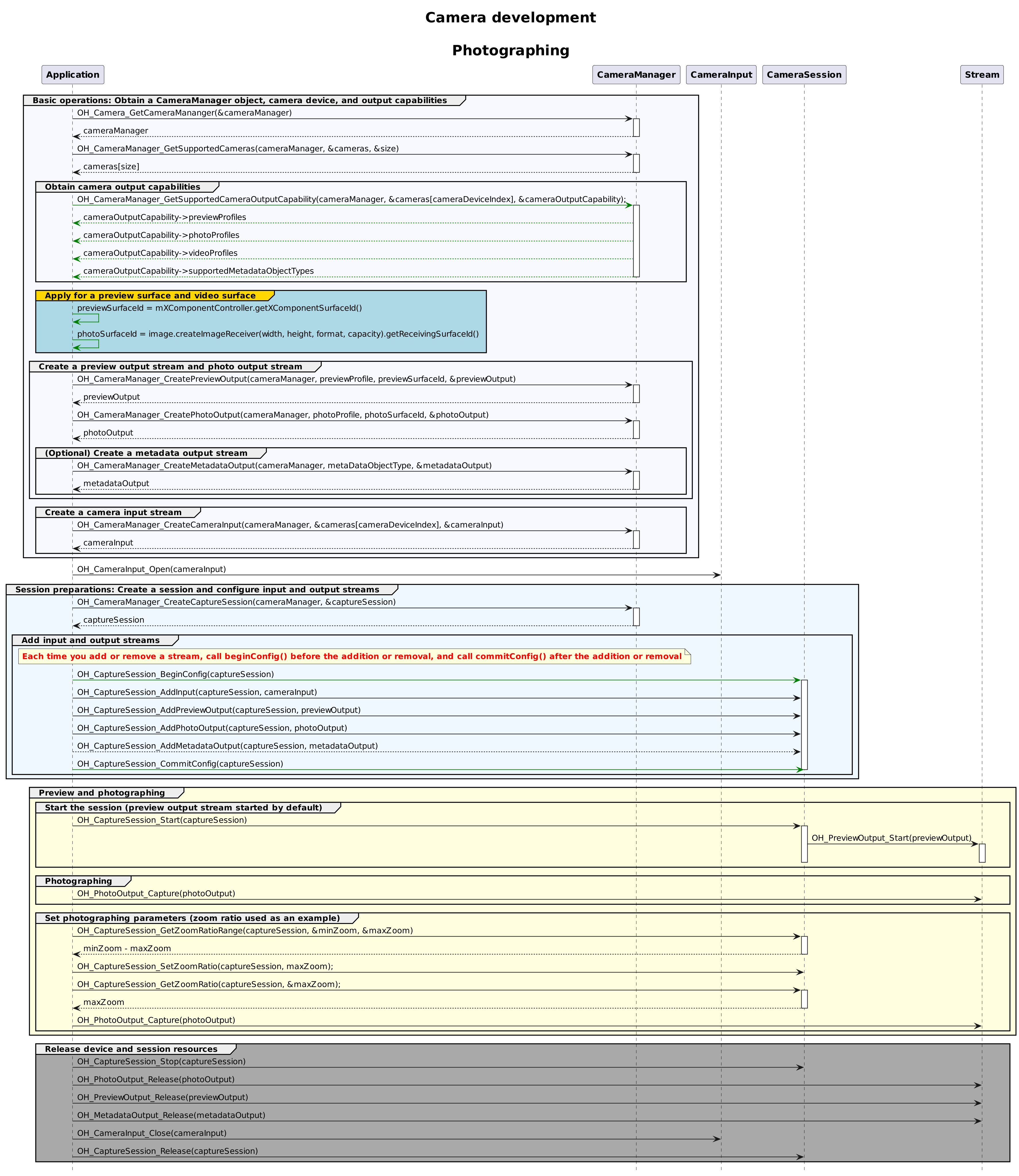

Development Process

After obtaining the output stream capabilities supported by the camera, create a photo stream. The development process is as follows:

Sample Code

1. Link the dynamic library in the CMake script. txt target_link_libraries(entry PUBLIC libace_napi.z.so libhilog_ndk.z.so libnative_buffer.so libohcamera.so libohimage.so libohfileuri.so )
2. Create the header file ndk_camera.h. “`c++ #include “ohcamera/camera.h” #include “ohcamera/camera_input.h” #include “ohcamera/capture_session.h” #include “ohcamera/photo_output.h” #include “ohcamera/preview_output.h” #include “ohcamera/video_output.h” #include “ohcamera/camera_manager.h”

class NDKCamera { public: ~NDKCamera(); NDKCamera(char* previewId); Camera_ErrorCode RegisterBufferCb(void* cb); }; “`

1. Import the NDK APIs on the C++ side, and perform photo capture based on the surface ID passed in.

   #include "hilog/log.h"
   #include "ndk_camera.h"


   void CaptureSessionOnFocusStateChange(Camera_CaptureSession* session, Camera_FocusState focusState)
   {
       OH_LOG_INFO(LOG_APP, "CaptureSessionOnFocusStateChange");
   }


   void CaptureSessionOnError(Camera_CaptureSession* session, Camera_ErrorCode errorCode)
   {
       OH_LOG_INFO(LOG_APP, "CaptureSessionOnError = %{public}d", errorCode);
   }


   CaptureSession_Callbacks* GetCaptureSessionRegister(void)
   {
       static CaptureSession_Callbacks captureSessionCallbacks = {
           .onFocusStateChange = CaptureSessionOnFocusStateChange,
           .onError = CaptureSessionOnError
       };
       return &captureSessionCallbacks;
   }


   void PreviewOutputOnFrameStart(Camera_PreviewOutput* previewOutput)
   {
       OH_LOG_INFO(LOG_APP, "PreviewOutputOnFrameStart");
   }


   void PreviewOutputOnFrameEnd(Camera_PreviewOutput* previewOutput, int32_t frameCount)
   {
       OH_LOG_INFO(LOG_APP, "PreviewOutputOnFrameEnd = %{public}d", frameCount);
   }


   void PreviewOutputOnError(Camera_PreviewOutput* previewOutput, Camera_ErrorCode errorCode)
   {
       OH_LOG_INFO(LOG_APP, "PreviewOutputOnError = %{public}d", errorCode);
   }


   PreviewOutput_Callbacks* GetPreviewOutputListener(void)
   {
       static PreviewOutput_Callbacks previewOutputListener = {
           .onFrameStart = PreviewOutputOnFrameStart,
           .onFrameEnd = PreviewOutputOnFrameEnd,
           .onError = PreviewOutputOnError
       };
       return &previewOutputListener;
   }


   void OnCameraInputError(const Camera_Input* cameraInput, Camera_ErrorCode errorCode)
   {
       OH_LOG_INFO(LOG_APP, "OnCameraInput errorCode = %{public}d", errorCode);
   }


   CameraInput_Callbacks* GetCameraInputListener(void)
   {
       static CameraInput_Callbacks cameraInputCallbacks = {
           .onError = OnCameraInputError
       };
       return &cameraInputCallbacks;
   }


   void CameraManagerStatusCallback(Camera_Manager* cameraManager, Camera_StatusInfo* status)
   {
       OH_LOG_INFO(LOG_APP, "CameraManagerStatusCallback is called");
   }


   CameraManager_Callbacks* GetCameraManagerListener()
   {
       static CameraManager_Callbacks cameraManagerListener = {
           .onCameraStatus = CameraManagerStatusCallback
       };
       return &cameraManagerListener;
   }


   static void* bufferCb = nullptr;
   Camera_ErrorCode NDKCamera::RegisterBufferCb(void* cb) {
       OH_LOG_INFO(LOG_APP, " RegisterBufferCb start");
       if (cb == nullptr) {
           OH_LOG_INFO(LOG_APP, " RegisterBufferCb invalid error");
           return CAMERA_INVALID_ARGUMENT;
       }
       bufferCb = cb;


       return CAMERA_OK;
   }
   void OnPhotoAvailable(Camera_PhotoOutput* photoOutput, OH_PhotoNative* photo) {
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable start!");
       OH_ImageNative* imageNative;
       Camera_ErrorCode errCode = OH_PhotoNative_GetMainImage(photo, &imageNative);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable errCode:%{public}d imageNative:%{public}p", errCode, imageNative);
       // Read the size attribute of OH_ImageNative.
       Image_Size size;
       Image_ErrorCode imageErr = OH_ImageNative_GetImageSize(imageNative, &size);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable imageErr:%{public}d width:%{public}d height:%{public}d", imageErr,
           size.width, size.height);
       // Read the number of elements in the component list of OH_ImageNative.
       size_t componentTypeSize = 0;
       imageErr = OH_ImageNative_GetComponentTypes(imageNative, nullptr, &componentTypeSize);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable imageErr:%{public}d componentTypeSize:%{public}zu", imageErr,
           componentTypeSize);
       // Read the component list of OH_ImageNative.
       uint32_t* components = new uint32_t[componentTypeSize];
       imageErr = OH_ImageNative_GetComponentTypes(imageNative, &components, &componentTypeSize);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable OH_ImageNative_GetComponentTypes imageErr:%{public}d", imageErr);
       // Read the buffer object corresponding to the first component of OH_ImageNative.
       OH_NativeBuffer* nativeBuffer = nullptr;
       imageErr = OH_ImageNative_GetByteBuffer(imageNative, components[0], &nativeBuffer);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable OH_ImageNative_GetByteBuffer imageErr:%{public}d", imageErr);
       // Read the size of the buffer corresponding to the first component of OH_ImageNative.
       size_t nativeBufferSize = 0;
       imageErr = OH_ImageNative_GetBufferSize(imageNative, components[0], &nativeBufferSize);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable imageErr:%{public}d nativeBufferSize:%{public}zu", imageErr,
            nativeBufferSize);
       // Read the row stride corresponding to the first component of OH_ImageNative.
       int32_t rowStride = 0;
       imageErr = OH_ImageNative_GetRowStride(imageNative, components[0], &rowStride);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable imageErr:%{public}d rowStride:%{public}d", imageErr, rowStride);
       // Read the pixel stride corresponding to the first component of OH_ImageNative.
       int32_t pixelStride = 0;
       imageErr = OH_ImageNative_GetPixelStride(imageNative, components[0], &pixelStride);
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable imageErr:%{public}d pixelStride:%{public}d", imageErr, pixelStride);
       // Map the ION memory to the process address space.
       void* virAddr = nullptr; // Point to the virtual address of the mapped memory. After unmapping, the pointer is invalid.
       int32_t ret = OH_NativeBuffer_Map(nativeBuffer, &virAddr); // After mapping, the start address of the memory is returned through the parameter virAddr.
       OH_LOG_INFO(LOG_APP, "OnPhotoAvailable OH_NativeBuffer_Map err:%{public}d", ret);
       // Pass the processed buffer to the ArkTS side through the callback for image display or storage (using a security component). For details, see Photo Capture (C/C++).
       auto cb = (void (*)(void *, size_t))(bufferCb);
       cb(virAddr, nativeBufferSize);
       // After the processing is complete, unmap and release the buffer.
       ret = OH_NativeBuffer_Unmap(nativeBuffer);
       if (ret != 0) {
           OH_LOG_ERROR(LOG_APP, "OnPhotoAvailable OH_NativeBuffer_Unmap error:%{public}d", ret);
       }
   }


   NDKCamera::NDKCamera(char* previewId)
   {
       Camera_Manager* cameraManager = nullptr;
       Camera_Device* cameras = nullptr;
       Camera_CaptureSession* captureSession = nullptr;
       Camera_OutputCapability* cameraOutputCapability = nullptr;
       const Camera_Profile* previewProfile = nullptr;
       const Camera_Profile* photoProfile = nullptr;
       Camera_PreviewOutput* previewOutput = nullptr;
       Camera_PhotoOutput* photoOutput = nullptr;
       Camera_Input* cameraInput = nullptr;
       uint32_t size = 0;
       uint32_t cameraDeviceIndex = 0;
       char* previewSurfaceId = previewId;
       // Create a CameraManager object.
       Camera_ErrorCode ret = OH_Camera_GetCameraManager(&cameraManager);
       if (cameraManager == nullptr||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_Camera_GetCameraMananger failed.");
           return;
       }
       // Listen for camera status changes.
       ret = OH_CameraManager_RegisterCallback(cameraManager, GetCameraManagerListener());
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_RegisterCallback failed.");
       }


       // Obtain the camera list.
       ret = OH_CameraManager_GetSupportedCameras(cameraManager, &cameras, &size);
       if (cameras == nullptr||size < 0||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_GetSupportedCameras failed.");
           return;
       }


       // Create a camera input stream.
       ret = OH_CameraManager_CreateCameraInput(cameraManager, &cameras[cameraDeviceIndex], &cameraInput);
       if (cameraInput == nullptr||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_CreateCameraInput failed.");
           return;
       }


       // Listen for camera input errors.
       ret = OH_CameraInput_RegisterCallback(cameraInput, GetCameraInputListener());
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraInput_RegisterCallback failed.");
           return;
       }


       // Open the camera.
       ret = OH_CameraInput_Open(cameraInput);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraInput_Open failed.");
           return;
       }


       // Obtain the output stream capability supported by the camera.
       ret = OH_CameraManager_GetSupportedCameraOutputCapability(cameraManager, &cameras[cameraDeviceIndex],
                                                                 &cameraOutputCapability);
       if (cameraOutputCapability == nullptr||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_GetSupportedCameraOutputCapability failed.");
           return;
       }


       if (cameraOutputCapability->previewProfiles == nullptr) {
           OH_LOG_ERROR(LOG_APP, "previewProfiles == null");
           return;
       }
       // Select an appropriate preview resolution from previewProfiles of cameraOutputCapability.
       previewProfile = cameraOutputCapability->previewProfiles[0];


       if (cameraOutputCapability->photoProfiles == nullptr) {
           OH_LOG_ERROR(LOG_APP, "photoProfiles == null");
           return;
       }
       // Select an appropriate photo resolution from photoProfiles of cameraOutputCapability.
       photoProfile = cameraOutputCapability->photoProfiles[0];


       // Create a preview output stream, with the previewSurfaceId parameter set to the ID of the surface provided by the XComponent.
       ret = OH_CameraManager_CreatePreviewOutput(cameraManager, previewProfile, previewSurfaceId, &previewOutput);
       if (previewProfile == nullptr||previewOutput == nullptr||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_CreatePreviewOutput failed.");
           return;
       }


       // Listen for preview output errors.
       ret = OH_PreviewOutput_RegisterCallback(previewOutput, GetPreviewOutputListener());
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_PreviewOutput_RegisterCallback failed.");
       }


       // Create a photo output stream.
       ret = OH_CameraManager_CreatePhotoOutputWithoutSurface(cameraManager, photoProfile, &photoOutput);


       // Listen for the one-time photo capture callback.
       ret = OH_PhotoOutput_RegisterPhotoAvailableCallback(photoOutput, OnPhotoAvailable);


       // Create a session.
       ret = OH_CameraManager_CreateCaptureSession(cameraManager, &captureSession);
       if (captureSession == nullptr||ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_CreateCaptureSession failed.");
           return;
       }


       // Listen for session errors.
       ret = OH_CaptureSession_RegisterCallback(captureSession, GetCaptureSessionRegister());
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_RegisterCallback failed.");
       }


       // Start configuration for the session.
       ret = OH_CaptureSession_BeginConfig(captureSession);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_BeginConfig failed.");
           return;
       }


       // Add the camera input stream to the session.
       ret = OH_CaptureSession_AddInput(captureSession, cameraInput);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_AddInput failed.");
           return;
       }


       // Add the preview output stream to the session.
       ret = OH_CaptureSession_AddPreviewOutput(captureSession, previewOutput);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_AddPreviewOutput failed.");
           return;
       }


       // Add the photo output stream to the session.
       ret = OH_CaptureSession_AddPhotoOutput(captureSession, photoOutput);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_AddPhotoOutput failed.");
           return;
       }


       // Commit the session configuration.
       ret = OH_CaptureSession_CommitConfig(captureSession);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_CommitConfig failed.");
           return;
       }


       // Start the session.
       ret = OH_CaptureSession_Start(captureSession);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_Start failed.");
           return;
       }


       // Check whether the camera has flash.
       Camera_FlashMode flashMode = FLASH_MODE_AUTO;
       bool hasFlash = false;
       ret = OH_CaptureSession_HasFlash(captureSession, &hasFlash);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_HasFlash failed.");
       }
       if (hasFlash) {
           OH_LOG_INFO(LOG_APP, "hasFlash success");
       } else {
           OH_LOG_ERROR(LOG_APP, "hasFlash fail");
       }


       // Check whether a flash mode is supported.
       bool isSupported = false;
       ret = OH_CaptureSession_IsFlashModeSupported(captureSession, flashMode, &isSupported);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_IsFlashModeSupported failed.");
       }
       if (isSupported) {
           OH_LOG_INFO(LOG_APP, "isFlashModeSupported success");


           // Set the flash mode.
           ret = OH_CaptureSession_SetFlashMode(captureSession, flashMode);
           if (ret == CAMERA_OK) {
               OH_LOG_INFO(LOG_APP, "OH_CaptureSession_SetFlashMode success.");
           } else {
               OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_SetFlashMode failed. %{public}d ", ret);
           }


           // Obtain the flash mode in use.
           ret = OH_CaptureSession_GetFlashMode(captureSession, &flashMode);
           if (ret == CAMERA_OK) {
               OH_LOG_INFO(LOG_APP, "OH_CaptureSession_GetFlashMode success. flashMode: %{public}d ", flashMode);
           } else {
               OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_GetFlashMode failed. %d ", ret);
           }
       } else {
           OH_LOG_ERROR(LOG_APP, "isFlashModeSupported fail");
       }


       // Check whether the continuous auto focus is supported.
       Camera_FocusMode focusMode = FOCUS_MODE_CONTINUOUS_AUTO;
       bool isFocusModeSupported = false;
       ret = OH_CaptureSession_IsFocusModeSupported(captureSession, focusMode, &isFocusModeSupported);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_IsFocusModeSupported failed.");
       }
       if (isFocusModeSupported) {
           OH_LOG_INFO(LOG_APP, "isFocusModeSupported success");
           ret = OH_CaptureSession_SetFocusMode(captureSession, focusMode);
           if (ret != CAMERA_OK) {
               OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_SetFocusMode failed. %{public}d ", ret);
           }
           ret = OH_CaptureSession_GetFocusMode(captureSession, &focusMode);
           if (ret == CAMERA_OK) {
               OH_LOG_INFO(LOG_APP, "OH_CaptureSession_GetFocusMode success. focusMode%{public}d ", focusMode);
           } else {
               OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_GetFocusMode failed. %d ", ret);
           }
       } else {
           OH_LOG_ERROR(LOG_APP, "isFocusModeSupported fail");
       }


       // Obtain the zoom ratio range supported by the camera.
       float minZoom;
       float maxZoom;
       ret = OH_CaptureSession_GetZoomRatioRange(captureSession, &minZoom, &maxZoom);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_GetZoomRatioRange failed.");
       } else {
           OH_LOG_INFO(LOG_APP, "OH_CaptureSession_GetZoomRatioRange success. minZoom: %{public}f, maxZoom:%{public}f",
               minZoom, maxZoom);
       }


       // Set a zoom ratio.
       ret = OH_CaptureSession_SetZoomRatio(captureSession, maxZoom);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_CaptureSession_SetZoomRatio success.");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_SetZoomRatio failed. %{public}d ", ret);
       }


       // Obtain the zoom ratio of the camera.
       ret = OH_CaptureSession_GetZoomRatio(captureSession, &maxZoom);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_CaptureSession_GetZoomRatio success. zoom: %{public}f ", maxZoom);
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_GetZoomRatio failed. %{public}d ", ret);
       }


       // Take photos without photo capture settings.
       ret = OH_PhotoOutput_Capture(photoOutput);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_PhotoOutput_Capture success ");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_PhotoOutput_Capture failed. %d ", ret);
       }


       // Stop the session.
       ret = OH_CaptureSession_Stop(captureSession);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_CaptureSession_Stop success ");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_Stop failed. %d ", ret);
       }


       // Release the camera input stream.
       ret = OH_CameraInput_Close(cameraInput);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_CameraInput_Close success ");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CameraInput_Close failed. %d ", ret);
       }


       // Release the preview output stream.
       ret = OH_PreviewOutput_Release(previewOutput);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_PreviewOutput_Release success ");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_PreviewOutput_Release failed. %d ", ret);
       }


       // Release the photo output stream.
       ret = OH_PhotoOutput_Release(photoOutput);
       if (ret == CAMERA_OK) {
         OH_LOG_INFO(LOG_APP, "OH_PhotoOutput_Release success ");
       } else {
         OH_LOG_ERROR(LOG_APP, "OH_PhotoOutput_Release failed. %d ", ret);
       }


       // Release the session.
       ret = OH_CaptureSession_Release(captureSession);
       if (ret == CAMERA_OK) {
           OH_LOG_INFO(LOG_APP, "OH_CaptureSession_Release success ");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CaptureSession_Release failed. %d ", ret);
       }


       // Release the resources.
       ret = OH_CameraManager_DeleteSupportedCameras(cameraManager, cameras, size);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "Delete Cameras failed.");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_DeleteSupportedCameras. ok");
       }
       ret = OH_CameraManager_DeleteSupportedCameraOutputCapability(cameraManager, cameraOutputCapability);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "Delete Cameras failed.");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_CameraManager_DeleteSupportedCameraOutputCapability. ok");
       }
       ret = OH_Camera_DeleteCameraManager(cameraManager);
       if (ret != CAMERA_OK) {
           OH_LOG_ERROR(LOG_APP, "Delete Cameras failed.");
       } else {
           OH_LOG_ERROR(LOG_APP, "OH_Camera_DeleteCameraManager. ok");
       }
   }


你可能感兴趣的鸿蒙文章

harmony 鸿蒙Camera Kit

harmony 鸿蒙Basic Camera Animation (ArkTS)

harmony 鸿蒙Practices for Camera Recovery from the Background (ArkTS)

harmony 鸿蒙Deferred Photo Delivery Practices (ArkTS)

harmony 鸿蒙Deferred Photo Delivery (ArkTS)

harmony 鸿蒙Practices for High-Performance Photo Capture (for System Applications Only) (ArkTS)

harmony 鸿蒙High-Performance Photo Capture (for System Applications Only) (ArkTS)

harmony 鸿蒙Depth Data (for System Applications Only) (ArkTS)

harmony 鸿蒙Device Input Management (ArkTS)

harmony 鸿蒙Camera Device Management (ArkTS)
