自定义渲染 (XComponent)
概述
XComponent组件作为一种渲染组件，可用于EGL/OpenGLES和媒体数据写入，通过使用XComponent持有的“NativeWindow”来渲染画面，通常用于满足开发者较为复杂的自定义渲染需求，例如相机预览流的显示和游戏画面的渲染。其可通过指定type字段来实现不同的渲染方式，分别为XComponentType.SURFACE和XComponentType.TEXTURE。对于SURFACE类型，开发者将定制的绘制内容单独展示到屏幕上。对于TEXTURE类型，开发者将定制的绘制内容和XComponent组件的内容合成后展示到屏幕上。
目前XComponent组件主要有三个应用场景： 1. 使用XComponentController管理Surface生命周期场景，该场景在ArkTS侧获取SurfaceId，生命周期回调、触摸、鼠标、按键等事件回调等均在ArkTS侧触发； 2. 使用OH_ArkUI_SurfaceHolder管理Surface生命周期场景，该场景根据XComponent组件对应的ArkUI_NodeHandle中创建OH_ArkUI_SurfaceHolder，生命周期回调、触摸等事件回调、无障碍和可变帧率回调等均在Native侧触发。 3. 使用NativeXComponent管理Surface生命周期场景，该场景在native层获取Native XComponent实例，在Native侧注册XComponent的生命周期回调，以及触摸、鼠标、按键等事件回调。
自绘制原理说明
XComponent持有一个Surface，开发者能通过调用NativeWindow等接口，申请并提交Buffer至图形队列，以此方式将自绘制内容传送至该Surface。XComponent负责将此Surface整合进UI界面，其中展示的内容正是开发者传送的自绘制内容。Surface的默认位置与大小与XComponent组件一致，开发者可利用setXComponentSurfaceRect接口自定义调整Surface的位置和大小。
说明：
当开发者传输的绘制内容包含透明元素时，Surface区域的显示效果会与下方内容进行合成展示。例如，若传输的内容完全透明，且XComponent的背景色被设置为黑色，同时Surface保持默认的大小与位置，则最终显示的将是一片黑色区域。
使用XComponentController管理Surface生命周期
本场景通过在ArkTS侧获取SurfaceId，布局信息、生命周期回调、触摸、鼠标、按键等事件回调等均在ArkTS侧触发，按需传递到Native侧进行处理。主要开发场景如下： - 基于ArkTS侧获取的SurfaceId，在Native侧调用OH_NativeWindow_CreateNativeWindowFromSurfaceId接口创建出NativeWindow实例。 - 利用NativeWindow和EGL接口开发自定义绘制内容以及申请和提交Buffer到图形队列。 - ArkTS侧获取生命周期、事件等信息传递到Native侧处理。
说明：
Native侧的NativeWindow缓存在字典中，其key需要保证其唯一性，当对应的XComponent销毁后，需要及时从字典里将其删除。
对于使用typeNode创建的SURFACE或TEXTURE类型的XComponent组件，由于typeNode组件的生命周期与声明式组件存在差异，组件在创建后的缓冲区尺寸为未设置状态，因此在开始绘制内容之前，应调用OH_NativeWindow_NativeWindowHandleOpt接口进行缓冲区尺寸设置。
多个XComponent开发时，缓存Native侧资源需要保证key是唯一的，key推荐使用id+随机数或者surfaceId。
生命周期：
- OnSurfaceCreated回调
触发时刻：XComponent准备好Surface后触发。

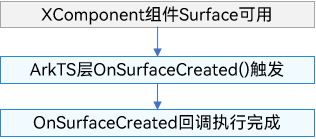

ArkTS侧OnSurfaceCreated的时序如下图：
- OnSurfaceChanged回调
触发时刻：Surface大小变化触发重新布局之后触发。

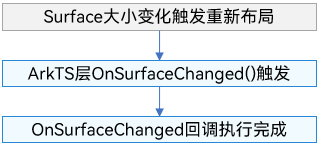

ArkTS侧OnSurfaceChanged的时序如下图：
- OnSurfaceDestroyed回调
触发时刻：XComponent组件被销毁时触发，与一般ArkUI的组件销毁时机一致。

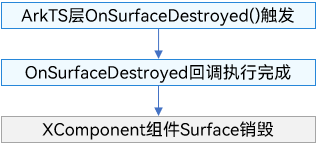

ArkTS侧OnSurfaceDestroyed的时序图：
接口说明
ArkTS侧的XComponentController
| 接口名 | 描述 |
|---|---|
| getXComponentSurfaceId(): string | 获取XComponent对应Surface的ID。 |
| onSurfaceCreated(surfaceId: string): void | 当XComponent持有的Surface创建后进行该回调。 |
| onSurfaceChanged(surfaceId: string, rect: SurfaceRect): void | 当XComponent持有的Surface大小改变后（包括首次创建时的大小改变）进行该回调。 |
| onSurfaceDestroyed(surfaceId: string): void | 当XComponent持有的Surface销毁后进行该回调。 |
Native侧
| 接口名 | 描述 |
|---|---|
| int32_t OH_NativeWindow_CreateNativeWindowFromSurfaceId (uint64_t surfaceId, OHNativeWindow **window ) | 通过surfaceId创建对应的OHNativeWindow。 |
| void OH_NativeWindow_DestroyNativeWindow (OHNativeWindow* window) | 将OHNativeWindow对象的引用计数减1，当引用计数为0的时候，该OHNativeWindow对象会被析构掉。 |
开发步骤
以下步骤以SURFACE类型为例，描述了如何使用XComponent组件在ArkTS侧传入SurfaceId，在Native侧创建NativeWindow实例，然后创建EGL/GLES环境，实现在主页面绘制图形，并可以改变图形的颜色。
在界面中定义XComponent。
// 函数声明，在cpp/types/libnativerender/Index.d.ts中定义 type XComponentContextStatus = { hasDraw: boolean, hasChangeColor: boolean, }; export const SetSurfaceId: (id: BigInt) => any; export const ChangeSurface: (id: BigInt, w: number, h: number) =>any; export const DrawPattern: (id: BigInt) => any; export const GetXComponentStatus: (id: BigInt) => XComponentContextStatus export const ChangeColor: (id: BigInt) => any; export const DestroySurface: (id: BigInt) => any;import nativeRender from 'libnativerender.so'; // 重写XComponentController，设置生命周期回调 class MyXComponentController extends XComponentController { onSurfaceCreated(surfaceId: string): void { console.log(`onSurfaceCreated surfaceId: ${surfaceId}`) nativeRender.SetSurfaceId(BigInt(surfaceId)); } onSurfaceChanged(surfaceId: string, rect: SurfaceRect): void { console.log(`onSurfaceChanged surfaceId: ${surfaceId}, rect: ${JSON.stringify(rect)}}`) // 在onSurfaceChanged中调用ChangeSurface绘制内容 nativeRender.ChangeSurface(BigInt(surfaceId), rect.surfaceWidth, rect.surfaceHeight) } onSurfaceDestroyed(surfaceId: string): void { console.log(`onSurfaceDestroyed surfaceId: ${surfaceId}`) nativeRender.DestroySurface(BigInt(surfaceId)) } } @Entry @Component struct Index { @State currentStatus: string = "index"; xComponentController: XComponentController = new MyXComponentController(); build() { Column() { //... //在xxx.ets 中定义 XComponent Column({ space: 10 }) { XComponent({ type: XComponentType.SURFACE, controller: this.xComponentController }) Text(this.currentStatus) .fontSize('24fp') .fontWeight(500) } .onClick(() => { let surfaceId = this.xComponentController.getXComponentSurfaceId() nativeRender.ChangeColor(BigInt(surfaceId)) let hasChangeColor: boolean = false; if (nativeRender.GetXComponentStatus(BigInt(surfaceId))) { hasChangeColor = nativeRender.GetXComponentStatus(BigInt(surfaceId)).hasChangeColor; } if (hasChangeColor) { this.currentStatus = "change color"; } }) //... Row() { Button('Draw Star') .fontSize('16fp') .fontWeight(500) .margin({ bottom: 24 }) .onClick(() => { let surfaceId = this.xComponentController.getXComponentSurfaceId() nativeRender.DrawPattern(BigInt(surfaceId)) let hasDraw: boolean = false; if (nativeRender.GetXComponentStatus(BigInt(surfaceId))) { hasDraw = nativeRender.GetXComponentStatus(BigInt(surfaceId)).hasDraw; } if (hasDraw) { this.currentStatus = "draw star" } }) .width('53.6%') .height(40) } .width('100%') .justifyContent(FlexAlign.Center) .alignItems(VerticalAlign.Bottom) .layoutWeight(1) } .width('100%') .height('100%') } }Node-API模块注册，具体使用请参考Node-API开发规范。
#include <hilog/log.h> #include "common/common.h" #include "manager/plugin_manager.h" namespace NativeXComponentSample { // 在napi_init.cpp文件中，Init方法注册接口函数，从而将封装的C++方法传递出来，供ArkTS侧调用 EXTERN_C_START static napi_value Init(napi_env env, napi_value exports) { // ... // 向ArkTS侧暴露接口SetSurfaceId(),ChangeSurface(),DestroySurface(), // DrawPattern(),ChangeColor(),GetXComponentStatus() napi_property_descriptor desc[] = { {"SetSurfaceId", nullptr, PluginManager::SetSurfaceId, nullptr, nullptr, nullptr, napi_default, nullptr}, {"ChangeSurface", nullptr, PluginManager::ChangeSurface, nullptr, nullptr, nullptr, napi_default, nullptr}, {"DestroySurface", nullptr, PluginManager::DestroySurface, nullptr, nullptr, nullptr, napi_default, nullptr}, {"DrawPattern", nullptr, PluginManager::DrawPattern, nullptr, nullptr, nullptr, napi_default, nullptr}, {"ChangeColor", nullptr, PluginManager::ChangeColor, nullptr, nullptr, nullptr, napi_default, nullptr}, {"GetXComponentStatus", nullptr, PluginManager::GetXComponentStatus, nullptr, nullptr, nullptr, napi_default, nullptr}}; if (napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc) != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "Init", "napi_define_properties failed"); return nullptr; } return exports; } EXTERN_C_END // 编写接口的描述信息，根据实际需要可以修改对应参数 static napi_module nativerenderModule = {.nm_version = 1, .nm_flags = 0, .nm_filename = nullptr, // 入口函数 .nm_register_func = Init, // 模块名称 .nm_modname = "nativerender", .nm_priv = ((void *)0), .reserved = {0}}; } // namespace NativeXComponentSample // __attribute__((constructor))修饰的方法由系统自动调用，使用Node-API接口napi_module_register()传入模块描述信息进行模块注册 extern "C" __attribute__((constructor)) void RegisterModule(void) { napi_module_register(&NativeXComponentSample::nativerenderModule); }上述注册的六个函数在Native侧具体实现。
// PluginManager类定义 class PluginManager { public: ~PluginManager(); static PluginRender *GetPluginRender(int64_t &id); static napi_value ChangeColor(napi_env env, napi_callback_info info); static napi_value DrawPattern(napi_env env, napi_callback_info info); static napi_value SetSurfaceId(napi_env env, napi_callback_info info); static napi_value ChangeSurface(napi_env env, napi_callback_info info); static napi_value DestroySurface(napi_env env, napi_callback_info info); static napi_value GetXComponentStatus(napi_env env, napi_callback_info info); public: static std::unordered_map<int64_t, PluginRender *> pluginRenderMap_; static std::unordered_map<int64_t, OHNativeWindow *> windowMap_; }; // 解析从ArkTS侧传入的surfaceId，此处surfaceId是一个64位int值 int64_t ParseId(napi_env env, napi_callback_info info) { if ((env == nullptr)||(info == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "env or info is null"); return -1; } size_t argc = 1; napi_value args[1] = {nullptr}; if (napi_ok != napi_get_cb_info(env, info, &argc, args, nullptr, nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "GetContext napi_get_cb_info failed"); return -1; } int64_t value = 0; bool lossless = true; if (napi_ok != napi_get_value_bigint_int64(env, args[0], &value, &lossless)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ParseId", "Get value failed"); return -1; } return value; } // 设置SurfaceId，基于SurfaceId完成对NativeWindow的初始化 napi_value PluginManager::SetSurfaceId(napi_env env, napi_callback_info info) { int64_t surfaceId = ParseId(env, info); OHNativeWindow *nativeWindow; PluginRender *pluginRender; if (windowMap_.find(surfaceId) == windowMap_.end()) { OH_NativeWindow_CreateNativeWindowFromSurfaceId(surfaceId, &nativeWindow); windowMap_[surfaceId] = nativeWindow; } if (pluginRenderMap_.find(surfaceId) == pluginRenderMap_.end()) { pluginRender = new PluginRender(surfaceId); pluginRenderMap_[surfaceId] = pluginRender; } pluginRender->InitNativeWindow(nativeWindow); return nullptr; } void PluginRender::InitNativeWindow(OHNativeWindow *window) { eglCore_->EglContextInit(window); // 参考Native XComponent场景EglContextInit的实现 } // 根据传入的surfaceId、width、height实现Surface大小的变动 napi_value PluginManager::ChangeSurface(napi_env env, napi_callback_info info) { if ((env == nullptr)||(info == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: OnLoad env or info is null"); return nullptr; } int64_t surfaceId = 0; size_t argc = 3; napi_value args[3] = {nullptr}; if (napi_ok != napi_get_cb_info(env, info, &argc, args, nullptr, nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: GetContext napi_get_cb_info failed"); return nullptr; } bool lossless = true; int index = 0; if (napi_ok != napi_get_value_bigint_int64(env, args[index++], &surfaceId, &lossless)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get value failed"); return nullptr; } double width; if (napi_ok != napi_get_value_double(env, args[index++], &width)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get width failed"); return nullptr; } double height; if (napi_ok != napi_get_value_double(env, args[index++], &height)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get height failed"); return nullptr; } auto pluginRender = GetPluginRender(surfaceId); if (pluginRender == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeSurface: Get pluginRender failed"); return nullptr; } pluginRender->UpdateNativeWindowSize(width, height); return nullptr; } void PluginRender::UpdateNativeWindowSize(int width, int height) { eglCore_->UpdateSize(width, height); // 参考Native XComponent场景UpdateSize的实现 if (!hasChangeColor_ && !hasDraw_) { eglCore_->Background(); // 参考Native XComponent场景Background的实现 } } // 销毁Surface napi_value PluginManager::DestroySurface(napi_env env, napi_callback_info info) { int64_t surfaceId = ParseId(env, info); auto pluginRenderMapIter = pluginRenderMap_.find(surfaceId); if (pluginRenderMapIter != pluginRenderMap_.end()) { delete pluginRenderMapIter->second; pluginRenderMap_.erase(pluginRenderMapIter); } auto windowMapIter = windowMap_.find(surfaceId); if (windowMapIter != windowMap_.end()) { OH_NativeWindow_DestroyNativeWindow(windowMapIter->second); windowMap_.erase(windowMapIter); } return nullptr; } // 实现EGL绘画逻辑 napi_value PluginManager::DrawPattern(napi_env env, napi_callback_info info) { int64_t surfaceId = ParseId(env, info); auto pluginRender = GetPluginRender(surfaceId); if (pluginRender == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "DrawPattern: Get pluginRender failed"); return nullptr; } pluginRender->DrawPattern(); return nullptr; } PluginRender *PluginManager::GetPluginRender(int64_t &id) { if (pluginRenderMap_.find(id) != pluginRenderMap_.end()) { return pluginRenderMap_[id]; } return nullptr; } void PluginRender::DrawPattern() { eglCore_->Draw(hasDraw_); // 参考Native XComponent场景Draw实现 } // 实现改变绘制图形颜色的功能 napi_value PluginManager::ChangeColor(napi_env env, napi_callback_info info) { int64_t surfaceId = ParseId(env, info); auto pluginRender = GetPluginRender(surfaceId); if (pluginRender == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "ChangeColor: Get pluginRender failed"); return nullptr; } pluginRender->ChangeColor(); // 参考Native XComponent场景ChangeColor实现 return nullptr; } void PluginRender::ChangeColor() { eglCore_->ChangeColor(hasChangeColor_); } // 获得xcomponent状态，并返回至ArkTS侧 napi_value PluginManager::GetXComponentStatus(napi_env env, napi_callback_info info) { int64_t surfaceId = ParseId(env, info); auto pluginRender = GetPluginRender(surfaceId); if (pluginRender == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: Get pluginRender failed"); return nullptr; } napi_value hasDraw; napi_value hasChangeColor; napi_status ret = napi_create_int32(env, pluginRender->HasDraw(), &(hasDraw)); if (ret != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: napi_create_int32 hasDraw_ error"); return nullptr; } ret = napi_create_int32(env, pluginRender->HasChangedColor(), &(hasChangeColor)); if (ret != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: napi_create_int32 hasChangeColor_ error"); return nullptr; } napi_value obj; ret = napi_create_object(env, &obj); if (ret != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: napi_create_object error"); return nullptr; } ret = napi_set_named_property(env, obj, "hasDraw", hasDraw); if (ret != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: napi_set_named_property hasDraw error"); return nullptr; } ret = napi_set_named_property(env, obj, "hasChangeColor", hasChangeColor); if (ret != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetXComponentStatus: napi_set_named_property hasChangeColor error"); return nullptr; } return obj; } int32_t PluginRender::HasDraw() { return hasDraw_; } int32_t PluginRender::HasChangedColor() { return hasChangeColor_; }配置具体的CMakeLists，使用CMake工具链将C++源代码编译成动态链接库文件。
# 设置CMake最小版本 cmake_minimum_required(VERSION 3.4.1) # 项目名称 project(XComponent) set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR}) add_definitions(-DOHOS_PLATFORM) # 设置头文件搜索目录 include_directories( ${NATIVERENDER_ROOT_PATH} ${NATIVERENDER_ROOT_PATH}/include ) # 添加名为nativerender的动态库，库文件名为libnativerender.so，添加cpp文件 add_library(nativerender SHARED render/egl_core.cpp render/plugin_render.cpp manager/plugin_manager.cpp napi_init.cpp ) find_library( # 设置路径变量的名称。 EGL-lib # 指定要让CMake查找的NDK库的名称。 EGL ) find_library( # 设置路径变量的名称。 GLES-lib # 指定要让CMake查找的NDK库的名称。 GLESv3 ) find_library( # 设置路径变量的名称。 hilog-lib # 指定要让CMake查找的NDK库的名称。 hilog_ndk.z ) find_library( # 设置路径变量的名称。 libace-lib # 指定要让CMake查找的NDK库的名称。 ace_ndk.z ) find_library( # 设置路径变量的名称。 libnapi-lib # 指定要让CMake查找的NDK库的名称。 ace_napi.z ) find_library( # 设置路径变量的名称。 libuv-lib # 指定要让CMake查找的NDK库的名称。 uv ) # 添加构建需要链接的库 target_link_libraries(nativerender PUBLIC ${EGL-lib} ${GLES-lib} ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib} libnative_window.so)
使用OH_ArkUI_SurfaceHolder管理Surface生命周期
与使用XComponentController管理Surface生命周期场景不同，本场景允许应用根据XComponent组件对应的ArkUI_NodeHandle中创建OH_ArkUI_SurfaceHolder，并通过OH_ArkUI_SurfaceHolder上的相关接口注册Surface生命周期，XComponent组件相关的无障碍、可变帧率等能力也可根据ArkUI_NodeHandle通过相关接口来实现。同时，XCompoennt组件上的基础/手势事件也可通过ArkUI_NodeHandle对象使用ArkUI NDK接口来监听（具体可参考：监听组件事件）。主要开发场景如下： - 在ArkTS侧创建的XComponent组件可将其对应的FrameNode节点传递至Native侧获取ArkUI_NodeHandle/在Native侧直接创建XComponent组件对应的ArkUI_NodeHandle，然后调用OH_ArkUI_SurfaceHolder_Create接口创建OH_ArkUI_SurfaceHolder实例。 - 基于OH_ArkUI_SurfaceHolder实例注册相应的生命周期回调、事件回调，获取NativeWindow实例。 - 利用NativeWindow和EGL接口开发自定义绘制内容以及申请和提交Buffer到图形队列。
生命周期：
- OnSurfaceCreated回调
触发时刻：XComponent准备好Surface后达成以下两个条件中的一个触发。 1. 组件上树且autoInitialize = true。 2. 调用OH_ArkUI_XComponent_Initialize。

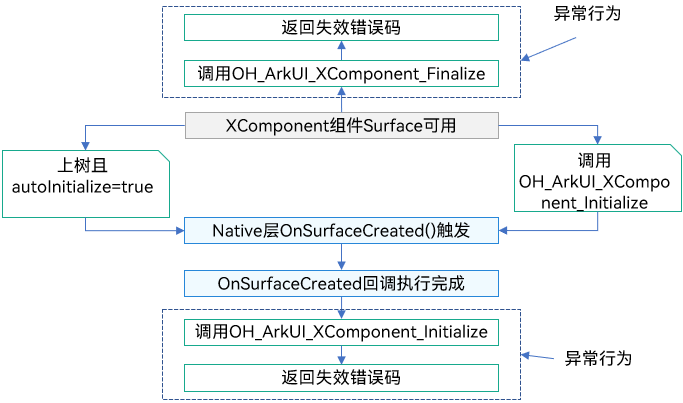

Native侧OnSurfaceCreated的时序如下图：
- OnSurfaceChanged回调
触发时刻：OnSurfaceCreated回调成功触发且Surface大小变化触发重新布局之后触发。

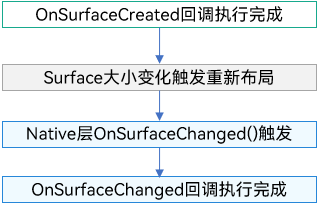

Native侧OnSurfaceChanged的时序如下图：
- OnSurfaceDestroyed回调
触发时刻：组件下树且autoInitialize=true 或者调用 OH_ArkUI_XComponent_Finalize后触发。

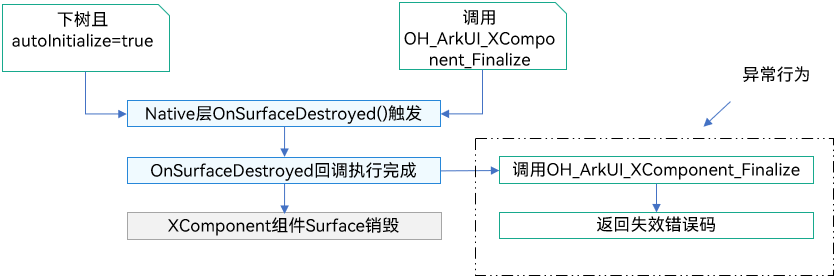

Native侧OnSurfaceDestroyed的时序图：
接口说明
| 接口名 | 描述 |
|---|---|
| OH_ArkUI_QueryModuleInterfaceByName(ArkUI_NativeAPIVariantKind type, const char* structName) | 获取指定类型的Native模块接口集合。 |
| OH_ArkUI_XComponent_GetNativeWindow(OH_ArkUI_SurfaceHolder* surfaceHolder) | 获取与OH_ArkUI_SurfaceHolder实例关联的nativeWindow。 |
| OH_ArkUI_SurfaceHolder_RemoveSurfaceCallback(OH_ArkUI_SurfaceHolder* surfaceHolder, OH_ArkUI_SurfaceCallback* callback) | 从OH_ArkUI_SurfaceHolder实例中移除先前添加的Surface生命周期回调。 |
| OH_ArkUI_SurfaceCallback_Dispose(OH_ArkUI_SurfaceCallback* callback) | 释放OH_ArkUI_SurfaceCallback对象。 |
| OH_ArkUI_SurfaceHolder_Dispose(OH_ArkUI_SurfaceHolder* surfaceHolder) | 释放OH_ArkUI_SurfaceHolder对象。 |
| OH_ArkUI_NodeEvent_GetEventType(ArkUI_NodeEvent* event) | 从组件事件获取事件类型。 |
| OH_ArkUI_NodeEvent_GetNodeHandle(ArkUI_NodeEvent* event) | 获取触发组件事件的组件对象。 |
| OH_ArkUI_GetNodeHandleFromNapiValue(napi_env env, napi_value frameNode, ArkUI_NodeHandle* handle) | 获取ArkTS侧创建的FrameNode节点对象映射到Native侧的ArkUI_NodeHandle。 |
| OH_ArkUI_SurfaceHolder_Create(ArkUI_NodeHandle node) | 从XComponent节点创建一个OH_ArkUI_SurfaceHolder对象。 |
| OH_ArkUI_SurfaceCallback_Create() | 创建一个OH_ArkUI_SurfaceCallback对象。 |
| OH_ArkUI_SurfaceCallback_SetSurfaceCreatedEvent(OH_ArkUI_SurfaceCallback* callback, void (*onSurfaceCreated)(OH_ArkUI_SurfaceHolder* surfaceHolder)) | 往OH_ArkUI_SurfaceCallback对象中注册onSurfaceCreated回调。 |
| OH_ArkUI_SurfaceCallback_SetSurfaceChangedEvent(OH_ArkUI_SurfaceCallback* callback, void (*onSurfaceChanged)(OH_ArkUI_SurfaceHolder* surfaceHolder, uint64_t width, uint64_t height)) | 往OH_ArkUI_SurfaceCallback对象中注册onSurfaceChanged回调。 |
| OH_ArkUI_SurfaceCallback_SetSurfaceDestroyedEvent(OH_ArkUI_SurfaceCallback* callback, void (*onSurfaceDestroyed)(OH_ArkUI_SurfaceHolder* surfaceHolder)) | 往OH_ArkUI_SurfaceCallback对象中注册onSurfaceDestroyed回调。 |
| OH_ArkUI_SurfaceCallback_SetSurfaceShowEvent(OH_ArkUI_SurfaceCallback* callback, void (*onSurfaceShow)(OH_ArkUI_SurfaceHolder* surfaceHolder)) | 往OH_ArkUI_SurfaceCallback对象中注册onSurfaceShow回调。 |
| OH_ArkUI_SurfaceCallback_SetSurfaceHideEvent(OH_ArkUI_SurfaceCallback* callback, void (*onSurfaceHide)(OH_ArkUI_SurfaceHolder* surfaceHolder)) | 往OH_ArkUI_SurfaceCallback对象中注册onSurfaceHide回调。 |
| OH_ArkUI_XComponent_RegisterOnFrameCallback(ArkUI_NodeHandle node, void (*callback)(ArkUI_NodeHandle node, uint64_t timestamp, uint64_t targetTimestamp)) | 为XComponent节点注册onFrame回调。 |
| OH_ArkUI_SurfaceHolder_AddSurfaceCallback(OH_ArkUI_SurfaceHolder* surfaceHolder, OH_ArkUI_SurfaceCallback* callback) | 往OH_ArkUI_SurfaceHolder实例注册OH_ArkUI_SurfaceCallback对象。 |
| OH_ArkUI_AccessibilityProvider_Create(ArkUI_NodeHandle node) | 从XComponent节点创建一个ArkUI_AccessibilityProvider对象。 |
| OH_ArkUI_XComponent_UnregisterOnFrameCallback(ArkUI_NodeHandle node) | 取消注册XComponent节点的onFrame回调。 |
| OH_ArkUI_AccessibilityProvider_Dispose(ArkUI_AccessibilityProvider* provider) | 释放ArkUI_AccessibilityProvider对象。 |
| OH_ArkUI_XComponent_SetExpectedFrameRateRange(ArkUI_NodeHandle node, OH_NativeXComponent_ExpectedRateRange range) | 为XComponent节点设置预期的帧率范围。 |
| OH_ArkUI_XComponent_SetNeedSoftKeyboard(ArkUI_NodeHandle node, bool needSoftKeyboard) | 设置XComponent节点在获得焦点时是否需要显示软键盘。 |
开发步骤
以下步骤通过在ArkTS侧创建SURFACE类型的XComponent为例（Native侧如何创建XComponent组件对应的ArkUI_NodeHandle可参考ArkUI_NativeNodeAPI_1），描述了如何使用XComponent组件调用OH_ArkUI_SurfaceHolder相关接口管理Surface生命周期，并在Native侧创建EGL/GLES环境，实现在主页面绘制图形，以及可以改变图形的颜色。

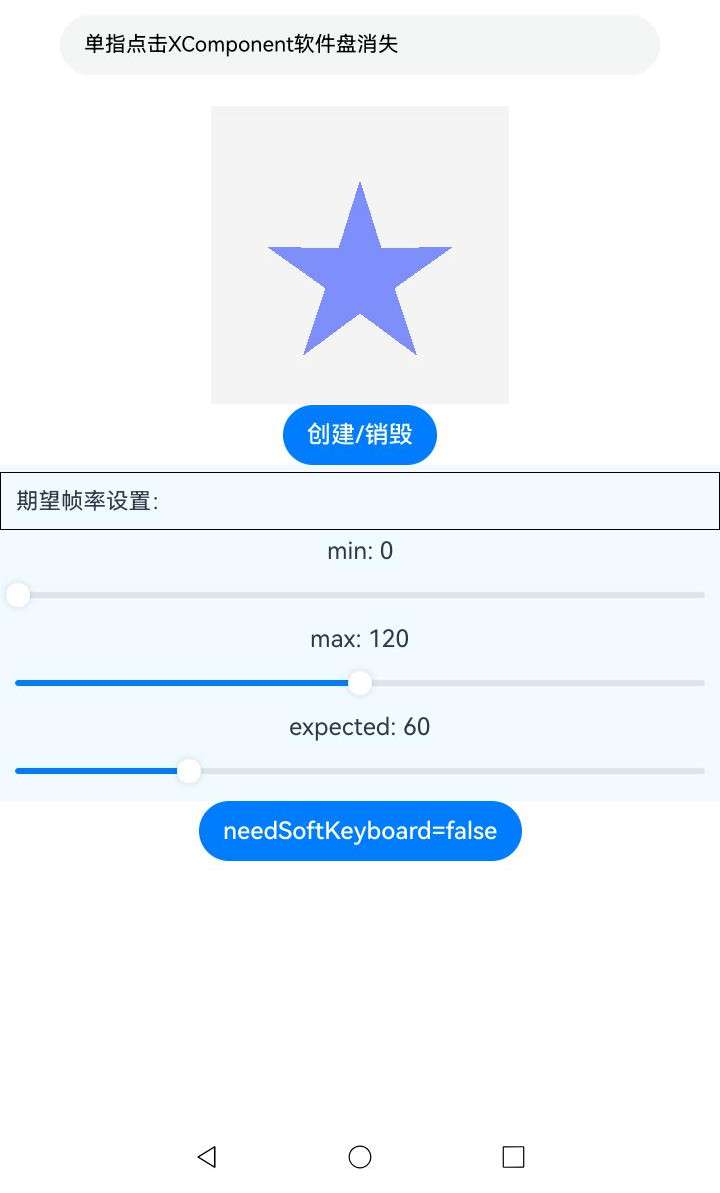

在界面中定义XComponent。
import native from 'libnativerender.so'; @Entry @Component struct Index { xcomponentId: string = 'xcp' + (new Date().getTime()); @State isShow: boolean = true; @State minRate: number = 0; @State maxRate: number = 120; @State expected: number = 60; needSoftKeyboard: boolean = false; @State needSoftKeyboardState: string = 'needSoftKeyboard=' + this.needSoftKeyboard; @State text: string = '单指点击XComponent软件盘消失' controller: TextInputController = new TextInputController() build() { Column() { TextInput({ text: this.text, placeholder: 'please input ...', controller: this.controller }) .placeholderColor(Color.Grey) .placeholderFont({ size: 14, weight: 400 }) .caretColor(Color.Blue) .width(400) .height(40) .margin(20) .fontSize(14) .fontColor(Color.Black) .onChange((value: string) => { this.text = value }) Column() { if (this.isShow) { XComponent({ type: XComponentType.SURFACE }) .id(this.xcomponentId) .onAttach(() => { let node = this.getUIContext().getFrameNodeById(this.xcomponentId) native.bindNode(this.xcomponentId, node) }) .onDetach(() => { native.unbindNode(this.xcomponentId) }) .width(200) .height(200) .focusable(true) .focusOnTouch(true) .defaultFocus(true) } }.height(200) Button('创建/销毁').onClick(() => { this.isShow = !this.isShow; }) Column() { Text('期望帧率设置：') .textAlign(TextAlign.Start) .fontSize(15) .border({ width: 1 }) .padding(10) .width('100%') .margin(5) Text('min: ' + this.minRate) Slider({ value: this.minRate, min: 0, max: 240, step: 1 }).onChange((value: number, mode: SliderChangeMode) => { this.minRate = value; native.setFrameRate(this.xcomponentId, this.minRate, this.maxRate, this.expected) }).width('100%') Text('max: ' + this.maxRate) Slider({ value: this.maxRate, min: 0, max: 240, step: 1 }).onChange((value: number, mode: SliderChangeMode) => { this.maxRate = value; native.setFrameRate(this.xcomponentId, this.minRate, this.maxRate, this.expected) }).width('100%') Text('expected: ' + this.expected) Slider({ value: this.expected, min: 0, max: 240, step: 1 }).onChange((value: number, mode: SliderChangeMode) => { this.expected = value; native.setFrameRate(this.xcomponentId, this.minRate, this.maxRate, this.expected) }).width('100%') }.backgroundColor("#F0FAFF") Button(this.needSoftKeyboardState) .onClick(() => { this.needSoftKeyboard = !this.needSoftKeyboard; this.needSoftKeyboardState = 'needSoftKeyboard=' + this.needSoftKeyboard; native.setNeedSoftKeyboard(this.xcomponentId, this.needSoftKeyboard); this.text = this.needSoftKeyboard ? '单指点击XComponent软键盘不消失' : '单指点击XComponent软件盘消失' }) } .width('100%') } }Node-API模块注册，具体使用请参考Node-API开发规范。
#include "manager/plugin_manager.h" namespace NativeXComponentSample { // 在napi_init.cpp文件中，Init方法注册接口函数，从而将封装的C++方法传递出来，供ArkTS侧调用 EXTERN_C_START static napi_value Init(napi_env env, napi_value exports) { // 向ArkTS侧暴露接口 napi_property_descriptor desc[] = { {"bindNode", nullptr, PluginManager::BindNode, nullptr, nullptr, nullptr, napi_default, nullptr}, {"unbindNode", nullptr, PluginManager::UnbindNode, nullptr, nullptr, nullptr, napi_default, nullptr}, {"setFrameRate", nullptr, PluginManager::SetFrameRate, nullptr, nullptr, nullptr, napi_default, nullptr}, {"setNeedSoftKeyboard", nullptr, PluginManager::SetNeedSoftKeyboard, nullptr, nullptr, nullptr, napi_default, nullptr}, }; napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc); return exports; } EXTERN_C_END // 编写接口的描述信息，根据实际需要可以修改对应参数 static napi_module demoModule = { .nm_version = 1, .nm_flags = 0, .nm_filename = nullptr, // 入口函数 .nm_register_func = Init, // 指定加载对应模块时的回调函数 // 模块名称 .nm_modname = "nativerender", // 指定模块名称，对于XComponent相关开发，这个名称必须和ArkTS侧XComponent中libraryname的值保持一致 .nm_priv = ((void*)0), .reserved = { 0 }, }; } // __attribute__((constructor))修饰的方法由系统自动调用，使用Node-API接口napi_module_register()传入模块描述信息进行模块注册 extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&NativeXComponentSample::demoModule); }注册XComponent生命周期、事件、无障碍和可变帧率回调，使用CAPI实现往XComponent注册回调函数。
(1) 定义BindNode、UnbindNode、SetFrameRate、SetNeedSoftKeyboard方法，暴露到ArkTS侧的bindNode、unbindNode、setFrameRate、setNeedSoftKeyboard方法会执行该方法。
// plugin_manager.h namespace NativeXComponentSample { class PluginManager { public: ~PluginManager(); static napi_value BindNode(napi_env env, napi_callback_info info); static napi_value UnbindNode(napi_env env, napi_callback_info info); static napi_value SetFrameRate(napi_env env, napi_callback_info info); static napi_value SetNeedSoftKeyboard(napi_env env, napi_callback_info info); public: static std::unordered_map<std::string, ArkUI_NodeHandle> nodeHandleMap_; static std::unordered_map<void *, EGLRender *> renderMap_; static std::unordered_map<void *, OH_ArkUI_SurfaceCallback *> callbackMap_; static std::unordered_map<void *, OH_ArkUI_SurfaceHolder *> surfaceHolderMap_; static ArkUI_AccessibilityProvider* provider_; }; }// plugin_manager.cpp std::string value2String(napi_env env, napi_value value) { // 将napi_value转化为string类型的变量 size_t stringSize = 0; napi_get_value_string_utf8(env, value, nullptr, 0, &stringSize); std::string valueString; valueString.resize(stringSize); napi_get_value_string_utf8(env, value, &valueString[0], stringSize + 1, &stringSize); return valueString; } napi_value PluginManager::BindNode(napi_env env, napi_callback_info info) { size_t argc = 2; napi_value args[2] = {nullptr}; napi_get_cb_info(env, info, &argc, args, nullptr, nullptr); std::string nodeId = value2String(env, args[0]); ArkUI_NodeHandle handle; OH_ArkUI_GetNodeHandleFromNapiValue(env, args[1], &handle); // 获取nodeHandle OH_ArkUI_SurfaceHolder *holder = OH_ArkUI_SurfaceHolder_Create(handle); // 获取SurfaceHolder nodeHandleMap_[nodeId] = handle; surfaceHolderMap_[handle] = holder; auto callback = OH_ArkUI_SurfaceCallback_Create(); // 创建SurfaceCallback callbackMap_[holder] = callback; OH_ArkUI_SurfaceCallback_SetSurfaceCreatedEvent(callback, OnSurfaceCreated); // 注册OnSurfaceCreated回调 OH_ArkUI_SurfaceCallback_SetSurfaceChangedEvent(callback, OnSurfaceChanged); // 注册OnSurfaceChanged回调 OH_ArkUI_SurfaceCallback_SetSurfaceDestroyedEvent(callback, OnSurfaceDestroyed); // 注册OnSurfaceDestroyed回调 OH_ArkUI_SurfaceCallback_SetSurfaceShowEvent(callback, OnSurfaceShow); // 注册OnSurfaceShow回调 OH_ArkUI_SurfaceCallback_SetSurfaceHideEvent(callback, OnSurfaceHide); // 注册OnSurfaceHide回调 OH_ArkUI_XComponent_RegisterOnFrameCallback(handle, OnFrameCallback); // 注册OnFrameCallback回调 OH_ArkUI_SurfaceHolder_AddSurfaceCallback(holder, callback); // 注册SurfaceCallback回调 if (!nodeAPI->addNodeEventReceiver(handle, onEvent)) { // 添加事件监听，返回成功码 0 OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "addNodeEventReceiver error"); } if (!nodeAPI->registerNodeEvent(handle, NODE_TOUCH_EVENT, 0, nullptr)) { // 用C接口注册touch事件，返回成功码 0 OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "registerTouchEvent error"); } provider_ = OH_ArkUI_AccessibilityProvider_Create(handle); // 创建一个ArkUI_AccessibilityProvider类型的对象 /** * 获取ArkUI_AccessibilityProvider后，如果注册无障碍回调函数请参考： * https://gitee.com/openharmony/docs/blob/OpenHarmony-5.1.0-Release/zh-cn/application-dev/ui/ndk-accessibility-xcomponent.md * **/ return nullptr; } napi_value PluginManager::UnbindNode(napi_env env, napi_callback_info info) { size_t argc = 1; napi_value args[1] = {nullptr}; napi_get_cb_info(env, info, &argc, args, nullptr, nullptr); std::string nodeId = value2String(env, args[0]); auto node = nodeHandleMap_[nodeId]; OH_ArkUI_XComponent_UnregisterOnFrameCallback(node); // 解注册帧回调 OH_ArkUI_AccessibilityProvider_Dispose(provider_); // 销毁ArkUI_AccessibilityProvider nodeAPI->disposeNode(node); // 销毁nodeHandle nodeHandleMap_.erase(nodeId); return nullptr; } napi_value PluginManager::SetFrameRate(napi_env env, napi_callback_info info) { size_t argc = 4; napi_value args[4] = {nullptr}; napi_get_cb_info(env, info, &argc, args, nullptr, nullptr); std::string nodeId = value2String(env, args[0]); auto node = nodeHandleMap_[nodeId]; int32_t min = 0; napi_get_value_int32( env, args[1], &min); int32_t max = 0; napi_get_value_int32(env, args[2], &max); int32_t expected = 0; napi_get_value_int32(env, args[2], &expected); OH_NativeXComponent_ExpectedRateRange range = { .min = min, .max = max, .expected = expected }; OH_ArkUI_XComponent_SetExpectedFrameRateRange(node, range); // 设置期望帧率 return nullptr; } napi_value PluginManager::SetNeedSoftKeyboard(napi_env env, napi_callback_info info) { size_t argc = 2; napi_value args[2] = {nullptr}; napi_get_cb_info(env, info, &argc, args, nullptr, nullptr); std::string nodeId = value2String(env, args[0]); auto node = nodeHandleMap_[nodeId]; bool needSoftKeyboard = false; napi_get_value_bool( env, args[1], &needSoftKeyboard); OH_ArkUI_XComponent_SetNeedSoftKeyboard(node, needSoftKeyboard); // 设置是否需要软键盘 return nullptr; }(2) 定义Surface创建成功，发生改变，销毁和事件，可变帧率回调接口。
void OnSurfaceCreated(OH_ArkUI_SurfaceHolder *holder) { auto window = OH_ArkUI_XComponent_GetNativeWindow(holder); // 获取native window auto render = new EGLRender(); PluginManager::renderMap_[holder] = render; render->SetUpEGLContext(window); } void OnSurfaceChanged(OH_ArkUI_SurfaceHolder *holder, uint64_t width, uint64_t height) { if (PluginManager::renderMap_.count(holder)) { auto render = PluginManager::renderMap_[holder]; render->SetEGLWindowSize(width, height); // 设置绘制区域大小 render->DrawStar(true); // 绘制五角星 } } void OnSurfaceDestroyed(OH_ArkUI_SurfaceHolder *holder) { OH_LOG_Print(LOG_APP, LOG_ERROR, 0xff00, "onBind", "on destroyed"); if (PluginManager::renderMap_.count(holder)) { // 销毁render对象 auto render = PluginManager::renderMap_[holder]; delete render; PluginManager::renderMap_.erase(holder); } if (PluginManager::callbackMap_.count(holder)) { auto callback = PluginManager::callbackMap_[holder]; OH_ArkUI_SurfaceHolder_RemoveSurfaceCallback(holder, callback); // 移除SurfaceCallback OH_ArkUI_SurfaceCallback_Dispose(callback); // 销毁surfaceCallback PluginManager::callbackMap_.erase(holder); } OH_ArkUI_SurfaceHolder_Dispose(holder); // 销毁surfaceHolder } void OnSurfaceShow(OH_ArkUI_SurfaceHolder* holder) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "on surface show"); } void OnSurfaceHide(OH_ArkUI_SurfaceHolder* holder) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "on surface hide"); } void OnFrameCallback(ArkUI_NodeHandle node, uint64_t timestamp, uint64_t targetTimestamp) { if (!PluginManager::surfaceHolderMap_.count(node)) { return; } static uint64_t count = 0; count++; if (count % 50 == 0) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "OnFrameCallback count = %{public}ld", count); } } void onEvent(ArkUI_NodeEvent *event) { auto eventType = OH_ArkUI_NodeEvent_GetEventType(event); // 获取组件事件类型 OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "on event"); if (eventType == NODE_TOUCH_EVENT) { ArkUI_NodeHandle handle = OH_ArkUI_NodeEvent_GetNodeHandle(event); // 获取触发该事件的组件对象 auto holder = PluginManager::surfaceHolderMap_[handle]; if (PluginManager::renderMap_.count(holder)) { auto render = PluginManager::renderMap_[holder]; render->DrawStar(false); // 绘制五角星 } OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "onBind", "on touch"); } }初始化环境，包括初始化可用的EGLDisplay、确定可用的Surface配置、创建渲染区域Surface、创建并关联上下文等。
”`c++ // EGLConst.h #include
#include #include const unsigned int LOG_PRINT_DOMAIN = 0xFF00;
/**
- Program 错误。 */ const GLuint PROGRAM_ERROR = 0;
/** * 位置错误。 */ const GLint POSITION_ERROR = -1;
/** * 默认x坐标。 */ const int DEFAULT_X_POSITION = 0;
/** * 默认y坐标。 */ const int DEFAULT_Y_POSITION = 0;
/** * Gl 红色默认值。 */ const GLfloat GL_RED_DEFAULT = 0.0;
/** * Gl 绿色默认值。 */ const GLfloat GL_GREEN_DEFAULT = 0.0;
/** * Gl 蓝色默认值。 */ const GLfloat GL_BLUE_DEFAULT = 0.0;
/** * Gl 透明度。 */ const GLfloat GL_ALPHA_DEFAULT = 1.0;
/** * Pointer 数量。 */ const GLint POINTER_SIZE = 2;
/** * Triangle fan 尺寸。 */ const GLsizei TRIANGLE_FAN_SIZE = 4;
/** * 50%。 */ const float FIFTY_PERCENT = 0.5;
/** * 位置句柄名字。 */ const char POSITION_NAME[] = “a_position”;
/** * 背景色 #f4f4f4。 */ const GLfloat BACKGROUND_COLOR[] = {244.0f / 255, 244.0f / 255, 244.0f / 255, 1.0f};
/** * Draw 颜色 #7E8FFB。 */ const GLfloat DRAW_COLOR[] = {126.0f / 255, 143.0f / 255, 251.0f / 255, 1.0f};
/** * Change 颜色 #92D6CC。 */ const GLfloat CHANGE_COLOR[] = {146.0f / 255, 214.0f / 255, 204.0f / 255, 1.0f};
/** * 背景区域。 */ const GLfloat BACKGROUND_RECTANGLE_VERTICES[] = {-1.0f, 1.0f, 1.0f, 1.0f, 1.0f, -1.0f, -1.0f, -1.0f};
const EGLint ATTRIB_LIST[] = { // 键，值。 EGL_SURFACE_TYPE, EGL_WINDOW_BIT, EGL_RED_SIZE, 8, EGL_GREEN_SIZE, 8, EGL_BLUE_SIZE, 8, EGL_ALPHA_SIZE, 8, EGL_RENDERABLE_TYPE, EGL_OPENGL_ES2_BIT, // 结束。 EGL_NONE};
const EGLint CONTEXT_ATTRIBS[] = {EGL_CONTEXT_CLIENT_VERSION, 2, EGL_NONE};
/** * 顶点着色器。 */ const char VERTEX_SHADER[] = “#version 300 es\n” “layout(location = 0) in vec4 a_position;\n” “layout(location = 1) in vec4 a_color; \n” “out vec4 v_color; \n” “void main() \n” “{ \n” “ gl_Position = a_position; \n” “ v_color = a_color; \n” “} \n”;
/** * 片元着色器。 */ const char FRAGMENT_SHADER[] = “#version 300 es\n” “precision mediump float; \n” “in vec4 v_color; \n” “out vec4 fragColor; \n” “void main() \n” “{ \n” “ fragColor = v_color; \n” “} \n”;
```c++ // EGLRender.h #include "EGLConst.h" #include <EGL/egl.h> #include <EGL/eglext.h> #include <EGL/eglplatform.h> #include <GLES3/gl3.h> #include <string> class EGLRender { public: bool SetUpEGLContext(void *window); void SetEGLWindowSize(int width, int height); void DrawStar(bool drawColor); std::string xcomponentId; EGLNativeWindowType eglWindow_; EGLDisplay eglDisplay_ = EGL_NO_DISPLAY; EGLConfig eglConfig_ = EGL_NO_CONFIG_KHR; EGLSurface eglSurface_ = EGL_NO_SURFACE; EGLContext eglContext_ = EGL_NO_CONTEXT; GLuint program_; int width_ = 0; int height_ = 0; ~EGLRender(); private: GLint PrepareDraw(); bool ExecuteDraw(GLint position, const GLfloat *color, const GLfloat shapeVertices[]); };// EGLRender.cpp #include "EGLRender.h" #include "EGLConst.h" #include <EGL/egl.h> #include <EGL/eglext.h> #include <GLES3/gl3.h> #include <cmath> #include <cstdio> #include <algorithm> #include <hilog/log.h> #include <iostream> namespace { void Rotate2d(GLfloat centerX, GLfloat centerY, GLfloat *rotateX, GLfloat *rotateY, GLfloat theta) { GLfloat tempX = cos(theta) * (*rotateX - centerX) - sin(theta) * (*rotateY - centerY); GLfloat tempY = sin(theta) * (*rotateX - centerX) + cos(theta) * (*rotateY - centerY); *rotateX = tempX + centerX; *rotateY = tempY + centerY; } GLuint LoadShader(GLenum type, const char *shaderSrc) { if ((type <= 0)||(shaderSrc == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "glCreateShader type or shaderSrc error"); return PROGRAM_ERROR; } GLuint shader = glCreateShader(type); if (shader == 0) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "glCreateShader unable to load shader"); return PROGRAM_ERROR; } // The gl function has no return value. glShaderSource(shader, 1, &shaderSrc, nullptr); glCompileShader(shader); GLint compiled; glGetShaderiv(shader, GL_COMPILE_STATUS, &compiled); if (compiled != 0) { return shader; } GLint infoLen = 0; glGetShaderiv(shader, GL_INFO_LOG_LENGTH, &infoLen); if (infoLen <= 1) { glDeleteShader(shader); return PROGRAM_ERROR; } char *infoLog = (char *)malloc(sizeof(char) * (infoLen + 1)); if (infoLog != nullptr) { memset(infoLog, 0, infoLen + 1); glGetShaderInfoLog(shader, infoLen, nullptr, infoLog); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "glCompileShader error = %s", infoLog); free(infoLog); infoLog = nullptr; } glDeleteShader(shader); return PROGRAM_ERROR; } // 创建program GLuint CreateProgram(const char *vertexShader, const char *fragShader) { if ((vertexShader == nullptr)||(fragShader == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "createProgram: vertexShader or fragShader is null"); return PROGRAM_ERROR; } GLuint vertex = LoadShader(GL_VERTEX_SHADER, vertexShader); if (vertex == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "createProgram vertex error"); return PROGRAM_ERROR; } GLuint fragment = LoadShader(GL_FRAGMENT_SHADER, fragShader); if (fragment == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "createProgram fragment error"); return PROGRAM_ERROR; } GLuint program = glCreateProgram(); if (program == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "createProgram program error"); glDeleteShader(vertex); glDeleteShader(fragment); return PROGRAM_ERROR; } // 该gl函数没有返回值。 glAttachShader(program, vertex); glAttachShader(program, fragment); glLinkProgram(program); GLint linked; glGetProgramiv(program, GL_LINK_STATUS, &linked); if (linked != 0) { glDeleteShader(vertex); glDeleteShader(fragment); return program; } OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "createProgram linked error"); GLint infoLen = 0; glGetProgramiv(program, GL_INFO_LOG_LENGTH, &infoLen); if (infoLen > 1) { char *infoLog = (char *)malloc(sizeof(char) * (infoLen + 1)); memset(infoLog, 0, infoLen + 1); glGetProgramInfoLog(program, infoLen, nullptr, infoLog); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "glLinkProgram error = %s", infoLog); free(infoLog); infoLog = nullptr; } glDeleteShader(vertex); glDeleteShader(fragment); glDeleteProgram(program); return PROGRAM_ERROR; } } // namespace bool EGLRender::SetUpEGLContext(void *window) { OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLRender", "EglContextInit execute"); eglWindow_ = (EGLNativeWindowType)(window); // 初始化display。 eglDisplay_ = eglGetDisplay(EGL_DEFAULT_DISPLAY); if (eglDisplay_ == EGL_NO_DISPLAY) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglGetDisplay: unable to get EGL display"); return false; } EGLint majorVersion; EGLint minorVersion; if (!eglInitialize(eglDisplay_, &majorVersion, &minorVersion)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglInitialize: unable to get initialize EGL display"); return false; }; // 选择配置。 const EGLint maxConfigSize = 1; EGLint numConfigs; if (!eglChooseConfig(eglDisplay_, ATTRIB_LIST, &eglConfig_, maxConfigSize, &numConfigs)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglChooseConfig: unable to choose configs"); return false; }; // 创建环境。 // 创建 Surface。 eglSurface_ = eglCreateWindowSurface(eglDisplay_, eglConfig_, eglWindow_, NULL); if (eglSurface_ == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglCreateWindowSurface: unable to create Surface"); return false; } if (eglSurface_ == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglCreateWindowSurface: unable to create Surface"); return false; } // 创建上下文。 eglContext_ = eglCreateContext(eglDisplay_, eglConfig_, EGL_NO_CONTEXT, CONTEXT_ATTRIBS); if (!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "eglMakeCurrent failed"); return false; } // 创建program。 program_ = CreateProgram(VERTEX_SHADER, FRAGMENT_SHADER); if (program_ == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "CreateProgram: unable to create program"); return false; } return true; } GLint EGLRender::PrepareDraw() { if ((eglDisplay_ == nullptr)||(eglSurface_ == nullptr)||(eglContext_ == nullptr)|| (!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "PrepareDraw: param error"); return POSITION_ERROR; } // 该gl函数没有返回值。 glViewport(DEFAULT_X_POSITION, DEFAULT_Y_POSITION, width_, height_); glClearColor(GL_RED_DEFAULT, GL_GREEN_DEFAULT, GL_BLUE_DEFAULT, GL_ALPHA_DEFAULT); glClear(GL_COLOR_BUFFER_BIT); glUseProgram(program_); return glGetAttribLocation(program_, POSITION_NAME); } // 绘制五角星 void EGLRender::DrawStar(bool drawColor) { OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLRender", "Draw"); GLint position = PrepareDraw(); if (position == POSITION_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "Draw get position failed"); return; } // 绘制背景 if (!ExecuteDraw(position, BACKGROUND_COLOR, BACKGROUND_RECTANGLE_VERTICES)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "Draw execute draw background failed"); return; } // 将其划分为五个四边形，并计算其中一个四边形的顶点 GLfloat rotateX = 0; GLfloat rotateY = FIFTY_PERCENT * height_; GLfloat centerX = 0; // 将角度 54° 和 18° 转换为弧度 GLfloat centerY = -rotateY * (M_PI / 180 * 54) * (M_PI / 180 * 18); // 将角度 18° 转换为弧度 GLfloat leftX = -rotateY * (M_PI / 180 * 18); GLfloat leftY = 0; // 将角度 18° 转换为弧度 GLfloat rightX = rotateY * (M_PI / 180 * 18); GLfloat rightY = 0; // 确定绘制四边形的顶点，使用绘制区域的百分比表示 const GLfloat shapeVertices[] = {centerX / width_, centerY / height_, leftX / width_, leftY / height_, rotateX / width_, rotateY / height_, rightX / width_, rightY / height_}; auto color = drawColor ? DRAW_COLOR : CHANGE_COLOR; if (!ExecuteDraw(position, color, shapeVertices)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "Draw execute draw shape failed"); return; } // 将角度 72° 转换为弧度 GLfloat rad = M_PI / 180 * 72; // 旋转四次。 for (int i = 0; i < 4; ++i) { // 旋转得其他四个四边形的顶点 Rotate2d(centerX, centerY, &rotateX, &rotateY, rad); Rotate2d(centerX, centerY, &leftX, &leftY, rad); Rotate2d(centerX, centerY, &rightX, &rightY, rad); // 确定绘制四边形的顶点，使用绘制区域的百分比表示 const GLfloat shapeVertices[] = {centerX / width_, centerY / height_, leftX / width_, leftY / height_, rotateX / width_, rotateY / height_, rightX / width_, rightY / height_}; // 绘制图形 if (!ExecuteDraw(position, color, shapeVertices)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "Draw execute draw shape failed"); return; } } // 将绘制命令提交给GPU，GPU执行完成后将渲染结果显示到屏幕 glFlush(); glFinish(); if (!eglSwapBuffers(eglDisplay_, eglSurface_)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "Draw FinishDraw failed"); return; } } bool EGLRender::ExecuteDraw(GLint position, const GLfloat *color, const GLfloat shapeVertices[]) { if ((position > 0)||(color == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLRender", "ExecuteDraw: param error"); return false; } // 该gl函数没有返回值。 glVertexAttribPointer(position, POINTER_SIZE, GL_FLOAT, GL_FALSE, 0, shapeVertices); glEnableVertexAttribArray(position); glVertexAttrib4fv(1, color); glDrawArrays(GL_TRIANGLE_FAN, 0, TRIANGLE_FAN_SIZE); glDisableVertexAttribArray(position); return true; } void EGLRender::SetEGLWindowSize(int width, int height) { width_ = width; height_ = height; } // 释放相关资源 EGLRender::~EGLRender() { if ((eglDisplay_ == nullptr)||(eglSurface_ == nullptr)||(!eglDestroySurface(eglDisplay_, eglSurface_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, 0xff00, "EGLRender", "Release eglDestroySurface failed"); } if ((eglDisplay_ == nullptr)||(eglContext_ == nullptr)||(!eglDestroyContext(eglDisplay_, eglContext_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, 0xff00, "EGLRender", "Release eglDestroySurface failed"); } if ((eglDisplay_ == nullptr)||(!eglTerminate(eglDisplay_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, 0xff00, "EGLRender", "Release eglDestroySurface failed"); } }CMakeLists，使用CMake工具链将C++源代码编译成动态链接库文件。
# the minimum version of CMake. cmake_minimum_required(VERSION 3.5.0) project(LCNXComponent2) set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR}) if(DEFINED PACKAGE_FIND_FILE) include(${PACKAGE_FIND_FILE}) endif() include_directories(${NATIVERENDER_ROOT_PATH} ${NATIVERENDER_ROOT_PATH}/render ${NATIVERENDER_ROOT_PATH}/manager) add_library(nativerender SHARED render/EGLRender.cpp manager/plugin_manager.cpp napi_init.cpp) find_library( # 设置路径变量的名称。 EGL-lib # 指定要让CMake查找的NDK库的名称。 EGL ) find_library( # 设置路径变量的名称。 GLES-lib # 指定要让CMake查找的NDK库的名称。 GLESv3 ) find_library( # 设置路径变量的名称。 hilog-lib # 指定要让CMake查找的NDK库的名称。 hilog_ndk.z ) find_library( # 设置路径变量的名称。 libace-lib # 指定要让CMake查找的NDK库的名称。 ace_ndk.z ) find_library( # 设置路径变量的名称。 libnapi-lib # 指定要让CMake查找的NDK库的名称。 ace_napi.z ) find_library( # 设置路径变量的名称。 libuv-lib # 指定要让CMake查找的NDK库的名称。 uv ) target_link_libraries(nativerender PUBLIC ${EGL-lib} ${GLES-lib} ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib} libnative_window.so)
使用NativeXComponent管理Surface生命周期
与上述两种场景不同，本场景在Native侧使用ArkUI NDK 接口创建XComponent组件进行自定义绘制。具体步骤包括：创建组件，获取NativeXComponent实例，注册XComponent的生命周期回调及触摸、鼠标、按键等事件回调，通过回调获取NativeWindow，使用OpenGL ES/EGL接口在XComponent组件上进行图形绘制，最后在ArkTS层使用ContentSlot占位组件进行挂载显示。针对Native侧创建XComponent的主要开发场景如下：
- 利用Native XComponent提供的接口注册XComponent的生命周期和事件回调。
- 在这些回调中进行初始化环境、获取当前状态、响应各类事件的开发。
- 利用NativeWindow和EGL接口开发自定义绘制内容以及申请和提交Buffer到图形队列。
约束条件：
构造XComponent时需要根据需要的type使用对应的节点类型。
说明：
Native侧的OH_NativeXComponent缓存在字典中，其key需要保证其唯一性，当对应的XComponent销毁后，需要及时从字典里将其删除。
多个XComponent开发时，缓存Native侧资源需要保证key是唯一的，key推荐使用id+随机数或者surfaceId。
生命周期：
- OnSurfaceCreated回调
触发时刻：XComponent准备好Surface后触发。
Native侧OnSurfaceCreated的时序如下图：
- OnSurfaceChanged回调
触发时刻：Surface大小变化触发重新布局后触发。
Native侧OnSurfaceChanged的时序如下图：
- OnSurfaceDestroyed回调
触发时刻：XComponent组件被销毁时触发，与一般ArkUI的组件销毁时机一致。

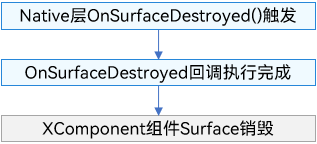

Native侧OnSurfaceDestroyed的时序图：
接口说明
| 接口名 | 描述 |
|---|---|
| OH_NativeXComponent_GetXComponentId(OH_NativeXComponent* component, char* id, uint64_t* size) | 获取XComponent的id。 |
| OH_NativeXComponent_GetXComponentSize(OH_NativeXComponent* component, const void* window, uint64_t* width, uint64_t* height) | 获取XComponent持有的Surface的大小。 |
| OH_NativeXComponent_GetXComponentOffset(OH_NativeXComponent* component, const void* window, double* x, double* y) | 获取XComponent持有的Surface相对其父组件左顶点的偏移量。 |
| OH_NativeXComponent_GetTouchEvent(OH_NativeXComponent* component, const void* window, OH_NativeXComponent_TouchEvent* touchEvent) | 获取由XComponent触发的触摸事件。touchEvent内的具体属性值可参考OH_NativeXComponent_TouchEvent。 |
| OH_NativeXComponent_GetTouchPointToolType(OH_NativeXComponent* component, uint32_t pointIndex, OH_NativeXComponent_TouchPointToolType* toolType) | 获取XComponent触摸点的工具类型。 |
| OH_NativeXComponent_GetTouchPointTiltX(OH_NativeXComponent* component, uint32_t pointIndex, float* tiltX) | 获取XComponent触摸点处相对X轴的倾斜角度。 |
| OH_NativeXComponent_GetTouchPointTiltY(OH_NativeXComponent* component, uint32_t pointIndex, float* tiltY) | 获取XComponent触摸点处相对Y轴的倾斜角度。 |
| OH_NativeXComponent_GetMouseEvent(OH_NativeXComponent* component, const void* window, OH_NativeXComponent_MouseEvent* mouseEvent) | 获取由XComponent触发的鼠标事件。 |
| OH_NativeXComponent_RegisterCallback(OH_NativeXComponent* component, OH_NativeXComponent_Callback* callback) | 为此OH_NativeXComponent实例注册生命周期和触摸事件回调。 |
| OH_NativeXComponent_RegisterMouseEventCallback(OH_NativeXComponent* component, OH_NativeXComponent_MouseEvent_Callback* callback) | 为此OH_NativeXComponent实例注册鼠标事件回调。 |
| OH_NativeXComponent_RegisterFocusEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window)) | 为此OH_NativeXComponent实例注册获得焦点事件回调。 |
| OH_NativeXComponent_RegisterKeyEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window)) | 为此OH_NativeXComponent实例注册按键事件回调。 |
| OH_NativeXComponent_RegisterBlurEventCallback(OH_NativeXComponent* component, void (*callback)(OH_NativeXComponent* component, void* window)) | 为此OH_NativeXComponent实例注册失去焦点事件回调。 |
| OH_NativeXComponent_GetKeyEvent(OH_NativeXComponent* component, OH_NativeXComponent_KeyEvent** keyEvent) | 获取由XComponent触发的按键事件。 |
| OH_NativeXComponent_GetKeyEventAction(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_KeyAction* action) | 获取按键事件的动作。 |
| OH_NativeXComponent_GetKeyEventCode(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_KeyCode* code) | 获取按键事件的键码值。 |
| OH_NativeXComponent_GetKeyEventSourceType(OH_NativeXComponent_KeyEvent* keyEvent, OH_NativeXComponent_EventSourceType* sourceType) | 获取按键事件的输入源类型。 |
| OH_NativeXComponent_GetKeyEventDeviceId(OH_NativeXComponent_KeyEvent* keyEvent, int64_t* deviceId) | 获取按键事件的设备ID。 |
| OH_NativeXComponent_GetKeyEventTimestamp(OH_NativeXComponent_KeyEvent* keyEvent, int64_t* timestamp) | 获取按键事件的时间戳。 |
| OH_ArkUI_QueryModuleInterfaceByName(ArkUI_NativeAPIVariantKind type, const char* structName) | 获取指定类型的Native模块接口集合。 |
| OH_ArkUI_GetNodeContentFromNapiValue(napi_env env, napi_value value, ArkUI_NodeContentHandle* content) | 获取ArkTS侧创建的NodeContent对象映射到Native侧的ArkUI_NodeContentHandle。 |
| OH_ArkUI_NodeContent_SetUserData(ArkUI_NodeContentHandle content, void* userData) | 在NodeContent对象上保存自定义数据。 |
| OH_ArkUI_NodeContentEvent_GetNodeContentHandle(ArkUI_NodeContentEvent* event) | 获取触发事件的NodeContent对象。 |
| OH_ArkUI_NodeContent_GetUserData(ArkUI_NodeContentHandle content) | 获取在NodeContent对象上保存的自定义数据。 |
| OH_ArkUI_NodeContentEvent_GetEventType(ArkUI_NodeContentEvent* event) | 获取触发NodeContent事件的事件类型。 |
| OH_ArkUI_NodeContent_AddNode(ArkUI_NodeContentHandle content, ArkUI_NodeHandle node) | 将一个ArkUI组件节点添加到对应的NodeContent对象下。 |
| OH_ArkUI_NodeContent_RegisterCallback(ArkUI_NodeContentHandle content, ArkUI_NodeContentCallback callback) | 注册NodeContent事件函数。 |
| OH_NativeXComponent_GetNativeXComponent(ArkUI_NodeHandle node) | 基于Native接口创建的组件实例获取OH_NativeXComponent类型的指针。 |
说明 :
上述接口不支持跨线程访问。
XComponent销毁（onSurfaceDestroyed回调触发后）时会释放上述接口中获取的OH_NativeXComponent和window对象。如果再次使用获取的对象，有可能会导致使用野指针或空指针的崩溃问题。
开发步骤
以下步骤以SURFACE类型为例，描述了如何使用XComponent组件调用Node-API接口来创建EGL/GLES环境，实现在主页面绘制图形，并可以改变图形的颜色。
在界面中定义XComponent。
import nativeNode from 'libnativenode.so'; import {NodeContent} from '@kit.ArkUI'; @Entry @Component struct Index { @State currentStatus: string = "init"; private nodeContent: NodeContent = new NodeContent(); aboutToAppear():void{ // 通过C-API创建节点，并添加到管理器nodeContent上 nativeNode.createNativeNode(this.nodeContent); } build() { Column() { Row() { Text('Native XComponent Sample') .fontSize('24fp') .fontWeight(500) .margin({ left: 24, top: 12 }) } .margin({ top: 24 }) .width('100%') .height(56) Column({ space: 10 }) { // 显示nodeContent管理器里存放的Native侧的组件 ContentSlot(this.nodeContent); Text(this.currentStatus) .fontSize('24fp') .fontWeight(500) } .onClick(() => { let hasChangeColor: boolean = false; // 获取当前绘制内容状态 if (nativeNode.getStatus()) { hasChangeColor = nativeNode.getStatus().hasChangeColor; } if (hasChangeColor) { this.currentStatus = "change color"; } }) .margin({ top: 27, left: 12, right: 12 }) .height('40%') .width('90%') Row() { Button('Draw Star') .fontSize('16fp') .fontWeight(500) .margin({ bottom: 24 }) .onClick(() => { // 调用drawPattern绘制内容 nativeNode.drawPattern(); let hasDraw: boolean = false; // 获取当前绘制内容状态 if (nativeNode.getStatus()) { hasDraw = nativeNode.getStatus().hasDraw; } if (hasDraw) { this.currentStatus = "draw star"; } }) .width('53.6%') .height(40) } .width('100%') .justifyContent(FlexAlign.Center) .alignItems(VerticalAlign.Bottom) .layoutWeight(1) } .width('100%') .height('100%') } }Node-API模块注册，具体使用请参考Node-API开发规范。
#include <hilog/log.h> #include "common/common.h" #include "manager/plugin_manager.h" // 在napi_init.cpp文件中，Init方法注册接口函数，从而将封装的C++方法传递出来，供ArkTS侧调用 EXTERN_C_START static napi_value Init(napi_env env, napi_value exports) { // ... // 向ArkTS侧暴露接口 napi_property_descriptor desc[] = { {"createNativeNode", nullptr, PluginManager::createNativeNode, nullptr, nullptr, nullptr, napi_default, nullptr }, {"getStatus", nullptr, PluginManager::GetXComponentStatus, nullptr, nullptr, nullptr, napi_default, nullptr}, {"drawPattern", nullptr, PluginManager::NapiDrawPattern, nullptr, nullptr, nullptr, napi_default, nullptr} }; if (napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc) != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "Init", "napi_define_properties failed"); return nullptr; } return exports; } EXTERN_C_END // 编写接口的描述信息，根据实际需要可以修改对应参数 static napi_module nativerenderModule = { .nm_version = 1, .nm_flags = 0, .nm_filename = nullptr, // 入口函数 .nm_register_func = Init,// 指定加载对应模块时的回调函数 // 模块名称 .nm_modname = "nativerender", // 指定模块名称，对于XComponent相关开发，这个名称必须和ArkTS侧XComponent中libraryname的值保持一致 .nm_priv = ((void *)0), .reserved = {0}}; // __attribute__((constructor))修饰的方法由系统自动调用，使用Node-API接口napi_module_register()传入模块描述信息进行模块注册 extern "C" __attribute__((constructor)) void RegisterModule(void) { napi_module_register(&nativerenderModule); }注册XComponent事件回调，使用Node-API实现XComponent事件回调函数。
(1) 定义Surface创建成功，发生改变，销毁和XComponent的touch事件回调接口。
// 在头文件中定义PluginManager类 class PluginManager { public: static OH_NativeXComponent_Callback callback_; PluginManager(); ~PluginManager(); static PluginManager* GetInstance() { return &PluginManager::pluginManager_; } static napi_value createNativeNode(napi_env env, napi_callback_info info); static napi_value GetXComponentStatus(napi_env env, napi_callback_info info); static napi_value NapiDrawPattern(napi_env env, napi_callback_info info); // CAPI XComponent void OnSurfaceChanged(OH_NativeXComponent* component, void* window); void OnSurfaceDestroyed(OH_NativeXComponent* component, void* window); void DispatchTouchEvent(OH_NativeXComponent* component, void* window); void OnSurfaceCreated(OH_NativeXComponent* component, void* window); public: EGLCore *eglcore_; uint64_t width_; uint64_t height_; OH_NativeXComponent_TouchEvent touchEvent_; static int32_t hasDraw_; static int32_t hasChangeColor_; private: static PluginManager pluginManager_; std::unordered_map<std::string, OH_NativeXComponent*> nativeXComponentMap_; std::unordered_map<std::string, PluginManager*> pluginManagerMap_; };// 定义一个函数OnSurfaceCreatedCB()，封装初始化环境与绘制背景 void OnSurfaceCreatedCB(OH_NativeXComponent *component, void *window) { // ... // 初始化环境与绘制背景 auto *pluginManger = PluginManager::GetInstance(); pluginManger->OnSurfaceCreated(component, window); } // 定义一个函数OnSurfaceChangedCB() void OnSurfaceChangedCB(OH_NativeXComponent *component, void *window) { // ... auto *pluginManger = PluginManager::GetInstance(); // 封装OnSurfaceChanged方法 pluginManger->OnSurfaceChanged(component, window); } // 定义一个函数OnSurfaceDestroyedCB()，将PluginRender类内释放资源的方法Release()封装在其中 void OnSurfaceDestroyedCB(OH_NativeXComponent *component, void *window) { // ... auto *pluginManger = PluginManager::GetInstance(); pluginManger->OnSurfaceDestroyed(component, window); } // 定义一个函数DispatchTouchEventCB()，响应触摸事件时触发该回调 void DispatchTouchEventCB(OH_NativeXComponent *component, void *window) { // ... auto *pluginManger = PluginManager::GetInstance(); pluginManger->DispatchTouchEvent(component, window); }(2) 定义createNativeNode方法，暴露到ArkTS侧的createNativeNode()方法会执行该方法。
napi_value PluginManager::createNativeNode(napi_env env, napi_callback_info info) { if ((env == nullptr)||(info == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "CreateNativeNode env or info is null"); return nullptr; } size_t argCnt = 2; napi_value args[2] = { nullptr, nullptr }; if (napi_get_cb_info(env, info, &argCnt, args, nullptr, nullptr) != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "CreateNativeNode napi_get_cb_info failed"); } if (argCnt != ARG_CNT) { napi_throw_type_error(env, NULL, "Wrong number of arguments"); return nullptr; } ArkUI_NodeContentHandle nodeContentHandle_ = nullptr; OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &nodeContentHandle_); nodeAPI = reinterpret_cast<ArkUI_NativeNodeAPI_1*>( OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_NODE, "ArkUI_NativeNodeAPI_1") ); std::string tag = value2String(env, args[1]); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "tag=%{public}s", tag.c_str()); int32_t ret = OH_ArkUI_NodeContent_SetUserData(nodeContentHandle_, new std::string(tag)); if (ret != ARKUI_ERROR_CODE_NO_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "setUserData failed error=%{public}d", ret); } if (nodeAPI != nullptr && nodeAPI->createNode != nullptr && nodeAPI->addChild != nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "CreateNativeNode tag=%{public}s", tag.c_str()); auto nodeContentEvent = [](ArkUI_NodeContentEvent *event) { ArkUI_NodeContentHandle handle = OH_ArkUI_NodeContentEvent_GetNodeContentHandle(event); std::string *userDate = reinterpret_cast<std::string*>(OH_ArkUI_NodeContent_GetUserData(handle)); if (OH_ArkUI_NodeContentEvent_GetEventType(event) == NODE_CONTENT_EVENT_ON_ATTACH_TO_WINDOW) { ArkUI_NodeHandle testNode; if (userDate) { testNode = CreateNodeHandle(*userDate); delete userDate; userDate = nullptr; } else { testNode = CreateNodeHandle("noUserData"); } OH_ArkUI_NodeContent_AddNode(handle, testNode); } }; OH_ArkUI_NodeContent_RegisterCallback(nodeContentHandle_, nodeContentEvent); } return nullptr; } ArkUI_NodeHandle CreateNodeHandle(const std::string &tag) { ArkUI_NodeHandle column = nodeAPI->createNode(ARKUI_NODE_COLUMN); ArkUI_NumberValue value[] = {480}; ArkUI_NumberValue value1[] = {{.u32 = 15}, {.f32 = 15}}; ArkUI_AttributeItem item = {value, 1, "changeSize"}; ArkUI_AttributeItem item1 = {value1, 2}; nodeAPI->setAttribute(column, NODE_WIDTH, &item); value[0].f32 = COLUMN_MARGIN; nodeAPI->setAttribute(column, NODE_MARGIN, &item); // 创建XComponent组件 xc = nodeAPI->createNode(ARKUI_NODE_XCOMPONENT); // 设置XComponent组件属性 value[0].u32 = ARKUI_XCOMPONENT_TYPE_SURFACE; nodeAPI->setAttribute(xc, NODE_XCOMPONENT_TYPE, &item); nodeAPI->setAttribute(xc, NODE_XCOMPONENT_ID, &item); nodeAPI->setAttribute(xc, NODE_XCOMPONENT_SURFACE_SIZE, &item1); ArkUI_NumberValue focusable[] = {1}; focusable[0].i32 = 1; ArkUI_AttributeItem focusableItem = {focusable, 1}; nodeAPI->setAttribute(xc, NODE_FOCUSABLE, &focusableItem); ArkUI_NumberValue valueSize[] = {480}; ArkUI_AttributeItem itemSize = {valueSize, 1}; valueSize[0].f32 = XC_WIDTH; nodeAPI->setAttribute(xc, NODE_WIDTH, &itemSize); valueSize[0].f32 = XC_HEIGHT; nodeAPI->setAttribute(xc, NODE_HEIGHT, &itemSize); ArkUI_AttributeItem item2 = {value, 1, "ndkxcomponent"}; nodeAPI->setAttribute(xc, NODE_ID, &item2); auto *nativeXComponent = OH_NativeXComponent_GetNativeXComponent(xc); if (!nativeXComponent) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetNativeXComponent error"); return column; } OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "GetNativeXComponent success"); // 注册XComponent回调函数 OH_NativeXComponent_RegisterCallback(nativeXComponent, &PluginManager::callback_); auto typeRet = nodeAPI->getAttribute(xc, NODE_XCOMPONENT_TYPE); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "xcomponent type: %{public}d", typeRet->value[0].i32); auto idRet = nodeAPI->getAttribute(xc, NODE_XCOMPONENT_ID); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "xcomponent id: %{public}s", idRet->string); nodeAPI->addChild(column, xc); return column; }(3) 定义NapiDrawPattern方法，暴露到ArkTS侧的drawPattern()方法会执行该方法。
napi_value PluginManager::NapiDrawPattern(napi_env env, napi_callback_info info) { // ... // 获取环境变量参数 napi_value thisArg; if (napi_get_cb_info(env, info, nullptr, nullptr, &thisArg, nullptr) != napi_ok) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "PluginManager", "NapiDrawPattern: napi_get_cb_info fail"); return nullptr; } auto *pluginManger = PluginManager::GetInstance(); // 调用绘制方法 pluginManger->eglcore_->Draw(hasDraw_); OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "PluginManager", "render->eglCore_->Draw() executed"); return nullptr; }初始化环境，包括初始化可用的EGLDisplay、确定可用的Surface配置、创建渲染区域Surface、创建并关联上下文等。
void EGLCore::UpdateSize(int width, int height) { // width_和height_在头文件中定义 width_ = width; height_ = height; if (width_ > 0) { widthPercent_ = FIFTY_PERCENT * height_ / width_; } } bool EGLCore::EglContextInit(void *window, int width, int height) { // ... UpdateSize(width, height); eglWindow_ = static_cast<EGLNativeWindowType>(window); // 初始化display eglDisplay_ = eglGetDisplay(EGL_DEFAULT_DISPLAY); if (eglDisplay_ == EGL_NO_DISPLAY) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglGetDisplay: unable to get EGL display"); return false; } // 初始化EGL EGLint majorVersion; EGLint minorVersion; if (!eglInitialize(eglDisplay_, &majorVersion, &minorVersion)) { OH_LOG_Print( LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglInitialize: unable to get initialize EGL display"); return false; } // 选择配置 const EGLint maxConfigSize = 1; EGLint numConfigs; if (!eglChooseConfig(eglDisplay_, ATTRIB_LIST, &eglConfig_, maxConfigSize, &numConfigs)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglChooseConfig: unable to choose configs"); return false; } // 创建环境 return CreateEnvironment(); }bool EGLCore::CreateEnvironment() { // 创建Surface if (eglWindow_ == nullptr) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglWindow_ is null"); return false; } eglSurface_ = eglCreateWindowSurface(eglDisplay_, eglConfig_, eglWindow_, NULL); if (eglSurface_ == nullptr) { OH_LOG_Print( LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglCreateWindowSurface: unable to create surface"); return false; } // 创建context eglContext_ = eglCreateContext(eglDisplay_, eglConfig_, EGL_NO_CONTEXT, CONTEXT_ATTRIBS); if (!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "eglMakeCurrent failed"); return false; } // 创建program program_ = CreateProgram(VERTEX_SHADER, FRAGMENT_SHADER); if (program_ == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "CreateProgram: unable to create program"); return false; } return true; } GLuint EGLCore::CreateProgram(const char* vertexShader, const char* fragShader) { if ((vertexShader == nullptr)||(fragShader == nullptr)) { OH_LOG_Print( LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram: vertexShader or fragShader is null"); return PROGRAM_ERROR; } GLuint vertex = LoadShader(GL_VERTEX_SHADER, vertexShader); if (vertex == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram vertex error"); return PROGRAM_ERROR; } GLuint fragment = LoadShader(GL_FRAGMENT_SHADER, fragShader); if (fragment == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram fragment error"); return PROGRAM_ERROR; } GLuint program = glCreateProgram(); if (program == PROGRAM_ERROR) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram program error"); glDeleteShader(vertex); glDeleteShader(fragment); return PROGRAM_ERROR; } // 该gl函数没有返回值。 glAttachShader(program, vertex); glAttachShader(program, fragment); glLinkProgram(program); GLint linked; glGetProgramiv(program, GL_LINK_STATUS, &linked); if (linked != 0) { glDeleteShader(vertex); glDeleteShader(fragment); return program; } OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "createProgram linked error"); GLint infoLen = 0; glGetProgramiv(program, GL_INFO_LOG_LENGTH, &infoLen); if (infoLen > 1) { char* infoLog = (char*)malloc(sizeof(char) * (infoLen + 1)); memset(infoLog, 0, infoLen + 1); glGetProgramInfoLog(program, infoLen, nullptr, infoLog); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glLinkProgram error = %s", infoLog); free(infoLog); infoLog = nullptr; } glDeleteShader(vertex); glDeleteShader(fragment); glDeleteProgram(program); return PROGRAM_ERROR; } GLuint EGLCore::LoadShader(GLenum type, const char* shaderSrc) { if ((type <= 0)||(shaderSrc == nullptr)) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCreateShader type or shaderSrc error"); return PROGRAM_ERROR; } GLuint shader = glCreateShader(type); if (shader == 0) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCreateShader unable to load shader"); return PROGRAM_ERROR; } // 该gl函数没有返回值。 glShaderSource(shader, 1, &shaderSrc, nullptr); glCompileShader(shader); GLint compiled; glGetShaderiv(shader, GL_COMPILE_STATUS, &compiled); if (compiled != 0) { return shader; } GLint infoLen = 0; glGetShaderiv(shader, GL_INFO_LOG_LENGTH, &infoLen); if (infoLen <= 1) { glDeleteShader(shader); return PROGRAM_ERROR; } char *infoLog = (char*)malloc(sizeof(char) * (infoLen + 1)); if (infoLog != nullptr) { memset(infoLog, 0, infoLen + 1); glGetShaderInfoLog(shader, infoLen, nullptr, infoLog); OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "glCompileShader error = %s", infoLog); free(infoLog); infoLog = nullptr; } glDeleteShader(shader); return PROGRAM_ERROR; }渲染功能实现。
(1) 绘制背景。
```c++
// ...
// 绘制背景颜色 #f4f4f4
const GLfloat BACKGROUND_COLOR[] = { 244.0f / 255, 244.0f / 255, 244.0f / 255, 1.0f };
// 绘制图案颜色
const GLfloat DRAW_COLOR[] = {126.0f / 255, 143.0f / 255, 251.0f / 255, 1.0f};
// 绘制图案改变后的颜色
const GLfloat CHANGE_COLOR[] = {146.0f / 255, 214.0f / 255, 204.0f / 255, 1.0f};
// 绘制背景顶点
const GLfloat BACKGROUND_RECTANGLE_VERTICES[] = {
-1.0f, 1.0f,
1.0f, 1.0f,
1.0f, -1.0f,
-1.0f, -1.0f
};
// ...
```
```c++
// 绘制背景颜色
void EGLCore::Background() {
GLint position = PrepareDraw();
if (position == POSITION_ERROR) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background get position failed");
return;
}
if (!ExecuteDraw(position, BACKGROUND_COLOR, BACKGROUND_RECTANGLE_VERTICES,
sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background execute draw failed");
return;
}
if (!FinishDraw()) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Background FinishDraw failed");
return;
}
}
// 绘前准备，获取position，创建成功时position值从0开始
GLint EGLCore::PrepareDraw() {
if ((eglDisplay_ == nullptr)||(eglSurface_ == nullptr)||(eglContext_ == nullptr)||
(!eglMakeCurrent(eglDisplay_, eglSurface_, eglSurface_, eglContext_))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "PrepareDraw: param error");
return POSITION_ERROR;
}
// 该gl函数没有返回值。
glViewport(DEFAULT_X_POSITION, DEFAULT_Y_POSITION, width_, height_);
glClearColor(GL_RED_DEFAULT, GL_GREEN_DEFAULT, GL_BLUE_DEFAULT, GL_ALPHA_DEFAULT);
glClear(GL_COLOR_BUFFER_BIT);
glUseProgram(program_);
return glGetAttribLocation(program_, POSITION_NAME);
}
// 依据传入参数在指定区域绘制指定颜色
bool EGLCore::ExecuteDraw(GLint position, const GLfloat *color, const GLfloat shapeVertices[], unsigned long vertSize) {
if ((position > 0)||(color == nullptr)||(vertSize / sizeof(shapeVertices[0])) != SHAPE_VERTICES_SIZE) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ExecuteDraw: param error");
return false;
}
// 该gl函数没有返回值。
glVertexAttribPointer(position, POINTER_SIZE, GL_FLOAT, GL_FALSE, 0, shapeVertices);
glEnableVertexAttribArray(position);
glVertexAttrib4fv(1, color);
glDrawArrays(GL_TRIANGLE_FAN, 0, TRIANGLE_FAN_SIZE);
glDisableVertexAttribArray(position);
return true;
}
// 结束绘制操作
bool EGLCore::FinishDraw() {
// 强制刷新缓冲
glFlush();
glFinish();
return eglSwapBuffers(eglDisplay_, eglSurface_);
}
```
(2) 绘制图形。
```c++
void EGLCore::Draw(int& hasDraw) {
flag_ = false;
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLCore", "Draw");
GLint position = PrepareDraw();
if (position == POSITION_ERROR) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw get position failed");
return;
}
// 绘制背景
if (!ExecuteDraw(position, BACKGROUND_COLOR,
BACKGROUND_RECTANGLE_VERTICES, sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw background failed");
return;
}
// 将五角星分为五个四边形，计算其中一个四边形的四个顶点
GLfloat rotateX = 0;
GLfloat rotateY = FIFTY_PERCENT * height_;
GLfloat centerX = 0;
GLfloat centerY = -rotateY * (M_PI / 180 * 54) * (M_PI / 180 * 18);
GLfloat leftX = -rotateY * (M_PI / 180 * 18);
GLfloat leftY = 0;
GLfloat rightX = rotateY * (M_PI / 180 * 18);
GLfloat rightY = 0;
// 确定绘制四边形的顶点，使用绘制区域的百分比表示
const GLfloat shapeVertices[] = {
centerX / width_, centerY / height_,
leftX / width_, leftY / height_,
rotateX / width_, rotateY / height_,
rightX / width_, rightY / height_
};
if (!ExecuteDrawStar(position, DRAW_COLOR, shapeVertices, sizeof(shapeVertices))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw star failed");
return;
}
GLfloat rad = M_PI / 180 * 72;
for (int i = 0; i < NUM_4; ++i) {
// 旋转得其他四个四边形的顶点
Rotate2d(centerX, centerY, &rotateX, &rotateY, rad);
Rotate2d(centerX, centerY, &leftX, &leftY, rad);
Rotate2d(centerX, centerY, &rightX, &rightY, rad);
// 确定绘制四边形的顶点，使用绘制区域的百分比表示
const GLfloat shapeVertices[] = {
centerX / width_, centerY / height_,
leftX / width_, leftY / height_,
rotateX / width_, rotateY / height_,
rightX / width_, rightY / height_
};
// 绘制图形
if (!ExecuteDrawStar(position, DRAW_COLOR, shapeVertices, sizeof(shapeVertices))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw shape failed");
return;
}
}
// 结束绘制
if (!FinishDraw()) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw FinishDraw failed");
return;
}
hasDraw = 1;
flag_ = true;
}
```
(3) 改变颜色，重新画一个大小相同颜色不同的图形，与原图形替换，达到改变颜色的效果。
```c++
void EGLCore::ChangeColor(int& hasChangeColor) {
if (!flag_) {
return;
}
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor");
GLint position = PrepareDraw();
if (position == POSITION_ERROR) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor get position failed");
return;
}
// 绘制背景
if (!ExecuteDraw(position, BACKGROUND_COLOR,
BACKGROUND_RECTANGLE_VERTICES, sizeof(BACKGROUND_RECTANGLE_VERTICES))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor execute draw background failed");
return;
}
// 确定绘制四边形的顶点，使用绘制区域的百分比表示
GLfloat rotateX = 0;
GLfloat rotateY = FIFTY_PERCENT * height_;
GLfloat centerX = 0;
GLfloat centerY = -rotateY * (M_PI / 180 * 54) * (M_PI / 180 * 18);
GLfloat leftX = -rotateY * (M_PI / 180 * 18);
GLfloat leftY = 0;
GLfloat rightX = rotateY * (M_PI / 180 * 18);
GLfloat rightY = 0;
// 确定绘制四边形的顶点，使用绘制区域的百分比表示
const GLfloat shapeVertices[] = {
centerX / width_, centerY / height_,
leftX / width_, leftY / height_,
rotateX / width_, rotateY / height_,
rightX / width_, rightY / height_
};
// 使用新的颜色绘制
if (!ExecuteDrawNewStar(position, CHANGE_COLOR, shapeVertices, sizeof(shapeVertices))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw star failed");
return;
}
GLfloat rad = M_PI / 180 * 72;
for (int i = 0; i < NUM_4; ++i) {
// 旋转得其他四个四边形的顶点
Rotate2d(centerX, centerY, &rotateX, &rotateY, rad);
Rotate2d(centerX, centerY, &leftX, &leftY, rad);
Rotate2d(centerX, centerY, &rightX, &rightY, rad);
// 确定绘制四边形的顶点，使用绘制区域的百分比表示
const GLfloat shapeVertices[] = {
centerX / width_, centerY / height_,
leftX / width_, leftY / height_,
rotateX / width_, rotateY / height_,
rightX / width_, rightY / height_
};
// 使用新的颜色绘制
if (!ExecuteDrawNewStar(position, CHANGE_COLOR, shapeVertices, sizeof(shapeVertices))) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Draw execute draw shape failed");
return;
}
}
// 结束绘制
if (!FinishDraw()) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "ChangeColor FinishDraw failed");
}
hasChangeColor = 1;
}
bool EGLCore::ExecuteDrawNewStar( GLint position, const GLfloat* color, const GLfloat shapeVertices[], unsigned long vertSize) { if ((position > 0)||(color == nullptr)||(vertSize / sizeof(shapeVertices[0])) != SHAPE_VERTICES_SIZE) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, “EGLCore”, “ExecuteDraw: param error”); return false; }
// 该gl函数没有返回值。
glVertexAttribPointer(position, POINTER_SIZE, GL_FLOAT, GL_FALSE, 0, shapeVertices);
glEnableVertexAttribArray(position);
glVertexAttrib4fv(1, color);
glDrawArrays(GL_TRIANGLE_FAN, 0, TRIANGLE_FAN_SIZE);
glDisableVertexAttribArray(position);
return true;
} “`
释放相关资源。
(1) EGLCore类下创建Release()方法，释放初始化环境时申请的资源，包含窗口display、渲染区域surface、环境上下文context等。
void EGLCore::Release() { // 释放Surface if ((eglDisplay_ == nullptr)||(eglSurface_ == nullptr)||(!eglDestroySurface(eglDisplay_, eglSurface_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglDestroySurface failed"); } // 释放context if ((eglDisplay_ == nullptr)||(eglContext_ == nullptr)||(!eglDestroyContext(eglDisplay_, eglContext_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglDestroyContext failed"); } // 释放display if ((eglDisplay_ == nullptr)||(!eglTerminate(eglDisplay_))) { OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "EGLCore", "Release eglTerminate failed"); } }CMakeLists，使用CMake工具链将C++源代码编译成动态链接库文件。
# 设置CMake最小版本 cmake_minimum_required(VERSION 3.4.1) # 项目名称 project(XComponent) set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR}) add_definitions(-DOHOS_PLATFORM) # 设置头文件搜索目录 include_directories( ${NATIVERENDER_ROOT_PATH} ${NATIVERENDER_ROOT_PATH}/include ) # 添加名为nativerender的动态库，库文件名为libnativerender.so，添加cpp文件 add_library(nativerender SHARED render/egl_core.cpp render/plugin_render.cpp manager/plugin_manager.cpp napi_init.cpp ) find_library( EGL-lib EGL ) find_library( GLES-lib GLESv3 ) find_library( hilog-lib hilog_ndk.z ) find_library( libace-lib ace_ndk.z ) find_library( libnapi-lib ace_napi.z ) find_library( libuv-lib uv ) # 添加构建需要链接的库 target_link_libraries(nativerender PUBLIC ${EGL-lib} ${GLES-lib} ${hilog-lib} ${libace-lib} ${libnapi-lib} ${libuv-lib})
相关实例
针对Native XComponent的使用，有以下相关实例可供参考：
针对ArkTS XComponent的使用，有以下相关实例可供参考：
你可能感兴趣的鸿蒙文章
0
赞
热门推荐
-
2、 - 优质文章
-
3、 gate.io
-
8、 golang
-
9、 openharmony
-
10、 Vue中input框自动聚焦
