栅格布局 (GridRow/GridCol)

概述

栅格布局是一种通用的辅助定位工具,对移动设备的界面设计有较好的借鉴作用。主要优势包括:

  1. 提供可循的规律:栅格布局可以为布局提供规律性的结构,解决多尺寸多设备的动态布局问题。通过将页面划分为等宽的列数和行数,可以方便地对页面元素进行定位和排版。

  2. 统一的定位标注:栅格布局可以为系统提供一种统一的定位标注,保证不同设备上各个模块的布局一致性。这可以减少设计和开发的复杂度,提高工作效率。

  3. 灵活的间距调整方法:栅格布局可以提供一种灵活的间距调整方法,满足特殊场景布局调整的需求。通过调整列与列之间和行与行之间的间距,可以控制整个页面的排版效果。

  4. 自动换行和自适应:栅格布局可以完成一对多布局的自动换行和自适应。当页面元素的数量超出了一行或一列的容量时,他们会自动换到下一行或下一列,并且在不同的设备上自适应排版,使得页面布局更加灵活和适应性强。

GridRow为栅格容器组件,需与栅格子组件GridCol在栅格布局场景中联合使用。

栅格容器GridRow

栅格容器断点

栅格容器以设备的水平宽度(屏幕密度像素值,单位vp)作为断点依据,定义设备的宽度类型,形成了一套断点规则。开发者可根据需求在不同的断点区间实现不同的页面布局效果。

栅格容器默认断点将设备宽度分为xs、sm、md、lg四类,尺寸范围如下:

断点名称 取值范围(vp) 设备描述
xs [0, 320) 最小宽度类型设备。
sm [320, 600) 小宽度类型设备。
md [600, 840) 中等宽度类型设备。
lg [840, +∞) 大宽度类型设备。

在GridRow栅格组件中,允许开发者使用BreakPoints自定义修改断点的取值范围,最多支持6个断点,除了默认的4个断点外,还可以启用xl和xxl断点,支持6种不同尺寸(xs,sm,md,lg,xl,xxl)设备的布局设置。

断点名称 设备描述
xs 最小宽度类型设备。
sm 小宽度类型设备。
md 中等宽度类型设备。
lg 大宽度类型设备。
xl 特大宽度类型设备。
xxl 超大宽度类型设备。
  • 开发者可根据实际使用场景,通过一个单调递增数组设置断点位置。由于栅格容器默认支持4个断点,在不设置断点位置时,系统为默认断点配置的单调递增数组为[“320vp”, “600vp”, “840vp”]。开发者使用BreakPoints最多可支持6个断点,因此此单调递增数组最大长度为5。

假设传入的数组是[n0, n1, n2, n3, n4],则各个断点取值如下:

断点 取值范围
xs [0, n0)
sm [n0, n1)
md [n1, n2)
lg [n2, n3)
xl [n3, n4)
xxl [n4, INF)
  breakpoints: {value: ['100vp', '200vp']} // 表示xs、sm、md共3个断点被使用,小于100vp为xs,100vp-200vp为sm,大于200vp为md。
  breakpoints: {value: ['320vp', '600vp']} // 表示xs、sm、md共3个断点被使用,小于320vp为xs,320vp-600vp为sm,大于600vp为md。
  breakpoints: {value: ['320vp', '600vp', '840vp', '1440vp']} // 表示xs、sm、md、lg、xl共5个断点被使用,小于320vp为xs,320vp-600vp为sm,  600vp-840vp为md,840vp-1440vp为lg,大于1440vp为xl。
  • 栅格容器通过监听窗口或容器的尺寸变化进行断点,通过reference设置断点切换参考物。考虑到应用可能以非全屏窗口的形式显示,以应用窗口宽度为参照物更为通用。

例如,通过断点设置将应用宽度分成6个区间,通过columns配置各断点下栅格容器的栅格列数。

  @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
  // ...
  GridRow({
    columns: {
              xs: 2, // 窗口宽度落入xs断点上,栅格容器分为2列。
              sm: 4, // 窗口宽度落入sm断点上,栅格容器分为4列。
              md: 8, // 窗口宽度落入md断点上,栅格容器分为8列。
              lg: 12, // 窗口宽度落入lg断点上,栅格容器分为12列。
              xl: 12, // 窗口宽度落入xl断点上,栅格容器分为12列。
              xxl: 12 // 窗口宽度落入xxl断点上,栅格容器分为12列。
    },
    breakpoints: {
      value: ['320vp', '600vp', '840vp', '1440vp', '1600vp'], // 表示在保留默认断点['320vp', '600vp', '840vp']的同时自定义增加'1440vp', '1600vp'的断点,实际开发中需要根据实际使用场景,合理设置断点值实现一次开发多端适配。
      reference: BreakpointsReference.WindowSize
    }
  }) {
    ForEach(this.bgColors, (color:ResourceColor, index?:number|undefined) => {
      GridCol({ span: 1 }) { // 所有子组件占一列。
        Row() {
          Text(`${index}`)
        }.width("100%").height('50vp')
      }.backgroundColor(color)
    })
  }

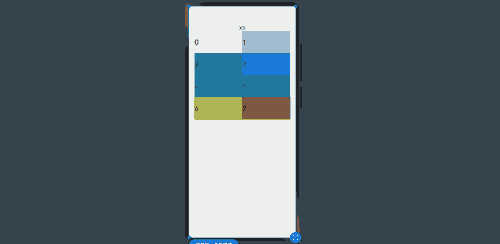

zh-cn_image_0000001511421272

布局的总列数

GridRow中通过columns设置栅格布局的总列数。

  • API version 20之前,columns默认值为12,即在未设置columns时,任何断点下,栅格布局均被分成12列。

  • API version 20及以后,columns默认值为{ xs: 2, sm: 4, md: 8, lg: 12, xl: 12, xxl: 12 }。

    @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)', 'rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)'];
     // ...
    GridRow() {
      ForEach(this.bgColors, (item:ResourceColor, index?:number|undefined) => {
        GridCol({span: 1}) {
          Row() {
              Text(`${index}`)
          }.width('100%').height('50')
        }.backgroundColor(item)
      })
    }

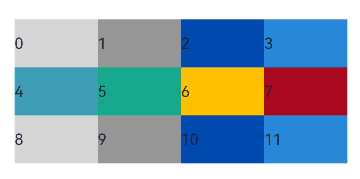

    API version 20之前布局显示:

    zh-cn_image_0000001563060709

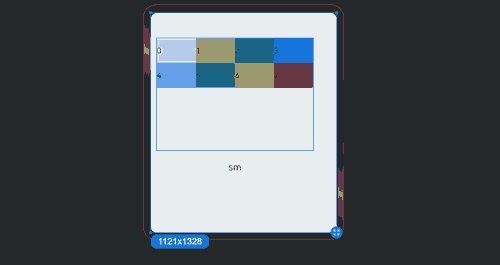

    API version 20及以后布局显示(以sm设备为例,默认栅格列数为4):

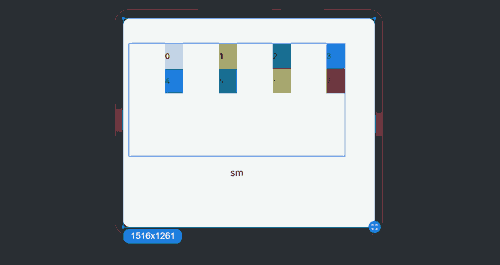

    zh-cn_image_0000001563060710

columns支持number和GridRowColumnOption两种类型, 可按两种方式设置栅格布局的总列数。 - 当columns类型为number时,栅格布局在任何尺寸设备下都被分为同一列数。下面分别设置栅格布局列数为4和8,子元素占一列,效果如下:

  @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
  @State currentBp: string = 'unknown';
  // ...
  Row() {
    GridRow({ columns: 4 }) {
      ForEach(this.bgColors, (item: ResourceColor, index?: number|undefined) => {
        GridCol({ span: 1 }) {
          Row() {
            Text(`${index}`)
          }.width('100%').height('50')
        }.backgroundColor(item)
      })
    }
    .width('100%').height('100%')
  }
  .height(160)
  .border({ color: 'rgb(39,135,217)', width: 2 })
  .width('90%')

  Row() {
    GridRow({ columns: 8 }) {
      ForEach(this.bgColors, (item: ResourceColor, index?: number|undefined) => {
        GridCol({ span: 1 }) {
          Row() {
            Text(`${index}`)
          }.width('100%').height('50')
        }.backgroundColor(item)
      })
    }
    .width('100%').height('100%')
  }
  .height(160)
  .border({ color: 'rgb(39,135,217)', width: 2 })
  .width('90%')

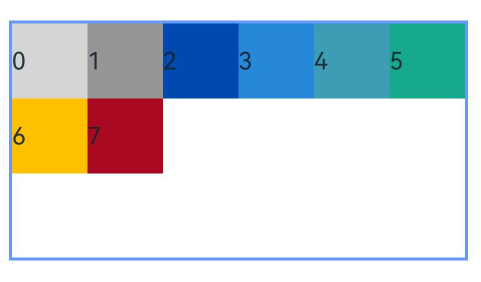

![zh-cn_image_0000001511421268](figures/zh-cn_image_0000001511421268.png)
  • 当columns类型为GridRowColumnOption时,支持下面6种不同尺寸(xs,sm,md,lg,xl,xxl)设备的栅格列数设置,不同尺寸的设备支持配置不同的栅格列数。
  @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
  GridRow({
    columns: { sm: 4, md: 8 },
    breakpoints: {
      value: ['320vp', '600vp', '840vp', '1440vp', '1600vp'] // 表示在保留默认断点['320vp', '600vp', '840vp']的同时自定义增加'1440vp', '1600vp'的断点,实际开发中需要根据实际使用场景,合理设置断点值实现一次开发多端适配。
    }
  }) {
    ForEach(this.bgColors, (item: ResourceColor, index?: number|undefined) => {
      GridCol({ span: 1 }) {
        Row() {
          Text(`${index}`)
        }.width('100%').height('50')
      }.backgroundColor(item)
    })
  }
  .height(200)
  .border({ color: 'rgb(39,135,217)', width: 2 })
API version 20之前布局显示(xs设备未配置栅格列数,取默认列数12):

![zh-cn_image_0000001563060689](figures/zh-cn_image_0000001563060689.gif)

API version 20及以后布局显示(xs设备继承sm设备栅格列数):

![zh-cn_image_0000001563060689](figures/zh-cn_image_0000001563060690.gif)

仅部分设置sm、md的栅格列数,未配置的xs、lg、xl、xxl设备根据栅格列数补全取默认值。

排列方向

栅格布局中,可以通过设置GridRow的direction属性来指定栅格子组件在栅格容器中的排列方向。该属性可以设置为GridRowDirection.Row(从左往右排列)或GridRowDirection.RowReverse(从右往左排列),以满足不同的布局需求。通过合理的direction属性设置,可以使得页面布局更加灵活和符合设计要求。

  • 子组件默认从左往右排列。

    GridRow({ direction: GridRowDirection.Row }){ /* ... */ }

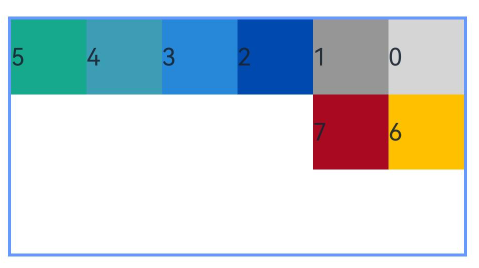

    zh-cn_image_0000001511740488

  • 子组件从右往左排列。

    GridRow({ direction: GridRowDirection.RowReverse }){ /* ... */ }


    zh-cn_image_0000001562940517

子组件间距

GridRow中通过gutter属性设置子元素在水平和垂直方向的间距。

  • 当gutter类型为number时,同时设置栅格子组件间水平和垂直方向边距且相等。下例中,设置子组件水平与垂直方向距离相邻元素的间距为10。

    GridRow({ gutter: 10 }){ /* ... */ }

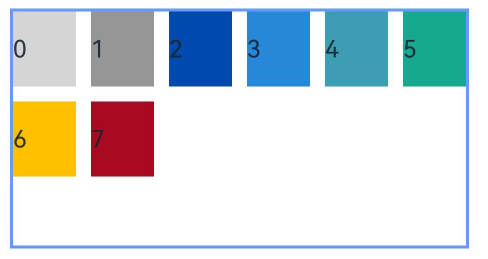

    zh-cn_image_0000001511740476

  • 当gutter类型为GutterOption时,单独设置栅格子组件水平垂直边距,x属性为水平方向间距,y为垂直方向间距。

    GridRow({ gutter: { x: 20, y: 50 } }){ /* ... */ }


    zh-cn_image_0000001511900456

子组件GridCol

GridCol组件作为GridRow组件的子组件,通过给GridCol传参或者设置属性两种方式,设置span(占用列数),offset(偏移列数),order(元素序号)的值。

  • 设置span。

    let Gspan:Record<string,number> = { 'xs': 1, 'sm': 2, 'md': 3, 'lg': 4 }
    GridCol({ span: 2 }){}
    GridCol({ span: { xs: 1, sm: 2, md: 3, lg: 4 } }){}
    GridCol(){}.span(2)
    GridCol(){}.span(Gspan)

  • 设置offset。

    let Goffset:Record<string,number> = { 'xs': 1, 'sm': 2, 'md': 3, 'lg': 4 }
    GridCol({ offset: 2, span: 1 }){}
    GridCol({ offset: { xs: 2, sm: 2, md: 2, lg: 2 }, span: 1 }){}
    GridCol({ span: 1 }){}.offset(Goffset)

  • 设置order。

    let Gorder:Record<string,number> = { 'xs': 1, 'sm': 2, 'md': 3, 'lg': 4 }
    GridCol({ order: 2, span: 1 }){}
    GridCol({ order: { xs: 1, sm: 2, md: 3, lg: 4 }, span: 1 }){}
    GridCol({ span: 1 }){}.order(2)
    GridCol({ span: 1 }){}.order(Gorder)


span

子组件占栅格布局的列数,决定了子组件的宽度。默认值为1。

span支持number和GridColColumnOption两种类型, 可按两种方式设置栅格子组件占栅格容器的列数。 - 当span类型为number时,子组件在所有尺寸设备下占用的列数相同。

```ts

@State bgColors: ResourceColor[] = [‘rgb(213,213,213)’, ‘rgb(150,150,150)’, ‘rgb(0,74,175)’, ‘rgb(39,135,217)’, ‘rgb(61,157,180)’, ‘rgb(23,169,141)’, ‘rgb(255,192,0)’, ‘rgb(170,10,33)’]; // … GridRow({ columns: 8 }) { ForEach(this.bgColors, (color:ResourceColor, index?:number|undefined) => { GridCol({ span: 2 }) {
Row() { Text(${index}) }.width(‘100%’).height(‘50vp’)
} .backgroundColor(color) }) }
“`

![zh-cn_image_0000001511421264](figures/zh-cn_image_0000001511421264.png)
  • 当span类型为GridColColumnOption时,支持6种不同尺寸(xs,sm,md,lg,xl,xxl)设备中子组件所占列数设置,不同尺寸的设备下子组件支持配置不同列数。若仅部分设置sm、md的列数,未配置的xs、lg、xl、xxl设备根据列数补全取默认值。

    @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
    // ...
    GridRow({ columns: 8 }) {
      ForEach(this.bgColors, (color:ResourceColor, index?:number|undefined) => {
        GridCol({ span: { xs: 1, sm: 2, md: 3, lg: 4 } }) {
          Row() {
            Text(`${index}`)
          }.width('100%').height('50vp')
        }
        .backgroundColor(color)
      })
    }

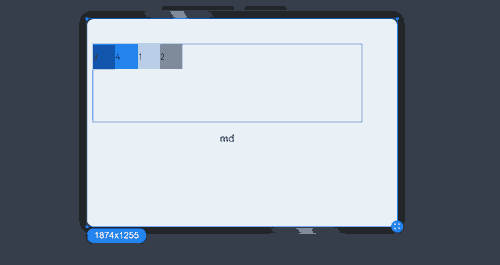

    zh-cn_image_0000001511740492

offset

栅格子组件相对于前一个子组件的偏移列数,默认为0。

  • 当offset类型为number时,子组件偏移相同列数。

    @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
    // ...
    GridRow() {
      ForEach(this.bgColors, (color:ResourceColor, index?:number|undefined) => {
        GridCol({ offset: 2, span: 1 }) {
          Row() {
            Text('' + index)
          }.width('100%').height('50vp')
        }
        .backgroundColor(color)
      })
    }

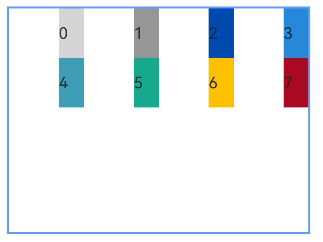

    zh-cn_image_0000001563060705

栅格分成12列,每一个子组件占1列,偏移2列,每个子组件及间距共占3列,1行放4个子组件。

  • 当offset类型为GridColColumnOption时,支持6种不同尺寸(xs,sm,md,lg,xl,xxl)设备中子组件所占列数设置,各个尺寸下数值可不同。

    @State bgColors: ResourceColor[] =
      ['rgb(213,213,213)', 'rgb(150,150,150)', 'rgb(0,74,175)', 'rgb(39,135,217)', 'rgb(61,157,180)', 'rgb(23,169,141)',
        'rgb(255,192,0)', 'rgb(170,10,33)'];
    // ...


    GridRow({ columns: 12 }) {
      ForEach(this.bgColors, (color: ResourceColor, index?: number|undefined) => {
        GridCol({ offset: { xs: 1, sm: 2, md: 3, lg: 4 }, span: 1 }) {
          Row() {
            Text('' + index)
          }.width('100%').height('50vp')
        }
        .backgroundColor(color)
      })
    }
    .height(200)
    .border({ color: 'rgb(39,135,217)', width: 2 })


    zh-cn_image_0000001562700433

order

栅格子组件的序号,决定子组件排列次序。当子组件不设置order或者设置相同的order, 子组件按照代码顺序展示。当子组件设置不同的order时,order较小的组件在前,较大的在后。

当子组件部分设置order,部分不设置order时,未设置order的子组件依次排序靠前,设置了order的子组件按照数值从小到大排列。

  • 当order类型为number时,子组件在任何尺寸下排序次序一致。

    GridRow({ columns: 12 }) {
    GridCol({ order: 4, span: 1 }) {
      Row() {
        Text('1')
      }.width('100%').height('50vp')
    }.backgroundColor('rgb(213,213,213)')
    GridCol({ order: 3, span: 1 }) {
      Row() {
        Text('2')
      }.width('100%').height('50vp')
    }.backgroundColor('rgb(150,150,150)')
    GridCol({ order: 2, span: 1 }) {
      Row() {
        Text('3')
      }.width('100%').height('50vp')
    }.backgroundColor('rgb(0,74,175)')
    GridCol({ order: 1, span: 1 }) {
      Row() {
        Text('4')
      }.width('100%').height('50vp')
    }.backgroundColor('rgb(39,135,217)')
    }

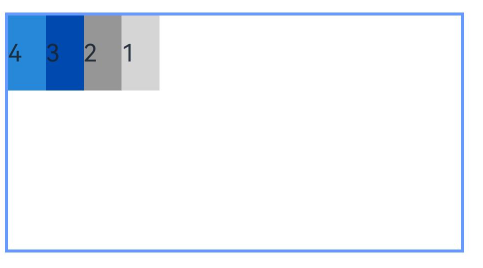

    zh-cn_image_0000001511580892

  • 当order类型为GridColColumnOption时,支持6种不同尺寸(xs,sm,md,lg,xl,xxl)设备中子组件排序次序设置。在xs设备中,子组件排列顺序为1234;sm为2341,md为3412,lg为2431。

    GridRow({ columns: 12 }) {
      GridCol({ order: { xs:1, sm:5, md:3, lg:7}, span: 1 }) {
        Row() {
          Text('1')
        }.width('100%').height('50vp')
      }.backgroundColor(Color.Red)
      GridCol({ order: { xs:2, sm:2, md:6, lg:1}, span:1 }) {
        Row() {
          Text('2')
        }.width('100%').height('50vp')
      }.backgroundColor(Color.Orange)
      GridCol({ order: { xs:3, sm:3, md:1, lg:6}, span:1 }) {
        Row() {
          Text('3')
        }.width('100%').height('50vp')
      }.backgroundColor(Color.Yellow)
      GridCol({ order: { xs:4, sm:4, md:2, lg:5}, span:1 }) {
        Row() {
          Text('4')
        }.width('100%').height('50vp')
      }.backgroundColor(Color.Green)
    }


    zh-cn_image_0000001511900444

栅格组件的嵌套使用

栅格组件也可以嵌套使用,完成一些复杂的布局。

以下示例中,栅格把整个空间分为12份。第一层GridRow嵌套GridCol,分为中间大区域以及“footer”区域。第二层GridRow嵌套GridCol,分为“left”和“right”区域。子组件空间按照上一层父组件的空间划分,粉色的区域是屏幕空间的12列,绿色和蓝色的区域是父组件GridCol的12列,依次进行空间的划分。

@Entry
@Component
struct GridRowExample {
  build() {
    GridRow({ columns: 12 }) {
      GridCol({ span: 12 }) {
        GridRow({ columns: 12 }) {
          GridCol({ span: 2 }) {
            Row() {
              Text('left').fontSize(24)
            }
            .justifyContent(FlexAlign.Center)
            .height('90%')
          }.backgroundColor('#ff41dbaa')

          GridCol({ span: 10 }) {
            Row() {
              Text('right').fontSize(24)
            }
            .justifyContent(FlexAlign.Center)
            .height('90%')
          }.backgroundColor('#ff4168db')
        }
        .backgroundColor('#19000000')
      }

      GridCol({ span: 12 }) {
        Row() {
          Text('footer').width('100%').textAlign(TextAlign.Center)
        }.width('100%').height('10%').backgroundColor(Color.Pink)
      }
    }.width('100%').height(300)
  }
}

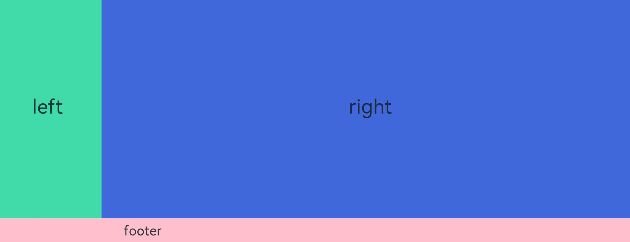

zh-cn_image_0000001563060697

综上所述,栅格组件提供了丰富的自定义能力,功能非常灵活和强大。只需要明确栅格在不同断点下的Columns、Margin、Gutter及span等参数,即可确定最终布局,无需关心具体的设备类型及设备状态(如横竖屏)等。
