AppStorage: Storing Application-wide UI State

AppStorage provides central storage for application UI state attributes. It is bound to the application process and is created by the UI framework at application startup.

Unlike AppStorage, LocalStorage is usually used for page-level state sharing, While AppStorage enables application-wide UI state sharing. AppStorage is equivalent to the hub of the entire application. PersistentStorage and Environment data is passed first to AppStorage and then from AppStorage to the UI component.

This topic describes the AppStorage use scenarios and related decorators: \@StorageProp and \@StorageLink.

Different from decorators such as \@State that can be passed only in the component tree, AppStorage aims to provide basic data sharing across abilities in a larger scope. Before reading this topic, you are advised to read State Management Overview to have a macro understanding of the positioning of AppStorage in the state management framework.

AppStorage also provides APIs for you to manually add, delete, change, and query keys of AppStorage outside the custom component. You are advised to read this topic together with AppStorage API reference.

Overview

AppStorage is a singleton object that is created at application startup. Its purpose is to provide central storage for application UI state attributes. AppStorage retains all those attributes and their values as long as the application remains running. Each attribute is accessed using a unique key, which is a string.

UI components synchronize application state attributes with AppStorage. AppStorage can be accessed during implementation of application service logic as well.

AppStorage supports state sharing among multiple UIAbility instances in the main thread of an application.

Selected state attributes of AppStorage can be synchronized with different data sources or data sinks. Those data sources and sinks can be on a local or remote device, and have different capabilities, such as data persistence (see PersistentStorage). These data sources and sinks are implemented in the service logic, and separated from the UI. Link to @StorageProp and @StorageLink those AppStorage attributes whose values should be kept until application re-start.

\@StorageProp

As mentioned above, if you want to establish a binding between AppStorage and a custom component, you’ll need the \@StorageProp or \@StorageLink decorator. Use \@StorageProp(key) or \@StorageLink(key) to decorate variables in the component, where key identifies an attribute in AppStorage.

When a custom component is initialized, the attribute value corresponding to the key in AppStorage is used to initialize the \@StorageProp(key) or \@StorageLink(key) decorated variable. Whether the attribute with the given key exists in AppStorage depends on the application logic. This means that it may be missing from AppStorage. In light of this, local initialization is mandatory for the \@StorageProp(key) or \@StorageLink(key) decorated variable.

By decorating a variable with \@StorageProp(key), a one-way data synchronization is established from the attribute with the given key in AppStorage to the variable. A local change can be made, but it will not be synchronized to AppStorage. An update to the attribute with the given key in AppStorage will overwrite local changes. > NOTE > > This decorator can be used in atomic services since API version 11.

Rules of Use

Variable Transfer/Access Rules

Figure 1 \@StorageProp initialization rule

Observed Changes and Behavior

Observed Changes

• When the decorated variable is of the Boolean, string, or number type, its value change can be observed.

• When the decorated variable is of the class or object type, its value change as well as value changes of all its attributes can be observed. For details, see Example of Using AppStorage and LocalStorage Inside the UI.

• When the decorated variable is of the array type, the addition, deletion, and updates of array items can be observed.

• When the decorated variable is of the Date type, the value change of the Date object can be observed, and the following APIs can be called to update Date properties: setFullYear, setMonth, setDate, setHours, setMinutes, setSeconds, setMilliseconds, setTime, setUTCFullYear, setUTCMonth, setUTCDate, setUTCHours, setUTCMinutes, setUTCSeconds, and setUTCMilliseconds. For details, see Decorating Variables of the Date Type.

• When the decorated variable is Map, value changes of Map can be observed. In addition, you can call the set, clear, and delete APIs of Map to update its value. For details, see Decorating Variables of the Map Type.

• When the decorated variable is Set, value changes of Set can be observed. In addition, you can call the add, clear, and delete APIs of Set to update its value. For details, see Decorating Variables of the Set Type.

Framework Behavior

• When the value change of the \@StorageProp(key) decorated variable is observed, the change is not synchronized to the attribute with the given key in AppStorage.

• The value change of the \@StorageProp(key) decorated variable only applies to the private member variables of the current component, but not other variables bound to the key.

• When the data decorated by \@StorageProp(key) is a state variable, the change of the data is not synchronized to AppStorage, but the owning custom component is re-rendered.

• When the attribute with the given key in AppStorage is updated, the change is synchronized to all the \@StorageProp(key) decorated data, and the local changes of the data are overwritten.

\@StorageLink

NOTE

This decorator can be used in atomic services since API version 11.

\@StorageLink(key) creates a two-way data synchronization between the variable it decorates and the attribute with the given key in AppStorage.

1. Local changes are synchronized to AppStorage.

2. Any change in AppStorage is synchronized to the attribute with the given key in all scenarios, including one-way bound variables (\@StorageProp decorated variables and one-way bound variables created through \@Prop), two-way bound variables (\@StorageLink decorated variables and two-way bound variables created through \@Link), and other instances (such as PersistentStorage).

Rules of Use

Variable Transfer/Access Rules

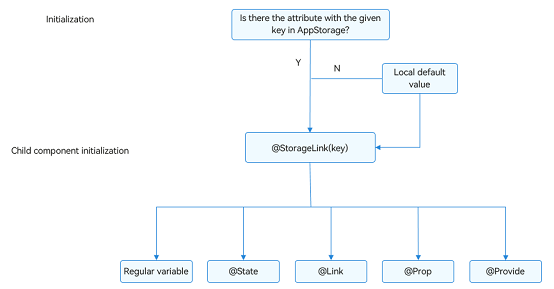

Figure 2 \@StorageLink initialization rule

Observed Changes and Behavior

Observed Changes

• When the decorated variable is of the Boolean, string, or number type, its value change can be observed.

• When the decorated variable is of the class or object type, its value change as well as value changes of all its attributes can be observed. For details, see Example of Using AppStorage and LocalStorage Inside the UI.

• When the decorated variable is of the array type, the addition, deletion, and updates of array items can be observed.

• When the decorated variable is of the Date type, the value change of the Date object can be observed, and the following APIs can be called to update Date properties: setFullYear, setMonth, setDate, setHours, setMinutes, setSeconds, setMilliseconds, setTime, setUTCFullYear, setUTCMonth, setUTCDate, setUTCHours, setUTCMinutes, setUTCSeconds, and setUTCMilliseconds. For details, see Decorating Variables of the Date Type.

• When the decorated variable is Map, value changes of Map can be observed. In addition, you can call the set, clear, and delete APIs of Map to update its value. For details, see Decorating Variables of the Map Type.

• When the decorated variable is Set, value changes of Set can be observed. In addition, you can call the add, clear, and delete APIs of Set to update its value. For details, see Decorating Variables of the Set Type.

Framework Behavior

1. When the value change of the \@StorageLink(key) decorated variable is observed, the change is synchronized to the attribute with the given key in AppStorage.

2. Once the attribute with the given key in AppStorage is updated, all the data (including \@StorageLink and \@StorageProp decorated variables) bound to the key is changed synchronously.

3. When the data decorated by \@StorageLink(key) is a state variable, its change is synchronized to AppStorage, and the owning custom component is re-rendered.

Restrictions

1. The parameter of \@StorageProp and \@StorageLink must be of the string type. Otherwise, an error is reported during compilation.

   AppStorage.setOrCreate('PropA', 47);


   // Incorrect format. An error is reported during compilation.
   @StorageProp() storageProp: number = 1;
   @StorageLink() storageLink: number = 2;


   // Correct format.
   @StorageProp('PropA') storageProp: number = 1;
   @StorageLink('PropA') storageLink: number = 2;


2. \@StorageProp and \@StorageLink cannot decorate variables of the function type. Otherwise, the framework throws a runtime error.

3. When using AppStorage together with PersistentStorage and Environment, pay attention to the following:

   (1) After an attribute is created in AppStorage, a call to PersistentStorage.persistProp() uses the attribute value in AppStorage and overwrites any attribute with the same name in PersistentStorage. In light of this, the opposite order of calls is recommended. For an example of incorrect usage, see Accessing an Attribute in AppStorage Before PersistentStorage.

   (2) After an attribute is created in AppStorage, a call to Environment.envProp() with the same attribute name will fail. This is because environment variables will not be written into AppStorage. Therefore, you are advised not to use the preset environment variable names in AppStorage.

   (3) Changes to the variables decorated by state decorators will cause UI re-rendering. If the changes are for message communication, rather than for UI re-rendering, the emitter mode is recommended. For the example, see Unrecommended: Using @StorageLink to Implement Event Notification.

Use Scenarios

Example of Using AppStorage and LocalStorage in Application Logic

Since AppStorage is a singleton, its APIs are all static. How these APIs work resembles the non-static APIs of LocalStorage.

AppStorage.setOrCreate('PropA', 47);

let storage: LocalStorage = new LocalStorage();
storage.setOrCreate('PropA',17);
let propA: number|undefined = AppStorage.get('PropA') // propA in AppStorage == 47, propA in LocalStorage == 17
let link1: SubscribedAbstractProperty<number> = AppStorage.link('PropA'); // link1.get() == 47
let link2: SubscribedAbstractProperty<number> = AppStorage.link('PropA'); // link2.get() == 47
let prop: SubscribedAbstractProperty<number> = AppStorage.prop('PropA'); // prop.get() == 47

link1.set(48); // Two-way synchronization: link1.get() == link2.get() == prop.get() == 48
prop.set(1); // One-way synchronization: prop.get() == 1; but link1.get() == link2.get() == 48
link1.set(49); // Two-way synchronization: link1.get() == link2.get() == prop.get() == 49

storage.get<number>('PropA') // == 17
storage.set('PropA', 101);
storage.get<number>('PropA') // == 101

AppStorage.get<number>('PropA') // == 49
link1.get() // == 49
link2.get() // == 49
prop.get() // == 49

Example of Using AppStorage and LocalStorage Inside the UI

\@StorageLink works together with AppStorage in the same way as \@LocalStorageLink works together with LocalStorage. It creates two-way data synchronization with an attribute in AppStorage.

class Data {
  code: number;

  constructor(code: number) {
    this.code = code;
  }
}

AppStorage.setOrCreate('PropA', 47);
AppStorage.setOrCreate('PropB', new Data(50));
let storage = new LocalStorage();
storage.setOrCreate('LinkA', 48);
storage.setOrCreate('LinkB', new Data(100));

@Entry(storage)
@Component
struct Index {
  @StorageLink('PropA') storageLink: number = 1;
  @LocalStorageLink('LinkA') localStorageLink: number = 1;
  @StorageLink('PropB') storageLinkObject: Data = new Data(1);
  @LocalStorageLink('LinkB') localStorageLinkObject: Data = new Data(1);

  build() {
    Column({ space: 20 }) {
      Text(`From AppStorage ${this.storageLink}`)
        .onClick(() => {
          this.storageLink += 1;
        })

      Text(`From LocalStorage ${this.localStorageLink}`)
        .onClick(() => {
          this.localStorageLink += 1;
        })

      Text(`From AppStorage ${this.storageLinkObject.code}`)
        .onClick(() => {
          this.storageLinkObject.code += 1;
        })

      Text(`From LocalStorage ${this.localStorageLinkObject.code}`)
        .onClick(() => {
          this.localStorageLinkObject.code += 1;
        })
    }
  }
}

Unrecommended: Using @StorageLink to Implement Event Notification

The two-way synchronization mechanism of @StorageLink and AppStorage is not recommended. This is because the variables in AppStorage may be bound to components on different pages, but the event notifications may not be sent to all these components. In addition, any change to the @StorageLink decorated variables may trigger UI re-rendering, bringing negative impact on the performance.

In the following example, any click event in the TapImage component will trigger a change of the tapIndex attribute. As @StorageLink establishes a two-way data synchronization with AppStorage, the local change is synchronized to AppStorage. As a result, all custom components owning the tapIndex attribute bound to AppStorage are notified of the change. After @Watch observes the change to tapIndex, the state variable tapColor is updated, and the UI is re-rendered. (Because tapIndex is not directly bound to the UI, its change does not directly trigger UI re-rendering.)

To use the preceding mechanism to implement event notification, ensure that variables in AppStorage are not directly bound to the UI and the @Watch decorated function is as simple as possible. (If the @Watch decorated function takes a long time to execute, the UI re-rendering efficiency will be affected.)

// xxx.ets
class ViewData {
  title: string;
  uri: Resource;
  color: Color = Color.Black;

  constructor(title: string, uri: Resource) {
    this.title = title;
    this.uri = uri
  }
}

@Entry
@Component
struct Gallery {
  // 'app.media.icon' is only an example. Replace it with the actual one in use. Otherwise, the imageSource instance fails to be created, and subsequent operations cannot be performed.
  dataList: Array<ViewData> = [new ViewData('flower', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon'))]
  scroller: Scroller = new Scroller()

  build() {
    Column() {
      Grid(this.scroller) {
        ForEach(this.dataList, (item: ViewData, index?: number) => {
          GridItem() {
            TapImage({
              uri: item.uri,
              index: index
            })
          }.aspectRatio(1)

        }, (item: ViewData, index?: number) => {
          return JSON.stringify(item) + index;
        })
      }.columnsTemplate('1fr 1fr')
    }

  }
}

@Component
export struct TapImage {
  @StorageLink('tapIndex') @Watch('onTapIndexChange') tapIndex: number = -1;
  @State tapColor: Color = Color.Black;
  private index: number = 0;
  private uri: Resource = {
    id: 0,
    type: 0,
    moduleName: "",
    bundleName: ""
  };

  // Check whether the component is selected.
  onTapIndexChange() {
    if (this.tapIndex >= 0 && this.index === this.tapIndex) {
      console.info(`tapindex: ${this.tapIndex}, index: ${this.index}, red`)
      this.tapColor = Color.Red;
    } else {
      console.info(`tapindex: ${this.tapIndex}, index: ${this.index}, black`)
      this.tapColor = Color.Black;
    }
  }

  build() {
    Column() {
      Image(this.uri)
        .objectFit(ImageFit.Cover)
        .onClick(() => {
          this.tapIndex = this.index;
        })
        .border({ width: 5, style: BorderStyle.Dotted, color: this.tapColor })
    }

  }
}

Compared with the use of @StorageLink, the use of emit implements event notification with less overhead, by allowing you to subscribe to an event and receive an event callback.

NOTE

The emit API is not available in DevEco Studio Previewer.

// xxx.ets
import { emitter } from '@kit.BasicServicesKit';

let NextID: number = 0;

class ViewData {
  title: string;
  uri: Resource;
  color: Color = Color.Black;
  id: number;

  constructor(title: string, uri: Resource) {
    this.title = title;
    this.uri = uri
    this.id = NextID++;
  }
}

@Entry
@Component
struct Gallery {
  // 'app.media.icon' is only an example. Replace it with the actual one in use. Otherwise, the imageSource instance fails to be created, and subsequent operations cannot be performed.
  dataList: Array<ViewData> = [new ViewData('flower', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon'))]
  scroller: Scroller = new Scroller()
  private preIndex: number = -1

  build() {
    Column() {
      Grid(this.scroller) {
        ForEach(this.dataList, (item: ViewData) => {
          GridItem() {
            TapImage({
              uri: item.uri,
              index: item.id
            })
          }.aspectRatio(1)
          .onClick(() => {
            if (this.preIndex === item.id) {
              return
            }
            let innerEvent: emitter.InnerEvent = { eventId: item.id }
            // Selected: from black to red
            let eventData: emitter.EventData = {
              data: {
                "colorTag": 1
              }
            }
            emitter.emit(innerEvent, eventData)

            if (this.preIndex != -1) {
              console.info(`preIndex: ${this.preIndex}, index: ${item.id}, black`)
              let innerEvent: emitter.InnerEvent = { eventId: this.preIndex }
              // Deselected: from red to black
              let eventData: emitter.EventData = {
                data: {
                  "colorTag": 0
                }
              }
              emitter.emit(innerEvent, eventData)
            }
            this.preIndex = item.id
          })
        }, (item: ViewData) => JSON.stringify(item))
      }.columnsTemplate('1fr 1fr')
    }

  }
}

@Component
export struct TapImage {
  @State tapColor: Color = Color.Black;
  private index: number = 0;
  private uri: Resource = {
    id: 0,
    type: 0,
    moduleName: "",
    bundleName: ""
  };

  onTapIndexChange(colorTag: emitter.EventData) {
    if (colorTag.data != null) {
      this.tapColor = colorTag.data.colorTag ? Color.Red : Color.Black
    }
  }

  aboutToAppear() {
    // Define the event ID.
    let innerEvent: emitter.InnerEvent = { eventId: this.index }
    emitter.on(innerEvent, data => {
    this.onTapIndexChange(data)
    })
  }

  build() {
    Column() {
      Image(this.uri)
        .objectFit(ImageFit.Cover)
        .border({ width: 5, style: BorderStyle.Dotted, color: this.tapColor })
    }
  }
}

The preceding notification logic is simple. It can be simplified into a ternary expression as follows:

// xxx.ets
class ViewData {
  title: string;
  uri: Resource;
  color: Color = Color.Black;

  constructor(title: string, uri: Resource) {
    this.title = title;
    this.uri = uri
  }
}

@Entry
@Component
struct Gallery {
  // 'app.media.icon' is only an example. Replace it with the actual one in use. Otherwise, the imageSource instance fails to be created, and subsequent operations cannot be performed.
  dataList: Array<ViewData> = [new ViewData('flower', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon')), new ViewData('OMG', $r('app.media.icon'))]
  scroller: Scroller = new Scroller()

  build() {
    Column() {
      Grid(this.scroller) {
        ForEach(this.dataList, (item: ViewData, index?: number) => {
          GridItem() {
            TapImage({
              uri: item.uri,
              index: index
            })
          }.aspectRatio(1)

        }, (item: ViewData, index?: number) => {
          return JSON.stringify(item) + index;
        })
      }.columnsTemplate('1fr 1fr')
    }

  }
}

@Component
export struct TapImage {
  @StorageLink('tapIndex') tapIndex: number = -1;
  private index: number = 0;
  private uri: Resource = {
    id: 0,
    type: 0,
    moduleName: "",
    bundleName: ""
  };

  build() {
    Column() {
      Image(this.uri)
        .objectFit(ImageFit.Cover)
        .onClick(() => {
          this.tapIndex = this.index;
        })
        .border({
          width: 5,
          style: BorderStyle.Dotted,
          color: (this.tapIndex >= 0 && this.index === this.tapIndex) ? Color.Red : Color.Black
        })
    }
  }
}

Union Type

In the following example, the type of variable A is number|null, and the type of variable B is number|undefined. The Text components display null and undefined upon initialization, numbers when clicked, and null and undefined when clicked again.

@Component
struct StorLink {
  @StorageLink("LinkA") LinkA: number|null = null;
  @StorageLink("LinkB") LinkB: number|undefined = undefined;

  build() {
    Column() {
      Text("@StorageLink initialization, @StorageLink value")
      Text(this.LinkA + "").fontSize(20).onClick(() => {
        this.LinkA ? this.LinkA = null : this.LinkA = 1;
      })
      Text(this.LinkB + "").fontSize(20).onClick(() => {
        this.LinkB ? this.LinkB = undefined : this.LinkB = 1;
      })
    }
    .borderWidth(3).borderColor(Color.Red)

  }
}

@Component
struct StorProp {
  @StorageProp("PropA") PropA: number|null = null;
  @StorageProp("PropB") PropB: number|undefined = undefined;

  build() {
    Column() {
      Text("@StorageProp initialization, @StorageProp value")
      Text(this.PropA + "").fontSize(20).onClick(() => {
        this.PropA ? this.PropA = null : this.PropA = 1;
      })
      Text(this.PropB + "").fontSize(20).onClick(() => {
        this.PropB ? this.PropB = undefined : this.PropB = 1;
      })
    }
    .borderWidth(3).borderColor(Color.Blue)
  }
}

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        StorLink()
        StorProp()
      }
      .width('100%')
    }
    .height('100%')
  }
}

Decorating Variables of the Date Type

NOTE

AppStorage supports the Set type since API version 12.

In this example, the selectedDate variable decorated by @StorageLink is of the Date type. After the button is clicked, the value of selectedDate changes, and the UI is re-rendered.

@Entry
@Component
struct DateSample {
  @StorageLink("date") selectedDate: Date = new Date('2021-08-08');

  build() {
    Column() {
      Button('set selectedDate to 2023-07-08')
        .margin(10)
        .onClick(() => {
          AppStorage.setOrCreate("date", new Date('2023-07-08'));
        })
      Button('increase the year by 1')
        .margin(10)
        .onClick(() => {
          this.selectedDate.setFullYear(this.selectedDate.getFullYear() + 1);
        })
      Button('increase the month by 1')
        .margin(10)
        .onClick(() => {
          this.selectedDate.setMonth(this.selectedDate.getMonth() + 1);
        })
      Button('increase the day by 1')
        .margin(10)
        .onClick(() => {
          this.selectedDate.setDate(this.selectedDate.getDate() + 1);
        })
      DatePicker({
        start: new Date('1970-1-1'),
        end: new Date('2100-1-1'),
        selected: $$this.selectedDate
      })
    }.width('100%')
  }
}

Decorating Variables of the Map Type

NOTE

AppStorage supports the Map type since API version 12.

In this example, the message variable decorated by @StorageLink is of the Map<number, string> type. After the button is clicked, the value of message changes, and the UI is re-rendered.

@Entry
@Component
struct MapSample {
  @StorageLink("map") message: Map<number, string> = new Map([[0, "a"], [1, "b"], [3, "c"]]);

  build() {
    Row() {
      Column() {
        ForEach(Array.from(this.message.entries()), (item: [number, string]) => {
          Text(`${item[0]}`).fontSize(30)
          Text(`${item[1]}`).fontSize(30)
          Divider()
        })
        Button('init map').onClick(() => {
          this.message = new Map([[0, "a"], [1, "b"], [3, "c"]]);
        })
        Button('set new one').onClick(() => {
          this.message.set(4, "d");
        })
        Button('clear').onClick(() => {
          this.message.clear();
        })
        Button('replace the existing one').onClick(() => {
          this.message.set(0, "aa");
        })
        Button('delete the existing one').onClick(() => {
          AppStorage.get<Map<number, string>>("map")?.delete(0);
        })
      }
      .width('100%')
    }
    .height('100%')
  }
}

Decorating Variables of the Set Type

NOTE

AppStorage supports the Set type since API version 12.

In this example, the memberSet variable decorated by @StorageLink is of the Set<number> type. After the button is clicked, the value of memberSet changes, and the UI is re-rendered.

@Entry
@Component
struct SetSample {
  @StorageLink("set") memberSet: Set<number> = new Set([0, 1, 2, 3, 4]);

  build() {
    Row() {
      Column() {
        ForEach(Array.from(this.memberSet.entries()), (item: [number, string]) => {
          Text(`${item[0]}`)
            .fontSize(30)
          Divider()
        })
        Button('init set')
          .onClick(() => {
            this.memberSet = new Set([0, 1, 2, 3, 4]);
          })
        Button('set new one')
          .onClick(() => {
            AppStorage.get<Set<number>>("set")?.add(5);
          })
        Button('clear')
          .onClick(() => {
            this.memberSet.clear();
          })
        Button('delete the first one')
          .onClick(() => {
            this.memberSet.delete(0);
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

FAQs

Value Changed by \@StorageProp Locally Fails to Update through AppStorage

AppStorage.setOrCreate('PropA', false);

@Entry
@Component
struct Index {
  @StorageProp('PropA') @Watch('onChange') propA: boolean = false;

  onChange() {
    console.log(`propA change`);
  }

  aboutToAppear(): void {
    this.propA = true;
  }

  build() {
    Column() {
      Text(`${this.propA}`)
      Button('change')
        .onClick(() => {
          AppStorage.setOrCreate('PropA', false);
          console.log(`PropA: ${this.propA}`);
        })
    }
  }
}

In the preceding example, the value of PropA has been changed to true locally before the click event, but the value stored in AppStorage is still false. When the click event attempts to update the value of PropA to false through the setOrCreate API, the value of @StorageProp remains true because the local value and stored value of PropA are the same.

To synchronize the two values, use either of the following methods: (1) Change \@StorageProp to \@StorageLink. (2) Use AppStorage.setOrCreate(‘PropA’, true) to change the value locally.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙\@AnimatableExtend Decorator: Definition of Animatable Attributes

harmony 鸿蒙Application State Management Overview

harmony 鸿蒙Basic Syntax Overview

harmony 鸿蒙\@Builder Decorator: Custom Builder Function

harmony 鸿蒙\@BuilderParam Decorator: Referencing the \@Builder Function

harmony 鸿蒙Creating a Custom Component

harmony 鸿蒙Mixing Use of Custom Components

harmony 鸿蒙Constraints on Access Modifiers of Custom Component Member Variables

harmony 鸿蒙Freezing a Custom Component

harmony 鸿蒙Freezing a Custom Component
