Connecting NNRt to an AI Inference Framework

When to Use

As a bridge between the AI inference engine and acceleration chip, Neural Network Runtime (NNRt) provides simplified native APIs for the AI inference engine to perform end-to-end inference through the acceleration chip.

This topic uses the Add single-operator model shown in Figure 1 as an example to describe the NNRt development process. The Add operator involves two inputs, one parameter, and one output. Wherein, the activation parameter is used to specify the type of the activation function in the Add operator.

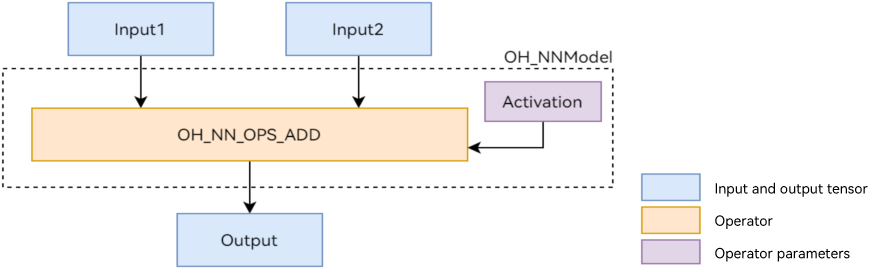

Figure 1 Add single-operator model

Preparing the Environment

Environment Requirements

The environment requirements for NNRt are as follows:

• Development environment: Ubuntu 18.04 or later.
• Access device: a standard device whose built-in hardware accelerator driver has been connected to NNRt.

NNRt is opened to external systems through native APIs. Therefore, you need to use the native development suite to build NNRt applications. You can download the ohos-sdk package of the corresponding version from the daily build in the OpenHarmony community and then decompress the package to obtain the native development suite of the corresponding platform. Take Linux as an example. The package of the native development suite is named native-linux-{version number}.zip.

Environment Setup

1. Start the Ubuntu server.

2. Copy the downloaded package of the Native development suite to the root directory of the current user.

3. Decompress the package of the native development suite.

   unzip native-linux-{version number}.zip


   The directory structure after decompression is as follows. The content in the directory may vary depending on the version. Use the native APIs of the latest version.

   native/
   ├── build // Cross-compilation toolchain
   ├── build-tools // Compilation and build tools
   ├── docs
   ├── llvm
   ├── nativeapi_syscap_config.json
   ├── ndk_system_capability.json
   ├── NOTICE.txt
   ├── oh-uni-package.json
   └── sysroot // Native API header files and libraries


   Available APIs

This section describes the common APIs used in the NNRt development process.

Structs

Model Construction APIs

Model Compilation APIs

Tensor Description APIs

Tensor APIs

Inference APIs

Device Management APIs

How to Develop

The development process of NNRt consists of three phases: model construction, model compilation, and inference execution. The following uses the Add single-operator model as an example to describe how to call NNRt APIs during application development.

1. Create an application sample file.

   Create the source file of the NNRt application sample. Run the following commands in the project directory to create the nnrt_example/ directory and create the nnrt_example.cpp source file in the directory:

   mkdir ~/nnrt_example && cd ~/nnrt_example
   touch nnrt_example.cpp


2. Import the NNRt module.

   Add the following code at the beginning of the nnrt_example.cpp file to import NNRt:

   #include <iostream>
   #include <cstdarg>
   #include "neural_network_runtime/neural_network_runtime.h"


3. Defines auxiliary functions, such as log printing, input data setting, and data printing.

   // Macro for checking the return value
   #define CHECKNEQ(realRet, expectRet, retValue, ...) \
       do { \
           if ((realRet) != (expectRet)) { \
               printf(__VA_ARGS__); \
               return (retValue); \
           } \
       } while (0)


   #define CHECKEQ(realRet, expectRet, retValue, ...) \
       do { \
           if ((realRet) == (expectRet)) { \
               printf(__VA_ARGS__); \
               return (retValue); \
           } \
       } while (0)


   // Set the input data for inference.
   OH_NN_ReturnCode SetInputData(NN_Tensor* inputTensor[], size_t inputSize)
   {
       OH_NN_DataType dataType(OH_NN_FLOAT32);
       OH_NN_ReturnCode ret{OH_NN_FAILED};
       size_t elementCount = 0;
       for (size_t i = 0; i < inputSize; ++i) {
           // Obtain the data memory of the tensor.
           auto data = OH_NNTensor_GetDataBuffer(inputTensor[i]);
           CHECKEQ(data, nullptr, OH_NN_FAILED, "Failed to get data buffer.");
           // Obtain the tensor description.
           auto desc = OH_NNTensor_GetTensorDesc(inputTensor[i]);
           CHECKEQ(desc, nullptr, OH_NN_FAILED, "Failed to get desc.");
           // Obtain the data type of the tensor.
           ret = OH_NNTensorDesc_GetDataType(desc, &dataType);
           CHECKNEQ(ret, OH_NN_SUCCESS, OH_NN_FAILED, "Failed to get data type.");
           // Obtain the number of elements in the tensor.
           ret = OH_NNTensorDesc_GetElementCount(desc, &elementCount);
           CHECKNEQ(ret, OH_NN_SUCCESS, OH_NN_FAILED, "Failed to get element count.");
           switch(dataType) {
               case OH_NN_FLOAT32: {
                   float* floatValue = reinterpret_cast<float*>(data);
                   for (size_t j = 0; j < elementCount; ++j) {
                       floatValue[j] = static_cast<float>(j);
                   }
                   break;
               }
               case OH_NN_INT32: {
                   int* intValue = reinterpret_cast<int*>(data);
                   for (size_t j = 0; j < elementCount; ++j) {
                       intValue[j] = static_cast<int>(j);
                   }
                   break;
               }
               default:
                   return OH_NN_FAILED;
           }
       }
       return OH_NN_SUCCESS;
   }


   OH_NN_ReturnCode Print(NN_Tensor* outputTensor[], size_t outputSize)
   {
       OH_NN_DataType dataType(OH_NN_FLOAT32);
       OH_NN_ReturnCode ret{OH_NN_FAILED};
       size_t elementCount = 0;
       for (size_t i = 0; i < outputSize; ++i) {
           auto data = OH_NNTensor_GetDataBuffer(outputTensor[i]);
           CHECKEQ(data, nullptr, OH_NN_FAILED, "Failed to get data buffer.");
           auto desc = OH_NNTensor_GetTensorDesc(outputTensor[i]);
           CHECKEQ(desc, nullptr, OH_NN_FAILED, "Failed to get desc.");
           ret = OH_NNTensorDesc_GetDataType(desc, &dataType);
           CHECKNEQ(ret, OH_NN_SUCCESS, OH_NN_FAILED, "Failed to get data type.");
           ret = OH_NNTensorDesc_GetElementCount(desc, &elementCount);
           CHECKNEQ(ret, OH_NN_SUCCESS, OH_NN_FAILED, "Failed to get element count.");
           switch(dataType) {
               case OH_NN_FLOAT32: {
                   float* floatValue = reinterpret_cast<float*>(data);
                   for (size_t j = 0; j < elementCount; ++j) {
                       std::cout << "Output index: " << j << ", value is: " << floatValue[j] << "." << std::endl;
                   }
                   break;
               }
               case OH_NN_INT32: {
                   int* intValue = reinterpret_cast<int*>(data);
                   for (size_t j = 0; j < elementCount; ++j) {
                       std::cout << "Output index: " << j << ", value is: " << intValue[j] << "." << std::endl;
                   }
                   break;
               }
               default:
                   return OH_NN_FAILED;
           }
       }


       return OH_NN_SUCCESS;
   }


4. Construct a model.

   Use the model construction APIs to construct a single Add operator model.

   OH_NN_ReturnCode BuildModel(OH_NNModel** pmodel)
   {
       // Create a model instance and construct a model.
       OH_NNModel* model = OH_NNModel_Construct();
       CHECKEQ(model, nullptr, OH_NN_FAILED, "Create model failed.");


       // Add the first input tensor of the float32 type for the Add operator. The tensor shape is [1, 2, 2, 3].
       NN_TensorDesc* tensorDesc = OH_NNTensorDesc_Create();
       CHECKEQ(tensorDesc, nullptr, OH_NN_FAILED, "Create TensorDesc failed.");


       int32_t inputDims[4] = {1, 2, 2, 3};
       auto returnCode = OH_NNTensorDesc_SetShape(tensorDesc, inputDims, 4);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc shape failed.");


       returnCode = OH_NNTensorDesc_SetDataType(tensorDesc, OH_NN_FLOAT32);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc data type failed.");


       returnCode = OH_NNTensorDesc_SetFormat(tensorDesc, OH_NN_FORMAT_NONE);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc format failed.");


       returnCode = OH_NNModel_AddTensorToModel(model, tensorDesc);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Add first TensorDesc to model failed.");


       returnCode = OH_NNModel_SetTensorType(model, 0, OH_NN_TENSOR);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set model tensor type failed.");


       // Add the second input tensor of the float32 type for the Add operator. The tensor shape is [1, 2, 2, 3].
       tensorDesc = OH_NNTensorDesc_Create();
       CHECKEQ(tensorDesc, nullptr, OH_NN_FAILED, "Create TensorDesc failed.");


       returnCode = OH_NNTensorDesc_SetShape(tensorDesc, inputDims, 4);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc shape failed.");


       returnCode = OH_NNTensorDesc_SetDataType(tensorDesc, OH_NN_FLOAT32);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc data type failed.");


       returnCode = OH_NNTensorDesc_SetFormat(tensorDesc, OH_NN_FORMAT_NONE);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc format failed.");


       returnCode = OH_NNModel_AddTensorToModel(model, tensorDesc);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Add second TensorDesc to model failed.");


       returnCode = OH_NNModel_SetTensorType(model, 1, OH_NN_TENSOR);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set model tensor type failed.");


       // Add the parameter tensor of the int8 type for the Add operator. The parameter tensor is used to specify the type of the activation function.
       tensorDesc = OH_NNTensorDesc_Create();
       CHECKEQ(tensorDesc, nullptr, OH_NN_FAILED, "Create TensorDesc failed.");


       int32_t activationDims = 1;
       returnCode = OH_NNTensorDesc_SetShape(tensorDesc, &activationDims, 1);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc shape failed.");


       returnCode = OH_NNTensorDesc_SetDataType(tensorDesc, OH_NN_INT8);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc data type failed.");


       returnCode = OH_NNTensorDesc_SetFormat(tensorDesc, OH_NN_FORMAT_NONE);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc format failed.");


       returnCode = OH_NNModel_AddTensorToModel(model, tensorDesc);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Add second TensorDesc to model failed.");


       returnCode = OH_NNModel_SetTensorType(model, 2, OH_NN_ADD_ACTIVATIONTYPE);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set model tensor type failed.");


       // Set the type of the activation function to OH_NN_FUSED_NONE, indicating that no activation function is added to the operator.
       int8_t activationValue = OH_NN_FUSED_NONE;
       returnCode = OH_NNModel_SetTensorData(model, 2, &activationValue, sizeof(int8_t));
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set model tensor data failed.");


       // Add the output tensor of the float32 type for the Add operator. The tensor shape is [1, 2, 2, 3].
       tensorDesc = OH_NNTensorDesc_Create();
       CHECKEQ(tensorDesc, nullptr, OH_NN_FAILED, "Create TensorDesc failed.");


       returnCode = OH_NNTensorDesc_SetShape(tensorDesc, inputDims, 4);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc shape failed.");


       returnCode = OH_NNTensorDesc_SetDataType(tensorDesc, OH_NN_FLOAT32);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc data type failed.");


       returnCode = OH_NNTensorDesc_SetFormat(tensorDesc, OH_NN_FORMAT_NONE);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set TensorDesc format failed.");


       returnCode = OH_NNModel_AddTensorToModel(model, tensorDesc);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Add forth TensorDesc to model failed.");


       returnCode = OH_NNModel_SetTensorType(model, 3, OH_NN_TENSOR);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Set model tensor type failed.");


       // Specify index values of the input tensor, parameter tensor, and output tensor for the Add operator.
       uint32_t inputIndicesValues[2] = {0, 1};
       uint32_t paramIndicesValues = 2;
       uint32_t outputIndicesValues = 3;
       OH_NN_UInt32Array paramIndices = {&paramIndicesValues, 1};
       OH_NN_UInt32Array inputIndices = {inputIndicesValues, 2};
       OH_NN_UInt32Array outputIndices = {&outputIndicesValues, 1};


       // Add the Add operator to the model instance.
       returnCode = OH_NNModel_AddOperation(model, OH_NN_OPS_ADD, &paramIndices, &inputIndices, &outputIndices);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Add operation to model failed.");


       // Set the index values of the input tensor and output tensor for the model instance.
       returnCode = OH_NNModel_SpecifyInputsAndOutputs(model, &inputIndices, &outputIndices);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Specify model inputs and outputs failed.");


       // Complete the model instance construction.
       returnCode = OH_NNModel_Finish(model);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "Build model failed.");


       // Return the model instance.
       *pmodel = model;
       return OH_NN_SUCCESS;
   }


5. Query the AI acceleration chips connected to NNRt.

   NNRt can connect to multiple AI acceleration chips through HDIs. Before model building, you need to query the AI acceleration chips connected to NNRt on the current device. Each AI acceleration chip has a unique ID. In the compilation phase, you need to specify the chip for model compilation based on the ID.

   void GetAvailableDevices(std::vector<size_t>& availableDevice)
   {
       availableDevice.clear();


       // Obtain the available hardware IDs.
       const size_t* devices = nullptr;
       uint32_t deviceCount = 0;
       OH_NN_ReturnCode ret = OH_NNDevice_GetAllDevicesID(&devices, &deviceCount);
       if (ret != OH_NN_SUCCESS) {
           std::cout << "GetAllDevicesID failed, get no available device." << std::endl;
           return;
       }


       for (uint32_t i = 0; i < deviceCount; i++) {
           availableDevice.emplace_back(devices[i]);
       }
   }


6. Compile a model on the specified device.

   NNRt uses abstract model expressions to describe the topology structure of an AI model. Before inference execution on an AI acceleration chip, the build module provided by NNRt needs to deliver the abstract model expressions to the chip driver layer and convert the abstract model expressions into a format that supports inference and computing.

   OH_NN_ReturnCode CreateCompilation(OH_NNModel* model, const std::vector<size_t>& availableDevice,
                                      OH_NNCompilation** pCompilation)
   {
       // Create an OH_NNCompilation instance and pass the image composition model instance or the MindSpore Lite model instance to it.
       OH_NNCompilation* compilation = OH_NNCompilation_Construct(model);
       CHECKEQ(compilation, nullptr, OH_NN_FAILED, "OH_NNCore_ConstructCompilationWithNNModel failed.");


       // Set compilation options, such as the compilation hardware, cache path, performance mode, computing priority, and whether to enable float16 low-precision computing.
       // Choose to perform model compilation on the first device.
       auto returnCode = OH_NNCompilation_SetDevice(compilation, availableDevice[0]);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_SetDevice failed.");


       // Have the model compilation result cached in the /data/local/tmp directory, with the version number set to 1.
       returnCode = OH_NNCompilation_SetCache(compilation, "/data/local/tmp", 1);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_SetCache failed.");


       // Set the performance mode of the device.
       returnCode = OH_NNCompilation_SetPerformanceMode(compilation, OH_NN_PERFORMANCE_EXTREME);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_SetPerformanceMode failed.");


       // Set the inference priority.
       returnCode = OH_NNCompilation_SetPriority(compilation, OH_NN_PRIORITY_HIGH);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_SetPriority failed.");


       // Specify whether to enable FP16 computing.
       returnCode = OH_NNCompilation_EnableFloat16(compilation, false);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_EnableFloat16 failed.");


       // Perform model building
       returnCode = OH_NNCompilation_Build(compilation);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNCompilation_Build failed.");


       *pCompilation = compilation;
       return OH_NN_SUCCESS;
   }


7. Create an executor.

   After the model building is complete, you need to call the NNRt execution module to create an executor. In the inference phase, operations such as setting the model input, obtaining the model output, and triggering inference computing are performed through the executor.

   OH_NNExecutor* CreateExecutor(OH_NNCompilation* compilation)
   {
       // Create an executor based on the specified OH_NNCompilation instance.
       OH_NNExecutor *executor = OH_NNExecutor_Construct(compilation);
       CHECKEQ(executor, nullptr, nullptr, "OH_NNExecutor_Construct failed.");
       return executor;
   }


8. Perform inference computing, and print the inference result.

   The input data required for inference computing is passed to the executor through the API provided by the execution module. This way, the executor is triggered to perform inference computing once to obtain and print the inference computing result.

   OH_NN_ReturnCode Run(OH_NNExecutor* executor, const std::vector<size_t>& availableDevice)
   {
       // Obtain information about the input and output tensors from the executor.
       // Obtain the number of input tensors.
       size_t inputCount = 0;
       auto returnCode = OH_NNExecutor_GetInputCount(executor, &inputCount);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNExecutor_GetInputCount failed.");
       std::vector<NN_TensorDesc*> inputTensorDescs;
       NN_TensorDesc* tensorDescTmp = nullptr;
       for (size_t i = 0; i < inputCount; ++i) {
           // Create the description of the input tensor.
           tensorDescTmp = OH_NNExecutor_CreateInputTensorDesc(executor, i);
           CHECKEQ(tensorDescTmp, nullptr, OH_NN_FAILED, "OH_NNExecutor_CreateInputTensorDesc failed.");
           inputTensorDescs.emplace_back(tensorDescTmp);
       }
       // Obtain the number of output tensors.
       size_t outputCount = 0;
       returnCode = OH_NNExecutor_GetOutputCount(executor, &outputCount);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNExecutor_GetOutputCount failed.");
       std::vector<NN_TensorDesc*> outputTensorDescs;
       for (size_t i = 0; i < outputCount; ++i) {
           // Create the description of the output tensor.
           tensorDescTmp = OH_NNExecutor_CreateOutputTensorDesc(executor, i);
           CHECKEQ(tensorDescTmp, nullptr, OH_NN_FAILED, "OH_NNExecutor_CreateOutputTensorDesc failed.");
           outputTensorDescs.emplace_back(tensorDescTmp);
       }


       // Create input and output tensors.
       NN_Tensor* inputTensors[inputCount];
       NN_Tensor* tensor = nullptr;
       for (size_t i = 0; i < inputCount; ++i) {
           tensor = nullptr;
           tensor = OH_NNTensor_Create(availableDevice[0], inputTensorDescs[i]);
           CHECKEQ(tensor, nullptr, OH_NN_FAILED, "OH_NNTensor_Create failed.");
           inputTensors[i] = tensor;
       }
       NN_Tensor* outputTensors[outputCount];
       for (size_t i = 0; i < outputCount; ++i) {
           tensor = nullptr;
           tensor = OH_NNTensor_Create(availableDevice[0], outputTensorDescs[i]);
           CHECKEQ(tensor, nullptr, OH_NN_FAILED, "OH_NNTensor_Create failed.");
           outputTensors[i] = tensor;
       }


       // Set the data of the input tensor.
       returnCode = SetInputData(inputTensors, inputCount);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "SetInputData failed.");


       // Perform inference
       returnCode = OH_NNExecutor_RunSync(executor, inputTensors, inputCount, outputTensors, outputCount);
       CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNExecutor_RunSync failed.");


       // Print the data of the output tensor.
       Print(outputTensors, outputCount);


       // Clear the input and output tensors and tensor description.
       for (size_t i = 0; i < inputCount; ++i) {
           returnCode = OH_NNTensor_Destroy(&inputTensors[i]);
           CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNTensor_Destroy failed.");
           returnCode = OH_NNTensorDesc_Destroy(&inputTensorDescs[i]);
           CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNTensorDesc_Destroy failed.");
       }
       for (size_t i = 0; i < outputCount; ++i) {
           returnCode = OH_NNTensor_Destroy(&outputTensors[i]);
           CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNTensor_Destroy failed.");
           returnCode = OH_NNTensorDesc_Destroy(&outputTensorDescs[i]);
           CHECKNEQ(returnCode, OH_NN_SUCCESS, OH_NN_FAILED, "OH_NNTensorDesc_Destroy failed.");
       }


       return OH_NN_SUCCESS;
   }


9. Build an end-to-end process from model construction to model compilation and execution.

   Steps 4 to 8 implement the model construction, compilation, and execution processes and encapsulates them into multiple functions to facilitate modular development. The following sample code shows how to apply these functions into a complete NNRt development process.

   int main(int argc, char** argv)
   {
       OH_NNModel* model = nullptr;
       OH_NNCompilation* compilation = nullptr;
       OH_NNExecutor* executor = nullptr;
       std::vector<size_t> availableDevices;


       // Construct a model.
       OH_NN_ReturnCode ret = BuildModel(&model);
       if (ret != OH_NN_SUCCESS) {
           std::cout << "BuildModel failed." << std::endl;
           OH_NNModel_Destroy(&model);
           return -1;
       }


       // Obtain the available devices.
       GetAvailableDevices(availableDevices);
       if (availableDevices.empty()) {
           std::cout << "No available device." << std::endl;
           OH_NNModel_Destroy(&model);
           return -1;
       }


       // Build the model.
       ret = CreateCompilation(model, availableDevices, &compilation);
       if (ret != OH_NN_SUCCESS) {
           std::cout << "CreateCompilation failed." << std::endl;
           OH_NNModel_Destroy(&model);
           OH_NNCompilation_Destroy(&compilation);
           return -1;
       }


       // Destroy the model instance.
       OH_NNModel_Destroy(&model);


       // Create an inference executor for the model.
       executor = CreateExecutor(compilation);
       if (executor == nullptr) {
           std::cout << "CreateExecutor failed, no executor is created." << std::endl;
           OH_NNCompilation_Destroy(&compilation);
           return -1;
       }


       // Destroy the model building instance.
       OH_NNCompilation_Destroy(&compilation);


       // Use the created executor to perform inference.
       ret = Run(executor, availableDevices);
       if (ret != OH_NN_SUCCESS) {
           std::cout << "Run failed." << std::endl;
           OH_NNExecutor_Destroy(&executor);
           return -1;
       }


       // Destroy the executor instance.
       OH_NNExecutor_Destroy(&executor);


       return 0;
   }


Verification

1. Prepare the compilation configuration file of the application sample.

   Create a CMakeLists.txt file, and add compilation configurations to the application sample file nnrt_example.cpp. The following is a simple example of the CMakeLists.txt file:

   cmake_minimum_required(VERSION 3.16)
   project(nnrt_example C CXX)


   add_executable(nnrt_example
       ./nnrt_example.cpp
   )


   target_link_libraries(nnrt_example
       neural_network_runtime
       neural_network_core
   )


2. Compile the application sample.

   Create the build/ directory in the current directory, and compile nnrt\_example.cpp in the build/ directory to obtain the binary file nnrt\_example:

   mkdir build && cd build
   cmake -DCMAKE_TOOLCHAIN_FILE={Path of the cross-compilation toolchain}/build/cmake/ohos.toolchain.cmake -DOHOS_ARCH=arm64-v8a -DOHOS_PLATFORM=OHOS -DOHOS_STL=c++_static ..
   make


3. Push the application sample to the device for execution.

   # Push the `nnrt_example` obtained through compilation to the device, and execute it.
   hdc_std file send ./nnrt_example /data/local/tmp/.

   # Grant required permissions to the executable file of the test case.
   hdc_std shell "chmod +x /data/local/tmp/nnrt_example"

   # Execute the test case.
   hdc_std shell "/data/local/tmp/nnrt_example"


   If the execution is normal, information similar to the following is displayed:

   Output index: 0, value is: 0.000000.
   Output index: 1, value is: 2.000000.
   Output index: 2, value is: 4.000000.
   Output index: 3, value is: 6.000000.
   Output index: 4, value is: 8.000000.
   Output index: 5, value is: 10.000000.
   Output index: 6, value is: 12.000000.
   Output index: 7, value is: 14.000000.
   Output index: 8, value is: 16.000000.
   Output index: 9, value is: 18.000000.
   Output index: 10, value is: 20.000000.
   Output index: 11, value is: 22.000000.


4. (Optional) Check the model cache.

   If the HDI service connected to NNRt supports the model cache function, you can find the generated cache file in the /data/local/tmp directory after the nnrt_example is executed successfully.

   NOTE

   The IR graphs of the model need to be passed to the hardware driver layer, so that the HDI service compiles the IR graphs into a computing graph dedicated to hardware. The compilation process is time-consuming. The NNRt supports the computing graph cache feature. It can cache the computing graphs compiled by the HDI service to the device storage. If the same model is compiled on the same acceleration chip next time, you can specify the cache path so that NNRt can directly load the computing graphs in the cache file, reducing the compilation time.

   Check the cached files in the cache directory.

   ls /data/local/tmp


   The command output is as follows:

   # 0.nncache 1.nncache 2.nncache cache_info.nncache


   If the cache is no longer used, manually delete the cache files.

   rm /data/local/tmp/*nncache


你可能感兴趣的鸿蒙文章

harmony 鸿蒙Introduction to Neural Network Runtime Kit

harmony 鸿蒙Neural Network Runtime Kit
