libuv

Introduction

libuv is a cross-platform library that implements asynchronous I/O based on event loops. It applies to network programming and file system operations. It is one of the core libraries of Node.js and has been widely used by other software projects.

Supported Capabilities

libuv implements event-driven asynchronous I/O across platforms and supports standard library interfaces.

Including libuv

To use libuv capabilities, include the following header file:

#include <uv.h>

Add the following dynamic link library to CMakeLists.txt:

libuv.so

Available APIs

For details, see API documentation.

Background of Introducing libuv to OpenHarmony

OpenHarmony introduced Node-API of Node.js in its earlier versions to facilitate Node.js developers to extend their JavaScript (JS) APIs with OpenHarmony. It also introduced libuv of Node.js to implement event loops.

Evolution Trend

To address the scheduling issues caused when the application main thread has an event loop that contains uvloop, we plan to normalize the event loops in the application model to allow only one task queue in the application main loop with task priorities controlled.

Avoid using the libuv NDK to perform operations on the application main loop obtained by napi_get_uv_event_loop (deprecated in API version 12). This may cause various problems and increase the workload required to address compatibility issues.

If you want to implement interaction with the main thread cyclically, for example, insert a task, use Node-API.

We will continue to provide capabilities of interacting with the main thread and extend JS APIs through Node-API in the future for a long period of time, but shield the event loops in the implementation layer. Although napi_get_uv_event_loop is deprecated in API version 12, the main functional APIs of Node-API will be maintained for a long time and provide the same behaviors as native Node-API, so that the developers who are familiar with the node.js extension mechanism can easily use their code with OpenHarmony.

If you are familiar with libuv and can handle memory management and multithreading problems, you can still use libuv to develop your services on OpenHarmony. Unless otherwise required, you do not need to import the libuv library to your application project.

Current Problems and Solutions

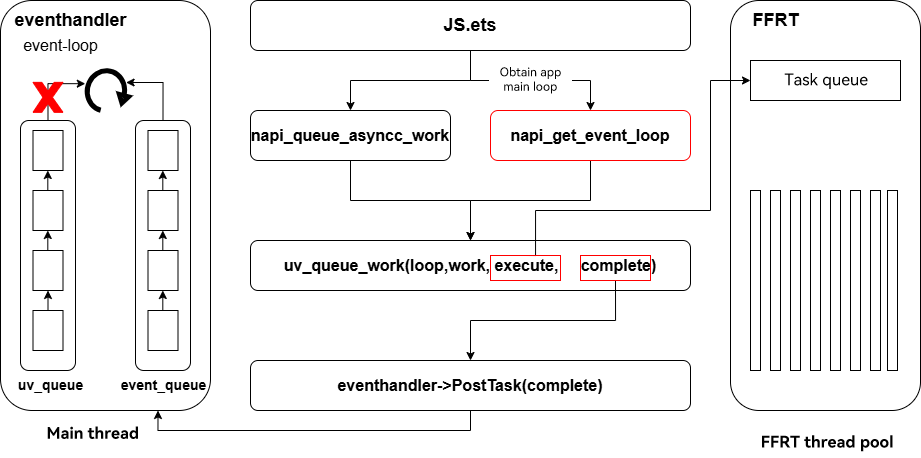

According to the existing mechanism, only one event loop can exist in a thread. To ensure proper running of the main event loop of the system application, the main event loop listens for the FD events in the JS environment and executes uv_run only when an FD event is reported. As a result, certain functions that depend on uvloop cannot take effect.

Common scenarios and solutions are as follows:

Scenario 1: The JS main thread throws an asynchronous task to a worker thread for execution and executes the result returned by the JS code.

Example (incorrect)

Call napi_get_uv_event_loop() to obtain the system loop, and use libuv NDK APIs to implement related functions.

#include "napi/native_api.h"
#include "uv.h"
#define LOG_DOMAIN 0X0202
#define LOG_TAG "MyTag"
#include <hilog/log.h>
#include <thread>
#include <sys/eventfd.h>
#include <unistd.h>

static void execute(uv_work_t *work) {
    OH_LOG_INFO(LOG_APP, "ohos in execute");
}

static void complete(uv_work_t *work, int status) {
    OH_LOG_INFO(LOG_APP, "ohos in complete");
    delete work;
}
static napi_value Add(napi_env env, napi_callback_info info)
{
    napi_value work_name;
    uv_loop_s *loop = nullptr;
    /* Obtain the uv_loop of the application JS main thread. */
    napi_get_uv_event_loop(env, &loop);
    uv_work_t *work = new uv_work_t;
    int ret = uv_queue_work(loop, work, execute, complete);
    if (ret != 0) {
        OH_LOG_INFO(LOG_APP, "delete work");
        delete work;
    }
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports){
    napi_property_descriptor desc[] = {{"add", nullptr, Add, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void){
    napi_module_register(&demoModule);
}

Example (correct):

Use napi_create_async_work and napi_queue_async_work together.

#include "napi/native_api.h"
#include "uv.h"
#define LOG_DOMAIN 0X0202
#define LOG_TAG "MyTag"
#include <hilog/log.h>
#include <thread>
#include <sys/eventfd.h>
#include <unistd.h>
uv_loop_t *loop;
napi_value jsCb;
int fd = -1;

static napi_value Add(napi_env env, napi_callback_info info)
{
    napi_value work_name;
    napi_async_work work;
    napi_create_string_utf8(env, "ohos", NAPI_AUTO_LENGTH, &work_name);
    /* The fourth parameter specifies the work task of the asynchronous thread, and the fifth parameter is the callback of the main thread. */
    napi_create_async_work(env, nullptr, work_name, [](napi_env env, void* data){
        OH_LOG_INFO(LOG_APP, "ohos in execute");
    }, [](napi_env env, napi_status status, void *data){
        /* The specific implementation is skipped. */
        OH_LOG_INFO(LOG_APP, "ohos in complete");
        napi_delete_async_work(env, (napi_async_work)data);
    }, nullptr, &work);
    /* Call napi_queue_async_work to trigger an async task. */
    napi_queue_async_work(env, work);
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports){
    napi_property_descriptor desc[] = {{"add", nullptr, Add, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void){
    napi_module_register(&demoModule);
}

Scenario 2: The libuv API does not work when throwing an FD event to the main loop of the application from the native side.

The main loop of the application receives only FD events, and executes uv_run only after backend_fd in uvloop is triggered. That means uv_run will never be executed if no FD event is triggered when uv APIs are called in the main loop of the application. As a result, calling libuv APIs does not take effect.

Example (incorrect)

In the following example, calling uv_poll_start in the same way as in native libuv on HarmonyOS does not take effect.

#include "napi/native_api.h"
#include "uv.h"
#define LOG_DOMAIN 0X0202
#define LOG_TAG "MyTag"
#include <hilog/log.h>
#include <thread>
#include <sys/eventfd.h>
#include <unistd.h>
uv_loop_t *loop;
napi_value jsCb;
int fd = -1;
void poll_handler(uv_poll_t* handle,int status, int events){
    OH_LOG_INFO(LOG_APP, "ohos poll print");
}
static napi_value TestClose(napi_env env, napi_callback_info info){
    std::thread::id this_id = std::this_thread::get_id();
    OH_LOG_INFO(LOG_APP, "ohos thread id : %{public}ld\n", this_id);
    size_t argc = 1;
    napi_value workBname;

    napi_create_string_utf8(env, "test", NAPI_AUTO_LENGTH, &workBname);

    napi_get_cb_info(env, info, &argc, &jsCb, nullptr, nullptr);
    // Obtain the event loop.
    napi_get_uv_event_loop(env, &loop);
    // Create an eventfd.
    fd = eventfd(0, 0);
    OH_LOG_INFO(LOG_APP, "fd is %{public}d\n",fd);
    uv_poll_t* poll_handle = new uv_poll_t;
    // Initialize a poll handle and associate it with eventfd.
    uv_poll_init(loop, poll_handle, fd);
    // Start to listen for the poll event.
    uv_poll_start(poll_handle, UV_READABLE, poll_handler);
    // Create a new thread and write data to eventfd.
    std::thread mythread([](){
        for (int i = 0; i < 8; i++){
            int value = 10;
            int ret = eventfd_write(fd, value);
            if (ret == -1){
                OH_LOG_INFO(LOG_APP, "write failed!\n");
                continue;
            }
        }
    });
    mythread.detach();
    return 0;
}
EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports){
    napi_property_descriptor desc[] = {{"testClose", nullptr, TestClose, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void){
    napi_module_register(&demoModule);
}

The process is as follows:

  1. Call napi_get_uv_event_loop to obtain uvloop of the application main thread.
  2. Create an eventfd instance.
  3. Initialize uv_poll_t, and start the handle for it to take effect. Invoke the poll_handler callback when the eventfd instance is readable.
  4. Create a thread and write data to eventfd.

After the preceding code is executed, poll_handler has no output. This is because the application main thread executes uv_run based on the FD rather than looping in UV_RUN_DEFAULT mode. Although event_handler listens for backend_fd in uvloop, the FD is not added to backend_fd through epoll_ctl when uv_poll_start is executed. The epoll_ctl function is executed only when uv__io_poll in uv_run is executed the next time. Therefore, if no backend_fd event is triggered in the application process, the libuv APIs may not work as expected.

Workaround

In the current system version, do not use napi_get_uv_event_loop to obtain uvloop of the application main thread to develop service logic. If libuv must be used to implement service functions, after uv_xxx_start is called, use uv_async_send to trigger the main thread of the application to execute uv_run. In this way, uv_xxx_start can be properly executed.

Modify the code as follows:

#include "napi/native_api.h"
#include "uv.h"
#define LOG_DOMAIN 0x0202
#define LOG_TAG "MyTag"
#include <hilog/log.h>
#include <thread>
#include <sys/eventfd.h>
#include <unistd.h>
uv_loop_t *loop;
napi_value jsCb;
int fd = -1;
void poll_handler(uv_poll_t* handle,int status, int events){
    OH_LOG_INFO(LOG_APP, "ohos poll print");
}
static napi_value TestClose(napi_env env, napi_callback_info info){
    std::thread::id this_id = std::this_thread::get_id();
    OH_LOG_INFO(LOG_APP, "ohos thread id : %{public}ld\n", this_id);
    size_t argc = 1;
    napi_value workBName;

    napi_create_string_utf8(env, "test", NAPI_AUTO_LENGTH, &workBName);

    napi_get_cb_info(env, info, &argc, &jsCb, nullptr, nullptr);

    napi_get_uv_event_loop(env, &loop);

    fd = eventfd(0, 0);
    OH_LOG_INFO(LOG_APP, "fd is %{public}d\n",fd);
    uv_poll_t* poll_handle = new uv_poll_t;
    uv_poll_init(loop, poll_handle, fd);
    uv_poll_start(poll_handle, UV_READABLE, poll_handler);

    // Trigger an FD event to enable the main thread to execute uv_run.
    uv_async_send(&loop->wq_async);

    std::thread mythread([](){
        for (int i = 0; i < 8; i++){
            int value = 10;
            int ret = eventfd_write(fd, value);
            if (ret == -1){
                OH_LOG_INFO(LOG_APP, "write failed!\n");
                continue;
            }
        }
    });
    mythread.detach();
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports){
    napi_property_descriptor desc[] = {{"testClose", nullptr, TestClose, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void){
    napi_module_register(&demoModule);
}

Using libuv

In the libuv NDK, all the APIs that depend on uv_run do not work as expected in the application main loop of the current system, and may cause freezing or loss of frames. You are advised not to use libuv NDK APIs in the JS main thread. You can use Node-API to implement asynchronous task execution and communication with the main thread via thread-safe functions.

Mappings Between libuv APIs and Node-API APIs

Instead of using libuv APIs, you can use the equivalent Node-API provided by OpenHarmony, which includes asynchronous work APIs and thread-safe APIs.

Asynchronous Work APIs

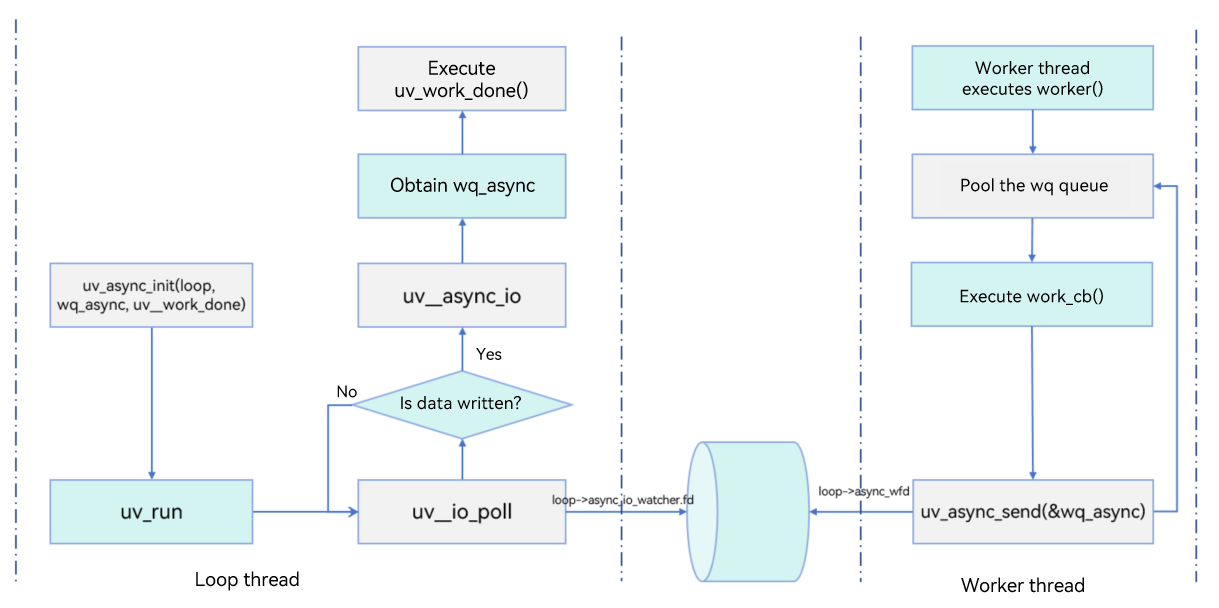

libuv provides the uv_queue_work API to perform a time-consuming operation in an asynchronous thread and return the result to the main thread for processing through a callback.

You can use napi_async_work APIs of Node-API to implement asynchronous operations.

The related Node-API interfaces are as follows:

// Creates a work object that executes logic asynchronously.
// env: pointer to the current execution environment.
// async_resource: (optional) resource object used to trace asynchronous operations.
// async_resource_name: (optional) name of the resource object. The value is a string.
// execute: callback invoked to perform an asynchronous operation in another thread.
// complete: callback to be invoked when the asynchronous operation is complete.
// data: pointer to the customized data to be passed to the execute() and complete() callbacks.
// result: pointer to the asynchronous work object created.
napi_status napi_create_async_work(napi_env env,
                                  napi_value async_resource,
                                  napi_value async_resource_name,
                                   napi_async_execute_callback execute,
                                 napi_async_complete_callback complete,
                                  void* data,
                                  napi_async_work* result);

// Adds an asynchronous work object to the queue so that it can be scheduled for execution.
// env: pointer to the current execution environment.
// work: pointer to the asynchronous work object to add.
napi_status napi_queue_async_work(napi_env env, napi_async_work work);

// Deletes an asynchronous work object.
// env: pointer to the current execution environment.
// work: pointer to the asynchronous work object to delete.
napi_status napi_delete_async_work(napi_env env, napi_async_work work);

Thread-safe APIs for Cross-Thread Sharing and Invocation

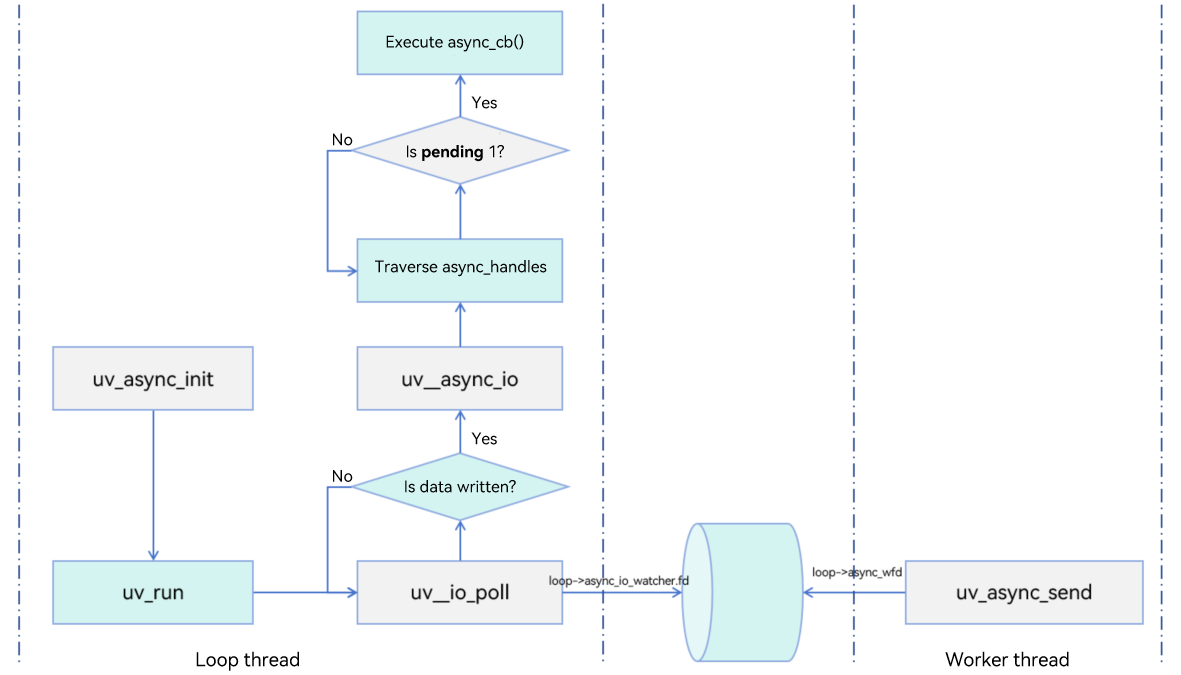

When you want to pass a callback to the application main thread, you can use the libuv uv_async_t handle for inter-thread communication, and the following functions:

  • uv_async_init()
  • uv_async_send()

The equivalent Node-API interfaces are napi_threadsafe_function APIs.

The related Node-API interfaces are as follows:

// Creates a thread-safe function, which can be called in multiple threads without causing data contention or other thread-safe issues.
// env: pointer to the Node-API environment. It is used to create and operate JS values.
// func: pointer to the JavaScript function to create.
// resource_name: pointer to the resource name, which is used for logging and debugging.
// max_queue_size: an integer specifying the maximum size of a queue. When the queue is full, new calls will be discarded.
// initial_thread_count: an integer specifying the number of initial threads. These threads will be started when the function is created.
// context: pointer to the context, which is passed to call_js_func().
// call_js_func: pointer to the callback to be invoked when the JS function is called.
// finalize: Pointer to the finalize() function to be called when the thread-safe function is destroyed.
// result: pointer to the napi_threadsafe_function struct, which will be constructed as the newly created thread-safe function.
napi_status napi_create_threadsafe_function(napi_env env,
                                           napi_value func,
                                           const char* resource_name,
                                           size_t max_queue_size,
                                           size_t initial_thread_count,
                                           void* context,
                                           napi_threadsafe_function_call_js call_js_func,
                                           napi_threadsafe_function_finalize finalize,
                                           napi_threadsafe_function* result);

// Acquires a thread-safe function.
// function: pointer to the thread-safe function to acquire.
napi_status napi_acquire_threadsafe_function(napi_threadsafe_function function);

// Calls a thread-safe function.
// function: pointer to the thread-safe function to call.
// data: pointer to the user data.
napi_status napi_call_threadsafe_function(napi_threadsafe_function function, void* data);

// Releases a thread-safe function.
// function: pointer to the thread-safe function to release.
napi_status napi_release_threadsafe_function(napi_threadsafe_function function);

If you need to use other libuv APIs to implement service functions, read on to discover basic libuv concepts and common APIs to be used in OpenHarmony, which are helpful to prevent application crashes when using libuv APIs. The following also provides information about the APIs that can be used in the application main thread and those cannot.

Available APIs

API Type API
Loop uv_loop_init
Loop uv_loop_close
Loop uv_default_loop
Loop uv_run
Loop uv_loop_alive
Loop uv_stop
Handle uv_poll_*
Handle uv_timer_*
Handle uv_async_*
Handle uv_signal_*
Handle uv_fs_*
Request uv_random
Request uv_getaddrinfo
Request uv_getnameinfo
Request uv_queue_work
Inter-Thread communication uv_async_init
Inter-Thread communication uv_async_send
Thread pool uv_queue_work

Constraints for libuv Single Thread

When using libuv in OpenHarmony, observe to the following:

The thread for calling uv_run must be the loop thread (the thread that initializes the loop using uv_loop_init), and all non-thread-safe operations of uvloop must be performed on the loop thread. Otherwise, the application may crash.

OpenHarmony imposes stricter restrictions on the use of libuv. For non-thread-safe functions, libuv implements the multi-thread check mechanism, which generates warning logs when detecting multi-threading problems. To ensure the check accuracy and prevent incorrect use of uv interfaces, it is recommended that the same thread be used for creating an event loop and executing uv_run.

Constraints

The constraints vary depending on the source of the loop. Specifically, you can create a loop or obtain a loop from env.

Creating a Loop

You can call uv_loop_new to create a loop or call uv_loop_init to initialize a loop. (You need to manage the lifecycle of the loop.) In this case, ensure that uv_run is executed on the loop thread, that is, the thread where the loop is created or initialized. In addition, non-thread-safe operations, such as operations related to the timer and handle, must be performed on the loop thread.

If tasks have to be thrown from other threads to the loop thread, use uv_async_send. Specifically, register a callback when the async handle is initialized. When uv_async_send is called, execute the registered callback on the main thread.
Example:

#include <napi/native_api.h>
#include <uv.h>
#define LOG_DOMAIN 0x0202
#define LOG_TAG "MyTag"
#include "hilog/log.h"
#include <thread>
#include <unistd.h>
uv_async_t* async = new uv_async_t;

// Create a timer.
void timer_cb(uv_async_t* handle) {
    auto loop = handle->loop;
    uv_timer_t* timer = new uv_timer_t;
    uv_timer_init(loop, timer);

    uv_timer_start(timer, [](uv_timer_t* timer){
        uv_timer_stop(timer);
    }, 1000, 0);
    // Close the async handle at appropriate time.
    if (cond) {
        uv_close((uv_handle_t*)handle, [](uv_handle_t* handle){
            delete (uv_async_t*)handle;
        })
    }
}

// Initialize the async handle and bind the corresponding callback.
static napi_value TestTimerAsync(napi_env env, napi_callback_info info) {
    std::thread t ([] () { // Thread A, loop thread
        uv_loop_t* loop = new uv_lppo_t;
        // Create a loop and manage the loop lifecycle.
        uv_loop_init(loop);
        // Initialize an async handle and register a callback.
        uv_async_init(loop, async, timer_cb);
        // Start the loop.
        uv_run(loop, UV_RUN_DEFAULT);
        // Close all handles.
        uv_walk(
            loop,
            [](uv_handle_t* handle, void* args) {
                if (!uv_is_closing(handle)) {
                    uv_close(hendle, [](uv_handle_t* handle){delete handle;});
                }
            },
            nullptr;
        );
        while (uv_run(loop, UV_RUN_DEFAULT) != 0);
        // Release the loop.
        uv_loop_delete(loop);
    })
    t.detach();
    return 0;
}

// Call uv_async_send on another thread.
static napi_value TestTimerAsyncSend(napi_env env, napi_callback_info info) {
    std::thread t ([] () { // Thread B
        uv_async_send (async); // Call uv_async_send to instruct the loop thread to call timer_cb bound to the async handle.
    });
    t.detach();
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    napi_property_descriptor desc[] = {
        {"testTimerAsync", nullptr, TestTimerAsync, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"testTimerAsyncSend", nullptr, TestTimerAsyncSend, nullptr, nullptr, nullptr, napi_default, nullptr},
    };
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void) {
    napi_module_register(&demoModule);
}

In this example, a global task queue is used and tasks are submitted to the task queue from a non-loop thread. Then, uv_async_send is called at appropriate time to return to the loop thread to execute async_cb, which traverses and executes all tasks in the task queue. Note that the task queue operations must be thread-safe. A lock-free queue can be used in C++ implementation, and locks must be added in C implementation.

Obtaining a Loop from env

Generally, the loop obtained from env using napi_get_uv_event_loop is an event loop of a JS thread created by the system. Therefore, avoid calling non-thread-safe functions on its child threads.

If a non-thread-safe function has to be called on a non-loop thread due to service requirements, use the thread-safe function uv_async_send. Specifically, define a handle of the uv_async_t* type. When initializing the handle, add the non-thread-safe function that needs to be called on a child thread in async_cb. Then, call uv_async_send in a non-loop thread, and execute async_cb on the loop thread. For details, see case 2 in Correct Example.

Thread-safe Functions

A large number of asynchronous works are involved in libuv. Improper use of libuv APIs may cause multithreading issues. The following lists the common thread-safe and non-thread-safe functions in libuv. If you call a non-thread-safe function in multi-thread programming, you must add a lock for the function or ensure correct code execution sequence. Otherwise, a crash issue may occur.

Thread-safe functions:

  • uv_async_send(): sends a signal to an asynchronous handle. This API can be called in any thread.
  • uv_thread_create(): creates a thread and executes the specified function. This API can be called in any thread.
  • Lock-related APIs, such as uv_mutex_lock() and uv_mutex_unlock().

NOTE

  • Even if the function like uv_xxx_init is implemented in a thread-safe manner, avoid calling it on multiple threads at the same time. Otherwise, resource contention may occur. The best way is to call the function in an event loop thread.
  • After uv_async_send is called, the callback is invoked asynchronously. libuv only ensures that at least one callback is executed if uv_async_send is called multiple times. As a result, if uv_async_send is called multiple times for the same handle, the callback processing in libuv may not align with your expectations. However, the native side can ensure that the number of callback execution times matches the number of times that napi_call_threadsafe_function is called.

Non-thread-safe functions:

  • uv_os_unsetenv(): deletes an environment variable.
  • uv_os_setenv(): sets an environment variable.
  • uv_os_getenv(): obtains an environment variable.
  • uv_os_environ(): retrieves all environment variables.
  • uv_os_tmpdir(): obtains the temporary directory.
  • uv_os_homedir(): obtains the home directory.

Event Loops in libuv

As a core concept in libuv, an event loop manages all resources of the entire event loop and runs through the lifecycle of the entire event loop. Generally, the thread where uv_run is located is the main thread of the event loop.

Event Loop Running Modes

  • UV_RUN_DEFAULT: runs the event loop until there are no active handles or requests. This is the default mode.

  • UV_RUN_ONCE: polls for I/O once. If there is a callback in pending_queue, execute the callback and then skip uv__io_poll. In this mode, there is an event to occur in the loop by default.

  • UV_RUN_NOWAIT: polls for I/O once but do not block if there are no pending callbacks. In this mode, uv__io_poll is executed once and pending_queue is not executed.

Common APIs

int uv_loop_init(uv_loop_t* loop);

Initializes a loop.

int uv_loop_close(uv_loop_t* loop);

Closes a loop. The operation is successful only after all handles and requests in the loop are closed. Otherwise, UV_EBUSY is returned.

int uv_loop_delete(uv_loop_t* loop);

Releases a loop. This API calls uv_loop_close to release all internal resources associated with the loop and then releases the loop. In OpenHarmony, the assert() function does not take effect. Therefore, the loop is released regardless of whether uv_loop_close successfully clears the loop resources. When using this API, ensure that the resources associated with the loop can be successfully released when the loop thread exits. That is, all the handles and requests associated with the loop must be closed. Otherwise, resource leaks occur.

NOTE

Exercise caution when using this API. You are advised not to use this API unless necessary.

uv_loop_t* uv_default_loop(void);

Creates a process-level loop. In OpenHarmony, libuv loops still exist in the application main loop and other JS worker threads. You are not advised to use this API to create loops and implement service functions. When the loop mechanism normalization is complete, you can use this API to create loops.

int uv_run(uv_loop_t* loop, uv_run_mode mode);

Runs an event loop. For details about the running mode, see Event Loop Running Modes.

int uv_loop_alive(uv_loop_t loop);

Checks whether a loop is active.

void uv_stop(uv_loop_t* loop);

Stops an event loop. The event loop stops only in the next iteration of the loop. If this API is called before an I/O operation, uv__io_poll will be skipped instead of being blocked.

Tips

Pay special attention to the use of uv_stop. Before uv_stop is called, ensure that the handles of all threads related to the loop are closed.

Example:

int stop_loop(uv_loop_t* loop)
{
    uv_stop(loop);
    auto const ensure_close = [](uv_handle_t* handle, void*) {
        if (uv_is_closing(handle)) {
            return;
        } else {
            uv_close(handle, nullptr);
        }
    };
    // Traverse all handles. Call ensure_close to close the active handle.
    uv_walk(loop, ensure_close, nullptr);

    // Continue to run uv_run until there is no active handle or request in the loop.
    while(true) {
        if (uv_run(loop, UV_RUN_DEFAULT) == 0) {
            break;
        }
    }

    // Check the loop status.
    if (uv_loop_alive(loop) != 0) {
        return -1;
    }
    return 0;
}

Handles and Requests in libuv

A handle indicates a persistent object, which is usually mounted to the corresponding handle_queue in a loop. If a handle is active, uv_run will process the callback in the handle each time.

A request indicates a temporary request. A request triggers only one callback.

The commonly used handles and requests in OpenHarmony include the following:

/* Handle types. */
typedef struct uv_handle_s uv_handle_t;
typedef struct uv_timer_s uv_timer_t;
typedef struct uv_async_s uv_async_t;
typedef struct uv_signal_s uv_signal_t;

/* Request types. */
typedef struct uv_req_s uv_req_t;
typedef struct uv_work_s uv_work_t;
typedef struct uv_fs_s uv_fs_t;

NOTE

In handles, uv_xxx_t inherits from uv_handle_t. In requests, uv_work_t inherits from uv_req_t.

It is critical to understand the handles in libuv and manage its lifecycle. Observe the following when using a handle:

  • Perform the handle initialization in the event loop thread.
  • If the handle needs to be initialized in a worker thread due to service requirements, use an atomic variable to check whether the initialization is complete before the handle is used.
  • For the handle that is no longer used, call uv_close to remove it from the loop.

Note that uv_close is used to close a handle asynchronously. Its prototype is as follows:

void uv_close(uv_handle_t* handle, uv_close_cb close_cb)

Where:

  • handle: pointer to the handle to close.
  • close_cb: function used to process the handle. This function is used to perform operations such as memory management.

After uv_close is called, the handle to be closed is added to the closing_handles queue in the loop, and waits for the loop thread to run uv__run_closing_handles. Finally, the close_cb callback is executed in the next iteration of the loop. Therefore, operations such as memory release should be performed in close_cb. Improper use of the close API that is executed asynchronously may cause multithreading issues. You need to ensure correct timing of uv_close and ensure that all the handles are closed before close_cb is executed.

Tips
The following rule of thumb in the official libuv documentation (http://libuv.org/) needs to be observed.
If a handle of type uv_foo_t has a uv_foo_start() function, then it’s active from the moment that function is called. Likewise, uv_foo_stop() deactivates the handle again.

NOTE

  • Call uv_close before all handles are closed, and all memory operations must be performed in close_cb of uv_close.

  • All handle operations cannot be called on non-loop threads by obtaining the loop of other threads.

Submitting Asynchronous Tasks

When asynchronous tasks are submitted, the libuv requests that are dynamically acquired must be released in the complete() callback executed on the loop thread. The following uses uv_work_t as an example.

uv_work_t* work = new uv_work_t;
uv_queue_work(loop, work, [](uv_work_t* req) {
    // Asynchronous operation
}, [](uv_work_t* req, int status) {
    // Callback
    delete req;
});

In special cases, for example, in memory-sensitive cases, the same request can be used repeatedly when:

  • The sequence of the same type of tasks is ensured.
  • The request can be successfully released when uv_queue_work is called the last time.
uv_work_t* work = new uv_work_t;
uv_queue_work(loop, work, [](uv_work_t* work) {
        // Do something.
    },
    [](uv_work_t* work, int status) {
        // Do something.
        uv_queue_work(loop, work, [](...) {/* do something*/}, [](...) {
            // Do something.
            if (last_task) {  // Release the request after the last task is executed.
                delete work;
            }
        });
    },
    )

Precautions for Submitting Asynchronous Tasks

uv_queue_work process

In libuv, uv_queue_work() in a UI thread works as follows:

  1. Throw work_cb to the thread pool of the related priority of Function Flow Runtime (FFRT) and wait for FFRT to schedule and execute the task.
  2. Throw after_work_cb to the event queue of eventhandler, wait for eventhandler to schedule, and return to the loop thread for execution.

NOTE
After uv_queue_work() is called, it does not mean any task is complete. It only means work_cb() is inserted into the thread pool of the related priority of FFRT. The workflow of the taskpool and jsworker threads is the same as that of libuv.

Constraints on Using uv_queue_work()

uv_queue_work() is only used to throw asynchronous tasks. The execute() callback of an asynchronous task added to the thread pool will be scheduled and executed. Therefore, the task execution sequence may be different from the task submission sequence.

uv_queue_work() can be called only on the loop thread. This prevents multi-threading issues. Do not use uv_queue_work() as a means for inter-thread communication. Specifically, do not use uv_queue_work to throw an asynchronous task from thread A to thread B, setting the execute() callback to an empty task and executing the complete() callback on thread B. This approach is not only inefficient but increases the difficulty in locating faults. To avoid inefficient task submission, use napi_threadsafe_function.

Using libuv Timers

Observe the following when using the libuv timers:

  • Do not use libuv APIs (uv_timer_start, uv_timer_stop, and uv_timer_again) in multiple threads to operate the timer heap of the same loop simultaneously. Otherwise, the application may crash. To use libuv APIs to operate timers, perform the operations on the thread associated with the current env’s loop.
  • To throw a timer to a thread, use uv_async_send.
Incorrect Example

In the following example, operations on the timer heap of the same loop are performed in multiple threads at the same time, which poses a high crash rate.

ArkTS:

import { hilog } from '@kit.PerformanceAnalysisKit';
import testNapi from 'libentry.so'

function waitforRunner(): number {
    "use concurrent"
    hilog.info(0xff, "testTag", "executed");
    return 0;
}

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        Button("TimerTest")
          .width('40%')
          .fontSize('14fp')
          .onClick(() => {
            let i: number = 20;
            while (i--) {
              setTimeout(waitforRunner, 200);
              testNapi.testTimer();
          }
        }).margin(20)
      }.width('100%')
    }.height('100%')
  }
}

Native C++:

#include <napi/native_api.h>
#include <uv.h>
#define LOG_DOMAIN 0x0202
#define LOG_TAG "MyTag"
#include "hilog/log.h"
#include <thread>
#include <unistd.h>

static napi_value TestTimer(napi_env env, napi_callback_info info) {
    uv_loop_t* loop = nullptr;
    uv_timer_t* timer = new uv_timer_t;

    napi_get_uv_event_loop(env, &loop);
    uv_timer_init(loop, timer);
    std::thread t1([&loop, &timer](){
        uv_timer_start(timer, [](uv_timer_t* timer){
            uv_timer_stop(timer);
        }, 1000, 0);
    });

    t1.detach();
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    napi_property_descriptor desc[] = {
        {"testTimer", nullptr, TestTimer, nullptr, nullptr, nullptr, napi_default, nullptr},
    };
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void) {
    napi_module_register(&demoModule);
}

Add the following code to index.d.ts:

export const testTimer:() => number;
Correct Example

Case 1: Ensure that timer-related operations are performed on the native main thread. Modify the TestTimer() function used in the previous example as follows:

static napi_value TestTimer(napi_env env, napi_callback_info info) {
    uv_loop_t* loop = nullptr;
    uv_timer_t* timer = new uv_timer_t;

    napi_get_uv_event_loop(env, &loop);
    uv_timer_init(loop, timer);
    uv_timer_start(timer, [](uv_timer_t* timer){
        uv_timer_stop(timer);
    }, 1000, 0);

    return 0;
}

Case 2: To throw a timer to a child thread, use the thread-safe function uv_async_send.

ArkTS:

import { hilog } from '@kit.PerformanceAnalysisKit';
import testNapi from 'libentry.so'

function waitforRunner(): number {
    "use concurrent"
    hilog.info(0xff, "testTag", "executed");
    return 0;
}

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        Button("TestTimerAsync")
          .width('40%')
          .fontSize('14fp')
          .onClick(() => {
              testNapi.testTimerAsync (); // Initialize the async handle.
        }).margin(20)

          Button("TestTimerAsyncSend")
          .width('40%')
          .fontSize('14fp')
          .onClick(() => {
              testNapi.testTimerAsyncSend (); // The child thread calls uv_async_send to execute timer_cb.
        }).margin(20)
      }.width('100%')
    }.height('100%')
  }
}

Native C++:

#include <napi/native_api.h>
#include <uv.h>
#define LOG_DOMAIN 0x0202
#define LOG_TAG "MyTag"
#include "hilog/log.h"
#include <thread>
#include <unistd.h>
uv_async_t* async = new uv_async_t;

// Create a timer.
void timer_cb(uv_async_t* handle) {
    auto loop = handle->loop;
    uv_timer_t* timer = new uv_timer_t;
    uv_timer_init(loop, timer);

    uv_timer_start(timer, [](uv_timer_t* timer){
        uv_timer_stop(timer);
    }, 1000, 0);
}

// Initialize the async handle and bind the corresponding callback.
static napi_value TestTimerAsync(napi_env env, napi_callback_info info) {
    uv_loop_t* loop = nullptr;
	napi_get_uv_event_loop(env, &loop);
    uv_async_init(loop, async, timer_cb);
    return 0;
}

static napi_value TestTimerAsyncSend(napi_env env, napi_callback_info info) {
    std::thread t([](){
        uv_async_send (async); // Call uv_async_send in any child thread to instruct the main thread to call timer_cb associated with async.
    });
    t.detach();
    return 0;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    napi_property_descriptor desc[] = {
        {"testTimerAsync", nullptr, TestTimerAsync, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"testTimerAsyncSend", nullptr, TestTimerAsyncSend, nullptr, nullptr, nullptr, napi_default, nullptr},
    };
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void) {
    napi_module_register(&demoModule);
}

Inter-Thread Communication

So far, you have learnt about the basic concepts of libuv. Now let’s dive into the inter-thread communication in libuv.

The inter-thread communication of libuv is implemented based on the uv_async_t handle. The related APIs are as follows:

int uv_async_init(uv_loop_t* loop, uv_async_t* handle, uv_async_cb async_cb)

Description

Initializes a handle.

Parameters

  • loop: pointer to the event loop.

  • handle: pointer to the handle for inter-thread communication.

  • async_cb: callback to be invoked.

Return value

This API returns 0 if the operation is successful; returns an error code if the operation fails.

int uv_async_send(uv_async_t* handle)

Description

Wakes up the event loop and calls the async handle’s callback.

Parameters

handle: pointer to the handle for inter-thread communication.

Return value

This API returns 0 if the operation is successful; returns an error code if the operation fails.

NOTE

  • uv_async_t remains active after uv_async_init is called till it is closed by uv_close.

  • uv_async_t is executed in the sequence defined by uv_async_init instead of uv_async_send. Therefore, it is necessary to manage the timing according to the initialization sequence.

Example:

#include <bits/stdc++.h>
#include "uv.h"

uv_loop_t* loop = nullptr;
uv_async_t* async = nullptr;
int g_counter = 10;
void async_handler(uv_async_t* handle)
{
    printf("ohos async print\n");
    if (--g_counter == 0) {
        // Call uv_close to close the async handle and release the memory in the main loop.
        uv_close((uv_handle_t*)async, [](uv_handle_t* handle) {
            printf("delete async\n");
            delete (uv_async_t*)handle;
        });
    }
}

int main()
{
    loop = uv_default_loop();
    async = new uv_async_t;
    uv_async_init(loop, async, async_handler);
    std::thread subThread([]() {
        for (int i = 0; i < 10; i++) {
            usleep (100); // Avoid multiple calls to uv_async_send being executed only once.
            printf("%dth: subThread triggered\n", i);
            uv_async_send(async);
        }
    });
    subThread.detach();
    return uv_run(loop, UV_RUN_DEFAULT);
}

The sample code describes only a simple scenario. The procedure is as follows:

  1. Initialize the async handle in the main thread.
  2. Create a worker thread and trigger uv_async_send every 100 milliseconds. After uv_async_send is called 10 times, call uv_close to close the async handle.
  3. Run the event loop on the main thread.

As indicated by the following information, each time uv_async_send is called, the main thread executes the callback.

0th:subThread triggered
ohos async print
1th:subThread triggered
ohos async print
2th:subThread triggered
ohos async print
3th:subThread triggered
ohos async print
4th:subThread triggered
ohos async print
5th:subThread triggered
ohos async print
6th:subThread triggered
ohos async print
7th:subThread triggered
ohos async print
8th:subThread triggered
ohos async print
9th:subThread triggered
ohos async print
delete async

Thread Pool

The thread pool in libuv uses the member variable wq_async in uv_loop_t to control the communication between the main thread and worker threads. The core API is as follows:

int uv_queue_work(uv_loop_t* loop,
                  uv_work_t* req,
                  uv_work_cb work_cb,
                  uv_after_work_cb after_work_cb)

Description

Initializes a work request which will run the given work_cb in a thread from the thread pool.

Parameters

  • work_cb: task submitted to the worker thread.
  • after_work_cb: callback to be executed by the loop thread.

NOTE
after work_cb is called after work_cb is complete. It is triggered by an FD event triggered by uv_async_send(loop->wq_async) and executed in the next iteration of the loop thread. The uv_work_t lifecycle ends only when after_work_cb is executed.

The following figure illustrates a simplified workflow of the libuv thread pool. The default pending flag of the handle is 1. The number of worker threads is an example only.

Use of libuv in OpenHarmony

Currently, libuv threads are used in the main thread, JS Worker thread, TaskWorker thread in the Taskpool, and IPC thread of OpenHarmony. Except the main thread, which uses eventhandler as the main loop, other threads use the UV_RUN_DEFAULT mode in libuv as the event main loop of the calling thread to execute tasks. In the main thread, eventhandler triggers task execution by an FD event. eventhandler listens for backend_fd in uv_loop. Once an FD event is triggered in the loop, eventhandler calls uv_run to execute tasks in libuv.

As a result, all the uv APIs that are not triggered by an FD event in the main thread are not responded in a timely manner. The uv APIs on the JS worker threads work as expected.

In addition, in the application main thread, all asynchronous tasks are eventually executed through libuv. However, in the current system, the libuv thread pool has been incorporated to the FFRT. Any asynchronous task thrown to the libuv thread will be scheduled by the FFRT thread. The callbacks of the application main thread are also inserted into the eventhandler queue by PostTask(). This means that after the asynchronous task in an FFRT thread is complete, the callback of the main thread is not triggered by uv_async_send. The following figure shows the process.

The following types of requests can be processed as expected in the application main loop:

  • uv_random_t

Function prototype:

/**
* Adds a work request to an event loop queue.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the request.
* @param buf indicates the buffer for storing the random number.
* @param buflen indicates the length of the buffer.
* @param flags Indicates the options for generating a random number. The value is an unsigned integer.
* @param cb indicates the callback used to return the random number generated.
*
* @return Returns 0 if the operation is successful; returns an error code otherwise.
*/
int uv_random(uv_loop_t* loop,
             uv_random_t* req,
             void* buf,
             size_t buflen,
             unsigned flags,
             uv_random_cb cb);

  • uv_work_t

    Function prototype:

/**
* Adds a work request to an event loop queue.
*
* work_cb will be called by a new thread in the next iteration of the event loop.
* When work_cb is complete, after_work_cb will be called on the event loop thread.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the work request.
* @param work_cb indicates the callback to be executed on a new thread.
* @param after_work_cb indicates the callback to be invoked on the event loop thread.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_queue_work(uv_loop_t* loop,
                  uv_work_t* req,
                  uv_work_cb work_cb,
                  uv_after_work_cb after_work_cb);

  • uv_fs_t

    All asynchronous APIs provided by the file class can work as expected in the application main thread. Common APIs include the following:

/**
* Reads a file asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the file operation request.
* @param file indicates the file descriptor.
* @param bufs indicates an array of buffers for storing the data read.
* @param nbufs indicates the number of buffers.
* @param off indicates the offset in the file from which data is read.
* @param cb indicates the callback to be invoked when the read operation is complete.
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_fs_read(uv_loop_t* loop, uv_fs_t* req,
              uv_file file,
              const uv_buf_t bufs[],
              unsigned int nbufs,
              int64_t off,
              uv_fs_cb cb);

/**
* Opens a file asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the file operation request.
*  * @param path indicates the pointer to the path of the file to open.
* @param flags indicates the modes for opening the file.
*  * @param mode indicates the permission on the file.
* @param cb indicates the callback to be invoked when the file is opened.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_fs_open(uv_loop_t* loop,
               uv_fs_t* req,
               const char* path,
               int flags,
               int mode,
               uv_fs_cb cb);

/**
* Sends data from a file to another asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the file operation request.
* @param out_fd indicates the file descriptor of the destination file.
* @param in_fd indicates the file descriptor of the source file.
* @param off indicates the offset in the source file from which data is sent.
* @param len indicates the length of the data to be sent.
* @param cb indicates the callback to be invoked when the data is sent.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_fs_sendfile(uv_loop_t* loop,
                   uv_fs_t* req,
                   uv_file out_fd,
                   uv_file in_fd,
                   int64_t off,
                   size_t len,
                   uv_fs_cb cb);

/**
* Writes data to a file asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the file operation request.
* @param file indicates the file descriptor.
* * @param data indicates an array of buffers for storing the data to be written.
* @param nbufs indicates the number of buffers.
* @param off indicates the offset in the file from which data is written.
* @param cb indicates the callback to be invoked when the read operation is complete.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_fs_write(uv_loop_t* loop,
                uv_fs_t* req,
                uv_file file,
                const uv_buf_t bufs[],
                unsigned int nbufs,
                int64_t off,
                uv_fs_cb cb);

/**
* Copies a file asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the file operation request.
* @param path indicates the pointer to the path of the file to copy.
* @param new_path indicates the pointer to the destination path.
* @param flags indicates the options for the copy operation.
* @param cb indicates the callback to be invoked when the copy operation is complete.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_fs_copyfile(uv_loop_t* loop,
                   uv_fs_t* req,
                   const char* path,
                   const char* new_path
                   int flags,
                   uv_fs_cb cb);

  • uv_getaddrinfo_t

    Function prototype:

/**
* Obtains address information asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the request for obtaining address information.
* @param cb indicates the callback to be invoked when the address information is obtained.
* @param hostname indicates the pointer to the host name to resolve.
* @param service indicates the pointer to the service name.
* @param hints indicates the pointer to the address information with additional address type constraints.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_getaddrinfo(uv_loop_t* loop,
                   uv_getaddrinfo_t* req,
                   uv_getaddrinfo_cb cb,
                   const char* hostname,
                   const char* service,
                   const struct addrinfo* hints);

  • uv_getnameinfo_t

    Function prototype:

/**
* Obtains name information asynchronously.
*
* @param loop indicates the pointer to the event loop.
* @param req indicates the pointer to the request.
* @param cb indicates the callback to be invoked when the name information is obtained.
* @param addr indicates the pointer to the address information to resolve.
* @param flags indicates the flags for controlling the behavior of the lookup.
*
* @return Returns 0 if the operation is successful; returns -1 otherwise.
*/
int uv_getnameinfo(uv_loop_t* loop,
                   uv_getnameinfo_t* req,
                   uv_getnameinfo_cb getnameinfo_cb,
                   const struct sockaddr* addr,
                   int flags);

The following APIs do not work as expected in the application main thread:

  • Idle handle
  • prepare handle
  • check handle
  • signal-related functions
  • Functions related to TCP and UDP

Case Study

Cause of Incorrect Triggering Time of the Timer Callback in the Main Thread of libuv

Incorporating libuv Worker Threads to the FFRT

FAQs for QoS-Aware libuv and Node-API Async API Improvements

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Native API Standard Libraries

harmony 鸿蒙VkExternalFormatOHOS

harmony 鸿蒙VkImportNativeBufferInfoOHOS

harmony 鸿蒙VkMemoryGetNativeBufferInfoOHOS

harmony 鸿蒙VkNativeBufferFormatPropertiesOHOS

harmony 鸿蒙VkNativeBufferPropertiesOHOS

harmony 鸿蒙VkNativeBufferUsageOHOS

harmony 鸿蒙VkSurfaceCreateInfoOHOS

harmony 鸿蒙Vulkan Module

harmony 鸿蒙libc++

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/09OC50
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
