DeviceProfile

Introduction

DeviceProfile is used to manage device hardware capabilities and system software features. A typical device profile includes the device type, device name, OS type, and OS version.

By allowing quick access to local and remote device profiles, DeviceProfile lays the foundation for initiating distributed services. It provides the following features:

Querying, inserting, and deleting local device profile information
Querying remote device profile information
Synchronizing profile information across devices
Subscribing to remote device profile changes

Below is the architecture of the DeviceProfile subsystem.

Architecture

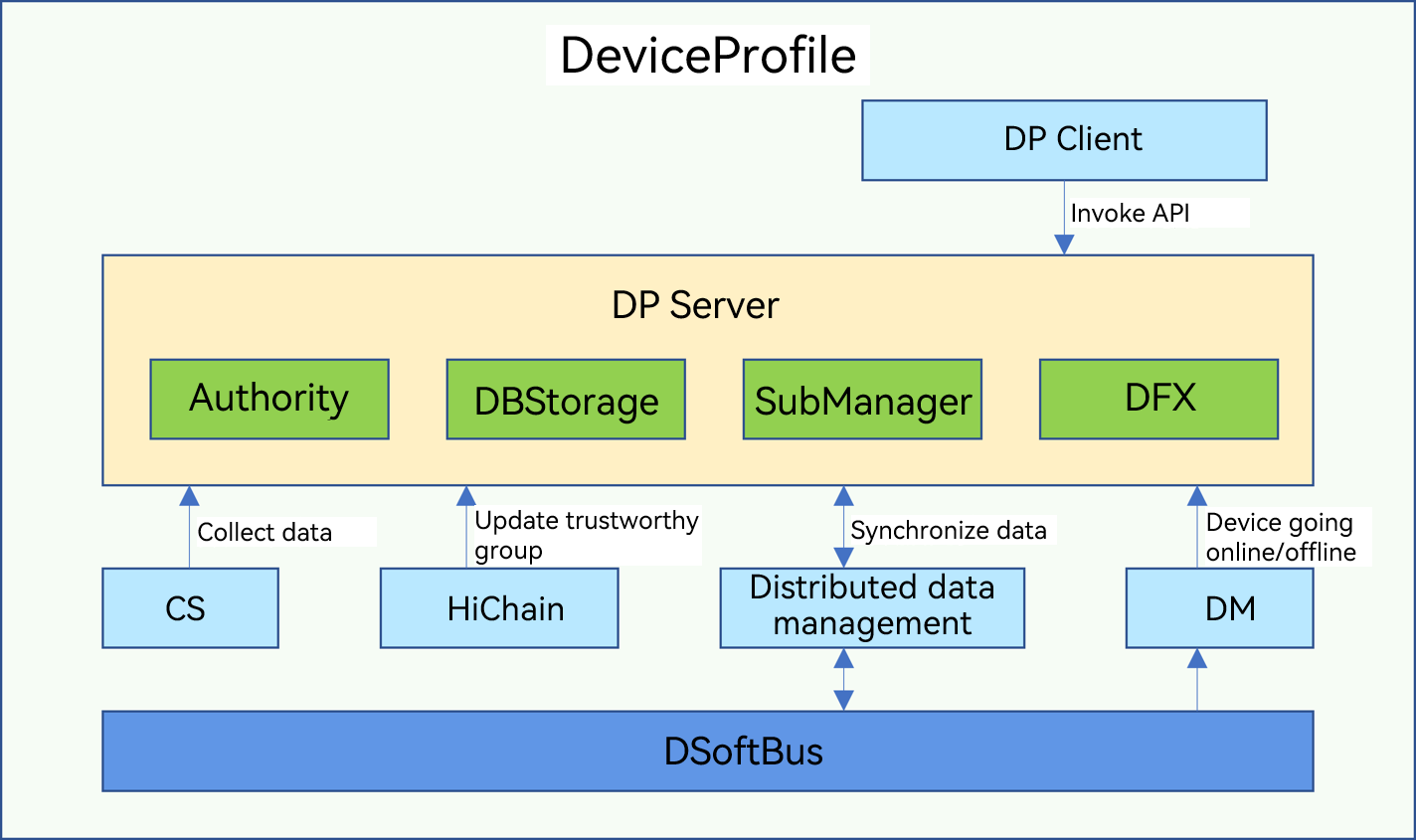

Figure 1 Architecture of the DeviceProfile subsystem

Directory Structure

The main code directory structure of DeviceProfile is as follows:

├── interfaces
│   └── innerkits
│       └── distributeddeviceprofile            // innerkits APIs
├── ohos.build
├── sa_profile                                  // SAID profile
│   ├── 6001.xml
│   └── BUILD.gn
└── services
    └── distributeddeviceprofile
        ├── BUILD.gn
        ├── include
        │   ├── authority                       // Permission verification
        │   ├── contentsensor                   // Header file for content sensor data collection
        │   ├── dbstorage                       // Header file for database operations
        │   ├── devicemanager                   // Header file for device management
        │   └── subscribemanager                // Header file for subscription management
        ├── src
        │   ├── authority                       // Permission verification
        │   ├── contentsensor                   // Implementation of content sensor data collection
        │   ├── dbstorage                       // Implementation of database operations
        │   ├── devicemanager                   // Implementation of device management
        │   └── subscribemanager                // Implementation of subscription management
        └── test                                // Test cases

Constraints

The devices between which you want to set up a connection must be in the same LAN.
Before setting up a connection between two devices, you must bind the devices. For details about the binding process, see relevant descriptions in the Security subsystem readme file.

Usage

Querying Profile Information

Parameters of GetDeviceProfile

Name	Type	Mandatory	Description
deviceId	std::string	Yes	ID of the device whose profile is to be queried. A null value indicates the local device.
serviceId	std::string	Yes	Service ID (ID of the service data record).
profile	ServiceCharacteristicProfile	Yes	Return value.

Example

// Declare the return value.
ServiceCharacteristicProfile profile;
// Call GetDeviceProfile.
DistributedDeviceProfileClient::GetInstance().GetDeviceProfile(deviceId, serviceId, profile);
std::string jsonData = profile.GetCharacteristicProfileJson();
result.append("jsonData:" + jsonData + "\n");

Inserting Profile Information

Parameters of PutDeviceProfile

Name	Type	Mandatory	Description
profile	ServiceCharacteristicProfile	Yes	Profile information to insert.

Example

// Declare and fill in the data to insert.
ServiceCharacteristicProfile profile;
profile.SetServiceId(serviceId);
profile.SetServiceType(serviceType);
nlohmann::json j;
j["testVersion"] = "3.0.0";
j["testApiLevel"] = API_LEVEL;
profile.SetCharacteristicProfileJson(j.dump());
// Call PutDeviceProfile.
DistributedDeviceProfileClient::GetInstance().PutDeviceProfile(profile);

Deleting Profile Information

Parameters of DeleteDeviceProfile

Name	Type	Mandatory	Description
serviceId	std::string	Yes	ID of the service record to delete.

Example

// Declare and fill in the data to delete.
std::string serviceId = "test";
// DeleteDeviceProfile
DistributedDeviceProfileClient::GetInstance().DeleteDeviceProfile(serviceId);

Synchronizing Profile Information

Parameters of SyncDeviceProfile

Name	Type	Mandatory	Description
syncOption	SyncOption	Yes	Synchronization mode and range.
syncCb	IProfileEventCallback	Yes	Callback used to return the synchronization result.

Example

// Define the synchronization mode and range.
SyncOptions syncOption;
syncOption.SetSyncMode((OHOS::DistributedKv::SyncMode)atoi(mode.c_str()));
for (const auto& deviceId : deviceIds) {
    syncOption.AddDevice(deviceId);
}
// Call SyncDeviceProfile.
DistributedDeviceProfileClient::GetInstance().SyncDeviceProfile(syncOption,
    std::make_shared<ProfileEventCallback>());

Subscribing to Profile Events (Synchronization and Change Events)

Parameters of SubscribeProfileEvents

Name	Type	Mandatory	Description
subscribeInfos	SubscribeInfo	Yes	Type of the event to subscribe to.
eventCb	IProfileEventCallback	Yes	Callback for the subscribed event.
failedEvents	ProfileEvent	Yes	Failure event.

Example

auto callback = std::make_shared<ProfileEventCallback>();
std::list<SubscribeInfo> subscribeInfos;
ExtraInfo extraInfo;
extraInfo["deviceId"] = deviceId;
extraInfo["serviceIds"] = serviceIds;

// Subscribe to the EVENT_PROFILE_CHANGED event.
SubscribeInfo info1;
info1.profileEvent = ProfileEvent::EVENT_PROFILE_CHANGED;
info1.extraInfo = std::move(extraInfo);
subscribeInfos.emplace_back(info1);

// Subscribe to the EVENT_SYNC_COMPLETED event.
SubscribeInfo info2;
info2.profileEvent = ProfileEvent::EVENT_SYNC_COMPLETED;
info2.extraInfo = std::move(extraInfo);
subscribeInfos.emplace_back(info2);

std::list<ProfileEvent> failedEvents;
// Call SubscribeProfileEvents.
DistributedDeviceProfileClient::GetInstance().SubscribeProfileEvents(subscribeInfos, callback, failedEvents);
sleep(SUBSCRIBE_SLEEP_TIME);
std::list<ProfileEvent> profileEvents;
profileEvents.emplace_back(ProfileEvent::EVENT_PROFILE_CHANGED);
failedEvents.clear();
// Cancel the subscription.
DistributedDeviceProfileClient::GetInstance().UnsubscribeProfileEvents(profileEvents, callback, failedEvents);
