ServiceExtensionAbility

Overview

ServiceExtensionAbility is an ExtensionAbility component of the service type that provides capabilities related to background services. It holds an internal ServiceExtensionContext, which provides a variety of APIs for external systems.

In this document, the started ServiceExtensionAbility is called the server, and the component that starts the ServiceExtensionAbility is called the client.

A ServiceExtensionAbility can be started or connected by other components to process transactions in the background based on the request of the caller. System applications can call the startServiceExtensionAbility() method to start a ServiceExtensionAbility or call the connectServiceExtensionAbility() method to connect to a ServiceExtensionAbility. Third-party applications can call only connectServiceExtensionAbility() to connect to a ServiceExtensionAbility. The differences between starting and connecting to a ServiceExtensionAbility are as follows:

• Starting: In the case that AbilityA starts ServiceB, they are weakly associated. After AbilityA exits, ServiceB remains running.

• Connecting: In the case that AbilityA connects to ServiceB, they are strongly associated. After AbilityA exits, ServiceB also exits.

Note the following:

• If a ServiceExtensionAbility is started only by means of connecting, its lifecycle is controlled by the client. A new connection is set up each time the client calls the connectServiceExtensionAbility() method. When the client exits or calls the disconnectServiceExtensionAbility() method, the connection is interrupted. After all connections are interrupted, the ServiceExtensionAbility automatically exits.

• Once a ServiceExtensionAbility is started by means of starting, it will not exit automatically. System applications can call the stopServiceExtensionAbility() method to stop it.

NOTE

• Currently, third-party applications cannot implement a ServiceExtensionAbility. To implement transaction processing in the background, they can use background tasks.

• A UIAbility of a third-party application can connect to a ServiceExtensionAbility provided by a system application through the context.

• Third-party applications can connect to a ServiceExtensionAbility provided by a system application only when they gain focus in the foreground.

Lifecycle

The ServiceExtensionAbility class provides the lifecycle callbacks onCreate(), onRequest(), onConnect(), onDisconnect(), and onDestroy(). Override them as required. The following figure shows the ServiceExtensionAbility lifecycle.

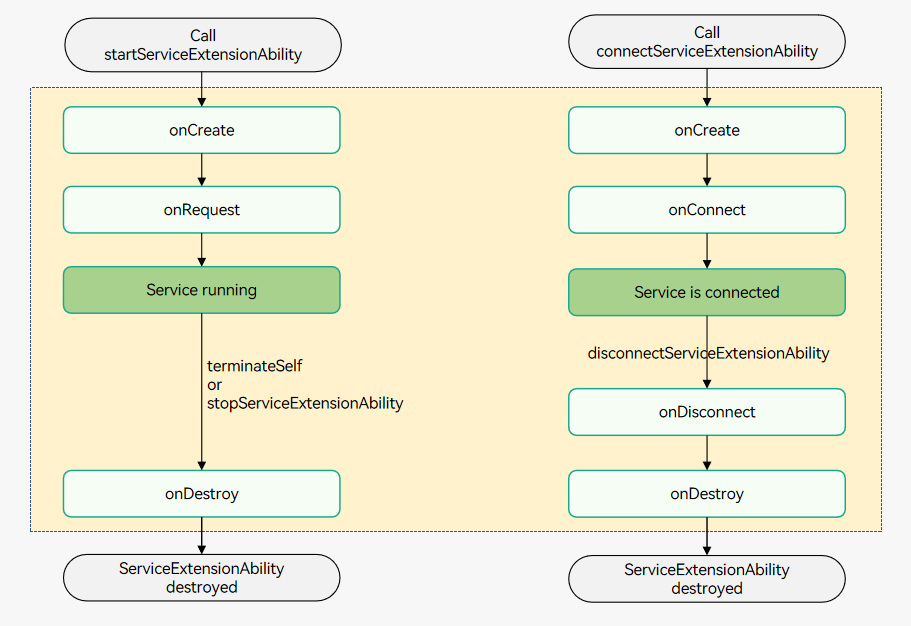

Figure 1 ServiceExtensionAbility lifecycle

• onCreate

This callback is triggered when a ServiceExtensionAbility is created for the first time. You can perform initialization operations, for example, registering a common event listener.

NOTE

If a ServiceExtensionAbility has been created, starting it again does not trigger the onCreate() callback.

• onRequest

This callback is triggered when another component calls the startServiceExtensionAbility() method to start a ServiceExtensionAbility. After being started, the ServiceExtensionAbility runs in the background. This callback is triggered each time the startServiceExtensionAbility() method is called.

• onConnect

This callback is triggered when another component calls the connectServiceExtensionAbility() method to connect to a ServiceExtensionAbility. In this method, a remote proxy object, namely, IRemoteObject, is returned, through which the client communicates with the server by means of RPC. At the same time, the system stores the IRemoteObject. If another component calls the connectServiceExtensionAbility() method to connect to this ServiceExtensionAbility, the system returns the saved IRemoteObject, without triggering the callback.

• onDisconnect

This callback is triggered when the last connection is interrupted. A connection is interrupted when the client exits or the disconnectServiceExtensionAbility() method is called.

• onDestroy

This callback is triggered when a ServiceExtensionAbility is no longer used and the instance is ready for destruction. You can clear resources in this callback, for example, deregistering the listener.

Implementing a Background Service (for System Applications Only)

Preparations

Only system applications can implement a ServiceExtensionAbility. You must make the following preparations before development:

• Switching to the full SDK: All the APIs provided by the ServiceExtensionAbility class are marked as system APIs and hidden by default. Therefore, you must manually obtain the full SDK from the mirror and switch to it in DevEco Studio. For details, see Guide to Switching to Full SDK.

• Requesting the AllowAppUsePrivilegeExtension privilege: Only applications with the AllowAppUsePrivilegeExtension privilege can implement a ServiceExtensionAbility. For details about how to request the privilege, see Application Privilege Configuration Guide.

Defining IDL APIs

As a background service, a ServiceExtensionAbility needs to provide APIs that can be called by external systems. You can define the APIs in IDL files and use the IDL tool to generate proxy and stub files. The following demonstrates how to define a file named IIdlServiceExt.idl:

interface OHOS.IIdlServiceExt {
  int ProcessData([in] int data);
  void InsertDataToMap([in] String key, [in] int val);
}

Create the IdlServiceExt directory in the ets directory of a module in a DevEco Studio project, and copy the files generated by the IDL tool to this directory. Then create a file named idl_service_ext_impl.ts to implement the IDL APIs.

├── ets
│ ├── IdlServiceExt
│ │   ├── i_idl_service_ext.ts      # File generated by the IDL tool.
│ │   ├── idl_service_ext_proxy.ts  # File generated by the IDL tool.
│ │   ├── idl_service_ext_stub.ts   # File generated by the IDL tool.
│ │   ├── idl_service_ext_impl.ts   # Customize this file to implement IDL APIs.
│ └
└

An example of idl_service_ext_impl.ts is as follows:

import {processDataCallback} from './i_idl_service_ext';
import {insertDataToMapCallback} from './i_idl_service_ext';
import IdlServiceExtStub from './idl_service_ext_stub';

const ERR_OK = 0;
const TAG: string = "[IdlServiceExtImpl]";

// You need to implement APIs in this type.
export default class ServiceExtImpl extends IdlServiceExtStub {
  processData(data: number, callback: processDataCallback): void {
    // Implement service logic.
    console.info(TAG, `processData: ${data}`);
    callback(ERR_OK, data + 1);
  }

  insertDataToMap(key: string, val: number, callback: insertDataToMapCallback): void {
    // Implement service logic.
    console.info(TAG, `insertDataToMap, key: ${key}  val: ${val}`);
    callback(ERR_OK);
  }
}

Creating a ServiceExtensionAbility

To manually create a ServiceExtensionAbility in the DevEco Studio project, perform the following steps:

1. In the ets directory of a module in the project, right-click and choose New > Directory to create a directory named ServiceExtAbility.

2. In the ServiceExtAbility directory, right-click and choose New > TypeScript File to create a file named ServiceExtAbility.ts.

   ├── ets
   │ ├── IdlServiceExt
   │ │   ├── i_idl_service_ext.ts      # File generated by the IDL tool.
   │ │   ├── idl_service_ext_proxy.ts  # File generated by the IDL tool.
   │ │   ├── idl_service_ext_stub.ts   # File generated by the IDL tool.
   │ │   ├── idl_service_ext_impl.ts   # Customize this file to implement IDL APIs.
   │ ├── ServiceExtAbility
   │ │   ├── ServiceExtAbility.ts
   └


3. In the ServiceExtAbility.ts file, import the ServiceExtensionAbility module. Customize a class that inherits from ServiceExtensionAbility and implement the lifecycle callbacks. Return the previously defined ServiceExtImpl object in the onConnect lifecycle callback.

   import ServiceExtensionAbility from '@ohos.app.ability.ServiceExtensionAbility';
   import ServiceExtImpl from '../IdlServiceExt/idl_service_ext_impl';
   import Want from '@ohos.app.ability.Want';
   import rpc from '@ohos.rpc';

   const TAG: string = "[ServiceExtAbility]";

   export default class ServiceExtAbility extends ServiceExtensionAbility {
     serviceExtImpl: ServiceExtImpl = new ServiceExtImpl("ExtImpl");

     onCreate(want: Want) {
       console.info(TAG, `onCreate, want: ${want.abilityName}`);
     }

     onRequest(want: Want, startId: number) {
       console.info(TAG, `onRequest, want: ${want.abilityName}`);
     }

     onConnect(want: Want) {
       console.info(TAG, `onConnect, want: ${want.abilityName}`);
       // Return the ServiceExtImpl object, through which the client can communicate with the ServiceExtensionAbility.
       return this.serviceExtImpl as rpc.RemoteObject;
     }

     onDisconnect(want: Want) {
       console.info(TAG, `onDisconnect, want: ${want.abilityName}`);
     }

     onDestroy() {
       console.info(TAG, `onDestroy`);
     }
   }

1. Register the ServiceExtensionAbility in the module.json5 file of the module in the project. Set type to “service” and srcEntry to the code path of the ServiceExtensionAbility component.

   {
     "module": {
       ...
       "extensionAbilities": [
         {
           "name": "ServiceExtAbility",
           "icon": "$media:icon",
           "description": "service",
           "type": "service",
           "exported": true,
           "srcEntry": "./ets/ServiceExtAbility/ServiceExtAbility.ts"
         }
       ]
     }
   }

Starting a Background Service (for System Applications Only)

A system application uses the startServiceExtensionAbility() method to start a background service. The onRequest() callback is invoked, through which the background service receives the Want object passed by the caller. After the background service is started, its lifecycle is independent of that of the client. In other words, even if the client is destroyed, the background service remains alive. Therefore, the background service must be stopped by calling terminateSelf() when its work is complete. Alternatively, another component can call stopServiceExtensionAbility() to stop the background service.

NOTE

startServiceExtensionAbility(), stopServiceExtensionAbility(), and terminateSelf() provided by the ServiceExtensionContext class are system APIs and cannot be called by third-party applications.

1. Start a new ServiceExtensionAbility in a system application. For details about how to obtain the context, see Obtaining the Context of UIAbility.

   import common from '@ohos.app.ability.common';
   import Want from '@ohos.app.ability.Want';
   import { BusinessError } from '@ohos.base';

   let context: common.UIAbilityContext = ...; // UIAbilityContext
   let want: Want = {
     deviceId: "",
     bundleName: "com.example.myapplication",
     abilityName: "ServiceExtAbility"
   };
   context.startServiceExtensionAbility(want).then(() => {
     console.info('Succeeded in starting ServiceExtensionAbility.');
   }).catch((err: BusinessError) => {
     console.error(`Failed to start ServiceExtensionAbility. Code is ${err.code}, message is ${err.message}`);
   })

1. Stop the ServiceExtensionAbility in the system application.

   import common from '@ohos.app.ability.common';
   import Want from '@ohos.app.ability.Want';
   import { BusinessError } from '@ohos.base';

   let context: common.UIAbilityContext = ...; // UIAbilityContext
   let want: Want = {
     deviceId: "",
     bundleName: "com.example.myapplication",
     abilityName: "ServiceExtAbility"
   };
   context.stopServiceExtensionAbility(want).then(() => {
     console.info('Succeeded in stopping ServiceExtensionAbility.');
   }).catch((err: BusinessError) => {
     console.error(`Failed to stop ServiceExtensionAbility. Code is ${err.code}, message is ${err.message}`);
   })

1. Enable the ServiceExtensionAbility to stop itself.

   import common from '@ohos.app.ability.common';
   import { BusinessError } from '@ohos.base';

   let context: common.ServiceExtensionContext = ...; // ServiceExtensionContext
   context.terminateSelf().then(() => {
     console.info('Succeeded in terminating self.');
   }).catch((err: BusinessError) => {
     console.error(`Failed to terminate self. Code is ${err.code}, message is ${err.message}`);
   })

NOTE

Background services remain alive in the background for a long time. To minimize resource usage, destroy a background service in time in either of the following ways when it finishes the requested task:

• The background service calls the terminateSelf() method to automatically stop itself.
• Another component calls the stopServiceExtensionAbility() method to stop the background service.

Connecting to a Background Service

Either a system application or a third-party application can connect to a background service (specified in the Want object) through connectServiceExtensionAbility(). The onConnect() callback is invoked, through which the background service receives the Want object passed by the caller. In this way, a persistent connection is established.

The ServiceExtensionAbility returns an IRemoteObject in the onConnect() callback. Through this IRemoteObject, you can define communication interfaces for RPC interaction between the client and server. Multiple clients can simultaneously connect to the same background service. After a client finishes the interaction, it must call disconnectServiceExtensionAbility() to disconnect from the service. If all clients connected to a background service are disconnected, the system destroys the service.

• Call connectServiceExtensionAbility() to establish a connection to a background service. For details about how to obtain the context, see Obtaining the Context of UIAbility.

  import common from '@ohos.app.ability.common';
  import Want from '@ohos.app.ability.Want';

  let want: Want = {
    deviceId: "",
    bundleName: "com.example.myapplication",
    abilityName: "ServiceExtAbility"
  };
  let options: common.ConnectOptions = {
    onConnect(elementName, remote) {
      /* remote is the object returned by the ServiceExtensionAbility in the onConnect lifecycle callback.
       * This object is used for communication with the ServiceExtensionAbility. For details, see the section below.
       */
      console.info('onConnect callback');
      if (remote === null) {
        console.info(`onConnect remote is null`);
        return;
      }
    },
    onDisconnect(elementName) {
      console.info('onDisconnect callback')
    },
    onFailed(code) {
      console.info('onFailed callback')
    }
  }
  // The ID returned after the connection is set up must be saved. The ID will be used for disconnection.
  let connectionId: number = this.context.connectServiceExtensionAbility(want, options);

• Use disconnectServiceExtensionAbility() to disconnect from the background service.

  import { BusinessError } from '@ohos.base';
  // connectionId is returned when connectServiceExtensionAbility is called and needs to be manually maintained.
  this.context.disconnectServiceExtensionAbility(connectionId).then(() => {
    console.info('disconnectServiceExtensionAbility success');
  }).catch((error: BusinessError) => {
    console.error('disconnectServiceExtensionAbility failed');
  })

Communication Between the Client and Server

After obtaining the rpc.RemoteObject from the onConnect() lifecycle callback, the client can communicate with the ServiceExtensionAbility in either of the following ways:

• Using the IDL APIs provided by the server for communication (recommended)

  // The client needs to import idl_service_ext_proxy.ts provided by the server to the local project.
  import IdlServiceExtProxy from '../IdlServiceExt/idl_service_ext_proxy';
  import common from '@ohos.app.ability.common';

  let options: common.ConnectOptions = {
    onConnect(elementName, remote) {
      console.info('onConnect callback');
      if (remote === null) {
        console.info(`onConnect remote is null`);
        return;
      }
      let serviceExtProxy: IdlServiceExtProxy = new IdlServiceExtProxy(remote);
      // Communication is carried out by API calling, without exposing RPC details.
      serviceExtProxy.processData(1, (errorCode: number, retVal: number) => {
        console.info(`processData, errorCode: ${errorCode}, retVal: ${retVal}`);
      });
      serviceExtProxy.insertDataToMap('theKey', 1, (errorCode: number) => {
        console.info(`insertDataToMap, errorCode: ${errorCode}`);
      })
    },
    onDisconnect(elementName) {
      console.info('onDisconnect callback')
    },
    onFailed(code) {
      console.info('onFailed callback')
    }
  }

• Calling sendMessageRequest to send messages to the server (not recommended)

  import rpc from '@ohos.rpc';
  import common from '@ohos.app.ability.common';
  import { BusinessError } from '@ohos.base';

  const REQUEST_CODE = 1;
  let options: common.ConnectOptions = {
    onConnect(elementName, remote) {
      console.info('onConnect callback');
      if (remote === null) {
        console.info(`onConnect remote is null`);
        return;
      }
      /* Directly call the RPC interface to send messages to the server.
       * The client needs to serialize the input parameters and deserialize the return values. The process is complex.
       */
      let option = new rpc.MessageOption();
      let data = new rpc.MessageSequence();
      let reply = new rpc.MessageSequence();
      data.writeInt(100);

      // @param code Indicates the service request code sent by the client.
      // @param data Indicates the {@link MessageSequence} object sent by the client.
      // @param reply Indicates the response message object sent by the remote service.
      // @param options Specifies whether the operation is synchronous or asynchronous.
      //
      // @return Returns {@code true} if the operation is successful; returns {@code false} otherwise.
      remote.sendMessageRequest(REQUEST_CODE, data, reply, option).then((ret) => {
        let msg = reply.readInt();
        console.info(`sendMessageRequest ret:${ret} msg:${msg}`);
      }).catch((error: BusinessError) => {
        console.info('sendMessageRequest failed');
      });
    },
    onDisconnect(elementName) {
      console.info('onDisconnect callback')
    },
    onFailed(code) {
      console.info('onFailed callback')
    }
  }

Client Identity Verification by the Server

When a ServiceExtensionAbility is used to provide sensitive services, the client identity must be verified. You can implement the verification on the IDL stub. For details about the IDL API implementation, see Defining IDL APIs. Two verification modes are recommended:

• Verifying the client identity based on callerUid

Call the getCallingUid() method to obtain the UID of the client, and then call the getBundleNameByUid() method to obtain the corresponding bundle name. In this way, the client identity is verified. Note that getBundleNameByUid() is asynchronous, and therefore the server cannot return the verification result to the client. This verification mode applies when the client sends an asynchronous task request to the server. The sample code is as follows:

  import rpc from '@ohos.rpc';
  import { BusinessError } from '@ohos.base';
  import bundleManager from '@ohos.bundle.bundleManager';
  import { processDataCallback } from './i_idl_service_ext';
  import { insertDataToMapCallback } from './i_idl_service_ext';
  import IdlServiceExtStub from './idl_service_ext_stub';

  const ERR_OK = 0;
  const ERR_DENY = -1;
  const TAG: string = "[IdlServiceExtImpl]";

  export default class ServiceExtImpl extends IdlServiceExtStub {
    processData(data: number, callback: processDataCallback): void {
      console.info(TAG, `processData: ${data}`);

      let callerUid = rpc.IPCSkeleton.getCallingUid();
      bundleManager.getBundleNameByUid(callerUid).then((callerBundleName) => {
        console.info(TAG, 'getBundleNameByUid: ' + callerBundleName);
        // Identify the bundle name of the client.
        if (callerBundleName != 'com.example.connectextapp') { // The verification fails.
          console.info(TAG, 'The caller bundle is not in trustlist, reject');
          return;
        }
        // The verification is successful, and service logic is executed normally.
      }).catch((err: BusinessError) => {
        console.info(TAG, 'getBundleNameByUid failed: ' + err.message);
      });
    }

    insertDataToMap(key: string, val: number, callback: insertDataToMapCallback): void {
      // Implement service logic.
      console.info(TAG, `insertDataToMap, key: ${key}  val: ${val}`);
      callback(ERR_OK);
    }
  }

• Verifying the client identity based on callerTokenId

Call the getCallingTokenId() method to obtain the token ID of the client, and then call the verifyAccessTokenSync() method to check whether the client has the required permission. Currently, OpenHarmony does not support permission customization. Therefore, only system-defined permissions can be verified. The sample code is as follows:

  import rpc from '@ohos.rpc';
  import abilityAccessCtrl from '@ohos.abilityAccessCtrl';
  import {processDataCallback} from './i_idl_service_ext';
  import {insertDataToMapCallback} from './i_idl_service_ext';
  import IdlServiceExtStub from './idl_service_ext_stub';

  const ERR_OK = 0;
  const ERR_DENY = -1;
  const TAG: string = "[IdlServiceExtImpl]";

  export default class ServiceExtImpl extends IdlServiceExtStub {
    processData(data: number, callback: processDataCallback): void {
      console.info(TAG, `processData: ${data}`);

      let callerTokenId = rpc.IPCSkeleton.getCallingTokenId();
      let accessManger = abilityAccessCtrl.createAtManager();
      /* The permission to be verified varies depending on the service requirements.
       * ohos.permission.SET_WALLPAPER is only an example.
       */
      let grantStatus =
          accessManger.verifyAccessTokenSync(callerTokenId, "ohos.permission.SET_WALLPAPER");
      if (grantStatus === abilityAccessCtrl.GrantStatus.PERMISSION_DENIED) {
          console.info(TAG, `PERMISSION_DENIED`);
          callback(ERR_DENY, data);   // The verification fails and an error is returned.
          return;
      }
      callback(ERR_OK, data + 1);     // The verification is successful, and service logic is executed normally.
    }

    insertDataToMap(key: string, val: number, callback: insertDataToMapCallback): void {
      // Implement service logic.
      console.info(TAG, `insertDataToMap, key: ${key}  val: ${val}`);
      callback(ERR_OK);
    }
  }

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Application Models

harmony 鸿蒙Using Explicit Want to Start an Application Component

harmony 鸿蒙Using Implicit Want to Open a Website

harmony 鸿蒙AbilityStage Component Container

harmony 鸿蒙Accessing a DataAbility

harmony 鸿蒙Accessing a DataShareExtensionAbility from the FA Model

harmony 鸿蒙AccessibilityExtensionAbility

harmony 鸿蒙Common action and entities Values

harmony 鸿蒙API Switching Overview

harmony 鸿蒙Switching of app and deviceConfig
