PersistentStorage: Application State Persistence

During application development, you may want selected attributes to persist even when the application is closed. In this case, you’ll need PersistentStorage.

PersistentStorage is an optional singleton object within an application. Its purpose is to persist selected AppStorage attributes so that their values are the same upon application re-start as they were when the application was closed.

Overview

PersistentStorage retains the selected AppStorage attributes on the device disk. The application uses the API to determine which AppStorage attributes should be persisted with PersistentStorage. The UI and business logic do not directly access attributes in PersistentStorage. All attribute access is to AppStorage. Changes in AppStorage are automatically synchronized to PersistentStorage.

PersistentStorage creates a two-way synchronization with attributes in AppStorage. A frequently used API function is to access AppStorage through PersistentStorage. Additional API functions include managing persisted attributes. The business logic always obtains or sets attributes through AppStorage.

Restrictions

Persistence of data is a relatively slow operation. Applications should avoid the following situations:

Persistence of large data sets
Persistence of variables that change frequently

It is recommended that the persistent variables of PersistentStorage be less than 2 KB data. As PersistentStorage writes data to disks synchronously, a large amount of persistent data may result in time-consuming local data read and write operations in the UI thread, affecting UI rendering performance. If you need to store a large amount of data, consider using the database API.

PersistentStorage can be called to persist data only when the UIContext, which can be obtained through runScopedTask, is specified.

Application Scenarios

Accessing PersistentStorage Initialized Attribute from AppStorage

Initialize the PersistentStorage instance.

   PersistentStorage.persistProp('aProp', 47);

Obtain the corresponding attribute from AppStorage.

   AppStorage.get<number>('aProp'); // returns 47

Alternatively, apply local definition within the component:

   @StorageLink('aProp') aProp: number = 48;

The complete code is as follows:

PersistentStorage.persistProp('aProp', 47);

@Entry
@Component
struct Index {
  @State message: string = 'Hello World'
  @StorageLink('aProp') aProp: number = 48

  build() {
    Row() {
      Column() {
        Text(this.message)
        // The current result is saved when the application exits. After the restart, the last saved result is displayed.
        Text(`${this.aProp}`)
          .onClick(() => {
            this.aProp += 1;
          })
      }
    }
  }
}

First running after fresh application installation:
1. persistProp is called to initialize PersistentStorage. A search for the aProp attribute on the PersistentStorage disk returns no result, because the application has just been installed.
2. A search for the attribute aProp in AppStorage still returns no result.
3. Create the aProp attribute of the number type in AppStorge and initialize it with the value 47.
4. PersistentStorage writes the aProp attribute and its value 47 to the disk. The value of aProp in AppStorage and its subsequent changes are persisted.
5. Create the state variable \@StorageLink(‘aProp’) aProp in the <Index> component, which creates a two-way synchronization with the aProp attribute in AppStorage. During the creation, the search in AppStorage for the aProp attribute succeeds, and therefore, the state variable is initialized with the value 47 found in AppStorage.

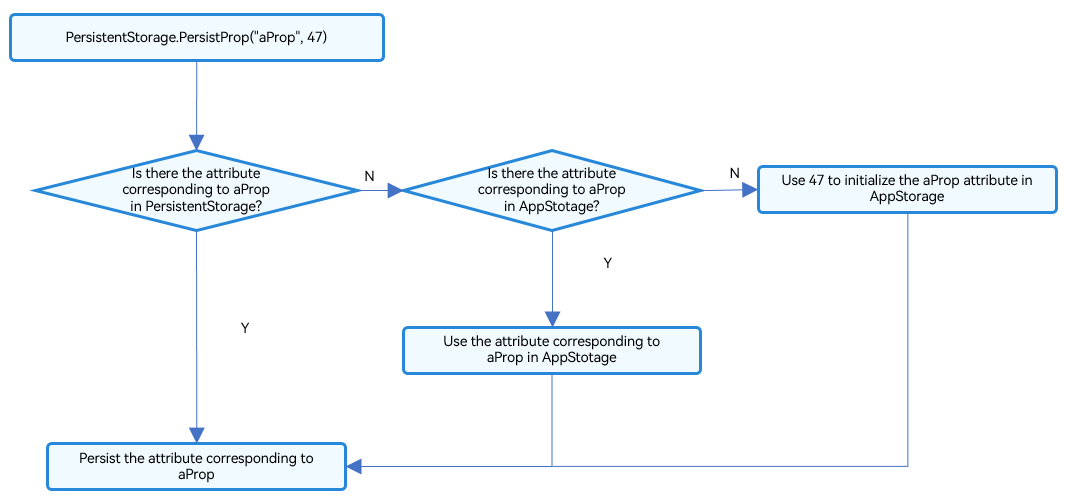

Figure 1 PersistProp initialization process

en-us_image_0000001553348833

After a click event is triggered:
1. The state variable \@StorageLink(‘aProp’) aProp is updated, triggering the <Text> component to be re-rendered.
2. The two-way synchronization between the \@StorageLink decorated variable and AppStorage results in the change of the \@StorageLink(‘aProp’) aProp being synchronized back to AppStorage.
3. The change of the aProp attribute in AppStorage triggers any other one-way or two-way bound variables to be updated. (In this example, there are no such other variables.)
4. Because the attribute corresponding to aProp has been persisted, the change of the aProp attribute in AppStorage triggers PersistentStorage to write the attribute and its new value to the device disk.
Subsequent application running:
1. PersistentStorage.persistProp(‘aProp’, 47) is called. A search for the aProp attribute on the PersistentStorage disk succeeds.
2. The attribute is added to AppStorage with the value found on the PersistentStorage disk.
3. In the <Index> component, the value of the @StorageLink decorated aProp attribute is the value written by PersistentStorage to AppStorage, that is, the value stored when the application was closed last time.

Accessing Attribute in AppStorage Before PersistentStorage

This example is an incorrect use. It is incorrect to use the API to access the attributes in AppStorage before calling PersistentStorage.persistProp or persistProps, because such a call sequence will result in loss of the attribute values used in the previous application run:

let aProp = AppStorage.setOrCreate('aProp', 47);
PersistentStorage.persistProp('aProp', 48);

AppStorage.setOrCreate(‘aProp’, 47): The aProp attribute is created in AppStorage, its type is number, and its value is set to the specified default value 47. aProp is a persisted attribute. Therefore, it is written back to the PersistentStorage disk, and the value stored in the PersistentStorage disk from the previous run is lost.

PersistentStorage.persistProp(‘aProp’, 48): An attribute with same name aProp is available in PersistentStorage.
