\@Observed and \@ObjectLink Decorators: Observing Attribute Changes in Nested Class Objects

The decorators described above can observe only the changes of the first layer. However, in real-world application development, the application may encapsulate its own data model based on development requirements. In the case of multi-layer nesting, for example, a two-dimensional array, an array item class, or a class insider another class as an attribute, the attribute changes at the second layer cannot be observed. This is where the \@Observed and \@ObjectLink decorators come in handy.

NOTE

Since API version 9, these two decorators are supported in ArkTS widgets.

Overview

\@ObjectLink and \@Observed class decorators are used for two-way data synchronization in scenarios involving nested objects or arrays:

• Regarding classes decorated by \@Observed, the attribute changes can be observed.

• The \@ObjectLink decorated state variable in the child component is used to accept the instance of the \@Observed decorated class and establish two-way data binding with the corresponding state variable in the parent component. The instance can be an \@Observed decorated item in the array or an \@Observed decorated attribute in the class object.

• Using \@Observed alone has no effect. Combined use with \@ObjectLink for two-way synchronization or with \@Prop for one-way synchronization is required.

Restrictions

Using \@Observed to decorate a class changes the original prototype chain of the class. Using \@Observed and other class decorators to decorate the same class may cause problems.

Decorator Description

Example of a read-only \@ObjectLink decorated variable:

// The \@ObjectLink decorated variable accepts changes to its attribute.
this.objLink.a= ...
// Value assignment is not allowed for the \@ObjectLink decorated variable.
this.objLink= ...

NOTE

Value assignment is not allowed for the \@ObjectLink decorated variable. To assign a value, use @Prop instead.

• \@Prop creates a one-way synchronization from the data source to the decorated variable. It takes a copy of its source tp enable changes to remain local. When \@Prop observes a change to its source, the local value of the \@Prop decorated variable is overwritten.

• \@ObjectLink creates a two-way synchronization between the data source and the decorated variable. An \@ObjectLink decorated variable can be considered as a pointer to the source object inside the parent component. Do not assign values to \@ObjectLink decorated variables, as doing so will interrupt the synchronization chain. \@ObjectLink decorated variables are initialized through data source (Object) references. Assigning a value to them is equivalent to updating the array item or class attribute in the parent component, which is not supported in TypeScript/JavaScript and will result in a runtime error.

Variable Transfer/Access Rules

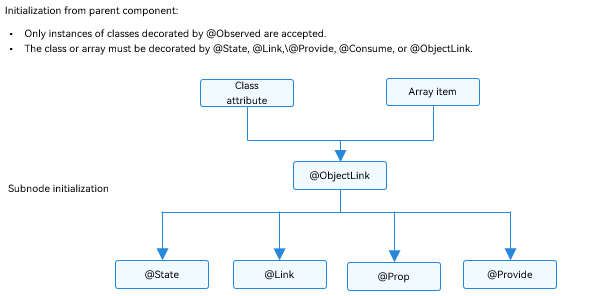

Figure 1 Initialization rule

Observed Changes and Behavior

Observed Changes

If the attribute of an \@Observed decorated class is not of the simple type, such as class, object, or array, it must be decorated by \@Observed. Otherwise, the attribute changes cannot be observed.

class ClassA {
  public c: number;

  constructor(c: number) {
    this.c = c;
  }
}

@Observed
class ClassB {
  public a: ClassA;
  public b: number;

  constructor(a: ClassA, b: number) {
    this.a = a;
    this.b = b;
  }
}

In the preceding example, ClassB is decorated by \@Observed, and the value changes of its member variables can be observed. In contrast, ClassA is not decorated by \@Observed, and therefore its attribute changes cannot be observed.

@ObjectLink b: ClassB

// The value assignment can be observed.
this.b.a = new ClassA(5)
this.b.b = 5

// ClassA is not decorated by @Observed, and its attribute changes cannot be observed.
this.b.a.c = 5

\@ObjectLink: \@ObjectLink can only accept instances of classes decorated by \@Observed. The following can be observed:

• Value changes of the attributes that Object.keys(observedObject) returns. For details, see Nested Object.

• Replacement of array items for the data source of an array and changes of class attributes for the data source of a class. For details, see Object Array.

For an instance of the class that inherits Date, the value assignment of Date can be observed. In addition, you can call the following APIs to update the attributes of Date: setFullYear, setMonth, setDate, setHours, setMinutes, setSeconds, setMilliseconds, setTime, setUTCFullYear, setUTCMonth, setUTCDate, setUTCHours, setUTCMinutes, setUTCSeconds, setUTCMilliseconds.

@Observed
class DateClass extends Date {
  constructor(args: number|string) {
    super(args)
  }
}

@Observed
class ClassB {
  public a: DateClass;

  constructor(a: DateClass) {
    this.a = a;
  }
}

@Component
struct ViewA {
  label: string = 'date';
  @ObjectLink a: DateClass;

  build() {
    Column() {
      Button(`child increase the day by 1`)
        .onClick(() => {
          this.a.setDate(this.a.getDate() + 1);
        })
      DatePicker({
        start: new Date('1970-1-1'),
        end: new Date('2100-1-1'),
        selected: this.a
      })
    }
  }
}

@Entry
@Component
struct ViewB {
  @State b: ClassB = new ClassB(new DateClass('2023-1-1'));

  build() {
    Column() {
      ViewA({ label: 'date', a: this.b.a })

      Button(`parent update the new date`)
        .onClick(() => {
          this.b.a = new DateClass('2023-07-07');
        })
      Button(`ViewB: this.b = new ClassB(new DateClass('2023-08-20'))`)
        .onClick(() => {
          this.b = new ClassB(new DateClass('2023-08-20'));
        })
    }
  }
}

Framework Behavior

1. Initial render:

   1. \@Observed causes all instances of the decorated class to be wrapped with an opaque proxy object, which takes over the setter and getter methods of the attributes on the class.
   2. The \@ObjectLink decorated variable in the child component is initialized from the parent component and accepts the instance of the \@Observed decorated class. The \@ObjectLink decorated wrapped object registers itself with the \@Observed decorated class.

2. Attribute update: When the attribute of the \@Observed decorated class is updated, the system uses the setter and getter of the proxy, traverses the \@ObjectLink decorated wrapped objects that depend on it, and notifies the data update.

Application Scenarios

Nested Object

The following is the data structure of a nested class object.

// objectLinkNestedObjects.ets
let NextID: number = 1;

@Observed
class ClassA {
  public id: number;
  public c: number;

  constructor(c: number) {
    this.id = NextID++;
    this.c = c;
  }
}

@Observed
class ClassB {
  public a: ClassA;

  constructor(a: ClassA) {
    this.a = a;
  }
}

@Observed
class ClassD {
  public c: ClassC;

  constructor(c: ClassC) {
    this.c = c;
  }
}

@Observed
class ClassC extends ClassA {
  public k: number;

  constructor(k: number) {
    // Invoke the parent class method to process k.
    super(k);
    this.k = k;
  }
}

The following component hierarchy presents the data structure of a nested class object.

@Component
struct ViewC {
  label: string = 'ViewC1';
  @ObjectLink c: ClassC;

  build() {
    Row() {
      Column() {
        Text(`ViewC [${this.label}] this.a.c = ${this.c.c}`)
          .fontColor('#ffffffff')
          .backgroundColor('#ff3fc4c4')
          .height(50)
          .borderRadius(25)
        Button(`ViewC: this.c.c add 1`)
          .backgroundColor('#ff7fcf58')
          .onClick(() => {
            this.c.c += 1;
            console.log('this.c.c:' + this.c.c)
          })
      }
    .width(300)
  }
}
}

@Entry
@Component
struct ViewB {
  @State b: ClassB = new ClassB(new ClassA(0));
  @State child : ClassD = new ClassD(new ClassC(0));
  build() {
    Column() {
      ViewC({ label: 'ViewC #3', c: this.child.c})
      Button(`ViewC: this.child.c.c add 10`)
        .backgroundColor('#ff7fcf58')
        .onClick(() => {
          this.child.c.c += 10
          console.log('this.child.c.c:' + this.child.c.c)
        })
    }
  }
}

The @Observed decorated ClassC class can observe changes in attributes inherited from the base class.

Event handles in ViewB:

• this.child.c = new ClassA(0) and this.b = new ClassB(new ClassA(0)): Change to the \@State decorated variable b and its attributes.

• this.child.c.c = … : Change at the second layer. Though @State cannot observe the change at the second layer, the change of an attribute of \@Observed decorated ClassA, which is attribute c in this example, can be observed by \@ObjectLink.

Event handle in ViewC:

• this.c.c += 1: Changes to the \@ObjectLink decorated variable a cause the button label to be updated. Unlike \@Prop, \@ObjectLink does not have a copy of its source. Instead, \@ObjectLink creates a reference to its source.

• The \@ObjectLink decorated variable is read-only. Assigning this.a = new ClassA(…) is not allowed. Once value assignment occurs, the reference to the data source is reset and the synchronization is interrupted.

Object Array

An object array is a frequently used data structure. The following example shows the usage of array objects.

@Component
struct ViewA {
  // The type of @ObjectLink of the child component ViewA is ClassA.
  @ObjectLink a: ClassA;
  label: string = 'ViewA1';

  build() {
    Row() {
      Button(`ViewA [${this.label}] this.a.c = ${this.a.c} +1`)
        .onClick(() => {
          this.a.c += 1;
        })
    }
  }
}

@Entry
@Component
struct ViewB {
  // ViewB has the @State decorated ClassA[].
  @State arrA: ClassA[] = [new ClassA(0), new ClassA(0)];

  build() {
    Column() {
      ForEach(this.arrA,
        (item: ClassA) => {
          ViewA({ label: `#${item.id}`, a: item })
        },
        (item: ClassA): string => item.id.toString()
      )
      // Initialize the @ObjectLink decorated variable using the array item in the @State decorated array, which is an instance of ClassA decorated by @Observed.
      ViewA({ label: `ViewA this.arrA[first]`, a: this.arrA[0] })
      ViewA({ label: `ViewA this.arrA[last]`, a: this.arrA[this.arrA.length-1] })

      Button(`ViewB: reset array`)
        .onClick(() => {
          this.arrA = [new ClassA(0), new ClassA(0)];
        })
      Button(`ViewB: push`)
        .onClick(() => {
          this.arrA.push(new ClassA(0))
        })
      Button(`ViewB: shift`)
        .onClick(() => {
          this.arrA.shift()
        })
      Button(`ViewB: chg item property in middle`)
        .onClick(() => {
          this.arrA[Math.floor(this.arrA.length / 2)].c = 10;
        })
      Button(`ViewB: chg item property in middle`)
        .onClick(() => {
          this.arrA[Math.floor(this.arrA.length / 2)] = new ClassA(11);
        })
    }
  }
}

• this.arrA[Math.floor(this.arrA.length/2)] = new ClassA(..): The change of this state variable triggers two updates.

  1. ForEach: The value assignment of the array item causes the change of itemGenerator of ForEach. Therefore, the array item is identified as changed, and the item builder of ForEach is executed to create a ViewA component instance.
  2. ViewA({ label: ViewA this.arrA[first], a: this.arrA[0] }): The preceding update changes the first element in the array. Therefore, the ViewA component instance bound to this.arrA[0] is updated.

• this.arrA.push(new ClassA(0)): The change of this state variable triggers two updates with different effects.

  1. ForEach: The newly added ClassA object is unknown to the ForEach itemGenerator. The item builder of ForEach will be executed to create a ViewA component instance.
  2. ViewA({ label: ViewA this.arrA[last], a: this.arrA[this.arrA.length-1] }): The last item of the array is changed. As a result, the second View A component instance is changed. For ViewA({ label: ViewA this.arrA[first], a: this.arrA[0] }), a change to the array does not trigger a change to the array item, so the first View A component instance is not refreshed.

• this.arrA[Math.floor (this.arrA.length/2)].c: @State cannot observe changes at the second layer. However, as ClassA is decorated by \@Observed, the change of its attributes will be observed by \@ObjectLink.

Two-Dimensional Array

@Observed class decoration is required for a two-dimensional array. You can declare an \@Observed decorated class that extends from Array.

@Observed
class StringArray extends Array<String> {
}

Declare a class that extends from Array: class StringArray extends Array<String> {} and create an instance of StringArray. The use of the new operator is required for the \@Observed class decorator to work properly.

@Observed
class StringArray extends Array<String> {
}

@Component
struct ItemPage {
  @ObjectLink itemArr: StringArray;

  build() {
    Row() {
      Text('ItemPage')
        .width(100).height(100)

      ForEach(this.itemArr,
        (item: string|Resource) => {
          Text(item)
            .width(100).height(100)
        },
        (item: string) => item
      )
    }
  }
}

@Entry
@Component
struct IndexPage {
  @State arr: Array<StringArray> = [new StringArray(), new StringArray(), new StringArray()];

  build() {
    Column() {
      ItemPage({ itemArr: this.arr[0] })
      ItemPage({ itemArr: this.arr[1] })
      ItemPage({ itemArr: this.arr[2] })
      Divider()


      ForEach(this.arr,
        (itemArr: StringArray) => {
          ItemPage({ itemArr: itemArr })
        },
        (itemArr: string) => itemArr[0]
      )

      Divider()

      Button('update')
        .onClick(() => {
          console.error('Update all items in arr');
          if ((this.arr[0] as Array<String>)[0] !== undefined) {
            // We should have a real ID to use with ForEach, but we do no.
            // Therefore, we need to make sure the pushed strings are unique.
            this.arr[0].push(`${this.arr[0].slice(-1).pop()}${this.arr[0].slice(-1).pop()}`);
            this.arr[1].push(`${this.arr[1].slice(-1).pop()}${this.arr[1].slice(-1).pop()}`);
            this.arr[2].push(`${this.arr[2].slice(-1).pop()}${this.arr[2].slice(-1).pop()}`);
          } else {
            this.arr[0].push('Hello');
            this.arr[1].push('World');
            this.arr[2].push('!');
          }
        })
    }
  }
}

Union Type @ObjectLink

@ObjectLink supports union types of @Observed decorated classes and undefined or null. In the following example, the type of count is ClassA|ClassB|undefined. If the attribute or type of count is changed when the button in the parent component Page2 is clicked, the change will be synced to the child component.

class ClassA {
  public a: number;

  constructor(a: number) {
    this.a = a;
  }
}

class ClassB {
  public b: number;

  constructor(b: number) {
    this.b = b;
  }
}

@Entry
@Component
struct Page2 {
  @State count: ClassA|ClassB|undefined = new ClassA(10)

  build() {
    Column() {
      Child({ count: this.count })

      Button('change count property')
        .onClick(() => {
          // Determine the count type and update the attribute.
          if (this.count instanceof ClassA) {
            this.count.a += 1
          } else if (this.count instanceof ClassB) {
            this.count.b += 1
          } else {
            console.info('count is undefined, cannot change property')
          }
        })

      Button('change count to ClassA')
        .onClick(() => {
          // Assign the value of an instance of ClassA.
          this.count = new ClassA(100)
        })

      Button('change count to ClassB')
        .onClick(() => {
          // Assign the value of an instance of ClassA.
          this.count = new ClassB(100)
        })

      Button('change count to undefined')
        .onClick(() => {
          // Assign the value undefined.
          this.count = undefined
        })
    }.width('100%')
  }
}

@Component
struct Child {
  @ObjectLink count: ClassA|ClassB|undefined

  build() {
    Column() {
      Text(`count is instanceof ${this.count instanceof ClassA ? 'ClassA' : this.count instanceof ClassB ? 'ClassB' : 'undefined'}`)
        .fontSize(30)

      Text(`count's property is  ${this.count instanceof ClassA ? this.count.a : this.count?.b}`).fontSize(15)

    }.width('100%')
  }
}
