hdc

OpenHarmony Device Connector (hdc) is a command line tool used for debugging. You can use it on a Windows, Linux, or macOS system to interact with devices.

hdc consists of three processes:

client: the process running on the PC. This process is started when you run the hdc command and exits after the command is executed.

server: the background server process running on the PC. It is used to manage data interaction between the client and daemon processes and discover devices.

daemon: the daemon process running on the device. It is used to respond to the requests sent by server.

The following figure shows the relationship.

hdc > NOTE > > When client is started, it checks whether server is running by default. If not, a new hdc program is started as the server and runs in the background. > > When server is running, it listens for port 8710 of the PC by default. You can set the system environment variable OHOS_HDC_SERVER_PORT to listen for a port.

Environment Setup

Download and install DevEco Studio. You can obtain the hdc application in DevEco Studio/sdk/default/openharmony/toolchains.

(Optional) Running the hdc Program on the CLI

You can go to the toolchains directory of SDK through the CLI and run the hdc command in the directory for debugging. To facilitate the execution of the hdc program in the CLI, you can add the file path of the hdc program to the system environment variable that specifies the command search path. For example, add it to Path on Windows.

(Optional) Configuring the hdc Server

You can set the listening port, log output level, feature switch, and command recording of the hdc server by configuring the corresponding system environment variables. For details, see Optional Configuration Items.

NOTE

After the environment variable is configured, close and restart the CLI and other software that uses OpenHarmony SDK.

hdc commands

Global Parameters

Global parameters are the parameters that follow hdc when some hdc commands are run. For example, use the -t parameter to specify a device for command execution.

   hdc -t connect-key shell echo "Hello world"

Parameter	Description
-t	Specifies a target device to connect. When one device is connected, this parameter is optional. When multiple devices are connected, it is mandatory.
-l	(Optional) Specifies the log level when the device is running. The value ranges from 0 to 6. The default value is 3 (LOG_INFO).
-s	(Optional) Specifies the IP and port for listening when the client connects to the server.
-p	(Optional) Executes a client command without querying the server process.
-m	(Optional) Starts the server process in the foreground.

Commands

Command	Description
list targets	Displays all connected target devices.
wait	Waits until the device is properly connected.
tmode usb	This command is invalid and cannot be used to enable the USB connection channel. You need to enable it on the device setting page.
tmode port	Enables the network connection channel of the device.
tmode port close	Disables the network connection channel of the device.
tconn	Specifies the device to connect based on the IP address and port number.
shell	Executes a single command on the device.
install	Installs an application.
uninstall	Uninstalls a specified application.
file send	Sends a local file to a remote device.
file recv	Sends a file from a remote device to the local device.
fport ls	Lists all port forwarding tasks.
fport	Sets up a local port forwarding, which forwards data from a local port to a remote port.
rport	Sets up a remote port forwarding, which forwards data from a remote port to a local port.
fport rm	Deletes a port forwarding task.
start	Starts the hdc server process.
kill	Terminates the hdc server process.
hilog	Obtains device log information.
jpid	Displays the PIDs of all applications that have enabled JDWP on the device.
track-jpid	Displays the PIDs and names of the applications that have enabled JDWP on the device in real time.
target boot	Restarts the target device.
target mount	Mounts the system partition in read/write mode. (This command is unavailable for non-root devices.)
smode	Grants the root permission to the background hdc server running on the device. You can use the -r option to revoke the granted permission. (This command is unavailable for non-root devices.)
keygen	Generates a new key pair.
version	Displays the hdc version information. You can also run the hdc -v command to display the version information.
checkserver	Obtains the version information about the client process and server process.

NOTE

Global parameters must be placed before commands.

Basic Commands

Before using hdc, enable the USB debugging function on the device and connect the device to the PC using a USB cable.

Displaying Connected Devices

   hdc list targets

Running the Shell command

   hdc shell echo "Hello world"

Obtaining the Help Information

Command	Description
-h [verbose]	Displays the hdc help information. The optional parameter verbose can be used to display detailed help information.
help	Displays the hdc help information.

Display the hdc help information.

   hdc -h [verbose]
   hdc help

Usage

hdc -h
hdc help

// Display the detailed help information.
hdc -h verbose

NOTE

If an exception occurs, run the hdc kill -r command to kill the hdc process and restart the hdc server.
If the hdc list targets command cannot obtain the device information, see Failed to Identify the Target Device.

Managing Device Connections

Displaying Devices

Run the list targets command to display all connected target devices. You can add the -v parameter to display detailed device information. Run the following commands:

hdc list targets [-v]

Usage

hdc list targets
hdc list targets -v

Connecting to the Specified Target Device

When a single device is connected, you do not need to specify the device ID when running the command. When multiple devices are connected, use the -t parameter to specify the target device ID each time you run the command.

   hdc -t [connect-key] [command]

NOTE

The connect-key uniquely identifies a device. If the device is connected over the network, the connect-key is the IP address and port number. If the device is connected through USB, the connect-key is the USB SN.

NOTE

The error messages will be optimized in the future. Do not use them to determine the result of the automatic script or program.

Usage

This option must be used with a command. The following uses the shell command as an example.

   hdc list targets  // Display connect-key of all connected devices.
   hdc -t [connect-key] shell // Replace connect-key with the specified device ID.

Waiting for Device Connection

Run the following commands:

   hdc wait // Wait for the device to connect.
   hdc -t connect-key wait // Wait for the specified device to connect. Replace connect-key with the specified device ID.

Usage

   hdc wait
   hdc -t connect-key wait

Common Connections

USB Connection

Checking the environment

Item	Normal	Exception Handling
USB debugging	USB debugging is enabled.	If the USB debugging mode is not automatically enabled, restart the device.
USB data cable connection	The PC used for debugging is connected to the device USB port using a USB cable.	If you use a USB cable with low bandwidth and no data communication function, the device may fail to be identified. You are advised to use an officially recommended USB cable.
USB port	A USB port on the mainboard (USB port on the rear panel of a desktop computer or USB port on a laptop computer) is used.	If you use a conversion adapter, docking station, or USB port on the front panel of a desktop computer, issues such as low bandwidth and USB sync problems may occur, which results in frequent disconnections. Therefore, direct connection between the PC and the device is recommended.
hdc environment variable	The help information is displayed after the hdc -h command is executed.	For details, see Environment Setup.
Driver	After the device is connected via hdc, HDC Device or HDC Interface is displayed in Device Manager.	For details, see Failed to Identify the Target Device.

Procedure
Connect the PC to the device through a USB port.
Check the connection.

   hdc list targets

If the corresponding device ID is returned, the USB connection is successful.

When the device is found, run the related commands to interact with the device. If you want to perform USB command operations without the device ID, ensure that the device is not in TCP connection mode (the device information displayed by running the hdc list targets command does not contain IP:port) and directly connect to the device. For example:

   hdc shell

TCP Connection

NOTE

The TCP debugging function is not stable. Exercise caution when using this function for production.

Checking the environment

Item	Normal	Exception Handling
Network connection	The PC and the device are on the same network.	Connect the PC and device to the same Wi-Fi network or enable the Wi-Fi hotspot on your device.
Network Status	Use telnet IP:port to check that the network connection between the PC and the device is normal.	Connect the PC and the device over a stable network.
hdc environment variable	The help information is displayed after the hdc -h command is executed.	For details, see Environment Setup.

Procedure
Enable network debugging on the device setting page.
Record the port number displayed on the device as PORT for TCP connection.
Run the following command to connect to the device through TCP (you need to know the device IP address and enabled port number):

   hdc tconn IP:PORT

You can obtain the IP address from the device settings. The port number is displayed in the previous step.

Check the connection.

   hdc list targets

If the return value is in the IP:PORT format, the connection is successful.

To disable the TCP connection mode, disable network debugging on the device.

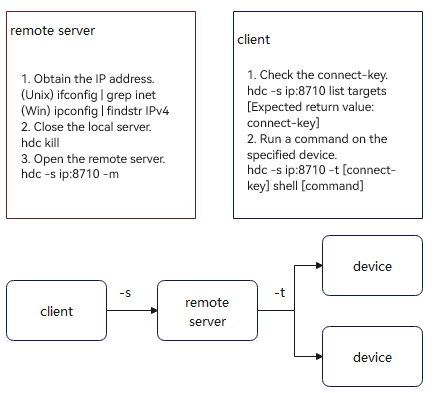

Remote Connection

In the remote connection scenario, the client remotely connects to the server through the network. The client and server run on different PCs, and the server connects to the device. The following figure shows the remote connection.

Remote connection structure

The hdc client runs on PC1, and the hdc server runs on PC2, which is connected to the device.

Connection command

|Command|Description| |——–|——–| |-s|Specifies the IP address and port number of the current server process to listen for.|

Use the -s parameter to specify the IP address and port number of the server. The setting is valid only when the current command is executed.

   hdc -s [ip]:[port] [command]

Usage

   # Run the command to obtain the device information in the server process of 127.0.0.1:8710:
   hdc -s 127.0.0.1:8710 list targets

NOTE

If the -s parameter is used to specify a server port, the system ignores the port set in the OHOS_HDC_SERVER_PORT environment variable.

Procedure
1. Configure the server

Connect the server to the device using a USB cable and run the following commands:

   hdc kill          // Terminate the local hdc server.
   hdc -s IP:8710 -m // Enable the hdc server for network forwarding.
                     // In the command, IP indicates the IP address of the server. To query the IP address, you can run the **ipconfig** command on Windows and run the **ifconfig** command on Unix.
                     // 8710 is the default port number. You can also set it to another port number, for example, 18710.
                     // After startup, the server prints logs.

Connect to the client

Ensure that the client can connect to the server IP address, and then run the following command:

   hdc -s IP:8710 [command] // IP indicates the IP address of the server, and 8710 indicates the port number set when the server is started in step 1.
                           // If the port number changes, change the port number accordingly.
                           // and command can be any available hdc command, for example, list targets.

Switching Between USB Debugging and Network Debugging

The following table lists the commands for switching the connection mode.

You are advised to enable or disable the USB debugging and network debugging on the device.

Command	Description
tmode usb	This command is invalid and cannot be used to enable the USB connection channel. You need to enable it on the device setting page.
tmode port [port-number]	Enables the network connection channel of the device. Then the daemon process on the device restarts, and the USB connection is interrupted. You need to reconnect the device.
tmode port close	Disables the network connection channel of the device. Then the daemon process on the device restarts, and the USB connection is interrupted. You need to reconnect the device.
tconn [IP]:[port] [-remove]	Specifies a connection to a device in IP address: port number format. Use the -remove option to disconnect from the specified device.

Enable the network connection of the device.

   hdc tmode port [port-number]

Usage

   hdc tmode port 1234

NOTE

Before changing the connection mode, ensure that the remote device and the local PC are on the same network and the PC can ping the IP address of the remote device.

Otherwise, do not run this command.

NOTE

After the command is executed, the remote daemon process exits and restarts, and the USB connection is disconnected. You need to reconnect the USB connection.

Disable the network connection channel of the device.

   hdc tmode port close

Usage

   hdc tmode port close

NOTE After the command is executed, the remote daemon process exits and restarts, and the USB connection is disconnected. You need to reconnect the USB connection.

Connect to the specified device through TCP.

   hdc tconn [IP]:[port] [-remove]

Usage

   hdc tconn 192.168.0.1:8888
   hdc tconn 192.168.0.1:8888 -remove  // Disconnect from the specified device.

Running the Interactive Command

Run the following commands:

   hdc shell [-b bundlename] [command]

Parameters |Parameter|Description| |——–|——–| |[-b bundlename]|The bundle name of a debug application. The command is executed in non-interactive mode in the data directory of the debug application.
Currently, this parameter can be used only in non-interactive mode, and the command parameter must be specified to enter an interactive shell session.
Otherwise, commands are executed in the system root directory by default.| |[command]|A single command to execute on the device. The command varies depending on the system type or version. You can run the hdc shell ls /system/bin command to obtain the supported command list. Currently, many commands are provided by toybox. You can run the hdc shell toybox –help command to obtain the help information.
If this parameter is not specified, hdc starts an interactive shell session, in which you can enter commands such as ls, cd, and pwd at the command prompt.|

Usage

   # Enter the interactive mode to run a command.
   hdc shell

   # Run the command in non-interactive mode.
   hdc shell ps -ef

   # Obtain the help information.
   hdc shell help -a

   # Specify the bundle name of an application to run the command in non-interactive mode in its data directory. The **touch**, **rm**, **ls**, **stat**, **cat** and **mkdir** commands are supported.
   hdc shell -b com.example.myapplication ls data/storage/el2/base/

NOTE

To use the [-b bundlename] parameter, ensure that the installed application to be specified is an application signed by a debug certificate. For details about how to request and use the debug certificate, see Requesting a Debug Certificate.

Managing Applications

Command	Description
install src	Installs an application.
uninstall packageName	Uninstalls an application.

Install an app.

   hdc install [-r|-s] src

Parameters |Name|Description| |——–|——–| |src|Installation package name.| |-r|Replaces the existing app (.hap).| |-s|Install a shared package (.hsp).|

Usage

For example, install example.hap.

   hdc install E:\example.hap

Uninstall the app.

   hdc uninstall [-k|-s] packageName

Usage

For example, uninstall com.example.hello.

   hdc uninstall com.example.hello

Transferring Files

Command	Description
file send localpath remotepath	Sends a local file to a remote device.
file recv remotepath localpath	Sends a file from a remote device to the local device.

Send a local file to a remote device.

   hdc file send [-a|-sync|-z|-m|-b bundlename] localpath remotepath

Return value

A success message is displayed if the file is sent successfully. Error information is displayed if the file fails to be sent.

Usage

   hdc file send E:\example.txt /data/local/tmp/example.txt
   hdc file send -b com.example.myapplication a.txt data/storage/el2/base/b.txt

NOTE

In the hdc file send -b com.example.myapplication a.txt data/storage/el2/base/b.txt command, the -b parameter is specified to transfer the a.txt file in the current local directory to the relative path data/storage/el2/base/ of the com.example.myapplication application data directory and rename the file to b.txt.

To use the [-b bundlename] parameter, ensure that the installed application to be specified is an application signed by a debug certificate. For details about how to request and use the debug certificate, see Requesting a Debug Certificate.

Send a file from a remote device to the local device.

   hdc file recv [-a|-sync|-z|-m|-b bundlename] remotepath localpath

Return value

A success message is displayed if the file is received successfully. Error information is displayed if the file fails to be received.

Usage

   hdc file recv  /data/local/tmp/a.txt   ./a.txt
   hdc file recv -b com.example.myapplication data/storage/el2/base/b.txt   a.txt

NOTE

In the hdc file recv -b com.example.myapplication data/storage/el2/base/b.txt a.txt command, the -b parameter is specified to transfer the b.txt file in the relative path data/storage/el2/base/ of the com.example.myapplication application data directory to the current local directory and rename the file to a.txt.

To use the [-b bundlename] parameter, ensure that the installed application to be specified is an application signed by a debug certificate. For details about how to request and use the debug certificate, see Requesting a Debug Certificate.

Port Forwarding

Command	Description
fport ls	Lists all port forwarding tasks.
fport localnode remotenode	Sets up a local port forwarding, which forwards data from a local port to a remote port.
rport remotenode localnode	Sets up a remote port forwarding, which forwards data from a remote port to a local port.
fport rm taskstr	Deletes a port forwarding task.

Port forwarding type supported by the PC: TCP.

Port forwarding type supported by the device: TCP, DEV, localabstract, localfilesystem, JDWP, ark.

List all port forwarding tasks.

   hdc fport ls

Usage

   hdc fport ls

Set up a local port forwarding, which forwards data from a local port to a remote port.

   hdc fport localnode remotenode

Usage

   hdc fport tcp:1234 tcp:1080

Set up a remote port forwarding, which forwards data from a remote port to a local port.

   hdc rport remotenode localnode

Usage

   hdc rport tcp:1234 tcp:1080

Delete a specified port forwarding task.

   hdc fport rm taskstr

Usage

   hdc fport rm tcp:1234 tcp:1080

Managing Server Processes

Command	Description
start [-r]	Starts the hdc process. You can use the -r option to restart the process.
kill [-r]	Terminates the hdc process. You can use the -r option to restart the process.
-p	Executes a client command without querying the server process.
-m	Starts a server process in the foreground.

Start the hdc server.

   hdc start [-r]

Usage

   hdc start
   hdc start -r // Restart the server.

NOTE

When a hdc server is started and the system does not detect any running server, set the log level in the following sequence: If the -l parameter is specified and the OHOS_HDC_LOG_LEVEL environment variable is configured, use the log level configured by the environment variable. If only the -l parameter is specified, use the log level configured by this parameter. If both of them are not specified, the server starts with the default log level LOG_INFO.

Terminate the hdc server.

   hdc kill [-r]

Usage

   hdc kill
   hdc kill -r // Restart and terminate the server process.

Execute a client command without querying the server.

   hdc -p [command]

Usage

   # Start a background server.
   hdc start
   # Execute the command directly without querying the server.
   hdc -p list targets

NOTE

When a command is executed without the -p parameter specified, the client first checks whether a server is running locally. If the system does not detect a running server process, the client automatically starts a server process and sets up a connection to transfer commands. If the system detects a running server process, the client directly connects to the server process and transfers commands.

Start the server process in the foreground.

   hdc -m

Usage

   # Start a server process with the IP address and port number specified.
   hdc -s 127.0.0.1:8710 -m

NOTE

When using the -m parameter, you can add the -s parameter to specify the IP address and port number to be listened. If no IP address and port number are specified using the -s parameter and the environment variable OHOS_HDC_SERVER_PORT is not set, the system uses the default IP address and port number 127.0.0.1:8710.

If the server process is started in the foreground, the default log output level is LOG_DEBUG. You can use the -l parameter to change the log level.

Only one server process instance can run at a time. If a background server process is running, a new server process instance cannot be started on the foreground.

Operating the Device

Command	Description
hilog [-h]	Displays the log information of the device. You can run the hdc hilog -h command to obtain the supported parameters.
jpid	Displays the PIDs of all applications that have enabled JDWP on the device.
track-jpid [-a\|-p]	Displays the PID and name of the application for which JDWP is enabled on the device in real time. If no parameter is specified, only the processes of the debug application are displayed. If the -a parameter is specified, the processes of the debug and release applications are displayed. If the -p parameter is specified, the debug and release labels are not displayed.
target boot [-bootloader\|-recovery]	Restarts the target device. You can use the -bootloader option to enter the fastboot mode and the -recovery option to enter the recovery mode.
target boot [MODE]	Restart the target device to enter the corresponding mode. MODE is an option supported by reboot in the /bin/begetctl command.
target mount	Mounts the system partition in read/write mode. (This command is supported after the device has required the root permission.)
smode [-r]	Grants the root permission to the hdc background server process on the device. You can use the -r parameter to cancel the permission. (This command is supported after the device has required the root permission.)

Display the log information of the device.

   hdc hilog [-h]

Parameters |Parameter|Description| |——–|——–| |[-h]|Parameters supported by HiLog. You can run the hdc hilog -h command to obtain the parameter list.|

Usage

   hdc hilog

Display the PIDs of all processes that enable JDWP.

   hdc jpid

Usage

   hdc jpid

Display the PIDs and application names of the processes that enable JDWP on the device in real time.

   track-jpid [-a|-p]

Usage

   hdc track-jpid

Restart the target device.

   target boot [-bootloader|-recovery]
   target boot [MODE]

Parameters |Name|Description| |——–|——–| |Not specified|Used to restart a device.| |-bootloader|Used to restart a device to enter the fastboot mode.| |-recovery|Used to restart a device to enter the recovery mode.| |MODE|Used to restart a device to enter the MODE mode. MODE is a parameter supported by reboot in the /bin/begetctl command.
For details, run the hdc shell “/bin/begetctl -h |grep reboot” command.||

Usage

   hdc target boot -bootloader // Restart the device to enter the fastboot mode.
   hdc target boot -recovery // Restart the device to enter the recovery mode.
   hdc target boot shutdown // Shut down the device.

Mount the system partition in read/write mode.

   hdc target mount

Usage

   hdc target mount

NOTE

This command is supported only after the device has required the root permission. Exercise caution when running this command.

Grant the root permission to the background hdc server running on the device.

   hdc smode [-r]

Usage

   hdc smode
   hdc smode -r  // Revoke the root permission.

NOTE

This command is supported only after the device has required the root permission.

Security Command

Command	Description
keygen FILE	Generates a new key pair and save the private key and public key to FILE and FILE.pub respectively. The file name FILE can be customized.

Generate a new key pair.

   hdc keygen FILE

Usage

   hdc keygen key // Generate the key and key.pub files in the current directory.

Obtaining the Version Number

Command	Description
-v/version	Displays hdc version information.
checkserver	Obtains the client and server process versions.

Display hdc version information.

   hdc -v/version

Usage

   hdc -v or hdc version

Obtain the client and server process versions.

   hdc checkserver

Usage

   hdc checkserver

hdc Debugging Logs

Server Logs

Specifying the Log Level

Specify the hdc log level. The default value is LOG_INFO.

   hdc -l [level] [command]

NOTE

When the log level is set to 6 (LOG_LIBUSB), incremental logs related to libusb are generated. The incremental logs are detailed and contain a large amount of data, which helps accurately diagnose USB-related exceptions in server processes. USB-related operations are mainly performed by server processes. Therefore, incremental logs are available only for server processes. Accordingly, the client logs almost do not contain incremental log information.

You can change only the log levels of the current client and server processes.

Usage

Run the shell ls command with the log level specified to LOG_DEBUG.

   hdc -l 5 shell ls

Run the -m command with the log level specify to LOG_LIBUSB.

   hdc kill && hdc -l 6 -m

NOTE The -m parameter is used to start the server process in the foreground. You can directly view the foreground log output and press Ctrl+C to exit the process.

Start the server process in the background with the log level set to LOG_LIBUSB.

   hdc kill && hdc -l 6 start

NOTE When the server process is started in the background, you can view the log output in hdc.log. For details about the log path, see Obtaining Logs.

Obtaining Logs

Obtain server logs.

hdc kill
hdc -l5 start

The collected logs are stored in the following path.

OS	Path	Remarks
Windows	%temp%	Example: C:\Users\Username\AppData\Local\Temp. Replace Username with the actual one.
Linux	/tmp	-
macOS	$TMPDIR	-

Log-related environment variables

Environment Variable	Default Value	Description
OHOS_HDC_LOG_LEVEL	5	The log level of the server process. For details, see Server Logs.

Device Logs

Enable HiLog to obtain the corresponding logs.

hdc shell hilog -w start                             // Enable the function of storing HiLog logs.
hdc shell ls /data/log/hilog                     // View the stored HiLog logs.
hdc file recv /data/log/hilog                  // Obtain the stored HiLog logs (including kernel logs).

Optional Configuration Items

OHOS_HDC_SERVER_PORT

Sets the port of the hdc server to listen for. This port is used for data communication between the hdc client and hdc server. The default value of this parameter is 8710.

When the hdc server is started, it listens for port 8710 of the PC by default. The hdc client uses TCP to connect to the server through this port. If port 8710 of the PC has been used or you want to use another port, you can add the environment variable OHOS_HDC_SERVER_PORT to the system environment variable to listen for any unoccupied port when the server is started. You can set the port number to a value ranging from 1 to 65535.

For example, set OHOS_HDC_SERVER_PORT to 18710.

OHOS_HDC_LOG_LEVEL

Sets the log level of the service process. The default value of this parameter is 3. For details about the log level, see “Log Level” in Server Logs.

OHOS_HDC_HEARTBEAT

Sets whether to enable the heartbeat functionality for the hdc server and hdc daemon. This functionality is enabled by default.

After the hdc server and hdc daemon are started, they send heartbeat packets to each other and record the heartbeat packets in hdc logs for checking the device connection status.

When the environment variable OHOS_HDC_HEARTBEAT is set to 1 for the hdc server, its heartbeat functionality is disabled. When the device is connected to the PC, the hdc server notifies the hdc daemon that the heartbeat functionality is disabled and does not send heartbeat packets to each other.

When OHOS_HDC_HEARTBEAT is set to other values, the heartbeat function is enabled.

OHOS_HDC_CMD_RECORD

Sets whether to enable the hdc command recording functionality. This functionality is enabled by default. This functionality records only the executed hdc commands but not the command execution results.

When this parameter is set to 1, the command recording functionality is enabled. When it is not set or set to any other number, the command recording functionality is disabled.

This parameter is supported since API version 20.

Paths for storing recording logs:

OS	Path	Remarks
Windows	%temp%\hdc_cmd\|Example: C:\Users\Username\AppData\Local\Temp\hdc_cmd. Replace Username with the actual one.
Linux	/tmp/hdc_cmd/	-
macOS	$TMPDIR/hdc_cmd/	-

Configuring Environment Variables

In the following example, the OHOS_HDC_CMD_RECORD environment variable is set to 1.

OS	Configuration Method
Windows	Choose This PC >Properties >Advanced system settings >Advanced >Environment Variables, add the environment variable OHOS_HDC_CMD_RECORD, and set its value to 1. After the configuration is complete, click OK. Restart the CLI or other software that uses OpenHarmony SDK for the new environment variable to take effect.
Linux	Add export OHOS_HDC_CMD_RECORD=1 to the end of the ~/.bash_profile file, save the file, and run the source ~/.bash_profile command for the current environment variable to take effect.
macOS	Add export OHOS_HDC_CMD_RECORD=1 to the end of the ~/.zshrc file, save the file, and run the source ~/.zshrc command for the current environment variable to take effect. Restart the CLI or other software that uses OpenHarmony SDK for the new environment variable to take effect.

FAQs

Failed to Identify the Target Device

Symptom

After the hdc list targets command is executed, the command output is [empty].

Possible Causes and Solution

Perform the following operations to locate the fault.

Case 1: Check whether the target device is displayed in Device Manager.

Windows:

Check whether HDC Device (for a single-port device) or HDC Interface (for a composite device) exists under Universal Serial Bus Controllers in Device Manager.

Linux:

Run the lsusb command. Check whether HDC Device or HDC Interface is displayed in the command output.

macOS:

View USB devices in System Information or System Overview.

Press and hold the Option key, and click Menu.
Choose System Information or System Overview.
Select USB on the left.
Check whether HDC Device or HDC Interface exists in the device tree.

Solution

If the device is not displayed, it fails to be identified. You can use any of the following methods to resolve the problem:

Use another physical USB port.
Replace the USB cable.
Use another PC for debugging.
Enable the USB debugging mode.
Click OK to allow USB debugging.
If a TCP connection can be set up, run the hdc tmode usb command to switch to the USB connection.
Restore the factory settings of the device.
Case 2: A USB device exists, but the driver is damaged. HDC Device with a warning icon in yellow is displayed.

This problem usually occurs in Windows. In Device Manager/Universal Serial Bus Device, HDC Device is displayed with a yellow warning icon, indicating that the device cannot work properly. To resolve the problem, reinstall the driver. If the problem persists, use another USB cable, docking station, or USB port.

Reinstalling the Driver

Open Device Manager, and right-click the HDC Device with a warning icon.
In the displayed menu, choose Update driver.
In the first prompt window, select Browse my computer for drivers.
In the second prompt window, select Let me pick from a list of available drivers on my computer.
In the third prompt window, deselect Show compatible hardware, select WinUsb Device for Manufacture and WinUsb Device for Model, and click Next.
Case 3: “[Fail]Failed to communicate with daemon” is displayed when the device is connected.

When “[Fail]Failed to communicate with daemon” is displayed after a hdc command is executed.

Possible causes are as follows:

The hdc or SDK does not match the device. If the device is the latest version, update the hdc or SDK tool to the latest version.
The port is occupied.

This problem usually occurs when hdc and hdc_std use the same OHOS_HDC_SERVER_PORT or the same default port 8710. Ensure that either hdc or hdc_std is running. This problem also occurs when other software occupies the default hdc port.

Case 4: “Connect server failed” is displayed when the device is connected.

The possible causes are as follows:

Port Preemption

Solution:
1. Check the software processes that come with hdc, including software with built-in hdc, such as DevEco Studio and DevEco Testing.

  Stop these software processes and run hdc commands.
2. Check hdc port status.

  For example, if OHOS_HDC_SERVER_PORT is set to 8710, run the following command to check the port status.

  Unix:
```
 netstat -an|grep 8710
```
  Windows:
```
 netstat -an|findstr 8710
```
  If the port is used by another software, stop the software process or change the OHOS_HDC_SERVER_PORT environment variable to another port number.
3. Check for and stop the hdc server of another version.

  Windows:

  Choose Task Manager > Details, right-click the hdc.exe process and choose Open file location. Check whether the location is the same as that configured in the environment variable. If not, stop the hdc.exe process by running the hdc kill command or terminating the process in Task Manager. Then, run the hdc command again. (The hdc server will be restarted by running the hdc command.)

  Unix:

  Run the ps -ef|grep hdc command to query the hdc server process running in the background and check whether the process startup location is the hdc file location set by the environment variable Path. If not, stop the hdc process by running the hdc kill or kill -9 hdc PID command, and run the hdc command again. (The hdc server will be restarted by running the hdc command.)
Registry Exception

Solution: Clear the registry. The procedure is as follows:
1. Press Win+R to open the Run dialog box, and enter regedit to open the registry.
2. Enter the following address in the address bar, and press Enter to access the registry of the USB device driver.
```
 Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Class\{88bae032-5a81-49f0-bc3d-a4ff138216d6}
```
3. Right-click UpperFilters and choose Edit. Back up and clear the value data. The backup data can be used to restore the value data if the problem persists.
4. Refresh the Device Manager, remove and reconnect the USB cable to the USB port, or restart the PC.

The non-root user cannot find the device using hdc in Linux

In Linux, you can enable the USB device operation permission for non-root users as follows:

To temporarily grant the full operation permission on a USB device, run the following command:

   sudo chmod -R 777 /dev/bus/usb/

To permanently change the operation permission on a USB device, do as follows:
1. Run the lsusb command to obtain the vendorID and productID of the USB device.
2. Create an udev rule.
Edit the udev loading rule and replace the default idVendor and idProduct values of the device with the values obtained in the previous step.

MODE=“0666” indicates the permissions of GROUP (the user group) for the USB device. Ensure that the login user is in the user group.
```
 ```shell
 sudo vim /etc/udev/rules.d/90-myusb.rules
 SUBSYSTEMS=="usb", ATTRS{idVendor}=="067b", ATTRS{idProduct}=="2303", GROUP="users", MODE="0666"
 ```
```
1. Restart the computer or reload the udev rule.
```
 sudo udevadm control --reload
```

NOTE A non-root user cannot find the device using hdc in Linux. Granting USB operation permission for non-root users can solve this problem. However, granting the full permission may pose potential security risks. You need to determine whether to grant the permission based on actual requirements.

Failed to Run hdc

Symptom

The hdc.exe/hdc binary file cannot be executed using the CLI.

Possible Causes and Solution

Incorrect runtime environment.

Linux: Ubuntu 18.04 64-bit or later is recommended. If libc++.so reference errors are reported, run the ldd or readelf command to check library reference.

macOS: macOS 11 or later is recommended.

Windows: Windows 10 or Windows 11 64-bit is recommended. If the WinUSB library or driver is missing in an earlier version, use Zadig to update it. For Windows 10 or Windows 11 64-bit, use Zadig to install the libusb-win32 driver. For details, see Zadig.

Improper running mode: Use the correct command to run the hdc tool instead of double-clicking the file.

Common Procedure for Troubleshooting Other Problems

Run the hdc list targets command.
Check whether HDC Device exists in Device Manager.
Run the hdc kill command to terminate the server, and then run the hdc -l5 start command to collect logs. (The hdc.log file is stored in the TEMP directory on the execution end. The directory location varies with the OS. For details, see Server Logs.)
Locate the problem based on the hdc.log file.

hdc Error Codes

E003001 The Specified Bundle Name Is Invalid

Error Message

Invalid bundle name: bundlename

Symptom

The bundlename specified in the hdc shell [-b bundlename] [command] command is not the bundle name of an installed debug application, or the application directory does not exist.

Possible Causes

Scenario 1: The specified application is not installed on the device.
Scenario 2: The specified application is not a debug application.
Scenario 3: The specified application is not started.

Solution

Scenario 1: Ensure that the application specified in the command has been installed on the device.

a. Run the hdc shell “bm dump -a|grep bundlename” command to check whether the application corresponding to the bundle name has been installed on the device. The expected result is bundlename.

For example, if the bundle name is com.example.myapplication, run the following command:

   hdc shell "bm dump -a|grep com.example.myapplication"

If the bundle has been installed on the device, the following information is returned:

   com.example.myapplication

b. If the application is a debug application but is not installed on the device, run the hdc install [app_path] command to install it.

c. If the application is not a debug application but a release application, the** bundlename** cannot be specified.

Scenario 2: Run the hdc shell “bm dump -n bundlename|grep appProvisionType” command to check whether the application specified in the command can be debugged. The expected output is “appProvisionType”: “debug”.

For example, run the following command to check the bundle name com.example.myapplication:

   hdc shell "bm dump -n com.example.myapplication|grep appProvisionType"

If the application is a debug application, the following information is displayed:

   "appProvisionType": "debug",

To build a debug application, you need to use a debug certificate for signature. For details about how to request and use the debug certificate, see Requesting a Debug Certificate.

Scenario 3: Ensure that the bundle specified by the command has been started.

a. Run the hdc shell “mount|grep bundlename” command to check whether the resource directory is mounted after the bundle is started.

For example, to check the bundle name com.example.myapplication, run the following command:

   hdc shell "mount|grep com.example.myapplication"

If the corresponding resource directory has been mounted, mounting information is expected to be returned. (The returned information varies according to the actual mounting status and is not displayed here.)

If the corresponding resource directory is not mounted, no information is returned.

b. If the corresponding resource directory is not mounted, you can click the application or run the aa command to start the application.

For example, to start the application whose name is com.example.myapplication and module name is EntryAbility, run the following command:

   hdc shell aa start -b com.example.myapplication -a EntryAbility

For details, see aa Commands.

E003002 The Parameter Specified in the Command Does Not Support the Interactive Option

Error Message

Unsupport interactive shell command option

Symptom

The hdc shell [-b bundlename] [command] command does not support the interactive option.

Possible Causes

The command parameter specified in hdc shell [-b bundlename] [command] is empty.

Solution

Ensure that the command parameter of the command is not empty. For details, see Running the Interactive Command.

E003003 The Command Option Is Not Supported

Error Message

Unsupported shell option: option

Symptom

The hdc shell [-b bundlename] [command] command contains the unsupported parameter option.

Possible Causes

The hdc shell [-b bundlename] [command] command specifies the unsupported command parameters, such as -f and -B. The parameters are case sensitive.

Solution

Use the parameter supported by the current version, for example, -b.

E003004 The Command Parameter Is Not Supported by the Device

Error Message

Device does not supported this shell command

Symptom

An unsupported parameter is specified in the hdc shell [-b bundlename] [command] command.

Possible Causes

The system version of the device is too early to support the new command parameters.

Solution

Upgrade the device system to the latest version.

E003005 The Parameter Is Missing

Error Message

The parameter is missing, correct your input by referring below: Usage

Symptom

Mandatory parameters are missing in the hdc shell [-b bundlename] [command] command.

Possible Causes

When the -b option is specified in the command, the bundlename and command parameters are missing. For details about the parameters, see Running the Interactive Command.

Solution

Ensure that the bundlename and command parameters of the command are not empty.

E005101 The Specified Bundle Name Is Invalid During File Transfer

Error Message

Invalid bundle name: bundlename

Symptom

The specified bundlename in the hdc file send/recv [-b bundlename] [localpath] [remotepath] command is not the bundle name of an installed debug application, or the application directory does not exist.

Possible Causes

Same as E003001 The Specified Bundle Name Is Invalid.

Solution

Same as E003001 The Specified Bundle Name Is Invalid.

E005102 The Remote Path Is Invalid

Error Message

Remote path: remotepath is invalid, it is out of the application directory.

Symptom

The path specified by remotepath in the hdc file send [-b bundlename] [localpath] [remotepath] command does not exist or exceeds the application data directory.

The path specified by remotepath in the hdc file recv [-b bundlename] [remotepath] [localpath] command does not exist or exceeds the application data directory.

Possible Causes

Scenario 1: The path does not exist.
Scenario 2: The remotepath parameter contains the .. redirection symbol. After the redirection, the directory exceeds the application data root directory.

Solution

Check whether the relative path of the application data directory specified by remotepath exists.

E005003 The Parameter Is Missing During File Transfer

Error Message

The parameter is missing, correct your input by referring below: Usage

Symptom

Mandatory parameters are missing in the hdc file send [-b bundlename] [localpath] [remotepath] command.

Mandatory parameters are missing in the hdc file recv [-b bundlename] [remotepath] [localpath] command.

Possible Causes

When the -b option is specified in the command, the bundlename, localpath and remotepath parameters are missing. For details about the parameters, see Transferring Files.

Solution

Ensure that the bundlename, localpath and remotepath parameters in the command are not empty.

E005004 The SDK or Device System Version Does Not Support the -b Option

Error Message

SDK/Device ROM doesn’t support -b option.

Symptom

The hdc file send/recv command contains the -b option, but the hdc in SDK or device system version does not support this option.

Possible Causes

Scenario 1: When the hdc file send [-b bundlename] [localpath] [remotepath] command is executed, the device system does not support the -b option.
Scenario 2: When the hdc file recv [-b bundlename] [remotepath] [localpath] command is executed, the hdc in SDK does not support the -b option.

Solution

Scenario 1: Update the system to the latest version.
Scenario 2: Upgrade the SDK to the latest version.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Performance Analysis Kit

harmony 鸿蒙Analyzing Application Freeze

harmony 鸿蒙Development of Application Recovery

harmony 鸿蒙Analyzing C++ Crash

harmony 鸿蒙Development of Error Manager

harmony 鸿蒙Event Reporting

harmony 鸿蒙Introduction to HiAppEvent

harmony 鸿蒙Subscribing to Address Sanitizer Events (ArkTS)

harmony 鸿蒙Subscribing to Address Sanitizer Events (C/C++)

harmony 鸿蒙Address Sanitizer Event Overview

0 赞

所属分类： 后端技术
本文标签：
版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/HxPbgC

harmony 鸿蒙hdc

hdc

Environment Setup

(Optional) Running the hdc Program on the CLI

(Optional) Configuring the hdc Server

hdc commands

Global Parameters

Commands

Basic Commands

Displaying Connected Devices

Running the Shell command

Obtaining the Help Information

NOTE

Managing Device Connections

Displaying Devices

Connecting to the Specified Target Device

Waiting for Device Connection

Common Connections

USB Connection

TCP Connection

Remote Connection

Switching Between USB Debugging and Network Debugging

Running the Interactive Command

Managing Applications

Transferring Files

Port Forwarding

Managing Server Processes

Operating the Device

Security Command

Obtaining the Version Number

hdc Debugging Logs

Server Logs

Specifying the Log Level

Obtaining Logs

Device Logs

Optional Configuration Items

OHOS_HDC_SERVER_PORT

OHOS_HDC_LOG_LEVEL

OHOS_HDC_HEARTBEAT

OHOS_HDC_CMD_RECORD

Configuring Environment Variables

FAQs

Failed to Identify the Target Device

Failed to Run hdc

Common Procedure for Troubleshooting Other Problems

hdc Error Codes

E003001 The Specified Bundle Name Is Invalid

E003002 The Parameter Specified in the Command Does Not Support the Interactive Option

E003003 The Command Option Is Not Supported

E003004 The Command Parameter Is Not Supported by the Device

E003005 The Parameter Is Missing

E005101 The Specified Bundle Name Is Invalid During File Transfer

E005102 The Remote Path Is Invalid

E005003 The Parameter Is Missing During File Transfer

E005004 The SDK or Device System Version Does Not Support the -b Option

你可能感兴趣的鸿蒙文章

热门推荐

标签云

最新文章

本文目录
