建立应用侧与前端页面数据通道(C/C++)
前端页面和应用侧之间可以使用Native方法实现两端通信（以下简称Native PostWebMessage），可解决ArkTS环境的冗余切换，同时允许发送消息、回调在非UI线程上运行，避免造成UI阻塞。当前只支持string和buffer数据类型。
适用的应用架构
应用使用ArkTS、C++语言混合开发，或本身应用架构较贴近于小程序架构，自带C++侧环境，推荐使用ArkWeb在Native侧提供的ArkWeb_ControllerAPI、ArkWeb_WebMessageAPI、ArkWeb_WebMessagePortAPI实现PostWebMessage功能。
上图展示了具有普遍适用性的小程序的通用架构。在这一架构中，逻辑层依赖于应用程序自带的JavaScript运行时，该运行时在一个已有的C++环境中运行。通过Native接口，逻辑层能够直接在C++环境中与视图层（其中ArkWeb充当渲染器）进行通信，无需回退至ArkTS环境使用ArkTS PostWebMessage接口。

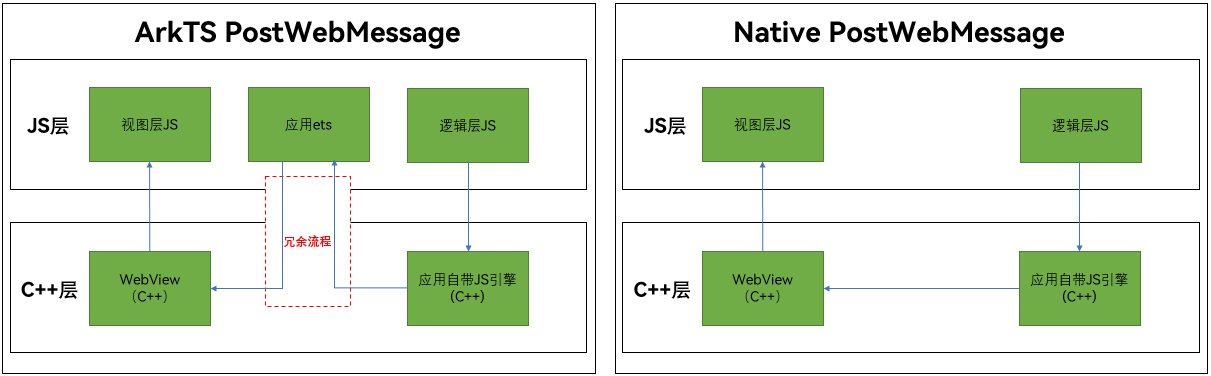

左图是使用ArkTS PostWebMessage接口构建小程序的方案，如红框所示，应用需要先调用到ArkTS环境，再调用到C++环境。右图是使用Native PostWebMessage接口构建小程序的方案，不需要ArkTS环境和C++环境的切换，执行效率更高。
使用Native接口实现PostWebMessage通信
使用Native接口绑定ArkWeb
ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用C++侧。后续ArkWeb Native接口使用时，均需webTag作为对应组件的唯一标识。
ArkTS侧
import { webview } from '@kit.ArkWeb';
// 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
webTag: string = 'ArkWeb1';
controller: webview.WebviewController = new webview.WebviewController(this.webTag);
// ...
// aboutToAppear中将webTag通过Node-API接口传入C++侧，作为C++侧ArkWeb组件的唯一标识
aboutToAppear() {
console.info("aboutToAppear")
// 初始化web ndk
testNapi.nativeWebInit(this.webTag);
}
// ...
使用Native接口获取API结构体
ArkWeb Native侧需先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数OH_ArkWeb_GetNativeAPI获取，根据入参type不同，可获取对应的函数指针结构体。其中本指导涉及ArkWeb_ControllerAPI、ArkWeb_WebMessageAPI、ArkWeb_WebMessagePortAPI。
static ArkWeb_ControllerAPI *controller = nullptr;
static ArkWeb_WebMessagePortAPI *webMessagePort = nullptr;
static ArkWeb_WebMessageAPI *webMessage = nullptr;
// ...
controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
webMessagePort =
reinterpret_cast<ArkWeb_WebMessagePortAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE_PORT));
webMessage = reinterpret_cast<ArkWeb_WebMessageAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE));
完整示例
在调用API前建议通过ARKWEB_MEMBER_MISSING校验该函数结构体是否有对应函数指针，避免SDK与设备ROM不匹配导致crash问题。createWebMessagePorts、postWebMessage、close需运行在UI线程。
- 前端页面代码
<!-- entry/src/main/resources/rawfile/index.html -->
<!-- index.html -->
<!DOCTYPE html>
<html lang="en-gb">
<body>
<h1>etsRunJavaScriptExt测试demo</h1>
<h1 id="h1"></h1>
<h3 id="msg">Receive string:</h3>
<h3 id="msg2">Receive arraybuffer:</h3>
</body>
<script type="text/javascript">
var h5Port;
window.addEventListener('message', function (event) {
if (event.data == 'init_web_messageport') {
const port = event.ports.at(0); // 1. 保存从应用侧发送过来的端口。
if (port) {
console.log("hwd In html got message");
h5Port = port;
port.onmessage = function (event) {
console.log("hwd In html got message");
// 2. 接收应用侧发送过来的消息.
var result = event.data;
var type_s = typeof (result)
switch (type_s) {
case "object":
if (result instanceof ArrayBuffer) {
type_s = "ArrayBuffer";
var view = new Uint8Array(result);
const decoder = new TextDecoder('utf-8');
result = decoder.decode(result);
} else if (result instanceof Error) {
type_s = "Error";
} else if (result instanceof Array) {
type_s = "Array";
}
break;
default:
break;
}
console.log("H5 recv type: " + type_s + "\nH5 recv result: " + result)
document.getElementById("msg").innerHTML = "recv type: " + type_s;
document.getElementById("msg2").innerHTML = "recv value: " + result;
}
h5Port.onmessageerror = (event) => {
console.error(`hwd In html Error receiving message: ${event}`);
};
}
}
})
window.onerror = function(message, url, line, column, error) {
console.log("JavaScript Error: " + message + " on line " + line + " in " + url);
document.getElementById("h1").innerHTML = "执行函数失败"
};
// 3. 使用h5Port向应用侧发送消息。
function postStringToApp() {
if (h5Port) {
h5Port.postMessage("send string from H5");
} else {
console.error("In html h5port is null, please init first");
}
}
function postBufferToApp() {
if (h5Port) {
const str = "Hello, World!";
const encoder = new TextEncoder();
const uint8Array = encoder.encode(str);
h5Port.postMessage(uint8Array.buffer);
} else {
console.error("In html h5port is null, please init first");
}
}
function postJsonToApp() {
if (h5Port) {
var e = {"json": "json"};
h5Port.postMessage(e);
} else {
console.error("In html h5port is null, please init first");
}
}
function postArrayStringToApp() {
if (h5Port) {
h5Port.postMessage(["1", "2", "3"]);
} else {
console.error("In html h5port is null, please init first");
}
}
function postNumberToApp() {
if (h5Port) {
h5Port.postMessage(123);
} else {
console.error("In html h5port is null, please init first");
}
}
class MyClass {
constructor() {
// 构造器
this.myProperty = 'Hello, World!';
}
myMethod() {
// 实例方法
console.log(this.myProperty);
}
static myStaticMethod() {
// 静态方法
console.log('This is a static method.');
}
}
function postObjectToApp() {
if (h5Port) {
h5Port.postMessage(new MyClass());
} else {
console.error("In html h5port is null, please init first");
}
}
</script>
</html>
- ArkTS侧代码
// entry/src/main/ets/pages/Index.ets
import testNapi from 'libentry.so'
import web_webview from '@ohos.web.webview';
import { BusinessError } from '@ohos.base';
@Entry
@Component
struct Index {
@State webTag: string = 'postMessage';
controller: web_webview.WebviewController = new web_webview.WebviewController(this.webTag);
@State h5Log: string = 'Display received message send from HTML';
aboutToAppear() {
web_webview.WebviewController.setWebDebuggingAccess(true);
// 初始化web ndk
testNapi.nativeWebInit(this.webTag);
}
aboutToDisAppear() {
console.error("aboutToDisAppear")
}
build() {
Scroll() {
Column({ space: 10 }) {
// 展示H5接收到的内容
Text("H5侧接收到应用侧发送消息展示")
TextArea({text: this.h5Log})
.id("log_area")
.width("100%")
.height(100)
.border({ width: 1 })
Text("应用侧按钮")
Row() {
Button('createNoControllerTagPort')
.id("create_no_tag_btn")
.onClick(() => {
try {
testNapi.createWebMessagePorts("noTag");
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('createPort')
.id("create_port_btn")
.onClick(() => {
try {
testNapi.createWebMessagePorts(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
Row({ space: 10 }) {
Button('setHandler')
.id("set_handler_btn")
.onClick(() => {
try {
testNapi.setMessageEventHandler(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('setHandlerThread')
.id("set_handler_thread_btn")
.onClick(() => {
try {
testNapi.setMessageEventHandlerThread(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
Row({ space: 10 }) {
Button('SendString')
.id("send_string_btn")
.onClick(() => {
try {
this.h5Log = ""
testNapi.postMessage(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('SendStringThread')
.id("send_string_thread_btn")
.onClick(() => {
try {
this.h5Log = ""
testNapi.postMessageThread(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
Row({ space: 10 }) {
Button('SendBuffer')
.id("send_buffer_btn")
.onClick(() => {
try {
this.h5Log = ""
testNapi.postBufferMessage(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('SendNone')
.id("send_none_btn")
.onClick(() => {
try {
this.h5Log = ""
testNapi.postNoneMessage(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
Row({ space: 10 }) {
Button('closePort')
.id("close_port_btn")
.onClick(() => {
try {
testNapi.closeMessagePort(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('destroyNullPort')
.id("destroy_null_btn")
.onClick(() => {
try {
testNapi.destroyNullMessagePort(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('destroyPort')
.id("destroy_port_btn")
.onClick(() => {
try {
testNapi.destroyMessagePort(this.webTag);
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
.width("100%")
.padding(10)
.border({ width: 1 })
Column({ space: 10 }) {
Text("H5侧发送按钮")
Row({ space: 10 }) {
Button('H5String')
.id("h5_send_string_btn")
.onClick(() => {
try {
this.controller.runJavaScript("for(var i = 0; i < 2000; i++) postStringToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('H5Buffer')
.id("h5_send_buffer_btn")
.onClick(() => {
try {
this.controller.runJavaScript("postBufferToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('H5Number')
.id("h5_send_number_btn")
.onClick(() => {
try {
this.controller.runJavaScript("postNumberToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
Row({ space: 10 }) {
Button('H5Json')
.id("h5_send_json_btn")
.onClick(() => {
try {
this.controller.runJavaScript("postJsonToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('H5Array')
.id("h5_send_array_btn")
.onClick(() => {
try {
this.controller.runJavaScript("postArrayStringToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
Button('H5Object')
.id("h5_send_object_btn")
.onClick(() => {
try {
this.controller.runJavaScript("postObjectToApp()")
} catch (error) {
console.error(`ErrorCode: ${(error as BusinessError).code}, Message: ${(error as BusinessError).message}`);
}
})
}
}
.width("100%")
.margin(10)
.padding(10)
.border({ width: 1 })
Web({ src: $rawfile('index.html'), controller: this.controller })
.onConsole((event) => {
if (event) {
let msg = event.message.getMessage()
if (msg.startsWith("H5")) {
this.h5Log = event.message.getMessage() + "\n" + this.h5Log
}
}
return false;
})
}
}.height('100%')
.scrollable(ScrollDirection.Vertical)
.scrollBar(BarState.Off)
.edgeEffect(EdgeEffect.Spring)
}
}
- Node-API侧暴露ArkTS接口
// entry/src/main/cpp/types/libentry/index.d.ts
export const nativeWebInit: (webName: string) => void;
export const createWebMessagePorts: (webName: string) => void;
export const postMessage: (webName: string) => void;
export const postNoneMessage: (webName: string) => void;
export const setMessageEventHandler: (webName: string) => void;
export const closeMessagePort: (webName: string) => void;
export const destroyMessagePort: (webName: string) => void;
export const postBufferMessage: (webName: string) => void;
export const destroyNullMessagePort: (webName: string) => void;
export const setMessageEventHandlerThread: (webName: string) => void;
export const postMessageThread: (webName: string) => void;
- Node-API侧编译配置
# entry/src/main/cpp/CMakeLists.txt
# the minimum version of CMake.
cmake_minimum_required(VERSION 3.4.1)
project(NDKPostMessage)
set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})
if(DEFINED PACKAGE_FIND_FILE)
include(${PACKAGE_FIND_FILE})
endif()
include_directories(${NATIVERENDER_ROOT_PATH}
${NATIVERENDER_ROOT_PATH}/include)
add_library(entry SHARED hello.cpp)
find_library(
# Sets the name of the path variable.
hilog-lib
# Specifies the name of the NDK library that
# you want CMake to locate.
hilog_ndk.z
)
target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)
- Node-API层代码
// entry/src/main/cpp/hello.cpp
#include "napi/native_api.h"
#include <bits/alltypes.h>
#include <memory>
#include <string>
#include <sys/types.h>
#include <iostream>
#include <map>
#include "hilog/log.h"
#include "web/arkweb_interface.h"
#include <thread>
constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
ArkWeb_ControllerAPI *controller = nullptr;
ArkWeb_WebMessagePortAPI *webMessagePort = nullptr;
ArkWeb_WebMessageAPI *webMessage = nullptr;
size_t web_message_port_size = 0;
ArkWeb_WebMessagePortPtr *g_web_message_port_arr = nullptr;
static void WebMessagePortCallback(const char *webTag, const ArkWeb_WebMessagePortPtr port,
const ArkWeb_WebMessagePtr message, void *userData) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk WebMesagePortCallback webTag:%{public}s,messageType:%{public}d", webTag,
webMessage->getType(message));
size_t len = 0;
void *back = webMessage->getData(message, &len);
if (webMessage->getType(message) == ArkWeb_WebMessageType::ARKWEB_STRING) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk WebMesagePortCallback message:%{public}s,messageSize:%{public}d", back, len);
} else if (webMessage->getType(message) == ArkWeb_WebMessageType::ARKWEB_BUFFER) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk WebMesagePortCallback messageSize:%{public}d", len);
}
}
static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
size_t argc = 1;
napi_value args[1] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);
controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
if (controller)
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ControllerAPI success");
webMessagePort =
reinterpret_cast<ArkWeb_WebMessagePortAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE_PORT));
if (webMessagePort)
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_WebMessagePortAPI success");
webMessage = reinterpret_cast<ArkWeb_WebMessageAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE));
if (webMessage)
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_WebMessageAPI success");
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");
return nullptr;
}
static napi_value createWebMessagePorts(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 初始化端口
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk createWebMessagePorts begin");
g_web_message_port_arr = controller->createWebMessagePorts(webTagValue, &web_message_port_size);
// 把其中一个端口发送给HTML
ArkWeb_ErrorCode code =
controller->postWebMessage(webTagValue, "init_web_messageport", g_web_message_port_arr, 1, "*");
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postWebMessage ArkWeb_ErrorCode:%{public}d", code);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk createWebMessagePorts end, web message port size:%{public}d", web_message_port_size);
return nullptr;
}
static napi_value postMessage(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 发送消息
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_STRING);
std::string str = "send string from native";
webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
ArkWeb_ErrorCode code = webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage ArkWeb_ErrorCode:%{public}d", code);
webMessage->destroyWebMessage(&message);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
web_message_port_size);
return nullptr;
}
// 在线程中发消息
void sendMessage(const char *webTag, const ArkWeb_WebMessagePtr message) {
// 发送1000次
for (int i = 0; i < 1000; i++) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "sendMessage in thread %{public}d", i);
if (g_web_message_port_arr && webTag && message) {
webMessagePort->postMessage(g_web_message_port_arr[1], webTag, message);
}
}
}
static napi_value postMessageThread(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 构造消息
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_STRING);
std::string str = "thread message";
webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
const int numThreads = 5;
std::thread threads[numThreads];
// 创建线程
for (int i = 0; i < numThreads; ++i) {
threads[i] = std::thread(sendMessage, webTagValue, message);
}
// 等待所有线程完成
for (int i = 0; i < numThreads; ++i) {
threads[i].detach();
}
return nullptr;
}
// 在线程中注册回调
void setHandler(const char *webTag) {
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "setMessageEventHandler in thread");
webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTag, WebMessagePortCallback, NULL);
}
static napi_value setMessageEventHandlerThread(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 注册回调
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
std::thread thread(setHandler, webTagValue);
thread.detach();
webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTagValue, WebMessagePortCallback, NULL);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
return nullptr;
}
static napi_value postNoneMessage(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 发送消息
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_NONE);
std::string str = "send string from native";
webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message);
webMessage->destroyWebMessage(&message);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
web_message_port_size);
return nullptr;
}
static napi_value postBufferMessage(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 发送消息
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
ArkWeb_WebMessagePtr message1 = webMessage->createWebMessage();
webMessage->setType(message1, ArkWeb_WebMessageType::ARKWEB_BUFFER);
std::string str1 = "send buffer from native";
webMessage->setData(message1, (void *)str1.c_str(), str1.length());
webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message1);
webMessage->destroyWebMessage(&message1);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
web_message_port_size);
return nullptr;
}
static napi_value setMessageEventHandler(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 注册回调
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTagValue, WebMessagePortCallback, NULL);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
return nullptr;
}
static napi_value closeMessagePort(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 关闭端口，先调用close，再调用destroyWebMessagePorts
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
webMessagePort->close(g_web_message_port_arr[0], webTagValue);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
controller->refresh(webTagValue);
return nullptr;
}
static napi_value destroyMessagePort(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 释放内存，先调用close，再调用destroyWebMessagePorts
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
if (g_web_message_port_arr == nullptr) {
OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
return nullptr;
}
controller->destroyWebMessagePorts(&g_web_message_port_arr, web_message_port_size);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
return nullptr;
}
static napi_value destroyNullMessagePort(napi_env env, napi_callback_info info) {
size_t argc = 2;
napi_value args[2] = {nullptr};
napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
// 获取第一个参数webTag
size_t webTagSize = 0;
napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
char *webTagValue = new (std::nothrow) char[webTagSize + 1];
size_t webTagLength = 0;
napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);
// 释放内存，先调用close，再调用destroyWebMessagePorts
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
controller->destroyWebMessagePorts(&g_web_message_port_arr, web_message_port_size);
OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
"ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
return nullptr;
}
EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
napi_property_descriptor desc[] = {
{"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
{"createWebMessagePorts", nullptr, createWebMessagePorts, nullptr, nullptr, nullptr, napi_default, nullptr},
{"postMessage", nullptr, postMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
{"postNoneMessage", nullptr, postNoneMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
{"postBufferMessage", nullptr, postBufferMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
{"setMessageEventHandler", nullptr, setMessageEventHandler, nullptr, nullptr, nullptr, napi_default, nullptr},
{"closeMessagePort", nullptr, closeMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
{"destroyMessagePort", nullptr, destroyMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
{"postMessageThread", nullptr, postMessageThread, nullptr, nullptr, nullptr, napi_default, nullptr},
{"setMessageEventHandlerThread", nullptr, setMessageEventHandlerThread, nullptr, nullptr, nullptr, napi_default,
nullptr},
{"destroyNullMessagePort", nullptr, destroyNullMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
};
napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
return exports;
}
EXTERN_C_END
static napi_module demoModule = {
.nm_version = 1,
.nm_flags = 0,
.nm_filename = nullptr,
.nm_register_func = Init,
.nm_modname = "entry",
.nm_priv = ((void *)0),
.reserved = {0},
};
extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }
你可能感兴趣的鸿蒙文章
harmony 鸿蒙应用侧与前端页面的相互调用(C/C++)
0
赞
热门推荐
-
2、 - 优质文章
-
3、 gate.io
-
8、 golang
-
9、 openharmony
-
10、 Vue中input框自动聚焦
