应用侧与前端页面的相互调用(C/C++)

本指导适用于ArkWeb应用侧与前端网页通信场景，开发者可根据应用架构选择使用ArkWeb Native接口完成业务通信机制（以下简称Native JSBridge）。 针对JSBridge进行性能优化可参考JSBridge优化解决方案

适用的应用架构

应用使用ArkTS、C++语言混合开发，或本身应用架构较贴近于小程序架构，自带C++侧环境，推荐使用ArkWeb在Native侧提供的ArkWeb_ControllerAPI、ArkWeb_ComponentAPI实现JSBridge功能。

arkweb_jsbridge_arch

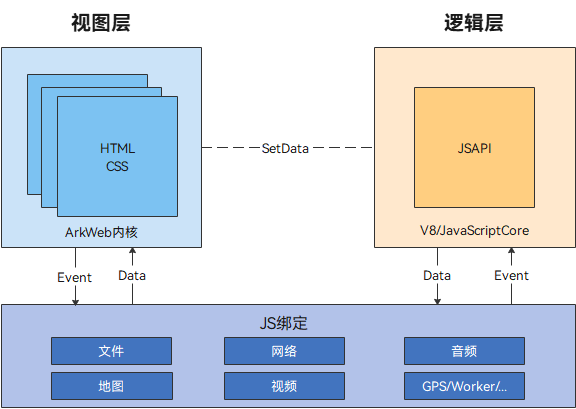

上图展示了具有普遍适用性的小程序的通用架构。在这一架构中，逻辑层依赖于应用程序自带的JavaScript运行时，该运行时在一个已有的C++环境中运行。通过Native接口，逻辑层能够直接在C++环境中与视图层（其中ArkWeb充当渲染器）进行通信，无需回退至ArkTS环境使用ArkTS JSBridge接口。

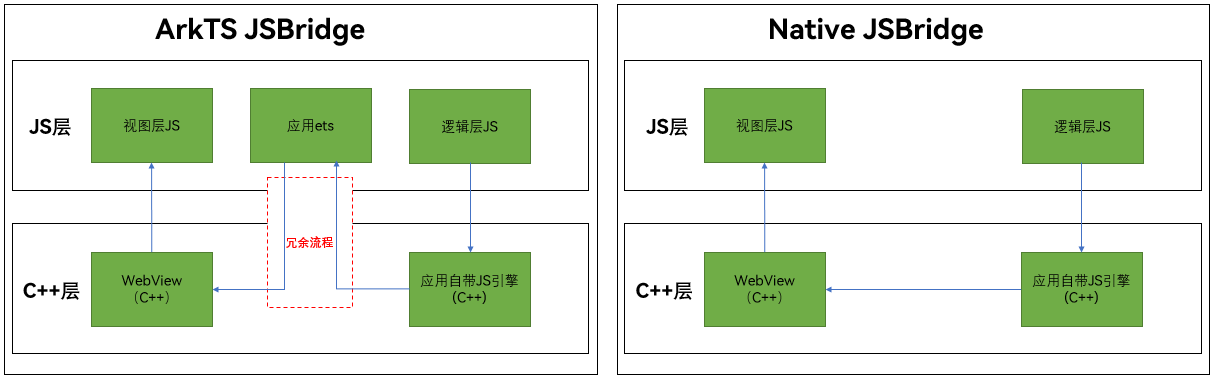

左图是使用ArkTS JSBridge接口构建小程序的方案，如红框所示，应用需要先调用到ArkTS环境，再调用到C++环境。右图是使用Native JSBridge接口构建小程序的方案，不需要ArkTS环境和C++环境的切换，执行效率更高。

arkweb_jsbridge_diff

Native JSBridge方案解决了ArkTS环境的冗余切换，同时允许回调在非UI线程上运行，避免造成UI阻塞。

使用Native接口实现JSBridge通信（推荐）

原先，Native同步接口不支持返回值，其返回类型固定为void。然而，为满足业务扩展需求，自API version 16起，引入了替代接口，支持bool、string和buffer类型的返回值。

另外针对同步接口registerJavaScriptProxyEx和异步接口registerAsyncJavaScriptProxyEx，新增了参数permission字段，用于调用权限控制。

接口替代关系

不推荐的接口 替代接口 说明
ArkWeb_OnJavaScriptProxyCallback ArkWeb_OnJavaScriptProxyCallbackWithResult Proxy方法被执行的回调。
ArkWeb_ProxyMethod ArkWeb_ProxyMethodWithResult 注入的Proxy方法通用结构体。
ArkWeb_ProxyObject ArkWeb_ProxyObjectWithResult 注入的Proxy对象通用结构体。
registerJavaScriptProxy registerJavaScriptProxyEx 注入JavaScript对象到window对象中，并在window对象中调用该对象的同步方法。
registerAsyncJavaScriptProxy registerAsyncJavaScriptProxyEx 注入JavaScript对象到window对象中，并在window对象中调用该对象的异步方法。

使用Native接口绑定ArkWeb

  • ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用Native侧，后续ArkWeb Native接口使用，均需webTag作为对应组件的唯一标识。

  • ArkTS侧

  // 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
  webTag: string = 'ArkWeb1';
  controller: web_webview.WebviewController = new web_webview.WebviewController(this.webTag);

  // 在aboutToAppear方法中，通过Node-API接口将webTag传入C++侧，C++侧使用webTag作为ArkWeb组件的唯一标识
  aboutToAppear() {
    console.info("aboutToAppear")
    //初始化web ndk
    testNapi.nativeWebInit(this.webTag);
  }
  • C++侧
  // 解析存储webTag
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
      size_t argc = 1;
      napi_value args[1] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
      // 获取第一个参数webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

      // 将webTag保存在实例对象中
      jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
      // ...

使用Native接口获取API结构体

在ArkWeb Native侧，需要先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数OH_ArkWeb_GetNativeAPI获取，根据入参type不同，可分别获取ArkWeb_ControllerAPI、ArkWeb_ComponentAPI结构体。其中，ArkWeb_ControllerAPI对应ArkTS侧web_webview.WebviewController API，ArkWeb_ComponentAPI对应ArkTS侧ArkWeb组件API。

  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;
  // ...
  controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
  component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));

Native侧注册组件生命周期回调

通过ArkWeb_ComponentAPI注册组件生命周期回调，调用接口前，建议通过ARKWEB_MEMBER_MISSING校验该函数结构体中是否存在对应函数指针，以避免SDK与设备ROM不匹配导致crash问题。

  if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
      component->onControllerAttached(webTagValue, ValidCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
      component->onPageBegin(webTagValue, LoadStartCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
      component->onPageEnd(webTagValue, LoadEndCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
      component->onDestroy(webTagValue, DestroyCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
  }

前端页面调用应用侧函数

通过registerJavaScriptProxyEx将应用侧函数注册至前端页面，推荐在onControllerAttached回调中注册应用侧函数，如果在其它时机注册，需要手动调用refresh才能生效。

  // 注册对象
  OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx begin");
  ArkWeb_ProxyMethodWithResult method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethodWithResult method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
  // 调用ndk接口注册对象
  // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
  ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
  // 参数permission为空，表示不进行权限管控
  controller->registerJavaScriptProxyEx(webTag, &proxyObject, /*permission*/"");
  • 参数permission是一个JSON字符串，示例如下： json { "javascriptProxyPermission": { "urlPermissionList": [ // Object级权限，如果匹配，所有Method都授权 { "scheme": "resource", // 精确匹配，不能为空 "host": "rawfile", // 精确匹配，不能为空 "port": "", // 精确匹配，为空不检查 "path": "" // 前缀匹配，为空不检查 }, { "scheme": "https", // 精确匹配，不能为空 "host": "xxx.com", // 精确匹配，不能为空 "port": "8080", // 精确匹配，为空不检查 "path": "a/b/c" // 前缀匹配，为空不检查 } ], "methodList": [ { "methodName": "test", "urlPermissionList": [ // Method级权限 { "scheme": "https", // 精确匹配，不能为空 "host": "xxx.com", // 精确匹配，不能为空 "port": "", // 精确匹配，为空不检查 "path": "" // 前缀匹配，为空不检查 }, { "scheme": "resource",// 精确匹配，不能为空 "host": "rawfile", // 精确匹配，不能为空 "port": "", // 精确匹配，为空不检查 "path": "" // 前缀匹配，为空不检查 } ] }, { "methodName": "test11", "urlPermissionList": [ // Method级权限 { "scheme": "q", // 精确匹配，不能为空 "host": "r", // 精确匹配，不能为空 "port": "", // 精确匹配，为空不检查 "path": "t" // 前缀匹配，为空不检查 }, { "scheme": "u", // 精确匹配，不能为空 "host": "v", // 精确匹配，不能为空 "port": "", // 精确匹配，为空不检查 "path": "" // 前缀匹配，为空不检查 } ] } ] } }

应用侧调用前端页面函数

使用runJavaScript调用前端页面函数。

  // 构造runJS执行的结构体
  char* jsCode = "runJSRetStr()";
  ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
  // 调用前端页面runJSRetStr()函数
  controller->runJavaScript(webTagValue, &object);

完整示例

  • 前端页面代码
  <!-- entry/src/main/resources/rawfile/runJS.html -->
  <!-- runJS.html -->
  <!DOCTYPE html>
  <html lang="en-gb">
  <head>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <title>run javascript demo</title>
  </head>
  <body>
  <h1>run JavaScript Ext demo</h1>
  <p id="webDemo"></p>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod1()">test ndk method1 ! </button>
  <br>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod2()">test ndk method2 ! </button>
  <br>

  </body>
  <script type="text/javascript">

  function testNdkProxyObjMethod1() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }
        let retStr = window.ndkProxy.method1("hello", "world", [1.2, -3.4, 123.456], ["Saab", "Volvo", "BMW", undefined], 1.23456, 123789, true, false, 0,  undefined);
        console.log("ndkProxy and method1 is ok, " + retStr + ", type:" + typeof(retStr));
  }

  function testNdkProxyObjMethod2() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }

      var student = {
              name:"zhang",
              sex:"man",
              age:25
      };
      var cars = [student, 456, false, 4.567];
      let params = "[\"{\\\"scope\\\"]";

      let retStr = window.ndkProxy.method2("hello", "world", false, cars, params);
      console.log("ndkProxy and method2 is ok, " + retStr + ", type:" + typeof(retStr));
  }

  function runJSRetStr(data) {
      const d = new Date();
      let time = d.getTime();
      return JSON.stringify(time)
  }
  </script>
  </html>
  • ArkTS侧代码
  // entry/src/main/ets/pages/Index.ets
  import testNapi from 'libentry.so';
  import { webview } from '@kit.ArkWeb';

  class testObj {
    constructor() {
    }

    test(): string {
      console.log('ArkUI Web Component');
      return "ArkUI Web Component";
    }

    toString(): void {
      console.log('Web Component toString');
    }
  }

  @Entry
  @Component
  struct Index {
    webTag: string = 'ArkWeb1';
    controller: webview.WebviewController = new webview.WebviewController(this.webTag);
    @State testObjtest: testObj = new testObj();

    aboutToAppear() {
      console.info("aboutToAppear")
      //初始化web ndk
      testNapi.nativeWebInit(this.webTag);
    }

    build() {
      Column() {
        Row() {
          Button('runJS hello')
            .fontSize(12)
            .onClick(() => {
              testNapi.runJavaScript(this.webTag, "runJSRetStr(\"" + "hello" + "\")");
            })
        }.height('20%')

        Row() {
          Web({ src: $rawfile('runJS.html'), controller: this.controller })
            .javaScriptAccess(true)
            .fileAccess(true)
            .onControllerAttached(() => {
              console.error("ndk onControllerAttached webId: " + this.controller.getWebId());
            })
        }.height('80%')
      }
    }
  }
  • Node-API侧暴露ArkTS接口
  // entry/src/main/cpp/types/libentry/index.d.ts
  export const nativeWebInit: (webName: string) => void;
  export const runJavaScript: (webName: string, jsCode: string) => void;
  • Node-API侧编译配置entry/src/main/cpp/CMakeLists.txt
  # the minimum version of CMake.
  cmake_minimum_required(VERSION 3.4.1)
  project(NDKJSBridg)

  set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

  if(DEFINED PACKAGE_FIND_FILE)
      include(${PACKAGE_FIND_FILE})
  endif()

  include_directories(${NATIVERENDER_ROOT_PATH}
                      ${NATIVERENDER_ROOT_PATH}/include)

  add_library(entry SHARED hello.cpp jsbridge_object.cpp)

  find_library(
      # Sets the name of the path variable.
      hilog-lib
      # Specifies the name of the NDK library that
      # you want CMake to locate.
      hilog_ndk.z
  )

  target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)
  • Node-API层代码
  // entry/src/main/cpp/hello.cpp
  #include "napi/native_api.h"
  #include <bits/alltypes.h>
  #include <memory>
  #include <string>
  #include <sys/types.h>
  #include <thread>

  #include "hilog/log.h"
  #include "web/arkweb_interface.h"
  #include "jsbridge_object.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
  std::shared_ptr<JSBridgeObject> jsbridge_object_ptr = nullptr;
  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;
  ArkWeb_JavaScriptValueAPI *javaScriptValueApi = nullptr;

  // 发送JS脚本到H5侧执行，该方法为执行结果的回调。
  static void RunJavaScriptCallback(const char *webTag, const char *result, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->RunJavaScriptCallback(result);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "ndk RunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  // 示例代码 ，注册了1个对象，2个方法
  static ArkWeb_JavaScriptValuePtr ProxyMethod1(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 userData is nullptr");
          return nullptr;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod1(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 jsb_weak_ptr lock failed");
      }

      bool boolValue = true;
      return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_BOOL, (void*)(&boolValue), 1);
  }

  static ArkWeb_JavaScriptValuePtr ProxyMethod2(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 userData is nullptr");
          return nullptr;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);

      std::string jsCode = "runJSRetStr()";
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode.c_str(), jsCode.size(),
                                       &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTag, &object);

      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod2(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 jsb_weak_ptr lock failed");
      }

      std::string str = "this is a string";
      return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_STRING, (void*)str.c_str(), str.length() + 1);
  }

  void ValidCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("ValidCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback jsb_weak_ptr lock failed");
      }

      // 注册对象
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx begin");
      ArkWeb_ProxyMethodWithResult method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethodWithResult method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
      // 调用ndk接口注册对象
      // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
      ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
      controller->registerJavaScriptProxyEx(webTag, &proxyObject, "");

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx end");
  }

  void LoadStartCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadStartCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback jsb_weak_ptr lock failed");
      }
  }

  void LoadEndCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadEndCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback jsb_weak_ptr lock failed");
      }
  }

  void DestroyCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestoryCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("DestroyCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback jsb_weak_ptr lock failed");
      }
  }

  void SetComponentCallback(ArkWeb_ComponentAPI * component, const char* webTagValue) {
      if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
          component->onControllerAttached(webTagValue, ValidCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
          component->onPageBegin(webTagValue, LoadStartCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
          component->onPageEnd(webTagValue, LoadEndCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
          component->onDestroy(webTagValue, DestroyCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
      }
  }

  // 解析存储webTag
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
    // 获取第一个参数 webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

    jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
    if (jsbridge_object_ptr)
        jsbridge_object_ptr->Init();

    controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
    if (controller)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ControllerAPI success");

    component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));
    if (component)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ComponentAPI success");

    javaScriptValueApi =
        reinterpret_cast<ArkWeb_JavaScriptValueAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_JAVASCRIPT_VALUE));
    if (javaScriptValueApi)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI success");
    else
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI failed");

    SetComponentCallback(component, webTagValue);

    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");

    return nullptr;
  }

  // 发送JS脚本到H5侧执行
  static napi_value RunJavaScript(napi_env env, napi_callback_info info) {
      size_t argc = 2;
      napi_value args[2] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

      // 获取第一个参数webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk OH_NativeArkWeb_RunJavaScript webTag:%{public}s",
                   webTagValue);

      // 获取第二个参数 jsCode
      size_t bufferSize = 0;
      napi_get_value_string_utf8(env, args[1], nullptr, 0, &bufferSize);
      char *jsCode = new (std::nothrow) char[bufferSize + 1];
      size_t byteLength = 0;
      napi_get_value_string_utf8(env, args[1], jsCode, bufferSize + 1, &byteLength);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "ndk OH_NativeArkWeb_RunJavaScript jsCode len:%{public}zu", strlen(jsCode));

      // 构造runJS执行的结构体
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTagValue, &object);
      return nullptr;
  }

  EXTERN_C_START
  static napi_value Init(napi_env env, napi_value exports) {
      napi_property_descriptor desc[] = {
          {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
          {"runJavaScript", nullptr, RunJavaScript, nullptr, nullptr, nullptr, napi_default, nullptr},
      };
      napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
      return exports;
  }
  EXTERN_C_END

  static napi_module demoModule = {
      .nm_version = 1,
      .nm_flags = 0,
      .nm_filename = nullptr,
      .nm_register_func = Init,
      .nm_modname = "entry",
      .nm_priv = ((void *)0),
      .reserved = {0},
  };

  extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }
  • Native侧业务代码
  // entry/src/main/cpp/jsbridge_object.h
  #include "web/arkweb_type.h"
  #include <string>

  class JSBridgeObject : public std::enable_shared_from_this<JSBridgeObject> {
  public:
      JSBridgeObject(const char* webTag);
      ~JSBridgeObject() = default;
      void Init();
      std::weak_ptr<JSBridgeObject>* GetWeakPtr();
      static void StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data, void *userData);
      void RunJavaScriptCallback(const char *result);
      void ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void SaySomething(const char* say);

  private:
      std::string webTag_;
      std::weak_ptr<JSBridgeObject> weak_ptr_;
  };

  // entry/src/main/cpp/jsbridge_object.cpp
  #include "jsbridge_object.h"

  #include "hilog/log.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;

  JSBridgeObject::JSBridgeObject(const char *webTag) : webTag_(webTag) {}

  void JSBridgeObject::Init() { weak_ptr_ = shared_from_this(); }

  std::weak_ptr<JSBridgeObject> *JSBridgeObject::GetWeakPtr() { return &weak_ptr_; }

  void JSBridgeObject::StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data,
                                                   void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject StaticRunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          std::string result((char *)data->buffer, data->size);
          jsb_ptr->RunJavaScriptCallback(result.c_str());
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  void JSBridgeObject::RunJavaScriptCallback(const char *result) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject OH_NativeArkWeb_RunJavaScript result:%{public}s", result);
  }

  void JSBridgeObject::ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod1 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod1 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod2 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod2 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::SaySomething(const char *say) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject SaySomething argc:%{public}s", say);
  }

使用Native接口实现JSBridge通信

使用Native接口绑定ArkWeb

  • ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用Native侧，后续ArkWeb Native接口使用，均需webTag作为对应组件的唯一标识。

  • ArkTS侧

  // 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
  webTag: string = 'ArkWeb1';
  controller: web_webview.WebviewController = new web_webview.WebviewController(this.webTag);
  // ...
  // aboutToAppear中将webTag通过Node-API接口传入C++侧，作为C++侧ArkWeb组件的唯一标识
  aboutToAppear() {
    console.info("aboutToAppear")
    //初始化web ndk
    testNapi.nativeWebInit(this.webTag);
  }
  // ...
  • C++侧
  // 解析存储webTag
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
      size_t argc = 1;
      napi_value args[1] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
      // 获取第一个参数webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

      // 将webTag保存在实例对象中
      jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
      // ...

使用Native接口获取API结构体

ArkWeb Native侧得先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数OH_ArkWeb_GetNativeAPI获取，根据入参type不同，可分别获取ArkWeb_ControllerAPI、ArkWeb_ComponentAPI函数指针结构体。其中，ArkWeb_ControllerAPI对应ArkTS侧web_webview.WebviewController API，ArkWeb_ComponentAPI对应ArkTS侧ArkWeb组件API。

  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;
  // ...
  controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
  component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));

Native侧注册组件生命周期回调

通过ArkWeb_ComponentAPI注册组件生命周期回调，在调用接口前建议通过ARKWEB_MEMBER_MISSING校验该函数结构体是否有对应函数指针，避免SDK与设备ROM不匹配导致crash问题。

  if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
      component->onControllerAttached(webTagValue, ValidCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
      component->onPageBegin(webTagValue, LoadStartCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
      component->onPageEnd(webTagValue, LoadEndCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
      component->onDestroy(webTagValue, DestroyCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
  }

前端页面调用应用侧函数

通过registerJavaScriptProxy将应用侧函数注册至前端页面，推荐在onControllerAttached回调中注册，其它时机注册需要手动调用refresh才能生效。

  // 注册对象
  OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy begin");
  ArkWeb_ProxyMethod method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethod method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethod methodList[2] = {method1, method2};
  // 调用ndk接口注册对象
  // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
  ArkWeb_ProxyObject proxyObject = {"ndkProxy", methodList, 2};
  controller->registerJavaScriptProxy(webTag, &proxyObject);

应用侧调用前端页面函数

通过runJavaScript调用前端页面函数。

  // 构造runJS执行的结构体
  char* jsCode = "runJSRetStr()";
  ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
  // 调用前端页面runJSRetStr()函数
  controller->runJavaScript(webTagValue, &object);

完整示例

  • 前端页面代码
  <!-- entry/src/main/resources/rawfile/runJS.html -->
  <!-- runJS.html -->
  <!DOCTYPE html>
  <html lang="en-gb">
  <head>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <title>run javascript demo</title>
  </head>
  <body>
  <h1>run JavaScript Ext demo</h1>
  <p id="webDemo"></p>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod1()">test ndk method1 ! </button>
  <br>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod2()">test ndk method2 ! </button>
  <br>

  </body>
  <script type="text/javascript">

  function testNdkProxyObjMethod1() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }
        window.ndkProxy.method1("hello", "world", [1.2, -3.4, 123.456], ["Saab", "Volvo", "BMW", undefined], 1.23456, 123789, true, false, 0,  undefined);
  }

  function testNdkProxyObjMethod2() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }

      var student = {
              name:"zhang",
              sex:"man",
              age:25
      };
      var cars = [student, 456, false, 4.567];
      let params = "[\"{\\\"scope\\\"]";

      window.ndkProxy.method2("hello", "world", false, cars, params);
  }

  function runJSRetStr(data) {
      const d = new Date();
      let time = d.getTime();
      return JSON.stringify(time)
  }
  </script>
  </html>
  • ArkTS侧代码
  // entry/src/main/ets/pages/Index.ets
  import testNapi from 'libentry.so';
  import { webview } from '@kit.ArkWeb';

  class testObj {
    constructor() {
    }

    test(): string {
      console.log('ArkUI Web Component');
      return "ArkUI Web Component";
    }

    toString(): void {
      console.log('Web Component toString');
    }
  }

  @Entry
  @Component
  struct Index {
    webTag: string = 'ArkWeb1';
    controller: webview.WebviewController = new webview.WebviewController(this.webTag);
    @State testObjtest: testObj = new testObj();

    aboutToAppear() {
      console.info("aboutToAppear")
      //初始化web ndk
      testNapi.nativeWebInit(this.webTag);
    }

    build() {
      Column() {
        Row() {
          Button('runJS hello')
            .fontSize(12)
            .onClick(() => {
              testNapi.runJavaScript(this.webTag, "runJSRetStr(\"" + "hello" + "\")");
            })
        }.height('20%')

        Row() {
          Web({ src: $rawfile('runJS.html'), controller: this.controller })
            .javaScriptAccess(true)
            .fileAccess(true)
            .onControllerAttached(() => {
              console.error("ndk onControllerAttached webId: " + this.controller.getWebId());
            })
        }.height('80%')
      }
    }
  }
  • Node-API侧暴露ArkTS接口
  // entry/src/main/cpp/types/libentry/index.d.ts
  export const nativeWebInit: (webName: string) => void;
  export const runJavaScript: (webName: string, jsCode: string) => void;
  • Node-API侧编译配置entry/src/main/cpp/CMakeLists.txt
  # the minimum version of CMake.
  cmake_minimum_required(VERSION 3.4.1)
  project(NDKJSBridg)

  set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

  if(DEFINED PACKAGE_FIND_FILE)
      include(${PACKAGE_FIND_FILE})
  endif()

  include_directories(${NATIVERENDER_ROOT_PATH}
                      ${NATIVERENDER_ROOT_PATH}/include)

  add_library(entry SHARED hello.cpp jsbridge_object.cpp)

  find_library(
      # Sets the name of the path variable.
      hilog-lib
      # Specifies the name of the NDK library that
      # you want CMake to locate.
      hilog_ndk.z
  )

  target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)
  • Node-API层代码
  // entry/src/main/cpp/hello.cpp
  #include "napi/native_api.h"
  #include <bits/alltypes.h>
  #include <memory>
  #include <string>
  #include <sys/types.h>
  #include <thread>

  #include "hilog/log.h"
  #include "web/arkweb_interface.h"
  #include "jsbridge_object.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
  std::shared_ptr<JSBridgeObject> jsbridge_object_ptr = nullptr;
  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;

  // 发送JS脚本到H5侧执行，该方法为执行结果的回调。
  static void RunJavaScriptCallback(const char *webTag, const char *result, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->RunJavaScriptCallback(result);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "ndk RunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  // 示例代码 ，注册了1个对象，2个方法
  static void ProxyMethod1(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod1(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 jsb_weak_ptr lock failed");
      }
  }

  static void ProxyMethod2(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);

      std::string jsCode = "runJSRetStr()";
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode.c_str(), jsCode.size(),
                                       &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTag, &object);

      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod2(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 jsb_weak_ptr lock failed");
      }
  }

  void ValidCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("ValidCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback jsb_weak_ptr lock failed");
      }

      // 注册对象
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy begin");
      ArkWeb_ProxyMethod method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethod method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethod methodList[2] = {method1, method2};
      // 调用ndk接口注册对象
      // 如此注册的情况下，在H5页面就可以使用proxy.method1、proxy.method2调用此文件下的ProxyMethod1和ProxyMethod2方法了
      ArkWeb_ProxyObject proxyObject = {"ndkProxy", methodList, 2};
      controller->registerJavaScriptProxy(webTag, &proxyObject);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RegisterJavaScriptProxy end");
  }

  void LoadStartCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadStartCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback jsb_weak_ptr lock failed");
      }
  }

  void LoadEndCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadEndCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback jsb_weak_ptr lock failed");
      }
  }

  void DestroyCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestoryCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("DestroyCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback jsb_weak_ptr lock failed");
      }
  }

  void SetComponentCallback(ArkWeb_ComponentAPI * component, const char* webTagValue) {
      if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
          component->onControllerAttached(webTagValue, ValidCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
          component->onPageBegin(webTagValue, LoadStartCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
          component->onPageEnd(webTagValue, LoadEndCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
          component->onDestroy(webTagValue, DestroyCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
      }
  }

  // 解析存储webTag
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
      size_t argc = 1;
      napi_value args[1] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
      // 获取第一个参数webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

      // 将webTag保存在实例对象中
      jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
      if (jsbridge_object_ptr)
          jsbridge_object_ptr->Init();

      controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
      component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));
      SetComponentCallback(component, webTagValue);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");
      return nullptr;
  }

  // 发送JS脚本到H5侧执行
  static napi_value RunJavaScript(napi_env env, napi_callback_info info) {
      size_t argc = 2;
      napi_value args[2] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

      // 获取第一个参数webTag
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk OH_NativeArkWeb_RunJavaScript webTag:%{public}s",
                   webTagValue);

      // 获取第二个参数 jsCode
      size_t bufferSize = 0;
      napi_get_value_string_utf8(env, args[1], nullptr, 0, &bufferSize);
      char *jsCode = new (std::nothrow) char[bufferSize + 1];
      size_t byteLength = 0;
      napi_get_value_string_utf8(env, args[1], jsCode, bufferSize + 1, &byteLength);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "ndk OH_NativeArkWeb_RunJavaScript jsCode len:%{public}zu", strlen(jsCode));

      // 构造runJS执行的结构体
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTagValue, &object);
      return nullptr;
  }

  EXTERN_C_START
  static napi_value Init(napi_env env, napi_value exports) {
      napi_property_descriptor desc[] = {
          {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
          {"runJavaScript", nullptr, RunJavaScript, nullptr, nullptr, nullptr, napi_default, nullptr},
      };
      napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
      return exports;
  }
  EXTERN_C_END

  static napi_module demoModule = {
      .nm_version = 1,
      .nm_flags = 0,
      .nm_filename = nullptr,
      .nm_register_func = Init,
      .nm_modname = "entry",
      .nm_priv = ((void *)0),
      .reserved = {0},
  };

  extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }
  • Native侧业务代码
  // entry/src/main/cpp/jsbridge_object.h
  #include "web/arkweb_type.h"
  #include <string>

  class JSBridgeObject : public std::enable_shared_from_this<JSBridgeObject> {
  public:
      JSBridgeObject(const char* webTag);
      ~JSBridgeObject() = default;
      void Init();
      std::weak_ptr<JSBridgeObject>* GetWeakPtr();
      static void StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data, void *userData);
      void RunJavaScriptCallback(const char *result);
      void ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void SaySomething(const char* say);

  private:
      std::string webTag_;
      std::weak_ptr<JSBridgeObject> weak_ptr_;
  };

  // entry/src/main/cpp/jsbridge_object.cpp
  #include "jsbridge_object.h"

  #include "hilog/log.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;

  JSBridgeObject::JSBridgeObject(const char *webTag) : webTag_(webTag) {}

  void JSBridgeObject::Init() { weak_ptr_ = shared_from_this(); }

  std::weak_ptr<JSBridgeObject> *JSBridgeObject::GetWeakPtr() { return &weak_ptr_; }

  void JSBridgeObject::StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data,
                                                   void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject StaticRunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          std::string result((char *)data->buffer, data->size);
          jsb_ptr->RunJavaScriptCallback(result.c_str());
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  void JSBridgeObject::RunJavaScriptCallback(const char *result) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject OH_NativeArkWeb_RunJavaScript result:%{public}s", result);
  }

  void JSBridgeObject::ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod1 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod1 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod2 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod2 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::SaySomething(const char *say) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject SaySomething argc:%{public}s", say);
  }

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkWeb（方舟Web）

harmony 鸿蒙托管网页中的媒体播放

harmony 鸿蒙建立应用侧与前端页面数据通道(C/C++)

harmony 鸿蒙使用Web组件的广告过滤功能

harmony 鸿蒙建立应用侧与前端页面数据通道

harmony 鸿蒙使用Web组件与系统剪贴板交互处理网页内容

harmony 鸿蒙Web组件在不同的窗口间迁移

harmony 鸿蒙ArkWeb简介

harmony 鸿蒙Web页面显示内容滚动

harmony 鸿蒙管理Cookie及数据存储

0  赞
  • 所属分类： 后端技术
  • 本文标签： 软件 鸿蒙
  • 版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/X6ex3I
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
