VideoDecoder

Overview

The VideoDecoder module provides the APIs for video decoding.

For details about the development guide and sample, see Video Decoding.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

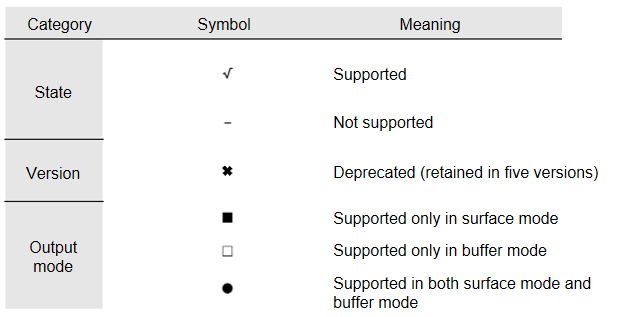

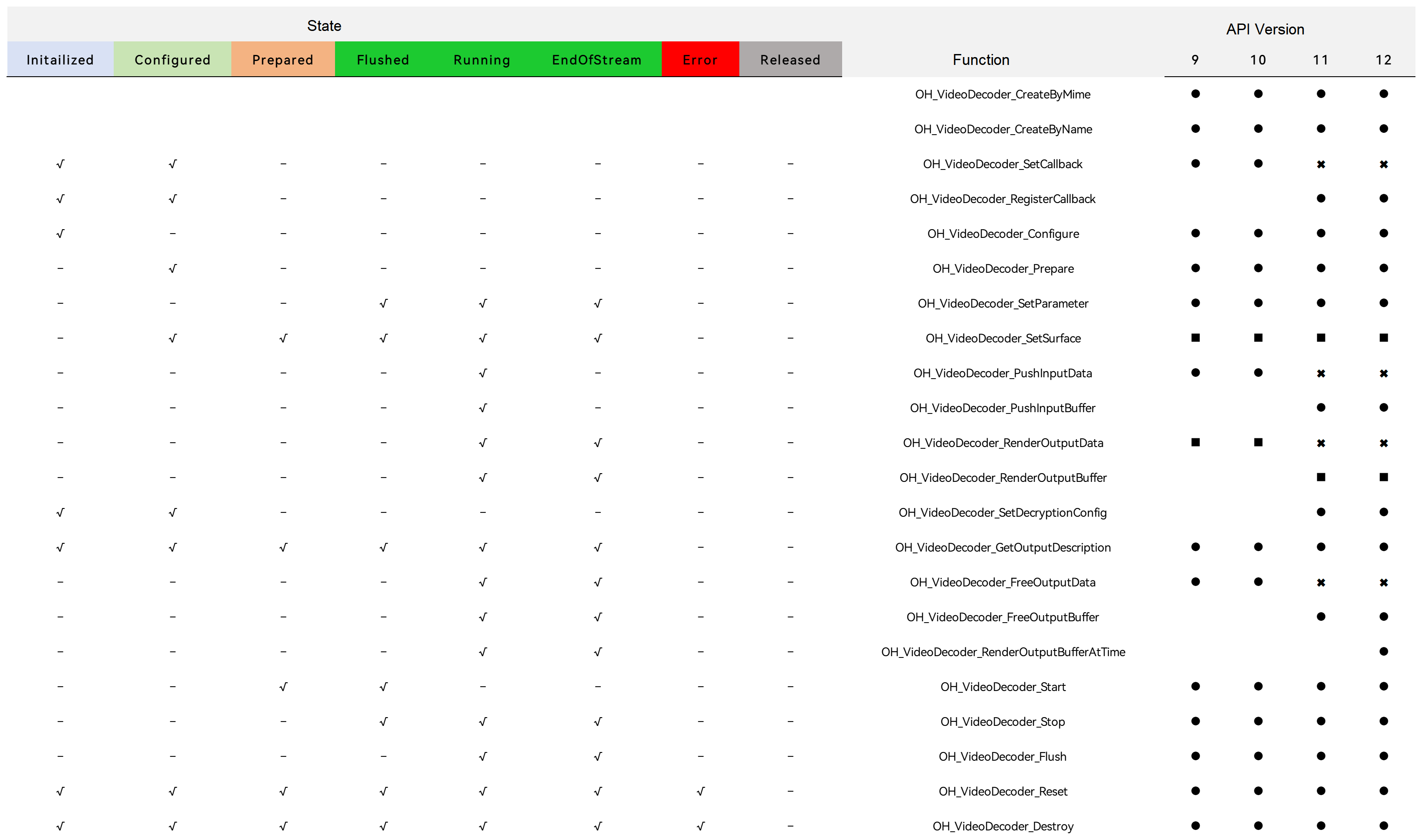

The following figures show the APIs supported by each version and the APIs that can be called in different states.

Summary

Files

Name	Description
native_avcodec_videodecoder.h	Declares the APIs used for video decoding.

Functions

Name	Description
OH_AVCodec * OH_VideoDecoder_CreateByMime (const char *mime)	Creates a video decoder instance based on a MIME type.
OH_AVCodec * OH_VideoDecoder_CreateByName (const char *name)	Creates a video decoder instance based on a decoder name.
OH_AVErrCode OH_VideoDecoder_Destroy (OH_AVCodec *codec)	Clears the internal resources of a video decoder and destroys the decoder instance.
OH_AVErrCode OH_VideoDecoder_SetCallback (OH_AVCodec *codec, OH_AVCodecAsyncCallback callback, void *userData)	Sets an asynchronous callback so that your application can respond to events generated by a video decoder. (This function is deprecated from API version 11.)
OH_AVErrCode OH_VideoDecoder_RegisterCallback (OH_AVCodec *codec, OH_AVCodecCallback callback, void *userData)	Registers an asynchronous callback so that your application can respond to events generated by a video decoder.
OH_AVErrCode OH_VideoDecoder_SetSurface (OH_AVCodec *codec, OHNativeWindow *window)	Sets an output surface for a video decoder.
OH_AVErrCode OH_VideoDecoder_Configure (OH_AVCodec *codec, OH_AVFormat *format)	Configures a video decoder. Typically, you need to configure the video track description information that can be extracted from OH_AVSource.
OH_AVErrCode OH_VideoDecoder_Prepare (OH_AVCodec *codec)	Prepares internal resources for a video decoder.
OH_AVErrCode OH_VideoDecoder_Start (OH_AVCodec *codec)	Starts a video decoder. This function should be called after a successful call of OH_VideoDecoder_Prepare.
OH_AVErrCode OH_VideoDecoder_Stop (OH_AVCodec *codec)	Stops a video decoder and releases the input and output buffers.
OH_AVErrCode OH_VideoDecoder_Flush (OH_AVCodec *codec)	Clears the input and output data and parameters, for example, H.264 PPS/SPS, cached in a video decoder.
OH_AVErrCode OH_VideoDecoder_Reset (OH_AVCodec *codec)	Resets a video decoder. The decoder returns to the initial state.
OH_AVFormat * OH_VideoDecoder_GetOutputDescription (OH_AVCodec *codec)	Obtains the OH_AVFormat information about the output data of a video decoder.
OH_AVErrCode OH_VideoDecoder_SetParameter (OH_AVCodec *codec, OH_AVFormat *format)	Sets dynamic parameters for a video decoder.
OH_AVErrCode OH_VideoDecoder_PushInputData (OH_AVCodec *codec, uint32_t index, OH_AVCodecBufferAttr attr)	Pushes the input buffer filled with data to a video decoder. (This function is deprecated from API version 11.)
OH_AVErrCode OH_VideoDecoder_RenderOutputData (OH_AVCodec *codec, uint32_t index)	Frees an output buffer of a video decoder and instructs the decoder to render the decoded data in the buffer on the output surface. (This function is deprecated from API version 11.)
OH_AVErrCode OH_VideoDecoder_FreeOutputData (OH_AVCodec *codec, uint32_t index)	Frees an output buffer of a video decoder. (This function is deprecated from API version 11.)
OH_AVErrCode OH_VideoDecoder_PushInputBuffer (OH_AVCodec *codec, uint32_t index)	Notifies a video decoder that the buffer corresponding to the index has been filled with input data.
OH_AVErrCode OH_VideoDecoder_RenderOutputBuffer (OH_AVCodec *codec, uint32_t index)	Returns the output buffer corresponding to the index to a video decoder. The buffer carries the decoded data and is used to instruct the decoder to finish rendering on the output surface.
OH_AVErrCode OH_VideoDecoder_RenderOutputBufferAtTime (OH_AVCodec *codec, uint32_t index, int64_t renderTimestampNs)	Returns the output buffer corresponding to the index to a video decoder. The buffer carries the decoded data and is used to instruct the decoder to finish rendering within the specified duration on the output surface.
OH_AVErrCode OH_VideoDecoder_FreeOutputBuffer (OH_AVCodec *codec, uint32_t index)	Frees an output buffer of a video decoder.
OH_AVErrCode OH_VideoDecoder_IsValid (OH_AVCodec *codec, bool *isValid)	Checks whether a video decoder instance is valid.
OH_AVErrCode OH_VideoDecoder_SetDecryptionConfig (OH_AVCodec *codec, MediaKeySession *mediaKeySession, bool secureVideoPath)	Sets the decryption configuration.

Function Description

OH_VideoDecoder_Configure()

OH_AVErrCode OH_VideoDecoder_Configure (OH_AVCodec *codec, OH_AVFormat *format )

Description

Configures a video decoder. Typically, you need to configure the video description information that can be extracted from OH_AVSource. This function must be called prior to OH_VideoDecoder_Prepare.

The value ranges of the following parameters can be obtained from Capability Query. All the values of OH_MD_KEY_ROTATION are supported.

If the current platform does not support OH_MD_KEY_VIDEO_ENABLE_LOW_LATENCY, no error is reported and the normal decoding process is used.

Parameter verification rules are as follows:

Key	Value Within the Range	Value Out of Range	No Value Configured
OH_MD_KEY_WIDTH	AV_ERR_OK	AV_ERR_INVALID_VAL	AV_ERR_INVALID_VAL
OH_MD_KEY_HEIGHT	AV_ERR_OK	AV_ERR_INVALID_VAL	AV_ERR_INVALID_VAL
OH_MD_KEY_PIXEL_FORMAT For details, see OH_AVPixelFormat.	AV_ERR_OK	AV_ERR_UNSUPPORT	AV_ERR_OK
OH_MD_KEY_FRAME_RATE	AV_ERR_OK	AV_ERR_INVALID_VAL	AV_ERR_OK
OH_MD_KEY_ROTATION For details, see OH_MD_KEY_ROTATION.	AV_ERR_OK	AV_ERR_INVALID_VAL	AV_ERR_OK

NOTE

You are advised to set the parameters based on the maximum resolution supported by the instance. Otherwise, an exception may occur when streams with the resolution higher than the maximum resolution are to be decoded. This setting directly affects the memory usage of the application.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.
format	Pointer to an OH_AVFormat instance, which provides the description information about the video track to be decoded.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL:

1. The value of **codec** is a null pointer or does not point to a decoder instance.
2. The format is not supported.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is not called prior to OH_VideoDecoder_Prepare.

AV_ERR_VIDEO_UNSUPPORTED_COLOR_SPACE_CONVERSION: CSC is not supported.

AV_ERR_UNSUPPORT: The feature is not supported.

OH_VideoDecoder_CreateByMime()

OH_AVCodec* OH_VideoDecoder_CreateByMime (const char *mime)

Description

Creates a video decoder instance based on a MIME type. This function is recommended in most cases.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
mime	Pointer to a string that describes the MIME type. For details, see AVCODEC_MIMETYPE.

Returns

Returns the pointer to the video decoder instance if the operation is successful; returns NULL if the decoder type is not supported or the memory is insufficient.

OH_VideoDecoder_CreateByName()

OH_AVCodec* OH_VideoDecoder_CreateByName (const char *name)

Description

Creates a video decoder instance based on a decoder name. To use this function, you must know the exact name of the decoder. The decoder name can be obtained through capability query.

For details, see Obtaining Supported Codecs.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
name	Pointer to a video decoder name.

Returns

Returns the pointer to the video decoder instance if the operation is successful; returns NULL if the decoder name is not supported or the memory is insufficient.

OH_VideoDecoder_Destroy()

OH_AVErrCode OH_VideoDecoder_Destroy (OH_AVCodec *codec)

Description

Clears the internal resources of a video decoder and destroys the decoder instance. You only need to call the function once.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

OH_VideoDecoder_Flush()

OH_AVErrCode OH_VideoDecoder_Flush (OH_AVCodec *codec)

Description

Clears the input and output data and parameters, for example, H.264 PPS/SPS, cached in a video decoder. This function invalidates the indexes of all buffers previously reported through the asynchronous callback. Therefore, before calling this function, ensure that the buffers with the specified indexes are no longer required.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_FreeOutputBuffer()

OH_AVErrCode OH_VideoDecoder_FreeOutputBuffer (OH_AVCodec *codec, uint32_t index )

Description

Frees an output buffer of a video decoder.

You need to call this function to release the output buffer in a timely manner. Otherwise, the decoding process is blocked.

For details, see step 12 in surface mode or step 10 in buffer mode in Video Decoding.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 11

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an output buffer. The index is obtained from OH_AVCodecOnNewOutputBuffer.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL:

1. The value of **codec** is a null pointer or does not point to a decoder instance.
2. The index is invalid or the same index is used consecutively. This error does not affect the subsequent decoding process.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_GetOutputDescription()

OH_AVFormat* OH_VideoDecoder_GetOutputDescription (OH_AVCodec *codec)

Description

Obtains the OH_AVFormat information about the output data of a video decoder. For details, see OH_AVFormat.

You must call OH_AVFormat_Destroy to release the OH_AVFormat instance when its lifecycle ends.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns the pointer to an OH_AVFormat instance if the operation is successful; returns NULL if the value of codec is a null pointer or does not point to a decoder instance.

OH_VideoDecoder_IsValid()

OH_AVErrCode OH_VideoDecoder_IsValid (OH_AVCodec *codec, bool *isValid )

Description

Checks whether the decoder service is valid when a decoder instance exists.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 10

Parameters

Name	Description
codec	Pointer to a video decoder instance.
isValid	Pointer of the Boolean type. The value indicates the validity of the decoder service only when the function returns AV_ERR_OK. The value true means that the decoder service is valid, and false means the opposite. It is recommended that you initialize isValid to false.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

OH_VideoDecoder_Prepare()

OH_AVErrCode OH_VideoDecoder_Prepare (OH_AVCodec *codec)

Description

Prepares internal resources for a video decoder. This function must be called after OH_VideoDecoder_Configure.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

AV_ERR_OPERATE_NOT_PERMIT:

1. An internal execution error occurs.
2. CSC is configured, but the decoder is in buffer mode.

OH_VideoDecoder_PushInputBuffer()

OH_AVErrCode OH_VideoDecoder_PushInputBuffer (OH_AVCodec *codec, uint32_t index )

Description

Notifies a video decoder that the buffer corresponding to the index has been filled with input data.

The input callback reports the available input buffer and the index. For details, see OH_AVCodecOnNeedInputBuffer. After being pushed to the decoder, a buffer is not accessible until the buffer with the same index is reported again through the input callback.

In addition, some decoders require the input of codec-specific data, such as PPS/SPS data in H.264 format, to initialize the decoding process.

This function is used to transfer the parameters (such as H.264 PPS/SPS) required for decoding to the decoder. The parameters can be transferred to the decoder separately or together with the data to be decoded.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 11

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an input buffer. The index is obtained from OH_AVCodecOnNeedInputBuffer.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_RegisterCallback()

OH_AVErrCode OH_VideoDecoder_RegisterCallback (OH_AVCodec *codec, OH_AVCodecCallback callback, void *userData )

Description

Registers an asynchronous callback so that your application can respond to events generated by a video decoder. This function must be called prior to OH_VideoDecoder_Prepare.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 11

Parameters

Name	Description
codec	Pointer to a video decoder instance.
callback	Callback function to set. For details, see OH_AVCodecCallback.
userData	Pointer to the data on which the caller depends when executing the callback.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is not called prior to OH_VideoDecoder_Prepare.

OH_VideoDecoder_RenderOutputBuffer()

OH_AVErrCode OH_VideoDecoder_RenderOutputBuffer (OH_AVCodec *codec, uint32_t index )

Description

Returns the output buffer corresponding to the index to a video decoder. The buffer carries the decoded data and is used to instruct the decoder to finish rendering on the output surface.

If no output surface is configured, calling this function only frees the output buffer.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 11

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an output buffer. The index is obtained from OH_AVCodecOnNewOutputBuffer.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_RenderOutputBufferAtTime()

OH_AVErrCode OH_VideoDecoder_RenderOutputBufferAtTime(OH_AVCodec *codec, uint32_t index, int64_t renderTimestampNs);

Description

Returns the output buffer corresponding to the index to a video decoder. The buffer carries the decoded data and is used to instruct the decoder to finish rendering within the specified duration on the output surface.

If no output surface is configured, calling this function only frees the output buffer.

You can request the system to render the buffer at a specific time (after the VSYNC or buffer timestamp) based on the timestamp. To render the buffer at the specified timestamp, that timestamp should approximate the current system time within an acceptable margin of error. Pay attention to the following: 1. Buffers are processed sequentially, which may result in the display of subsequent buffers on the surface being blocked. This is particularly important for interactive scenarios, such as responding to user actions like stopping, fast-forwarding, or rewinding a video. 2. If multiple buffers are sent to the surface for rendering on a single VSYNC event, the last buffer is rendered and other buffers are discarded. 3. If the difference between the timestamp and the current system time exceeds the acceptable margin of error, the surface ignores the timestamp and renders the buffer at the earliest feasible time. In this case, no frames are discarded.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 12

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an output buffer. The index is obtained from OH_AVCodecOnNewOutputBuffer.
renderTimestampNs	Timestamp (in nanoseconds) when the output buffer is sent to the surface. The value must be greater than 0 and should be generated by the clock of the std::chrono::steady_clock standard library.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_Reset()

OH_AVErrCode OH_VideoDecoder_Reset (OH_AVCodec *codec)

Description

Resets a video decoder. The decoder returns to the initial state. To continue decoding, you must call OH_VideoDecoder_Configure to configure the decoder again.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

OH_VideoDecoder_SetDecryptionConfig()

OH_AVErrCode OH_VideoDecoder_SetDecryptionConfig (OH_AVCodec *codec, MediaKeySession *mediaKeySession, bool secureVideoPath)

Description

Sets the decryption configuration. This function can be called prior to OH_VideoDecoder_Prepare.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 11

Parameters

Name	Description
codec	Pointer to a video decoder instance.
mediaKeySession	Pointer to a media key session instance with decryption capabilities. For details, see MediaKeySession.
secureVideoPath	Whether a secure video channel is used. The value true means a secure video channel, and false means a non-secure video channel. In surface mode, both secure and non-secure video channels are supported. In buffer mode, only non-secure video channels are supported.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_OPERATE_NOT_PERMIT:

1. An internal execution error occurs.
2. The decoding service process is abnormal.
3. The media key session service is in an error state.

AV_ERR_INVALID_VAL:

1. The value of **codec** is a null pointer or does not point to a decoder instance.
2. The value of **mediaKeySession** is NULL or invalid.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

OH_VideoDecoder_SetParameter()

OH_AVErrCode OH_VideoDecoder_SetParameter (OH_AVCodec *codec, OH_AVFormat *format )

Description

Sets dynamic parameters for a video decoder.

This function can be called only after the decoder is started. Incorrect parameter settings may cause decoding failure.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.
format	Pointer to an OH_AVFormat instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL:

1. The value of **codec** is a null pointer or does not point to a decoder instance.
2. The format is not supported.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_SetSurface()

OH_AVErrCode OH_VideoDecoder_SetSurface (OH_AVCodec * codec, OHNativeWindow * window )

Description

Sets an output surface for a video decoder.

In the initialization phase, this function must be called prior to OH_VideoDecoder_Prepare. In the executing state, it can be called directly.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.
window	Pointer to an OHNativeWindow instance. For details, see OHNativeWindow.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_OPERATE_NOT_PERMIT: The function is called in the buffer mode. It can be called only in the surface mode.

AV_ERR_INVALID_VAL:

1. The value of **codec** is a null pointer or does not point to a decoder instance.
2. The value of **window** is a null pointer.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_Start()

OH_AVErrCode OH_VideoDecoder_Start (OH_AVCodec *codec)

Description

Starts a video decoder. This function should be called after a successful call of OH_VideoDecoder_Prepare. After being started, the decoder starts to report the registered event.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

AV_ERR_OPERATE_NOT_PERMIT:

1. An internal execution error occurs.
2. CSC is configured, but **OH_VideoDecoder_Prepare** is not called.

OH_VideoDecoder_Stop()

OH_AVErrCode OH_VideoDecoder_Stop (OH_AVCodec *codec)

Description

Stops a video decoder and releases the input and output buffers. After the video decoder is stopped, you can call OH_VideoDecoder_Start to enter the running state again.

If you have passed codec-specific data in the previous Start for the decoder, you must pass it again.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Parameters

Name	Description
codec	Pointer to a video decoder instance.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

Description of Deprecated Functions

OH_VideoDecoder_SetCallback()

OH_AVErrCode OH_VideoDecoder_SetCallback (OH_AVCodec *codec, OH_AVCodecAsyncCallback callback, void *userData )

Description

Sets an asynchronous callback so that your application can respond to events generated by a video decoder. This function must be called prior to OH_VideoDecoder_Prepare.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Deprecated from: 11

Substitute: OH_VideoDecoder_RegisterCallback

Parameters

Name	Description
codec	Pointer to a video decoder instance.
callback	Callback function to set. For details, see OH_AVCodecAsyncCallback.
userData	Pointer to the data on which the caller depends when executing the callback.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is not called prior to OH_VideoDecoder_Prepare.

OH_VideoDecoder_RenderOutputData()

OH_AVErrCode OH_VideoDecoder_RenderOutputData (OH_AVCodec *codec, uint32_t index )

Description

Frees an output buffer of a video decoder and instructs the decoder to render the decoded data in the buffer on the output surface.

If no output surface is configured, calling this function only frees the output buffer.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Deprecated from: 11

Substitute: OH_VideoDecoder_RenderOutputBuffer

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an output buffer. The index is obtained from OH_AVCodecOnNewOutputData.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_PushInputData()

OH_AVErrCode OH_VideoDecoder_PushInputData (OH_AVCodec *codec, uint32_t index, OH_AVCodecBufferAttr attr )

Description

Pushes the input buffer filled with data to a video decoder.

The input callback reports the available input buffer and the index. For details, see OH_AVCodecOnNeedInputData. After being pushed to the decoder, a buffer is not accessible until the buffer with the same index is reported again through the input callback.

In addition, some decoders require the input of codec-specific data, such as PPS/SPS data in H.264 format, to initialize the decoding process.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Deprecated from: 11

Substitute: OH_VideoDecoder_PushInputBuffer

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an input buffer. The index is obtained from OH_AVCodecOnNeedInputData.
attr	Description information about the data in the buffer.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

OH_VideoDecoder_FreeOutputData()

OH_AVErrCode OH_VideoDecoder_FreeOutputData (OH_AVCodec *codec, uint32_t index )

Description

Frees an output buffer of a video decoder.

System capability: SystemCapability.Multimedia.Media.VideoDecoder

Since: 9

Deprecated from: 11

Substitute: OH_VideoDecoder_FreeOutputBuffer

Parameters

Name	Description
codec	Pointer to a video decoder instance.
index	Index of an output buffer. The index is obtained from OH_AVCodecOnNewOutputData.

Returns

Returns one of the following result codes:

AV_ERR_OK: The operation is successful.

AV_ERR_NO_MEMORY: The decoder instance has been destroyed.

AV_ERR_INVALID_VAL: The value of codec is a null pointer or does not point to a decoder instance.

AV_ERR_UNKNOWN: An unknown error occurs.

AV_ERR_OPERATE_NOT_PERMIT: An internal execution error occurs.

AV_ERR_INVALID_STATE: The function is called in an incorrect state.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙AVCodec Kit

harmony 鸿蒙AVCapability

harmony 鸿蒙AVDemuxer

harmony 鸿蒙AVMuxer

harmony 鸿蒙AVSource

harmony 鸿蒙AudioCodec

harmony 鸿蒙AudioDecoder

harmony 鸿蒙AudioEncoder

harmony 鸿蒙CodecBase

harmony 鸿蒙Core
