Video Decoding

You can call the native APIs provided by the VideoDecoder module to decode video, that is, to decode media data into a YUV file or render it.

For details about the supported decoding capabilities, see AVCodec Supported Formats.

Through the VideoDecoder module, your application can implement the following key capabilities.

Capability How to Configure
Variable resolution The decoder supports the change of the input stream resolution. After the resolution is changed, the callback function OnStreamChanged() set by OH_VideoDecoder_RegisterCallback is triggered. For details, see step 3 in surface mode or step 3 in buffer mode.
Dynamic surface switching Call OH_VideoDecoder_SetSurface to configure this capability. It is supported only in surface mode. For details, see step 6 in surface mode.
Low-latency decoding Call OH_VideoDecoder_Configure to configure this capability. For details, see step 5 in surface mode or step 5 in buffer mode.

Constraints

  • HDR Vivid decoding is not supported in buffer mode.
  • After flush(), reset(), or stop() is called, the PPS/SPS must be transferred again in the start() call. For details about the example, see step 13 in Surface Output.
  • If flush(), reset(), stop(), or destroy() is executed in a non-callback thread, the execution result is returned after all callbacks are executed.
  • Due to limited hardware decoder resources, you must call OH_VideoDecoder_Destroy to destroy every decoder instance when it is no longer needed.
  • The input streams for video decoding support only the AnnexB format, and the supported AnnexB format supports multiple slices. However, the slices of the same frame must be sent to the decoder at a time.
  • When flush(), reset(), or stop() is called, do not continue to operate the OH_AVBuffer obtained through the previous callback function.
  • The DRM decryption capability supports both non-secure and secure video channels in surface mode, but only non-secure video channels in buffer mode(#buffer-output).
  • The buffer mode and surface mode use the same APIs. Therefore, the surface mode is described as an example.
  • In buffer mode, after obtaining the pointer to an OH_AVBuffer instance through the callback function OH_AVCodecOnNewOutputBuffer, call OH_VideoDecoder_FreeOutputBuffer to notify the system that the buffer has been fully utilized. In this way, the system can write the subsequently decoded data to the corresponding location. If the OH_NativeBuffer instance is obtained through OH_AVBuffer_GetNativeBuffer and its lifecycle extends beyond that of the OH_AVBuffer pointer instance, you mut perform data duplication. In this case, you should manage the lifecycle of the newly generated OH_NativeBuffer object to ensure that the object can be correctly used and released.

Surface Output and Buffer Output

  • Surface output and buffer output differ in data output modes.

  • They are applicable to different scenarios.

    • Surface output indicates that the OHNativeWindow is used to transfer output data. It supports connection with other modules, such as the XComponent.
    • Buffer output indicates that decoded data is output in shared memory mode.

  • The two also differ slightly in the API calling modes:

    • In surface mode, the caller can choose to call OH_VideoDecoder_FreeOutputBuffer to free the output buffer (without rendering the data). In buffer mode, the caller must call OH_VideoDecoder_FreeOutputBuffer to free the output buffer.
    • In surface mode, the caller must call OH_VideoDecoder_SetSurface to set an OHNativeWindow before the decoder is ready and call OH_VideoDecoder_RenderOutputBuffer to render the decoded data after the decoder is started.
    • In buffer mode, an application can obtain the shared memory address and data from the output buffer. In surface mode, an application can obtain the data from the output buffer.

  • Data transfer performance in surface mode is better than that in buffer mode.

For details about the development procedure, see Surface Output and Buffer Output.

State Machine Interaction

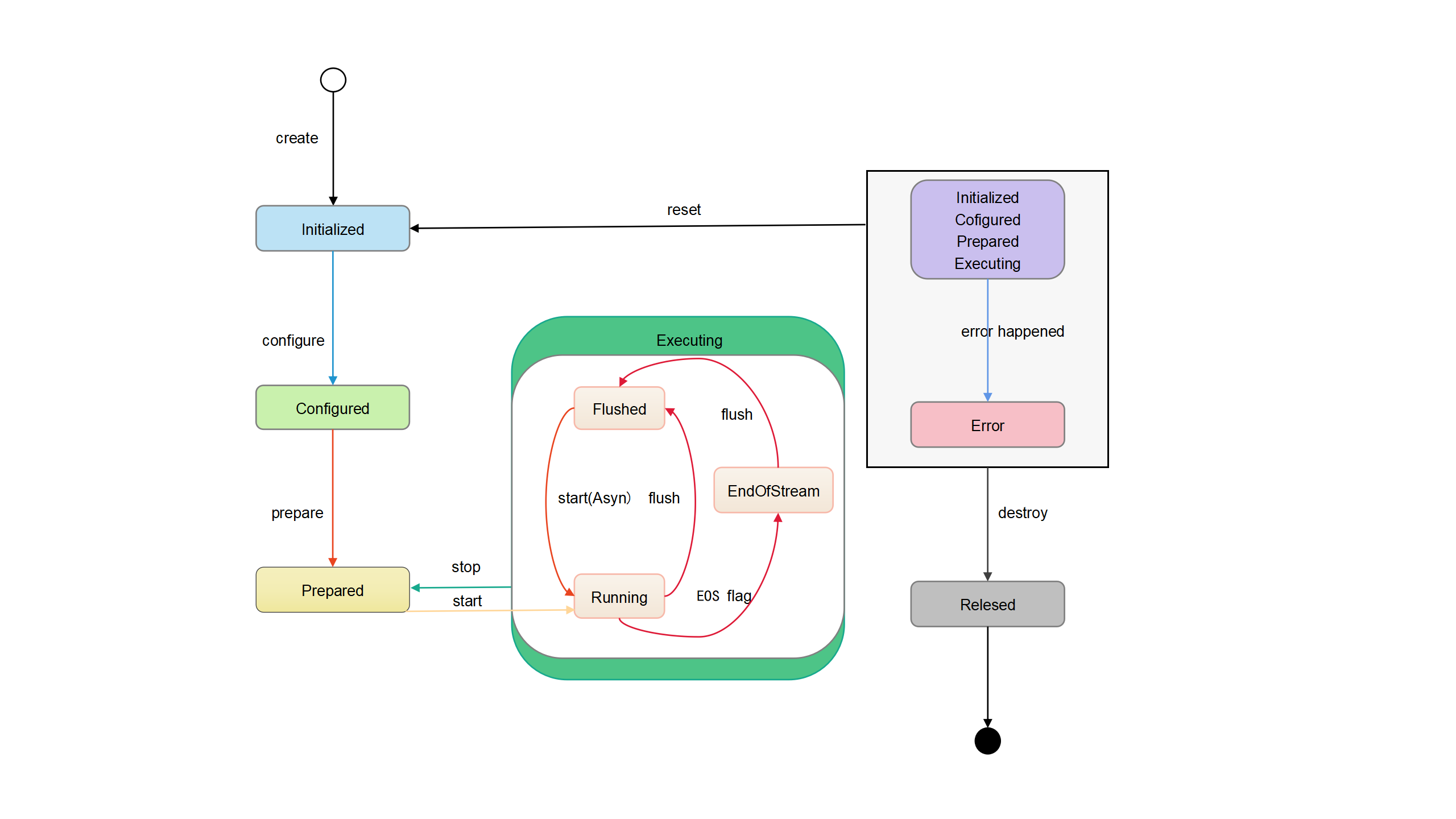

The following figure shows the interaction between states.

Invoking relationship of state

  1. A decoder enters the Initialized state in either of the following ways:

    • When a decoder instance is initially created, the decoder enters the Initialized state.
    • When OH_VideoDecoder_Reset is called in any state, the decoder returns to the Initialized state.

  2. When the decoder is in the Initialized state, you can call OH_VideoDecoder_Configure to configure the decoder. After the configuration, the decoder enters the Configured state.

  3. When the decoder is in the Configured state, you can call OH_VideoDecoder_Prepare to switch it to the Prepared state.

  4. When the decoder is in the Prepared state, you can call OH_VideoDecoder_Start to switch it to the Executing state.

    • When the decoder is in the Executing state, you can call OH_VideoDecoder_Stop to switch it back to the Prepared state.

  5. In rare cases, the decoder may encounter an error and enter the Error state. If this is the case, an invalid value can be returned or an exception can be thrown through a queue operation.

    • When the decoder is in the Error state, you can either call OH_VideoDecoder_Reset to switch it to the Initialized state or call OH_VideoDecoder_Destroy to switch it to the Released state.

  6. The Executing state has three substates: Flushed, Running, and End-of-Stream.

    • After OH_VideoDecoder_Start is called, the decoder enters the Running substate immediately.
    • When the decoder is in the Executing state, you can call OH_VideoDecoder_Flush to switch it to the Flushed substate.
    • After all data to be processed is transferred to the decoder, the AVCODEC_BUFFER_FLAGS_EOS flag is added to the last input buffer in the input buffers queue. Once this flag is detected, the decoder transits to the End-of-Stream substate. In this state, the decoder does not accept new inputs, but continues to generate outputs until it reaches the tail frame.

  7. When the decoder is no longer needed, you must call OH_VideoDecoder_Destroy to destroy the decoder instance, which then transitions to the Released state.

How to Develop

Read VideoDecoder for the API reference.

The figure below shows the call relationship of video decoding.

  • The dotted line indicates an optional operation.

  • The solid line indicates a mandatory operation.

Call relationship of video decoding

Linking the Dynamic Link Libraries in the CMake Script

target_link_libraries(sample PUBLIC libnative_media_codecbase.so)
target_link_libraries(sample PUBLIC libnative_media_core.so)
target_link_libraries(sample PUBLIC libnative_media_vdec.so)

NOTE

The word sample in the preceding code snippet is only an example. Use the actual project directory name.

Defining the Basic Structure

The sample code provided in this section adheres to the C++17 standard and is for reference only. You can define your own buffer objects by referring to it.

  1. Add the header files.

    #include <condition_variable>
#include <memory>
#include <mutex>
#include <queue>
#include <shared_mutex>

  2. Define the information about the decoder callback buffer.

    struct CodecBufferInfo {
    CodecBufferInfo(uint32_t index, OH_AVBuffer *buffer): index(index), buffer(buffer), isValid(true) {}
    // Callback buffer.
    OH_AVBuffer *buffer = nullptr;
    // Index of the callback buffer.
    uint32_t index = 0;
    // Check whether the current buffer information is valid.
    bool isValid = true;
};

  3. Define the input and output queue for decoding.

    class CodecBufferQueue {
public:
    // Pass the callback buffer information to the queue.
    void Enqueue(const std::shared_ptr<CodecBufferInfo> bufferInfo)
    {
        std::unique_lock<std::mutex> lock(mutex_);
        bufferQueue_.push(bufferInfo);
        cond_.notify_all();
    }


    // Obtain the information about the callback buffer.
    std::shared_ptr<CodecBufferInfo> Dequeue(int32_t timeoutMs = 1000)
    {
        std::unique_lock<std::mutex> lock(mutex_);
        (void)cond_.wait_for(lock, std::chrono::milliseconds(timeoutMs), [this]() { return !bufferQueue_.empty(); });
        if (bufferQueue_.empty()) {
            return nullptr;
        }
        std::shared_ptr<CodecBufferInfo> bufferInfo = bufferQueue_.front();
        bufferQueue_.pop();
        return bufferInfo;
    }


    // Clear the queue. The previous callback buffer becomes unavailable.
    void Flush()
    {
        std::unique_lock<std::mutex> lock(mutex_);
        while (!bufferQueue_.empty()) {
            std::shared_ptr<CodecBufferInfo> bufferInfo = bufferQueue_.front();
            // After the flush, stop, reset, and destroy operations are performed, the previous callback buffer information is invalid.
            bufferInfo->isValid = false;
            bufferQueue_.pop();
        }
    }


private:
    std::mutex mutex_;
    std::condition_variable cond_;
    std::queue<std::shared_ptr<CodecBufferInfo>> bufferQueue_;
};

  4. Configure global variables.

    These global variables are for reference only. They can be encapsulated into an object based on service requirements.

    // Video frame width.
int32_t width = 320;
// Video frame height.
int32_t height = 240;
// Video pixel format.
 OH_AVPixelFormat pixelFormat = AV_PIXEL_FORMAT_NV12;
// Video width stride.
int32_t widthStride = 0;
// Video height stride.
int32_t heightStride = 0;
// Pointer to the decoder instance.
OH_AVCodec *videoDec = nullptr;
// Decoder synchronization lock.
std::shared_mutex codecMutex;
// Decoder input queue.
CodecBufferQueue inQueue;
// Decoder output queue.
CodecBufferQueue outQueue;

Surface Output

The following walks you through how to implement the entire video decoding process in surface mode. In this example, an H.264 stream file is input, decoded, and rendered.

Currently, the VideoDecoder module supports only data rotation in asynchronous mode.

  1. Add the header files.

    #include <multimedia/player_framework/native_avcodec_videodecoder.h>
#include <multimedia/player_framework/native_avcapability.h>
#include <multimedia/player_framework/native_avcodec_base.h>
#include <multimedia/player_framework/native_avformat.h>
#include <multimedia/player_framework/native_avbuffer.h>
#include <fstream>

  2. Create a decoder instance.

    You can create a decoder by name or MIME type. In the code snippet below, the following variables are used:

    • videoDec: pointer to the video decoder instance.
    • capability: pointer to the decoder’s capability.
    • OH_AVCODEC_MIMETYPE_VIDEO_AVC: AVC video codec.
    // To create a decoder by name, call OH_AVCapability_GetName to obtain the codec names available and then call OH_VideoDecoder_CreateByName. If your application has special requirements, for example, expecting a decoder that supports a certain resolution, you can call OH_AVCodec_GetCapability to query the capability first.
OH_AVCapability *capability = OH_AVCodec_GetCapability(OH_AVCODEC_MIMETYPE_VIDEO_AVC, false);
// Create hardware decoder instances.
OH_AVCapability *capability= OH_AVCodec_GetCapabilityByCategory(OH_AVCODEC_MIMETYPE_VIDEO_AVC, false, HARDWARE);
const char *name = OH_AVCapability_GetName(capability);
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByName(name);

    // Create a decoder by MIME type. Only specific codecs recommended by the system can be created in this way.
// If multiple codecs need to be created, create hardware decoder instances first. If the hardware resources are insufficient, create software decoder instances.
// Create an H.264 decoder for software/hardware decoding.
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByMime(OH_AVCODEC_MIMETYPE_VIDEO_AVC);
// Create an H.265 decoder for software/hardware decoding.
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByMime(OH_AVCODEC_MIMETYPE_VIDEO_HEVC);

  3. Call OH_VideoDecoder_RegisterCallback() to register the callback functions.

    Register the OH_AVCodecCallback struct that defines the following callback function pointers:

    • OH_AVCodecOnError, a callback used to report a codec operation error. For details about the error codes, see OH_AVCodecOnError.
    • OH_AVCodecOnStreamChanged, a callback used to report a codec stream change, for example, stream width or height change.
    • OH_AVCodecOnNeedInputBuffer, a callback used to report input data required, which means that the decoder is ready for receiving data.
    • OH_AVCodecOnNewOutputBuffer, a callback used to report output data generated, which means that decoding is complete. (Note: The buffer parameter in surface mode is null.)

    You need to process the callback functions to ensure that the decoder runs properly.

    // Implement the OH_AVCodecOnError callback function.
static void OnError(OH_AVCodec *codec, int32_t errorCode, void *userData)
{
    // Process the error code in the callback.
    (void)codec;
    (void)errorCode;
    (void)userData;
}


// Implement the OH_AVCodecOnStreamChanged callback function.
static void OnStreamChanged(OH_AVCodec *codec, OH_AVFormat *format, void *userData)
{
    // The changed video width and height can be obtained through format.
    (void)codec;
    (void)userData;
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_WIDTH, &width);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_HEIGHT, &height);
}


// Implement the OH_AVCodecOnNeedInputBuffer callback function.
static void OnNeedInputBuffer(OH_AVCodec *codec, uint32_t index, OH_AVBuffer *buffer, void *userData)
{
    // The data buffer of the input frame and its index are sent to inQueue.
    (void)codec;
    (void)userData;
    inQueue.Enqueue(std::make_shared<CodecBufferInfo>(index, buffer));
}


// Implement the OH_AVCodecOnNewOutputBuffer callback function.
static void OnNewOutputBuffer(OH_AVCodec *codec, uint32_t index, OH_AVBuffer *buffer, void *userData)
{
    // The data buffer of the finished frame and its index are sent to outQueue.
    (void)codec;
    (void)userData;
    outQueue.Enqueue(std::make_shared<CodecBufferInfo>(index, buffer));
}
// Call OH_VideoDecoder_RegisterCallback() to register the callback functions.
OH_AVCodecCallback cb = {&OnError, &OnStreamChanged, &OnNeedInputBuffer, &OnNewOutputBuffer};
// Set the asynchronous callbacks.
int32_t ret = OH_VideoDecoder_RegisterCallback(videoDec, cb, nullptr); // nullptr: userData is null.
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

    NOTE

    In the callback functions, pay attention to multi-thread synchronization for operations on the data queue.

    During video playback, if the SPS of the video stream contains color information, the decoder will return the information (RangeFlag, ColorPrimary, MatrixCoefficient, and TransferCharacteristic) through the OH_AVFormat parameter in the OH_AVCodecOnStreamChanged callback.

    In surface mode of video decoding, the internal data is processed by using High Efficiency Bandwidth Compression (HEBC) by default, and the values of widthStride and heightStride cannot be obtained.

  4. (Optional) Call OH_VideoDecoder_SetDecryptionConfig to set the decryption configuration. Call this API after the media key system information is obtained and a media key is obtained but before Prepare() is called. For details about how to obtain such information, see step 4 in Media Data Demultiplexing. In surface mode, the DRM decryption capability supports both secure and non-secure video channels. For details about DRM APIs, see DRM.

    Add the header files.

    #include <multimedia/drm_framework/native_mediakeysystem.h>
#include <multimedia/drm_framework/native_mediakeysession.h>
#include <multimedia/drm_framework/native_drm_err.h>
#include <multimedia/drm_framework/native_drm_common.h>

    Link the dynamic library in the CMake script.

    target_link_libraries(sample PUBLIC libnative_drm.so)

    The following is the sample code:

    // Create a media key system based on the media key system information. The following uses com.clearplay.drm as an example.
MediaKeySystem *system = nullptr;
int32_t ret = OH_MediaKeySystem_Create("com.clearplay.drm", &system);
if (system == nullptr) {
    printf("create media key system failed");
    return;
}


// Create a decryption session. If a secure video channel is used, create a MediaKeySession with the content protection level of CONTENT_PROTECTION_LEVEL_HW_CRYPTO or higher.
// To use a non-secure video channel, create a MediaKeySession with the content protection level of CONTENT_PROTECTION_LEVEL_SW_CRYPTO or higher.
MediaKeySession *session = nullptr;
DRM_ContentProtectionLevel contentProtectionLevel = CONTENT_PROTECTION_LEVEL_SW_CRYPTO;
ret = OH_MediaKeySystem_CreateMediaKeySession(system, &contentProtectionLevel, &session);
if (ret != DRM_OK) {
    // If the creation fails, refer to the DRM interface document and check logs.
    printf("create media key session failed.");
    return;
}
if (session == nullptr) {
    printf("media key session is nullptr.");
    return;
}


// Generate a media key request and set the response to the media key request.


// Set the decryption configuration, that is, set the decryption session and secure video channel flag to the decoder.
// If the DRM scheme supports a secure video channel, set secureVideoPath to true and create a secure decoder before using the channel.
// That is, in step 2, call OH_VideoDecoder_CreateByName, with a decoder name followed by .secure (for example, [CodecName].secure) passed in, to create a secure decoder.
bool secureVideoPath = false;
ret = OH_VideoDecoder_SetDecryptionConfig(videoDec, session, secureVideoPath);

  5. Call OH_VideoDecoder_Configure() to configure the decoder.

    For details about the configurable options, see Video Dedicated Key-Value Paris.

    For details about the parameter verification rules, see OH_VideoDecoder_Configure().

    The parameter value ranges can be obtained through the capability query interface. For details, see Obtaining Supported Codecs.

    Currently, the following options must be configured for all supported formats: video frame width, video frame height, and video pixel format.



OH_AVFormat *format = OH_AVFormat_Create();
// Set the format.
OH_AVFormat_SetIntValue (format, OH_MD_KEY_WIDTH, width); // Mandatory.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_HEIGHT, height); // Mandatory.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_PIXEL_FORMAT, pixelFormat);
// (Optional) Configure low-latency decoding.
// If supported by the platform, the video decoder outputs frames in the decoding sequence when OH_MD_KEY_VIDEO_ENABLE_LOW_LATENCY is enabled.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_VIDEO_ENABLE_LOW_LATENCY, 1);
// Configure the decoder.
int32_t ret = OH_VideoDecoder_Configure(videoDec, format);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
OH_AVFormat_Destroy(format);

  6. Set the surface.

    You can obtain NativeWindow in either of the following ways:

    6.1 If the image is directly displayed after being decoded, obtain NativeWindow from the XComponent.

    Add the header files.

    #include <native_window/external_window.h>

    Link the dynamic library in the CMake script.

    target_link_libraries(sample PUBLIC libnative_window.so)

    6.1.1 On ArkTS, call getXComponentSurfaceId of the xComponentController to obtain the surface ID of the XComponent. For details about the operation, see Custom Rendering (XComponent).

    6.1.2 On the native side, call OH_NativeWindow_CreateNativeWindowFromSurfaceId to create a NativeWindow instance.

    OHNativeWindow* nativeWindow;
// Create a NativeWindow instance based on the surface ID obtained in step 1.1.
OH_NativeWindow_CreateNativeWindowFromSurfaceId(surfaceId, nativeWindow);

    6.2 If OpenGL post-processing is performed after decoding, obtain NativeWindow from NativeImage. For details about the operation, see NativeImage.

    You perform this step during decoding, that is, dynamically switch the surface.

    // Set the surface.
// Set the window parameters.
int32_t ret = OH_VideoDecoder_SetSurface(videoDec, nativeWindow); // Obtain a NativeWindow instance using either of the preceding methods.
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Configure the matching mode between the video and screen. (Scale the buffer at the original aspect ratio to enable the smaller side of the buffer to match the window, while making the excess part transparent.)
OH_NativeWindow_NativeWindowSetScalingModeV2(nativeWindow, OH_SCALING_MODE_SCALE_CROP_V2);

    NOTE

    If both decoder 1 and decoder 2 are bound to the same NativeWindow using the OH_VideoDecoder_SetSurface function, and decoder 2 is running, destroying decoder 1 with OH_VideoDecoder_Destroy will cause decoder 2’s video playback to freeze.

    Consider the following approaches: 1. Wait for decoder 1 to be fully released before starting decoder 2 with OH_VideoDecoder_Start. 2. Use surface 1 for decoder 1, and create a temporary surface for decoder 2 using OH_ConsumerSurface_Create. Once decoder 1 is released, bind decoder 2 to surface 1 using OH_VideoDecoder_SetSurface. For details, see Concurrently Creating a Video Decoder and Initializing NativeWindow.

  7. Call OH_VideoDecoder_Prepare() to prepare internal resources for the decoder.

    int32_t ret = OH_VideoDecoder_Prepare(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  8. Call OH_VideoDecoder_Start() to start the decoder.

    // Start the decoder.
int32_t ret = OH_VideoDecoder_Start(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  9. (Optional) Call OH_VideoDecoder_SetParameter() to set the surface parameters of the decoder.

    For details about the configurable options, see Video Dedicated Key-Value Paris.

    OH_AVFormat *format = OH_AVFormat_Create();
// Configure the display rotation angle.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_ROTATION, 90);
int32_t ret = OH_VideoDecoder_SetParameter(videoDec, format);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
OH_AVFormat_Destroy(format);

  10. (Optional) Call OH_AVCencInfo_SetAVBuffer() to set the Common Encryption Scheme (CENC) information.

    If the program to play is DRM encrypted and the application implements media demultiplexing instead of using the system’s demuxer, you must call OH_AVCencInfo_SetAVBuffer() to set the CENC information to the AVBuffer. In this way, the AVBuffer carries the data to be decrypted and CENC information, so that the media data in the AVBuffer can be decrypted. You do not need to call this API when the application uses the system’s demuxer.

    Add the header files.

    #include <multimedia/player_framework/native_cencinfo.h>

    Link the dynamic library in the CMake script.

    target_link_libraries(sample PUBLIC libnative_media_avcencinfo.so)

    In the code snippet below, the following variable is used:

    • buffer: parameter passed by the callback function OnNeedInputBuffer. c++ uint32_t keyIdLen = DRM_KEY_ID_SIZE; uint8_t keyId[] = { 0xd4, 0xb2, 0x01, 0xe4, 0x61, 0xc8, 0x98, 0x96, 0xcf, 0x05, 0x22, 0x39, 0x8d, 0x09, 0xe6, 0x28}; uint32_t ivLen = DRM_KEY_IV_SIZE; uint8_t iv[] = { 0xbf, 0x77, 0xed, 0x51, 0x81, 0xde, 0x36, 0x3e, 0x52, 0xf7, 0x20, 0x4f, 0x72, 0x14, 0xa3, 0x95}; uint32_t encryptedBlockCount = 0; uint32_t skippedBlockCount = 0; uint32_t firstEncryptedOffset = 0; uint32_t subsampleCount = 1; DrmSubsample subsamples[1] = { {0x10, 0x16} }; // Create a CencInfo instance. OH_AVCencInfo *cencInfo = OH_AVCencInfo_Create(); if (cencInfo == nullptr) { // Handle exceptions. } // Set the decryption algorithm. OH_AVErrCode errNo = OH_AVCencInfo_SetAlgorithm(cencInfo, DRM_ALG_CENC_AES_CTR); if (errNo != AV_ERR_OK) { // Handle exceptions. } // Set KeyId and Iv. errNo = OH_AVCencInfo_SetKeyIdAndIv(cencInfo, keyId, keyIdLen, iv, ivLen); if (errNo != AV_ERR_OK) { // Handle exceptions. } // Set the sample information. errNo = OH_AVCencInfo_SetSubsampleInfo(cencInfo, encryptedBlockCount, skippedBlockCount, firstEncryptedOffset, subsampleCount, subsamples); if (errNo != AV_ERR_OK) { // Handle exceptions. } // Set the mode. KeyId, Iv, and SubSamples have been set. errNo = OH_AVCencInfo_SetMode(cencInfo, DRM_CENC_INFO_KEY_IV_SUBSAMPLES_SET); if (errNo != AV_ERR_OK) { // Handle exceptions. } // Set CencInfo to the AVBuffer. errNo = OH_AVCencInfo_SetAVBuffer(cencInfo, buffer); if (errNo != AV_ERR_OK) { // Handle exceptions. } // Destroy the CencInfo instance. errNo = OH_AVCencInfo_Destroy(cencInfo); if (errNo != AV_ERR_OK) { // Handle exceptions. }

  11. Call OH_VideoDecoder_PushInputBuffer() to push the stream to the input buffer for decoding.

    In the code snippet below, the following variables are used:

    • buffer: parameter passed by the callback function OnNeedInputBuffer. You can obtain the virtual address of the input stream by calling OH_AVBuffer_GetAddr.
    • index: parameter passed by the callback function OnNeedInputBuffer, which uniquely corresponds to the buffer.
    • size, offset, pts, and frameData: size, offset, timestamp, and frame data. For details about how to obtain such information, see step 9 in Media Data Demultiplexing.
    • flags: type of the buffer flag. For details, see OH_AVCodecBufferFlags.
    std::shared_ptr<CodecBufferInfo> bufferInfo = inQueue.Dequeue();
std::shared_lock<std::shared_mutex> lock(codecMutex);
if (bufferInfo == nullptr||!bufferInfo->isValid) {
    // Handle exceptions.
}
// Write stream data.
uint8_t *addr = OH_AVBuffer_GetAddr(bufferInfo->buffer);
int32_t capcacity = OH_AVBuffer_GetCapacity(bufferInfo->buffer);
if (size > capcacity) {
    // Handle exceptions.
}
memcpy(addr, frameData, size);
// Configure the size, offset, and timestamp of the frame data.
OH_AVCodecBufferAttr info;
info.size = size;
info.offset = offset;
info.pts = pts;
info.flags = flags;
// Write the information to the buffer.
int32_t ret = OH_AVBuffer_SetBufferAttr(bufferInfo->buffer, &info);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Send the data to the input buffer for decoding. index is the index of the buffer.
ret = OH_VideoDecoder_PushInputBuffer(videoDec, bufferInfo->index);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  12. Call OH_VideoDecoder_RenderOutputBuffer() or OH_VideoDecoder_RenderOutputBufferAtTime() to render the data and free the output buffer, or call OH_VideoDecoder_FreeOutputBuffer() to directly free the output buffer.

    In the code snippet below, the following variables are used:

    • index: parameter passed by the callback function OnNewOutputBuffer, which uniquely corresponds to the buffer.
    • buffer: parameter passed by the callback function OnNewOutputBuffer. In surface mode, you cannot obtain the virtual address of the image by calling OH_AVBuffer_GetAddr.
    std::shared_ptr<CodecBufferInfo> bufferInfo = outQueue.Dequeue();
std::shared_lock<std::shared_mutex> lock(codecMutex);
if (bufferInfo == nullptr||!bufferInfo->isValid) {
    // Handle exceptions.
}
// Obtain the decoded information.
OH_AVCodecBufferAttr info;
int32_t ret = OH_AVBuffer_GetBufferAttr(bufferInfo->buffer, &info);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// You can determine the value.
bool isRender;
bool isNeedRenderAtTime;
if (isRender) {
    // Render the data and free the output buffer. index is the index of the buffer.
    if (isNeedRenderAtTime){
        // Obtain the system absolute time, and call renderTimestamp to display the time based on service requirements.
        int64_t renderTimestamp =
            std::chrono::duration_cast<std::chrono::nanoseconds>(std::chrono::high_resolution_clock::now().time_since_epoch()).count();
        ret = OH_VideoDecoder_RenderOutputBufferAtTime(videoDec, bufferInfo->index, renderTimestamp);
    } else {
       ret = OH_VideoDecoder_RenderOutputBuffer(videoDec, bufferInfo->index);
    }


} else {
    // Free the output buffer.
    ret = OH_VideoDecoder_FreeOutputBuffer(videoDec, bufferInfo->index);
}
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

    NOTE

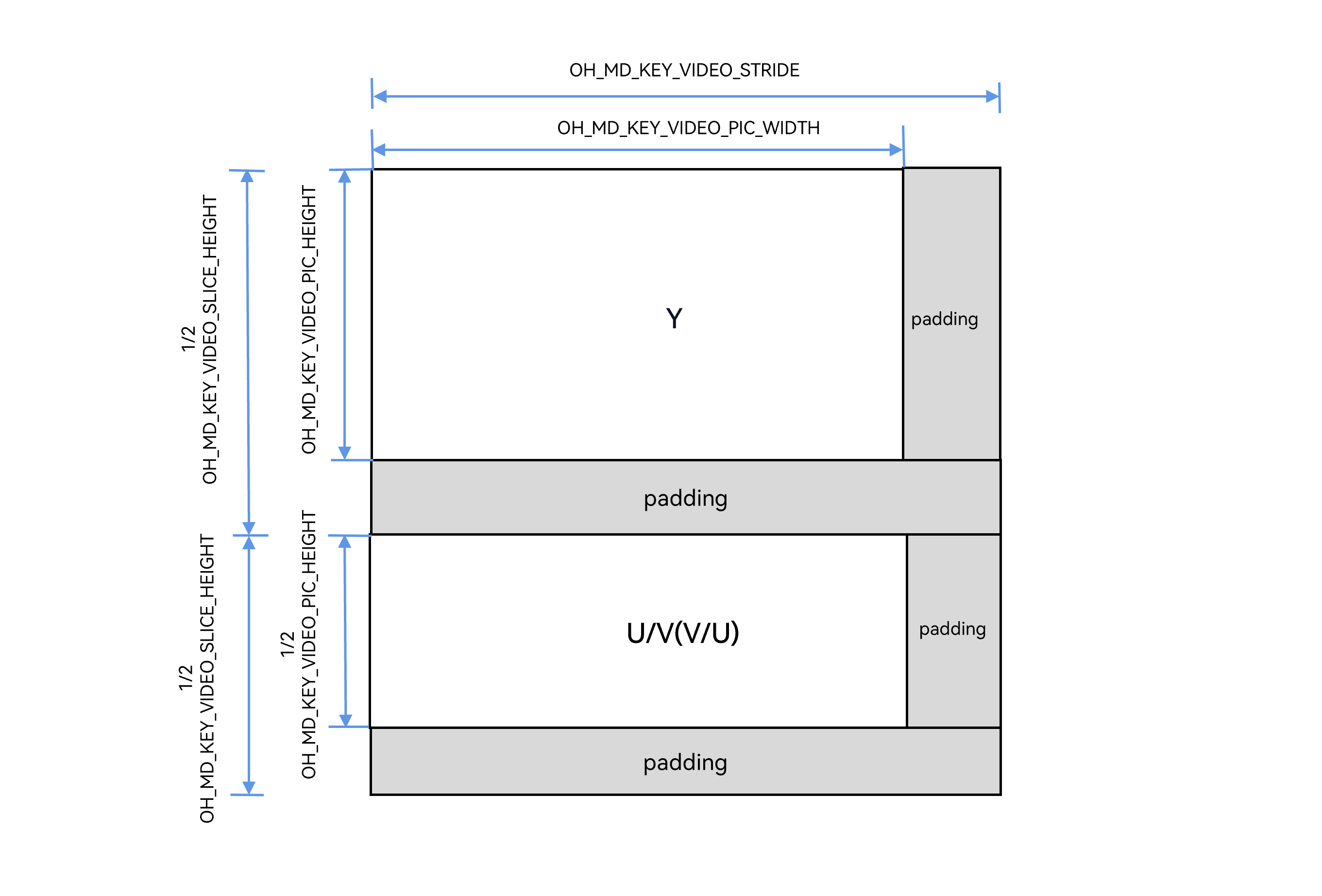

    To obtain the buffer attributes, such as pixel_format and stride, call OH_NativeWindow_NativeWindowHandleOpt.

  13. (Optional) Call OH_VideoDecoder_Flush() to refresh the decoder.

    After OH_VideoDecoder_Flush is called, the decoder remains in the Running state, but the input and output data and parameter set (such as the H.264 PPS/SPS) buffered in the decoder are cleared.

    To continue decoding, you must call OH_VideoDecoder_Start again.

    In the code snippet below, the following variables are used:

    std::unique_lock<std::shared_mutex> lock(codecMutex);
// Refresh the decoder.
int32_t ret = OH_VideoDecoder_Flush(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
inQueue.Flush();
outQueue.Flush();
// Start decoding again.
ret = OH_VideoDecoder_Start(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}


std::shared_ptr<CodecBufferInfo> bufferInfo = outQueue.Dequeue();
if (bufferInfo == nullptr||!bufferInfo->isValid) {
    // Handle exceptions.
}
// Retransfer PPS/SPS.
// Configure the frame PPS/SPS information.
uint8_t *addr = OH_AVBuffer_GetAddr(bufferInfo->buffer);
int32_t capcacity = OH_AVBuffer_GetCapacity(bufferInfo->buffer);
if (xpsSize > capcacity) {
    // Handle exceptions.
}
memcpy(addr, xpsData, xpsSize);
OH_AVCodecBufferAttr info;
info.flags = AVCODEC_BUFFER_FLAG_CODEC_DATA;
// Write the information to the buffer.
ret = OH_AVBuffer_SetBufferAttr(bufferInfo->buffer, &info);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Push the frame data to the decoder. index is the index of the corresponding queue.
ret = OH_VideoDecoder_PushInputBuffer(videoDec, bufferInfo->index);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

    NOTE

    When OH_VideoDecoder_Start s called again after the flush operation, the PPS/SPS must be retransferred.

  14. (Optional) Call OH_VideoDecoder_Reset() to reset the decoder.

    After OH_VideoDecoder_Reset is called, the decoder returns to the Initialized state. To continue decoding, you must call OH_VideoDecoder_Configure, OH_VideoDecoder_SetSurface, and OH_VideoDecoder_Prepare in sequence.

    std::unique_lock<std::shared_mutex> lock(codecMutex);
// Reset the decoder.
int32_t ret = OH_VideoDecoder_Reset(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
inQueue.Flush();
outQueue.Flush();
// Reconfigure the decoder.
ret = OH_VideoDecoder_Configure(videoDec, format);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Reconfigure the surface in surface mode. This is not required in buffer mode.
ret = OH_VideoDecoder_SetSurface(videoDec, nativeWindow);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// The decoder is ready again.
ret = OH_VideoDecoder_Prepare(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  15. (Optional) Call OH_VideoDecoder_Stop() to stop the decoder.

    After OH_VideoDecoder_Stop() is called, the decoder retains the decoding instance and releases the input and output buffers. You can directly call OH_VideoDecoder_Start to continue decoding. The first input buffer must carry the parameter set, starting from the IDR frame.

    std::unique_lock<std::shared_mutex> lock(codecMutex);
// Stop the decoder.
int32_t ret = OH_VideoDecoder_Stop(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
inQueue.Flush();
outQueue.Flush();

  16. Call OH_VideoDecoder_Destroy() to destroy the decoder instance and release resources.

    NOTE

    This API cannot be called in the callback function.

    After the call, you must set a null pointer to the decoder to prevent program errors caused by wild pointers.

    std::unique_lock<std::shared_mutex> lock(codecMutex);
// Release the nativeWindow instance.
if(nativeWindow != nullptr){
    OH_NativeWindow_DestroyNativeWindow(nativeWindow);
    nativeWindow = nullptr;
}
// Call OH_VideoDecoder_Destroy to destroy the decoder.
int32_t ret = AV_ERR_OK;
if (videoDec != nullptr) {
    ret = OH_VideoDecoder_Destroy(videoDec);
    videoDec = nullptr;
}
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
inQueue.Flush();
outQueue.Flush();

Buffer Output

The following walks you through how to implement the entire video decoding process in buffer mode. In this example, an H.264 file is input and decoded into a YUV file. Currently, the VideoDecoder module supports only data rotation in asynchronous mode.

  1. Add the header files.

    #include <multimedia/player_framework/native_avcodec_videodecoder.h>
#include <multimedia/player_framework/native_avcapability.h>
#include <multimedia/player_framework/native_avcodec_base.h>
#include <multimedia/player_framework/native_avformat.h>
#include <multimedia/player_framework/native_avbuffer.h>
#include <native_buffer/native_buffer.h>
#include <fstream>

  2. Create a decoder instance.

    The procedure is the same as that in surface mode and is not described here.

    // To create a decoder by name, call OH_AVCapability_GetName to obtain the codec names available and then call OH_VideoDecoder_CreateByName. If your application has special requirements, for example, expecting a decoder that supports a certain resolution, you can call OH_AVCodec_GetCapability to query the capability first.
OH_AVCapability *capability = OH_AVCodec_GetCapability(OH_AVCODEC_MIMETYPE_VIDEO_AVC, false);
const char *name = OH_AVCapability_GetName(capability);
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByName(name);

    // Create a decoder by MIME type. Only specific codecs recommended by the system can be created in this way.
// If multiple codecs need to be created, create hardware decoder instances first. If the hardware resources are insufficient, create software decoder instances.
// Create an H.264 decoder for software/hardware decoding.
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByMime(OH_AVCODEC_MIMETYPE_VIDEO_AVC);
// Create an H.265 decoder for hardware decoding.
OH_AVCodec *videoDec = OH_VideoDecoder_CreateByMime(OH_AVCODEC_MIMETYPE_VIDEO_HEVC);

  3. Call OH_VideoDecoder_RegisterCallback() to register the callback functions.

    Register the OH_AVCodecCallback struct that defines the following callback function pointers:

    • OH_AVCodecOnError, a callback used to report a codec operation error. For details about the error codes, see OH_AVCodecOnError.
    • OH_AVCodecOnStreamChanged, a callback used to report a codec stream change, for example, stream width or height change.
    • OH_AVCodecOnNeedInputBuffer, a callback used to report input data required, which means that the decoder is ready for receiving data.
    • OH_AVCodecOnNewOutputBuffer, a callback used to report output data generated, which means that decoding is complete.

    You need to process the callback functions to ensure that the decoder runs properly.

    int32_t cropTop = 0;
int32_t cropBottom = 0;
int32_t cropLeft = 0;
int32_t cropRight = 0;
bool isFirstFrame = true;
// Implement the OH_AVCodecOnError callback function.
static void OnError(OH_AVCodec *codec, int32_t errorCode, void *userData)
{
    // Process the error code in the callback.
    (void)codec;
    (void)errorCode;
    (void)userData;
}


// Implement the OH_AVCodecOnStreamChanged callback function.
static void OnStreamChanged(OH_AVCodec *codec, OH_AVFormat *format, void *userData)
{
    // Optional. Configure the data when you want to obtain the video width, height, and stride.
    // The changed video width, height, and stride can be obtained through format.
    (void)codec;
    (void)userData;
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_WIDTH, &width);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_HEIGHT, &height);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_STRIDE, &widthStride);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_SLICE_HEIGHT, &heightStride);
    // (Optional) Obtain the cropped rectangle information.
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_TOP, &cropTop);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_BOTTOM, &cropBottom);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_LEFT, &cropLeft);
    OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_RIGHT, &cropRight);
}


// Implement the OH_AVCodecOnNeedInputBuffer callback function.
static void OnNeedInputBuffer(OH_AVCodec *codec, uint32_t index, OH_AVBuffer *buffer, void *userData)
{
    // The data buffer of the input frame and its index are sent to inQueue.
    (void)codec;
    (void)userData;
    inQueue.Enqueue(std::make_shared<CodecBufferInfo>(index, buffer));
}


// Implement the OH_AVCodecOnNewOutputBuffer callback function.
static void OnNewOutputBuffer(OH_AVCodec *codec, uint32_t index, OH_AVBuffer *buffer, void *userData)
{
    // Optional. Configure the data when you want to obtain the video width, height, and stride.
    // Obtain the video width, height, and stride.
    if (isFirstFrame) {
        OH_AVFormat *format = OH_VideoDecoder_GetOutputDescription(codec);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_WIDTH, &width);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_PIC_HEIGHT, &height);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_STRIDE, &widthStride);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_SLICE_HEIGHT, &heightStride);
        // (Optional) Obtain the cropped rectangle information.
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_TOP, &cropTop);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_BOTTOM, &cropBottom);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_LEFT, &cropLeft);
        OH_AVFormat_GetIntValue(format, OH_MD_KEY_VIDEO_CROP_RIGHT, &cropRight);
        OH_AVFormat_Destroy(format);
        isFirstFrame = false;
    }
    // The data buffer of the finished frame and its index are sent to outQueue.
    (void)userData;
    outQueue.Enqueue(std::make_shared<CodecBufferInfo>(index, buffer));
}
// Call OH_VideoDecoder_RegisterCallback() to register the callback functions.
OH_AVCodecCallback cb = {&OnError, &OnStreamChanged, &OnNeedInputBuffer, &OnNewOutputBuffer};
// Set the asynchronous callbacks.
int32_t ret = OH_VideoDecoder_RegisterCallback(videoDec, cb, nullptr); // nullptr: userData is null.
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

    NOTE

    In the callback functions, pay attention to multi-thread synchronization for operations on the data queue.

  4. (Optional) Call OH_VideoDecoder_SetDecryptionConfig to set the decryption configuration. Call this API after the media key system information is obtained and a media key is obtained but before Prepare() is called. For details about how to obtain such information, see step 4 in Media Data Demultiplexing. In buffer mode, the DRM decryption capability supports only non-secure video channels. For details about DRM APIs, see DRM.

    Add the header files.

    #include <multimedia/drm_framework/native_mediakeysystem.h>
#include <multimedia/drm_framework/native_mediakeysession.h>
#include <multimedia/drm_framework/native_drm_err.h>
#include <multimedia/drm_framework/native_drm_common.h>

    Link the dynamic library in the CMake script.

    target_link_libraries(sample PUBLIC libnative_drm.so)

    The following is the sample code:

    // Create a media key system based on the media key system information. The following uses com.clearplay.drm as an example.
MediaKeySystem *system = nullptr;
int32_t ret = OH_MediaKeySystem_Create("com.clearplay.drm", &system);
if (system == nullptr) {
    printf("create media key system failed");
    return;
}


// Create a media key session.
// To use a non-secure video channel, create a MediaKeySession with the content protection level of CONTENT_PROTECTION_LEVEL_SW_CRYPTO or higher.
MediaKeySession *session = nullptr;
DRM_ContentProtectionLevel contentProtectionLevel = CONTENT_PROTECTION_LEVEL_SW_CRYPTO;
ret = OH_MediaKeySystem_CreateMediaKeySession(system, &contentProtectionLevel, &session);
if (ret != DRM_OK) {
    // If the creation fails, refer to the DRM interface document and check logs.
    printf("create media key session failed.");
    return;
}
if (session == nullptr) {
    printf("media key session is nullptr.");
    return;
}
// Generate a media key request and set the response to the media key request.
// Set the decryption configuration, that is, set the decryption session and secure video channel flag to the decoder.
bool secureVideoPath = false;
ret = OH_VideoDecoder_SetDecryptionConfig(videoDec, session, secureVideoPath);

  5. Call OH_VideoDecoder_Configure() to configure the decoder.

    The procedure is the same as that in surface mode and is not described here.

    OH_AVFormat *format = OH_AVFormat_Create();
// Set the format.
OH_AVFormat_SetIntValue (format, OH_MD_KEY_WIDTH, width); // Mandatory.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_HEIGHT, height); // Mandatory.
OH_AVFormat_SetIntValue(format, OH_MD_KEY_PIXEL_FORMAT, pixelFormat);
// Configure the decoder.
int32_t ret = OH_VideoDecoder_Configure(videoDec, format);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
OH_AVFormat_Destroy(format);

  6. Call OH_VideoDecoder_Prepare() to prepare internal resources for the decoder.

    int32_t ret = OH_VideoDecoder_Prepare(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  7. Call OH_VideoDecoder_Start() to start the decoder.

    std::unique_ptr<std::ofstream> outputFile = std::make_unique<std::ofstream>();
outputFile->open("/*yourpath*.yuv", std::ios::out|std::ios::binary|std::ios::ate);
// Start the decoder.
int32_t ret = OH_VideoDecoder_Start(videoDec);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  8. (Optional) Call OH_VideoDecoder_SetParameter() to set the decoder parameters. For details about the configurable options, see Video Dedicated Key-Value Paris.

    OH_AVFormat *format = OH_AVFormat_Create();
// Set the frame rate.
OH_AVFormat_SetDoubleValue(format, OH_MD_KEY_FRAME_RATE, 30.0);
int32_t ret = OH_VideoDecoder_SetParameter(videoDec, format);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
OH_AVFormat_Destroy(format);

  9. (Optional) Call OH_AVCencInfo_SetAVBuffer() to set the CENC information.

    The procedure is the same as that in surface mode and is not described here.

    The following is the sample code:

    uint32_t keyIdLen = DRM_KEY_ID_SIZE;
uint8_t keyId[] = {
    0xd4, 0xb2, 0x01, 0xe4, 0x61, 0xc8, 0x98, 0x96,
    0xcf, 0x05, 0x22, 0x39, 0x8d, 0x09, 0xe6, 0x28};
uint32_t ivLen = DRM_KEY_IV_SIZE;
uint8_t iv[] = {
    0xbf, 0x77, 0xed, 0x51, 0x81, 0xde, 0x36, 0x3e,
    0x52, 0xf7, 0x20, 0x4f, 0x72, 0x14, 0xa3, 0x95};
uint32_t encryptedBlockCount = 0;
uint32_t skippedBlockCount = 0;
uint32_t firstEncryptedOffset = 0;
uint32_t subsampleCount = 1;
DrmSubsample subsamples[1] = { {0x10, 0x16} };
// Create a CencInfo instance.
OH_AVCencInfo *cencInfo = OH_AVCencInfo_Create();
if (cencInfo == nullptr) {
    // Handle exceptions.
}
// Set the decryption algorithm.
OH_AVErrCode errNo = OH_AVCencInfo_SetAlgorithm(cencInfo, DRM_ALG_CENC_AES_CTR);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}
// Set KeyId and Iv.
errNo = OH_AVCencInfo_SetKeyIdAndIv(cencInfo, keyId, keyIdLen, iv, ivLen);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}
// Set the sample information.
errNo = OH_AVCencInfo_SetSubsampleInfo(cencInfo, encryptedBlockCount, skippedBlockCount, firstEncryptedOffset,
    subsampleCount, subsamples);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}
// Set the mode. KeyId, Iv, and SubSamples have been set.
errNo = OH_AVCencInfo_SetMode(cencInfo, DRM_CENC_INFO_KEY_IV_SUBSAMPLES_SET);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}
// Set CencInfo to the AVBuffer.
errNo = OH_AVCencInfo_SetAVBuffer(cencInfo, buffer);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}
// Destroy the CencInfo instance.
errNo = OH_AVCencInfo_Destroy(cencInfo);
if (errNo != AV_ERR_OK) {
    // Handle exceptions.
}

  10. Call OH_VideoDecoder_PushInputBuffer() to push the stream to the input buffer for decoding.

    The procedure is the same as that in surface mode and is not described here.

    std::shared_ptr<CodecBufferInfo> bufferInfo = inQueue.Dequeue();
std::shared_lock<std::shared_mutex> lock(codecMutex);
if (bufferInfo == nullptr||!bufferInfo->isValid) {
    // Handle exceptions.
}
// Write stream data.
uint8_t *addr = OH_AVBuffer_GetAddr(bufferInfo->buffer);
int32_t capcacity = OH_AVBuffer_GetCapacity(bufferInfo->buffer);
if (size > capcacity) {
    // Handle exceptions.
}
memcpy(addr, frameData, size);
// Configure the size, offset, and timestamp of the frame data.
OH_AVCodecBufferAttr info;
info.size = size;
info.offset = offset;
info.pts = pts;
info.flags = flags;
// Write the information to the buffer.
ret = OH_AVBuffer_SetBufferAttr(bufferInfo->buffer, &info);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Send the data to the input buffer for decoding. index is the index of the buffer.
int32_t ret = OH_VideoDecoder_PushInputBuffer(videoDec, bufferInfo->index);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

  11. Call OH_VideoDecoder_FreeOutputBuffer() to release decoded frames.

    In the code snippet below, the following variables are used:

    • index: parameter passed by the callback function OnNewOutputBuffer, which uniquely corresponds to the buffer.
    • buffer: parameter passed by the callback function OnNewOutputBuffer. You can obtain the virtual address of an image by calling OH_AVBuffer_GetAddr.
    std::shared_ptr<CodecBufferInfo> bufferInfo = outQueue.Dequeue();
std::shared_lock<std::shared_mutex> lock(codecMutex);
if (bufferInfo == nullptr||!bufferInfo->isValid) {
    // Handle exceptions.
}
// Obtain the decoded information.
OH_AVCodecBufferAttr info;
int32_t ret = OH_AVBuffer_GetBufferAttr(bufferInfo->buffer, &info);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}
// Write the decoded data (specified by data) to the output file.
outputFile->write(reinterpret_cast<char *>(OH_AVBuffer_GetAddr(bufferInfo->buffer)), info.size);
// Free the buffer that stores the output data. index is the index of the buffer.
ret = OH_VideoDecoder_FreeOutputBuffer(videoDec, bufferInfo->index);
if (ret != AV_ERR_OK) {
    // Handle exceptions.
}

    To copy the Y, U, and V components of an NV12 or NV21 image to another buffer in sequence, perform the following steps (taking an NV12 image as an example),

    presenting the image layout of width, height, wStride, and hStride.

    • OH_MD_KEY_VIDEO_PIC_WIDTH corresponds to width.
    • OH_MD_KEY_VIDEO_PIC_HEIGHT corresponds to height.
    • OH_MD_KEY_VIDEO_STRIDE corresponds to wStride.
    • OH_MD_KEY_VIDEO_SLICE_HEIGHT corresponds to hStride.

    copy by line

    Add the header files.

    #include <string.h>

    The following is the sample code:

    // Obtain the width and height of the source buffer by using the callback function OnStreamChanged or OH_VideoDecoder_GetOutputDescription.
struct Rect
{
    int32_t width;
    int32_t height;
};


struct DstRect // Width, height, and stride of the destination buffer. They are set by the caller.
{
    int32_t wStride;
    int32_t hStride;
};
// Obtain the width, height, and stride of the source buffer by using the callback function OnStreamChanged or OH_VideoDecoder_GetOutputDescription.
struct SrcRect
{
    int32_t wStride;
    int32_t hStride;
};


Rect rect = {320, 240};
DstRect dstRect = {320, 240};
SrcRect srcRect = {320, 256};
uint8_t* dst = new uint8_t[dstRect.hStride * dstRect.wStride * 3 / 2]; // Pointer to the target memory area.
uint8_t* src = new uint8_t[srcRect.hStride * srcRect.wStride * 3 / 2]; // Pointer to the source memory area.
uint8_t* dstTemp = dst;
uint8_t* srcTemp = src;


// Y: Copy the source data in the Y region to the target data in another region.
for (int32_t i = 0; i < rect.height; ++i) {
    // Copy a row of data from the source to a row of the target.
    memcpy(dstTemp, srcTemp, rect.width);
    // Update the pointers to the source data and target data to copy the next row. The pointers to the source data and target data are moved downwards by one wStride each time the source data and target data are updated.
    dstTemp += dstRect.wStride;
    srcTemp += srcRect.wStride;
}
// Padding.
// Update the pointers to the source data and target data. The pointers move downwards by one padding.
dstTemp += (dstRect.hStride - rect.height) * dstRect.wStride;
srcTemp += (srcRect.hStride - rect.height) * srcRect.wStride;
rect.height >>= 1;
// UV: Copy the source data in the UV region to the target data in another region.
for (int32_t i = 0; i < rect.height; ++i) {
    memcpy(dstTemp, srcTemp, rect.width);
    dstTemp += dstRect.wStride;
    srcTemp += srcRect.wStride;
}


delete[] dst;
dst = nullptr;
delete[] src;
src = nullptr;

    When processing buffer data (before releasing data) during hardware decoding, the output callback AVBuffer receives the image data after width and height alignment. Generally, copy the image width, height, stride, and pixel format to ensure correct processing of the decoded data. For details, see step 3 in Buffer Output.

The subsequent processes (including refreshing, resetting, stopping, and destroying the decoder) are basically the same as those in surface mode. For details, see steps 13-16 in Surface Output.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙AVCodec Kit

harmony 鸿蒙Audio Decoding

harmony 鸿蒙Audio Encoding

harmony 鸿蒙Media Data Demultiplexing

harmony 鸿蒙Media Data Multiplexing

harmony 鸿蒙Introduction to AVCodec Kit

harmony 鸿蒙AVCodec Supported Formats

harmony 鸿蒙Obtaining Supported Codecs

harmony 鸿蒙Concurrently Creating a Video Decoder and Initializing NativeWindow

harmony 鸿蒙Video Encoding Configurations for Typical Scenarios

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/q8TpQK
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
