Stepper

The <Stepper> component provides a step navigator.

NOTE

This component is supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

Only the child component <StepperItem> is supported.

APIs

Stepper(value?: { index?: number })

Parameters

Name Type Mandatory Description
index number No Index of the <StepperItem> that is currently displayed.
Default value: 0
Since API version 10, this parameter supports $$ for two-way binding of variables.

Attributes

None

Events

Name Description
onFinish(callback: () =&gt; void) Invoked when the nextLabel of the last <StepperItem> in the <Stepper> is clicked and the ItemState attribute is set to Normal.
onSkip(callback: () =&gt; void) Invoked when the current <StepperItem> is ItemState.Skip and the nextLabel is clicked.
onChange(callback: (prevIndex?: number, index?: number) =&gt; void) Invoked when the prevLabel of the current <StepperItem> is clicked to switch to the previous step page; or when the nextLabel of the current (not the last) <StepperItem> is clicked to switch to the next step page and the ItemState attribute is set to Normal.
- prevIndex: index of the step page before the switching.
- index: index of the step page after the switching, that is, index of the previous or next step page.
onNext(callback: (index?: number, pendingIndex?: number) =&gt; void) Invoked when the nextLabel of the current (not the last) <StepperItem> is clicked and the ItemState attribute is set to Normal.
- index: index of the current step page.
- pendingIndex: index of the next step page.
onPrevious(callback: (index?: number, pendingIndex?: number) =&gt; void) Invoked when the prevLabel of the current <StepperItem> is clicked to switch to the previous step page.
- index: index of the current step page.
- pendingIndex: index of the previous step page.

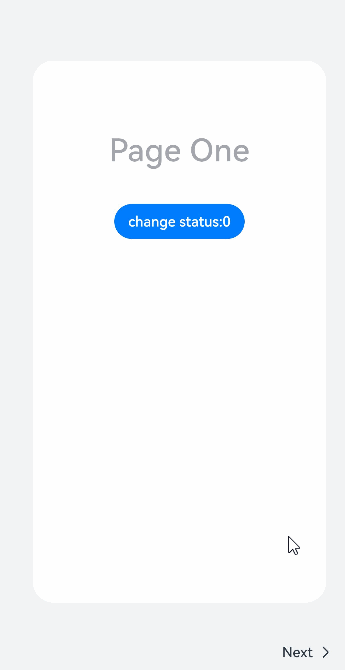

Example

// xxx.ets
@Styles function itemStyle () {
  .width(336)
  .height(621)
  .margin({ top: 48, left: 12 })
  .borderRadius(24)
  .backgroundColor('#FFFFFF')
}

@Extend(Text) function itemTextStyle () {
  .fontColor('#182431')
  .fontSize(36)
  .fontWeight(500)
  .opacity(0.4)
  .margin({ top: 82, bottom: 40 })
}

@Entry
@Component
struct StepperExample {
  @State currentIndex: number = 0
  @State firstState: ItemState = ItemState.Normal
  @State secondState: ItemState = ItemState.Normal
  @State thirdState: ItemState = ItemState.Normal

  build() {
    Stepper({
      index: this.currentIndex
    }) {
      // First step page
      StepperItem() {
        Column() {
          Text('Page One')
            .itemTextStyle()
          Button('change status:' + this.firstState)
            .backgroundColor('#007dFF')
            .onClick(() => {
              this.firstState = this.firstState === ItemState.Skip ? ItemState.Normal : ItemState.Skip
            })
        }.itemStyle()
      }
      .nextLabel('Next')
      .status(this.firstState)
      // Second step page
      StepperItem() {
        Column() {
          Text('Page Two')
            .itemTextStyle()
          Button('change status:' + this.secondState)
            .backgroundColor('#007dFF')
            .onClick(() => {
              this.secondState = this.secondState === ItemState.Disabled ? ItemState.Normal : ItemState.Disabled
            })
        }.itemStyle()
      }
      .nextLabel('Next')
      .prevLabel('Previous')
      .status(this.secondState)
      // Third step page
      StepperItem() {
        Column() {
          Text('Page Three')
            .itemTextStyle()
          Button('change status:' + this.thirdState)
            .backgroundColor('#007dFF')
            .onClick(() => {
              this.thirdState = this.thirdState === ItemState.Waiting ? ItemState.Normal : ItemState.Waiting
            })
        }.itemStyle()
      }
      .status(this.thirdState)
      // Fourth step page
      StepperItem() {
        Column() {
          Text('Page Four')
            .itemTextStyle()
        }.itemStyle()
      }
    }
    .backgroundColor('#F1F3F5')
    .onFinish(() => {
      // Define the processing logic for when Finish on the last page is clicked, for example, redirection.
      console.info('onFinish')
    })
    .onSkip(() => {
      // Define the processing logic for when Skip on the page is clicked, for example, dynamically changing the index of the <Stepper> to redirect to a specific step.
      console.info('onSkip')
    })
    .onChange((prevIndex?: number, index?: number) => {
      if(index){
        this.currentIndex = index
      }
    })
  }
}

stepper
