SDIO

Overview

Secure Digital Input/Output (SDIO) is a peripheral interface evolved from the Secure Digital (SD) memory card interface. The SDIO interface is compatible with SD memory cards and can be connected to devices that support the SDIO interface.

SDIO is widely used. Currently, many smartphones support SDIO, and many SDIO peripherals are developed for connections to smartphones. Common SDIO peripherals include WLAN, GPS, cameras, and Bluetooth.

The SDIO bus has two ends, named host and device. All communication starts when the host sends a command. The device can communicate with the host as long as it can parse the command of the host. An SDIO host can connect to multiple devices, as shown in the figure below. - CLK signal: clock signal sent from the host to the device - VDD signal: power signal - VSS signal: ground signal - D0-3 signal: four data lines. The DAT1 signal cable is multiplexed as the interrupt line. In 1-bit mode, DAT0 is used to transmit data. In 4-bit mode, DAT0 to DAT3 are used to transmit data. - CMD signal: used by the host to send commands and the device to respond to commands.

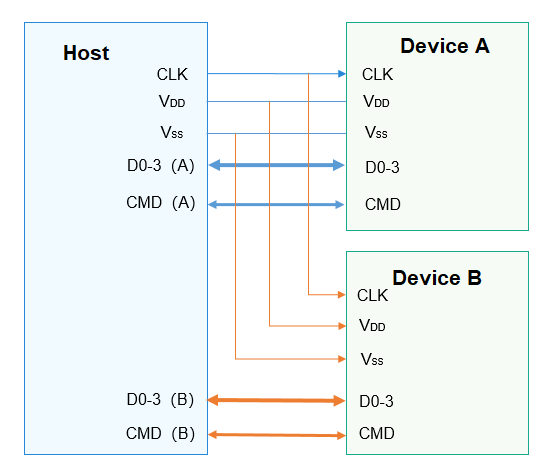

Figure 1 Connections between the host and devices in SDIO

The SDIO interface defines a set of common methods for operating an SDIO device, including opening and closing an SDIO controller, exclusively claiming and releasing the host, enabling and disabling devices, claiming and releasing an SDIO IRQ, reading and writing data based on SDIO, and obtaining and setting common information.

Available APIs

Table 1 APIs available for the SDIO driver

NOTE:
All functions provided in this document can be called only in kernel mode.

Usage Guidelines

How to Use

The figure below illustrates how to use the APIs.

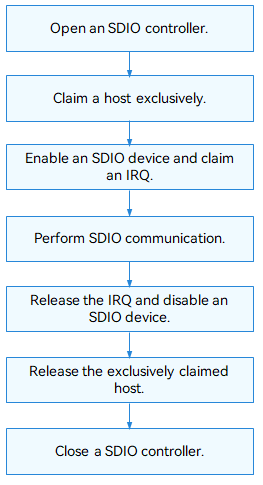

Figure 2 Using SDIO driver APIs

Opening an SDIO Controller

Before performing SDIO communication, obtain the device handle of an SDIO controller by calling SdioOpen. This function returns the device handle of the SDIO controller with a specified bus number.

DevHandle SdioOpen(int16_t mmcBusNum, struct SdioFunctionConfig *config);

Table 2 Parameters and return values of SdioOpen

The following example shows how to open an SDIO controller.

DevHandle handle = NULL;
struct SdioFunctionConfig config;
config.funcNr = 1;
config.vendorId = 0x123;
config.deviceId = 0x456;
/* Open an SDIO controller whose bus number is 1. */
handle = SdioOpen(1, &config);
if (handle == NULL) {
    HDF_LOGE("SdioOpen: failed!\n");
}

Claiming a Host Exclusively

After obtaining the device handle of an SDIO controller, exclusively claim the host before performing subsequent operations on the SDIO device.

void SdioClaimHost(DevHandle handle);

Table 3 Parameter description of SdioClaimHost

The following example shows how to exclusively claim a host.

SdioClaimHost(handle); /* Claim a host exclusively. */

Enabling the SDIO Device

Before accessing a register, enable the SDIO device.

int32_t SdioEnableFunc(DevHandle handle);

Table 4 Parameters and return values of SdioEnableFunc

The following example shows how to enable the SDIO device.

int32_t ret;
/* Enable the SDIO device. */
ret = SdioEnableFunc(handle);
if (ret != 0) {
    HDF_LOGE("SdioEnableFunc: failed, ret %d\n", ret);
}

Claiming an SDIO IRQ

Before SDIO communication, claim an SDIO IRQ.

int32_t SdioClaimIrq(DevHandle handle, SdioIrqHandler *handler);

Table 5 Parameters and return values of SdioClaimIrq

The following example shows how to claim an SDIO IRQ.

/* Implement the SDIO IRQ function based on the application. */
static void SdioIrqFunc(void *data)
{
    if (data == NULL) {
        HDF_LOGE("SdioIrqFunc: data is NULL.\n");
        return;
    }
    /* You need to add specific implementations. */
}

int32_t ret;
/* Claim an SDIO IRQ. */
ret = SdioClaimIrq(handle, SdioIrqFunc);
if (ret != 0) {
    HDF_LOGE("SdioClaimIrq: failed, ret %d\n", ret);
}

Performing SDIO Communication

• Incrementally write a given length of data into the SDIO device.

The corresponding function is as follows:

int32_t SdioWriteBytes(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size);

Table 6 Parameters and return values of SdioWriteBytes

The following example shows how to incrementally write a given length of data into the SDIO device.

int32_t ret;
uint8_t wbuff[] = {1,2,3,4,5};
uint32_t addr = 0x100 + 0x09;
/* Incrementally write 5-byte data into the start address 0x109 of the SDIO device. */
ret = SdioWriteBytes(handle, wbuff, addr, sizeof(wbuff) / sizeof(wbuff[0]));
if (ret != 0) {
    HDF_LOGE("SdioWriteBytes: failed, ret %d\n", ret);
}

• Incrementally read a given length of data from the SDIO device.

The corresponding function is as follows:

int32_t SdioReadBytes(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size);

Table 7 Parameters and return values of SdioReadBytes

The following example shows how to incrementally read a given length of data from the SDIO device.

int32_t ret;
uint8_t rbuff[5] = {0};
uint32_t addr = 0x100 + 0x09;
/* Incrementally read 5-byte data from the start address 0x109 of the SDIO device. */
ret = SdioReadBytes(handle, rbuff, addr, 5);
if (ret != 0) {
    HDF_LOGE("SdioReadBytes: failed, ret %d\n", ret);
}

• Write a given length of data into the fixed address of an SDIO device.

  The corresponding function is as follows:

  int32_t SdioWriteBytesToFixedAddr(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size, uint32_t scatterLen);

Table 8 Parameters and return values of SdioWriteBytesToFixedAddr

<a name="table1982918113010"></a>
<table><thead align="left"><tr id="row1582911114010"><th class="cellrowborder" valign="top" width="48.43%" id="mcps1.2.3.1.1"><p id="p28301411903"><a name="p28301411903"></a><a name="p28301411903"></a>Parameter</p>
</th>
<th class="cellrowborder" valign="top" width="51.57000000000001%" id="mcps1.2.3.1.2"><p id="p1883019111018"><a name="p1883019111018"></a><a name="p1883019111018"></a>Description</p>
</th>
</tr>
</thead>
<tbody><tr id="row10830141111014"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p470818551018"><a name="p470818551018"></a><a name="p470818551018"></a>handle</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p18578510518"><a name="p18578510518"></a><a name="p18578510518"></a>Device handle of an SDIO controller.</p>
</td>
</tr>
<tr id="row48303111304"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p127081955502"><a name="p127081955502"></a><a name="p127081955502"></a>data</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p1857841013110"><a name="p1857841013110"></a><a name="p1857841013110"></a>Pointer to the data to write.</p>
</td>
</tr>
<tr id="row9830111119019"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p187085555011"><a name="p187085555011"></a><a name="p187085555011"></a>addr</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p257831016115"><a name="p257831016115"></a><a name="p257831016115"></a>Fixed address where the data is written into.</p>
</td>
</tr>
<tr id="row683091120012"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p370819555013"><a name="p370819555013"></a><a name="p370819555013"></a>size</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p7578181015113"><a name="p7578181015113"></a><a name="p7578181015113"></a>Length of the data to write.</p>
</td>
</tr>
<tr id="row58301911309"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p570810551107"><a name="p570810551107"></a><a name="p570810551107"></a>scatterLen</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p17579910915"><a name="p17579910915"></a><a name="p17579910915"></a>Length of the scatter list. If the value is not <strong id="b107381713254"><a name="b107381713254"></a><a name="b107381713254"></a>0</strong>, the data is of the scatter list type.</p>
</td>
</tr>
<tr id="row18215162810212"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p1521319452211"><a name="p1521319452211"></a><a name="p1521319452211"></a><strong id="b648472113017"><a name="b648472113017"></a><a name="b648472113017"></a>Return Value</strong></p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p162138457217"><a name="p162138457217"></a><a name="p162138457217"></a><strong id="b1277682210016"><a name="b1277682210016"></a><a name="b1277682210016"></a>Description</strong></p>
</td>
</tr>
<tr id="row2197123118210"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p1921413451212"><a name="p1921413451212"></a><a name="p1921413451212"></a>0</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p32146451624"><a name="p32146451624"></a><a name="p32146451624"></a>Data is written into the SDIO device.</p>
</td>
</tr>
<tr id="row18629103314218"><td class="cellrowborder" valign="top" width="48.43%" headers="mcps1.2.3.1.1 "><p id="p132141245622"><a name="p132141245622"></a><a name="p132141245622"></a>Negative value</p>
</td>
<td class="cellrowborder" valign="top" width="51.57000000000001%" headers="mcps1.2.3.1.2 "><p id="p17214345328"><a name="p17214345328"></a><a name="p17214345328"></a>Failed to write data into the SDIO device.</p>
</td>
</tr>
</tbody>
</table>

The following example shows how to write a given length of data into the fixed address of an SDIO device.

```
int32_t ret;
uint8_t wbuff[] = {1, 2, 3, 4, 5};
uint32_t addr = 0x100 + 0x09;
/* Write 5-byte data into the fixed address 0x109 of the SDIO device. */
ret = SdioWriteBytesToFixedAddr(handle, wbuff, addr, sizeof(wbuff) / sizeof(wbuff[0]), 0);
if (ret != 0) {
    HDF_LOGE("SdioWriteBytesToFixedAddr: failed, ret %d\n", ret);
}
```

• Read a given length of data from the fixed address of an SDIO device.

  The corresponding function is as follows:

  int32_t SdioReadBytesFromFixedAddr(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size, uint32_t scatterLen);

Table 9 Parameters and return values of SdioReadBytesFromFixedAddr

<a name="table2724132220115"></a>
<table><thead align="left"><tr id="row8724142214115"><th class="cellrowborder" valign="top" width="48.699999999999996%" id="mcps1.2.3.1.1"><p id="p16752055131112"><a name="p16752055131112"></a><a name="p16752055131112"></a>Parameter</p>
</th>
<th class="cellrowborder" valign="top" width="51.300000000000004%" id="mcps1.2.3.1.2"><p id="p914434191218"><a name="p914434191218"></a><a name="p914434191218"></a>Description</p>
</th>
</tr>
</thead>
<tbody><tr id="row1372462214119"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p2752175516113"><a name="p2752175516113"></a><a name="p2752175516113"></a>handle</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p1353155020125"><a name="p1353155020125"></a><a name="p1353155020125"></a>Device handle of an SDIO controller.</p>
</td>
</tr>
<tr id="row197244220117"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p12752165581117"><a name="p12752165581117"></a><a name="p12752165581117"></a>data</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p9540508121"><a name="p9540508121"></a><a name="p9540508121"></a>Pointer to the data to read.</p>
</td>
</tr>
<tr id="row172519228116"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p1675315521120"><a name="p1675315521120"></a><a name="p1675315521120"></a>addr</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p05415501125"><a name="p05415501125"></a><a name="p05415501125"></a>Start address where the data is read from.</p>
</td>
</tr>
<tr id="row137251922131117"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p47531355111111"><a name="p47531355111111"></a><a name="p47531355111111"></a>size</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p1954165031214"><a name="p1954165031214"></a><a name="p1954165031214"></a>Length of the data to read.</p>
</td>
</tr>
<tr id="row972552281111"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p2753755161114"><a name="p2753755161114"></a><a name="p2753755161114"></a>scatterLen</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p3541350111218"><a name="p3541350111218"></a><a name="p3541350111218"></a>Length of the scatter list. If the value is not <strong id="b498517146511"><a name="b498517146511"></a><a name="b498517146511"></a>0</strong>, the data is of the scatter list type.</p>
</td>
</tr>
<tr id="row15725162210117"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p681073451314"><a name="p681073451314"></a><a name="p681073451314"></a><strong id="b144852215014"><a name="b144852215014"></a><a name="b144852215014"></a>Return Value</strong></p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p17810134121316"><a name="p17810134121316"></a><a name="p17810134121316"></a><strong id="b127776221003"><a name="b127776221003"></a><a name="b127776221003"></a>Description</strong></p>
</td>
</tr>
<tr id="row1772511227119"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p78105346133"><a name="p78105346133"></a><a name="p78105346133"></a>0</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p18810173411312"><a name="p18810173411312"></a><a name="p18810173411312"></a>Data is read from the SDIO device.</p>
</td>
</tr>
<tr id="row191829161138"><td class="cellrowborder" valign="top" width="48.699999999999996%" headers="mcps1.2.3.1.1 "><p id="p1581012340131"><a name="p1581012340131"></a><a name="p1581012340131"></a>Negative value</p>
</td>
<td class="cellrowborder" valign="top" width="51.300000000000004%" headers="mcps1.2.3.1.2 "><p id="p28101834161317"><a name="p28101834161317"></a><a name="p28101834161317"></a>Failed to read data from the SDIO device.</p>
</td>
</tr>
</tbody>
</table>

The following example shows how to read a given length of data from the fixed address of an SDIO device.

```
int32_t ret;
uint8_t rbuff[5] = {0};
uint32_t addr = 0x100 + 0x09;
/* Read 5-byte data from the fixed address 0x109 of the SDIO device. */
ret = SdioReadBytesFromFixedAddr(handle, rbuff, addr, 5, 0);
if (ret != 0) {
    HDF_LOGE("SdioReadBytesFromFixedAddr: failed, ret %d\n", ret);
}
```

• Writes a given length of data into the address space of SDIO function 0.

Currently, only 1-byte data can be written. The corresponding function is as follows:

int32_t SdioWriteBytesToFunc0(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size);

Table 10 Parameters and return values of SdioWriteBytesToFunc0

The following example shows how to write a given length of data into the address space of SDIO function 0.

int32_t ret;
uint8_t wbuff = 1;
/* Write 1-byte data into the address 0x2 of SDIO function 0. */
ret = SdioWriteBytesToFunc0(handle, &wbuff, 0x2, 1);
if (ret != 0) {
    HDF_LOGE("SdioWriteBytesToFunc0: failed, ret %d\n", ret);
}

• Reads a given length of data from the address space of SDIO function 0.

Currently, only 1-byte data can be read. The corresponding function is as follows:

int32_t SdioReadBytesFromFunc0(DevHandle handle, uint8_t *data, uint32_t addr, uint32_t size);

Table 11 Parameters and return values of SdioReadBytesFromFunc0

The following example shows how to read a given length of data from the address space of SDIO function 0.

int32_t ret;
uint8_t rbuff;
/* Read 1-byte data from the address 0x2 of SDIO function 0. */
ret = SdioReadBytesFromFunc0(handle, &rbuff, 0x2, 1);
if (ret != 0) {
    HDF_LOGE("SdioReadBytesFromFunc0: failed, ret %d\n", ret);
}

Releasing the SDIO IRQ

After the SDIO communication, release the SDIO IRQ.

int32_t SdioReleaseIrq(DevHandle handle);

Table 12 Parameters and return values of SdioReleaseIrq

The following example shows how to release the SDIO IRQ.

int32_t ret;
/* Release the SDIO IRQ. */
ret = SdioReleaseIrq(handle);
if (ret != 0) {
    HDF_LOGE("SdioReleaseIrq: failed, ret %d\n", ret);
}

Disabling the SDIO Device

After the SDIO communication, disable the SDIO device.

int32_t SdioDisableFunc(DevHandle handle);

Table 13 Parameters and return values of SdioDisableFunc

The following example shows how to disable the SDIO device.

int32_t ret;
/* Disable the SDIO device. */
ret = SdioDisableFunc(handle);
if (ret != 0) {
    HDF_LOGE("SdioDisableFunc: failed, ret %d\n", ret);
}

Releasing the Exclusively Claimed Host

After the SDIO communication, release the exclusively claimed host.

void SdioReleaseHost(DevHandle handle);

Table 14 Parameter description of SdioReleaseHost

The following example shows how to release the exclusively claimed host.

SdioReleaseHost(handle); /* Release the exclusively claimed host. */

Closing an SDIO Controller

After the SDIO communication, close the SDIO controller.

void SdioClose(DevHandle handle);

This function releases the resources requested.

Table 15 Parameter description of SdioClose

The following example shows how to close an SDIO controller.

SdioClose(handle); /* Close an SDIO controller. */

Usage Example

The following example shows how to use an SDIO device. First, open an SDIO controller whose bus number is 1, exclusively claim a host, enable the SDIO device, claim an SDIO IRQ, and then perform SDIO communication (such as reading and writing). After the SDIO communication, release the SDIO IRQ, disable the SDIO device, release the host, and close the SDIO controller.

#include "hdf_log.h"
#include "sdio_if.h"

#define TEST_FUNC_NUM 1 /* The I/O function whose ID is 1 is used. */
#define TEST_FBR_BASE_ADDR 0x100 /* FBR base address of the I/O function whose ID is 1 */
#define TEST_ADDR_OFFSET 9 /* Address offset of the register to read or write */
#define TEST_DATA_LEN 3 /* Length of the data to read or write */
#define TEST_BLOCKSIZE 2 /* Size of a data block, in bytes */

/* Implement the SDIO IRQ function based on the application. */
static void SdioIrqFunc(void *data)
{
    if (data == NULL) {
        HDF_LOGE("SdioIrqFunc: data is NULL.\n");
        return;
    }
    /* You need to add specific implementations. */
}

void SdioTestSample(void)
{
    int32_t ret;
    DevHandle handle = NULL;
    uint8_t data[TEST_DATA_LEN] = {0};
    struct SdioFunctionConfig config = {1, 0x123, 0x456};
    uint8_t val;
    uint32_t addr;

    /* Open an SDIO controller whose bus number is 1. */
    handle = SdioOpen(1, &config);
    if (handle == NULL) {
        HDF_LOGE("SdioOpen: failed!\n");
        return;
    }
   /* Claim a host exclusively. */
    SdioClaimHost(handle);
   /* Enable the SDIO device. */
    ret = SdioEnableFunc(handle);
    if (ret != 0) {
        HDF_LOGE("SdioEnableFunc: failed, ret %d\n", ret);
        goto ENABLE_ERR;
    }
   /* Claim an SDIO IRQ. */
    ret = SdioClaimIrq(handle, SdioIrqFunc);
    if (ret != 0) {
        HDF_LOGE("SdioClaimIrq: failed, ret %d\n", ret);
        goto CLAIM_IRQ_ERR;
    }
    /* Set the block size to 2 bytes. */
    ret = SdioSetBlockSize(handle, TEST_BLOCKSIZE);
    if (ret != 0) {
        HDF_LOGE("SdioSetBlockSize: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Read 3-byte data from the incremental address of an SDIO device. */
    addr = TEST_FBR_BASE_ADDR * TEST_FUNC_NUM + TEST_ADDR_OFFSET;
    ret = SdioReadBytes(handle, data, addr, TEST_DATA_LEN);
    if (ret != 0) {
        HDF_LOGE("SdioReadBytes: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Write 3-byte data into the incremental address of an SDIO device. */
    ret = SdioWriteBytes(handle, data, addr, TEST_DATA_LEN);
    if (ret != 0) {
        HDF_LOGE("SdioWriteBytes: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Read 1-byte data from the SDIO device. */
    ret = SdioReadBytes(handle, &val, addr, 1);
    if (ret != 0) {
        HDF_LOGE("SdioReadBytes: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Write 1-byte data into the SDIO device. */
    ret = SdioWriteBytes(handle, &val, addr, 1);
    if (ret != 0) {
        HDF_LOGE("SdioWriteBytes: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Read 3-byte data from the fixed address of an SDIO device. */
    ret = SdioReadBytesFromFixedAddr(handle, data, addr, TEST_DATA_LEN, 0);
    if (ret != 0) {
        HDF_LOGE("SdioReadBytesFromFixedAddr: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Write 1-byte data to the fixed address of an SDIO device. */
    ret = SdioWriteBytesToFixedAddr(handle, data, addr, 1, 0);
    if (ret != 0) {
        HDF_LOGE("SdioWriteBytesToFixedAddr: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Read 1-byte data from SDIO function 0. */
    addr = 0x02;
    ret = SdioReadBytesFromFunc0(handle, &val, addr, 1);
    if (ret != 0) {
        HDF_LOGE("SdioReadBytesFromFunc0: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
    /* Write 1-byte data into SDIO function 0. */
    ret = SdioWriteBytesToFunc0(handle, &val, addr, 1);
    if (ret != 0) {
        HDF_LOGE("SdioWriteBytesToFunc0: failed, ret %d\n", ret);
        goto COMM_ERR;
    }
COMM_ERR:
    /* Release the SDIO IRQ. */
    ret = SdioReleaseIrq(handle);
    if (ret != 0) {
        HDF_LOGE("SdioReleaseIrq: failed, ret %d\n", ret);
    }
CLAIM_IRQ_ERR:
    /* Disable the SDIO device. */
    ret = SdioDisableFunc(handle);
    if (ret != 0) {
        HDF_LOGE("SdioDisableFunc: failed, ret %d\n", ret);
    }
ENABLE_ERR:
    /* Release the exclusively claimed host. */
    SdioReleaseHost(handle);
    /* Close an SDIO controller. */
    SdioClose(handle);
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Drivers

harmony 鸿蒙HDF Driver Development Process

harmony 鸿蒙Driver Overview

harmony 鸿蒙Audio

harmony 鸿蒙Camera

harmony 鸿蒙Codec

harmony 鸿蒙WLAN

harmony 鸿蒙Facial Authentication

harmony 鸿蒙Fingerprint Authentication

harmony 鸿蒙LCD
