@ohos.animator (Animator)

The Animator module provides APIs for applying animation effects, including defining animations, starting animations, and playing animations in reverse order.

NOTE

The initial APIs of this module are supported since API version 6. Newly added APIs will be marked with a superscript to indicate their earliest API version.

This module can be used in ArkTS since API version 9.

This module cannot be used in the file declaration of the UIAbility. In other words, the APIs of this module can be used only after a component instance is created; they cannot be called in the lifecycle of the UIAbility.

The functionality of this module depends on UI context. This means that the APIs of this module cannot be used where the UI context is unclear. For details, see UIContext.

Modules to Import

import { Animator as animator, AnimatorOptions, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

Animator

Creates an Animator object.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

create^(deprecated)

create(options: AnimatorOptions): AnimatorResult

Creates an AnimatorResult object for animations.

NOTE

This API is supported since API version 9 and deprecated since API version 18. You are advised to use createAnimator in UIContext instead.

Since API version 10, you can use the createAnimator API in UIContext to obtain the UI context.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions	Yes	Animator options.

Return value

Type	Description
AnimatorResult	Animator result.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified; 2.Incorrect parameters types; 3. Parameter verification failed.

Example

NOTE

For precise animation control, use the createAnimator API in UIContext to specify the UI context.

import { Animator as animator, AnimatorOptions } from '@kit.ArkUI';

let options: AnimatorOptions = {
  duration: 1500,
  easing: "friction",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 3,
  begin: 200.0,
  end: 400.0
};
animator.create(options); // You are advised to use UIContext.createAnimator().

create¹⁸⁺

create(options: AnimatorOptions |SimpleAnimatorOptions): AnimatorResult

Creates an AnimatorResult object for animations. Compared to create, this API accepts parameters of the SimpleAnimatorOptions type.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions \|SimpleAnimatorOptions	Yes	Parameters of the animation.

Return value

Type	Description
AnimatorResult	Animator result.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified; 2.Incorrect parameters types; 3. Parameter verification failed.

Example

NOTE

For precise animation control, use the createAnimator API in UIContext to specify the UI context.

import { Animator as animator, SimpleAnimatorOptions } from '@kit.ArkUI';
let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).duration(2000);
animator.create(options);// You are advised to use UIContext.createAnimator().

createAnimator^(deprecated)

createAnimator(options: AnimatorOptions): AnimatorResult

Creates an animation.

This API is deprecated since API version 9. You are advised to use createAnimator in UIContext instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions	Yes	Animator options.

Return value

Type	Description
AnimatorResult	Animator result.

Example

import { Animator as animator } from '@kit.ArkUI';

let options: AnimatorOptions = {
  // There is no need to explicitly specify the type AnimatorOptions in the xxx.js file.
  duration: 1500,
  easing: "friction",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 3,
  begin: 200.0,
  end: 400.0,
};
this.animator = animator.createAnimator(options);

AnimatorResult

Defines the animator result.

reset⁹⁺

reset(options: AnimatorOptions): void

Updates this animation.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions	Yes	Animator options.

Error codes

For details about the error codes, see Animator Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified; 2.Incorrect parameters types; 3. Parameter verification failed.
100001	The specified page is not found or the object property list is not obtained.

Example

import { Animator as animator, AnimatorOptions, AnimatorResult } from '@kit.ArkUI';
import { BusinessError } from '@kit.BasicServicesKit';

let options: AnimatorOptions = {
  duration: 1500,
  easing: "friction",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 3,
  begin: 200.0,
  end: 400.0
};
let optionsNew: AnimatorOptions = {
  duration: 1500,
  easing: "friction",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 5,
  begin: 200.0,
  end: 400.0
};
try {
  let animatorResult: AnimatorResult|undefined = animator.create(options)
  animatorResult.reset(optionsNew);
} catch (error) {
  let message = (error as BusinessError).message
  let code = (error as BusinessError).code
  console.error(`Animator reset failed, error code: ${code}, message: ${message}.`);
}

reset¹⁸⁺

reset(options: AnimatorOptions |SimpleAnimatorOptions): void

Updates this animation. Compared to reset, this API accepts parameters of the SimpleAnimatorOptions type.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions \|SimpleAnimatorOptions	Yes	Animator options.

Error codes

For details about the error codes, see Universal Error Codes and Animator Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified; 2.Incorrect parameters types; 3. Parameter verification failed.
100001	The specified page is not found or the object property list is not obtained.

Example

import { Animator as animator, AnimatorResult, AnimatorOptions, SimpleAnimatorOptions } from '@kit.ArkUI';
let options: AnimatorOptions = {
  duration: 1500,
  easing: "ease",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 1,
  begin: 100,
  end: 200
};
let optionsNew: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200)
  .duration(2000)
  .iterations(3)
  .delay(1000)
let animatorResult:AnimatorResult = animator.create(options);
animatorResult.reset(optionsNew);

play

play(): void

Plays this animation. The animation retains the previous playback state. For example, if the animation is set to reverse and paused, it will remain in reverse when resumed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

animator.play();

finish

finish(): void

Ends this animation.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

animator.finish();

pause

pause(): void

Pauses this animation.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

animator.pause();

cancel

cancel(): void

Cancels this animation.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

animator.cancel();

reverse

reverse(): void

Plays this animation in reverse order. This API does not take effect when the interpolating spring curve is used.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

animator.reverse();

onFrame¹²⁺

onFrame: (progress: number) => void

Called when a frame is received.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
progress	number	Yes	Current value of the animation. Value range: [begin, end] defined in AnimatorOptions Default value range: [0, 1]

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onFrame = (value: number) => {
  console.info("onFrame callback")
}

onFinish¹²⁺

onFinish: () => void

Called when this animation is finished.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import {Animator as animator, AnimatorResult } from '@kit.ArkUI';
let animatorResult:AnimatorResult|undefined = animator.create(options)
animatorResult.onFinish = ()=> {
  console.info("onFinish callback")
}

onCancel¹²⁺

onCancel: () => void

Called when this animation is canceled.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onCancel = () => {
  console.info("onCancel callback")
}

onRepeat¹²⁺

onRepeat: () => void

Called when this animation repeats.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onRepeat = () => {
  console.info("onRepeat callback")
}

onframe^(deprecated)

NOTE

This API is deprecated since API version 12. You are advised to use onFrame instead.

onframe: (progress: number) => void

Called when a frame is received.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
progress	number	Yes	Current progress of the animation.

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onframe = (value) => {
  console.info("onframe callback")
}

onfinish^(deprecated)

NOTE

This API is deprecated since API version 12. You are advised to use onFinish instead.

onfinish: () => void

Called when this animation is finished.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onfinish = () => {
  console.info("onfinish callback")
}

oncancel^(deprecated)

NOTE

This API is deprecated since API version 12. You are advised to use onCancel instead.

oncancel: () => void

Called when this animation is canceled.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.oncancel = () => {
  console.info("oncancel callback")
}

onrepeat^(deprecated)

NOTE

This API is deprecated since API version 12. You are advised to use onRepeat instead.

onrepeat: () => void

Called when this animation repeats.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create(options)
animatorResult.onrepeat = () => {
  console.info("onrepeat callback")
}

setExpectedFrameRateRange¹²⁺

setExpectedFrameRateRange(rateRange: ExpectedFrameRateRange): void

Sets the expected frame rate range.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
rateRange	ExpectedFrameRateRange	Yes	Expected frame rate range.

Example

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

let animatorResult: AnimatorResult|undefined = animator.create({
  duration: 2000,
  easing: "ease",
  delay: 0,
  fill: "forwards",
  direction: "normal",
  iterations: 1,
  begin: 100,
  end: 200
})
let expectedFrameRate: ExpectedFrameRateRange = {
  min: 0,
  max: 120,
  expected: 30
}
animatorResult.setExpectedFrameRateRange(expectedFrameRate);

update^(deprecated)

update(options: AnimatorOptions): void

Updates this animator.

This API is deprecated since API version 9. You are advised to use reset⁹⁺ instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	AnimatorOptions	Yes	Animator options.

Example

animator.update(options);

AnimatorOptions

Animator options.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
duration	number	Yes	Duration for playing the animation, in milliseconds. Value range: [0, +∞).
easing	string	Yes	Animation interpolation curve. Only the following values are supported: “linear”: The animation speed keeps unchanged. “ease”: The animation starts slowly, accelerates, and then slows down towards the end. The cubic-bezier curve (0.25, 0.1, 0.25, 1.0) is used. “ease-in”: The animation starts at a low speed and then picks up speed until the end. The cubic-bezier curve (0.42, 0.0, 1.0, 1.0) is used. “ease-out”: The animation ends at a low speed. The cubic-bezier curve (0.0, 0.0, 0.58, 1.0) is used. “ease-in-out”: The animation starts and ends at a low speed. The cubic-bezier curve (0.42, 0.0, 0.58, 1.0) is used. “fast-out-slow-in”: The animation uses the standard cubic-bezier curve (0.4, 0.0, 0.2, 1.0). “linear-out-slow-in”: The animation uses the deceleration cubic-bezier curve (0.0, 0.0, 0.2, 1.0). “fast-out-linear-in”: The animation uses acceleration cubic-bezier curve (0.4, 0.0, 1.0, 1.0) “friction”: The animation uses the damping cubic-bezier curve (0.2, 0.0, 0.2, 1.0). “extreme-deceleration”: The animation uses the extreme deceleration cubic-bezier curve (0.0, 0.0, 0.0, 1.0). “rhythm”: The animation uses the rhythm cubic-bezier curve (0.7, 0.0, 0.2, 1.0). “sharp”: The animation uses the sharp cubic-bezier curve (0.33, 0.0, 0.67, 1.0). “smooth”: The animation uses the smooth cubic-bezier curve (0.4, 0.0, 0.4, 1.0). “cubic-bezier(x1,y1,x2,y2)”: The animation uses the defined cubic bezier curve, where the value of x1 and x2 must range from 0 to 1. For example, “cubic-bezier(0.42,0.0,0.58,1.0)”. “steps(number,step-position)”: The animation uses a step curve. The number parameter is mandatory and must be set to a positive integer. The step-position parameter is optional and can be set to start or end (default value). For example, “steps(3,start)”. “interpolating-spring(velocity,mass,stiffness,damping)”: The animation uses an interpolating spring curve. This API is supported since API version 11 and can be used only in ArkTS. The velocity, mass, stiffness, and damping parameters are of the numeric type, and the values of mass, stiffness, and damping must be greater than 0. For details about the parameters, see Curves.interpolatingSpring. When an interpolating spring curve is used, settings for the duration, fill, direction, and iterations do not take effect. Rather, the value of duration is subject to the spring settings, fill is fixed at forwards, direction at normal, and iterations at 1. In addition, invoking reverse of animator is not effective. In other words, when using an interpolating spring curve, the animation can play only once in forward mode. If the provided string is invalid, “ease” is used.
delay	number	Yes	Animation delay duration, in milliseconds. Value 0 means that there is no delay. If the value specified is a negative number, the animation starts playing ahead of its scheduled time. If the amount of time by which the playback is advanced is greater than the total duration of the animation, the animation skips to the end state immediately.
fill	‘none’ \|‘forwards’ \|‘backwards’ \|‘both’	Yes	State of the animated target after the animation is executed. ‘none’: No style is applied to the target before or after the animation is executed. ‘forwards’: The target keeps the state at the end of the animation (defined in the last key frame) after the animation is executed. ‘backwards’: The animation uses the value defined in the first key frame during the animation-delay. When animation-direction is set to ‘normal’ or ‘alternate’, the value in the from key frame is used. When animation-direction is set to ‘reverse’ or ‘alternate-reverse’, the value in the to key frame is used. ‘both’: The animation follows the ‘forwards’ and ‘backwards’ rules.
direction	‘normal’ \|‘reverse’ \|‘alternate’ \|‘alternate-reverse’	Yes	Animation playback mode. ‘normal’: plays the animation in forward loop mode. ‘reverse’: plays the animation in reverse loop mode. ‘alternate’: plays the animation in alternating loop mode. When the animation is played for an odd number of times, the playback is in forward direction. When the animation is played for an even number of times, the playback is in reverse direction. ‘alternate-reverse’: plays the animation in reverse alternating loop mode. When the animation is played for an odd number of times, the playback is in reverse direction. When the animation is played for an even number of times, the playback is in forward direction.
iterations	number	Yes	Number of times that the animation is played. The value 0 means the animation is not played, -1 means the animation is played for an unlimited number of times, and a positive integer means the animation is played that specific number of times. NOTE Any negative value other than -1 is considered invalid. For invalid values, the animation is played once.
begin	number	Yes	Start point of the animation interpolation. NOTE This setting affects the input parameter value of the onFrame callback.
end	number	Yes	End point of animation interpolation. NOTE This setting affects the input parameter value of the onFrame callback.

SimpleAnimatorOptions¹⁸⁺

Defines a simple animation parameter object. Unlike AnimatorOptions, this object comes with some default values for certain animation parameters, so you don’t have to set them manually.

constructor¹⁸⁺

constructor(begin: number, end: number)

A constructor used to create a SimpleAnimatorOptions instance.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
begin	number	Yes	Start point of the animation interpolation.
end	number	Yes	End point of animation interpolation.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200); // Animation interpolation from 100 to 200, with other animation parameters set to default values.
let animatorResult:AnimatorResult = animator.create(options);

duration¹⁸⁺

duration(duration: number): SimpleAnimatorOptions

Sets the animation duration.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
duration	number	Yes	Animation duration, in milliseconds. Default value: 1000

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).duration(500);
let animatorResult:AnimatorResult = animator.create(options);

easing¹⁸⁺

easing(curve: string): SimpleAnimatorOptions

Sets the interpolation curve for this animation.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
curve	string	Yes	Interpolation curve. For details, see AnimatorOptions. Default value: “ease”

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).easing("ease-in");
let animatorResult:AnimatorResult = animator.create(options);

delay¹⁸⁺

delay(delay: number): SimpleAnimatorOptions

Sets the playback delay for this animation.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
delay	number	Yes	Playback delay, in milliseconds. The value 0 indicates no delay. If the value specified is a negative number, the animation starts playing ahead of its scheduled time. If the amount of time by which the playback is advanced is greater than the total duration of the animation, the animation skips to the end state immediately. Default value: 0

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).delay(500);
let animatorResult:AnimatorResult = animator.create(options);

fill¹⁸⁺

fill(fillMode: FillMode): SimpleAnimatorOptions

Sets the fill mode for this animation.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
fillMode	FillMode	Yes	Fill mode, which affects how the animation behaves during the delay period and after it ends. Default value: FillMode.Forwards

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).fill(FillMode.Forwards);
let animatorResult:AnimatorResult = animator.create(options);

direction¹⁸⁺

direction(direction: PlayMode): SimpleAnimatorOptions

Sets the playback direction for this animation.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
direction	PlayMode	Yes	Playback direction. Default value: PlayMode.Normal

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).direction(PlayMode.Alternate);
let animatorResult:AnimatorResult = animator.create(options);

iterations¹⁸⁺

iterations(iterations: number): SimpleAnimatorOptions

Sets the number of times that this animation is played.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
iterations	number	Yes	Number of times that the animation is played. The value 0 means the animation is not played, and -1 means the animation is played for an unlimited number of times. Default value: 1

Return value

Type	Description
SimpleAnimatorOptions	SimpleAnimatorOptions object for animation parameters.

Example

import { Animator as animator, AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

let options: SimpleAnimatorOptions = new SimpleAnimatorOptions(100, 200).iterations(3);
let animatorResult:AnimatorResult = animator.create(options);

Example

JavaScript-compatible Web-like Development Paradigm

<!-- hml -->
<div class="container">
  <div class="Animation" style="height: {{divHeight}}px; width: {{divWidth}}px; background-color: red;" onclick="Show">
  </div>
</div>

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';
import { BusinessError } from '@kit.BasicServicesKit';

let DataTmp: Record<string, Animator> = {
  'divWidth': 200,
  'divHeight': 200,
  'animator': animator
}

class Tmp {
  data: animator = DataTmp
  onInit: Function = () => {
  }
  Show: Function = () => {
  }
}

class DateT {
  divWidth: number = 0
  divHeight: number = 0
  animator: AnimatorResult|null = null
}

(Fn: (v: Tmp) => void) => {
  Fn({
    data: DataTmp,
    onInit() {
      let options: AnimatorOptions = {
        duration: 1500,
        easing: "friction",
        delay: 0,
        fill: "forwards",
        direction: "normal",
        iterations: 2,
        begin: 200.0,
        end: 400.0
      };
      let DataTmp: DateT = {
        divWidth: 200,
        divHeight: 200,
        animator: null
      }
      DataTmp.animator = animator.create(options);
    },
    Show() {
      let options1: AnimatorOptions = {
        duration: 1500,
        easing: "friction",
        delay: 0,
        fill: "forwards",
        direction: "normal",
        iterations: 2,
        begin: 0,
        end: 400.0,
      };
      let DataTmp: DateT = {
        divWidth: 200,
        divHeight: 200,
        animator: null
      }
      try {
        DataTmp.animator = animator.create(options1);
        DataTmp.animator.reset(options1);
      } catch (error) {
        let message = (error as BusinessError).message
        let code = (error as BusinessError).code
        console.error(`Animator reset failed, error code: ${code}, message: ${message}.`);
      }
      let _this = DataTmp;
      if (DataTmp.animator) {
        DataTmp.animator.onFrame = (value: number) => {
          _this.divWidth = value;
          _this.divHeight = value;
        };
        DataTmp.animator.play();
      }
    }
  })
}

en-us_image_00007

ArkTS-based Declarative Development Paradigm

NOTE

For precise animation control, use the createAnimator API in UIContext to specify the UI context.

import { Animator as animator, AnimatorResult } from '@kit.ArkUI';

@Entry
@Component
struct AnimatorTest {
  private TAG: string = '[AnimatorTest]'
  private backAnimator: AnimatorResult|undefined = undefined
  private flag: boolean = false
  @State wid: number = 100
  @State hei: number = 100

  create() {
    this.backAnimator = animator.create({
      // You are advised to use this.getUIContext.createAnimator().
      duration: 2000,
      easing: "ease",
      delay: 0,
      fill: "forwards",
      direction: "normal",
      iterations: 1,
      begin: 100, // Start point of the animation interpolation.
      end: 200 // End point of the animation interpolation.
    })
    this.backAnimator.onFinish = () => {
      this.flag = true
      console.info(this.TAG, 'backAnimator onFinish')
    }
    this.backAnimator.onRepeat = () => {
      console.info(this.TAG, 'backAnimator repeat')
    }
    this.backAnimator.onCancel = () => {
      console.info(this.TAG, 'backAnimator cancel')
    }
    this.backAnimator.onFrame = (value: number) => {
      this.wid = value
      this.hei = value
    }
  }

  aboutToDisappear() {
    // When the custom component disappears, call finish to end incomplete animations and prevent them from continuing.
    // Since backAnimator references this in onFrame, and this holds backAnimator,
    // set backAnimator stored in the custom component to undefined when the component disappears to avoid memory leak.
    this.backAnimator?.finish();
    this.backAnimator = undefined;
  }

  build() {
    Column() {
      Column() {
        Column()
          .width(this.wid)
          .height(this.hei)
          .backgroundColor(Color.Red)
      }
      .width('100%')
      .height(300)

      Column() {
        Row() {
          Button('create')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.create()
            })
        }
        .padding(10)

        Row() {
          Button('play')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.flag = false
              if (this.backAnimator) {
                this.backAnimator.play()
              }
            })
        }
        .padding(10)

        Row() {
          Button('pause')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              if (this.backAnimator) {
                this.backAnimator.pause()
              }
            })
        }
        .padding(10)

        Row() {
          Button('finish')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.flag = true
              if (this.backAnimator) {
                this.backAnimator.finish()
              }
            })
        }
        .padding(10)

        Row() {
          Button('reverse')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.flag = false
              if (this.backAnimator) {
                this.backAnimator.reverse()
              }
            })
        }
        .padding(10)

        Row() {
          Button('cancel')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              if (this.backAnimator) {
                this.backAnimator.cancel()
              }
            })
        }
        .padding(10)

        Row() {
          Button('reset')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              if (this.flag) {
                this.flag = false
                if (this.backAnimator) {
                  this.backAnimator.reset({
                    duration: 3000,
                    easing: "ease-in",
                    delay: 0,
                    fill: "forwards",
                    direction: "alternate",
                    iterations: 3,
                    begin: 100,
                    end: 300
                  })
                }
              } else {
                console.info(this.TAG, 'Animation not ended')
              }
            })
        }
        .padding(10)
      }
    }
  }
}

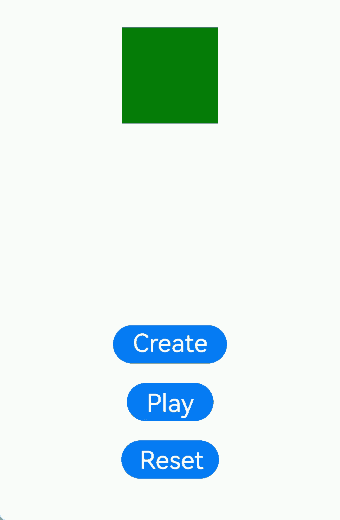

Example: Implementing a Translation Animation with Simple Parameters

import { AnimatorResult, SimpleAnimatorOptions } from '@kit.ArkUI';

@Entry
@Component
struct AnimatorTest {
  private TAG: string = '[AnimatorTest]'
  private backAnimator: AnimatorResult|undefined = undefined
  private flag: boolean = false
  @State translate_: number = 0

  create() {
    this.backAnimator = this.getUIContext()?.createAnimator(
      new SimpleAnimatorOptions(0, 100)
    )
    this.backAnimator.onFinish = ()=> {
      this.flag = true
      console.info(this.TAG, 'backAnimator onFinish')
    }
    this.backAnimator.onFrame = (value:number)=> {
      this.translate_ = value
    }
  }

  aboutToDisappear() {
    // When the custom component disappears, call finish to end incomplete animations and prevent them from continuing.
    // Since backAnimator references this in onFrame, and this holds backAnimator,
    // set backAnimator stored in the custom component to undefined when the component disappears to avoid memory leak.
    this.backAnimator?.finish();
    this.backAnimator = undefined;
  }

  build() {
    Column() {
      Column() {
        Column()
          .width(100)
          .height(100)
          .translate({x: this.translate_})
          .backgroundColor(Color.Green)
      }
      .width('100%')
      .height(300)

      Column() {
        Column() {
          Button('create')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.create()
            })
        }
        .padding(10)

        Column() {
          Button('play')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              this.flag = false
              if(this.backAnimator){
                this.backAnimator.play()
              }
            })
        }
        .padding(10)

        Column() {
          Button('reset')
            .fontSize(30)
            .fontColor(Color.Black)
            .onClick(() => {
              if (this.flag) {
                this.flag = false
                if(this.backAnimator){
                  this.backAnimator.reset(
                    new SimpleAnimatorOptions(0, -100)
                      .duration(2000)
                      .easing("ease-in")
                      .fill(FillMode.Forwards)
                      .direction(PlayMode.Alternate)
                      .iterations(2)
                  )
                }
              } else {
                console.info(this.TAG, 'Animation not ended')
              }
            })
        }
        .padding(10)
      }
    }
  }
}

animator

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkUI

harmony 鸿蒙ARKUI_TextPickerCascadeRangeContent

harmony 鸿蒙ARKUI_TextPickerRangeContent

harmony 鸿蒙ArkUI_AnimateCompleteCallback

harmony 鸿蒙ArkUI_AttributeItem

harmony 鸿蒙ArkUI_ColorStop

harmony 鸿蒙ArkUI_ContextCallback

harmony 鸿蒙ArkUI_EventModule

harmony 鸿蒙ArkUI_ExpectedFrameRateRange

harmony 鸿蒙ArkUI_IntOffset

0 赞

所属分类： 后端技术
本文标签：
版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/kp9Hll

harmony 鸿蒙@ohos.animator (Animator)

@ohos.animator (Animator)

Modules to Import

Animator

create(deprecated)

create18+

createAnimator(deprecated)

AnimatorResult

reset9+

reset18+

play

finish

pause

cancel

reverse

onFrame12+

onFinish12+

onCancel12+

onRepeat12+

onframe(deprecated)

onfinish(deprecated)

oncancel(deprecated)

onrepeat(deprecated)

setExpectedFrameRateRange12+

update(deprecated)

AnimatorOptions

SimpleAnimatorOptions18+

constructor18+

duration18+

easing18+

delay18+

fill18+

direction18+

iterations18+

Example

JavaScript-compatible Web-like Development Paradigm

ArkTS-based Declarative Development Paradigm

Example: Implementing a Translation Animation with Simple Parameters

你可能感兴趣的鸿蒙文章

热门推荐

标签云

最新文章

本文目录

create^(deprecated)

create¹⁸⁺

createAnimator^(deprecated)

reset⁹⁺

reset¹⁸⁺

onFrame¹²⁺

onFinish¹²⁺

onCancel¹²⁺

onRepeat¹²⁺

onframe^(deprecated)

onfinish^(deprecated)

oncancel^(deprecated)

onrepeat^(deprecated)

setExpectedFrameRateRange¹²⁺

update^(deprecated)

SimpleAnimatorOptions¹⁸⁺

constructor¹⁸⁺

duration¹⁸⁺

easing¹⁸⁺

delay¹⁸⁺

fill¹⁸⁺

direction¹⁸⁺

iterations¹⁸⁺
