ChipGroup

ChipGroup is an advanced component that provides a group of chips for scenarios such as categorizing files or resource content.

NOTE

This component is supported since API version 12. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { ChipSize, ChipGroup } from '@kit.ArkUI'

Child Components

Not supported

ChipGroup

ChipGroup({
  items: ChipGroupItemOptions[],
  itemStyle?: ChipItemStyle,
  selectedIndexes?: Array<number>,
  multiple?: boolean,
  chipGroupSpace?: ChipGroupSpaceOptions,
  chipGroupPadding?: ChipGroupPaddingOptions,
  onChange?: (selectedIndexes: Array<number>) => void,
  suffix?: Callback<void>
})

Decorator: @Component

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

1. When multiple is set to false, if selectedIndexes is not passed in, the first chip is automatically selected by default. However, if the provided selectedIndexes includes multiple elements, the chip at the first index is selected by default.

2. For the suffix API to work, you must include the IconGroupSuffix API when implementing it. If no value is specified for suffix, no suffix will be displayed.

3. The icon fill colors, such as fillColor and activedFillColor, are set to be consistent with the font color (fontColor). To differentiate the icon colors from the font color, include prefixSymbol when you pass in ChipGroupSpaceOptions.

ChipGroupItemOptions

Defines the specific attributes of individual chips.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

If suffixIcon is specified, allowClose has no effect.

ChipItemStyle

Defines the common attributes shared by all chips in the chip group.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

1. The size settings for chips can be of two types: (1) ChipSize, which conveniently offers two size options, NORMAL and SMALL; (2) SizeOptions.

2. If undefined is assigned to backgroundColor or selectedBackgroundColor, the default background color is used. If an invalid value is assigned, the background color is transparent.

ChipGroupSpaceOptions

Defines the left and right padding of the chip group, and the spacing between chips.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

ChipGroupPaddingOptions

Defines the top and bottom padding of the chip group, used to control the overall height.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

SuffixImageIconOptions¹⁴⁺

Defines the suffix iconoptions.

Inherits IconOptions.

Atomic service API: This API can be used in atomic services since API version 14.

System capability: SystemCapability.ArkUI.ArkUI.Full

SymbolItemOptions¹⁴⁺

Defines the options for the trailing symbol item in a chip group.

Atomic service API: This API can be used in atomic services since API version 14.

System capability: SystemCapability.ArkUI.ArkUI.Full

IconGroupSuffix

Decorator: @Component

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

With SymbolGlyphModifier, neither modifying the animation type with symbolEffect nor setting the effect strategy with effectStrategy is supported.

IconItemOptions

Defines the tail builder, which imposes limitations on the settings for the background size and color.

System capability: SystemCapability.ArkUI.ArkUI.Full

IconOptions

Defines the common attributes of icons.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

LabelOptions

Defines the common attributes of labels.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

Example 1: Implementing a Chip Group Without a Builder-defined Suffix

This example shows how to implement a chip group without a builder-defined suffix.

import { ChipSize, ChipGroup } from '@kit.ArkUI'

@Entry
@Preview
@Component
struct Index {
  @State selected_index: Array<number> = [0, 1, 2, 3, 4, 5, 6]
  build() {
    Column() {
      ChipGroup({
        items: [
          {
            // Replace 'app.media.icon' with your actual icon resource.
            prefixIcon: { src: $r('app.media.icon') },
            label: { text: "Chip 1" },
            suffixIcon: { src: $r('sys.media.ohos_ic_public_cut') },
            allowClose: false
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_copy') },
            label: { text: "Chip 2" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_clock') },
            label: { text: "Chip 3" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 4" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_mirror') },
            label: { text: "Chip 5" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 6" },
            allowClose: true
          },
        ],
        itemStyle: {
          size: ChipSize.SMALL,
          backgroundColor: $r('sys.color.ohos_id_color_button_normal'),
          fontColor: $r('sys.color.ohos_id_color_text_primary'),
          selectedBackgroundColor: $r('sys.color.ohos_id_color_emphasize'),
          selectedFontColor: $r('sys.color.ohos_id_color_text_primary_contrary'),
        },
        selectedIndexes: this.selected_index,
        multiple: false,
        chipGroupSpace: { itemSpace: 8, endSpace: 0 },
        chipGroupPadding: { top: 10, bottom: 10 },
        onChange: (activatedChipsIndex:Array<number>) => {
          console.log('chips on clicked, activated index ' + activatedChipsIndex)
        },
      })
    }
  }
}

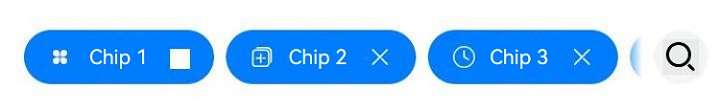

Example 2: Implementing a Chip Group with a Builder-defined Suffix

This example shows how to implement a chip group with a builder-defined suffix.

import { ChipSize, ChipGroup, IconGroupSuffix  } from '@kit.ArkUI'

@Entry
@Preview
@Component
struct Index {
  @State selected_index: Array<number> = [0, 1, 2, 3, 4, 5, 6]
  @State selected_state: boolean = true;

  @LocalBuilder
  ChipGroupSuffix(): void {
    IconGroupSuffix({
      items: [{
        icon: { src: $r('sys.media.ohos_ic_public_search_filled'), size: { width: 36, height: 36 } },
        action: () => {
          if (this.selected_state == false) {
            this.selected_index = [0, 1, 2, 3, 4, 5, 6]
            this.selected_state = true
          } else {
            this.selected_index = []
            this.selected_state = false
          }
        }
      }
      ]
    })
  }

  build() {
    Column() {
      ChipGroup({
        items: [
          {
            prefixIcon: { src: $r('app.media.icon') },
            label: { text: "Chip 1" },
            suffixIcon: { src: $r('sys.media.ohos_ic_public_cut') },
            allowClose: false
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_copy') },
            label: { text: "Chip 2" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_clock') },
            label: { text: "Chip 3" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 4" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_mirror') },
            label: { text: "Chip 5" },
            allowClose: true
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 6" },
            allowClose: true
          },
        ],
        itemStyle: {
          size: ChipSize.NORMAL,
          backgroundColor: $r('sys.color.ohos_id_color_button_normal'),
          fontColor: $r('sys.color.ohos_id_color_text_primary'),
          selectedBackgroundColor: $r('sys.color.ohos_id_color_emphasize'),
          selectedFontColor: $r('sys.color.ohos_id_color_text_primary_contrary'),
        },
        selectedIndexes: this.selected_index,
        multiple: true,
        chipGroupSpace: { itemSpace: 8, endSpace: 0 },
        chipGroupPadding: { top: 10, bottom: 10 },
        onChange: (activatedChipsIndex: Array<number>) => {
          console.log('chips on clicked, activated index ' + activatedChipsIndex)
        },
        suffix: this.ChipGroupSuffix
      })
    }
  }
}

Example 3: Setting the Symbol Icon

This example implements IconGroupSuffix and ChipGroup with SymbolGlyph resources.

import { ChipSize, ChipGroup, IconGroupSuffix, SymbolGlyphModifier } from '@kit.ArkUI'

@Entry
@Preview
@Component
struct Index {
  @State selected_index: Array<number> = [0, 1, 2, 3, 4, 5, 6];
  @State selected_state: boolean = true;
  @State prefixModifierNormal: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.ohos_star'));
  @State prefixModifierActivated: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.ohos_star')).fontColor([Color.Red]);
  @State suffixModifierNormal: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.ohos_wifi'));
  @State suffixModifierActivated: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.ohos_wifi')).fontColor([Color.Red]);

  @LocalBuilder
  ChipGroupSuffix(): void {
    IconGroupSuffix({
      items: [
        new SymbolGlyphModifier($r('sys.symbol.magnifyingglass'))
          .onClick(() => {
            if (this.selected_state == false) {
              this.selected_index = [0, 1, 2, 3, 4, 5, 6];
              this.selected_state = true;
            } else {
              this.selected_index = [];
              this.selected_state = false;
            }
          })
      ]
    })
  }

  build() {
    Column() {
      ChipGroup({
        items: [
          {
            prefixSymbol: { normal: this.prefixModifierNormal, activated: this.prefixModifierActivated },
            label: { text: "Chip 1" },
            suffixSymbol: { normal: this.suffixModifierNormal, activated: this.suffixModifierActivated },
            allowClose: false,
          },
          {
            prefixSymbol: { normal: this.prefixModifierNormal, activated: this.prefixModifierActivated },
            label: { text: "Chip 2" },
            allowClose: true,
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_clock') },
            label: { text: "Chip 3" },
            allowClose: true,
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 4" },
            allowClose: true,
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_mirror') },
            label: { text: "Chip 5" },
            allowClose: true,
          },
          {
            prefixIcon: { src: $r('sys.media.ohos_ic_public_cast_stream') },
            label: { text: "Chip 6" },
            allowClose: true,
          },
        ],
        itemStyle: {
          size: ChipSize.NORMAL,
          backgroundColor: $r('sys.color.ohos_id_color_button_normal'),
          fontColor: $r('sys.color.ohos_id_color_text_primary'),
          selectedBackgroundColor: $r('sys.color.ohos_id_color_emphasize'),
          selectedFontColor: $r('sys.color.ohos_id_color_text_primary_contrary'),
        },
        selectedIndexes: this.selected_index,
        multiple: true,
        chipGroupSpace: { itemSpace: 8, endSpace: 0 },
        chipGroupPadding: { top: 10, bottom: 10 },
        onChange: (activatedChipsIndex: Array<number>) => {
          console.log('chips on clicked, activated index ' + activatedChipsIndex)
        },
        suffix: this.ChipGroupSuffix
      })
    }
  }
}

Example 4: Implementing the Screen Reader Feature for the Single-selection Scenario

This example implements the screen reader feature for a chip group with and without a suffix area in a single-selection scenario.

import { ChipGroup, IconGroupSuffix, SymbolGlyphModifier } from '@kit.ArkUI';

@Builder function DefaultFunction(): void {}

@Component
struct SectionGroup {
  @Prop
  @Require
  title: ResourceStr;
  @BuilderParam
  @Require
  content: () => void = DefaultFunction;

  build() {
    Column({ space: 4 }) {
      Text(this.title)
        .fontColor('#FF666666')
        .fontSize(12)
      Column({ space: 8 }) {
        this.content()
      }
    }
    .alignItems(HorizontalAlign.Start)
    .width('100%')
  }
}
@Component
struct SectionItem {
  @Prop
  @Require
  title: ResourceStr;
  @BuilderParam
  @Require
  content: () => void = DefaultFunction;

  build() {
    Column({ space: 12 }) {
      Text(this.title)
      this.content()
    }
    .backgroundColor('#FFFFFFFF')
    .borderRadius(12)
    .padding(12)
    .width('100%')
  }
}

@Entry
@Component
export struct ChipGroupExample2 {
  @LocalBuilder
  Suffix() {
    IconGroupSuffix({
      items: [
        {
          icon: { src: $r('sys.media.ohos_ic_public_more'), },
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        },
        {
          symbol: new SymbolGlyphModifier($r('sys.symbol.more')),
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        },
        {
          icon: { src: $r('sys.media.ohos_ic_public_more'), },
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          accessibilityLevel: 'no',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        }
      ]
    })
  }

  build() {
    NavDestination() {
      Scroll() {
        Column({ space: 12 }) {
          SectionGroup({ title: 'Available' }) {
            SectionItem({ title: 'Single selection without suffix area' }) {
              ChipGroup({
                items: [
                  {
                    prefixIcon: {
                      src: $r('app.media.startIcon')
                    },
                    label: { text: "Option 1" },
                    suffixImageIcon: {
                      src: $r('sys.media.save_button_picture'),
                      accessibilityText: 'Save',
                      action: () => {
                        this.getUIContext().getPromptAction().showToast({
                          message: 'Suffix icon touched.'
                        });
                      },
                    }
                  },
                  {
                    label: { text: "Option 2" },
                    suffixSymbol: {
                      normal: new SymbolGlyphModifier($r('sys.symbol.save')),
                      activated: new SymbolGlyphModifier($r('sys.symbol.save'))
                    },
                    suffixSymbolOptions: {
                      normalAccessibility: {
                        accessibilityText: 'Save'
                      },
                      action: () => {
                        this.getUIContext().getPromptAction().showToast({
                          message: 'Suffix icon touched.'
                        });
                      }
                    }
                  },
                  {
                    label: { text: "Option 3" },
                    suffixIcon: { src: $r('sys.media.save_button_picture'), }
                  },
                  { label: { text: "Option 4" } },
                  { label: { text: "Option 5" } },
                  { label: { text: "Option 6" } },
                  { label: { text: "Option 7" } },
                  { label: { text: "Option 8" } },
                  { label: { text: "Option 9" } },
                ]
              })
            }
            SectionItem({ title: 'Single selection with suffix area' }) {
              ChipGroup({
                items: [
                  { label: { text: "Option 1" } },
                  { label: { text: "Option 2" } },
                  { label: { text: "Option 3" } },
                  { label: { text: "Option 4" } },
                  { label: { text: "Option 5" } },
                  { label: { text: "Option 6" } },
                  { label: { text: "Option 7" } },
                  { label: { text: "Option 8" } },
                  { label: { text: "Option 9" } },
                ],
                suffix: this.Suffix.bind(this),
              })
            }
          }
        }
      }
      .padding({
        top: 8,
        bottom: 8,
        left: 16,
        right: 16, })
    }
    .title('Basic usage')
    .backgroundColor('#F1F3F5')
  }
}

Example 5: Implementing the Screen Reader Feature for the Multi-selection Scenario

This example implements the screen reader feature for a chip group with and without a suffix area in a multi-selection scenario.

import { ChipGroup, IconGroupSuffix, SymbolGlyphModifier } from '@kit.ArkUI';

@Builder function DefaultFunction(): void {}

@Component
struct SectionGroup {
  @Prop
  @Require
  title: ResourceStr;
  @BuilderParam
  @Require
  content: () => void = DefaultFunction;

  build() {
    Column({ space: 4 }) {
      Text(this.title)
        .fontColor('#FF666666')
        .fontSize(12)
      Column({ space: 8 }) {
        this.content()
      }
    }
    .alignItems(HorizontalAlign.Start)
    .width('100%')
  }
}
@Component
struct SectionItem {
  @Prop
  @Require
  title: ResourceStr;
  @BuilderParam
  @Require
  content: () => void = DefaultFunction;

  build() {
    Column({ space: 12 }) {
      Text(this.title)
      this.content()
    }
    .backgroundColor('#FFFFFFFF')
    .borderRadius(12)
    .padding(12)
    .width('100%')
  }
}

@Entry
@Component
export struct ChipGroupExample2 {
  @LocalBuilder
  Suffix() {
    IconGroupSuffix({
      items: [
        {
          icon: { src: $r('sys.media.ohos_ic_public_more'), },
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        },
        {
          symbol: new SymbolGlyphModifier($r('sys.symbol.more')),
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        },
        {
          icon: { src: $r('sys.media.ohos_ic_public_more'), },
          accessibilityText: 'More',
          accessibilityDescription: 'Speak usage hints',
          accessibilityLevel: 'no',
          action: () => {
            this.getUIContext().getPromptAction().showToast({
              message: 'More icon touched.'
            });
          }
        }
      ]
    })
  }

  build() {
    NavDestination() {
      Scroll() {
        Column({ space: 12 }) {
          SectionGroup({ title: 'Available' }) {
            SectionItem({ title: 'Multi-selection without suffix area' }) {
              ChipGroup({
                items: [
                  { label: { text: "Option 1" } },
                  { label: { text: "Option 2" } },
                  { label: { text: "Option 3" } },
                  { label: { text: "Option 4" } },
                  { label: { text: "Option 5" } },
                  { label: { text: "Option 6" } },
                  { label: { text: "Option 7" } },
                  { label: { text: "Option 8" } },
                  { label: { text: "Option 9" } },
                ],
                multiple: true
              })
            }
            SectionItem({ title: 'Multi-selection with suffix area' }) {
              ChipGroup({
                items: [
                  { label: { text: "Option 1" } },
                  { label: { text: "Option 2" } },
                  { label: { text: "Option 3" } },
                  { label: { text: "Option 4" } },
                  { label: { text: "Option 5" } },
                  { label: { text: "Option 6" } },
                  { label: { text: "Option 7" } },
                  { label: { text: "Option 8" } },
                  { label: { text: "Option 9" } },
                ],
                suffix: this.Suffix.bind(this),
                multiple: true,
              })
            }
          }
        }
      }
      .padding({
        top: 8,
        bottom: 8,
        left: 16,
        right: 16, })
    }
    .title('Basic usage')
    .backgroundColor('#F1F3F5')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton

harmony 鸿蒙EditableTitleBar
