Lifecycle of the Web Component

Overview

You can use Web components to load local or online web pages.

The Web components provide various component lifecycle callbacks. Using these callbacks, you can detect the lifecycle changes of Web components and process related services.

The states of a Web component: binding controller to the Web component, the start, progress and end of page loading, and page to be visible.

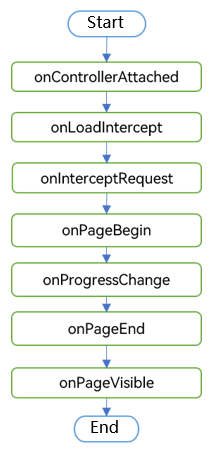

Figure 1 Callback events during the normal web page loading of the Web component

web-event-sequence

Web Page Loading States of the Web component

aboutToAppear: When a new instance of a custom component is created, execute this function before its build function is executed. In this case, you are advised to configure setWebDebuggingAccess, customizeSchemes, and configCookie.
onControllerAttached: This callback is triggered when the controller is successfully bound to the Web component. Do not call APIs related to the Web component before this callback event. Otherwise, a js-error exception will be thrown. You are advised to inject the JS object using registerJavaScriptProxy and set the custom user agent using setCustomUserAgent in this event. You can use APIs irrelevant to web pages, such as loadUrl and getWebId, in the callback. However, the web page is not loaded when the callback function is called. Therefore, APIs for web page operation, such as zoomIn and zoomOut, cannot be used in the callback function.
onLoadIntercept : This callback is triggered before the Web component loads a URL, which is used to determine whether to block the access. By default, the loading is allowed.
onOverrideUrlLoading: This callback is triggered when a URL is to be loaded to the web. By using this callback, the host application can obtain the control right. If the callback returns true, the web stops loading the URL. If the callback returns false, the web continues to load the URL. The behavior of onLoadIntercept() is different from that of the onOverrideUrlLoading() and they are triggered in different timing. Therefore, the two APIs are used in different scenarios. When LoadUrl and iframe (HTML tag, indicating the HTML inline framework element, which is used to embed another page into the current page) are loaded, onLoadIntercept() is triggered, but onOverrideUrlLoading() is not triggered when LoadUrl is loaded and when the iframe loads the HTTP(s) protocol or about:blank. For details, see onLoadIntercept and onOverrideUrlLoading.
onInterceptRequest: This callback is triggered before the Web component loads the URL, which is used to intercept the URL and return response data.
onPageBegin: This callback is triggered when a web page starts to be loaded and is triggered only in the main frame (an HTML element used to display the HTML page). This callback is not triggered when the content of an iframe or frameset (an HTML tag used to include frames) is loaded. Multi-frame pages may start to be loaded at the same time. Even if the main frame is already loaded, the sub-frames may start to be loaded or continue to be loaded. This callback is not triggered for navigation (such as segment and historical status) on the same page, navigation that fails before submission, or navigation that is canceled.
onProgressChange: This callback is triggered to notify the loading progress of the page. Multi-frame pages or sub-frames may continue to be loaded while the main frame is already loaded. Therefore, this callback event may still be received after onPageEnd event.
onPageEnd: This callback is triggered only in the main frame when a web page is already loaded. Multi-frame pages may start to be loaded at the same time. Even if the main frame is already loaded, the sub-frames may start to be loaded or continue to be loaded. This callback is not triggered for navigation (such as segment and historical status) on the same page, navigation that fails before submission, or navigation that is canceled. You are advised to execute the JavaScript script loadUrl in this callback. Note that receiving this callback does not guarantee that the next frame of drawn by the Web will reflect the current DOM status.
onPageVisible: Web callback event, which is triggered when the body of an HTTP response starts to be loaded and a new page is about to be visible in the rendering process. In this case, the document loading is still in the early stage, so the linked resources such as online CSS and images may not be available.
onRenderExited: This callback is triggered when an application rendering process exits abnormally. You can release system resources and save data in this callback. If you want to recover the application, call the loadUrl API to reload the page.
onDisAppear: This callback is triggered when a component is uninstalled from the component tree, which is a common event.

Codes on the application side:

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';
  import { promptAction } from '@kit.ArkUI';

  @Entry
  @Component
  struct WebComponent {
    controller: webview.WebviewController = new webview.WebviewController();
    responseWeb: WebResourceResponse = new WebResourceResponse();
    heads: Header[] = new Array();
    @State webData: string = "<!DOCTYPE html>\n" +
      "<html>\n" +
      "<head>\n" +
      "<title>intercept test</title>\n" +
      "</head>\n" +
      "<body>\n" +
      "<h1>intercept test</h1>\n" +
      "</body>\n" +
      "</html>";

    aboutToAppear(): void {
      try {
        webview.WebviewController.setWebDebuggingAccess(true);
      } catch (error) {
        console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
      }
    }

    build() {
      Column() {
        Web({ src: $rawfile('index.html'), controller: this.controller })
          .onControllerAttached(() => {
            // You are advised to use **loadUrl**, set a custom user agent, and inject a JS object.
            console.log('onControllerAttached execute')
          })
          .onLoadIntercept((event) => {
            if (event) {
              console.log('onLoadIntercept url:' + event.data.getRequestUrl())
              console.log('url:' + event.data.getRequestUrl())
              console.log('isMainFrame:' + event.data.isMainFrame())
              console.log('isRedirect:' + event.data.isRedirect())
              console.log('isRequestGesture:' + event.data.isRequestGesture())
            }
            // If true is returned, the loading is blocked. Otherwise, the loading is allowed.
            return true
          })
          .onOverrideUrlLoading((webResourceRequest: WebResourceRequest) => {
            if (webResourceRequest && webResourceRequest.getRequestUrl() == "about:blank") {
              return true;
            }
            return false;
          })
          .onInterceptRequest((event) => {
            if (event) {
              console.log('url:' + event.request.getRequestUrl());
            }
            let head1: Header = {
              headerKey: "Connection",
              headerValue: "keep-alive"
            }
            let head2: Header = {
              headerKey: "Cache-Control",
              headerValue: "no-cache"
            }
            let length = this.heads.push(head1);
            length = this.heads.push(head2);
            this.responseWeb.setResponseHeader(this.heads);
            this.responseWeb.setResponseData(this.webData);
            this.responseWeb.setResponseEncoding('utf-8');
            this.responseWeb.setResponseMimeType('text/html');
            this.responseWeb.setResponseCode(200);
            this.responseWeb.setReasonMessage('OK');
            // If response data is returned, the data is loaded based on the response data. If no response data is returned, null is returned, indicating that the data is loaded in the original mode.
            return this.responseWeb;
          })
          .onPageBegin((event) => {
            if (event) {
              console.log('onPageBegin url:' + event.url);
            }
          })
          .onFirstContentfulPaint(event => {
            if (event) {
              console.log("onFirstContentfulPaint:" + "[navigationStartTick]:" +
              event.navigationStartTick + ", [firstContentfulPaintMs]:" +
              event.firstContentfulPaintMs);
            }
          })
          .onProgressChange((event) => {
            if (event) {
              console.log('newProgress:' + event.newProgress);
            }
          })
          .onPageEnd((event) => {
            // You are advised to execute the JavaScript script in this event.
            if (event) {
              console.log('onPageEnd url:' + event.url);
            }
          })
          .onPageVisible((event) => {
            console.log('onPageVisible url:' + event.url);
          })
          .onRenderExited((event) => {
            if (event) {
              console.log('onRenderExited reason:' + event.renderExitReason);
            }
          })
          .onDisAppear(() => {
            promptAction.showToast({
              message: 'The web is hidden',
              duration: 2000
            })
          })
      }
    }
  }

Frontend index.html:

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <head>
    <meta charset="UTF-8">
  </head>
  <body>
  <h1>Hello, ArkWeb</h1>
  </body>
  </html>

Performance Indicators of Web Component Page Loading

Pay attention to some important performance indicators during web page loading. Such as First Contentful Paint (FCP), First Meaningful Paint (FMP), and Largest Contentful Paint (LCP). The Web component provides the following APIs:

onFirstContentfulPaint: This callback is triggered to notify the time when the web page content such as a text, non-blank Canvas, an image or SVG is rendered for the first time.
onFirstMeaningfulPaint: This callback is triggered to notify the time when the meaningful web page content is rendered for the first time.
onLargestContentfulPaint : This callback is triggered to notify the time when the largest web page content is rendered.
