Using startAbilityByType to Start a Navigation Application

This topic describes how to open the vertical domain panel of navigation applications.

Parameters on the Navigation Application Panel

If the type field in startAbilityByType is set to navigation, three intent scenarios are supported: route planning, navigation, and place search. The corresponding wantParam parameter contains the following properties.

NOTE

The GCJ-02 coordinate system is used for the longitude and latitude in this document.

Route planning scenarios

Navigation scenarios

Place search scenarios

Developing a Caller Application

Import the module. ts import { common } from '@kit.AbilityKit';
Construct parameters and call the startAbilityByType API.

You need to obtain the POI IDs of the destination and origin from each map system and pass the parameters destinationPoiIds and originPoiIds based on the mappings.

```ts
@Entry
@Component
struct Index {
@State hideAbility: string = 'hideAbility'

	build() {
		Row() {
			Column() {
				Text(this.hideAbility)
					.fontSize(30)
					.fontWeight(FontWeight.Bold)
					.onClick(() => {
						let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
						let wantParam: Record<string, Object> = {
							'sceneType': 1,
							'destinationLatitude': 32.060844,
							'destinationLongitude': 118.78315,
							'destinationName': 'No.xx, xx Road, xx City',
							'destinationPoiIds': {
								1:'1111', // Key 1 indicates Petal Maps, and the value must be a POI in Petal Maps.
								2:'2222' // Key 2 indicates AutoNavi Map, and the value must be a POI in AutoNavi Map.
							} as Record<number, string>,
							'originName': 'xx Park in xx City',
							'originLatitude': 31.060844,
							'originLongitude': 120.78315,
							'originPoiIds': {
								1: '3333',  // Key 1 indicates Petal Maps, and the value must be a POI in Petal Maps.
								2: '4444'   // Key 2 indicates AutoNavi Map, and the value must be a POI in AutoNavi Map.
							} as Record<number, string>,
							'vehicleType': 0
						};
						let abilityStartCallback: common.AbilityStartCallback = {
							onError: (code: number, name: string, message: string) => {
								console.log(`onError code ${code} name: ${name} message: ${message}`);
							},
							onResult: (result) => {
								console.log(`onResult result: ${JSON.stringify(result)}`);
							}
						}

						context.startAbilityByType("navigation", wantParam, abilityStartCallback,
							(err) => {
								if (err) {
									console.error(`startAbilityByType fail, err: ${JSON.stringify(err)}`);
								} else {
									console.log(`success`);
								}
							});
					});
			}
			.width('100%')
		}
		.height('100%')
	}
}
```

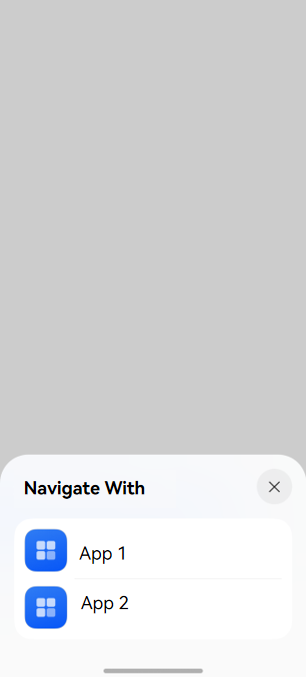

Effect

Effect example

Developing a Target Application

Configure uris in the module.json5 file.
1. Set the linkFeature field to declare the features supported by the application so that the system can match the application against all the installed applications on the device. The options are as follows: |Value |Description | |————–|—————————-| |Navigation |The application supports navigation. | |RoutePlan |The application supports route planning. | |PlaceSearch |The application supports place search. |
2. Set scheme, host, port, and path or pathStartWith to match the URIs in Want to distinguish different features. json { "abilities": [ { "skills": [ { "uris": [ { "scheme": "maps", // It is for reference only. Ensure that the declared URI can be started by external systems. "host": "navigation", "path": "", "linkFeature": "Navigation" // Declare that the application supports navigation. }, { "scheme": "maps", // It is for reference only. Ensure that the declared URI can be started by external systems. "host": "routePlan", "path": "", "linkFeature": "RoutePlan" // Declare that the application supports route planning. }, { "scheme": "maps", // It is for reference only. Ensure that the declared URI can be started by external systems. "host": "search", "path": "", "linkFeature": "PlaceSearch" // Declare that the application supports place search. } ] } ] } ] }
Parse parameters and perform corresponding processing.
```
UIAbility.onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void
```
The want.uri parameter carries the URI corresponding to linkFeature configured by the target application.

want.parameters carries the parameters passed by the caller, which vary in different scenarios.
- Route planning scenarios
|Name |Type|Mandatory|Description | |——————–|——|—-|—————————————————-| |originName |string|No|Name of the source. | |originLatitude |number|No|Latitude of the source. | |originLongitude |number|No|Longitude of the source. | |originPoiId |string|No|POI ID of the source. Currently, this parameter can be obtained only from Petal Maps and AutoNavi Map. | |destinationName |string|No|Name of the destination. | |destinationLatitude|number|Yes|Latitude of the destination. | |destinationLongitude|number|Yes|Longitude of the destination. | |destinationPoiId |string|No|POI ID of the destination. Currently, this parameter can be obtained only from Petal Maps and AutoNavi Map. | |vehicleType |number|No|Transportation mode. The options are as follows: 0: driving; 1: walking; 2: cycling; 3: public transportation.|
- Navigation scenarios
|Name |Type|Mandatory|Description | |——————–|——|—-|———-| |destinationName |string|No|Name of the destination.| |destinationLatitude|number|Yes|Latitude of the destination.| |destinationLongitude|number|Yes|Longitude of the destination.| |destinationPoiId |string|No|POI ID of the destination. Currently, this parameter can be obtained only from Petal Maps and AutoNavi Map.|
- Place search scenarios
|Name |Type|Mandatory|Description | |—————|——|—-|——–| |destinationName|string|Yes|Name of the destination.|

The application can develop different style pages based on the features defined in linkFeature, such as route planning, navigation, and place search, as well as the received URI and parameters.

Sample Code

import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { window } from '@kit.ArkUI';

const TAG = 'EntryAbility'

export default class EntryAbility extends UIAbility {
    windowStage: window.WindowStage|null = null;

    uri?: string;
    destinationLatitude?: number;
    destinationLongitude?: number;
    destinationName?: string;
    originName?: string;
    originLatitude?: number;
    originLongitude?: number;
    vehicleType?: number;
    destinationPoiId?: string;
    originPoiId?: string;

    onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onCreate, want=${JSON.stringify(want)}`);
        super.onCreate(want, launchParam);
        this.parseWant(want);
    }

    onNewWant(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onNewWant, want=${JSON.stringify(want)}`);
        super.onNewWant(want, launchParam);
        this.parseWant(want);
        if (!this.windowStage) {
            hilog.error(0x0000, TAG, 'windowStage is null');
            this.context.terminateSelf();
            return;
        }
        this.loadPage(this.windowStage);
    }

    private parseWant(want: Want): void {
        this.uri = want.uri as string|undefined;
        this.destinationLatitude = want.parameters?.destinationLatitude as number|undefined;
        this.destinationLongitude = want.parameters?.destinationLongitude as number|undefined;
        this.destinationName = want.parameters?.destinationName as string|undefined;
        this.originName = want.parameters?.originName as string|undefined;
        this.originLatitude = want.parameters?.originLatitude as number|undefined;
        this.originLongitude = want.parameters?.originLongitude as number|undefined;
        this.vehicleType = want.parameters?.vehicleType as number|undefined;
        this.destinationPoiId = want.parameters?.destinationPoiId as string|undefined;
        this.originPoiId = want.parameters?.originPoiId as string|undefined;
    }

    private loadPage(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `loadPage, uri=${this.uri}`);
        if (this.uri === 'maps://navigation') {
            // Construct parameters for the navigation scenario.
            const storage: LocalStorage = new LocalStorage({
                "destinationLatitude": this.destinationLatitude,
                "destinationLongitude": this.destinationLongitude,
                "destinationPoiId": this.destinationPoiId
            } as Record<string, Object>);
            // Open the navigation page.
            windowStage.loadContent('pages/NavigationPage', storage)
        } else if (this.uri === 'maps://routePlan') {
            // Construct parameters for the path planning scenario.
            const storage: LocalStorage = new LocalStorage({
                "destinationLatitude": this.destinationLatitude,
                "destinationLongitude": this.destinationLongitude,
                "destinationName": this.destinationName,
                "originName": this.originName,
                "originLatitude": this.originLatitude,
                "originLongitude": this.originLongitude,
                "vehicleType": this.vehicleType,
                "destinationPoiId": this.destinationPoiId,
                "originPoiId": this.originPoiId
            } as Record<string, Object>);
            // Open the route planning page.
            windowStage.loadContent('pages/RoutePlanPage', storage)
        }  else if (this.uri === 'maps://search') {
            // Construct parameters for the place search scenario.
            const storage: LocalStorage = new LocalStorage({
                "destinationName": this.destinationName
            } as Record<string, Object>);
            // Open the place search page.
            windowStage.loadContent('pages/PlaceSearchPage', storage)
        } else {
            // Display the home page by default.
            windowStage.loadContent('pages/Index', (err) => {
                if (err.code) {
                    hilog.error(0x0000, TAG, 'Failed to load the content. Cause: %{public}s',
                        JSON.stringify(err) ?? '');
                    return;
                }
                hilog.info(0x0000, TAG, 'Succeeded in loading the content.');
            });
        }
    }

    onDestroy(): void {
        hilog.info(0x0000, TAG, `onDestroy`);
    }

    onWindowStageCreate(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `onWindowStageCreate`);
        this.windowStage = windowStage;
        this.loadPage(this.windowStage);
    }

    onWindowStageDestroy(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onWindowStageDestroy');
    }

    onForeground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onForeground');
    }

    onBackground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onBackground');
    }
}
