@ohos.matrix4 (Matrix Transformation)

The matrix4 module provides APIs for matrix transformation. You can use these APIs to translate, rotate, and scale images.

NOTE

The initial APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { matrix4 } from '@kit.ArkUI';

matrix4.init

init(options: [number,number,number,number,number,number,number,number,number,number,number,number,number,number,number,number]): Matrix4Transit

Matrix constructor, which is used to create a 4 x 4 matrix with the input parameters. Column-major order is used.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	[number,number,number,number, number,number,number,number, number,number,number,number, number,number,number,number]	Yes	A number array whose length is 16 (4 x 4). For details, see 4 x 4 matrix description. Value range of each number: (-∞, +∞) Default value: [1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1]

Return value

Type	Description
Matrix4Transit	4 x 4 matrix object created based on the input parameters.

4 x 4 matrix description

Name	Type	Mandatory	Description
m00	number	Yes	Scaling value of the x-axis. The default value is 1 for the identity matrix.
m01	number	Yes	The second value, which is affected by the rotation or tilt of the x, y, and z axes.
m02	number	Yes	The third value, which is affected by the rotation of the x, y, and z axes.
m03	number	Yes	The fourth value, which is affected by perspective projection.
m10	number	Yes	The fifth value, which is affected by the rotation or tilt of the x, y, and z axes.
m11	number	Yes	Scaling value of the y-axis. The default value is 1 for the identity matrix.
m12	number	Yes	The seventh value, which is affected by the rotation of the x, y, and z axes.
m13	number	Yes	The eighth value, which is affected by perspective projection.
m20	number	Yes	The ninth value, which is affected by the rotation of the x, y, and z axes.
m21	number	Yes	The tenth value, which is affected by the rotation of the x, y, and z axes.
m22	number	Yes	Scaling value of the z-axis. The default value is 1 for the identity matrix.
m23	number	Yes	The 12th value, which is affected by perspective projection.
m30	number	Yes	Translation value of the x-axis, in px. The default value is 0 for the identity matrix.
m31	number	Yes	Translation value of the y-axis, in px. The default value is 0 for the identity matrix.
m32	number	Yes	Translation value of the z-axis, in px. The default value is 0 for the identity matrix.
m33	number	Yes	Valid in homogeneous coordinates, presenting the perspective projection effect.

Example

import { matrix4 } from '@kit.ArkUI';

// Create a 4 x 4 matrix.
let matrix = matrix4.init(
  [1.0, 0.0, 0.0, 0.0,
    0.0, 1.0, 0.0, 0.0,
    0.0, 0.0, 1.0, 0.0,
    0.0, 0.0, 0.0, 1.0])

@Entry
@Component
struct Tests {
  build() {
    Column() {
      Image($r("app.media.zh"))
        .width("40%")
        .height(100)
        .transform(matrix)
    }
  }
}

matrix4.identity

identity(): Matrix4Transit

Constructs an identity matrix.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

Type	Description
Matrix4Transit	Identity matrix object.

Example

// The effect of matrix 1 is the same as that of matrix 2.
import { matrix4 } from '@kit.ArkUI';

let matrix1 = matrix4.init(
  [1.0, 0.0, 0.0, 0.0,
    0.0, 1.0, 0.0, 0.0,
    0.0, 0.0, 1.0, 0.0,
    0.0, 0.0, 0.0, 1.0])
let matrix2 = matrix4.identity()

@Entry
@Component
struct Tests {
  build() {
    Column() {
      Image($r("app.media.zh"))
        .width("40%")
        .height(100)
        .transform(matrix1)
      Image($r("app.media.zh"))
        .width("40%")
        .height(100)
        .margin({ top: 150 })
        .transform(matrix2)
    }
  }
}

Matrix4Transit

Implements a Matrix4Transit object.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

copy

copy(): Matrix4Transit

Copies this matrix object.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

Type	Description
Matrix4Transit	Copy object of the current matrix.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity().scale({ x: 1.5 })
  private matrix2 = this.matrix1.copy().translate({ x: 200 })
  imageSize: Length = '300px'

  build() {
    Column({ space: "50px" }) {
      Image($r("app.media.testImage"))
        .width(this.imageSize)
        .height(this.imageSize)
      Image($r("app.media.testImage"))
        .width(this.imageSize)
        .height(this.imageSize)
        .transform(this.matrix1)
      Image($r("app.media.testImage"))
        .width(this.imageSize)
        .height(this.imageSize)
        .transform(this.matrix2)
    }.alignItems(HorizontalAlign.Center)
    .height('100%').width("100%")
    .justifyContent(FlexAlign.Center)
  }
}

en-us_image_0000001219744181

combine

combine(options: Matrix4Transit): Matrix4Transit

Combines the effects of two matrices to generate a new matrix object. The original matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	Matrix4Transit	Yes	Matrix object to be combined.

Return value

Type	Description
Matrix4Transit	Object after matrix combination.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity().translate({ x: 200 })
  private matrix2 = matrix4.identity().scale({ x: 2 })

  build() {
    Column() {
      // Before matrix transformation
      Image($r("app.media.icon"))
        .width("40%")
        .height(100)
        .margin({ top: 50 })
      // Translate the x-axis by 200px, and then scale it twice to obtain the resultant matrix.
      Image($r("app.media.icon"))
        .transform(this.matrix1.copy().combine(this.matrix2))
        .width("40%")
        .height(100)
        .margin({ top: 50 })
    }
  }
}

en-us_image_0000001118642902

invert

invert(): Matrix4Transit

Inverts this matrix object. The original matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

Type	Description
Matrix4Transit	Inverse matrix object of the current matrix.

Example

import { matrix4 } from '@kit.ArkUI';

// The effect of matrix 1 (width scaled up by 2x) is opposite to that of matrix 2 (width scaled down by 2x).
let matrix1 = matrix4.identity().scale({ x: 2 })
let matrix2 = matrix1.copy().invert()

@Entry
@Component
struct Tests {
  build() {
    Column() {
      Image($r("app.media.zh"))
        .width(200)
        .height(100)
        .transform(matrix1)
        .margin({ top: 100 })
      Image($r("app.media.zh"))
        .width(200)
        .height(100)
        .margin({ top: 150 })
        .transform(matrix2)
    }
  }
}

translate

translate(options: TranslateOption): Matrix4Transit

Translates this matrix object along the x, y, and z axes. The original matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	TranslateOption	Yes	Translation configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after the translation.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity().translate({ x: 100, y: 200, z: 30 })

  build() {
    Column() {
      Image($r("app.media.bg1")).transform(this.matrix1)
        .width("40%")
        .height(100)
    }
  }
}

en-us_image_0000001219662645

scale

scale(options: ScaleOption): Matrix4Transit

Scales this matrix object along the x, y, and z axes. The matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	ScaleOption	Yes	Scaling configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after the scaling.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity()
    .scale({
      x: 2,
      y: 3,
      z: 4,
      centerX: 50,
      centerY: 50
    })

  build() {
    Column() {
      Image($r("app.media.testImage")).transform(this.matrix1)
        .width("300px")
        .height("300px")
    }.width("100%").height("100%").justifyContent(FlexAlign.Center)
  }
}

en-us_image_0000001219864131

skew¹²⁺

skew(x: number, y: number): Matrix4Transit

Skews this matrix object along the x and y axes. The matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
x	number	Yes	Amount of skewing on the x-axis.
y	number	Yes	Amount of skewing on the y-axis.

Return value

Type	Description
Matrix4Transit	Matrix object after the skewing.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity().skew(2, 3)

  build() {
    Column() {
      Image($r("app.media.bg1")).transform(this.matrix1)
        .height(100)
        .margin({
          top: 300
        })
    }
    .width("100%")
    .height("100%")
  }
}

en-us_image_0000001219864132

rotate

rotate(options: RotateOption): Matrix4Transit

Rotates this matrix object along the x, y, and z axes. The matrix that calls this API will be changed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	RotateOption	Yes	Rotation configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after the rotation.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity()
    .rotate({
      x: 1,
      y: 1,
      z: 2,
      angle: 30
    })

  build() {
    Column() {
      Image($r("app.media.bg1")).transform(this.matrix1)
        .width("40%")
        .height(100)
    }.width("100%").margin({ top: 50 })
  }
}

en-us_image_0000001174422898

transformPoint

transformPoint(options: [number, number]): [number, number]

Applies the current transformation effect to a coordinate point.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	[number, number]	Yes	Point to be transformed.

Return value

Type	Description
[number, number]	Point object after matrix transformation

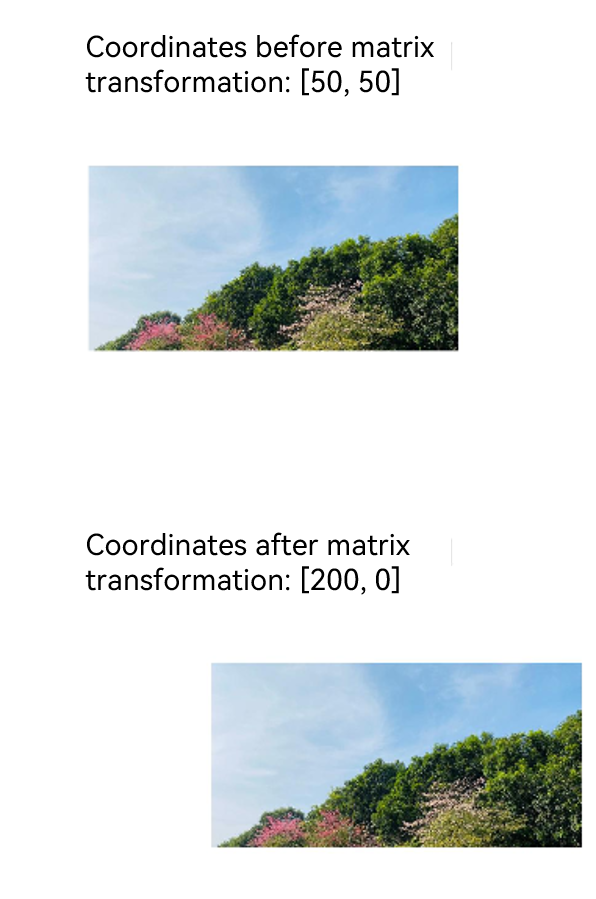

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private originPoint: number[] = [50, 50]
  private matrix_1 = matrix4.identity().translate({ x: 150, y: -50 })
  private transformPoint = this.matrix_1.transformPoint([this.originPoint[0], this.originPoint[1]])
  private matrix_2 = matrix4.identity().translate({ x: this.transformPoint[0], y: this.transformPoint[1] })

  build() {
    Column() {
      Text(`Coordinates before matrix transformation: [${this.originPoint}]`)
        .fontSize(16)
      Image($r("app.media.image"))
        .width('600px')
        .height('300px')
        .margin({ top: 50 })
      Text(`Coordinates after matrix transformation: [${this.transformPoint}]`)
        .fontSize(16)
        .margin({ top: 100 })
      Image($r("app.media.image"))
        .width('600px')
        .height('300px')
        .margin({ top: 50 })
        .transform(this.matrix_2)
    }.width("100%").padding(50)
  }
}

en-us_image_0000001219864133

setPolyToPoly¹²⁺

setPolyToPoly(options: PolyToPolyOptions): Matrix4Transit

Maps the vertex coordinates of a polygon to those of another polygon.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	PolyToPolyOptions	Yes	Parameters for mapping.

Return value

Type	Description
Matrix4Transit	Matrix object after the mapping.

NOTE

This API must be used with scale({centerX:0,centerY:0,x:1}) to ensure that the transformation is centered at the upper left corner of the component.

Example

import { matrix4 } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  private matrix1 = matrix4.identity().setPolyToPoly({
    src: [{ x: 0, y: 0 }, { x: 500, y: 0 }, { x: 0, y: 500 }, { x: 500, y: 500 }],
    dst: [{ x: 0, y: 0 }, { x: 500, y: 0 }, { x: 0, y: 500 }, { x: 750, y: 1000 }], pointCount: 4
  })

  build() {
    Stack() {
      Column().backgroundColor(Color.Blue)
        .width('500px')
        .height('500px')
      Image($r('app.media.transition_image1'))
        .scale({ centerX: 0, centerY: 0, x: 1 })
        .transform(this.matrix1)
        .width('500px')
        .height('500px')
    }.width("100%").height("100%").opacity(0.5)
  }
}

en-us_image_0000001174422898

TranslateOption

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
x	number	No	Translation distance along the x-axis. Unit: px Default value: 0 Value range: (-∞, +∞)
y	number	No	Translation distance along the y-axis. Unit: px Default value: 0 Value range: (-∞, +∞)
z	number	No	Translation distance along the z-axis. Unit: px Default value: 0 Value range: (-∞, +∞)

ScaleOption

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
x	number	No	Scaling multiple along the x-axis. x > 1: The image is scaled up along the x-axis. 0 < x < 1: The image is scaled down along the x-axis. x < 0: The image is scaled in the reverse direction of the x-axis. Default value: 1 Value range: (-∞, +∞)
y	number	No	Scaling multiple along the y-axis. y > 1: The image is scaled up along the y-axis. 0 < y < 1: The image is scaled down along the y-axis. y < 0: The image is scaled in the reverse direction of the y-axis. Default value: 1 Value range: (-∞, +∞)
z	number	No	Scaling multiple along the z-axis. z > 1: The image is scaled up along the z-axis. 0 < z < 1: The image is scaled down along the z-axis. z < 0: The image is scaled in the reverse direction of the z-axis. Default value: 1 Value range: (-∞, +∞)
centerX	number	No	X coordinate of the center point. Unit: px Default value: X-coordinate of the component center Value range: (-∞, +∞)
centerY	number	No	Y coordinate of the center point. Unit: px Default value: Y-coordinate of the component center Value range: (-∞, +∞)

RotateOption

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
x	number	No	X coordinate of the rotation axis vector. Default value: 0 Value range: (-∞, +∞)
y	number	No	Y coordinate of the rotation axis vector. Default value: 0 Value range: (-∞, +∞)
z	number	No	Z coordinate of the rotation axis vector. Default value: 0 Value range: (-∞, +∞) NOTE The rotation axis vector is valid only when at least one of x, y, and z is not 0.
angle	number	No	Rotation angle. Default value: 0
centerX	number	No	Additional x-axis offset of the transformation center relative to the component’s anchor. Unit: px Default value: 0 NOTE The value 0 indicates that the transformation center coincides with the component’s x-axis anchor. For details about the implementation, see Example 3: Implementing Rotation Around a Center Point.
centerY	number	No	Additional y-axis offset of the transformation center relative to the component’s anchor. Unit: px Default value: 0 NOTE The value 0 indicates that the transformation center coincides with the component’s y-axis anchor. For details about the implementation, see Example 3: Implementing Rotation Around a Center Point.

PolyToPolyOptions¹²⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
src	Array<Point>	Yes	Coordinates of the source point.
srcIndex	number	No	Start index of the source point coordinates. Default value: 0. Value range: [0, +∞).
dst	Array<Point>	Yes	Coordinates of the destination point.
dstIndex	number	No	Start index of the destination point coordinates. Default value: 0. Value range: [0, +∞).
pointCount	number	No	Number of used points. Default value: src.length/2. Value range: [0, +∞).

Point¹²⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
x	number	Yes	X-coordinate. Value range: (-∞, +∞)
y	number	Yes	Y-coordinate. Value range: (-∞, +∞)

matrix4.copy^(deprecated)

copy(): Matrix4Transit

Copies this matrix object.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.copy instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

Type	Description
Matrix4Transit	Copy object of the current matrix.

Example

// xxx.ets
import { matrix4 } from '@kit.ArkUI';

@Entry
@Component
struct Test {
  private matrix1 = matrix4.identity().translate({ x: 100 })
  // Perform the scale operation on the copy matrix of matrix1, which does not affect matrix1.
  private matrix2 = this.matrix1.copy().scale({ x: 2 })

  build() {
    Column() {
      Image($r("app.media.bg1"))
        .width("40%")
        .height(100)
        .transform(this.matrix1)
      Image($r("app.media.bg2"))
        .width("40%")
        .height(100)
        .margin({ top: 50 })
        .transform(this.matrix2)
    }
  }
}

en-us_image_0000001219744181

matrix4.invert^(deprecated)

invert(): Matrix4Transit

Inverts this matrix object.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.invert instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

Type	Description
Matrix4Transit	Inverse matrix object of the current matrix.

matrix4.combine^(deprecated)

combine(options: Matrix4Transit): Matrix4Transit

Combines the effects of two matrices to generate a new matrix object.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.combine instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	Matrix4Transit	Yes	Matrix object to be combined.

Return value

Type	Description
Matrix4Transit	Matrix object after combination.

matrix4.translate^(deprecated)

translate(options: TranslateOption): Matrix4Transit

Translates this matrix object along the x, y, and z axes.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.translate instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	TranslateOption	Yes	Translation configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after translation.

matrix4.scale^(deprecated)

scale(options: ScaleOption): Matrix4Transit

Scales this matrix object along the x, y, and z axes.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.scale instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	ScaleOption	Yes	Scaling configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after scaling.

matrix4.rotate^(deprecated)

rotate(options: RotateOption): Matrix4Transit

Rotates this matrix object along the x, y, and z axes.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.rotate instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	RotateOption	Yes	Rotation configuration.

Return value

Type	Description
Matrix4Transit	Matrix object after rotation.

matrix4.transformPoint^(deprecated)

transformPoint(options: [number, number]): [number, number]

Applies the current transformation effect to a coordinate point.

NOTE

This API is deprecated since API version 10. You are advised to use Matrix4Transit.transformPoint instead.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	[number, number]	Yes	Point to be transformed.

Return value

Type	Description
[number, number]	Point object after matrix transformation

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkUI

harmony 鸿蒙ARKUI_TextPickerCascadeRangeContent

harmony 鸿蒙ARKUI_TextPickerRangeContent

harmony 鸿蒙ArkUI_AnimateCompleteCallback

harmony 鸿蒙ArkUI_AttributeItem

harmony 鸿蒙ArkUI_ColorStop

harmony 鸿蒙ArkUI_ContextCallback

harmony 鸿蒙ArkUI_EventModule

harmony 鸿蒙ArkUI_ExpectedFrameRateRange

harmony 鸿蒙ArkUI_IntOffset

0 赞

所属分类： 后端技术
本文标签：
版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/yByeQ8

harmony 鸿蒙@ohos.matrix4 (Matrix Transformation)

@ohos.matrix4 (Matrix Transformation)

Modules to Import

matrix4.init

matrix4.identity

Matrix4Transit

copy

combine

invert

translate

scale

skew¹²⁺

rotate

transformPoint

setPolyToPoly¹²⁺

TranslateOption

ScaleOption

RotateOption

PolyToPolyOptions¹²⁺

Point¹²⁺

matrix4.copy^(deprecated)

matrix4.invert^(deprecated)

matrix4.combine^(deprecated)

matrix4.translate^(deprecated)

matrix4.scale^(deprecated)

matrix4.rotate^(deprecated)

matrix4.transformPoint^(deprecated)

你可能感兴趣的鸿蒙文章

热门推荐

标签云

最新文章

本文目录

harmony 鸿蒙@ohos.matrix4 (Matrix Transformation)

@ohos.matrix4 (Matrix Transformation)

Modules to Import

matrix4.init

matrix4.identity

Matrix4Transit

copy

combine

invert

translate

scale

skew12+

rotate

transformPoint

setPolyToPoly12+

TranslateOption

ScaleOption

RotateOption

PolyToPolyOptions12+

Point12+

matrix4.copy(deprecated)

matrix4.invert(deprecated)

matrix4.combine(deprecated)

matrix4.translate(deprecated)

matrix4.scale(deprecated)

matrix4.rotate(deprecated)

matrix4.transformPoint(deprecated)

你可能感兴趣的鸿蒙文章

热门推荐

标签云

最新文章

本文目录

skew¹²⁺

setPolyToPoly¹²⁺

PolyToPolyOptions¹²⁺

Point¹²⁺

matrix4.copy^(deprecated)

matrix4.invert^(deprecated)

matrix4.combine^(deprecated)

matrix4.translate^(deprecated)

matrix4.scale^(deprecated)

matrix4.rotate^(deprecated)

matrix4.transformPoint^(deprecated)
