Color Gradient

Create a more gorgeous look for a component by applying a color gradient effect to it.

NOTE

The APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

Color gradients are considered part of the component’s content and are drawn above the background.

Color gradients do not support explicit width and height animations. When the width or height of a component is animated with a color gradient, the gradient will jump straight to the final size.

linearGradient

linearGradient(value: {angle?: number|string; direction?: GradientDirection; colors: Array<[ResourceColor, number]>; repeating?: boolean;})

Creates a linear gradient.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value {
angle?: number |string,
direction?: GradientDirection,
colors: Array&lt;[ResourceColor, number]&gt;,
repeating?: boolean
}		 Yes Linear gradient.
Value range: (-∞, +∞)
- angle: start angle of the linear gradient. A positive value indicates a clockwise rotation from the origin, (0, 0).
Default value: 180
If the angle is specified with a string, only the deg, grad, rad, and turn types are supported.
- direction: direction of the linear gradient. It does not take effect when angle is set.
Default value: GradientDirection.Bottom
- colors: array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
- repeating: whether the colors are repeated.
Default value: false

linearGradient18+

linearGradient(options: Optional<LinearGradientOptions>)

Creates a linear gradient. Compared to linearGradient, this API supports the undefined type for the options parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
options Optional<LinearGradientOptions> Yes Linear gradient.
If options is undefined, the linear gradient is disabled.

LinearGradientOptions18+

Defines the linear gradient parameters.

Atomic service API: This API can be used in atomic services since API version 16.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
angle number |string No Start angle of the linear gradient. A positive value indicates a clockwise rotation from the origin, (0, 0). The default value is 180. If the angle is specified with a string, only the deg, grad, rad, and trun types are supported.
direction GradientDirection No Direction of the linear gradient. It does not take effect when angle is set.
Default value: GradientDirection.Bottom.
colors Array[ResourceColor, number] Yes Array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
repeating boolean No Whether the colors are repeated. Default value: false.

sweepGradient

sweepGradient(value: {center: [Length, Length]; start?: number|string; end?: number|string; rotation?: number|string; colors: Array<[ResourceColor, number]>; repeating?: boolean;})

Creates a sweep gradient.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Widget capability: This API can be used in ArkTS widgets since API version 9.

Parameters

Name Type Mandatory Description
value {
center: [Length, Length],
start?: number |string,
end?: number |string,
rotation?: number |string,
colors: Array&lt;[ResourceColor, number]&gt;,
repeating?: boolean
}		 Yes Sweep gradient, which can sweep around the specified center point in the 0–360 degree range. If the rotation angle exceeds the range, a monochrome color instead of a gradient will be drawn.
- center: center of the sweep gradient, that is, the coordinates relative to the upper left corner of the current component.
- start: start angle of the sweep gradient.
Default value: 0
If the angle is specified with a string, only the deg, grad, rad, and turn types are supported.
- end: end angle of the sweep gradient.
Default value: 0
If the angle is specified with a string, only the deg, grad, rad, and turn types are supported.
- rotation: rotation angle of the sweep gradient.
Default value: 0
If the angle is specified with a string, only the deg, grad, rad, and turn types are supported.
- colors: array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
- repeating: whether the colors are repeated.
Default value: false
NOTE
A value less than 0 is treated as 0. A value greater than 360 is treated as 360.
When start, end, or rotation is specified with a string, the string must be a number or a number followed by one of the following units: deg, rad, grad, and turn. Valid value examples are “90”, “90deg”, and “1.57rad”.

sweepGradient18+

sweepGradient(options: Optional<SweepGradientOptions>)

Creates a sweep gradient. Compared to sweepGradient, this API supports the undefined type for the options parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Widget capability: This API can be used in ArkTS widgets since API version 18.

Parameters

Name Type Mandatory Description
options Optional<SweepGradientOptions> Yes Sweep gradient.
If options is undefined, the sweep gradient is disabled.

SweepGradientOptions18+

Defines the sweep gradient parameters.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
center [Length, Length] Yes Center of the sweep gradient, that is, the coordinates relative to the upper left corner of the current component.
start number |string No Start point of the sweep gradient.
Default value: 0.
end number |string No End point of the sweep gradient.
Default value: 0.
rotation number |string No Rotation angle of the sweep gradient. Default value: 0.
colors Array&lt;[ResourceColor, number] Yes Array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
repeating boolean No Whether the colors are repeated. Default value: false.

radialGradient

radialGradient(value: { center: [Length, Length]; radius: number|string; colors: Array<[ResourceColor, number]>; repeating?: boolean })

Creates a radial gradient.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Widget capability: This API can be used in ArkTS widgets since API version 9.

Parameters

Name Type Mandatory Description
value {
center: [Length, Length],
radius: number |string,
colors: Array&lt;[ResourceColor, number]&gt;,
repeating?: boolean
}		 Yes Radial gradient.
- center: center of the radial gradient, that is, the coordinates relative to the upper left corner of the current component.
- radius: radius of the radial gradient.
Value range: [0, +∞).
NOTE
A value less than 0 is treated as 0.
- colors: array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
- repeating: whether the colors are repeated.
Default value: false.

radialGradient18+

radialGradient(options: Optional<RadialGradientOptions>)

Creates a radial gradient. Compared to radialGradient, this API supports the undefined type for the options parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Widget capability: This API can be used in ArkTS widgets since API version 18.

Parameters

Name Type Mandatory Description
options Optional<RadialGradientOptions> Yes Radial gradient.
If options is undefined, the radial gradient is disabled.

RadialGradientOptions18+

Defines the radial gradient parameters.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
center [Length, Length] Yes Center of the radial gradient, that is, the coordinates relative to the upper left corner of the current component.
radius Length Yes Radius of the radial gradient.
Value range: [0, +∞).
colors Array&lt;[ResourceColor, number]&gt; Yes Array of color stops, each of which consists of a color and its stop position. Invalid colors are automatically skipped.
repeating boolean No Whether the colors are repeated. Default value: false.

NOTE

When using the colors parameter, take note of the following:

ResourceColor indicates the color, and number indicates the color’s position, which ranges from 0 to 1.0: 0 indicates the start of the container, and 1.0 indicates the end of the container. To create a gradient with multiple color stops, you are advised to set the number values in ascending order. If a value of number in an array is smaller than that in the previous one, it is considered as equal to the previous value.

Example

Example 1: Creating a Linear Gradient

This example demonstrates how to create a linear gradient using linearGradient.

// xxx.ets
@Entry
@Component
struct ColorGradientExample {
  build() {
    Column({ space: 5 }) {
      Text('linearGradient').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width('90%')
        .height(50)
        .linearGradient({
          angle: 90,
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 1.0]]
        })
      Text('linearGradient Repeat').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width('90%')
        .height(50)
        .linearGradient({
          direction: GradientDirection.Left, // Gradient direction.
          repeating: true, // Whether the gradient colors are repeated.
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 0.5]] // The gradient colors are repeated because the last color stop is less than 1.
        })
    }
    .width('100%')
    .padding({ top: 5 })
  }
}

en-us_image_0000001219864149

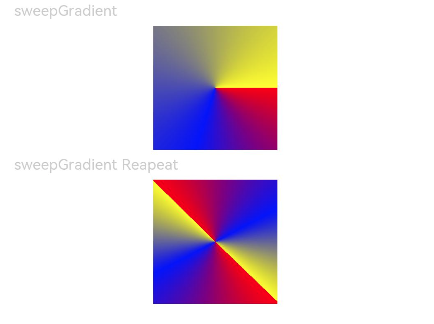

Example 2: Creating a Sweep Gradient

This example demonstrates how to create a sweep gradient that changes color based on a rotation angle using sweepGradient.

@Entry
@Component
struct ColorGradientExample {
  build() {
    Column({ space: 5 }) {
      Text('sweepGradient').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width(100)
        .height(100)
        .sweepGradient({
          center: [50, 50],
          start: 0,
          end: 359,
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 1.0]]
        })

      Text('sweepGradient Reapeat').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width(100)
        .height(100)
        .sweepGradient({
          center: [50, 50],
          start: 0,
          end: 359,
          rotation: 45, // Rotation angle.
          repeating: true, // Whether the gradient colors are repeated.
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 0.5]] // The gradient colors are repeated because the last color stop is less than 1.
        })
    }
    .width('100%')
    .padding({ top: 5 })
  }
}

en-us_image_0000001219864149

Example 3: Creating a Radial Gradient

This example demonstrates how to create a radial gradient using radialGradient.

// xxx.ets
@Entry
@Component
struct ColorGradientExample {
  build() {
    Column({ space: 5 }) {
      Text('radialGradient').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width(100)
        .height(100)
        .radialGradient({
          center: [50, 50],
          radius: 60,
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 1.0]]
        })
      Text('radialGradient Repeat').fontSize(12).width('90%').fontColor(0xCCCCCC)
      Row()
        .width(100)
        .height(100)
        .radialGradient({
          center: [50, 50],
          radius: 60,
          repeating: true,
          colors: [[0xff0000, 0.0], [0x0000ff, 0.3], [0xffff00, 0.5]] // The gradient colors are repeated because the last color stop is less than 1.
        })
    }
    .width('100%')
    .padding({ top: 5 })
  }
}

en-us_image_0000001219864149
