Using fdsan

Introduction

File descriptor sanitizer (fdsan) is a tool used to detect mishandling of file descriptor ownership, which includes double-close and use-after-close. The file descriptor can indicate a file, directory, network socket, I/O device, and the like in an operating system. When a file or a socket is opened in an application, a file descriptor is generated. If a file descriptor is repeatedly closed after being used or is used after being closed, security risks such as memory leaks and file handle leaks will be caused. This type of problems is difficult to locate and fix. That is why fdsan comes in handy.

Working Principle

fdsan provides functions to associate a file descriptor with an owner and enforces detection of file descriptor errors based on ownership. When a file is opened or created, the file descriptor returned is associated with a tag, which indicates the owner responsible for closing it. Before the file is closed, the tag associated with the file descriptor is checked to determine whether the owner is correct. If yes, the file can be closed. Otherwise, an exception will be thrown to trigger error handling.

A tag is of 64 bits, consisting of the following:

type: an 8-bit string indicating how a file descriptor is encapsulated for management. For example, FDSAN_OWNER_TYPE_FILE indicates that the file descriptor is managed as a handle to a file. The value of type is defined in fdsan_owner_type.
value: a 56-bit string uniquely identifying a tag.

Figure Tag

Available APIs

fdsan_set_error_level

enum fdsan_error_level fdsan_set_error_level(enum fdsan_error_level new_level);

Description
Sets an error level, which determines the processing behavior when an exception is detected. The default value is FDSAN_ERROR_LEVEL_WARN_ALWAYS.

Parameters
fdsan_error_level

Value	Description
`FDSAN_ERROR_LEVEL_DISABLED`	fdsan is disabled, that is, no processing is performed.
`FDSAN_ERROR_LEVEL_WARN_ONCE`	Give a warning in HiLog only when the error is detected for the first time and then continue execution with fdsan disabled (FDSAN_ERROR_LEVEL_DISABLED).
`FDSAN_ERROR_LEVEL_WARN_ALWAYS`	Give a warning in HiLog only each time the error is detected.
`FDSAN_ERROR_LEVEL_FATAL`	Call abort to terminate the process when the error is detected.

Return value
Old error_level.

fdsan_get_error_level

enum fdsan_error_level fdsan_get_error_level();

Description
Obtains the current error level.

Return value
Current error level.

fdsan_create_owner_tag

uint64_t fdsan_create_owner_tag(enum fdsan_owner_type type, uint64_t tag);

Description
Creates a tag for a file descriptor.

Parameters
fdsan_owner_type

Value	Description
`FDSAN_OWNER_TYPE_GENERIC_00`	Default type.
`FDSAN_OWNER_TYPE_GENERIC_FF`	Default type for invalid file descriptors.
`FDSAN_OWNER_TYPE_FILE`	Type for a file, which can be opened by using fopen() or fdopen().
`FDSAN_OWNER_TYPE_DIRECTORY`	Type for a directory, which can be opened by using opendir or fdopendir.
`FDSAN_OWNER_TYPE_UNIQUE_FD`	Type for unique_fd. This value is reserved.
`FDSAN_OWNER_TYPE_ZIPARCHIVE`	Type for a .zip file. This value is reserved.

Return value
Created tag, which can be used as an input of fdsan_exchange_owner_tag.

fdsan_exchange_owner_tag

void fdsan_exchange_owner_tag(int fd, uint64_t expected_tag, uint64_t new_tag);

Description
Modifies the tag of a file descriptor.

Locate the FdEntry based on the file descriptor and check whether the value of close_tag is the same as that of expected_tag. If yes, you can change the value of FdEntry with the value of new_tag passed in.

If the value of close_tag is not the same as that of expected_tag, an error occurs. Perform error handling.

Parameters

Name	Type	Description
`fd`	int	FD, which serves as an index of FdEntry.
`expected_tag`	uint64_t	Expected value of the tag.
`new_tag`	uint64_t	New value of the tag.

fdsan_close_with_tag

int fdsan_close_with_tag(int fd, uint64_t tag);

Description
Closes a file descriptor based on the tag.

Locate the FdEntry based on the file descriptor. If close_tag is the same as tag, the file descriptor can be closed. Otherwise, an exception occurs.

Parameters

Name	Type	Description
`fd`	int	FD to close.
`tag`	uint64_t	Expected tag.

Return value
Returns 0 if the file descriptor is closed; returns -1 otherwise.

fdsan_get_owner_tag

uint64_t fdsan_get_owner_tag(int fd);

Description
Obtains tag information based on the given file descriptor.

Locate FdEntry based on the file descriptor and obtain close_tag.

Parameters

Name	Type	Description
`tag`	uint64_t	Owner tag.

Return value
Tag of the file descriptor.

fdsan_get_tag_type

const char* fdsan_get_tag_type(uint64_t tag);

Description
Obtains the file descriptor type based on the given tag.

The type information can be calculated based on the tag information.

Parameters

Name	Type	Description
`tag`	uint64_t	Owner tag.

Return value
Type obtained.

fdsan_get_tag_value

uint64_t fdsan_get_tag_value(uint64_t tag);

Description
Obtains the owner value based on the given tag.

The value contained in a tag can be obtained via offset calculation.

Parameters

Name	Type	Description
`tag`	uint64_t	Owner tag.

Return value
Owner value obtained.

Example

Use fdsan to detect a double-close problem.

void good_write()
{
    sleep(1);
    int fd = open(DEV_NULL_FILE, O_RDWR);
    sleep(3);
    ssize_t ret = write(fd, "fdsan test\n", 11);
    if (ret == -1) {
        OH_LOG_ERROR(LOG_APP, "good write but failed?!");
    }
    close(fd);
}

void bad_close()
{
    int fd = open(DEV_NULL_FILE, O_RDWR);
    close(fd);
    sleep(2);
    // This close is expected to be detected by fdsan.
    close(fd);
}

void functional_test()
{
    std::vector<std::thread> threads;
    for (auto function : { good_write, bad_close }) {
        threads.emplace_back(function);
    }
    for (auto& thread : threads) {
        thread.join();
    }
}

int main()
{
    functional_test();
    return 0;
}

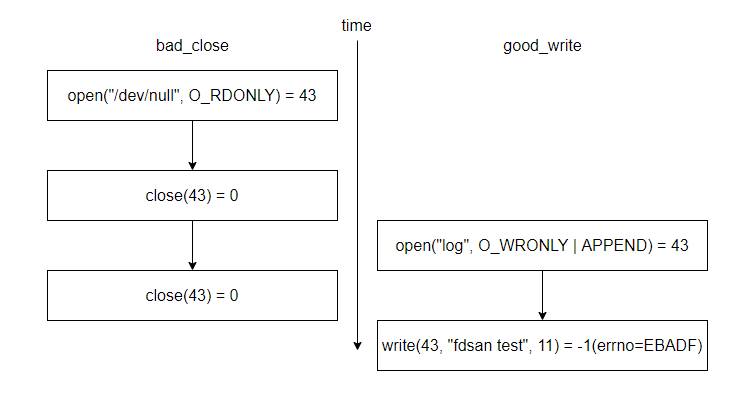

In this example, good_write is used to open a file and write data to it; bad_close is used to open a file and trigger a double-close problem. If the two threads run at the same time, the application execution is as follows:

The open() API returns file descriptors in sequence. After the main function is called, the first available file descriptor is 43. When bad_close is called, the file descriptor returned by open() for the first time is 43. After close() is called, the file descriptor 43 becomes available. When good_write is called, the open() function returns the first available file descriptor, that is, 43. Since bad_close() has the double-close problem, the file opened in another thread is incorrectly closed, causing a write failure.

The fdsan tool can detect such problems in two ways: using standard library APIs or implementing APIs with fdsan.

Using Standard Library APIs

The fopen, fdopen, opendir, and fdopendir APIs in libc have integrated fdsan. Using these APIs instead of open can help detect file descriptor mishandling problems. Use fopen instead of open in the following code:

#include <stdio.h>
#include <errno.h>
#define TEMP_FILE "/data/local/tmp/test.txt"

void good_write()
{
    // fopen is protected by fdsan. Use fopen to replace open.
    // int fd = open(TEMP_FILE, O_RDWR);
    FILE *f = fopen(TEMP_FILE, "w+");
    if (f == NULL) {
        printf("fopen failed errno=%d\n", errno);
        return;
    }
    // ssize_t ret = write(fd, "fdsan test\n", 11);
    int ret = fprintf(f, "fdsan test %d\n", 11);
    if (ret < 0) {
        printf("fprintf failed errno=%d\n", errno);
    }
    // close(fd);
    fclose(f);
}

Log Information

Each file descriptor returned by fopen has a tag. When the file descriptor is closed by close, fdsan checks whether the file descriptor matches the tag. If the file descriptor does not match the tag, related log information is displayed by default. The log information for the preceding code is as follows:

# hilog|grep MUSL-FDSAN
04-30 15:03:41.760 10933  1624 E C03f00/MUSL-FDSAN: attempted to close file descriptor 43,                             expected to be unowned, actually owned by FILE* 0x00000000f7b90aa2

As indicated by the log, the file of FILE is closed by mistake. You can further locate the fault based on the address of FILE.

In addition, you can use fdsan_set_error_level to set an error level. If error_level is set to FDSAN_ERROR_LEVEL_FATAL, fdsan also provides stack information for fault locating in addition to the log information. The following is an example of the stack information generated upon a crash after error_level is set to FDSAN_ERROR_LEVEL_FATAL:

Reason:Signal:SIGABRT(SI_TKILL)@0x0000076e from:1902:20010043
Fault thread info:
Tid:15312, Name:e.myapplication
#00 pc 000e65bc /system/lib/ld-musl-arm.so.1(raise+176)(3de40c79448a2bbced06997e583ef614)
#01 pc 0009c3bc /system/lib/ld-musl-arm.so.1(abort+16)(3de40c79448a2bbced06997e583ef614)
#02 pc 0009de4c /system/lib/ld-musl-arm.so.1(fdsan_error+116)(3de40c79448a2bbced06997e583ef614)
#03 pc 0009e2e8 /system/lib/ld-musl-arm.so.1(fdsan_close_with_tag+836)(3de40c79448a2bbced06997e583ef614)
#04 pc 0009e56c /system/lib/ld-musl-arm.so.1(close+20)(3de40c79448a2bbced06997e583ef614)
#05 pc 000055d8 /data/storage/el1/bundle/libs/arm/libentry.so(bad_close()+96)(f3339aac824c099f449153e92718e1b56f80b2ba)
#06 pc 00006cf4 /data/storage/el1/bundle/libs/arm/libentry.so(decltype(std::declval<void (*)()>()()) std::__n1::__invoke[abi:v15004]<void (*)()>(void (*&&)())+24)(f3339aac824c099f449153e92718e1b56f80b2ba)
#07 pc 00006c94 /data/storage/el1/bundle/libs/arm/libentry.so(f3339aac824c099f449153e92718e1b56f80b2ba)
#08 pc 000067b8 /data/storage/el1/bundle/libs/arm/libentry.so(void* std::__n1::__thread_proxy[abi:v15004]<std::__n1::tuple<std::__n1::unique_ptr<std::__n1::__thread_struct, std::__n1::default_delete<std::__n1::__thread_struct>>, void (*)()>>(void*)+100)(f3339aac824c099f449153e92718e1b56f80b2ba)
#09 pc 00105a6c /system/lib/ld-musl-arm.so.1(start+248)(3de40c79448a2bbced06997e583ef614)
#10 pc 000700b0 /system/lib/ld-musl-arm.so.1(3de40c79448a2bbced06997e583ef614)

The stack information provides information about bad_close and all opened files, helping quickly locate faults.

OpenFiles:
0->/dev/null native object of unknown type 0
1->/dev/null native object of unknown type 0
2->/dev/null native object of unknown type 0
3->socket:[28102] native object of unknown type 0
4->socket:[28103] native object of unknown type 0
5->anon_inode:[eventpoll] native object of unknown type 0
6->/sys/kernel/debug/tracing/trace_marker native object of unknown type 0
7->anon_inode:[eventpoll] native object of unknown type 0
8->anon_inode:[eventpoll] native object of unknown type 0
9->/dev/console native object of unknown type 0
10->pipe:[95598] native object of unknown type 0
11->pipe:[95598] native object of unknown type 0
12->socket:[18542] native object of unknown type 0
13->pipe:[96594] native object of unknown type 0
14->socket:[18545] native object of unknown type 0
15->pipe:[96594] native object of unknown type 0
16->anon_inode:[eventfd] native object of unknown type 0
17->/dev/binder native object of unknown type 0
18->/data/storage/el1/bundle/entry.hap native object of unknown type 0
19->anon_inode:[eventpoll] native object of unknown type 0
20->anon_inode:[signalfd] native object of unknown type 0
21->socket:[29603] native object of unknown type 0
22->anon_inode:[eventfd] native object of unknown type 0
23->anon_inode:[eventpoll] native object of unknown type 0
24->anon_inode:[eventfd] native object of unknown type 0
25->anon_inode:[eventpoll] native object of unknown type 0
26->anon_inode:[eventfd] native object of unknown type 0
27->anon_inode:[eventpoll] native object of unknown type 0
28->anon_inode:[eventfd] native object of unknown type 0
29->anon_inode:[eventpoll] native object of unknown type 0
30->anon_inode:[eventfd] native object of unknown type 0
31->anon_inode:[eventpoll] native object of unknown type 0
32->anon_inode:[eventfd] native object of unknown type 0
33->anon_inode:[eventpoll] native object of unknown type 0
34->anon_inode:[eventfd] native object of unknown type 0
35->socket:[97409] native object of unknown type 0
36->socket:[94716] native object of unknown type 0
38->socket:[94720] native object of unknown type 0
40->/data/storage/el1/bundle/entry_test.hap native object of unknown type 0
41->socket:[95617] native object of unknown type 0
42->/sys/kernel/debug/tracing/trace_marker native object of unknown type 0
43->/dev/null FILE* 4155724704
44->socket:[94737] native object of unknown type 0
45->pipe:[95634] native object of unknown type 0
46->pipe:[95634] native object of unknown type 0
47->pipe:[95635] native object of unknown type 0
49->pipe:[95636] native object of unknown type 0
50->pipe:[95636] native object of unknown type 0

Implementing APIs with fdsan

You can also implement APIs with fdsan by using fdsan_exchange_owner_tag and fdsan_close_with_tag. The former can be used to set a tag for a file descriptor; the latter can be used to check the tag when a file is closed.

The following is an example:

#include <errno.h>
#include <stdio.h>
#include <fcntl.h>
#include <unistd.h>

#include <utility>

struct fdsan_fd {
    fdsan_fd() = default;

    explicit fdsan_fd(int fd)
    {
        reset(fd);
    }

    fdsan_fd(const fdsan_fd& copy) = delete;
    fdsan_fd(fdsan_fd&& move)
    {
        *this = std::move(move);
    }

    ~fdsan_fd()
    {
        reset();
    }

    fdsan_fd& operator=(const fdsan_fd& copy) = delete;
    fdsan_fd& operator=(fdsan_fd&& move)
    {
        if (this == &move) {
            return *this;
        }
        reset();
        if (move.fd_ != -1) {
            fd_ = move.fd_;
            move.fd_ = -1;
            // Acquire ownership from the moved-from object.
            exchange_tag(fd_, move.tag(), tag());
        }
        return *this;
    }

    int get()
    {
        return fd_;
    }

    void reset(int new_fd = -1)
    {
        if (fd_ != -1) {
            close(fd_, tag());
            fd_ = -1;
        }
        if (new_fd != -1) {
            fd_ = new_fd;
            // Acquire ownership of the presumably unowned fd.
            exchange_tag(fd_, 0, tag());
        }
    }

  private:
    int fd_ = -1;

    // Use the address of object as the file tag
    uint64_t tag()
    {
        return reinterpret_cast<uint64_t>(this);
    }

    static void exchange_tag(int fd, uint64_t old_tag, uint64_t new_tag)
    {
        if (&fdsan_exchange_owner_tag) {
            fdsan_exchange_owner_tag(fd, old_tag, new_tag);
        }
    }

    static int close(int fd, uint64_t tag)
    {
        if (&fdsan_close_with_tag) {
            return fdsan_close_with_tag(fd, tag);
        }
    }
};

In this example, fdsan_exchange_owner_tag is used to bind a file descriptor and the address of a struct object. Then, fdsan_close_with_tag is used to check whether the tag matches the file descriptor before the file is closed. The expected tag is the struct object address.

You can use the implemented API in the following code to detect and prevent file descriptor mishandling problems:

#define TEMP_FILE "/data/local/tmp/test.txt"

void good_write()
{
    // int fd = open(DEV_NULL_FILE, O_RDWR);
    fdsan_fd fd(open(TEMP_FILE, O_CREAT|O_RDWR));
    if (fd.get() == -1) {
        printf("fopen failed errno=%d\n", errno);
        return;
    }
    ssize_t ret = write(fd.get(), "fdsan test\n", 11);
    if (ret == -1) {
        printf("write failed errno=%d\n", errno);
    }
    fd.reset();
}

When the application is executed, the double-close problem of another thread can be detected. For details, see Log Information. You can also set error_level to fatal so that fdsan can proactively crash after detecting a crash.

Signal Safety of the close Function

In the POSIX standard, the close function is defined as a async-signal-safe function, which can be safely called in the signal handler. However, in the system implementation integrated with the File Descriptor Sanitizer (fdsan) mechanism, the close function is no longer signal-safe.

This is because the implementation of fdsan depends on the mmap system call, which is not a signal-safe function. Therefore, instead of using close() in the signal handler, you can use the system call to implement the same functionality.
