JSVM-API Overview

Introduction

The OpenHarmony JSVM-API provides a set of stable APIs based on the standard JavaScript (JS) engine. It provides complete JS engine capabilities, including creating and destroying a JS engine, executing JS code, and implementing interaction between JS and C/C++ modules.

OpenHarmony JSVM-API provides a set of APIs written in C programming language that complies with C99.

JSVM-API allows dynamically loaded JS code segment to be directly run during application runtime. With JSVM-API, you can also use C/C++ to implement core functionalities that demand high performance or closely rely on underlying system invocation, register C++ methods in JS code, and directly call the JS code to improve the execution speed.

Unless otherwise specified, JSVM-API in this document refers to OpenHarmony JSVM-API.

JSVM-API Architecture

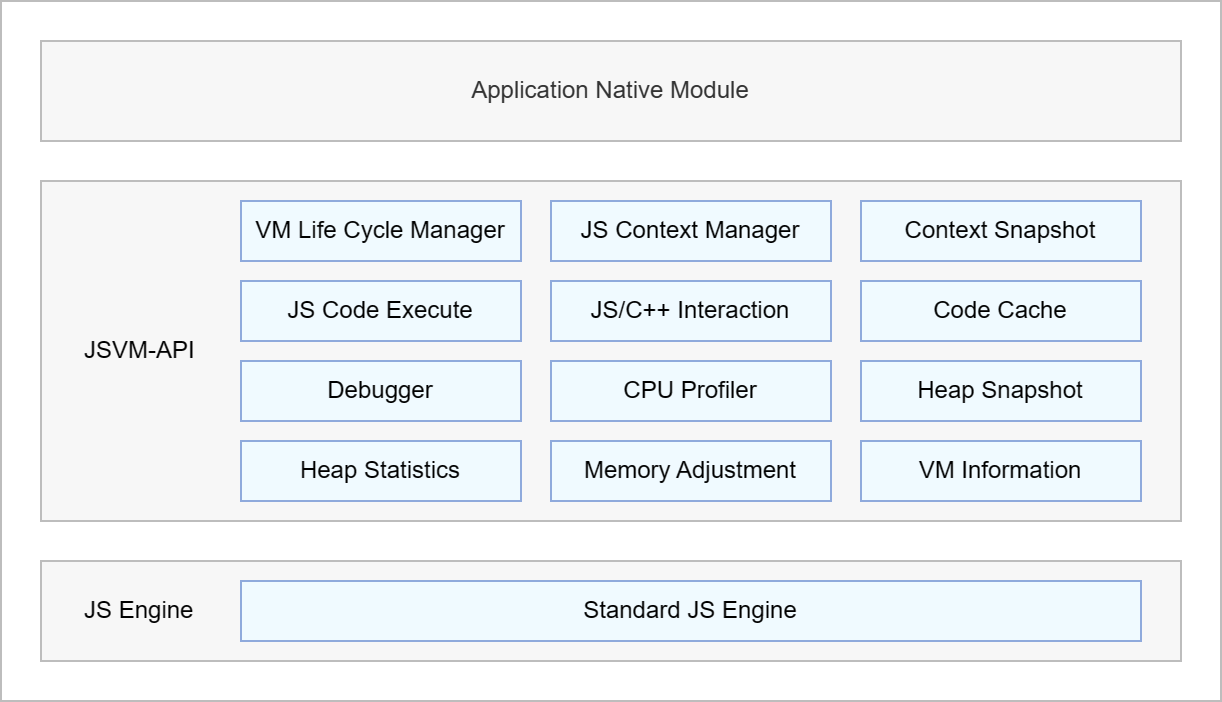

Figure 1 JSVM-API architecture

jsvm-api_mechanism

Native Module: module developed using JSVM-API in C/C++.
VM Life Cycle Manager: manages the JSVM_VM lifecycle.
JS Context Manager: manages the JSVM_Env lifecycle.
Context Snapshot: manages context snapshots to shorten the time used to create JS context.
JS Code Execute: executes JS code.
JS/C++ Interaction: implements interaction between JS and C++.
Code Cache: caches the JS code to shorten the startup time for JS code execution.
Debugger: debugs JS code.
CPU Profiler: records the JS code execution time and helps analyze the JS code performance bottlenecks.
Heap Snapshot: helps you perform JS heap memory analysis, identify memory issues, and make improvements.
Heap Statistics: provides JS heap statistics, including the memory size and context count.
Memory Adjustment: adjusts the external memory size and VM memory pressure to accelerate GC triggering.
VM Information: manages JSVM_VM information.
Standard JS Engine: standard JS engine.

JSVM-API Interaction Process

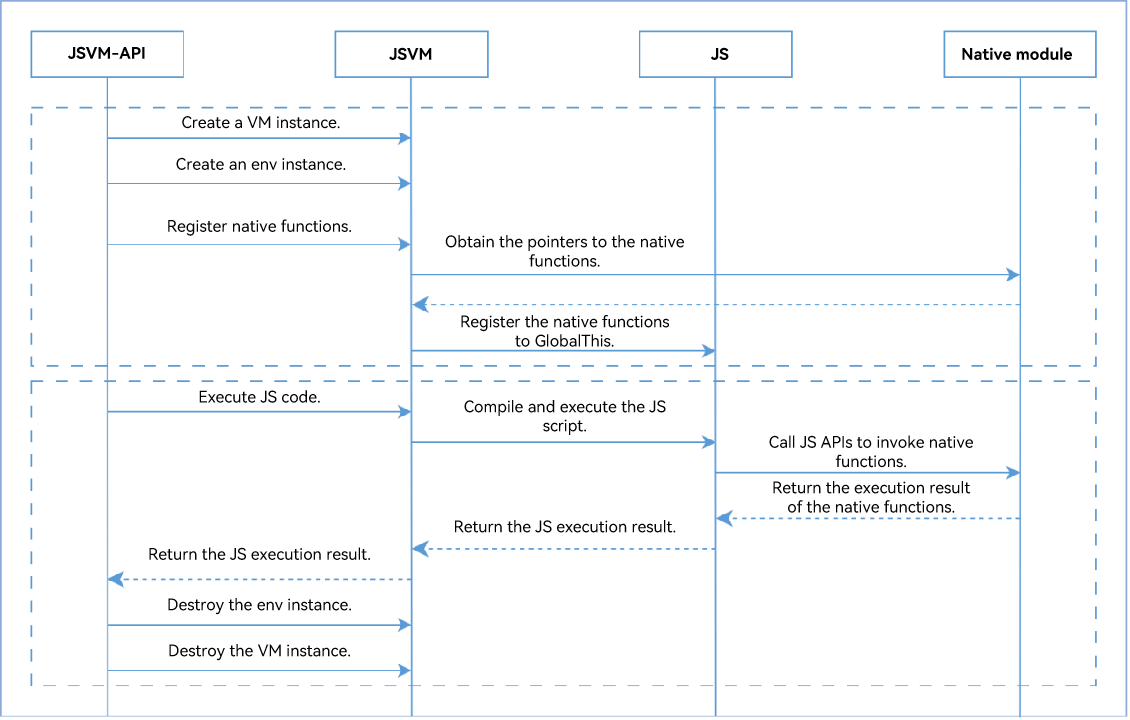

Figure 2 Key interaction process of JSVM-API

JSVM-API Key Interaction Process

The interaction between JSVM-API and a native module is as follows:

Initialization: Initialize the JSVM and JS context on the native module and register native functions in JS code. The native functions are hooked to GlobalThis, which is the global context of the JS execution environment.
Invocation: Call JS APIs to invoke the native functions that are registered in GlobalThis using JSVM-API. The JS engine calls the corresponding C/C++ functions.
