Using Node-API Extension APIs

Introduction

The Node-API extension APIs extend Node-API functionalities and allow you to create custom ArkTS objects, which enable more flexible interaction between ArkTS and C/C++.

If you are just starting out with Node-API, see Node-API Development Process. The following demonstrates only the C++ and ArkTS code involved in the Node-API extension APIs.

Module Loading

Available APIs

Example

napi_load_module

Call napi_load_module to load a module in the main thread.

napi_load_module_with_info

Call napi_load_module_with_info to load a module.

napi_module_register

Call napi_module_register to register a custom module, which is implemented by using Node-API, with the ArkTS environment.

CPP code:

#include "napi/native_api.h"

// This module is a Node-API callback function.
static napi_value Add(napi_env env, napi_callback_info info)
{
    // Obtain the two parameters passed in.
    size_t requireArgc = 2;
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args , nullptr, nullptr);

    // Convert the parameter of the napi_value type to the double type.
    double valueLeft;
    double valueRight;
    napi_get_value_double(env, args[0], &valueLeft);
    napi_get_value_double(env, args[1], &valueRight);

    // Add up the converted double values, convert the sum into napi_value, and return the result to ArkTS.
    napi_value sum;
    napi_create_double(env, valueLeft + valueRight, &sum);

    return sum;
}

// Call the C++ Init() function to initialize the addon, which associates the functions or properties in ArkTS with those in C++.
EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports)
{
    // Use the napi_property_descriptor struct to define the properties to be exported and used in the Node-API module. napi_define_properties associates ArkTS properties with C++ functions so that they can be accessed and called from ArkTS.
    napi_property_descriptor desc[] = {
        { "add", nullptr, Add, nullptr, nullptr, nullptr, napi_default, nullptr }
    };
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

// The addon initialization is defined in a struct named demoModule, which contains the basic module information, such as the version number and registered functions.
static napi_module demoModule = {
    .nm_version =1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void*)0),
    .reserved = { 0 },
};

// In the RegisterEntryModule function, the napi_module_register function is used to register and export the addon.
extern "C" __attribute__((constructor)) void RegisterEntryModule(void)
{
    napi_module_register(&demoModule);
}

API declaration:

// index.d.ts
export const add: (a: number, b: number) => number;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

hilog.info(0x0000, 'testTag', 'Test Node-API 2 + 3 = %{public}d', testNapi.add(2, 3));

ArkTS Object Operations

Available APIs

Example

napi_create_object_with_properties

Call napi_create_object_with_properties to create an ArkTS object with the given napi_property_descriptor. The key of napi_property_descriptor must be a string and cannot be converted into a number.

CPP code:

#include "napi/native_api.h"

static napi_value CreateObjectWithProperties(napi_env env, napi_callback_info info)
{
    size_t argc = 1;
    napi_value argv[1] = {nullptr};
    // Obtain the parameters of the call.
    napi_get_cb_info(env, info, &argc, argv, nullptr, nullptr);
    // Declare a desc array in napi_property_descriptor. The desc array contains a property named "name", whose value is the first input parameter argv[0].
    napi_property_descriptor desc[] = {
        {"name", nullptr, nullptr, nullptr, nullptr, argv[0], napi_default_jsproperty, nullptr}};
    napi_value object = nullptr;
    // Call napi_create_object_with_properties to create an ArkTS object with the specified properties.
    napi_create_object_with_properties(env, &object, sizeof(desc) / sizeof(desc[0]), desc);
    napi_valuetype valueType;
    napi_typeof(env, object, &valueType);
    if (valueType == napi_object) {
        return object;
    }
}

API declaration:

// index.d.ts
export const createObjectWithProperties: (data: string) => Object;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.createObjectWithProperties('createObject');
hilog.info(0x0000, 'testTag', 'Node-API napi_create_object_with_properties:%{public}s', JSON.stringify(value));

napi_create_object_with_named_properties

Call napi_create_object_with_named_properties to create an ArkTS object with the specified napi_value and key. The key must be a string and cannot be converted into a number.

CPP code:

#include "napi/native_api.h"

static napi_value CreateObjectWithNameProperties(napi_env env, napi_callback_info info)
{
    size_t argc = 1;
    napi_value argv[1] = {nullptr};
    // Obtain the parameters of the call.
    napi_get_cb_info(env, info, &argc, argv, nullptr, nullptr);
    napi_value obj = nullptr;
    const char *key[] = {
        "name",
    };
    const napi_value values[] = {
        argv[0],
    };
    napi_property_descriptor desc[] = {{"name", nullptr, nullptr,
                                        nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_status status;
    status = napi_create_object_with_named_properties(env, &obj, sizeof(desc) / sizeof(desc[0]), key, values);
    if (status != napi_ok) {
        return argv[0];
    }
    return obj;
}

API declaration:

// index.d.ts
export const createObjectWithNameProperties: (data: string) => string|{ name: string };

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.createObjectWithNameProperties('ls');
hilog.info(0x0000, 'testTag', 'Node-API napi_create_object_with_named_properties:%{public}s', JSON.stringify(value));

Running an .abc File

Available APIs

Example

napi_run_script_path

Call napi_run_script_path to run an .abc file.

CPP code:

#include "napi/native_api.h"

static napi_value RunScriptPath(napi_env env, napi_callback_info info)
{
    napi_value value = nullptr;
    // The .abc file in the rawfile directory of the application.
    const char *scriptPath = "/entry/resources/rawfile/test.abc";
    // Call napi_run_script_path to execute the file of the specified path.
    napi_status status = napi_run_script_path(env, scriptPath, &value);
    // Check whether the script execution is successful. If the execution fails, return false.
    napi_value returnValue = nullptr;
    if (value == nullptr||status != napi_ok) {
        napi_get_boolean(env, false, &returnValue);
    } else {
        napi_get_boolean(env, true, &returnValue);
    }
    return returnValue;
}

API declaration:

// index.d.ts
export const runScriptPath: () => boolean;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

try {
  // Return true is the script is executed successfully; return false otherwise.
  hilog.info(0x0000, 'testTag', 'Test Node-API napi_run_script_path: %{public}s', testNapi.runScriptPath());
} catch (error) {
  hilog.error(0x0000, 'testTag', 'Test Node-API napi_run_script_path errorMessage: %{public}s', error.message);
}

To compile JS code, test.js for example, into an .abc file, perform the following steps:

1. Place the test.js file in the ets/build-tools/ets-loader/bin/ark/build-win/bin directory of the SDK.
2. Run the es2abc.exe test.js –output test.abc command. The test.abc file is generated.

Save the file to the /entry/resources/rawfile directory.

function add(a, b) {
  return a+b;
}
add(1, 2);

Adding an Async Work with the Specified Priority to a Queue

Available APIs

Example

napi_queue_async_work_with_qos

Call napi_queue_async_work_with_qos to add an async work to the queue. Then, the async work will be scheduled for execution based on the specified QoS priority.

See Prioritizing Asynchronous Tasks.

Binding an ArkTS Object and a Native Callback with Parameters

Available APIs

Example

napi_coerce_to_native_binding_object

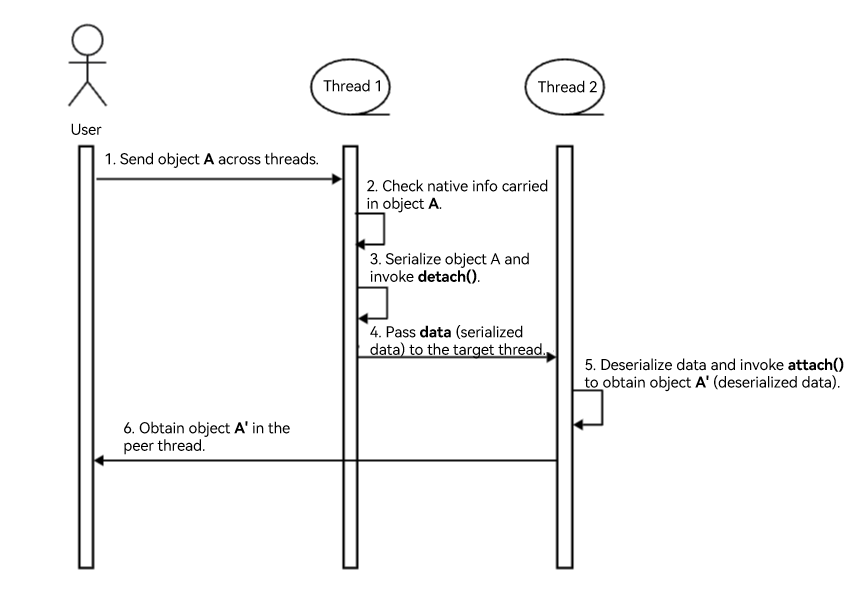

Call napi_coerce_to_native_binding_object to bind an ArkTS object and a native callback with necessary data. This API allows the ArkTS object to carry native information.

CPP code:

#include <bits/alltypes.h>
#include <hilog/log.h>
#include <mutex>
#include <unordered_set>
#include <uv.h>
#include "napi/native_api.h"

class Object {
public:
    Object() = default;
    ~Object() = default;

    static Object* GetInstance()
    {
        Object* instance = new Object();
        return instance;
    }

    static napi_value GetAddress(napi_env env, napi_callback_info info)
    {
        napi_value thisVar = nullptr;
        napi_get_cb_info(env, info, nullptr, nullptr, &thisVar, nullptr);
        if (thisVar == nullptr) {
            return nullptr;
        }
        void* object = nullptr;
        napi_unwrap(env, thisVar, &object);
        if (object == nullptr) {
            return nullptr;
        }
        uint64_t addressVal = reinterpret_cast<uint64_t>(object);
        napi_value address = nullptr;
        napi_create_bigint_uint64(env, addressVal, &address);
        return address;
    }

    // Obtain the array size.
    static napi_value GetSetSize(napi_env env, napi_callback_info info)
    {
        napi_value thisVar = nullptr;
        napi_get_cb_info(env, info, nullptr, nullptr, &thisVar, nullptr);
        if (thisVar == nullptr) {
            return nullptr;
        }
        void* object = nullptr;
        napi_unwrap(env, thisVar, &object);
        if (object == nullptr) {
            return nullptr;
        }
        std::lock_guard<std::mutex> lock(reinterpret_cast<Object*>(object)->numberSetMutex_);
        uint32_t setSize = reinterpret_cast<Object*>(object)->numberSet_.size();
        napi_value napiSize = nullptr;
        napi_create_uint32(env, setSize, &napiSize);
        return napiSize;
    }

    // Insert an element into the array.
    static napi_value Store(napi_env env, napi_callback_info info)
    {
        size_t argc = 1;
        napi_value args[1] = {nullptr};
        napi_value thisVar = nullptr;
        napi_get_cb_info(env, info, &argc, args, &thisVar, nullptr);
        if (argc != 1) {
            napi_throw_error(env, nullptr, "Store args number must be one.");
            return nullptr;
        }
        napi_valuetype type = napi_undefined;
        napi_typeof(env, args[0], &type);
        if (type != napi_number) {
            napi_throw_error(env, nullptr, "Store args is not number.");
            return nullptr;
        }
        if (thisVar == nullptr) {
            return nullptr;
        }
        uint32_t value = 0;
        napi_get_value_uint32(env, args[0], &value);
        void* object = nullptr;
        napi_unwrap(env, thisVar, &object);
        if (object == nullptr) {
            return nullptr;
        }
        std::lock_guard<std::mutex> lock(reinterpret_cast<Object*>(object)->numberSetMutex_);
        reinterpret_cast<Object *>(object)-> numberSet_.insert(value);
        return nullptr;
    }

    // Delete an element from the array.
    static napi_value Erase(napi_env env, napi_callback_info info)
    {
        size_t argc = 1;
        napi_value args[1] = {nullptr};
        napi_value thisVar = nullptr;
        napi_get_cb_info(env, info, &argc, args, &thisVar, nullptr);
        if (argc != 1) {
            napi_throw_error(env, nullptr, "Erase args number must be one.");
            return nullptr;
        }
        napi_valuetype type = napi_undefined;
        napi_typeof(env, args[0], &type);
        if (type != napi_number) {
            napi_throw_error(env, nullptr, "Erase args is not number.");
            return nullptr;
        }
        if (thisVar == nullptr) {
            return nullptr;
        }
        uint32_t value = 0;
        napi_get_value_uint32(env, args[0], &value);
        void* object = nullptr;
        napi_unwrap(env, thisVar, &object);
        if (object == nullptr) {
            return nullptr;
        }
        std::lock_guard<std::mutex> lock(reinterpret_cast<Object*>(object)->numberSetMutex_);
        reinterpret_cast<Object *>(object)->numberSet_.erase(value);
        return nullptr;
    }

    // Clear the array.
    static napi_value Clear(napi_env env, napi_callback_info info)
    {
        napi_value thisVar = nullptr;
        napi_get_cb_info(env, info, nullptr, nullptr, &thisVar, nullptr);
        if (thisVar == nullptr) {
            return nullptr;
        }
        void* object = nullptr;
        napi_unwrap(env, thisVar, &object);
        if (object == nullptr) {
            return nullptr;
        }
        std::lock_guard<std::mutex> lock(reinterpret_cast<Object*>(object)->numberSetMutex_);
        reinterpret_cast<Object *>(object)->numberSet_.clear();
        return nullptr;
    }

private:
    Object(const Object &) = delete;
    Object &operator=(const Object &) = delete;

    std::unordered_set<uint32_t> numberSet_{};
    std::mutex numberSetMutex_{};
};

void FinializerCallback(napi_env env, void *data, void *hint)
{
    return;
}

// Detach a callback. Generally, it is called in serialization to perform cleanup operations when the object is detached.
void* DetachCallback(napi_env env, void *value, void *hint)
{
    return value;
}

// Attach the callback, which is called during deserialization.
napi_value AttachCallback(napi_env env, void* value, void* hint)
{
    napi_value object = nullptr;
    napi_create_object(env, &object);
    napi_property_descriptor desc[] = {
        {"getAddress", nullptr, Object::GetAddress, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"getSetSize", nullptr, Object::GetSetSize, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"store", nullptr, Object::Store, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"erase", nullptr, Object::Erase, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"clear", nullptr, Object::Clear, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, object, sizeof(desc) / sizeof(desc[0]), desc);
    // Bind the ArkTS object named object to the lifecycle of the native object named value.
    napi_status status = napi_wrap(env, object, value, FinializerCallback, nullptr, nullptr);
    if (status != napi_ok) {
        OH_LOG_INFO(LOG_APP, "Node-API attachCallback is failed.");
    }
    // Enable the ArkTS object to carry native information.
    napi_coerce_to_native_binding_object(env, object, DetachCallback, AttachCallback, value, hint);
    return object;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports)
{
    napi_property_descriptor desc[] = {
        {"getAddress", nullptr, Object::GetAddress, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"getSetSize", nullptr, Object::GetSetSize, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"store", nullptr, Object::Store, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"erase", nullptr, Object::Erase, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"clear", nullptr, Object::Clear, nullptr, nullptr, nullptr, napi_default, nullptr}};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    auto object = Object::GetInstance();
    napi_status status = napi_wrap(env, exports, reinterpret_cast<void*>(object), FinializerCallback, nullptr, nullptr);
    if (status != napi_ok) {
        delete object;
    }
    napi_coerce_to_native_binding_object(env, exports, DetachCallback, AttachCallback, reinterpret_cast<void*>(object),
                                         nullptr);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void*)0),
    .reserved = { 0 },
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void)
{
    napi_module_register(&demoModule);
}

API declaration:

// index.d.ts
export const getAddress: () => number;
export const getSetSize: () => number;
export const store: (a: number) => void;
export const erase: (a: number) => void;
export const clear: () => void;

ArkTS code:

// index.ets
import testNapi from 'libentry.so';
import taskpool from '@ohos.taskpool';

@Concurrent
function getAddress() {
  let address: number = testNapi.getAddress();
  console.info("taskpool:: address is " + address);
}

@Concurrent
function store(a:number, b:number, c:number) {
  let size:number = testNapi.getSetSize();
  console.info("set size is " + size + " before store");
  testNapi.store(a);
  testNapi.store(b);
  testNapi.store(c);
  size = testNapi.getSetSize();
  console.info("set size is " + size + " after store");
}

@Concurrent
function erase(a:number) {
  let size:number = testNapi.getSetSize();
  console.info("set size is " + size + " before erase");
  testNapi.erase(a);
  size = testNapi.getSetSize();
  console.info("set size is " + size + " after erase");
}

@Concurrent
function clear() {
  let size:number = testNapi.getSetSize();
  console.info("set size is " + size + " before clear");
  testNapi.clear();
  size = testNapi.getSetSize();
  console.info("set size is " + size + " after clear");
}

async function test01(): Promise<void> {
    let address:number = testNapi.getAddress();
    console.info("host thread address is " + address);

    let task1 = new taskpool.Task(getAddress);
    await taskpool.execute(task1);

    let task2 = new taskpool.Task(store, 1, 2, 3);
    await taskpool.execute(task2);

    let task3 = new taskpool.Task(store, 4, 5, 6);
    await taskpool.execute(task3);

    let task4 = new taskpool.Task(erase, 3);
    await taskpool.execute(task4);

    let task5 = new taskpool.Task(erase, 5);
    await taskpool.execute(task5);

    let task6 = new taskpool.Task(clear);
    await taskpool.execute(task6);
}

test01();

NOTE

Call napi_coerce_to_native_binding_object to add the detach() and attach() callbacks and native object information to ArkTs object A, and then pass object A across threads. Object A needs to be serialized and deserialized when passed cross threads. In thread 1, “data” is obtained after object A is serialized, and the detach() callback is invoked in the serialization process. Then, “data” is passed to thread 2 and deserialized in thread 2. The attach() callback is invoked to obtain the ArkTS object A.

Event Loop

Available APIs

Example

napi_run_event_loop and napi_stop_event_loop

See Running or Stopping an Event Loop in an Asynchronous Thread Using Node-API Extensions

ArkTS Runtime Environment

Available APIs

Example

napi_create_ark_runtime and napi_destroy_ark_runtime

See Creating an ArkTs Runtime Environment Using Node-API.

Serialization and Deserialization

Available APIs

Example

napi_serialize, napi_deserialize, and napi_delete_serialization_data

Call napi_serialize to convert an ArkTS object into native data; call napi_deserialize to convert native data into an ArkTS object; call napi_delete_serialization_data to delete serialized data.

CPP code:

#include "napi/native_api.h"

static napi_value AboutSerialize(napi_env env, napi_callback_info info)
{
    // Obtain an ArkTS object as a parameter.
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
    napi_value undefined = nullptr;
    // Construct the parameters required by the napi_serialize method.
    napi_get_undefined(env, &undefined);
    void *data = nullptr;
    // Call napi_serialize to convert the ArkTS object into native data.
    napi_status status = napi_serialize(env, args[0], undefined, undefined, &data);
    if (status != napi_ok||data == nullptr) {
        napi_throw_error(env, nullptr, "Node-API napi_serialize fail");
        return nullptr;
    }
    // Construct data of the napi_value type to hold the ArkTS object converted from the native data.
    napi_value result = nullptr;
    napi_deserialize(env, data, &result);
    napi_value number = nullptr;
    // Obtain the value of the numKey property in the ArkTS object converted from native data.
    napi_get_named_property(env, result, "numKey", &number);
    // Check whether the obtained property value is of the number type.
    napi_valuetype valuetype;
    napi_typeof(env, number, &valuetype);
    if (valuetype != napi_number) {
        napi_throw_error(env, nullptr, "Node-API Wrong type of argument. Expects a number.");
        return nullptr;
    }
    // Call napi_delete_serialization_data to delete the serialized data.
    napi_delete_serialization_data(env, data);
    // Return the obtained property value.
    return number;
}

API declaration:

// index.d.ts
export const aboutSerialize: (obj: Object) => number;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';
class Obj {
  numKey:number = 0;
}
let obj: Obj = { numKey: 500 };
hilog.info(0x0000, 'testTag', ' Node-API aboutSerialize: %{public}d', testNapi.aboutSerialize(obj));

Passing a Task from an Asynchronous Thread to an ArkTS Thread

Available APIs

Example

napi_call_threadsafe_function_with_priority

See Passing a Task with the Specified Priority to an ArkTS Thread from an Asynchronous Thread Using Node-API.

Sendable-related Operations

Available APIs

Example

napi_is_sendable

Call napi_is_sendable to check whether an ArkTS value is sendable.

CPP code:

#include "napi/native_api.h"

static napi_value IsSendable(napi_env env, napi_callback_info info) {
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
    bool isSendable = false;
    napi_is_sendable(env, args[0], &isSendable);
    napi_value result;
    napi_get_boolean(env, isSendable, &result);
    return result;
}

API declaration:

// index.d.ts
export const isSendable: <T>(a: T) => boolean;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.isSendable('createObject');
hilog.info(0x0000, 'testTag', 'Node-API napi_is_sendable: %{public}s', JSON.stringify(value));

napi_define_sendable_class

Call napi_define_sendable_class to create a sendable class.

CPP code:

#include "napi/native_api.h"

static napi_value func(napi_env env, napi_callback_info info) {
    napi_value val;
    napi_create_string_utf8(env, "func result", NAPI_AUTO_LENGTH, &val);
    return val;
}

static napi_value DefineSendableClass(napi_env env) {
    napi_value str;
    napi_create_string_utf8(env, "str", NAPI_AUTO_LENGTH, &str);

    napi_property_descriptor props[] = {
        {"staticStr", nullptr, nullptr, nullptr, nullptr, str,
         static_cast<napi_property_attributes>(napi_static|napi_writable), nullptr},
        {"staticFunc", nullptr, func, nullptr, nullptr, nullptr, napi_static, nullptr},
        {"str", nullptr, nullptr, nullptr, nullptr, str, static_cast<napi_property_attributes>(1 << 9|napi_writable),
         nullptr},
        {"func", nullptr, nullptr, nullptr, nullptr, nullptr,
         static_cast<napi_property_attributes>(1 << 11|napi_writable), nullptr},
    };

    napi_value sendableClass = nullptr;
    napi_define_sendable_class(
        env, "SendableClass", NAPI_AUTO_LENGTH,
        [](napi_env env, napi_callback_info info) -> napi_value {
            napi_value thisVar = nullptr;
            napi_get_cb_info(env, info, nullptr, nullptr, &thisVar, nullptr);
            napi_value str;
            napi_create_string_utf8(env, "instance str", NAPI_AUTO_LENGTH, &str);
            napi_property_descriptor props[] = {
                {"str", nullptr, nullptr, nullptr, nullptr, str, napi_default, nullptr},
                {"func", nullptr, func, nullptr, nullptr, nullptr, napi_default, nullptr},
            };
            napi_define_properties(env, thisVar, sizeof(props) / sizeof(props[0]), props);
            return thisVar;
        },
        nullptr, sizeof(props) / sizeof(props[0]), props, nullptr, &sendableClass);

    return sendableClass;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports)
{
    napi_property_descriptor desc[] = {};
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    napi_value cons = DefineSendableClass(env);
    napi_set_named_property(env, exports, "SendableClass", cons);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void*)0),
    .reserved = { 0 },
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void)
{
    napi_module_register(&demoModule);
}

API declaration:

// index.d.ts
@Sendable
export class SendableClass {
  static staticStr: string;
  static staticFunc(): string;
  str: string;
  func(): string;
}

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = new testNapi.SendableClass();
hilog.info(0x0000, 'testTag', 'Node-API napi_define_sendable_class: %{public}s', value.str);

napi_create_sendable_object_with_properties

Call napi_create_sendable_object_with_properties to create a sendable object with the given napi_property_descriptor.

CPP code:

#include "napi/native_api.h"

static napi_value GetSendableObject(napi_env env, napi_callback_info info) {
    napi_value val_true;
    napi_get_boolean(env, true, &val_true);
    napi_property_descriptor desc1[] = {
        {"x", nullptr, nullptr, nullptr, nullptr, val_true, napi_default_jsproperty, nullptr},
    };
    napi_value obj;
    napi_create_sendable_object_with_properties(env, 1, desc1, &obj);
    return obj;
}

API declaration:

// index.d.ts
export const getSendableObject: () => { x: true };

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.getSendableObject();
hilog.info(0x0000, 'testTag', 'Node-API napi_create_sendable_object_with_properties: %{public}s', JSON.stringify(value));

napi_create_sendable_array

Call napi_create_sendable_array to create a sendable array.

CPP code:

#include "napi/native_api.h"

static napi_value GetSendableArray(napi_env env, napi_callback_info info) {
    napi_value result = nullptr;
    napi_create_sendable_array(env, &result);
    return result;
}

API declaration:

// index.d.ts
export const getSendableArray: () => [];

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.getSendableArray();
hilog.info(0x0000, 'testTag', 'Node-API napi_create_sendable_array: %{public}s', JSON.stringify(value));

napi_create_sendable_array_with_length

Call napi_create_sendable_array_with_length to create a sendable array of the specified length.

CPP code:

static napi_value GetSendableArrayWithLength(napi_env env, napi_callback_info info) {
    napi_value result = nullptr;
    napi_create_sendable_array_with_length(env, 1, &result);
    return result;
}

API declaration:

// index.d.ts
export const getSendableArrayWithLength: () => [];

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

let value = testNapi.getSendableArrayWithLength();
hilog.info(0x0000, 'testTag', 'Node-API napi_create_sendable_array_with_length: %{public}s', JSON.stringify(value.length));

napi_create_sendable_arraybuffer

Call napi_create_sendable_arraybuffer to create a sendable ArrayBuffer.

CPP code:

#include "napi/native_api.h"
#include "hilog/log.h"

static napi_value GetSendableArrayBuffer(napi_env env, napi_callback_info info) {
    static size_t LENGTH = 1024;
    void *data;
    napi_value result = nullptr;
    napi_create_sendable_arraybuffer(env, LENGTH, &data, &result);
    bool isArrayBuffer = false;
    napi_is_arraybuffer(env, result, &isArrayBuffer);
    OH_LOG_INFO(LOG_APP, "isArrayBuffer: %{public}d", isArrayBuffer);
    return result;
}

API declaration:

// index.d.ts
export const getSendableArrayBuffer: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.getSendableArrayBuffer();

napi_create_sendable_typedarray

Call napi_create_sendable_typedarray to create a sendable TypedArray.

CPP code:

#include "napi/native_api.h"
#include "hilog/log.h"

static napi_value GetSendableTypedArray(napi_env env, napi_callback_info info) {
    static size_t LENGTH = 1024;
    static size_t OFFSET = 0;
    void *data;
    napi_value arraybuffer = nullptr;
    napi_create_sendable_arraybuffer(env, LENGTH, &data, &arraybuffer);

    napi_value result = nullptr;
    napi_create_sendable_typedarray(env, napi_uint8_array, LENGTH, arraybuffer, OFFSET, &result);
    bool isTypedArray = false;
    napi_is_typedarray(env, result, &isTypedArray);
    OH_LOG_INFO(LOG_APP, "isTypedArray: %{public}d", isTypedArray);
    return result;
}

API declaration:

// index.d.ts
export const getSendableTypedArray: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.getSendableTypedArray();

napi_wrap_sendable

Call napi_wrap_sendable to wrap a native instance into an ArkTS object.

CPP code:

#include "napi/native_api.h"

static napi_value WrapSendable(napi_env env, napi_callback_info info) {
    napi_value val_true;
    napi_get_boolean(env, true, &val_true);
    napi_property_descriptor desc1[] = {
        {"x", nullptr, nullptr, nullptr, nullptr, val_true, napi_default_jsproperty, nullptr},
    };
    napi_value obj;
    napi_create_sendable_object_with_properties(env, 1, desc1, &obj);

    const char* testStr = "test";
    napi_wrap_sendable(env, obj, (void*)testStr, [](napi_env env, void* data, void* hint) {}, nullptr);

    return nullptr;
}

API declaration:

// index.d.ts
export const wrapSendable: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.wrapSendable();

napi_wrap_sendable_with_size

Call napi_wrap_sendable_with_size to wrap a native instance of the specified size into an ArkTS object.

CPP code:

#include "napi/native_api.h"

static napi_value WrapSendableWithSize(napi_env env, napi_callback_info info) {
    napi_value val_true;
    napi_get_boolean(env, true, &val_true);
    napi_property_descriptor desc1[] = {
        {"x", nullptr, nullptr, nullptr, nullptr, val_true, napi_default_jsproperty, nullptr},
    };
    napi_value obj;
    napi_create_sendable_object_with_properties(env, 1, desc1, &obj);

    const char* testStr = "test";
    napi_wrap_sendable_with_size(env, obj, (void*)testStr, [](napi_env env, void* data, void* hint) {}, nullptr, 100);

    return nullptr;
}

API declaration:

// index.d.ts
export const wrapSendableWithSize: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.wrapSendableWithSize();

napi_unwrap_sendable

Call napi_unwrap_sendable to unwrap the native instance from an ArkTS object.

CPP code:

#include "napi/native_api.h"

static napi_value UnwrapSendable(napi_env env, napi_callback_info info) {
    napi_value val_true;
    napi_get_boolean(env, true, &val_true);
    napi_property_descriptor desc1[] = {
        {"x", nullptr, nullptr, nullptr, nullptr, val_true, napi_default_jsproperty, nullptr},
    };
    napi_value obj;
    napi_create_sendable_object_with_properties(env, 1, desc1, &obj);

    const char* testStr = "test";
    napi_wrap_sendable(env, obj, (void*)testStr, [](napi_env env, void* data, void* hint) {}, nullptr);

    char* tmpTestStr = nullptr;
    napi_unwrap_sendable(env, obj, (void**)&tmpTestStr);
    OH_LOG_INFO(LOG_APP, "native value is %{public}s", tmpTestStr);

    return nullptr;
}

API declaration:

// index.d.ts
export const unwrapSendable: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.unwrapSendable();

napi_remove_wrap_sendable

Call napi_remove_wrap_sendable to remove the native instance from an ArkTS object.

CPP code:

#include "napi/native_api.h"

static napi_value RemoveWrapSendable(napi_env env, napi_callback_info info) {
    napi_value val_true;
    napi_get_boolean(env, true, &val_true);
    napi_property_descriptor desc1[] = {
        {"x", nullptr, nullptr, nullptr, nullptr, val_true, napi_default_jsproperty, nullptr},
    };
    napi_value obj;
    napi_create_sendable_object_with_properties(env, 1, desc1, &obj);

    const char* testStr = "test";
    napi_wrap_sendable(env, obj, (void*)testStr, [](napi_env env, void* data, void* hint) {}, nullptr);

    char* tmpTestStr = nullptr;
    napi_remove_wrap_sendable(env, obj, (void**)&tmpTestStr);
    OH_LOG_INFO(LOG_APP, "native value is %{public}s", tmpTestStr);

    return nullptr;
}

API declaration:

// index.d.ts
export const removeWrapSendable: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.removeWrapSendable();

To print logs in the native CPP, add the following information to the CMakeLists.txt file and add the header file by using #include “hilog/log.h”.

// CMakeLists.txt
add_definitions( "-DLOG_DOMAIN=0xd0d0" )
add_definitions( "-DLOG_TAG=\"testTag\"" )
target_link_libraries(entry PUBLIC libhilog_ndk.z.so)

napi_wrap Enhancement

Available APIs

Example

napi_wrap_enhance

Call napi_wrap_enhance to wrap a Node-API instance into an ArkTS object and specify the instance size. You can specify whether to execute the registered callback asynchronously (if asynchronous, it must be thread-safe).

CPP code:

#include "napi/native_api.h"

static napi_value TestNapiWrapEnhance(napi_env env, napi_callback_info info)
{
    napi_value testClass = nullptr;
    napi_define_class(
        env, "TestClass", NAPI_AUTO_LENGTH,
        [](napi_env env, napi_callback_info info) -> napi_value {
            napi_value thisVar = nullptr;
            napi_get_cb_info(env, info, nullptr, nullptr, &thisVar, nullptr);
            return thisVar;
        },
        nullptr, 0, nullptr, &testClass);

    napi_value obj = nullptr;
    napi_new_instance(env, testClass, 0, nullptr, &obj);
    const char* testStr = "test";
    napi_ref wrappedRef = nullptr;
    napi_wrap_enhance(env, obj, (void*)testStr, [](napi_env env, void* data, void* hint) {}, false, nullptr, sizeof(testStr), &wrappedRef);
    return nullptr;
}

API declaration:

// index.d.ts
export const testNapiWrapEnhance: () => void;

ArkTS code:

import hilog from '@ohos.hilog';
import testNapi from 'libentry.so';

testNapi.testNapiWrapEnhance();

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Node-API

harmony 鸿蒙Building an NDK Project with CMake

harmony 鸿蒙Building an NDK Project with the DevEco Studio Template

harmony 鸿蒙NDK Project Building Overview

harmony 鸿蒙Building an NDK Project with Prebuilt Libraries

harmony 鸿蒙C/C++ Library Mechanisms

harmony 鸿蒙CPU Features

harmony 鸿蒙Creating an NDK Project

harmony 鸿蒙C/C++ Memory Error Detection

harmony 鸿蒙Debugging in DevEco Studio
