XComponent

XComponent provides a surface for graphics rendering and media data input into your view. You can customize the position and size of the surface as needed.

NOTE

This component is supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

This topic describes only system APIs provided by the module. For details about its public APIs, see XComponent.

APIs

XComponentOptions¹²⁺

Defines the options of the XComponent.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
screenId¹⁷⁺	number	No	Associated screen ID of the component. The component can display the image of the associated screen. System API: This is a system API.

NOTE

This attribute is effective only when type is set to SURFACE.

It is not supported for XComponent components created using the ArkUI NDK API.

Attributes

enableTransparentLayer¹⁸⁺

enableTransparentLayer(enabled: boolean)

Enables an independent layer for the XComponent component with a semi-transparent background color.

Using this API does not necessarily mean that an independent layer will be set. Due to some reasons such as hardware specifications (for example, lack of hardware support for independent layer compositing) and software specifications (for example, intersection with UI elements that have blur effects), the attempt to set an independent layer may fail.

To use this API effectively and avoid display issues, follow these guidelines:

If an XComponent with an independent layer overlaps with another XComponent below it, the XComponent below it should also be configured with an independent layer.

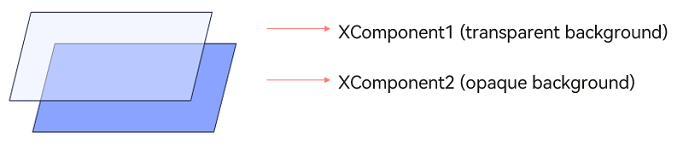

Transparent layer example

Do not place UI components under an XComponent with a transparent background and an independent layer. Otherwise, the displayed content of the UI components will disappear during composition.

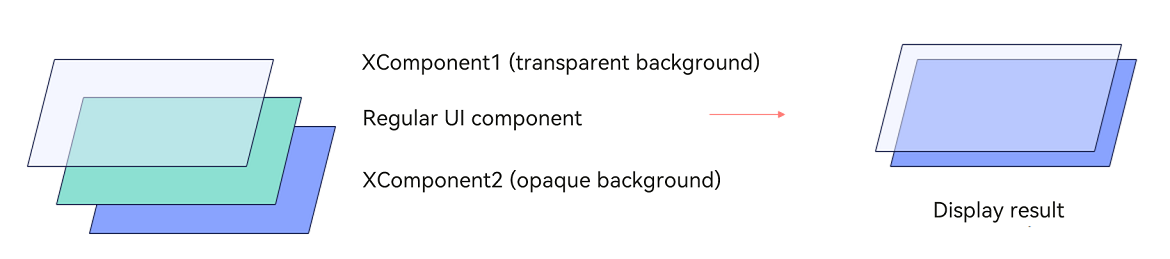

Transparent layer failure

Ensure that XComponent components with independent layers are placed below all intersecting UI elements.

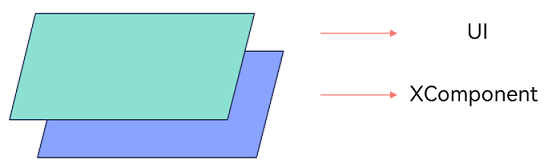

Transparent layer correctly set

Use this API in static layout scenarios, such as non-page transition or static video subtitle display scenarios.

System API: This attribute can be used in system APIs since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
enabled	boolean	Yes	Whether to enable an independent layer for the XComponent component when its background is transparent. The value true means to enable an independent layer, and false means the opposite. Default value: false.

NOTE

This attribute is effective only when type is set to SURFACE.

It is not supported for XComponent components created using the ArkUI NDK API.
