Using startAbilityByType to Start an Email Application

This topic describes how to open the vertical domain panel of email applications. > NOTE > > If the parameter from the initiating application is a mailto string, you are advised to use mailto to start an email application. Upon receiving the mailto string, the email application parses the string to fill in details like the sender, recipient, and email body.

Parameters on the Email Application Panel

If the type field in startAbilityByType is set to mail, wantParam contains the following properties.

Name	Type	Mandatory	Description
email	string[ ]	No	Email address of the recipient. Multiple email addresses, separated by commas (,), are supported.
cc	string[ ]	No	Email address of the CC recipient. Multiple email addresses, separated by commas (,), are supported.
bcc	string[ ]	No	Email address of the BCC recipient. Multiple email addresses, separated by commas (,), are supported.
subject	string	No	Email subject.
body	string	No	Email body.
ability.params.stream	string[ ]	No	Email attachments (URI list of the attachments).
ability.want.params.uriPermissionFlag	wantConstant.Flags	No	At least the read permission must be granted on the email attachments. This parameter is mandatory when ability.params.stream is specified.
sceneType	number	No	Intent scene, which indicates the purpose of the current request. 1: Send an email. The default value is 1.

NOTE

Parameters of the string type displayed in the vertical domain panel of email applications must be encoded using encodeURI.

For parameters of the string[] type displayed in the vertical domain panel of email applications, all elements in the array must be encoded using encodeURI.

Developing a Caller Application

Import the module. ts import { common, wantConstant } from '@kit.AbilityKit';

Construct parameters and call the startAbilityByType API.

@Entry
@Component
struct Index {
    @State hideAbility: string = 'hideAbility'


    build() {
        Row() {
            Column() {
                Text(this.hideAbility)
                    .fontSize(30)
                    .fontWeight(FontWeight.Bold)
                    .onClick(() => {
                        let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
                        let wantParam: Record<string, Object> = {
                            'sceneType': 1,
                            'email': [encodeURI('xxx@example.com'), encodeURI('xxx@example.com')], // Email address of the recipient. Multiple values are separated by commas (,). The array content is URL encoded using encodeURI().
                            'cc': [encodeURI('xxx@example.com'), encodeURI('xxx@example.com')], // Email address of the CC recipient. Multiple values are separated by commas (,). The array content is URL encoded using encodeURI().
                            'bcc': [encodeURI('xxx@example.com'), encodeURI('xxx@example.com')], // Email address of the BCC recipient. Multiple values are separated by commas (,). The array content is URL encoded using encodeURI().
                            'subject': encodeURI('Email subject'), // Email subject. The content is URL encoded using encodeURI().
                            'body': encodeURI('Email body'), // Email body. The content is URL encoded using encodeURI().
                            'ability.params.stream':[encodeURI('attachment uri1'), encodeURI('attachment uri2')], // Attachment URIs. Multiple values are separated by commas (,). The array content is URL encoded using encodeURI().
                            'ability.want.params.uriPermissionFlag': wantConstant.Flags.FLAG_AUTH_READ_URI_PERMISSION
                        };
                        let abilityStartCallback: common.AbilityStartCallback = {
                            onError: (code: number, name: string, message: string) => {
                                console.log(`onError code ${code} name: ${name} message: ${message}`);
                            },
                            onResult: (result) => {
                                console.log(`onResult result: ${JSON.stringify(result)}`);
                            }
                        }


                        context.startAbilityByType("mail", wantParam, abilityStartCallback,
                            (err) => {
                                if (err) {
                                    console.error(`startAbilityByType fail, err: ${JSON.stringify(err)}`);
                                } else {
                                    console.log(`success`);
                                }
                            });
                    });
            }
            .width('100%')
        }
        .height('100%')
    }
}

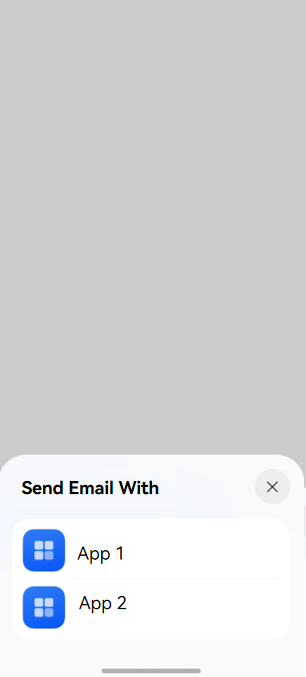

Effect

Effect example

Developing a Target Application

Add the linkFeature attribute to module.json5 and declare the features supported. In this way, the system can find the applications that support a specific feature from all the applications installed on the device.

```json
{
  "abilities": [
      {
      "skills": [
          {
          "uris": [
              {
              "scheme": "mailto", // It is for reference only. Ensure that the declared URI can be started by external systems.
              "host": "",
              "path": "",
              "linkFeature": "ComposeMail" // Declare that the application supports email writing.
              }
            ]
          }
      ]
      }
  ]
}
```

Parse and process the parameters transferred from the panel.
```
UIAbility.onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void
```
The want.parameters parameter contains the following parameters, which may be slightly different from the ones passed in by the caller.

> **NOTE**
>
> * Parameters of the string type received by the target application must be decoded using **decodeURI**.
>
> * For parameters of the string[] type received by the target application, all elements in the array must be decoded using **decodeURI**.

Sample Code

import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { window } from '@kit.ArkUI';

const TAG = 'MailTarget1.EntryAbility'

export default class EntryAbility extends UIAbility {
    windowStage: window.WindowStage|null = null;

    email: string[]|undefined;
    cc: string[]|undefined;
    bcc: string[]|undefined;
    subject: string|undefined;
    body: string|undefined;
    stream: string[]|undefined;

    onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onCreate, want=${JSON.stringify(want)}`);
        super.onCreate(want, launchParam);
        this.parseWant(want);
    }

    onNewWant(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onNewWant, want=${JSON.stringify(want)}`);
        super.onNewWant(want, launchParam);
        this.parseWant(want);
        if (!this.windowStage) {
            hilog.error(0x0000, TAG, 'windowStage is null');
            this.context.terminateSelf();
            return;
        }
        this.loadPage(this.windowStage);
    }

    private parseWant(want: Want): void {
        this.email = this.decodeStringArr(want.parameters?.email as string[]);
        this.cc = this.decodeStringArr(want.parameters?.cc as string[]);
        this.bcc = this.decodeStringArr(want.parameters?.bcc as string[]);
        this.subject = decodeURI(want.parameters?.subject as string); // Use decodeURI() to decode the URL of the email subject. Other fields are processed in the same way.
        this.body = decodeURI(want.parameters?.body as string); // Use decodeURI() to decode the URL of the email body. Other fields are processed in the same way.
        this.stream = this.decodeStringArr(want.parameters?.stream as string[]);
    }

    // Use decodeURI() to decode the content in the string array.
    private decodeStringArr(source: string[]|undefined): string[] {
        let target: string[] = [];
        source?.forEach(e => {
            target.push(decodeURI(e));
        })
        return target;
    }

    private loadPage(windowStage: window.WindowStage): void {
        const storage: LocalStorage = new LocalStorage({
            "email": this.email,
            "cc": this.cc,
            "bcc": this.bcc,
            "subject": this.subject,
            "body": this.body,
            "stream": this.stream
        } as Record<string, Object>);

        windowStage.loadContent('pages/ComposeMailPage', storage);

    }

    onDestroy(): void {
        hilog.info(0x0000, TAG, `onDestroy`);
    }

    onWindowStageCreate(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `onWindowStageCreate`);
        this.windowStage = windowStage;
        this.loadPage(this.windowStage);
    }

    onWindowStageDestroy(): void {
        hilog.info(0x0000, TAG, `onWindowStageDestroy`);
    }

    onForeground(): void {
        hilog.info(0x0000, TAG, `onForeground`);
    }

    onBackground(): void {
        hilog.info(0x0000, TAG, `onBackground`);
    }
}
