CanvasRenderingContext2D

Use RenderingContext to draw rectangles, text, images, and other objects on a canvas.

NOTE

The APIs of this module are supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

APIs

CanvasRenderingContext2D(settings?: RenderingContextSettings)

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Description
settings	RenderingContextSettings	No	See RenderingContextSettings.

RenderingContextSettings

RenderingContextSettings(antialias?: boolean)

Configures the settings of a CanvasRenderingContext2D object, including whether to enable antialiasing.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Description
antialias	boolean	No	Whether to enable antialiasing. Default value: false

Attributes

Name	Type	Description
fillStyle	string |number10+ |CanvasGradient |CanvasPattern	Style to fill an area. - When the type is string, this attribute indicates the color of the fill area. Default value: 'black' - When the type is number, this attribute indicates the color of the fill area. Default value: '#000000' - When the type is CanvasGradient, this attribute indicates a gradient object, which is created using the createLinearGradient API. - When the type is CanvasPattern, this attribute indicates a pattern, which is created using the createPattern API. Since API version 9, this API is supported in ArkTS widgets.
lineWidth	number	Line width. Default value: 1(px)
strokeStyle	string |number10+ |CanvasGradient |CanvasPattern	Stroke style. - When the type is string, this attribute indicates the stroke color. Default value: 'black' - When the type is number, this attribute indicates the stroke color. Default value: '#000000' - When the type is CanvasGradient, this attribute indicates a gradient object, which is created using the createLinearGradient API. - When the type is CanvasPattern, this attribute indicates a pattern, which is created using the createPattern API. Since API version 9, this API is supported in ArkTS widgets.
lineCap	CanvasLineCap	Style of the line endpoints. The options are as follows: - 'butt': The endpoints of the line are squared off. - 'round': The endpoints of the line are rounded. - 'square': The endpoints of the line are squared off by adding a box with an equal width and half the height of the line's thickness. Default value: 'butt' Since API version 9, this API is supported in ArkTS widgets.
lineJoin	CanvasLineJoin	Style of the shape used to join line segments. The options are as follows: - 'round': The shape used to join line segments is a sector, whose radius at the rounded corner is equal to the line width. - 'bevel': The shape used to join line segments is a triangle. The rectangular corner of each line is independent. - 'miter': The shape used to join line segments has a mitered corner by extending the outside edges of the lines until they meet. You can view the effect of this attribute in miterLimit. Default value: 'miter' Since API version 9, this API is supported in ArkTS widgets.
miterLimit	number	Maximum miter length. The miter length is the distance between the inner corner and the outer corner where two lines meet. Default value: 10 Since API version 9, this API is supported in ArkTS widgets.
font	string	Font style. Syntax: ctx.font='font-size font-family' - (Optional) font-size: font size and line height. The unit can be px or vp. - (Optional) font-family: font family. Syntax: ctx.font='font-style font-weight font-size font-family' - (Optional) font-style: font style. Available values are 'normal' and 'italic'. - (Optional) font-weight: font weight. Available values are as follows: 'normal', 'bold', 'bolder', 'lighter', '100', '200', '300', '400', '500', '600', '700', '800', '900'. - (Optional) font-size: font size and line height. The unit must be specified and can be px or vp. - (Optional) font-family: font family. Available values are 'sans-serif', 'serif', and 'monospace'. Default value: 'normal normal 14px sans-serif' Since API version 9, this API is supported in ArkTS widgets.
textAlign	CanvasTextAlign	Text alignment mode. Available values are as follows: - 'left': The text is left-aligned. - 'right': The text is right-aligned. - 'center': The text is center-aligned. - 'start': The text is aligned with the start bound. - 'end': The text is aligned with the end bound. In the ltr layout mode, the value 'start' equals 'left'. In the rtl layout mode, the value 'start' equals 'right'. Default value: 'left' Since API version 9, this API is supported in ArkTS widgets.
textBaseline	CanvasTextBaseline	Horizontal alignment mode of text. Available values are as follows: - 'alphabetic': The text baseline is the normal alphabetic baseline. - 'top': The text baseline is on the top of the text bounding box. - 'hanging': The text baseline is a hanging baseline over the text. - 'middle': The text baseline is in the middle of the text bounding box. 'ideographic': The text baseline is the ideographic baseline. If a character exceeds the alphabetic baseline, the ideographic baseline is located at the bottom of the excess character. - 'bottom': The text baseline is at the bottom of the text bounding box. Its difference from the ideographic baseline is that the ideographic baseline does not consider letters in the next line. Default value: 'alphabetic' Since API version 9, this API is supported in ArkTS widgets.
globalAlpha	number	Opacity. 0.0: completely transparent. 1.0: completely opaque. Since API version 9, this API is supported in ArkTS widgets.
lineDashOffset	number	Offset of the dashed line. The precision is float. Default value: 0.0 Since API version 9, this API is supported in ArkTS widgets.
globalCompositeOperation	string	Composition operation type. Available values are as follows: 'source-over', 'source-atop', 'source-in', 'source-out', 'destination-over', 'destination-atop', 'destination-in', 'destination-out', 'lighter', 'copy', and 'xor'. Default value: 'source-over' Since API version 9, this API is supported in ArkTS widgets.
shadowBlur	number	Blur level during shadow drawing. A larger value indicates a more blurred effect. The precision is float. Default value: 0.0 Since API version 9, this API is supported in ArkTS widgets.
shadowColor	string	Shadow color. Since API version 9, this API is supported in ArkTS widgets.
shadowOffsetX	number	X-axis shadow offset relative to the original object. Since API version 9, this API is supported in ArkTS widgets.
shadowOffsetY	number	Y-axis shadow offset relative to the original object. Since API version 9, this API is supported in ArkTS widgets.
imageSmoothingEnabled	boolean	Whether to adjust the image smoothness during image drawing. The value true means to enable this feature, and false means the opposite. Default value: true Since API version 9, this API is supported in ArkTS widgets.
height	number	Component height. Unit: vp Since API version 9, this API is supported in ArkTS widgets.
width	number	Component width. Unit: vp Since API version 9, this API is supported in ArkTS widgets.
imageSmoothingQuality	ImageSmoothingQuality	Quality of image smoothing. This attribute works only when imageSmoothingEnabled is set to true. Default value: ImageSmoothingQuality.low Since API version 9, this API is supported in ArkTS widgets.
direction	CanvasDirection	Text direction used for drawing text. Default value: CanvasDirection.inherit Since API version 9, this API is supported in ArkTS widgets.
filter	string	Filter effect. Available values are as follows: - 'none': no filter effect. - 'blur': applies the Gaussian blur for the image. - 'brightness': applies a linear multiplication to the image to make it look brighter or darker. - 'contrast': adjusts the image contrast. - 'grayscale': converts the image to a grayscale image. - 'hue-rotate': applies hue rotation to the image. - 'invert': inverts the input image. - 'opacity': sets the opacity of the image. - 'saturate': sets the saturation of the image. - 'sepia': converts the image to dark brown. Default value: 'none' Since API version 9, this API is supported in ArkTS widgets.

NOTE

The string-type value of fillStyle, shadowColor, and strokeStyle can be in 'rgb(255, 255, 255)', 'rgba(255, 255, 255, 1.0)', or '#FFFFFF' format.

fillStyle

// xxx.ets
@Entry
@Component
struct FillStyleExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = '#0000ff'
          this.context.fillRect(20, 20, 150, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

lineWidth

// xxx.ets
@Entry
@Component
struct LineWidthExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
        this.context.lineWidth = 5
        this.context.strokeRect(25, 25, 85, 105)
      })
    }
    .width('100%')
    .height('100%')
  }
}

strokeStyle

// xxx.ets
@Entry
@Component
struct StrokeStyleExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.lineWidth = 10
          this.context.strokeStyle = '#0000ff'
          this.context.strokeRect(25, 25, 155, 105)
        })
    }
    .width('100%')
    .height('100%')
  }
}

lineCap

// xxx.ets
@Entry
@Component
struct LineCapExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.lineWidth = 8
          this.context.beginPath()
          this.context.lineCap = 'round'
          this.context.moveTo(30, 50)
          this.context.lineTo(220, 50)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

lineJoin

// xxx.ets
@Entry
@Component
struct LineJoinExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
        this.context.beginPath()
        this.context.lineWidth = 8
        this.context.lineJoin = 'miter'
        this.context.moveTo(30, 30)
        this.context.lineTo(120, 60)
        this.context.lineTo(30, 110)
        this.context.stroke()
      })
    }
    .width('100%')
    .height('100%')
  }
}

miterLimit

// xxx.ets
@Entry
@Component
struct MiterLimit {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.lineWidth = 8
          this.context.lineJoin = 'miter'
          this.context.miterLimit = 3
          this.context.moveTo(30, 30)
          this.context.lineTo(60, 35)
          this.context.lineTo(30, 37)
          this.context.stroke()
      })
    }
    .width('100%')
    .height('100%')
  }
}

font

// xxx.ets
@Entry
@Component
struct Fonts {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.font = '30px sans-serif'
          this.context.fillText("Hello px", 20, 60)
          this.context.font = '30vp sans-serif'
          this.context.fillText("Hello vp", 20, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

textAlign

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
        this.context.strokeStyle = '#0000ff'
        this.context.moveTo(140, 10)
        this.context.lineTo(140, 160)
        this.context.stroke()
        this.context.font = '18px sans-serif'
        this.context.textAlign = 'start'
        this.context.fillText('textAlign=start', 140, 60)
        this.context.textAlign = 'end'
        this.context.fillText('textAlign=end', 140, 80)
        this.context.textAlign = 'left'
        this.context.fillText('textAlign=left', 140, 100)
        this.context.textAlign = 'center'
        this.context.fillText('textAlign=center',140, 120)
        this.context.textAlign = 'right'
        this.context.fillText('textAlign=right',140, 140)
      })
    }
    .width('100%')
    .height('100%')
  }
}

textBaseline

// xxx.ets
@Entry
@Component
struct TextBaseline {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.strokeStyle = '#0000ff'
          this.context.moveTo(0, 120)
          this.context.lineTo(400, 120)
          this.context.stroke()
          this.context.font = '20px sans-serif'
          this.context.textBaseline = 'top'
          this.context.fillText('Top', 10, 120)
          this.context.textBaseline = 'bottom'
          this.context.fillText('Bottom', 55, 120)
          this.context.textBaseline = 'middle'
          this.context.fillText('Middle', 125, 120)
          this.context.textBaseline = 'alphabetic'
          this.context.fillText('Alphabetic', 195, 120)
          this.context.textBaseline = 'hanging'
          this.context.fillText('Hanging', 295, 120)
      })
    }
    .width('100%')
    .height('100%')
  }
}

globalAlpha

// xxx.ets
@Entry
@Component
struct GlobalAlpha {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(0, 0, 50, 50)
          this.context.globalAlpha = 0.4
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(50, 50, 50, 50)
      })
    }
    .width('100%')
    .height('100%')
  }
}

lineDashOffset

// xxx.ets
@Entry
@Component
struct LineDashOffset {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.arc(100, 75, 50, 0, 6.28)
          this.context.setLineDash([10,20])
          this.context.lineDashOffset = 10.0
          this.context.stroke()
      })
    }
    .width('100%')
    .height('100%')
  }
}

globalCompositeOperation

Name	Description
source-over	Displays the new drawing above the existing drawing. This attribute is used by default.
source-atop	Displays the new drawing on the top of the existing drawing.
source-in	Displays the new drawing inside the existing drawing.
source-out	Displays part of the new drawing that is outside of the existing drawing.
destination-over	Displays the existing drawing above the new drawing.
destination-atop	Displays the existing drawing on the top of the new drawing.
destination-in	Displays the existing drawing inside the new drawing.
destination-out	Displays the existing drawing outside the new drawing.
lighter	Displays both the new and existing drawing.
copy	Displays the new drawing and neglects the existing drawing.
xor	Combines the new drawing and existing drawing using the XOR operation.

// xxx.ets
@Entry
@Component
struct GlobalCompositeOperation {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(20, 20, 50, 50)
          this.context.globalCompositeOperation = 'source-over'
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(50, 50, 50, 50)
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(120, 20, 50, 50)
          this.context.globalCompositeOperation = 'destination-over'
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(150, 50, 50, 50)
      })
    }
    .width('100%')
    .height('100%')
  }
}

shadowBlur

// xxx.ets
@Entry
@Component
struct ShadowBlur {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.shadowBlur = 30
          this.context.shadowColor = 'rgb(0,0,0)'
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(20, 20, 100, 80)
      })
    }
    .width('100%')
    .height('100%')
  }
}

shadowColor

// xxx.ets
@Entry
@Component
struct ShadowColor {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.shadowBlur = 30
          this.context.shadowColor = 'rgb(0,0,255)'
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(30, 30, 100, 100)
      })
    }
    .width('100%')
    .height('100%')
  }
}

shadowOffsetX

// xxx.ets
@Entry
@Component
struct ShadowOffsetX {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.shadowBlur = 10
          this.context.shadowOffsetX = 20
          this.context.shadowColor = 'rgb(0,0,0)'
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(20, 20, 100, 80)
      })
    }
    .width('100%')
    .height('100%')
  }
}

shadowOffsetY

// xxx.ets
@Entry
@Component
struct ShadowOffsetY {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.shadowBlur = 10
          this.context.shadowOffsetY = 20
          this.context.shadowColor = 'rgb(0,0,0)'
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(30, 30, 100, 100)
      })
    }
    .width('100%')
    .height('100%')
  }
}

imageSmoothingEnabled

// xxx.ets
@Entry
@Component
struct ImageSmoothingEnabled {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private img:ImageBitmap = new ImageBitmap("common/images/icon.jpg")

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.imageSmoothingEnabled = false
          this.context.drawImage( this.img,0,0,400,200)
      })
    }
    .width('100%')
    .height('100%')
  }
}

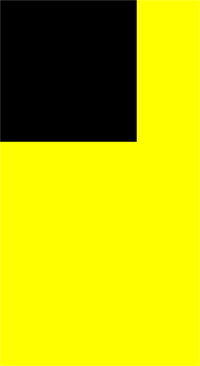

height

// xxx.ets
@Entry
@Component
struct HeightExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width(300)
        .height(300)
        .backgroundColor('#ffff00')
        .onReady(() => {
          let h = this.context.height
          let w = this.context.width
          this.context.fillRect(0, 0, 300, h/2)
        })
    }
    .width('100%')
    .height('100%')
  }
}

width

// xxx.ets
@Entry
@Component
struct WidthExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width(300)
        .height(300)
        .backgroundColor('#ffff00')
        .onReady(() => {
          let h = this.context.height
          let w = this.context.width
          this.context.fillRect(0, 0, w/2, 300)
        })
    }
    .width('100%')
    .height('100%')
  }
}

imageSmoothingQuality

  // xxx.ets
  @Entry
  @Component
  struct ImageSmoothingQualityDemo {
    private settings: RenderingContextSettings = new RenderingContextSettings(true);
    private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
    private img:ImageBitmap = new ImageBitmap("common/images/example.jpg");

    build() {
      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
        Canvas(this.context)
          .width('100%')
          .height('100%')
          .backgroundColor('#ffff00')
          .onReady(() =>{
            let ctx = this.context
            ctx.imageSmoothingEnabled = true
            ctx.imageSmoothingQuality = 'high'
            ctx.drawImage(this.img, 0, 0, 400, 200)
          })
      }
      .width('100%')
      .height('100%')
    }
  }

direction

  // xxx.ets
  @Entry
  @Component
  struct DirectionDemo {
    private settings: RenderingContextSettings = new RenderingContextSettings(true);
    private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);

    build() {
      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
        Canvas(this.context)
          .width('100%')
          .height('100%')
          .backgroundColor('#ffff00')
          .onReady(() =>{
            let ctx = this.context
            ctx.font = '48px serif';
            ctx.textAlign = 'start'
            ctx.fillText("Hi ltr!", 200, 50);

            ctx.direction = "rtl";
            ctx.fillText("Hi rtl!", 200, 100);
          })
      }
      .width('100%')
      .height('100%')
    }
  }

filter

  // xxx.ets
  @Entry
  @Component
  struct FilterDemo {
    private settings: RenderingContextSettings = new RenderingContextSettings(true);
    private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
    private img:ImageBitmap = new ImageBitmap("common/images/example.jpg");

    build() {
      Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
        Canvas(this.context)
          .width('100%')
          .height('100%')
          .backgroundColor('#ffff00')
          .onReady(() =>{
            let ctx = this.context
            let img = this.img

            ctx.drawImage(img, 0, 0, 100, 100);

            ctx.filter = 'grayscale(50%)';
            ctx.drawImage(img, 100, 0, 100, 100);

            ctx.filter = 'sepia(60%)';
            ctx.drawImage(img, 200, 0, 100, 100);

            ctx.filter = 'saturate(30%)';
            ctx.drawImage(img, 0, 100, 100, 100);

            ctx.filter = 'hue-rotate(90degree)';
            ctx.drawImage(img, 100, 100, 100, 100);

            ctx.filter = 'invert(100%)';
            ctx.drawImage(img, 200, 100, 100, 100);

            ctx.filter = 'opacity(25%)';
            ctx.drawImage(img, 0, 200, 100, 100);

            ctx.filter = 'brightness(0.4)';
            ctx.drawImage(img, 100, 200, 100, 100);

            ctx.filter = 'contrast(200%)';
            ctx.drawImage(img, 200, 200, 100, 100);

            ctx.filter = 'blur(5px)';
            ctx.drawImage(img, 0, 300, 100, 100);

            let result = ctx.toDataURL()
            console.info(result)
          })
      }
      .width('100%')
      .height('100%')
    }
  }

Methods

fillRect

fillRect(x: number, y: number, w: number, h: number): void

Fills a rectangle on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the upper left corner of the rectangle.
y	number	Yes	0	Y coordinate of the upper left corner of the rectangle.
width	number	Yes	0	Width of the rectangle.
height	number	Yes	0	Height of the rectangle.

Example

// xxx.ets
@Entry
@Component
struct FillRect {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillRect(30,30,100,100)
       })
      }
    .width('100%')
    .height('100%')
  }
}

strokeRect

strokeRect(x: number, y: number, w: number, h: number): void

Draws an outlined rectangle on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the upper left corner of the rectangle.
y	number	Yes	0	Y coordinate of the upper left corner of the rectangle.
w	number	Yes	0	Width of the rectangle.
h	number	Yes	0	Height of the rectangle.

Example

// xxx.ets
@Entry
@Component
struct StrokeRect {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.strokeRect(30, 30, 200, 150)
      })
    }
    .width('100%')
    .height('100%')
  }
}

clearRect

clearRect(x: number, y: number, w: number, h: number): void

Clears the content in a rectangle on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the upper left corner of the rectangle.
y	number	Yes	0	Y coordinate of the upper left corner of the rectangle.
w	number	Yes	0	Width of the rectangle.
h	number	Yes	0	Height of the rectangle.

Example

// xxx.ets
@Entry
@Component
struct ClearRect {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(20,20,200,200)
          this.context.clearRect(30,30,150,100)
      })
    }
    .width('100%')
    .height('100%')
  }
}

fillText

fillText(text: string, x: number, y: number, maxWidth?: number): void

Draws filled text on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
text	string	Yes	''	Text to draw.
x	number	Yes	0	X coordinate of the lower left corner of the text.
y	number	Yes	0	Y coordinate of the lower left corner of the text.
maxWidth	number	No	-	Maximum width allowed for the text.

Example

// xxx.ets
@Entry
@Component
struct FillText {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.font = '30px sans-serif'
          this.context.fillText("Hello World!", 20, 100)
      })
    }
    .width('100%')
    .height('100%')
  }
}

strokeText

strokeText(text: string, x: number, y: number, maxWidth?:number): void

Draws a text stroke on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
text	string	Yes	''	Text to draw.
x	number	Yes	0	X coordinate of the lower left corner of the text.
y	number	Yes	0	Y coordinate of the lower left corner of the text.
maxWidth	number	No	-	Maximum width of the text to be drawn.

Example

// xxx.ets
@Entry
@Component
struct StrokeText {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.font = '55px sans-serif'
          this.context.strokeText("Hello World!", 20, 60)
      })
    }
    .width('100%')
    .height('100%')
  }
}

measureText

measureText(text: string): TextMetrics

Measures the specified text to obtain its width. This API returns a TextMetrics object.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
text	string	Yes	''	Text to be measured.

Return value

Type	Description
TextMetrics	TextMetrics object. Since API version 9, this API is supported in ArkTS widgets.

TextMetrics

Attribute	Type	Description
width	number	Width of the text.
height	number	Height of the text.
actualBoundingBoxAscent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the top of the bounding rectangle used to render the text. The current value is 0.
actualBoundingBoxDescent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the bottom of the bounding rectangle used to render the text. The current value is 0.
actualBoundingBoxLeft	number	Distance parallel to the baseline from the alignment point determined by the CanvasRenderingContext2D.textAlign attribute to the left side of the bounding rectangle of the text. The current value is 0.
actualBoundingBoxRight	number	Distance parallel to the baseline from the alignment point determined by the CanvasRenderingContext2D.textAlign attribute to the right side of the bounding rectangle of the text. The current value is 0.
alphabeticBaseline	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the alphabetic baseline of the line box. The current value is 0.
emHeightAscent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the top of the em square in the line box. The current value is 0.
emHeightDescent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the bottom of the em square in the line box. The current value is 0.
fontBoundingBoxAscent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the top of the highest bounding rectangle of all the fonts used to render the text. The current value is 0.
fontBoundingBoxDescent	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the bottom of the bounding rectangle of all the fonts used to render the text. The current value is 0.
hangingBaseline	number	Distance from the horizontal line specified by the CanvasRenderingContext2D.textBaseline attribute to the hanging baseline of the line box. The current value is 0.
ideographicBaseline	number	Distance from the horizontal line indicated by the CanvasRenderingContext2D.textBaseline attribute to the ideographic baseline of the line box. The current value is 0.

Example

// xxx.ets
@Entry
@Component
struct MeasureText {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.font = '50px sans-serif'
          this.context.fillText("Hello World!", 20, 100)

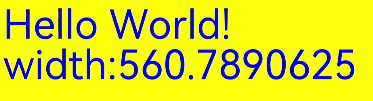

          this.context.fillText("width:" + this.context.measureText("Hello World!").width, 20, 200)
      })
    }
    .width('100%')
    .height('100%')
  }
}

stroke

stroke(path?: Path2D): void

Strokes a path.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
path	Path2D	No	null	A Path2D path to draw.

Example

// xxx.ets
@Entry
@Component
struct Stroke {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.moveTo(25, 25)
          this.context.lineTo(25, 105)
          this.context.lineTo(75, 105)
          this.context.lineTo(75, 25)
          this.context.strokeStyle = 'rgb(0,0,255)'
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

beginPath

beginPath(): void

Creates a drawing path.

Since API version 9, this API is supported in ArkTS widgets.

Example

// xxx.ets
@Entry
@Component
struct BeginPath {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.lineWidth = 6
          this.context.strokeStyle = '#0000ff'
          this.context.moveTo(15, 80)
          this.context.lineTo(280, 160)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

moveTo

moveTo(x: number, y: number): void

Moves a drawing path to a target position on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the target position.
y	number	Yes	0	Y coordinate of the target position.

Example

// xxx.ets
@Entry
@Component
struct MoveTo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.moveTo(10, 10)
          this.context.lineTo(280, 160)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

lineTo

lineTo(x: number, y: number): void

Connects the current point to a target position using a straight line.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the target position.
y	number	Yes	0	Y coordinate of the target position.

Example

// xxx.ets
@Entry
@Component
struct LineTo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.moveTo(10, 10)
          this.context.lineTo(280, 160)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

closePath

closePath(): void

Draws a closed path.

Since API version 9, this API is supported in ArkTS widgets.

Example

// xxx.ets
@Entry
@Component
struct ClosePath {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
            this.context.beginPath()
            this.context.moveTo(30, 30)
            this.context.lineTo(110, 30)
            this.context.lineTo(70, 90)
            this.context.closePath()
            this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

createPattern

createPattern(image: ImageBitmap, repetition: string|null): CanvasPattern|null

Creates a pattern for image filling based on a specified source image and repetition mode.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Description
image	ImageBitmap	Yes	Source image. For details, see ImageBitmap.
repetition	string	Yes	Repetition mode. The value can be 'repeat', 'repeat-x', 'repeat-y', 'no-repeat', 'clamp', or 'mirror'. Default value: ''

Return value

Type	Description
CanvasPattern	Created pattern for image filling based on a specified source image and repetition mode.

Example

// xxx.ets
@Entry
@Component
struct CreatePattern {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private img:ImageBitmap = new ImageBitmap("common/images/icon.jpg")

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let pattern = this.context.createPattern(this.img, 'repeat')
          if (pattern) {
            this.context.fillStyle = pattern
          }
          this.context.fillRect(0, 0, 200, 200)
        })
    }
    .width('100%')
    .height('100%')
  }
}

bezierCurveTo

bezierCurveTo(cp1x: number, cp1y: number, cp2x: number, cp2y: number, x: number, y: number): void

Draws a cubic bezier curve on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
cp1x	number	Yes	0	X coordinate of the first parameter of the bezier curve.
cp1y	number	Yes	0	Y coordinate of the first parameter of the bezier curve.
cp2x	number	Yes	0	X coordinate of the second parameter of the bezier curve.
cp2y	number	Yes	0	Y coordinate of the second parameter of the bezier curve.
x	number	Yes	0	X coordinate of the end point on the bezier curve.
y	number	Yes	0	Y coordinate of the end point on the bezier curve.

Example

// xxx.ets
@Entry
@Component
struct BezierCurveTo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.moveTo(10, 10)
          this.context.bezierCurveTo(20, 100, 200, 100, 200, 20)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

quadraticCurveTo

quadraticCurveTo(cpx: number, cpy: number, x: number, y: number): void

Draws a quadratic curve on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
cpx	number	Yes	0	X coordinate of the bezier curve parameter.
cpy	number	Yes	0	Y coordinate of the bezier curve parameter.
x	number	Yes	0	X coordinate of the end point on the bezier curve.
y	number	Yes	0	Y coordinate of the end point on the bezier curve.

Example

// xxx.ets
@Entry
@Component
struct QuadraticCurveTo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.moveTo(20, 20)
          this.context.quadraticCurveTo(100, 100, 200, 20)
          this.context.stroke()
      })
    }
    .width('100%')
    .height('100%')
  }
}

arc

arc(x: number, y: number, radius: number, startAngle: number, endAngle: number, counterclockwise?: boolean): void

Draws an arc on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the center point of the arc.
y	number	Yes	0	Y coordinate of the center point of the arc.
radius	number	Yes	0	Radius of the arc.
startAngle	number	Yes	0	Start radian of the arc.
endAngle	number	Yes	0	End radian of the arc.
counterclockwise	boolean	No	false	Whether to draw the arc counterclockwise.

Example

// xxx.ets
@Entry
@Component
struct Arc {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.arc(100, 75, 50, 0, 6.28)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

arcTo

arcTo(x1: number, y1: number, x2: number, y2: number, radius: number): void

Draws an arc based on the radius and points on the arc.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x1	number	Yes	0	X coordinate of the first point on the arc.
y1	number	Yes	0	Y coordinate of the first point on the arc.
x2	number	Yes	0	X coordinate of the second point on the arc.
y2	number	Yes	0	Y coordinate of the second point on the arc.
radius	number	Yes	0	Radius of the arc.

Example

// xxx.ets
@Entry
@Component
struct ArcTo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.moveTo(100, 20)
          this.context.arcTo(150, 20, 150, 70, 50)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

ellipse

ellipse(x: number, y: number, radiusX: number, radiusY: number, rotation: number, startAngle: number, endAngle: number, counterclockwise?: boolean): void

Draws an ellipse in the specified rectangular region on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the ellipse center.
y	number	Yes	0	Y coordinate of the ellipse center.
radiusX	number	Yes	0	Ellipse radius on the x-axis.
radiusY	number	Yes	0	Ellipse radius on the y-axis.
rotation	number	Yes	0	Rotation angle of the ellipse. The unit is radian.
startAngle	number	Yes	0	Angle of the start point for drawing the ellipse. The unit is radian.
endAngle	number	Yes	0	Angle of the end point for drawing the ellipse. The unit is radian.
counterclockwise	boolean	No	false	Whether to draw the ellipse in the counterclockwise direction. true: Draw the arc counterclockwise. false: Draw the arc clockwise.

Example

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.beginPath()
          this.context.ellipse(200, 200, 50, 100, Math.PI * 0.25, Math.PI * 0.5, Math.PI * 2)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

rect

rect(x: number, y: number, w: number, h: number): void

Creates a rectangle on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X coordinate of the upper left corner of the rectangle.
y	number	Yes	0	Y coordinate of the upper left corner of the rectangle.
w	number	Yes	0	Width of the rectangle.
h	number	Yes	0	Height of the rectangle.

Example

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.rect(20, 20, 100, 100) // Create a 100*100 rectangle at (20, 20)
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

fill

fill(fillRule?: CanvasFillRule): void

Fills the area inside a closed path on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
fillRule	CanvasFillRule	No	"nonzero"	Rule by which to determine whether a point is inside or outside the area to fill. The options are "nonzero" and "evenodd".

Example

// xxx.ets
@Entry
@Component
struct Fill {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.rect(20, 20, 100, 100) // Create a 100*100 rectangle at (20, 20)
          this.context.fill()
        })
    }
    .width('100%')
    .height('100%')
  }
}

fill(path: Path2D, fillRule?: CanvasFillRule): void

Fills the area inside a closed path on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
path	Path2D	Yes		A Path2D path to fill.
fillRule	CanvasFillRule	No	"nonzero"	Rule by which to determine whether a point is inside or outside the area to fill. The options are "nonzero" and "evenodd".

Example

// xxx.ets
@Entry
@Component
struct Fill {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let region = new Path2D()
          region.moveTo(30, 90)
          region.lineTo(110, 20)
          region.lineTo(240, 130)
          region.lineTo(60, 130)
          region.lineTo(190, 20)
          region.lineTo(270, 90)
          region.closePath()
          // Fill path
          this.context.fillStyle = '#00ff00'
          this.context.fill(region, "evenodd")
        })
    }
    .width('100%')
    .height('100%')
  }
}

clip

clip(fillRule?: CanvasFillRule): void

Sets the current path to a clipping area.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
fillRule	CanvasFillRule	No	"nonzero"	Rule by which to determine whether a point is inside or outside the area to clip. The options are "nonzero" and "evenodd".

Example

// xxx.ets
@Entry
@Component
struct Clip {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.rect(0, 0, 100, 200)
          this.context.stroke()
          this.context.clip()
          this.context.fillStyle = "rgb(255,0,0)"
          this.context.fillRect(0, 0, 200, 200)
        })
    }
    .width('100%')
    .height('100%')
  }
}

clip(path: Path2D, fillRule?: CanvasFillRule): void

Sets the current path to a clipping path.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
path	Path2D	Yes	-	A Path2D path to use as a clipping area.
fillRule	CanvasFillRule	No	"nonzero"	Rule by which to determine whether a point is inside or outside the area to clip. The options are "nonzero" and "evenodd".

Example

// xxx.ets
@Entry
@Component
struct Clip {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let region = new Path2D()
          region.moveTo(30, 90)
          region.lineTo(110, 20)
          region.lineTo(240, 130)
          region.lineTo(60, 130)
          region.lineTo(190, 20)
          region.lineTo(270, 90)
          region.closePath()
          this.context.clip(region,"evenodd")
          this.context.fillStyle = "rgb(0,255,0)"
          this.context.fillRect(0, 0, this.context.width, this.context.height)
        })
    }
    .width('100%')
    .height('100%')
  }
}

resetTransform

resetTransform(): void

Resets the current transform to the identity matrix. This API is a void API.

Since API version 9, this API is supported in ArkTS widgets.

rotate

rotate(angle: number): void

Rotates a canvas clockwise around its coordinate axes.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
angle	number	Yes	0	Clockwise rotation angle. You can use Math.PI / 180 to convert the angle to a radian.

Example

// xxx.ets
@Entry
@Component
struct Rotate {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.rotate(45 * Math.PI / 180)
          this.context.fillRect(70, 20, 50, 50)
        })
    }
    .width('100%')
    .height('100%')
  }
}

scale

scale(x: number, y: number): void

Scales the canvas based on the given scale factors.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	Horizontal scale factor.
y	number	Yes	0	Vertical scale factor.

Example

// xxx.ets
@Entry
@Component
struct Scale {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.lineWidth = 3
          this.context.strokeRect(30, 30, 50, 50)
          this.context.scale(2, 2) // Scale to 200%
          this.context.strokeRect(30, 30, 50, 50)
        })
    }
    .width('100%')
    .height('100%')
  }
}

transform

transform(a: number, b: number, c: number, d: number, e: number, f: number): void

Defines a transformation matrix. To transform a graph, you only need to set parameters of the matrix. The coordinates of the graph are multiplied by the matrix values to obtain new coordinates of the transformed graph. You can use the matrix to implement multiple transform effects.

Since API version 9, this API is supported in ArkTS widgets.

NOTE

The following formulas calculate coordinates of the transformed graph. x and y represent coordinates before transformation, and x' and y' represent coordinates after transformation.

• x' = scaleX * x + skewY * y + translateX

• y' = skewX * x + scaleY * y + translateY

Parameters

Name	Type	Mandatory	Default Value	Description
a	number	Yes	0	X-axis scale.
b	number	Yes	0	X-axis skew.
c	number	Yes	0	Y-axis skew.
d	number	Yes	0	Y-axis scale.
e	number	Yes	0	X-axis translation.
f	number	Yes	0	Y-axis translation.

Example

// xxx.ets
@Entry
@Component
struct Transform {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = 'rgb(0,0,0)'
          this.context.fillRect(0, 0, 100, 100)
          this.context.transform(1, 0.5, -0.5, 1, 10, 10)
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(0, 0, 100, 100)
          this.context.transform(1, 0.5, -0.5, 1, 10, 10)
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(0, 0, 100, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

setTransform

setTransform(a: number, b: number, c: number, d: number, e: number, f: number): void

Resets the existing transformation matrix and creates a new transformation matrix by using the same parameters as the transform() API.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
a	number	Yes	0	X-axis scale.
b	number	Yes	0	X-axis skew.
c	number	Yes	0	Y-axis skew.
d	number	Yes	0	Y-axis scale.
e	number	Yes	0	X-axis translation.
f	number	Yes	0	Y-axis translation.

Example

// xxx.ets
@Entry
@Component
struct SetTransform {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillStyle = 'rgb(255,0,0)'
          this.context.fillRect(0, 0, 100, 100)
          this.context.setTransform(1,0.5, -0.5, 1, 10, 10)
          this.context.fillStyle = 'rgb(0,0,255)'
          this.context.fillRect(0, 0, 100, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

setTransform

setTransform(transform?: Matrix2D): void

Resets the current transformation to the identity matrix, and then creates a new transformation matrix based on the specified Matrix2D object.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
transform	Matrix2D	No	null	Transformation matrix.

getTransform

getTransform(): Matrix2D

Obtains the current transformation matrix being applied to the context.

Since API version 9, this API is supported in ArkTS widgets.

Return value

Type	Description
Matrix2D	Matrix2D object.

Example

// xxx.ets
@Entry
@Component
struct TransFormDemo {
  private settings: RenderingContextSettings = new RenderingContextSettings(true);
  private context1: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);
  private context2: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings);

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Text('context1');
      Canvas(this.context1)
        .width('230vp')
        .height('120vp')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context1.fillRect(50, 50, 50, 50);
          this.context1.setTransform(1.2, Math.PI/8, Math.PI/6, 0.5, 30, -25);
          this.context1.fillRect(50, 50, 50, 50);
        })
      Text('context2');
      Canvas(this.context2)
        .width('230vp')
        .height('120vp')
        .backgroundColor('#0ffff0')
        .onReady(() =>{
          this.context2.fillRect(50, 50, 50, 50);
          let storedTransform = this.context1.getTransform();
          console.log("Matrix [scaleX = " + storedTransform.scaleX + ", scaleY = " + storedTransform.scaleY +
          ", rotateX = " + storedTransform.rotateX + ", rotateY = " + storedTransform.rotateY +
          ", translateX = " + storedTransform.translateX + ", translateY = " + storedTransform.translateY + "]")
          this.context2.setTransform(storedTransform);
          this.context2.fillRect(50,50,50,50);
        })
    }
    .width('100%')
    .height('100%')
  }
}

translate

translate(x: number, y: number): void

Moves the origin of the coordinate system.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x	number	Yes	0	X-axis translation.
y	number	Yes	0	Y-axis translation.

Example

// xxx.ets
@Entry
@Component
struct Translate {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.fillRect(10, 10, 50, 50)
          this.context.translate(70, 70)
          this.context.fillRect(10, 10, 50, 50)
        })
    }
    .width('100%')
    .height('100%')
  }
}

drawImage

drawImage(image: ImageBitmap|PixelMap, dx: number, dy: number): void

drawImage(image: ImageBitmap|PixelMap, dx: number, dy: number, dw: number, dh: number): void

drawImage(image: ImageBitmap|PixelMap, sx: number, sy: number, sw: number, sh: number, dx: number, dy: number, dw: number, dh: number):void

Draws an image on the canvas.

Since API version 9, this API is supported in ArkTS widgets, except that PixelMap objects are not supported.

Parameters

Name	Type	Mandatory	Default Value	Description
image	ImageBitmap or PixelMap	Yes	null	Image resource. For details, see ImageBitmap or PixelMap.
sx	number	No	0	X coordinate of the upper left corner of the rectangle used to crop the source image.
sy	number	No	0	Y coordinate of the upper left corner of the rectangle used to crop the source image.
sw	number	No	0	Target width to crop the source image.
sh	number	No	0	Target height to crop the source image.
dx	number	Yes	0	X coordinate of the upper left corner of the drawing area on the canvas.
dy	number	Yes	0	Y coordinate of the upper left corner of the drawing area on the canvas.
dw	number	No	0	Width of the drawing area. If the width of the drawing area is different from that of the cropped image, the latter will be stretched or compressed to the former.
dh	number	No	0	Height of the drawing area. If the height of the drawing area is different from that of the cropped image, the latter will be stretched or compressed to the former.

Example

// xxx.ets
@Entry
@Component
struct ImageExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private img:ImageBitmap = new ImageBitmap("common/images/example.jpg")

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.drawImage( this.img,0,0,500,500,0,0,400,200)
      })
    }
    .width('100%')
    .height('100%')
  }
}

createImageData

createImageData(sw: number, sh: number): ImageData

Creates an ImageData object with the specified dimensions.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
sw	number	Yes	0	Width of the ImageData object.
sh	number	Yes	0	Height of the ImageData object.

createImageData(imageData: ImageData): ImageData

Creates an ImageData object.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
imagedata	ImageData	Yes	null	ImageData object with the same width and height copied from the original ImageData object.

Return value

Type	Description
ImageData	New ImageData object.

getPixelMap

getPixelMap(sx: number, sy: number, sw: number, sh: number): PixelMap

Obtains the PixelMap object created with the pixels within the specified area on the canvas.

Parameters

Name	Type	Mandatory	Default Value	Description
sx	number	Yes	0	X coordinate of the upper left corner of the output area.
sy	number	Yes	0	Y coordinate of the upper left corner of the output area.
sw	number	Yes	0	Width of the output area.
sh	number	Yes	0	Height of the output area.

Return value

Type	Description
PixelMap	PixelMap object.

getImageData

getImageData(sx: number, sy: number, sw: number, sh: number): ImageData

Obtains the ImageData object created with the pixels within the specified area on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
sx	number	Yes	0	X coordinate of the upper left corner of the output area.
sy	number	Yes	0	Y coordinate of the upper left corner of the output area.
sw	number	Yes	0	Width of the output area.
sh	number	Yes	0	Height of the output area.

Return value

Type	Description
ImageData	New ImageData object.

Example

// xxx.ets
@Entry
@Component
struct GetImageData {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private img:ImageBitmap = new ImageBitmap("/common/images/1234.png")

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.drawImage(this.img,0,0,130,130)
          let imagedata = this.context.getImageData(50,50,130,130)
          this.context.putImageData(imagedata,150,150)
        })
    }
    .width('100%')
    .height('100%')
  }
}

putImageData

putImageData(imageData: ImageData, dx: number|string, dy: number|string): void

putImageData(imageData: ImageData, dx: number|string, dy: number|string, dirtyX: number|string, dirtyY: number|string, dirtyWidth: number|string, dirtyHeight: number|string): void

Puts an ImageData object onto a rectangular area on the canvas.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
imagedata	ImageData	Yes	null	ImageData object with pixels to put onto the canvas.
dx	number |string10+	Yes	0	X-axis offset of the rectangular area on the canvas.
dy	number |string10+	Yes	0	Y-axis offset of the rectangular area on the canvas.
dirtyX	number |string10+	No	0	X-axis offset of the upper left corner of the rectangular area relative to that of the source image.
dirtyY	number |string10+	No	0	Y-axis offset of the upper left corner of the rectangular area relative to that of the source image.
dirtyWidth	number |string10+	No	Width of the ImageData object	Width of the rectangular area to crop the source image.
dirtyHeight	number |string10+	No	Height of the ImageData object	Height of the rectangular area to crop the source image.

Example

// xxx.ets
@Entry
@Component
struct PutImageData {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let imageData = this.context.createImageData(100, 100)
          for (let i = 0; i < imageData.data.length; i += 4) {
            imageData.data[i + 0] = 255
            imageData.data[i + 1] = 0
            imageData.data[i + 2] = 255
            imageData.data[i + 3] = 255
          }
          this.context.putImageData(imageData, 10, 10)
        })
    }
    .width('100%')
    .height('100%')
  }
}

setLineDash

setLineDash(segments: number[]): void

Sets the dash line style.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Description
segments	number[]	An array of numbers that specify distances to alternately draw a line and a gap.

Example

// xxx.ets
@Entry
@Component
struct SetLineDash {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.arc(100, 75, 50, 0, 6.28)
          this.context.setLineDash([10,20])
          this.context.stroke()
        })
    }
    .width('100%')
    .height('100%')
  }
}

getLineDash

getLineDash(): number[]

Obtains the dash line style.

Since API version 9, this API is supported in ArkTS widgets.

Return value

Type	Description
number[]	An array of numbers that specify distances to alternately draw a line and a gap.

Example

// xxx.ets
@Entry
@Component
struct CanvasGetLineDash {
  @State message: string = 'Hello World'
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Row() {
      Column() {
        Text(this.message)
          .fontSize(50)
          .fontWeight(FontWeight.Bold)
          .onClick(()=>{
            console.error('before getlinedash clicked')
            let res = this.context.getLineDash()
            console.error(JSON.stringify(res))
          })
        Canvas(this.context)
          .width('100%')
          .height('100%')
          .backgroundColor('#ffff00')
          .onReady(() => {
            this.context.arc(100, 75, 50, 0, 6.28)
            this.context.setLineDash([10,20])
            this.context.stroke()
            let res = this.context.getLineDash()
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

transferFromImageBitmap

transferFromImageBitmap(bitmap: ImageBitmap): void

Displays the specified ImageBitmap object.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Description
bitmap	ImageBitmap	ImageBitmap object to display.

Example

// xxx.ets
@Entry
@Component
struct TransferFromImageBitmap {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private offContext: OffscreenCanvasRenderingContext2D = new OffscreenCanvasRenderingContext2D(600, 600, this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let imageData = this.offContext.createImageData(100, 100)
          for (let i = 0; i < imageData.data.length; i += 4) {
            imageData.data[i + 0] = 255
            imageData.data[i + 1] = 0
            imageData.data[i + 2] = 255
            imageData.data[i + 3] = 255
          }
          this.offContext.putImageData(imageData, 10, 10)
          let image = this.offContext.transferToImageBitmap()
          this.context.transferFromImageBitmap(image)
        })
    }
    .width('100%')
    .height('100%')
  }
}

toDataURL

toDataURL(type?: string, quality?: number): string

Generates a URL containing image display information.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Description
type	string	No	Image format. The default value is image/png.
quality	number	No	Image quality, which ranges from 0 to 1, when the image format is image/jpeg or image/webp. If the set value is beyond the value range, the default value 0.92 is used.

Return value

Type	Description
string	Image URL.

Example

// xxx.ets
@Entry
@Component
struct ToDataURL {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let dataURL = this.context.toDataURL()
        })
    }
    .width('100%')
    .height('100%')
  }
}

restore

restore(): void

Restores the saved drawing context.

Since API version 9, this API is supported in ArkTS widgets.

Example

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.save() // save the default state
          this.context.fillStyle = "#00ff00"
          this.context.fillRect(20, 20, 100, 100)
          this.context.restore() // restore to the default state
          this.context.fillRect(150, 75, 100, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

save

save(): void

Saves all states of the canvas in the stack. This API is usually called when the drawing state needs to be saved.

Since API version 9, this API is supported in ArkTS widgets.

Example

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          this.context.save() // save the default state
          this.context.fillStyle = "#00ff00"
          this.context.fillRect(20, 20, 100, 100)
          this.context.restore() // restore to the default state
          this.context.fillRect(150, 75, 100, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

createLinearGradient

createLinearGradient(x0: number, y0: number, x1: number, y1: number): void

Creates a linear gradient.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x0	number	Yes	0	X coordinate of the start point.
y0	number	Yes	0	Y coordinate of the start point.
x1	number	Yes	0	X coordinate of the end point.
y1	number	Yes	0	Y coordinate of the end point.

Example

// xxx.ets
@Entry
@Component
struct CreateLinearGradient {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let grad = this.context.createLinearGradient(50,0, 300,100)
          grad.addColorStop(0.0, '#ff0000')
          grad.addColorStop(0.5, '#ffffff')
          grad.addColorStop(1.0, '#00ff00')
          this.context.fillStyle = grad
          this.context.fillRect(0, 0, 400, 400)
        })
    }
    .width('100%')
    .height('100%')
  }
}

createRadialGradient

createRadialGradient(x0: number, y0: number, r0: number, x1: number, y1: number, r1: number): void

Creates a linear gradient.

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Default Value	Description
x0	number	Yes	0	X coordinate of the center of the start circle.
y0	number	Yes	0	Y coordinate of the center of the start circle.
r0	number	Yes	0	Radius of the start circle, which must be a non-negative finite number.
x1	number	Yes	0	X coordinate of the center of the end circle.
y1	number	Yes	0	Y coordinate of the center of the end circle.
r1	number	Yes	0	Radius of the end circle, which must be a non-negative finite number.

Example

// xxx.ets
@Entry
@Component
struct CreateRadialGradient {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffff00')
        .onReady(() =>{
          let grad = this.context.createRadialGradient(200,200,50, 200,200,200)
          grad.addColorStop(0.0, '#ff0000')
          grad.addColorStop(0.5, '#ffffff')
          grad.addColorStop(1.0, '#00ff00')
          this.context.fillStyle = grad
          this.context.fillRect(0, 0, 440, 440)
        })
    }
    .width('100%')
    .height('100%')
  }
}

createConicGradient¹⁰⁺

createConicGradient(startAngle: number, x: number, y: number): CanvasGradient

Creates a conic gradient.

Parameters

Name	Type	Mandatory	Default Value	Description
startAngle	number	Yes	0	Angle at which the gradient starts, in radians. The angle measurement starts horizontally from the right side of the center and moves clockwise.
x	number	Yes	0	X coordinate of the center of the conic gradient, in vp.
y	number	Yes	0	Y coordinate of the center of the conic gradient, in vp.

Example

// xxx.ets
@Entry
@Component
struct CanvasExample {
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) {
      Canvas(this.context)
        .width('100%')
        .height('100%')
        .backgroundColor('#ffffff')
        .onReady(() => {
          let grad = this.context.createConicGradient(0, 50, 80)
          grad.addColorStop(0.0, '#ff0000')
          grad.addColorStop(0.5, '#ffffff')
          grad.addColorStop(1.0, '#00ff00')
          this.context.fillStyle = grad
          this.context.fillRect(0, 30, 100, 100)
        })
    }
    .width('100%')
    .height('100%')
  }
}

CanvasDirection

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
inherit	The text direction is inherited from the <Canvas> component.
ltr	The text direction is from left to right.
rtl	The text direction is from right to left.

CanvasFillRule

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
evenodd	The inside part of a shape is determined based on whether the counting result is an odd number or not.
nonzero	The inside part of a shape is determined based on whether the counting result is zero or not.

CanvasLineCap

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
butt	The ends of the line are squared off, and the line does not extend beyond its two endpoints.
round	The line is extended at the endpoints by a half circle whose diameter is equal to the line width.
square	The line is extended at the endpoints by a rectangle whose width is equal to half the line width and height equal to the line width.

CanvasLineJoin

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
bevel	The intersection is a triangle. The rectangular corner of each line is independent.
miter	The intersection has a miter corner by extending the outside edges of the lines until they meet. You can view the effect of this attribute in miterLimit.
round	The intersection is a sector, whose radius at the rounded corner is equal to the line width.

CanvasTextAlign

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
center	The text is center-aligned.
start	The text is aligned with the start bound.
end	The text is aligned with the end bound.
left	The text is left-aligned.
right	The text is right-aligned.

CanvasTextBaseline

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
alphabetic	The text baseline is the normal alphabetic baseline.
bottom	The text baseline is at the bottom of the text bounding box. Its difference from the ideographic baseline is that the ideographic baseline does not consider letters in the next line.
hanging	The text baseline is a hanging baseline over the text.
ideographic	The text baseline is the ideographic baseline. If a character exceeds the alphabetic baseline, the ideographic baseline is located at the bottom of the excessive character.
middle	The text baseline is in the middle of the text bounding box.
top	The text baseline is on the top of the text bounding box.

ImageSmoothingQuality

Since API version 9, this API is supported in ArkTS widgets.

Name	Description
low	Low quality.
medium	Medium quality.
high	High quality.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkTS-based Declarative Development Paradigm

harmony 鸿蒙@ohos.multimedia.avCastPicker (AVCastPicker)

harmony 鸿蒙Property Animation

harmony 鸿蒙Enums

harmony 鸿蒙Blank

harmony 鸿蒙Button

harmony 鸿蒙CalendarPicker

harmony 鸿蒙Checkbox

harmony 鸿蒙CheckboxGroup

harmony 鸿蒙DataPanel
