Using startAbilityByType to Start a Financial Application

This topic describes how to open the vertical domain panel of financial applications.

Parameters on the Financial Application Panel

If the type field in startAbilityByType is set to finance, wantParam contains the following properties.

Name	Type	Mandatory	Description
sceneType	number	No	Intent scene, which indicates the purpose of the current request. The options are as follows: 1: transfer; 2: credit card repayment. The default value is 1.
bankCardNo	string	No	Bank card number.

Developing a Caller Application

Import the module. ts import { common } from '@kit.AbilityKit';

Construct parameters and call the startAbilityByType API.

@Entry
@Component
struct Index {
    @State hideAbility: string = 'hideAbility'


    build() {
        Row() {
            Column() {
                Text(this.hideAbility)
                    .fontSize(30)
                    .fontWeight(FontWeight.Bold)
                    .onClick(() => {
                        let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
                        let wantParam: Record<string, Object> = {
                            'sceneType': 1,
                            "bankCardNo": '123456789'
                        };
                        let abilityStartCallback: common.AbilityStartCallback = {
                            onError: (code: number, name: string, message: string) => {
                                console.log(`onError code ${code} name: ${name} message: ${message}`);
                            },
                            onResult: (result) => {
                                console.log(`onResult result: ${JSON.stringify(result)}`);
                            }
                        }


                        context.startAbilityByType("finance", wantParam, abilityStartCallback,
                            (err) => {
                                if (err) {
                                    console.error(`startAbilityByType fail, err: ${JSON.stringify(err)}`);
                                } else {
                                    console.log(`success`);
                                }
                            });
                    });
            }
            .width('100%')
        }
        .height('100%')
    }
}

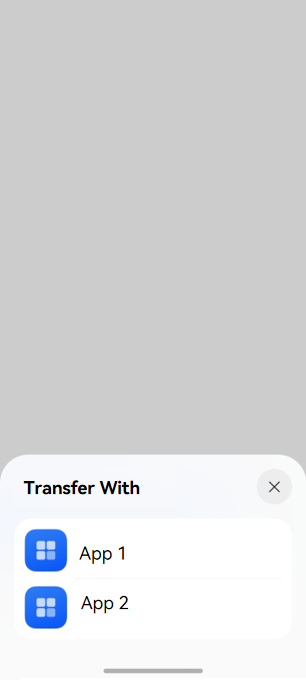

Effect

Effect example

Developing a Target Application

Configure uris in the module.json5 file.

Set the linkFeature field to declare the features supported by the application so that the system can match the application against all the installed applications on the device. The options are as follows:

{
  "abilities": [
      {
      "skills": [
          {
          "uris": [
              {
              "scheme": "finance", // It is for reference only. Ensure that the declared URI can be started by external systems.
              "host": "transfer",
              "path": "",
              "linkFeature": "Transfer" // Declare that the application supports transfer.
              },
              {
              "scheme": "finance", // It is for reference only. Ensure that the declared URI can be started by external systems.
              "host": "credit_card_repayment",
              "path": "",
              "linkFeature": "CreditCardRepayment" // Declare that the application supports credit card repayment.
              }
          ]
          }
      ]
      }
  ]
}

Parse and process the parameters transferred from the panel.
```
UIAbility.onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void
```
The want.uri parameter carries the URI corresponding to linkFeature configured by the target application.

The want.parameters parameter carries the parameters transferred by the caller application, as described in the table below.

|Name |Type |Mandatory|Description| |——————–|————————————————————|——–|——–| |bankCardNo|string|No|Bank card number.|

The application can develop different style pages based on the features defined in [linkFeature](https://m.seaxiang.com/blog/816e023a7b86425698c112761c849684), such as transfer and credit card repayment, as well as the received URI.

Sample Code

import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { window } from '@kit.ArkUI';

const TAG = 'EntryAbility'

export default class EntryAbility extends UIAbility {
    windowStage: window.WindowStage|null = null;

    uri?: string;
    bankCardNo?: string;

    onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onCreate, want=${JSON.stringify(want)}`);
        super.onCreate(want, launchParam);
        this.parseWant(want);
    }

    onNewWant(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onNewWant, want=${JSON.stringify(want)}`);
        super.onNewWant(want, launchParam);
        this.parseWant(want);
        if (!this.windowStage) {
            hilog.error(0x0000, TAG, 'windowStage is null');
            this.context.terminateSelf();
            return;
        }
        this.loadPage(this.windowStage);
    }

    private parseWant(want: Want): void {
        this.uri = want.uri as string|undefined;
        this.bankCardNo = want.parameters?.bankCardNo as string|undefined;
    }

    private loadPage(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `loadPage, uri=${this.uri}`);
        if (this.uri === 'finance://transfer') {
            // Construct parameters for the transfer scenario.
            const storage: LocalStorage = new LocalStorage({
                "bankCardNo": this.bankCardNo
            } as Record<string, Object>);
            // Open the transfer page.
            windowStage.loadContent('pages/TransferPage', storage)
        } else if (this.uri === 'finance://credit_card_repayment') {
            // Construct parameters for the credit card repayment scenario.
            const storage: LocalStorage = new LocalStorage({
                "bankCardNo": this.bankCardNo
            } as Record<string, Object>);
            // Open the credit card repayment page.
            windowStage.loadContent('pages/CreditCardRepaymentPage', storage)
        } else {
            // Display the home page by default.
            windowStage.loadContent('pages/Index', (err) => {
                if (err.code) {
                    hilog.error(0x0000, TAG, 'Failed to load the content. Cause: %{public}s',
                        JSON.stringify(err) ?? '');
                    return;
                }
                hilog.info(0x0000, TAG, 'Succeeded in loading the content.');
            });
        }
    }

    onDestroy(): void {
        hilog.info(0x0000, TAG, `onDestroy`);
    }

    onWindowStageCreate(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `onWindowStageCreate`);
        this.windowStage = windowStage;
        this.loadPage(this.windowStage);
    }

    onWindowStageDestroy(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onWindowStageDestroy');
    }

    onForeground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onForeground');
    }

    onBackground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onBackground');
    }
}
