LocationButton

The LocationButton security component represents a location button that allows you to obtain temporary, precise location permissions from users with a simple button touch, eliminating the need for a permission request dialog box.

NOTE

• This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

• Since API version 15, the LocationButton component is deprecated. You are advised to call requestPermissionsFromUser to open a dialog box to request the required permissions from users.

Child Components

Not supported

APIs

LocationButton

LocationButton()

Creates a LocationButton component with an icon, text, and background.

You may want to learn the restrictions on security component styles to avoid authorization failures caused by incompliant styles.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

LocationButton

LocationButton(options: LocationButtonOptions)

Creates a LocationButton component that contains the specified elements.

You may want to learn the restrictions on security component styles to avoid authorization failures caused by incompliant styles.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

LocationButtonOptions

Describes the icon, text, and other specific elements for the LocationButton component.

NOTE

• At least one of icon or text must be provided.

• If neither icon nor text is provided, the options parameter in LocationButton will not take effect, and the created LocationButton component will use the default style:

The default value of LocationIconStyle is LINES.

The default style of LocationDescription is CURRENT_LOCATION.

The default value of ButtonType is Capsule. - The icon, text, and buttonType parameters do not support dynamic modification.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

LocationIconStyle

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

LocationDescription

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

LocationButtonOnClickResult

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

LocationButtonCallback¹⁸⁺

type LocationButtonCallback = (event: ClickEvent, result: LocationButtonOnClickResult, error?: BusinessError<void>) => void

Triggered when the LocationButton component is clicked.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Attributes

This component can only inherit the universal attributes of security components.

Events

Only the following events are supported.

onClick

onClick(event: LocationButtonCallback)

Called when a click event occurs.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Example

// xxx.ets
import { BusinessError } from '@kit.BasicServicesKit';

@Entry
@Component
struct Index {
  handleLocationButtonClick: LocationButtonCallback =
    (event: ClickEvent, result: LocationButtonOnClickResult, error: BusinessError<void>) => {
      if (result == LocationButtonOnClickResult.SUCCESS) {
        console.info("success");
      } else {
        console.info("errCode: " + error.code);
        console.info("errMessage: " + error.message);
      }
    };

  build() {
    Row() {
      Column({ space: 10 }) {

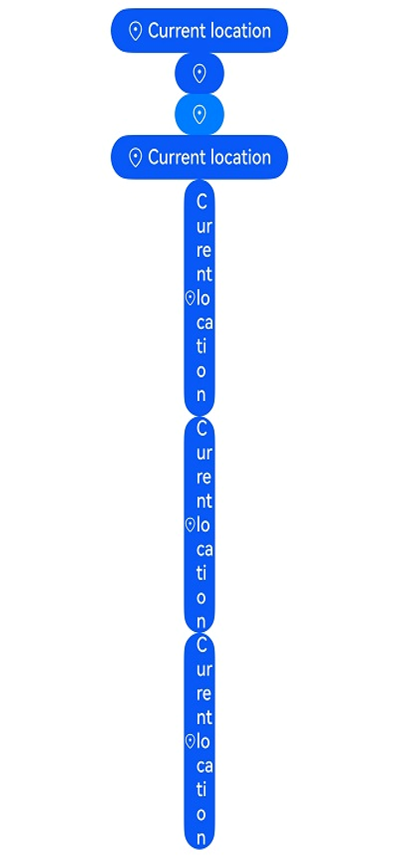

        // Create a default button with an icon, text, and background.
        LocationButton().onClick(this.handleLocationButtonClick)
        // Whether an element is contained depends on whether the parameter corresponding to the element is specified. If buttonType is not passed in, the button uses the ButtonType.Capsule settings.
        LocationButton({ icon: LocationIconStyle.LINES })
        // Create a button with only an icon and background. If the alpha value of the most significant eight bits of the background color is less than 0x1A, the system forcibly adjusts the alpha value to 0xFF.
        LocationButton({ icon: LocationIconStyle.LINES, buttonType: ButtonType.Capsule })
          .backgroundColor(0x10007dff)
        // Create a button with an icon, text, and background. If the alpha value of the most significant eight bits of the background color is less than 0x1A, the system forcibly adjusts the alpha value to 0xFF.
        LocationButton({
          icon: LocationIconStyle.LINES,
          text: LocationDescription.CURRENT_LOCATION,
          buttonType: ButtonType.Capsule
        })
        // Create a button with an icon, text, and background. If the set width is less than the minimum allowed, the button's text will wrap to guarantee full text display.
        LocationButton({
          icon: LocationIconStyle.LINES,
          text: LocationDescription.CURRENT_LOCATION,
          buttonType: ButtonType.Capsule
        })
          .fontSize(16)
          .width(30)
        // Create a button with an icon, text, and background. If the set width is less than the minimum allowed, the button's text will wrap to guarantee full text display.
        LocationButton({
          icon: LocationIconStyle.LINES,
          text: LocationDescription.CURRENT_LOCATION,
          buttonType: ButtonType.Capsule
        })
          .fontSize(16)
          .size({ width: 30, height: 30 })
        // Create a button with an icon, text, and background. If the set width is less than the minimum allowed, the button's text will wrap to guarantee full text display.
        LocationButton({
          icon: LocationIconStyle.LINES,
          text: LocationDescription.CURRENT_LOCATION,
          buttonType: ButtonType.Capsule
        })
          .fontSize(16)
          .constraintSize({
            minWidth: 0,
            maxWidth: 30,
            minHeight: 0,
            maxHeight: 30
          })
      }.width('100%')
    }.height('100%')
  }
}
