harmony 鸿蒙<qrcode> Development

  • 2022-08-09
  • 浏览 (855)

<qrcode> Development

The <qrcode> component is used to generate and display a QR code. For details, see qrcode.

Creating a <qrcode> Component

Create a <qrcode> component in the .hml file under pages/index.

<!-- xxx.hml-->
<div class="container">
  <qrcode value="Hello"></qrcode>
</div>
/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  background-color: #F1F3F5;
}

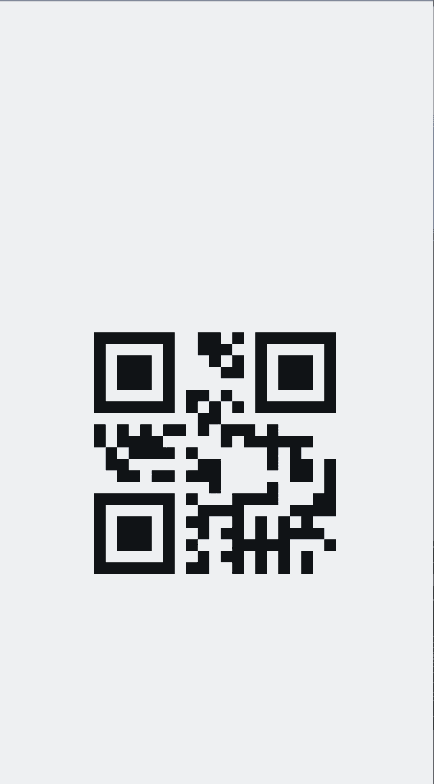

en-us_image_0000001275803133

NOTE

The value parameter must be set.

Setting the Component Type

Set the type attribute to select the QR code type from rectangle and circle.

<!-- xxx.hml-->
<div class="container">
  <select onchange="settype">
    <option for="{{bcol_list}}" value="{{$item}}">{{$item}}</option>
  </select>
  <qrcode value="Hello" type="{{qr_type}}"></qrcode>
</div>
/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  background-color: #F1F3F5;
}
select{
  margin-top: 50px;
  margin-bottom: 50px;
}
// index.js
export default {
  data: {
    qr_type: 'rect',
    bcol_list: ['rect','circle']
  },
  settype(e) {
    this.qr_type = e.newValue
  },
}

en-us_image_0000001275922965

Setting Styles

Set the color and background-color attributes to set the color and background color of a QR code.

<!-- xxx.hml-->
<div class="container">
  <qrcode value="Hello" type="rect"></qrcode>
</div>
/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  background-color: #F1F3F5;
}
qrcode{
  width: 300px;
  height: 300px;
 color: blue;  background-color: #ffffff;
}

en-us_image_0000001231683116

NOTE - If the values of width and height are different, the smaller value is used as the length of the QR code. The generated QR code is center displayed.

  • If either width or height is set, the value is used as the length of the QR code. If neither of them is set, the default length of 200 px is used.

Example Scenario

In this example, you can bind a QR code to a text box, and change the QR code by replacing the content in the text box.

<!-- xxx.hml-->
<div class="container">
  <input style="margin-bottom: 100px;" onchange="change"></input>
  <qrcode value="{{textVal}}"></qrcode>
</div>
/* xxx.css */
.container {
  width: 100%;
  height: 100%;
  flex-direction: column;
  align-items: center;
  justify-content: center;
  background-color: #F1F3F5;
}
qrcode{
  width: 400px;
  height: 400px;
}
// index.js
export default{
  data: {
    textVal: ''
  },
  change(e){
    this.textVal = e.value
  }
}

en-us_image_0000001232002972
