Blur Effect

Animation effects can add detail to your animations and create a sense of realism. For example, blur and shadow effects can lend a 3D look to objects and deliver a more engaging animation experience. ArkUI provides a diverse array of efficient APIs for you to develop exquisite and personalized effects. This topic covers the common blur, shadow, and color effects.

Blur effects add a sense of depth and allow for distinction of hierarchical relationship between elements.

API Description
backdropBlur Applies a background blur effect to the component. The input parameter is the blur radius.
blur Applies a foreground blur effect to the component. The input parameter is the blur radius.
backgroundBlurStyle Applies a background blur effect to the component. The input parameter is the blur style.
foregroundBlurStyle Applies a foreground blur effect to the component. The input parameter is the blur style.
motionBlur Applies a motion blur effect to the component being scaled or moved. The input parameters are the blur radius and anchor point coordinates.

NOTE

The preceding APIs provide real-time blurring by rendering each frame, which can be performance-intensive. For static blur effects where content and radius remain unchanged, you are advised to use the static blur API to reduce the load.

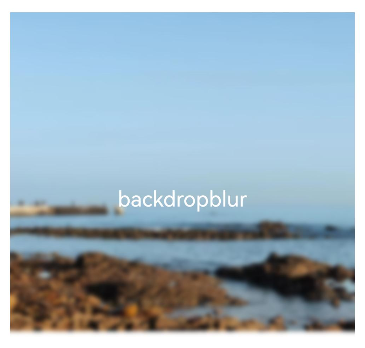

Applying Background Blur with backdropBlur

@Entry
@Component
struct BlurEffectsExample {
  build() {
    Column({ space: 10 }) {
      Text('backdropBlur')
        .width('90%')
        .height('90%')
        .fontSize(20)
        .fontColor(Color.White)
        .textAlign(TextAlign.Center)
        .backdropBlur(10) // Apply background blur.
        .backgroundImage($r('app.media.share'))
        .backgroundImageSize({ width: 400, height: 300 })
    }
    .width('100%')
    .height('50%')
    .margin({ top: 20 })
  }
}

en-us_image_0000001599812870

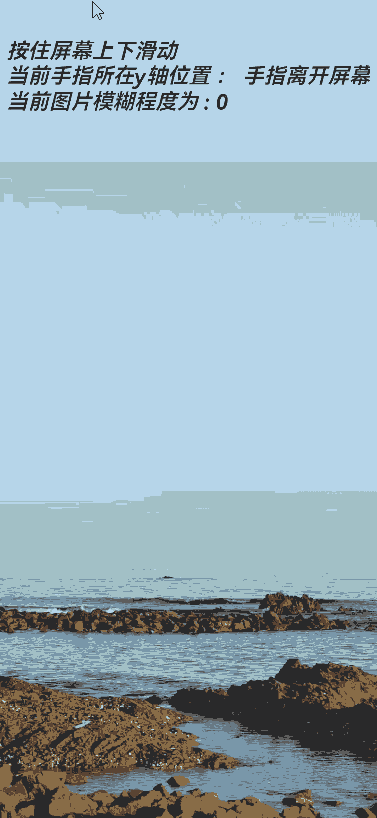

Applying Foreground Blur with blur

@Entry
@Component
struct Index1 {
  @State radius: number = 0;
  @State text: string = '';
  @State y: string = 'Finger not on the screen';

  aboutToAppear() {
    this.text = "Press a finger on the screen and slide up and down\n" + "Current finger position on the y-axis: " + this.y +
    "\n" + "Blur radius:" + this.radius;
  }

  build() {
    Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.SpaceBetween }) {
      Text(this.text)
        .height(200)
        .fontSize(20)
        .fontWeight(FontWeight.Bold)
        .fontFamily("cursive")
        .fontStyle(FontStyle.Italic)
      Image($r("app.media.wall"))
        .blur(this.radius) // Apply foreground blur.
        .height('100%')
        .width("100%")
        .objectFit(ImageFit.Cover)
    }.height('100%')
    .width("100%")
    .onTouch((event?: TouchEvent) => {
      if(event){
        if (event.type === TouchType.Move) {
          this.y = Number(event.touches[0].y.toString()).toString();
          this.radius = Number(this.y) / 10; // Modify the blur radius based on the sliding distance.
        }
        if (event.type === TouchType.Up) {
          this.radius = 0;
          this.y = 'Finger off the screen';
        }
      }
      this.text = "Press a finger on the screen and slide up and down\n" + "Current finger position on the y-axis: " + this.y +
      "\n" + "Blur radius:" + this.radius;
    })
  }
}

en-us_image_0000001599813588

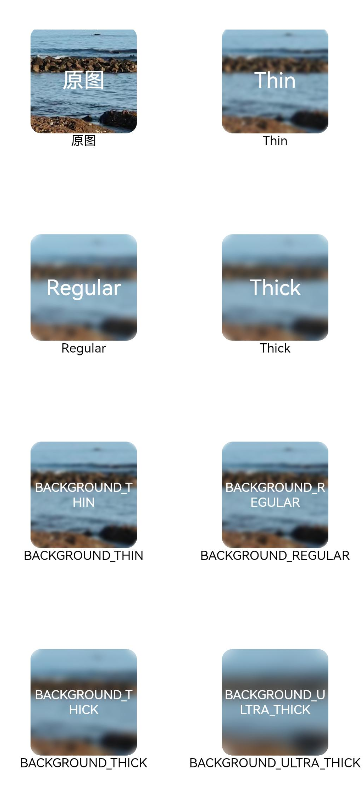

Applying Background Blur with backgroundBlurStyle

@Entry
@Component
struct BackDropBlurStyleDemo {
  build() {
    Grid() {
      GridItem() {
        Column() {
          Column() {
            Text('Original')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))

          Text('Original')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Thin')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          // BlurStyle.Thin: Thin blur is applied.
          // ThemeColorMode.LIGHT: The light color mode is used.
          // AdaptiveColor.DEFAULT: Adaptive color mode is not used. The default color is used as the mask color.
          // scale: blurredness of the background material. The default value is 1.
          .backgroundBlurStyle(BlurStyle.Thin, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Thin')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Regular')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.Regular, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Regular')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Thick')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.Thick, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Thick')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_THIN')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.BACKGROUND_THIN, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_THIN')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_REGULAR')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.BACKGROUND_REGULAR, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_REGULAR')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_THICK')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.BACKGROUND_THICK, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_THICK')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_ULTRA_THICK')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .backgroundBlurStyle(BlurStyle.BACKGROUND_ULTRA_THICK, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_ULTRA_THICK')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)
    }
    .columnsTemplate('1fr 1fr')
    .rowsTemplate('1fr 1fr 1fr 1fr')
    .width('100%')
    .height('100%')
    .margin({ top: 40 })
  }
}

en-us_image_0000001649455517

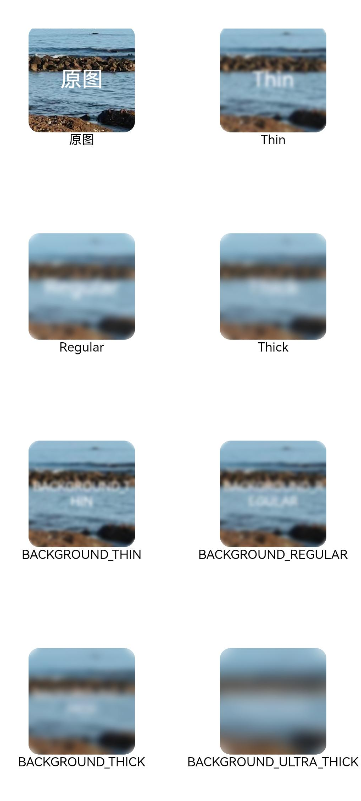

Applying Foreground Blur with foregroundBlurStyle

@Entry
@Component
struct ForegroundBlurStyleDemo {
  build() {
    Grid() {
      GridItem() {
        Column() {
          Column() {
            Text('Original')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))

          Text('Original')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Thin')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          // BlurStyle.Thin: Thin blur is applied.
          // ThemeColorMode.LIGHT: The light color mode is used.
          // AdaptiveColor.DEFAULT: Adaptive color mode is not used. The default color is used as the mask color.
          // scale: blurredness of the background material. The default value is 1.
          .foregroundBlurStyle(BlurStyle.Thin, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Thin')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Regular')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.Regular, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Regular')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('Thick')
              .fontSize(20)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.Thick, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('Thick')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_THIN')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.BACKGROUND_THIN, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_THIN')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_REGULAR')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.BACKGROUND_REGULAR, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_REGULAR')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_THICK')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.BACKGROUND_THICK, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_THICK')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)

      GridItem() {
        Column() {
          Column() {
            Text('BACKGROUND_ULTRA_THICK')
              .fontSize(12)
              .fontColor(Color.White)
              .textAlign(TextAlign.Center)
              .width('100%')
              .height('100%')
          }
          .height(100)
          .aspectRatio(1)
          .borderRadius(10)
          .backgroundImage($r('app.media.share'))
          .foregroundBlurStyle(BlurStyle.BACKGROUND_ULTRA_THICK, {
            colorMode: ThemeColorMode.LIGHT,
            adaptiveColor: AdaptiveColor.DEFAULT,
            scale: 0.1
          })

          Text('BACKGROUND_ULTRA_THICK')
            .fontSize(12)
            .fontColor(Color.Black)
        }
        .height('100%')
        .justifyContent(FlexAlign.Start)
      }
      .width(200)
      .height(200)
    }
    .columnsTemplate('1fr 1fr')
    .rowsTemplate('1fr 1fr 1fr 1fr')
    .width('100%')
    .height('100%')
    .margin({ top: 40 })
  }
}

en-us_image_0000001599658168

Applying Motion Blur with motionBlur

import { curves } from '@kit.ArkUI';

@Entry
@Component
struct motionBlurTest {
  @State widthSize: number = 400
  @State heightSize: number = 320
  @State flag: boolean = true
  @State radius: number = 0
  @State x: number = 0
  @State y: number = 0

  build() {
    Column() {
      Column() {
        Image($r('app.media.testImg'))
          .width(this.widthSize)
          .height(this.heightSize)
          .onClick(() => {
            this.radius = 5;
            this.x = 0.5;
            this.y = 0.5;
            if (this.flag) {
              this.widthSize = 100;
              this.heightSize = 80;
            } else {
              this.widthSize = 400;
              this.heightSize = 320;
            }
            this.flag = !this.flag;
          })
          .animation({
            duration: 2000,
            curve: curves.springCurve(10, 1, 228, 30),
            onFinish: () => {
              this.radius = 0;
            }
          })
          .motionBlur({ radius: this.radius, anchor: { x: this.x, y: this.y } })
      }
    }.width('100%').margin({ top: 5 })
  }
}

motionBlurTest

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkUI

harmony 鸿蒙Atomic Service Full Screen Launch Component (FullScreenLaunchComponent)

harmony 鸿蒙Arc Button (ArcButton)

harmony 鸿蒙Animation Smoothing

harmony 鸿蒙Animation Overview

harmony 鸿蒙Frame Animation (ohos.animator)

harmony 鸿蒙Implementing Property Animation

harmony 鸿蒙Property Animation Overview

harmony 鸿蒙Dialog Box Overview

harmony 鸿蒙Color Effect

0  赞
