Hi3516 Development Board

Introduction

Hi3516DV300 is a next-generation system on chip (SoC) designed for the industry-dedicated smart HD IP camera. Thanks to its next-generation image signal processor (ISP), H.265 video compression encoder, and high-performance NNIE engine, Hi3516DV300 provides low bit rates, high image quality, low power consumption, and intelligent processing and analysis.

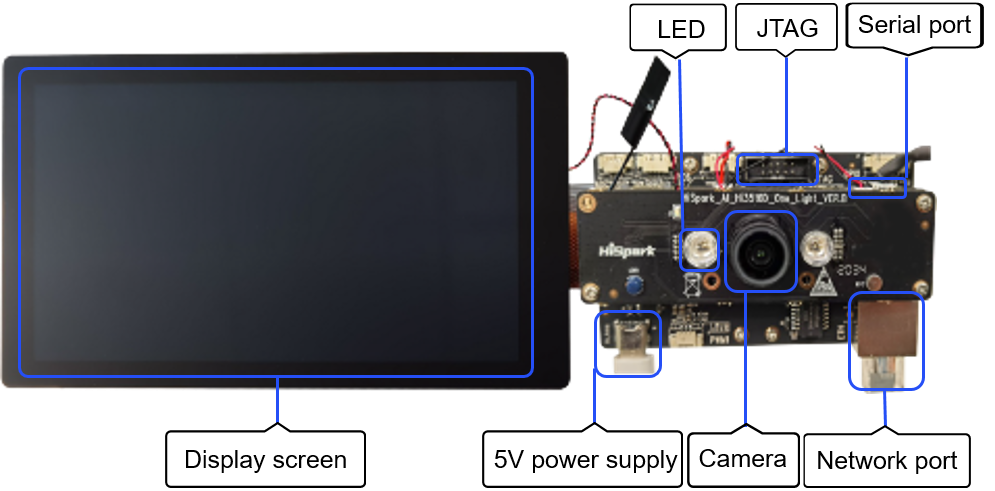

Figure 1 Hi3516 front view

en-us_image_0000001271234717

Specifications

Table 1 Hi3516 specifications

Item	Description
Processor and internal memory	- Hi3516DV300 chip - DDR3 1GB - eMMC 4.5, 8 GB capacity
External components	- Ethernet port - Audio and video - 1 voice input - 1 mono channel (AC_L) output, connected to a 3 W power amplifier (LM4871) - MicroHDMI (1-channel HDMI 1.4) - Camera - Sensor IMX335 - M12 lens, 4 mm focal length, and f/1.8 aperture - Display - 2.35-inch LCD connector - 5.5-inch LCD connector - External components and ports - Memory card port - JTAG/I2S port - ADC port - Steering gear port - Grove connector - USB 2.0 (Type-C) - Three function keys, two user-defined keys, and one upgrade key - LED indicator, green or red

Item

Description

Processor and internal memory

- Hi3516DV300 chip
- DDR3 1GB
- eMMC 4.5, 8 GB capacity

External components

- Ethernet port
- Audio and video
- 1 voice input
- 1 mono channel (AC_L) output, connected to a 3 W power amplifier (LM4871)
- MicroHDMI (1-channel HDMI 1.4)
- Camera
- Sensor IMX335
- M12 lens, 4 mm focal length, and f/1.8 aperture
- Display
- 2.35-inch LCD connector
- 5.5-inch LCD connector
- External components and ports
- Memory card port
- JTAG/I2S port
- ADC port
- Steering gear port
- Grove connector
- USB 2.0 (Type-C)
- Three function keys, two user-defined keys, and one upgrade key
- LED indicator, green or red
