Getting Started with the Standard System with Hi3516 (CLI Mode)

icon-note.gif NOTE

Since OpenHarmony 3.2, the standard system does not perform adaptation verification for the Hi3516D V300 development board. You are advised to use RK3568 to develop standard-system devices.

If you still need to use Hi3516DV300 to develop standard-system devices, adaptation may fail. In this case, contact the chip supplier to obtain the adaptation guide or complete adaptation by yourself.

In addition to the small system, the Hi3516D V300 development board also supports the standard system. This topic describes how to develop the standard system on Hi3516DV300 by using the command-line interface (CLI).

The following exemplifies how to run the first program on the development board. The created program outputs the message “Hello World!”

Before development, set up the development environment.

Writing a Hello World Program

Example Directory

applications/sample/hello
 │── BUILD.gn
 │── include
 │   └── helloworld.h
 │── src
 │   └── helloworld.c
 ├── bundle.json
 build
 └── subsystem_config.json
 vendor/hisilicon
 └── Hi3516DV300
     └── config.json

How to Develop

Perform the steps below in the source code directory:

  1. Create a directory and write the service code.

Create the applications/sample/hello/src/helloworld.c directory and file whose code is shown in the following example. You can customize the content to be printed. For example, you can change World to OHOS. Declare the string printing function HelloPrint in the helloworld.h file. You can use either C or C++ to develop a program.

   #include <stdio.h>
   #include "helloworld.h"
   int main(int argc, char **argv)
   {
       HelloPrint();
       return 0;
   }
   void HelloPrint()
   {
       printf("\n\n");
       printf("\n\t\tHello World!\n");
       printf("\n\n");
   }

Add the header file applications/sample/hello/include/helloworld.h. The sample code is as follows:

   #ifndef HELLOWORLD_H
   #define HELLOWORLD_H
   #ifdef __cplusplus
   #if __cplusplus
   extern "C" {
   #endif
   #endif
   void HelloPrint();
   #ifdef __cplusplus
   #if __cplusplus
   }
   #endif
   #endif
   #endif // HELLOWORLD_H
  1. Create a build file.

    1. Create the applications/sample/hello/BUILD.gn file. The file content is as follows:
       import("//build/ohos.gni") # Import the build template.
       ohos_executable("helloworld") {# Executable module.
         sources = [       # Source code of the module.
           "src/helloworld.c"
         ]
         include_dirs = [  # Directory of header files on which the module depends.
           "include"
         ]
         cflags = []
         cflags_c = []
         cflags_cc = []
         ldflags = []
         configs = []
         deps =[]    # Internal dependencies of the component.
         part_name = "hello"    # Component name. This parameter is mandatory.
         install_enable = true # Whether to install the software by default. This parameter is optional. By default, the software is not installed.
       }

    1. Create the applications/sample/hello/bundle.json file and add the description of the sample component. The content is as follows:
       {
           "name": "@ohos/hello",
           "description": "Hello world example.",
           "version": "3.1",
           "license": "Apache License 2.0",
           "publishAs": "code-segment",
           "segment": {
               "destPath": "applications/sample/hello"
           },
           "dirs": {},
           "scripts": {},
           "component": {
               "name": "hello",
               "subsystem": "sample",
               "syscap": [],
               "features": [],
               "adapted_system_type": [ "mini", "small", "standard" ],
               "rom": "10KB",
               "ram": "10KB",
               "deps": {
                   "components": [],
                   "third_party": []
               },
               "build": {
                   "sub_component": [
                       "//applications/sample/hello:helloworld"
                   ],
                   "inner_kits": [],
                   "test": []
               }
           }
       }


    The bundle.json file consists of two parts. The first part describes the information about the subsystem to which the component belongs, and the second part defines the build configuration for the component. When adding a component, you must specify the sub_component of the component. If there are APIs provided for other components, add them in inner_kits. If there are test cases, add them in test.

  2. Modify the subsystem configuration file.

Add the configuration of the new subsystem to the build/subsystem_config.json file.

   "sample": {
       "path": "applications/sample/hello",
       "name": "sample"
     },
  1. Modify the product configuration file.

In the vendor/hisilicon/Hi3516DV300/config.json file, add the hello part after the existing part.

       "usb:usb_manager_native":{},
       "applications:prebuilt_hap":{},
       "sample:hello":{},
       "wpa_supplicant-2.9:wpa_supplicant-2.9":{},

Building Source Code

You can build source code with hb or the build.sh script. The following exemplifies how to build source code with hb. For details about how to build source code with the build.sh script, see Building Source Code Using the build.sh Script.

For details about the functions of the OpenHarmony compilation and building module, see Compilation and Building Guide.

Prerequisites

Procedure

Go to the root directory of the source code and run the build command.

  1. Set the build path.
   hb set
  1. Select the current path.
   .
  1. Select hispark_taurus_standard under hisilicon and press Enter. > icon-note.gif NOTE > > When adapting the development board to a specific use case, select an appropriate build form factor, that is, product settings. For details, see Build Form Factors.

    Figure 1 Hi3516 build settings

quick-start-hi3516-standard-build

  1. Start building. > icon-note.gif NOTE > - To build a component (for example, hello), run the hb build -T *targetName* command. > > - To build a product incrementally, run the hb build command. > > - To build a product from the scratch, run the hb build -f command. > > This example builds a product from the scratch.
   hb build -f
  1. Check the build result. If “build success” is displayed, the building is successful. > icon-notice.gif NOTICE > > The build result and log files are stored in out/hi3516dv300.

Burning an Image

The following exemplifies how to burn an image to Hi3516DV300 using HiTool. You can also do so using DevEco Device Tool, by following instructions in Burning an Image.

Prerequisites

  • The source code of the development board has been compiled into files for burning.

  • HiTool has been installed on the client platform (for example, a Windows-based computer).

  • The USB port driver has been installed on the client platform. For details, see Installing the USB Port Driver on the Hi3516D V300 Development Board.

  • A serial port terminal tool, such as IPOP, has been installed on the client platform.

  • The client platform and development board are connected using a USB cable and serial cable.

Procedure

  1. Prepare the files to be burnt.

    1. On the client platform, create a folder for storing the files to be burnt, for example, D:\L2.
    2. Download the compiled source package to the client platform, decompress the package, and copy the files required for burning to the folder created in step 1.

    For the Hi3516DV300 development board, the files required for burning of the standard system are as follows: boot.img, Hi3516DV300-emmc.xml, system.img, u-boot-hi3516dv300_emmc.bin, uImage, updater.img, userdata.img, and vendor.img.

  2. Burn the image files using HiTool.

    1. Open HiTool.
    2. Set up HiTool.

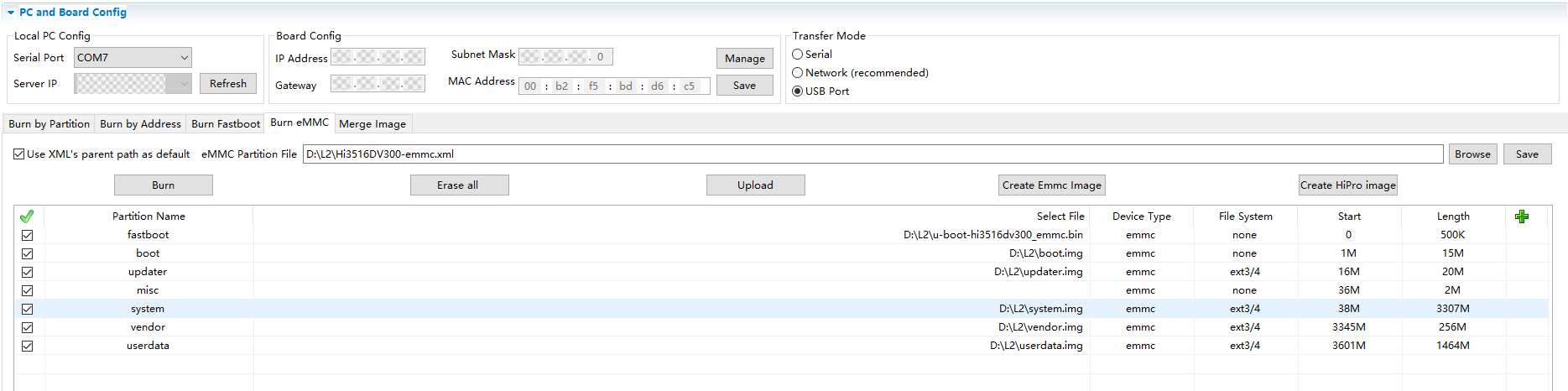

    Set the transfer mode to USB and burning mode to eMMC (the storage medium of the development board is eMMC). 3. Click Browse and select the burning configuration file (for example, Hi3516DV300-emmc.xml) from the folder created in step 1.

    quickstart-hi3516-standard-hitool-select 4. After clicking the Burn button, press and hold the Update key next to the serial port on the development board, and remove and insert the USB cable.

    After the burning starts, logs are displayed in the console area at the bottom of HiTool.

    When the burning is complete, HiTool displays a dialog box indicating that the burning is successful. 5. Click OK.

  3. Import startup parameters.

    1. Use the terminal tool to enable the serial port.
    2. Restart the development board by removing and inserting its power supply. Press Enter in the serial port terminal tool within 3 seconds.

    If hisilicon # is displayed on the terminal tool page, the serial port of the development board is connected. 3. Copy the following startup parameters in the serial port terminal tool and press Enter to complete the setup.

       setenv bootargs 'mem=640M console=ttyAMA0,115200 mmz=anonymous,0,0xA8000000,384M clk_ignore_unused androidboot.selinux=permissive rootdelay=10 hardware=Hi3516DV300 init=/init root=/dev/ram0 rw blkdevparts=mmcblk0:1M(boot),15M(kernel),20M(updater),2M(misc),3307M(system),256M(vendor),-(userdata)';setenv bootcmd 'mmc read 0x0 0x82000000 0x800 0x4800; bootm 0x82000000'


       saveenv


       reset


    icon-notice.gif NOTICE

    When entering startup parameters, do not delete blank lines.

Running an Image

After the system is started, copy the executable file helloworld in the out directory of the source code to the bin directory, and run the Hello World program as follows:

Procedure

  1. Go to the bin directory on the startup page.
   cd bin
  1. Run the following command to run the helloworld program:
   ./helloworld

If the message “Hello World!” is displayed, the program runs successfully.

Next

Congratulations! You have finished all steps! Proceed to develop a sample to better familiarize yourself with OpenHarmony development.
