RichEditor

The <RichEditor> is a component that supports interactive text editing and mixture of text and imagery.

NOTE

This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Drag effects such as floating for the <RichEditor> component can only be implemented through the onDragStart event.

Child Components

This component can contain the <Span> and <ImageSpan> child components.

APIs

RichEditor(value: RichEditorOptions)

Parameters

Attributes

The universal attributes are supported.

NOTE

The default value of the clip attribute is true.

The align attribute supports only the start, center, and end options.

Events

In addition to the universal events, the following events are supported.

RichEditorInsertValue

Describes the text to be inserted.

RichEditorDeleteValue

RichEditorDeleteDirection

Enumerates the directions of the delete operation.

RichEditorTextSpanResult

Provides the text span information.

RichEditorSpanPosition

Provides the span position information.

RichEditorSpanType

Provides the span type information.

RichEditorTextStyleResult

Provides the text span style information returned by the backend.

RichEditorImageSpanResult

Provides the image span style information returned by the backend.

RichEditorOptions

Defines the options for initializing the <RichEditor> component.

RichEditorController

Implements the controller for the <RichEditor> component.

Objects to Import

controller: RichEditorController = new RichEditorController()

getCaretOffset

getCaretOffset(): number

Obtains the current cursor position.

Return value

setCaretOffset

setCaretOffset(offset: number): boolean

Sets the cursor position.

Parameters

Return value

addTextSpan

addTextSpan(value: string, options?: RichEditorTextSpanOptions): number

Adds a text span.

Parameters

Return value

addImageSpan

addImageSpan(value: PixelMap|ResourceStr, options?: RichEditorImageSpanOptions): number

Adds an image span.

Parameters

Return value

updateSpanStyle

updateSpanStyle(value: RichEditorUpdateTextSpanStyleOptions|RichEditorUpdateImageSpanStyleOptions): void

Updates the text or image span style.
If only part of a span is updated, the span is split into multiple spans based on the updated part and the non-updated part.

Parameters

getSpans

getSpans(value?: RichEditorRange): Array

Obtains span information.

Parameters

Return value

deleteSpans

deleteSpans(value?: RichEditorRange): void

Deletes the text and image spans in a specified range.

Parameters

closeSelectionMenu

closeSelectionMenu(): void

Closes the custom or default selection menu.

RichEditorSelection

Provides information about the selected content.

RichEditorUpdateTextSpanStyleOptions

Defines the text span style options.

RichEditorUpdateImageSpanStyleOptions

Defines the image span style options.

RichEditorTextSpanOptions

Describes the options for adding a text span.

RichEditorTextStyle

Provides the text style information.

RichEditorImageSpanOptions

Defines the options for adding an image span.

RichEditorImageSpanStyle

Provides the image span style information.

RichEditorRange

Provides the span range information.

SelectionMenuOptions

Provides the span range information.

Example

Example 1

// xxx.ets
@Entry
@Component
struct Index {
  controller: RichEditorController = new RichEditorController();
  options: RichEditorOptions = { controller: this.controller };
  private start: number = -1;
  private end: number = -1;
  @State message: string = "[-1, -1]"
  @State content: string = ""

  build() {
    Column() {
      Column() {
        Text("selection range:").width("100%")
        Text() {
          Span(this.message)
        }.width("100%")
        Text("selection content:").width("100%")
        Text() {
          Span(this.content)
        }.width("100%")
      }
      .borderWidth(1)
      .borderColor(Color.Red)
      .width("100%")
      .height("20%")

      Row() {
        Button ("Update Style: Bold").onClick(() => {
          this.controller.updateSpanStyle({
            start: this.start,
            end: this.end,
            textStyle:
            {
              fontWeight: FontWeight.Bolder
            }
          })
        })
        Button("Obtain Selection").onClick(() => {
          this.content = "";
          this.controller.getSpans({
            start: this.start,
            end: this.end
          }).forEach(item => {
            if(typeof(item as RichEditorImageSpanResult)['imageStyle'] != 'undefined'){
              this.content += (item as RichEditorImageSpanResult).valueResourceStr;
              this.content += "\n"
            } else {
              this.content += (item as RichEditorTextSpanResult).value;
              this.content += "\n"
            }
          })
        })
        Button("Delete Selection").onClick(() => {
          this.controller.deleteSpans({
            start: this.start,
            end: this.end
          })
          this.start = -1;
          this.end = -1;
          this.message = "[" + this.start + ", " + this.end + "]"
        })
      }
      .borderWidth(1)
      .borderColor(Color.Red)
      .width("100%")
      .height("10%")

      Column() {
        RichEditor(this.options)
          .onReady(() => {
            this.controller.addTextSpan("0123456789",
              {
                style:
                {
                  fontColor: Color.Orange,
                  fontSize: 30
                }
              })
            this.controller.addImageSpan($r("app.media.icon"),
              {
                imageStyle:
                {
                  size: ["57px", "57px"]
                }
              })
            this.controller.addTextSpan("0123456789",
              {
                style:
                {
                  fontColor: Color.Black,
                  fontSize: 30
                }
              })
          })
          .onSelect((value: RichEditorSelection) => {
            this.start = value.selection[0];
            this.end = value.selection[1];
            this.message = "[" + this.start + ", " + this.end + "]"
          })
          .aboutToIMEInput((value: RichEditorInsertValue) => {
            console.log("---------------------- aboutToIMEInput ----------------------")
            console.log("insertOffset:" + value.insertOffset)
            console.log("insertValue:" + value.insertValue)
            return true;
          })
          .onIMEInputComplete((value: RichEditorTextSpanResult) => {
            console.log("---------------------- onIMEInputComplete ---------------------")
            console.log("spanIndex:" + value.spanPosition.spanIndex)
            console.log("spanRange:[" + value.spanPosition.spanRange[0] + "," + value.spanPosition.spanRange[1] + "]")
            console.log("offsetInSpan:[" + value.offsetInSpan[0] + "," + value.offsetInSpan[1] + "]")
            console.log("value:" + value.value)
          })
          .aboutToDelete((value: RichEditorDeleteValue) => {
            console.log("---------------------- aboutToDelete --------------------------")
            console.log("offset:" + value.offset)
            console.log("direction:" + value.direction)
            console.log("length:" + value.length)
            value.richEditorDeleteSpans.forEach(item => {
              console.log("---------------------- item --------------------------")
              console.log("spanIndex:" + item.spanPosition.spanIndex)
              console.log("spanRange:[" + item.spanPosition.spanRange[0] + "," + item.spanPosition.spanRange[1] + "]")
              console.log("offsetInSpan:[" + item.offsetInSpan[0] + "," + item.offsetInSpan[1] + "]")
              if (typeof(item as RichEditorImageSpanResult)['imageStyle'] != 'undefined') {
                console.log("image:" + (item as RichEditorImageSpanResult).valueResourceStr)
              } else {
                console.log("text:" + (item as RichEditorTextSpanResult).value)
              }
            })
            return true;
          })
          .onDeleteComplete(() => {
            console.log("---------------------- onDeleteComplete ------------------------")
          })
          .borderWidth(1)
          .borderColor(Color.Green)
          .width("100%")
          .height("30%")
      }
      .borderWidth(1)
      .borderColor(Color.Red)
      .width("100%")
      .height("70%")
    }
  }
}

Example 2

// xxx.ets
@Entry
@Component
struct RichEditorExample {
  controller: RichEditorController = new RichEditorController()

  // Create a custom keyboard component.
  @Builder CustomKeyboardBuilder() {
    Column() {
      Grid() {
        ForEach([1, 2, 3, 4, 5, 6, 7, 8, 9, '*', 0, '#'], (item: number|string) => {
          GridItem() {
            Button(item + "")
              .width(110).onClick(() => {
              this.controller.addTextSpan(item + '', {
                offset: this.controller.getCaretOffset(),
                style:
                {
                  fontColor: Color.Orange,
                  fontSize: 30
                }
              })
              this.controller.setCaretOffset(this.controller.getCaretOffset() + item.toString().length)
            })
          }
        })
      }.maxCount(3).columnsGap(10).rowsGap(10).padding(5)
    }.backgroundColor(Color.Gray)
  }

  build() {
    Column() {
      RichEditor({ controller: this.controller })
        // Bind the custom keyboard.
        .customKeyboard(this.CustomKeyboardBuilder()).margin(10).border({ width: 1 })
        .height(200)
        .borderWidth(1)
        .borderColor(Color.Red)
        .width("100%")
    }
  }
}

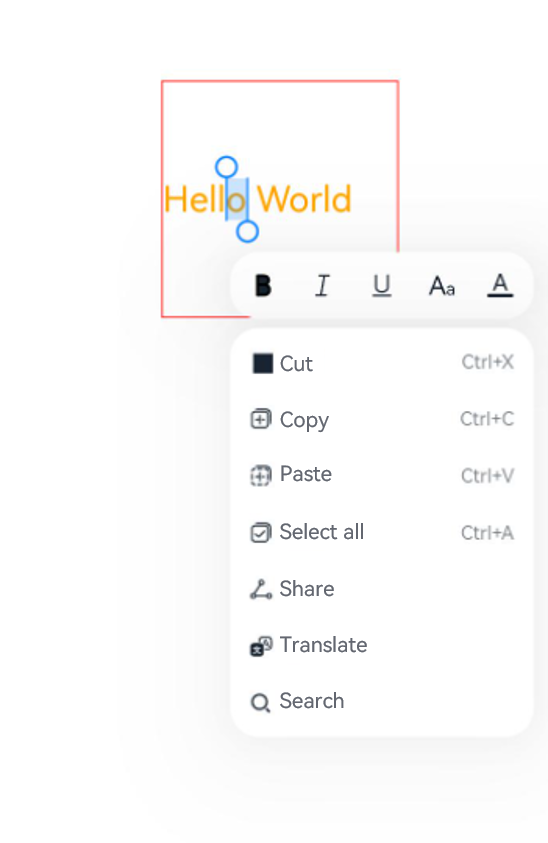

Example 3

// xxx.ets
import pasteboard from '@ohos.pasteboard'
import { BusinessError } from '@ohos.base';
class info{
  imageSrc: Resource=$r('sys.media.ohos_ic_public_cut')
  id: string=''
  label: string=''
}
@Entry
@Component
struct SelectionMenu {
  @State message: string = 'Hello World'
  @State textSize: number = 40
  @State sliderShow: boolean = false
  @State start: number = -1
  @State end: number = -1
  @State colorTransparent: Color = Color.Transparent
  controller: RichEditorController = new RichEditorController();
  options: RichEditorOptions = { controller: this.controller }
  private iconArr: Array<Resource> =
    [$r('app.media.icon'), $r("app.media.icon"), $r('app.media.icon'),
    $r("app.media.icon"), $r('app.media.icon')]
  private listArr: Array<Object> =
    [{ imageSrc: $r('sys.media.ohos_ic_public_cut'), id: 'Cut', label: "Ctrl+X" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_copy'), id: 'Copy', label: "Ctrl+C" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_paste'), id: 'Paste', label: "Ctrl+V" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_select_all'), id: 'Select all', label: "Ctrl+A" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_share'), id: 'Share', label: "" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_translate_c2e'), id: 'Translate', label: "" } as info,
      { imageSrc: $r('sys.media.ohos_ic_public_search_filled'), id: 'Search', label: "" } as info]
  @State iconBgColor: ResourceColor[] = new Array(this.iconArr.length).fill(this.colorTransparent)
  @State listBgColor: ResourceColor[] = new Array(this.listArr.length).fill(this.colorTransparent)
  @State iconIsFocus: boolean[] = new Array(this.iconArr.length).fill(false)
  @State listIsFocus: boolean[] = new Array(this.iconArr.length).fill(false)
  @State clickWeightNum: number = 0
  @State clickNum: number[] = [0, 0, 0]

  build() {
    Column() {
      Column() {
        RichEditor(this.options)
          .onReady(() => {
            this.controller.addTextSpan(this.message, { style: { fontColor: Color.Orange, fontSize: 30 } })
          })
          .onSelect((value: RichEditorSelection) => {
            this.start = value.selection[0]
            this.end = value.selection[1]
          })
          .bindSelectionMenu(RichEditorSpanType.TEXT, this.panel(), ResponseType.LongPress, { onDisappear: () => {
            this.sliderShow = false
          }})
          .borderWidth(1)
          .borderColor(Color.Red)
          .width(200)
          .height(200)
          .position({ x: 150, y: 100 })
      }.width('100').backgroundColor(Color.White)
    }.height('100')
  }

  @Builder
  panel() {
    Column() {
      Menu() {
        MenuItem({ builder: this.iconPanel() })
      }.shadow(ShadowStyle.OUTER_DEFAULT_MD).margin({ bottom: 8 }).height(56).width(256)

      Menu() {
        if (!this.sliderShow) {
          MenuItem({ builder: this.listPanel() })
        } else {
          MenuItem({ builder: this.sliderPanel() })
        }
      }.width(256).shadow(ShadowStyle.OUTER_DEFAULT_MD)
    }.width(256).backgroundColor(Color.Transparent)
  }

  @Builder iconPanel() {
    Column() {
      Row({ space: 2 }) {
        ForEach(this.iconArr, (item:Resource, index ?: number) => {
          Flex({ justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
            Image(item).fillColor($r('sys.color.ohos_id_color_primary')).width(24).height(24).focusable(true)
          }
          .border({ width: this.iconIsFocus[index as number] ? 2 : 0, color: $r('sys.color.ohos_id_color_focused_outline') })
          .borderRadius($r('sys.float.ohos_id_corner_radius_default_m'))
          .width(48)
          .height(48)
          .focusable(true)
          .focusOnTouch(true)
          .onClick(() => {
            if (index as number == 0) {
              this.clickNum[0]++
              this.sliderShow = false
              this.controller.updateSpanStyle({ start: this.start, end: this.end, textStyle: {
                fontWeight: this.clickNum[0] % 2 !== 0 ? FontWeight.Bolder : FontWeight.Normal
              } })
            } else if (index as number == 1) {
              this.clickNum[1]++
              this.sliderShow = false
              this.controller.updateSpanStyle({ start: this.start, end: this.end, textStyle: {
                fontStyle: this.clickNum[1] % 2 !== 0 ? FontStyle.Italic : FontStyle.Normal
              } })
            } else if (index as number == 2) {
              this.clickNum[2]++
              this.sliderShow = false
              this.controller.updateSpanStyle({ start: this.start, end: this.end, textStyle: {
                decoration: {
                  type: this.clickNum[2] % 2 !== 0 ? TextDecorationType.Underline : TextDecorationType.None
                } } })
            } else if (index as number == 3) {
              this.sliderShow = !this.sliderShow
            } else if (index as number == 4) {
              this.sliderShow = false
            }
          })
          .onTouch((event?: TouchEvent|undefined) => {
            if(event != undefined){
              if (event.type === TouchType.Down) {
                this.iconBgColor[index as number] = $r('sys.color.ohos_id_color_click_effect')
              }
              if (event.type === TouchType.Up) {
                this.iconBgColor[index as number] = this.colorTransparent
              }
            }
          })
          .onHover((isHover?: boolean, event?: HoverEvent) => {
            this.iconBgColor.forEach((icon:ResourceColor, index1) => {
              this.iconBgColor[index1] = this.colorTransparent
            })
            if(isHover != undefined) {
              this.iconBgColor[index as number] = $r('sys.color.ohos_id_color_hover')
            }else{
                this.listBgColor[index as number] = this.colorTransparent
            }
          })
          .onFocus(() => {
            this.iconIsFocus[index as number] = true
          })
          .onBlur(() => {
            this.iconIsFocus[index as number] = false
          })
          .backgroundColor(this.iconBgColor[index as number])
        })
      }
    }
    .backgroundColor(this.colorTransparent)
    .borderRadius($r('sys.float.ohos_id_corner_radius_card'))
    .width(248)
    .height(48)
  }

  @Builder listPanel() {
    Column() {
      List({ space: 0, initialIndex: 0 }) {
        ForEach(this.listArr, (item:info, index:number|undefined) => {
          ListItem() {
            listChild({
              item,
              index,
              listBgColor: $listBgColor,
              colorTransparent: $colorTransparent
            })
              .onClick(() => {
                let sysBoard = pasteboard.getSystemPasteboard()
                this.controller.closeSelectionMenu()
                let pasteData = pasteboard.createData(pasteboard.MIMETYPE_TEXT_PLAIN, '')
                this.controller.getSpans({ start: this.start, end: this.end })
                  .forEach((item, i) => {
                    if(typeof(item as RichEditorImageSpanResult)['imageStyle'] != 'undefined'){
                      let style = (item as RichEditorImageSpanResult).imageStyle
                      if((item as RichEditorImageSpanResult).valuePixelMap != undefined) {
                        let data = pasteboard.createRecord(pasteboard.MIMETYPE_PIXELMAP, ((item as RichEditorImageSpanResult).valuePixelMap as PixelMap));
                        let prop = pasteData.getProperty()
                        let temp:Record<string, Object> = { 'width': style.size[0], 'height': style.size[1], 'fit': style.objectFit }
                        prop.additions[i] = temp;
                        pasteData.addRecord(data)
                        pasteData.setProperty(prop)
                      }
                    } else {
                      let style = (item as RichEditorTextSpanResult).textStyle
                      let data = pasteboard.createRecord(pasteboard.MIMETYPE_TEXT_PLAIN, (item as RichEditorTextSpanResult).value)
                      let prop = pasteData.getProperty()
                      let temp:Record<string, Object> = { 'color': style.fontColor, 'size': style.fontSize, 'style': style.fontStyle,
                        'weight': style.fontWeight }
                      prop.additions[i] = temp;
                      pasteData.addRecord(data)
                      pasteData.setProperty(prop)
                    }
                  })
                if(index == undefined){ return }
                switch (index) {
                  case 0:
                    this.controller.deleteSpans({ start: this.start, end: this.end })
                  case 1:
                    sysBoard.clearData()
                    sysBoard.setData(pasteData).then(() => {
                      console.info('Succeeded in setting PasteData.');
                    }).catch((err: BusinessError) => {
                      console.error('Failed to set PasteData. Cause: ' + err.message);
                    })
                    break
                  case 2:
                    sysBoard.getData((err, data) => {
                      if (err) {
                        return
                      }
                      let count = data.getRecordCount()
                      for (let m = 0; m < count; m++) {
                        const element = data.getRecord(m);
                        let tex: RichEditorTextStyle = {
                          fontSize: 30,
                          fontColor: Color.Orange,
                          fontWeight: FontWeight.Normal
                        }
                        let im: RichEditorImageSpanStyle = { objectFit: ImageFit.Contain, size: [50, 50] }
                        if(im.size == undefined){ break }
                        if (data.getProperty().additions[m]) {
                          const tmp = data.getProperty().additions[m] as Record<string, Object|undefined>;
                          if (tmp['width'] != undefined) {
                            im.size[0] = tmp['width'] as Dimension;
                          }
                          if (tmp['height'] != undefined){
                            im.size[1] = tmp['height'] as Dimension;
                          }
                          if (tmp['fit'] != undefined){
                            im.objectFit = tmp['fit'] as ImageFit;
                          }
                          if (tmp['color'] != undefined){
                            tex.fontColor = tmp['color'] as ResourceColor;
                          }
                          if (tmp['size'] != undefined){
                            tex.fontSize = tmp['size'] as number;
                          }
                          if (tmp['style'] != undefined){
                            tex.fontStyle = tmp['style'] as FontStyle;
                          }
                          if (tmp['weight'] != undefined){
                            tex.fontWeight = tmp['weight'] as number;
                          }
                        }

                        if (element.mimeType == pasteboard.MIMETYPE_TEXT_PLAIN) {
                          this.controller.addTextSpan(element.plainText,
                            {
                              style: tex,
                              offset: this.controller.getCaretOffset()
                            })
                        }
                        if (element.mimeType == pasteboard.MIMETYPE_PIXELMAP) {
                          this.controller.addImageSpan(element.pixelMap,
                            {
                              imageStyle: im,
                              offset: this.controller.getCaretOffset()
                            })
                        }
                      }
                    })
                    break
                }
              })
          }
          .height(48)
          .borderRadius($r('sys.float.ohos_id_corner_radius_card'))
          .focusable(true)
          .focusOnTouch(true)
          .border({ width: this.listIsFocus[index as number] ? 2 : 0, color: $r('sys.color.ohos_id_color_focused_outline') })
          .onFocus(() => {
            this.listIsFocus[index as number] = true
          })
          .onBlur(() => {
            this.listIsFocus[index as number] = false
          })
        }, (item:number) => item.toString())
      }
    }
    .focusable(true)
    .width(248)
    .backgroundColor(this.colorTransparent)
    .borderRadius($r('sys.float.ohos_id_corner_radius_card'))
  }

  @Builder sliderPanel() {
    Column() {
      Flex({ justifyContent: FlexAlign.SpaceBetween, alignItems: ItemAlign.Center }) {
        Text('A').fontSize(15)
        Slider({ value: this.textSize, step: 10, style: SliderStyle.InSet })
          .width(210)
          .onChange((value: number, mode: SliderChangeMode) => {
            this.textSize = value
            this.controller.updateSpanStyle({ start: this.start, end: this.end, textStyle: { fontSize: this.textSize }
            })
          })
        Text('A').fontSize(20).fontWeight(FontWeight.Medium)
      }.borderRadius($r('sys.float.ohos_id_corner_radius_card'))
    }
    .backgroundColor(this.colorTransparent)
    .borderRadius($r('sys.float.ohos_id_corner_radius_card'))
    .padding(15)
    .width(248)
    .height(48)
  }
}

@Component
struct listChild {
  item:info = new info()
  index: number = 0
  @Link listBgColor: (Resource|Color)[]
  @Link colorTransparent: Resource

  build() {
    Column() {
      Flex({
        direction: FlexDirection.Row, justifyContent: FlexAlign.SpaceBetween, alignItems: ItemAlign.Center
      }) {
        Row() {
          Image(this.item.imageSrc)
            .width(20)
            .height(20)
            .margin({ right: 8 })
            .fillColor($r('sys.color.ohos_id_color_primary'))
            .focusable(true)
          Text('' + this.item.id)
            .textAlign(TextAlign.Center)
            .borderRadius(10)
            .focusable(true)
            .fontColor($r('sys.color.ohos_id_color_primary'))
            .fontSize($r('sys.float.ohos_id_text_size_body1'))
        }

        Row() {
          Text('' + this.item.label)
            .fontColor($r('sys.color.ohos_id_color_text_secondary')).fontSize($r('sys.float.ohos_id_text_size_body1'))
        }
      }
      .onTouch((event?: TouchEvent) => {
        if (event != undefined && event.type === TouchType.Down) {
          this.listBgColor[this.index] = $r('sys.color.ohos_id_color_click_effect')
        }
        if (event != undefined && event.type === TouchType.Up) {
          this.listBgColor[this.index] = this.colorTransparent
        }
      })
      .onHover((isHover?: boolean) => {
        this.listBgColor[this.index] = isHover ? $r('sys.color.ohos_id_color_hover') : this.colorTransparent
      })
      .backgroundColor(this.listBgColor[this.index])
      .padding({ right: 12, left: 12 })
      .height('48')
      .focusable(true)
      .borderRadius($r('sys.float.ohos_id_corner_radius_default_m'))
    }
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkTS-based Declarative Development Paradigm

harmony 鸿蒙@ohos.multimedia.avCastPicker (AVCastPicker)

harmony 鸿蒙Property Animation

harmony 鸿蒙Enums

harmony 鸿蒙Blank

harmony 鸿蒙Button

harmony 鸿蒙CalendarPicker

harmony 鸿蒙Checkbox

harmony 鸿蒙CheckboxGroup

harmony 鸿蒙DataPanel
