Widget Event Capability Overview

For dynamic ATS widgets, the postCardAction() API is provided for interaction between the widget internal and the provider application. Currently, this API supports the router, message, and call events and can be called only in the widget. For static ATS widgets, the FormLink component is provided for interaction between the widget internal and the provider application.

Dynamic Widget Event Capability

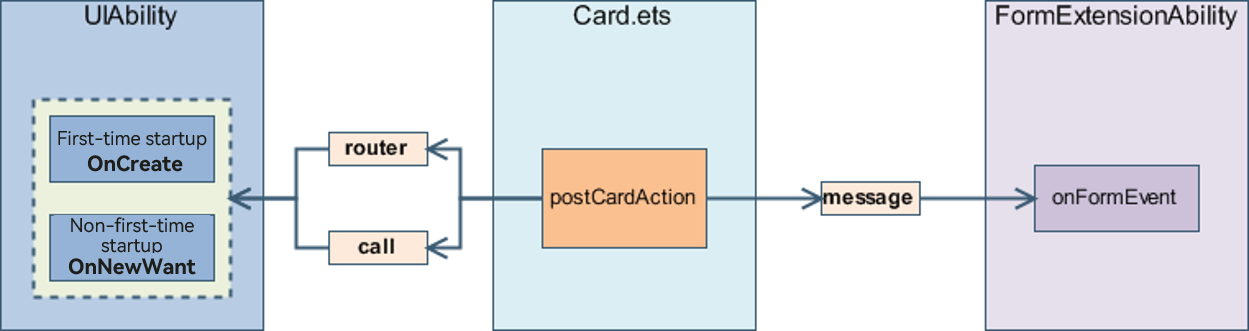

WidgetPostCardAction

Definition: postCardAction(component: Object, action: Object): void

Parameters

Name	Type	Mandatory	Description
component	Object	Yes	Instance of the current custom component. Generally, this is passed in.
action	Object	Yes	Action description. For details, see the following table.

Description of the action parameter

Key	Value	Description
“action”	string	Action type. - “router”: redirection to the specified UIAbility of the widget provider. - “message”: custom message. If this type of action is triggered, the onFormEvent() lifecycle callback of the provider FormExtensionAbility is called. - “call”: launch of the widget provider in the background. If this type of action is triggered, the specified UIAbility (whose launch type must be singleton) of the widget provider is started in the background, but not displayed in the foreground. This action type requires that the widget provider should have the ohos.permission.KEEP_BACKGROUND_RUNNING permission.
“bundleName”	string	Name of the target bundle when action is “router” or “call”. This parameter is optional.
“moduleName”	string	Name of the target module when action is “router” or “call”. This parameter is optional.
“abilityName”	string	Name of the target UIAbility when action is “router” or “call”. This parameter is mandatory.
“params”	Object	Additional parameters carried in the current action. The value is a key-value pair in JSON format. This parameter is mandatory.

NOTE

When action is “router” or “call”, ‘method’ of the string type must be passed to params to trigger the corresponding method in the UIAbility.

Sample code of the postCardAction() API:

Button ('Redirect')
  .width('40%')
  .height('20%')
  .onClick(() => {
    postCardAction(this, {
      'action': 'router',
      'bundleName': 'com.example.myapplication',
      'abilityName': 'EntryAbility',
      'params': {
        'message': 'testForRouter' // Customize the message to send.
      }
    });
  })

Button ('Start in Background')
  .width('40%')
  .height('20%')
  .onClick(() => {
    postCardAction(this, {
      'action': 'call',
      'bundleName': 'com.example.myapplication',
      'abilityName': 'EntryAbility',
      'params': {
        'method': 'fun', // Set the name of the method to call. It is mandatory.
        'message': 'testForCall' // Customize the message to send.
      }
    });
  })
