NavPushPathHelper

On the initial launch, the atomic service only downloads and installs the main package and its dependencies. Therefore, if the NavDestination resides in a different HSP subpackage that is not a dependency of the main package, you’ll need to use NavPushPathHelper to download and install the corresponding HSP subpackage first. After that, push the specified NavDestination page information onto the stack. This way, you enable Navigation to support dynamic loading of the HSP subpackage before the navigation occurs.

NOTE

This component is supported since API version 12. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { NavPushPathHelper } from '@kit.ArkUI'

Child Components

Not supported

Attributes

The universal attributes are not supported.

NavPushPathHelper

Encapsulates all navigation APIs for NavPathStack. NavPushPathHelper holds a NavPathStack object and checks for the existence of a subpackage within its encapsulated navigation APIs. If the subpackage is absent, it dynamically downloads the subpackage. Once the download is complete, it calls the appropriate API of NavPathStack to push the specified NavDestination page onto the stack. For details, see Example.

constructor

constructor(navPathStack: NavPathStack)

A constructor used to create a NavPushPathHelper object.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

pushPath

pushPath(moduleName: string, info: NavPathInfo, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by info, onto the navigation stack. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

pushPath

pushPath(moduleName: string, info: NavPathInfo, options?: NavigationOptions): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by info, onto the navigation stack. This API uses a promise to return the result. The behavior can vary based on LaunchMode specified in the options parameter.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

pushPathByName

pushPathByName(moduleName: string, name: string, param: Object, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by name, onto the navigation stack, along with the data specified by param. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

pushPathByName

pushPathByName(moduleName: string, name: string, param: Object, onPop: Callback<PopInfo>, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by name, onto the navigation stack, along with the data specified by param. The onPop callback handles the return results when the page is popped from the stack.This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

pushDestination

pushDestination(moduleName: string, info: NavPathInfo, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by info, onto the navigation stack. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Universal Error Codes and Router Error Codes.

pushDestination

pushDestination(moduleName: string, info: NavPathInfo, options?: NavigationOptions): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by info, onto the navigation stack. This API uses a promise to return the result. The behavior can vary based on LaunchMode specified in the options parameter.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Universal Error Codes and Router Error Codes.

pushDestinationByName

pushDestinationByName(moduleName: string, name: string, param: Object, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by name, onto the navigation stack, along with the data specified by param. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Universal Error Codes and Router Error Codes.

pushDestinationByName

pushDestinationByName(moduleName: string, name: string, param: Object, onPop: Callback<PopInfo>, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pushes the NavDestination page, as indicated by name, onto the navigation stack, along with the data specified by param. The onPop callback handles the return results when the page is popped from the stack.This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Universal Error Codes and Router Error Codes.

replacePath

replacePath(moduleName: string, info: NavPathInfo, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pops the top page from the current navigation stack and pushes the NavDestination page, as indicated by info, onto the stack. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

replacePath

replacePath(moduleName: string, info: NavPathInfo, options?: NavigationOptions): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pops the top page from the current navigation stack and pushes the NavDestination page, as indicated by info, onto the stack. This API uses a promise to return the result. The behavior can vary based on LaunchMode specified in the options parameter.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

replacePathByName

replacePathByName(moduleName: string, name: string, param: Object, animated?: boolean): Promise<void>

Checks for the target subpackgae and, if it is not present, initiates a download using the specified module name. Once the subpackage is downloaded, the API pops the top page from the current navigation stack and pushes the NavDestination page, as indicated by name, onto the stack. This API uses a promise to return the result.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

Error codes

For details about the error codes, see Router Error Codes.

Events

The universal events are not supported.

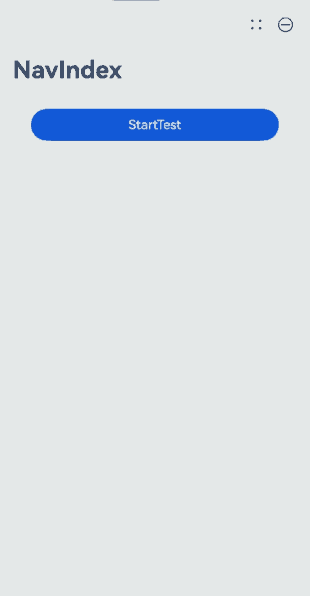

Example

Main package:

// Index.ets
import { NavPushPathHelper } from '@kit.ArkUI'
import { BusinessError } from '@kit.BasicServicesKit';
@Entry
@Component
struct NavigationExample {
  pageInfo: NavPathStack = new NavPathStack()
  helper: NavPushPathHelper = new NavPushPathHelper(this.pageInfo)

  build() {
    Navigation(this.pageInfo) {
      Column() {
        Button('StartTest', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            this.helper.pushPath('hsptest1', { name: 'pageOne' }, false)
              .catch((error: BusinessError) => {
              console.error(`[pushPath]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.error('[pushPath]success.');
            }); // Push the NavDestination page specified by name to the navigation stack.
          })
      }
    }.title('NavIndex')
  }
}

Subpackage hsptest1:

// PageOne.ets
import { NavPushPathHelper } from '@kit.ArkUI'
import { BusinessError } from '@kit.BasicServicesKit';

class TmpClass {
  count: number = 10
}

class ParamWithOp {
  operation: number = 1
  count: number = 10
}

@Builder
export function PageOneBuilder(name: string, param: Object) {
  PageOne()
}

@Component
export struct PageOne {
  pageInfo: NavPathStack = new NavPathStack();
  helper: NavPushPathHelper = new NavPushPathHelper(this.pageInfo)
  @State message: string = 'Hello World'

  build() {
    NavDestination() {
      Column() {
        Text(this.message)
          .width('80%')
          .height(50)
          .margin(10)

        Button('pushPath', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            this.helper.pushPath('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[pushPath]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}).catch((error: BusinessError) => {
              console.error(`[pushPath]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[pushPath]success.');
            });
          })

        Button('pushPath with NavigationOptions', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            this.helper.pushPath('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[pushPath with NavigationOptions]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}, {launchMode:0, animated:true}).catch((error: BusinessError) => {
              console.error(`[pushPath with NavigationOptions]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[pushPath with NavigationOptions]success.');
            });
          })

        Button('pushPathByName', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushPathByName('hsptest2', 'pageTwo', tmp, (popInfo) => {
              this.message = '[pushPathByName]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }).catch((error: BusinessError) => {
              console.error(`[pushPathByName]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[pushPathByName]success.');
            });
          })

        Button('pushPathByNameWithoutOnPop', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushPathByName('hsptest2', 'pageTwo', tmp, true)
            .catch((error: BusinessError) => {
              console.error(`[pushPathByNameWithoutOnPop]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[pushPathByNameWithoutOnPop]success.');
            });
          })

        Button('pushDestination', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushDestination('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[pushDestination]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}).catch((error: BusinessError) => {
              console.error(`[pushDestination]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.error('[pushDestination]success.');
            });
          })

        Button('pushDestination with NavigationOptions', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushDestination('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[pushDestination with NavigationOptions]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}, {launchMode:0, animated:true}).catch((error: BusinessError) => {
              console.error(`[pushDestination with NavigationOptions]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.error('[pushDestination with NavigationOptions]success.');
            });
          })

        Button('pushDestinationByName', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushDestinationByName('hsptest2','pageTwo', tmp, (popInfo) => {
              this.message = '[pushDestinationByName]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }).catch((error: BusinessError) => {
              console.error(`[pushDestinationByName]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.error('[pushDestinationByName]success.');
            });
          })

        Button('pushDestinationByNameWithoutOnPop', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.pushDestinationByName('hsptest2','pageTwo', tmp, true)
              .catch((error: BusinessError) => {
                console.error(`[pushDestinationByNameWithoutOnPop]failed, error code = ${error.code}, error.message = ${error.message}.`);
              }).then(() => {
              console.error('[pushDestinationByNameWithoutOnPop]success.');
            });
          })

        Button('replacePath', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            this.helper.replacePath('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[replacePath]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}).catch((error: BusinessError) => {
              console.error(`[replacePath]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[replacePath]success.');
            });
          })

        Button('replacePath with NavigationOptions', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            this.helper.replacePath('hsptest2', { name: 'pageTwo', param: new ParamWithOp(), onPop: (popInfo: PopInfo) => {
              this.message = '[replacePath with NavigationOptions]last page is: ' + popInfo.info.name + ', result: ' + JSON.stringify(popInfo.result);
            }}, {launchMode:0, animated:true}).catch((error: BusinessError) => {
              console.error(`[replacePath with NavigationOptions]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[replacePath with NavigationOptions]success.');
            });
          })

        Button('replacePathByName', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(35)
          .margin(10)
          .onClick(() => {
            let tmp = new TmpClass()
            this.helper.replacePathByName('hsptest2', 'pageTwo', tmp)
              .catch((error: BusinessError) => {
              console.error(`[replacePathByName]failed, error code = ${error.code}, error.message = ${error.message}.`);
            }).then(() => {
              console.log('[replacePathByName]success.');
            });
          })

      }.width('100%').height('100%')
    }.title('pageOne')
    .onBackPressed(() => {
      this.pageInfo.pop({ number: 1 }) // Pop the top element out of the navigation stack.
      return true
    }).onReady((context: NavDestinationContext) => {
      this.pageInfo = context.pathStack;
      this.helper = new NavPushPathHelper(this.pageInfo);
    })
  }
}

// Configure {"routerMap": "$profile:route_map"} in the project configuration file module.json5.
// route_map.json
{
  "routerMap": [
    {
      "name": "pageOne",
      "pageSourceFile": "src/main/ets/pages/PageOne.ets",
      "buildFunction": "PageOneBuilder",
      "data": {
        "description": "this is pageOne"
      }
    }
  ]
}

Subpackage hsptest2:

// PageTwo.ets

class resultClass {
  constructor(count: number) {
    this.count = count;
  }
  count: number = 10
}

@Builder
export function PageTwoBuilder() {
  PageTwo()
}

@Component
export struct PageTwo {
  pathStack: NavPathStack = new NavPathStack()

  build() {
    NavDestination() {
      Column() {
        Button('pop', { stateEffect: true, type: ButtonType.Capsule })
          .width('80%')
          .height(40)
          .margin(20)
          .onClick(() => {
            this.pathStack.pop(new resultClass(1)); // Return to the previous page and pass in the processing result to the onPop callback of push.
          })
      }.width('100%').height('100%')
    }.title('pageTwo')
    .onBackPressed(() => {
      this.pathStack.pop(new resultClass(0)); // Return to the previous page and pass in the processing result to the onPop callback of push.
      return true;
    }).onReady((context: NavDestinationContext) => {
      this.pathStack = context.pathStack
    })
  }
}

// Configure {"routerMap": "$profile:route_map"} in the project configuration file module.json5.
// route_map.json
{
  "routerMap": [
    {
      "name": "pageTwo",
      "pageSourceFile": "src/main/ets/pages/PageTwo.ets",
      "buildFunction": "PageTwoBuilder",
      "data": {
        "description": "this is pageTwo"
      }
    }
  ]
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
