TimePicker

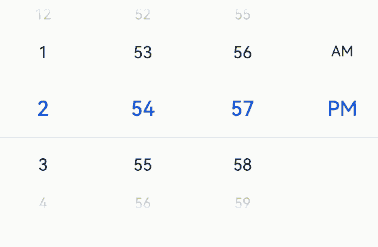

The TimePicker component allows users to select a time (with the hour and minute) from the given range.

NOTE

This component is supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

Not supported

APIs

TimePicker(options?: TimePickerOptions)

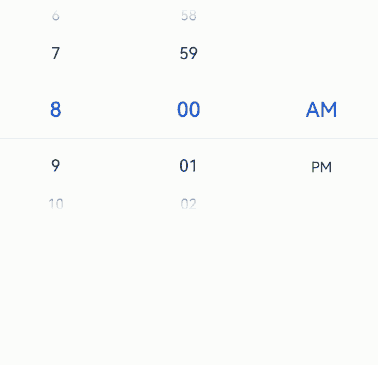

Creates a time picker, which is in 24-hour format by default.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

TimePickerOptions

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

Modifying the TimePickerOptions properties, such as selected, start, or end, during the scrolling process of the TimePicker component may not take effect. The Date object is used to handle dates and time.

Method 1: new Date ()

Obtains the current system date and time.

Method 2: new Date(value: number|string)

Name	Type	Mandatory	Description
value	number |string	Yes	Date format. number: number of milliseconds since 00:00:00 on January 1, 1970. string: date string in formats such as 2025-02 2025-02-20 08:00:00 or 2025-02 2025-02-20T08:00:00.

Method 3: new Date(year: number, monthIndex: number, date?: number, hours?: number, minutes?: number, seconds?: number, ms?: number)

Name	Type	Mandatory	Description
year	number	Yes	Year. Example: 2025.
monthIndex	number	Yes	Month index, for example, 2 for March.
date	number	No	Day of the month, for example, 10. (Required if hours is set.)
hours	number	No	Hour, for example, 15. (Required if minutes is set.)
minutes	number	No	Minute, for example, 20. (Required if seconds is set.)
seconds	number	No	Second, for example, 20. (Required if ms is set.)
ms	number	No	Millisecond, for example, 10.

TimePickerFormat¹¹⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Handling in the case of exceptions

Attributes

In addition to the universal attributes, the following attributes are supported.

useMilitaryTime

useMilitaryTime(value: boolean)

Sets whether to display time in 24-hour format. When the display time is in 12-hour format, the AM/PM zone does not change depending on the hour portion.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

useMilitaryTime¹⁸⁺

useMilitaryTime(isMilitaryTime: Optional<boolean>)

Sets whether to display time in 24-hour format. Compared to useMilitaryTime, this API supports the undefined type for the isMilitaryTime parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

disappearTextStyle¹⁰⁺

disappearTextStyle(value: PickerTextStyle)

Sets the font color, font size, and font weight for the top and bottom items.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

disappearTextStyle¹⁸⁺

disappearTextStyle(style: Optional<PickerTextStyle>)

Sets the font color, font size, and font weight for the top and bottom items. Compared to disappearTextStyle¹⁰⁺, this API supports the undefined type for the style parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

textStyle¹⁰⁺

textStyle(value: PickerTextStyle)

Sets the font color, font size, and font weight for all items except the top, bottom, and selected items.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

textStyle¹⁸⁺

textStyle(style: Optional<PickerTextStyle>)

Sets the font color, font size, and font weight for all items except the top, bottom, and selected items. Compared to textStyle¹⁰⁺, this API supports the undefined type for the style parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

selectedTextStyle¹⁰⁺

selectedTextStyle(value: PickerTextStyle)

Sets the font color, font size, and font weight for the selected item.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

selectedTextStyle¹⁸⁺

selectedTextStyle(style: Optional<PickerTextStyle>)

Sets the font color, font size, and font weight for the selected item. Compared to selectedTextStyle¹⁰⁺, this API supports the undefined type for the style parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

loop¹¹⁺

loop(value: boolean)

Sets whether to enable the loop mode.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

loop¹⁸⁺

loop(isLoop: Optional<boolean>)

Sets whether to enable the loop mode. Compared to loop¹¹⁺, this API supports the undefined type for the isLoop parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

dateTimeOptions¹²⁺

dateTimeOptions(value: DateTimeOptions)

Sets whether to display a leading zero for the hours, minutes, and seconds.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

dateTimeOptions¹⁸⁺

dateTimeOptions(timeFormat: Optional<DateTimeOptions>)

Sets whether to display a leading zero for the hours, minutes, and seconds. Compared to dateTimeOptions¹²⁺, this API supports the undefined type for the timeFormat parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

enableHapticFeedback¹²⁺

enableHapticFeedback(enable: boolean)

Sets whether to enable haptic feedback.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

enableHapticFeedback¹⁸⁺

enableHapticFeedback(enable: Optional<boolean>)

Sets whether to enable haptic feedback. Compared to enableHapticFeedback¹²⁺, this API supports the undefined type for the enable parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

To enable haptic feedback, you must declare the ohos.permission.VIBRATE permission under requestPermissions in the module.json5 file of the project.

>  "requestPermissions": [
>  {
>   "name": "ohos.permission.VIBRATE",
>  }
>  ]
>  ```

### enableCascade<sup>18+</sup>

enableCascade(enable: boolean)

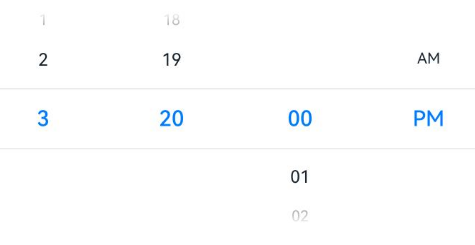

Sets whether the AM/PM indicator automatically switches based on the hour in 12-hour format.

**Atomic service API**: This API can be used in atomic services since API version 18.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

|Name|Type                                       |Mandatory|Description                                                                               |
|------|---------------------------------------------|-----|-------------------------------------------------------------------------------------|
|enable|boolean|Yes|Whether the AM/PM indicator automatically switches based on the hour in 12-hour format.<br>Default value: **false**. The value **true** means that the AM/PM indicator automatically switches based on the hour in 12-hour format, and **false** means the opposite.<br>Setting this parameter to **true** takes effect only when **loop** is also set to **true**.<br>|

### digitalCrownSensitivity<sup>18+</sup>
digitalCrownSensitivity(sensitivity: Optional\<CrownSensitivity>)

Sets the sensitivity to the digital crown rotation.

**Atomic service API**: This API can be used in atomic services since API version 18.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

|Name|Type                                  |Mandatory|Description                   |
|-----|----------------------------------------|----|-------------------------|
|sensitivity|[Optional](https://m.seaxiang.com/blog/aIyD72)\<[CrownSensitivity](ts-appendix-enums.md#crownsensitivity18)>|Yes |Sensitivity to the digital crown rotation.<br>Default value: **CrownSensitivity.MEDIUM**                 |

>  **NOTE**
>
>  This API is only available to circular screens on wearable devices. The component needs to obtain focus before responding to the [crown event](ts-universal-events-crown.md).

## Events

In addition to the [universal events](ts-component-general-events.md), the following events are supported.

### onChange

onChange(callback: (value: TimePickerResult ) =&gt; void)

Triggered when a time is selected.

**Atomic service API**: This API can be used in atomic services since API version 11.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

**Parameters**

|Name|Type                                       |Mandatory|Description        |
|------|---------------------------------------------|----|--------------|
|value|[TimePickerResult](#timepickerresult)|Yes|Time in 24-hour format.|

### onChange<sup>18+</sup>

onChange(callback: Optional\<OnTimePickerChangeCallback>)

Triggered when the time options in the TimePicker rest on the selected position after scrolling. Compared to [onChange](#onchange), this API supports the **undefined** type for the **callback** parameter.

**Atomic service API**: This API can be used in atomic services since API version 18.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

**Parameters**

|Name|Type                                                      |Mandatory|Description                                                      |
|--------|------------------------------------------------------------|----|------------------------------------------------------------|
|callback|[Optional](https://m.seaxiang.com/blog/aIyD72)\<[OnTimePickerChangeCallback](#ontimepickerchangecallback18)>|Yes|Callback invoked when a time option is selected.<br>If **callback** is set to **undefined**, the callback function is not used.|

### onEnterSelectedArea<sup>18+</sup>

onEnterSelectedArea(callback: Callback\<TimePickerResult>)

Triggered during the scrolling of the time picker when an item enters the divider area.

Compared to the **onChange** event, this event is triggered earlier, specifically when the scroll distance of the current column exceeds half the height of the selected item, which indicates that the item has entered the divider area. When **enableCascade** is set to **true**, using this callback is not recommended due to the interdependent relationship between the AM/PM and hour columns. This callback indicates the moment an option enters the divider area during scrolling, and only the value of the currently scrolled column will change. The values of other non-scrolled columns will remain unchanged.

**Atomic service API**: This API can be used in atomic services since API version 18.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

**Parameters**

|Name|Type                    |Mandatory|Description                                    |
|--------|--------------------------|----|------------------------------------------|
|callback|Callback\<[TimePickerResult](#timepickerresult)>|Yes|Callback triggered during the scrolling of the time picker when an item enters the divider area.|

## OnTimePickerChangeCallback<sup>18+</sup>

type OnTimePickerChangeCallback = (value: TimePickerResult) => void

Triggered when a time is selected.

**Widget capability**: This API can be used in ArkTS widgets since API version 18.

**Atomic service API**: This API can be used in atomic services since API version 18.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

**Parameters**

|Name|Type                                       |Mandatory|Description        |
|------|---------------------------------------------|----|--------------|
|value|[TimePickerResult](#timepickerresult)|Yes|Time in 24-hour format.|

## TimePickerResult

Describes a time in 24-hour format.

**Atomic service API**: This API can be used in atomic services since API version 11.

**System capability**: SystemCapability.ArkUI.ArkUI.Full

|Name              |Type|Read Only|Optional|Description                             |
|--------------------|------|----|----|-----------------------------------|
|hour               |number|No|No|Hour portion of the selected time.<br>Value range: [0-23]|
|minute             |number|No|No|Minute portion of the selected time.<br>Value range: [0-59]|
|second<sup>11+</sup>|number|No|No|Second portion of the selected time.<br>Value range: [0-59]|

## Example

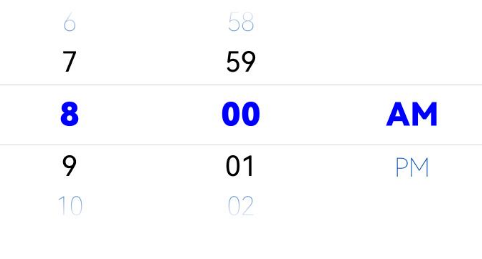

### Example 1: Setting the Text Style

This example demonstrates how to configure **disappearTextStyle**, **textStyle**, and **selectedTextStyle** to customize the text style in a text picker.

```ts
// xxx.ets
@Entry
@Component
struct TimePickerExample {
  private selectedTime: Date = new Date('2022-07-22T08:00:00')

  build() {
    TimePicker({
      selected: this.selectedTime
    })
      .disappearTextStyle({ color: '#004aaf', font: { size: 24, weight: FontWeight.Lighter } })
      .textStyle({ color: Color.Black, font: { size: 26, weight: FontWeight.Normal } })
      .selectedTextStyle({ color: Color.Blue, font: { size: 30, weight: FontWeight.Bolder } })
      .onChange((value: TimePickerResult) => {
        if (value.hour >= 0) {
          this.selectedTime.setHours(value.hour, value.minute)
          console.info('select current date is: ' + JSON.stringify(value))
        }
      })
  }
}

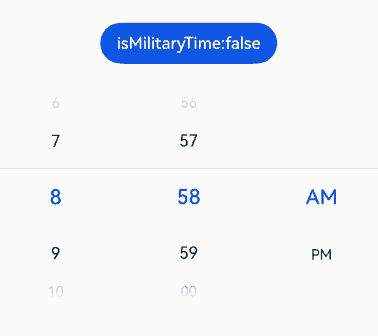

Example 2: Switching Between 12-Hour and 24-Hour Formats

This example demonstrates how to switch between 12-hour and 24-hour formats using useMilitaryTime.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  @State isMilitaryTime: boolean = false
  private selectedTime: Date = new Date('2022-07-22T08:00:00')

  build() {
    Column() {
      Button('Switch Time Format')
        .margin(30)
        .onClick(() => {
          this.isMilitaryTime = !this.isMilitaryTime
        })

      TimePicker({
        selected: this.selectedTime
      })
        .useMilitaryTime(this.isMilitaryTime)
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current time is: ' + JSON.stringify(value))
          }
        })
        .onEnterSelectedArea((value: TimePickerResult) => {
            console.info('item enter selected area, time is: ' + JSON.stringify(value))
        })
    }.width('100%')
  }
}

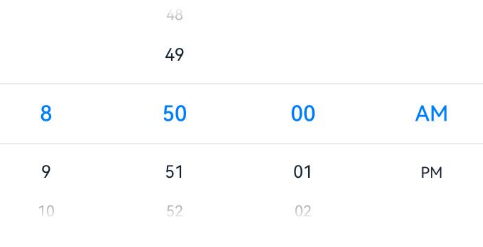

Example 3: Setting the Time Format

This example shows how to set the time format using format and dateTimeOptions.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  private selectedTime: Date = new Date('2022-07-22T08:00:00')

  build() {
    Column() {
      TimePicker({
        selected: this.selectedTime,
        format: TimePickerFormat.HOUR_MINUTE_SECOND
      })
        .dateTimeOptions({ hour: "numeric", minute: "2-digit", second: "2-digit" })
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current date is: ' + JSON.stringify(value))
          }
        })
    }.width('100%')
  }
}

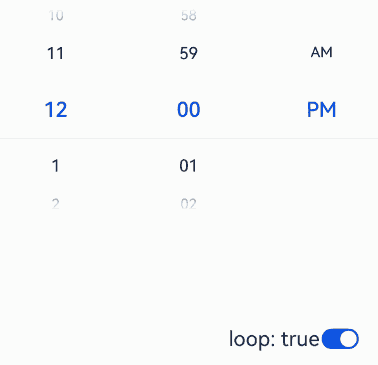

Example 4: Setting Loopable Scrolling

This example demonstrates how to set whether scrolling is loopable using loop.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  @State isLoop: boolean = true
  private selectedTime: Date = new Date('2022-07-22T12:00:00')

  build() {
    Column() {
      TimePicker({
        selected: this.selectedTime
      })
        .loop(this.isLoop)
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current date is: ' + JSON.stringify(value))
          }
        })

      Row() {
        Text('Loopable scrolling').fontSize(20)

        Toggle({ type: ToggleType.Switch, isOn: true })
          .onChange((isOn: boolean) => {
            this.isLoop = isOn
          })
      }.position({ x: '60%', y: '40%' })

    }.width('100%')
  }
}

Example 5: Setting the Start Time

This example demonstrates how to set the start time for the time picker.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  private selectedTime: Date = new Date('2022-07-22T08:50:00')

  build() {
    Column() {
      TimePicker({
        selected: this.selectedTime,
        format: TimePickerFormat.HOUR_MINUTE_SECOND,
        start: new Date('2022-07-22T08:30:00')
      })
        .dateTimeOptions({ hour: "numeric", minute: "2-digit", second: "2-digit" })
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current date is: ' + JSON.stringify(value))
          }
        })
    }.width('100%')
  }
}

Example 6: Setting the End Time

This example demonstrates how to set the end time for the time picker.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  private selectedTime: Date = new Date('2022-07-22T08:50:00')

  build() {
    Column() {
      TimePicker({
        selected: this.selectedTime,
        format: TimePickerFormat.HOUR_MINUTE_SECOND,
        end: new Date('2022-07-22T15:20:00'),
      })
        .dateTimeOptions({ hour: "numeric", minute: "2-digit", second: "2-digit" })
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current date is: ' + JSON.stringify(value))
          }
        })
    }.width('100%')
  }
}

Example 7: Enabling the AM/PM Indicator to Automatically Switch Based on the Hour in 12-hour Format

This example demonstrates how to enable AM/PM indicator to automatically switch based on the hour in 12-hour format using enableCascade and loop.

// xxx.ets
@Entry
@Component
struct TimePickerExample {
  private selectedTime: Date = new Date('2022-07-22T08:00:00')

  build() {
    Column() {
      TimePicker({
        selected: this.selectedTime,
      })
        .enableCascade(true)
        .loop(true)
        .onChange((value: TimePickerResult) => {
          if (value.hour >= 0) {
            this.selectedTime.setHours(value.hour, value.minute)
            console.info('select current date is: ' + JSON.stringify(value))
          }
        })
    }.width('100%')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
