Popup Control

You can bind a popup to a component, specifying its content, interaction logic, and visibility.

NOTE

• This attribute is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

• The visibility of the popup is returned through the onStateChange event callback. There is no strong mapping between the visibility and the creation or destruction of the component.

bindPopup

bindPopup(show: boolean, popup: PopupOptions|CustomPopupOptions)

Binds a popup to the component.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

PopupOptions

System capability: SystemCapability.ArkUI.ArkUI.Full

PopupMessageOptions¹⁰⁺

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

DismissPopupAction¹²⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

DismissReason¹²⁺

System capability: SystemCapability.ArkUI.ArkUI.Full

CustomPopupOptions⁸⁺

System capability: SystemCapability.ArkUI.ArkUI.Full

PopupCommonOptions¹⁸⁺

Parameters of the popup. Use the getPromptAction() API in UIContext to obtain a PromptAction object. Then, use this object to call openPopup and updatePopup, where the properties of the options parameter are defined as follows.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

PopupStateChangeParam¹⁸⁺

Describes the display state of a popup.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

PopupStateChangeCallback¹⁸⁺

Represents the callback invoked when the popup state changes.

type PopupStateChangeCallback = (event: PopupStateChangeParam) => void;

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

PopupMaskType¹⁸⁺

Describes the color of the mask.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

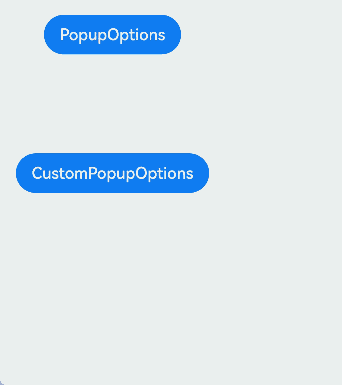

Example 1: Displaying Different Types of Popups

This example showcases how to use the bindPopup API to configure and display popups of PopupOptions and CustomPopupOptions types.

// xxx.ets
@Entry
@Component
struct PopupExample {
  @State handlePopup: boolean = false;
  @State customPopup: boolean = false;

  // Popup builder
  @Builder popupBuilder() {
    Row({ space: 2 }) {
      Image($r("app.media.icon")).width(24).height(24).margin({ left: -5 })
      Text('Custom Popup').fontSize(10)
    }.width(100).height(50).padding(5)
  }

  build() {
    Flex({ direction: FlexDirection.Column }) {
      // PopupOptions for setting the popup
      Button('PopupOptions')
        .onClick(() => {
          this.handlePopup = !this.handlePopup;
        })
        .bindPopup(this.handlePopup, {
          message: 'This is a popup with PopupOptions',
          placementOnTop: true,
          showInSubWindow:false,
          // Set the popup to avoid the soft keyboard.
          keyboardAvoidMode: KeyboardAvoidMode.DEFAULT,
          primaryButton: {
            value: 'confirm',
            action: () => {
              this.handlePopup = !this.handlePopup;
              console.info('confirm Button click');
            }
          },
          // Secondary button
          secondaryButton: {
            value: 'cancel',
            action: () => {
              this.handlePopup = !this.handlePopup;
              console.info('cancel Button click');
            }
          },
          onStateChange: (e) => {
            console.info(JSON.stringify(e.isVisible))
            if (!e.isVisible) {
              this.handlePopup = false;
            }
          }
        })
        .position({ x: 100, y: 150 })


      // CustomPopupOptions for setting the popup
      Button('CustomPopupOptions')
        .onClick(() => {
          this.customPopup = !this.customPopup;
        })
        .bindPopup(this.customPopup, {
          builder: this.popupBuilder,
          placement: Placement.Top,
          mask: {color:'#33000000'},
          popupColor: Color.Yellow,
          enableArrow: true,
          // Set the popup to avoid the soft keyboard.
          keyboardAvoidMode: KeyboardAvoidMode.DEFAULT,
          showInSubWindow: false,
          onStateChange: (e) => {
            if (!e.isVisible) {
              this.customPopup = false;
            }
          }
        })
        .position({ x: 80, y: 300 })
    }.width('100%').padding({ top: 5 })
  }
}

Example 2: Setting the Popup Text Style

This example shows how to use the bindPopup API to display a popup with custom messageOptions settings.

// xxx.ets

@Entry
@Component
struct PopupExample {
  @State handlePopup: boolean = false;

  build() {
    Column({ space: 100 }) {
      Button('PopupOptions').margin(100)
        .onClick(() => {
          this.handlePopup = !this.handlePopup;
        })
        .bindPopup(this.handlePopup, {
          // Popup of the PopupOptions type
          message: 'This is a popup with PopupOptions',
          messageOptions: {
            // Text style of the popup
            textColor: Color.Red,
            font: {
              size: '14vp',
              style: FontStyle.Italic,
              weight: FontWeight.Bolder
            }
          },
          placement: Placement.Bottom,
          enableArrow: false, // Set the arrow not to display.
          targetSpace: '15vp',
          onStateChange: (e) => {
            console.info(JSON.stringify(e.isVisible));
            if (!e.isVisible) {
              this.handlePopup = false;
            }
          }
        })
    }.margin(20)
  }
}

Example 3: Setting the Popup Style

This example demonstrates how to use the bindPopup API with properties like arrowHeight, arrowWidth, radius, shadow, and popupColor to set the styles for both the popup’s arrow and the popup itself.

// xxx.ets

@Entry
@Component
struct PopupExample {
  @State customPopup: boolean = false;
  @State handlePopup: boolean = false;

  build() {
    Column({ space: 100 }) {
      Button("popup")
        .margin({ top: 50 })
        .onClick(() => {
          this.customPopup = !this.customPopup;
        })
        .bindPopup(this.customPopup, {
          message: "this is a popup",
          arrowHeight: 20, // Set the height for the popup arrow.
          arrowWidth: 20, // Set the width for the popup arrow.
          radius: 20, // Set the corner radius of the popup.
          shadow: ShadowStyle.OUTER_DEFAULT_XS, // Set the shadow for the popup.
        })

      Button('PopupOptions')
        .onClick(() => {
          this.handlePopup = !this.handlePopup;
        })
        .bindPopup(this.handlePopup, {
          width: 300,
          message: 'This is a popup with PopupOptions',
          arrowPointPosition: ArrowPointPosition.START, // Set the position for the popup arrow.
          backgroundBlurStyle: BlurStyle.NONE, // Disable the background blur for the popup.
          popupColor: Color.Red, // Set the background color for the popup.
          autoCancel: true,
        })
    }
    .width('100%')
  }
}

Example 4: Setting the Popup Animation

In this example, the bindPopup API is used with the transition property to implement animations for displaying and dismissing popups.

// xxx.ets
@Entry
@Component
struct PopupExample {
  @State handlePopup: boolean = false;
  @State customPopup: boolean = false;

  // Popup builder
  @Builder popupBuilder() {
    Row() {
      Text('Custom Popup with transitionEffect').fontSize(10)
    }.height(50).padding(5)
  }

  build() {
    Flex({ direction: FlexDirection.Column }) {
      // PopupOptions for setting the popup
      Button('PopupOptions')
        .onClick(() => {
          this.handlePopup = !this.handlePopup;
        })
        .bindPopup(this.handlePopup, {
          message: 'This is a popup with transitionEffect',
          placementOnTop: true,
          showInSubWindow: false,
          onStateChange: (e) => {
            console.info(JSON.stringify(e.isVisible))
            if (!e.isVisible) {
              this.handlePopup = false;
            }
          },
          // Set the popup animation to a combination of opacity and translation effects, with no exit animation.
          transition:TransitionEffect.asymmetric(
            TransitionEffect.OPACITY.animation({ duration: 1000, curve: Curve.Ease }).combine(
              TransitionEffect.translate({ x: 50, y: 50 })),
            TransitionEffect.IDENTITY)
        })
        .position({ x: 100, y: 150 })

      // CustomPopupOptions for setting the popup
      Button('CustomPopupOptions')
        .onClick(() => {
          this.customPopup = !this.customPopup;
        })
        .bindPopup(this.customPopup, {
          builder: this.popupBuilder,
          placement: Placement.Top,
          showInSubWindow: false,
          onStateChange: (e) => {
            if (!e.isVisible) {
              this.customPopup = false;
            }
          },
          // Set the popup entrance and exit animations to be a scaling effect.
          transition:TransitionEffect.scale({ x: 1, y: 0 }).animation({ duration: 500, curve: Curve.Ease })
        })
        .position({ x: 80, y: 300 })
    }.width('100%').padding({ top: 5 })
  }
}

Example 5: Adding an Event to a Popup

This example uses the bindPopup API with the onWillDismiss property to intercept the dismissal event when a popup is about to be dismissed and execute a callback function.

// xxx.ets

@Entry
@Component
struct PopupExample {
  @State handlePopup: boolean = false;
  build() {
    Column() {
      Button('PopupOptions')
        .onClick(() => {
          this.handlePopup = true;
        })
        .bindPopup(this.handlePopup, {
          message: 'This is a popup with PopupOptions',
          messageOptions: {
            textColor: Color.Red,
            font: {
              size: '14vp',
              style: FontStyle.Italic,
              weight: FontWeight.Bolder
            }
          },
          placement: Placement.Bottom,
          enableArrow: false,
          targetSpace: '15vp',
          onStateChange: (e) => {
            if (!e.isVisible) {
              this.handlePopup = false;
            }
          },
          onWillDismiss: (
            (dismissPopupAction: DismissPopupAction) => {
              console.info("dismissReason:" + JSON.stringify(dismissPopupAction.reason));
              if (dismissPopupAction.reason === DismissReason.PRESS_BACK) {
                dismissPopupAction.dismiss();
              }
            }
          )
        })
    }.margin(20)
  }
}

Example 6: Intercepting the Popup Dismissal Event

In this example, the onWillDismiss property is set to false to intercept the dismissal event of the popup.

// xxx.ets

@Entry
@Component
struct PopupExample {
  @State handlePopup: boolean = false;

  build() {
    Column() {
      Button('PopupOptions')
        .onClick(() => {
          this.handlePopup = true;
        })
        .bindPopup(this.handlePopup, {
          message: 'This is a popup with PopupOptions',
          messageOptions: {
            textColor: Color.Red,
            font: {
              size: '14vp',
              style: FontStyle.Italic,
              weight: FontWeight.Bolder
            }
          },
          placement: Placement.Bottom,
          enableArrow: false,
          targetSpace: '15vp',
          followTransformOfTarget: true,
          onStateChange: (e) => {
            let timer = setTimeout(() => {
              this.handlePopup = false;
            }, 6000);
            if (!e.isVisible) {
              this.handlePopup = false;
              clearTimeout(timer);
            }
          },
          onWillDismiss: false
        })
    }.margin(20)
  }
}
