Building a Dialog Box

Display a custom dialog box using a dialog controller, which allows you to set the style and content of the dialog box.

The dialog box APIs are defined within a struct named ArkUINativeDialogAPI*x*, where x represents the version number. These APIs implement various dialog box controls around the dialog controller.

Creating and Destroying a Dialog Controller

• Create a dialog controller. ArkUI_NativeDialogHandle represents a pointer to the dialog controller, which you can create by calling the create API of ArkUI_NativeDialogAPI_x.

This API returns data of the ArkUI_NativeDialogHandle type.

  ArkUI_NativeDialogAPI_1 *dialogAPI = reinterpret_cast<ArkUI_NativeDialogAPI_1 *>(
      OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_DIALOG, "ArkUI_NativeDialogAPI_1"));
  auto dialogController = dialogAPI->create();

• Destroy a dialog controller. When dialog box operations are no longer needed, actively call the dispose API to destroy the dialog controller object. ArkUI_NativeDialogAPI_1 *dialogAPI = reinterpret_cast<ArkUI_NativeDialogAPI_1 *>( OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_DIALOG, "ArkUI_NativeDialogAPI_1")); dialogAPI->dispose(dialogController);

Setting Dialog Box Styles

You can set the alignment, offset, corner radius of the background, background color, mask color, and region of the dialog box.

1. Create a dialog box content node.

   ArkUI_NodeHandle CreateDialogContent() {
      ArkUI_NativeNodeAPI_1 *nodeAPI = reinterpret_cast<ArkUI_NativeNodeAPI_1 *>(
          OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_NODE, "ArkUI_NativeNodeAPI_1"));
      ArkUI_NodeHandle text = nodeAPI->createNode(ARKUI_NODE_TEXT);
      ArkUI_NumberValue textWidthValue[] = {{.f32 = 300}};
      ArkUI_AttributeItem textWidthItem = {.value = textWidthValue,
                                           .size = sizeof(textWidthValue) / sizeof(ArkUI_NumberValue)};
      nodeAPI->setAttribute(text, NODE_WIDTH, &textWidthItem);
      ArkUI_NumberValue textHeightValue[] = {{.f32 = 300}};
      ArkUI_AttributeItem textHeightItem = {.value = textHeightValue,
                                            .size = sizeof(textWidthValue) / sizeof(ArkUI_NumberValue)};
      nodeAPI->setAttribute(text, NODE_HEIGHT, &textHeightItem);
      ArkUI_NodeHandle span = nodeAPI->createNode(ARKUI_NODE_SPAN);
      ArkUI_AttributeItem spanItem = {.string = "This is a dialog box"};
      nodeAPI->setAttribute(span, NODE_SPAN_CONTENT, &spanItem);
      ArkUI_NodeHandle imageSpan = nodeAPI->createNode(ARKUI_NODE_IMAGE_SPAN);
      ArkUI_AttributeItem imageSpanItem = {.string = "/pages/common/sky.jpg"};
      nodeAPI->setAttribute(imageSpan, NODE_IMAGE_SPAN_SRC, &imageSpanItem);
      ArkUI_NumberValue imageSpanWidthValue[] = {{.f32 = 300}};
      ArkUI_AttributeItem imageSpanWidthItem = {.value = imageSpanWidthValue,
                                                .size = sizeof(textWidthValue) / sizeof(ArkUI_NumberValue)};
      nodeAPI->setAttribute(imageSpan, NODE_WIDTH, &imageSpanWidthItem);
      ArkUI_NumberValue imageSpanHeightValue[] = {{.f32 = 200}};
      ArkUI_AttributeItem imageSpanHeightItem = {.value = imageSpanHeightValue,
                                                 .size = sizeof(textWidthValue) / sizeof(ArkUI_NumberValue)};
      nodeAPI->setAttribute(imageSpan, NODE_HEIGHT, &imageSpanHeightItem);
      nodeAPI->addChild(text, span);
      nodeAPI->addChild(text, imageSpan);
      return text;
   }


2. Control dialog box styles with the controller. For details about the available dialog box APIs, see native_dialog.h.

   void ShowDialog() {
      ArkUI_NativeDialogAPI_1 *dialogAPI = reinterpret_cast<ArkUI_NativeDialogAPI_1 *>(
          OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_DIALOG, "ArkUI_NativeDialogAPI_1"));
      if (!dialogController) {
          dialogController = dialogAPI->create();
      }
      auto contentNode = CreateDialogContent();
      dialogAPI->setContent(dialogController, contentNode);
      dialogAPI->setContentAlignment(dialogController, static_cast<int32_t>(ARKUI_ALIGNMENT_BOTTOM), 0, 0);
      dialogAPI->setBackgroundColor(dialogController, 0xffffffff);
      dialogAPI->setCornerRadius(dialogController, 6, 6, 6, 6);
      dialogAPI->setModalMode(dialogController, false);
      dialogAPI->setAutoCancel(dialogController, true);
      dialogAPI->show(dialogController, false);
   }


3. Close the dialog box when it is not needed.

   void CloseDialog() {
      ArkUI_NativeDialogAPI_1 *dialogAPI = reinterpret_cast<ArkUI_NativeDialogAPI_1 *>(
          OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_DIALOG, "ArkUI_NativeDialogAPI_1"));
      dialogAPI->close(dialogController);
   }


Interaction with the Dialog Box

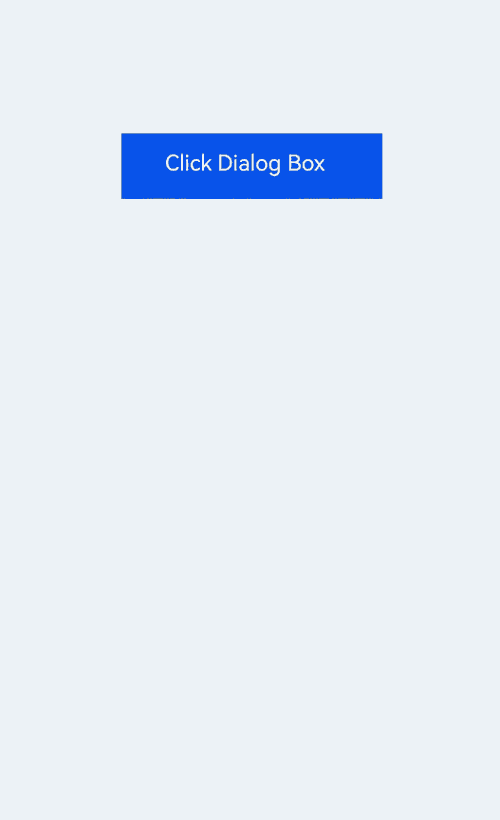

Create an interactive page to open or close a dialog box.

1. Create an interactive page, where a button click triggers the dialog box. For details about how to obtain and use the ArkUI_NodeContentHandle node, see Integrating with ArkTS Pages. “` constexpr int32_t BUTTON_CLICK_ID = 1; bool isShown = false; ArkUI_NativeDialogHandle dialogController; ArkUI_NodeHandle buttonNode;

void MainViewMethod(ArkUI_NodeContentHandle handle) { ArkUI_NativeNodeAPI_1 *nodeAPI = reinterpret_cast( OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_NODE, “ArkUI_NativeNodeAPI_1”)); ArkUI_NodeHandle column = nodeAPI->createNode(ARKUI_NODE_COLUMN); ArkUI_NumberValue widthValue[] = {{.f32 = 300}}; ArkUI_AttributeItem widthItem = {.value = widthValue, .size = sizeof(widthValue) / sizeof(ArkUI_NumberValue)}; nodeAPI->setAttribute(column, NODE_WIDTH, &widthItem); ArkUI_NumberValue heightValue[] = {{.f32 = 300}}; ArkUI_AttributeItem heightItem = {.value = heightValue, .size = sizeof(heightValue) / sizeof(ArkUI_NumberValue)}; nodeAPI->setAttribute(column, NODE_HEIGHT, &heightItem);

   buttonNode = nodeAPI->createNode(ARKUI_NODE_BUTTON);
   ArkUI_NumberValue buttonWidthValue[] = {{.f32 = 200}};
   ArkUI_AttributeItem buttonWidthItem = {.value = buttonWidthValue,
                                          .size = sizeof(buttonWidthValue) / sizeof(ArkUI_NumberValue)};
   nodeAPI->setAttribute(buttonNode, NODE_WIDTH, &buttonWidthItem);
   ArkUI_NumberValue buttonHeightValue[] = {{.f32 = 50}};
   ArkUI_AttributeItem buttonHeightItem = {.value = buttonHeightValue,
                                           .size = sizeof(buttonHeightValue) / sizeof(ArkUI_NumberValue)};
   nodeAPI->setAttribute(buttonNode, NODE_HEIGHT, &buttonHeightItem);
   ArkUI_AttributeItem labelItem = {.string = "Click Dialog Box"};
   nodeAPI->setAttribute(buttonNode, NODE_BUTTON_LABEL, &labelItem);
   ArkUI_NumberValue buttonTypeValue[] = {{.i32 = static_cast<int32_t>(ARKUI_BUTTON_TYPE_NORMAL)}};
   ArkUI_AttributeItem buttonTypeItem = {.value = buttonTypeValue,
                                         .size = sizeof(buttonTypeValue) / sizeof(ArkUI_NumberValue)};
   nodeAPI->setAttribute(buttonNode, NODE_BUTTON_TYPE, &buttonTypeItem);
   nodeAPI->registerNodeEvent(buttonNode, NODE_ON_CLICK, BUTTON_CLICK_ID, nullptr);
   nodeAPI->addNodeEventReceiver(buttonNode, OnButtonClicked);
   nodeAPI->addChild(column, buttonNode);
   OH_ArkUI_NodeContent_AddNode(handle, column);

}

2. Create a button event callback function to trigger the display or closure of the dialog box when the button is clicked.

void OnButtonClicked(ArkUI_NodeEvent *event) { if (!event||!buttonNode) { return; } auto eventId = OH_ArkUI_NodeEvent_GetTargetId(event); if (eventId == BUTTON_CLICK_ID) { ArkUI_NativeNodeAPI_1 *nodeAPI = reinterpret_cast( OH_ArkUI_QueryModuleInterfaceByName(ARKUI_NATIVE_NODE, “ArkUI_NativeNodeAPI_1”)); if (isShown) { isShown = false; ArkUI_AttributeItem labelItem = {.string = “Show Dialog Box”}; nodeAPI->setAttribute(buttonNode, NODE_BUTTON_LABEL, &labelItem); CloseDialog(); } else { isShown = true; ArkUI_AttributeItem labelItem = {.string = “Close Dialog Box”}; nodeAPI->setAttribute(buttonNode, NODE_BUTTON_LABEL, &labelItem); ShowDialog(); } } } “`
