SegmentButtonV2

SegmentButtonV2 is a component used to create tab-style, single-select, and multi-select capsule-style buttons.

NOTE

This component and its child components are supported since API version 18. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { TabSegmentButtonV2, CapsuleSegmentButtonV2, MultiCapsuleSegmentButtonV2, SegmentButtonV2Items } from '@kit.ArkUI';

Child Components

Not supported

TabSegmentButtonV2

TabSegmentButtonV2({
  items: SegmentButtonV2Items,
  selectedIndex: number,
  $selectedIndex?: OnSelectedIndexChange,
  onItemClicked?: Callback<number>,
  itemMinFontScale?: number|Resource,
  itemMaxFontScale?: number|Resource,
  itemSpace?: LengthMetrics,
  itemFontSize?: LengthMetrics,
  itemSelectedFontSize?: LengthMetrics,
  itemFontColor?: ColorMetrics,
  itemSelectedFontColor?: ColorMetrics,
  itemFontWeight?: FontWeight,
  itemSelectedFontWeight?: FontWeight,
  itemBorderRadius?: LengthMetrics,
  itemSelectedBackgroundColor?: ColorMetrics,
  itemIconSize?: SizeT<LengthMetrics>,
  itemIconFillColor?: ColorMetrics,
  itemSelectedIconFillColor?: ColorMetrics,
  itemSymbolFontSize?: LengthMetrics,
  itemSymbolFontColor?: ColorMetrics,
  itemSelectedSymbolFontColor?: ColorMetrics,
  itemMinHeight?: LengthMetrics,
  itemPadding?: LocalizedPadding,
  itemShadow?: ShadowOptions|ShadowStyle,
  buttonBackgroundColor?: ColorMetrics,
  buttonBackgroundBlurStyle?: BlurStyle,
  buttonBackgroundBlurStyleOptions?: BackgroundBlurStyleOptions,
  buttonBackgroundEffect?: BackgroundEffectOptions,
  buttonBorderRadius?: LengthMetrics,
  buttonMinHeight?: LengthMetrics,
  buttonPadding?: LengthMetrics,
  languageDirection?: Direction
})

Decorator: @ComponentV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

CapsuleSegmentButtonV2

CapsuleSegmentButtonV2({
  items: SegmentButtonV2Items,
  selectedIndex: number,
  $selectedIndex?: OnSelectedIndexChange,
  onItemClicked?: Callback<number>,
  itemMinFontScale?: number|Resource,
  itemMaxFontScale?: number|Resource,
  itemSpace?: LengthMetrics,
  itemFontSize?: LengthMetrics,
  itemSelectedFontSize?: LengthMetrics,
  itemFontColor?: ColorMetrics,
  itemSelectedFontColor?: ColorMetrics,
  itemFontWeight?: FontWeight,
  itemSelectedFontWeight?: FontWeight,
  itemBorderRadius?: LengthMetrics,
  itemSelectedBackgroundColor?: ColorMetrics,
  itemIconSize?: SizeT<LengthMetrics>,
  itemIconFillColor?: ColorMetrics,
  itemSelectedIconFillColor?: ColorMetrics,
  itemSymbolFontSize?: LengthMetrics,
  itemSymbolFontColor?: ColorMetrics,
  itemSelectedSymbolFontColor?: ColorMetrics,
  itemMinHeight?: LengthMetrics,
  itemPadding?: LocalizedPadding,
  itemShadow?: ShadowOptions|ShadowStyle,
  buttonBackgroundColor?: ColorMetrics,
  buttonBackgroundBlurStyle?: BlurStyle,
  buttonBackgroundBlurStyleOptions?: BackgroundBlurStyleOptions,
  buttonBackgroundEffect?: BackgroundEffectOptions,
  buttonBorderRadius?: LengthMetrics,
  buttonMinHeight?: LengthMetrics,
  buttonPadding?: LengthMetrics,
  languageDirection?: Direction
})

Decorator: @ComponentV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

MultiCapsuleSegmentButtonV2

MultiCapsuleSegmentButtonV2({
  items: SegmentButtonV2Items,
  selectedIndexes: number[],
  $selectedIndexes: OnSelectedIndexesChange,
  onItemClicked?: Callback<number>,
  itemMinFontScale?: number|Resource,
  itemMaxFontScale?: number|Resource,
  itemSpace?: LengthMetrics,
  itemFontColor?: ColorMetrics,
  itemSelectedFontColor?: ColorMetrics,
  itemFontSize?: LengthMetrics,
  itemSelectedFontSize?: LengthMetrics,
  itemFontWeight?: FontWeight,
  itemSelectedFontWeight?: FontWeight,
  itemBorderRadius?: LengthMetrics,
  itemBackgroundColor?: ColorMetrics,
  itemBackgroundEffect?: BackgroundEffectOptions,
  itemBackgroundBlurStyle?: BlurStyle,
  itemBackgroundBlurStyleOptions?: BackgroundBlurStyleOptions,
  itemSelectedBackgroundColor?: ColorMetrics,
  itemIconSize?: SizeT<LengthMetrics>,
  itemIconFillColor?: ColorMetrics,
  itemSelectedIconFillColor?: ColorMetrics,
  itemSymbolFontSize?: LengthMetrics,
  itemSymbolFontColor?: ColorMetrics,
  itemSelectedSymbolFontColor?: ColorMetrics,
  itemMinHeight?: LengthMetrics,
  itemPadding?: LocalizedPadding,
  languageDirection?: Direction
})

Decorator: @ComponentV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

SegmentButtonV2Items

Represents items of the SegmentButtonV2 component.

This parameter is inherited from Array<SegmentButtonV2Item>.

Decorator type: @ObservedV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

Decorator type: @ObservedV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

constructor

constructor(items: SegmentButtonV2ItemOptions[])

Constructs a SegmentButtonV2ItemOptions instance.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

isHybrid

get hasHybrid()

Obtains whether there is an item with both an icon and text.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

SegmentButtonV2Item

Properties

Decorator type: @ObservedV2

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Description

1. When both symbol and icon are set, symbol has a higher display priority.
2. When both symbol and symbolModifier are set with HM Symbol, symbolModifier has a higher display priority.

constructor

constructor(options: SegmentButtonV2ItemOptions)

Constructs a SegmentButtonV2ItemOptions instance.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

isHybrid

get isHybrid()

Obtains whether the item is set with both an icon and text.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

SegmentButtonV2ItemOptions

Represents options of the item of the SegmentButtonV2 component.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Properties

Description

1. When both symbol and icon are set, symbol has a higher display priority.
2. When both symbol and symbolModifier are set with HM Symbol, symbolModifier has a higher display priority.

OnSelectedIndexChange

type OnSelectedIndexChange = (selectedIndex: number) => void

Defines a callback invoked when the selected item of the SegmentButtonV2 component changes.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

OnSelectedIndexesChange

type OnSelectedIndexesChange = (selectedIndexes: number[]) => void

Defines a callback invoked when selected items of the SegmentButtonV2 component changes.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Example

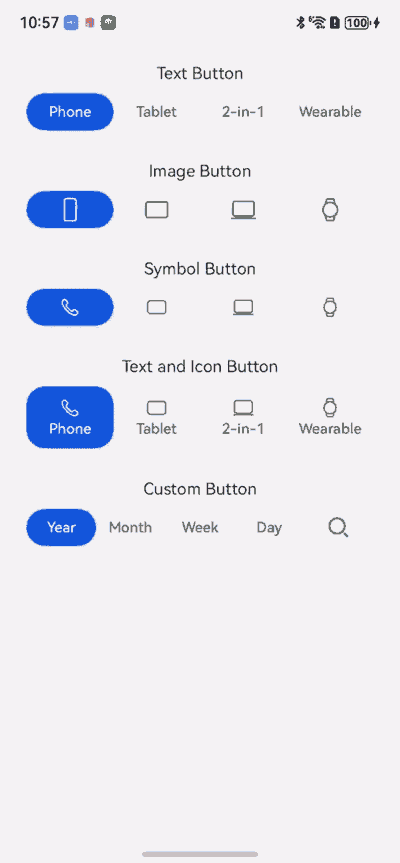

Example 1 (TabSegmentButtonV2)

The following example describes how to use the TabSegmentButtonV2 component.

import { SegmentButtonV2Items, TabSegmentButtonV2 } from '@kit.ArkUI';

@Entry
@ComponentV2
struct TabSegmentButtonV2Example {
  @Local textItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone'},
    { text: 'Tablet' },
    { text: '2-in-1' },
    { text: 'Wearable' },
  ]);
  @Local textSelectedIndex: number = 0;
  @Local imageItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { icon: $r('sys.media.ohos_ic_public_device_phone') },
    { icon: $r('sys.media.ohos_ic_public_device_pad') },
    { icon: $r('sys.media.ohos_ic_public_device_matebook') },
    { icon: $r('sys.media.ohos_ic_public_device_watch') },
  ]);
  @Local imageSelectedIndex: number = 0;
  @Local symbolItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { symbol: $r('sys.symbol.phone') },
    { symbol: $r('sys.symbol.pad') },
    { symbol: $r('sys.symbol.matebook') },
    { symbol: $r('sys.symbol.watch') },
  ]);
  @Local symbolSelectedIndex: number = 0;
  @Local hybridItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone', symbol: $r('sys.symbol.phone') },
    { text: 'Tablet', symbol: $r('sys.symbol.pad') },
    { text: '2-in-1', symbol: $r('sys.symbol.matebook') },
    { text: 'Wearable', symbol: $r('sys.symbol.watch') },
  ]);
  @Local hybridSelectedIndex: number = 0;
  @Local freeItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Year' },
    { text: 'Month' },
    { text: 'Week' },
    { text: 'Day' },
    { icon: $r('sys.media.ohos_ic_public_search_filled') },
  ]);
  @Local freeSelectedIndex: number = 0;

  build() {
    Scroll() {
      Column({ space: 12 }) {
        VCard({ title: 'Text Button' }) {
          TabSegmentButtonV2({
            items: this.textItems,
            selectedIndex: this.textSelectedIndex!!,
          })
        }

        VCard({ title: 'Image Button' }) {
          TabSegmentButtonV2({
            items: this.imageItems,
            selectedIndex: this.imageSelectedIndex!!,
          })
        }

        VCard({ title: 'Symbol Button' }) {
          TabSegmentButtonV2({
            items: this.symbolItems,
            selectedIndex: this.symbolSelectedIndex!!,
          })
        }

        VCard({ title: 'Text and Icon Button' }) {
          TabSegmentButtonV2({
            items: this.hybridItems,
            selectedIndex: this.hybridSelectedIndex!!,
          })
        }

        VCard({ title: 'Custom Button' }) {
          TabSegmentButtonV2({
            items: this.freeItems,
            selectedIndex: this.freeSelectedIndex!!,
          })
        }
      }
      .constraintSize({ minHeight: '100%' })
      .justifyContent(FlexAlign.Start)
      .padding(16)
    }
    .backgroundColor('#f1f3f5')
    .width('100%')
    .height('100%')
  }
}

@Builder
function Noop() {
}

@Component
export struct VCard {
  @Prop
  title: ResourceStr;
  @BuilderParam
  content: () => void = Noop;

  build() {
    Column({ space: 8 }) {
      if (this.title) {
        Text(this.title)
          .maxLines(1)
          .textOverflow({ overflow: TextOverflow.Ellipsis })
          .constraintSize({ maxWidth: '80%' })
      }
      this.content()
    }
    .backgroundColor(Color.White)
    .borderRadius(8)
    .padding(8)
    .width('100%')
  }
}

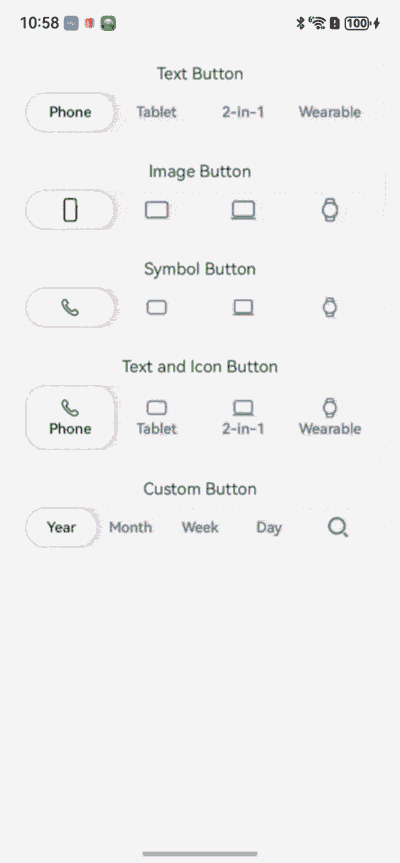

Example 2 (CapsuleSegmentButtonV2)

The following example describes how to use the CapsuleSegmentButtonV2 button.

import { CapsuleSegmentButtonV2, SegmentButtonV2Items } from '@kit.ArkUI';

@Entry
@ComponentV2
struct CapsuleSegmentButtonV2Example {
  @Local textItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone'},
    { text: 'Tablet'},
    { text: '2-in-1' },
    { text: 'Wearable' },
  ]);
  @Local textSelectedIndex: number = 0;
  @Local imageItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { icon: $r('sys.media.ohos_ic_public_device_phone') },
    { icon: $r('sys.media.ohos_ic_public_device_pad') },
    { icon: $r('sys.media.ohos_ic_public_device_matebook') },
    { icon: $r('sys.media.ohos_ic_public_device_watch') },
  ]);
  @Local imageSelectedIndex: number = 0;
  @Local symbolItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { symbol: $r('sys.symbol.phone') },
    { symbol: $r('sys.symbol.pad') },
    { symbol: $r('sys.symbol.matebook') },
    { symbol: $r('sys.symbol.watch') },
  ]);
  @Local symbolSelectedIndex: number = 0;
  @Local hybridItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone', symbol: $r('sys.symbol.phone') },
    { text: 'Tablet', symbol: $r('sys.symbol.pad') },
    { text: '2-in-1', symbol: $r('sys.symbol.matebook') },
    { text: 'Wearable', symbol: $r('sys.symbol.watch') },
  ]);
  @Local hybridSelectedIndex: number = 0;
  @Local freeItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Year' },
    { text: 'Month' },
    { text: 'Week' },
    { text: 'Day' },
    { icon: $r('sys.media.ohos_ic_public_search_filled') },
  ]);
  @Local freeSelectedIndex: number = 0;

  build() {
    Scroll() {
      Column({ space: 12 }) {
        VCard({ title: 'Text Button' }) {
          CapsuleSegmentButtonV2({
            items: this.textItems,
            selectedIndex: this.textSelectedIndex!!,
          })
        }

        VCard({ title: 'Image Button' }) {
          CapsuleSegmentButtonV2({
            items: this.imageItems,
            selectedIndex: this.imageSelectedIndex!!,
          })
        }

        VCard({ title: 'Symbol Button' }) {
          CapsuleSegmentButtonV2({
            items: this.symbolItems,
            selectedIndex: this.symbolSelectedIndex!!,
          })
        }

        VCard({ title: 'Text and Icon Button' }) {
          CapsuleSegmentButtonV2({
            items: this.hybridItems,
            selectedIndex: this.hybridSelectedIndex!!,
          })
        }

        VCard({ title: 'Custom Button' }) {
          CapsuleSegmentButtonV2({
            items: this.freeItems,
            selectedIndex: this.freeSelectedIndex!!,
          })
        }
      }
      .constraintSize({ minHeight: '100%' })
      .justifyContent(FlexAlign.Start)
      .padding(16)
    }
    .backgroundColor('#f1f3f5')
    .width('100%')
    .height('100%')
  }
}

@Builder
function Noop() {
}

@Component
export struct VCard {
  @Prop
  title: ResourceStr;
  @BuilderParam
  content: () => void = Noop;

  build() {
    Column({ space: 8 }) {
      if (this.title) {
        Text(this.title)
          .maxLines(1)
          .textOverflow({ overflow: TextOverflow.Ellipsis })
          .constraintSize({ maxWidth: '80%' })
      }
      this.content()
    }
    .backgroundColor(Color.White)
    .borderRadius(8)
    .padding(8)
    .width('100%')
  }
}

Example 3 (MultiCapsuleSegmentButtonV2)

The following example describes how to use the MultiCapsuleSegmentButtonV2 button.

import { MultiCapsuleSegmentButtonV2, SegmentButtonV2Items } from '@kit.ArkUI';

@Entry
@ComponentV2
struct MultiCapsuleSegmentButtonV2Example {
  @Local textItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone'},
    { text: 'Tablet'},
    { text: '2-in-1' },
    { text: 'Wearable' },
  ]);
  @Local textSelectedIndexes: number[] = [0];
  @Local imageItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { icon: $r('sys.media.ohos_ic_public_device_phone') },
    { icon: $r('sys.media.ohos_ic_public_device_pad') },
    { icon: $r('sys.media.ohos_ic_public_device_matebook') },
    { icon: $r('sys.media.ohos_ic_public_device_watch') },
  ]);
  @Local imageSelectedIndexes: number[] = [0];
  @Local symbolItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { symbol: $r('sys.symbol.phone') },
    { symbol: $r('sys.symbol.pad') },
    { symbol: $r('sys.symbol.matebook') },
    { symbol: $r('sys.symbol.watch') },
  ]);
  @Local symbolSelectedIndexes: number[] = [0];
  @Local hybridItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Phone', symbol: $r('sys.symbol.phone') },
    { text: 'Tablet', symbol: $r('sys.symbol.pad') },
    { text: '2-in-1', symbol: $r('sys.symbol.matebook') },
    { text: 'Wearable', symbol: $r('sys.symbol.watch') },
  ]);
  @Local hybridSelectedIndexes: number[] = [0];
  @Local freeItems: SegmentButtonV2Items = new SegmentButtonV2Items([
    { text: 'Year' },
    { text: 'Month' },
    { text: 'Week' },
    { text: 'Day' },
    { icon: $r('sys.media.ohos_ic_public_search_filled') },
  ]);
  @Local freeSelectedIndexes: number[] = [0];

  build() {
    Scroll() {
      Column({ space: 12 }) {
        VCard({ title: 'Text Button' }) {
          MultiCapsuleSegmentButtonV2({
            items: this.textItems,
            selectedIndexes: this.textSelectedIndexes!!,
          })
        }

        VCard({ title: 'Image Button' }) {
          MultiCapsuleSegmentButtonV2({
            items: this.imageItems,
            selectedIndexes: this.imageSelectedIndexes!!,
          })
        }

        VCard({ title: 'Symbol Button' }) {
          MultiCapsuleSegmentButtonV2({
            items: this.symbolItems,
            selectedIndexes: this.symbolSelectedIndexes!!,
          })
        }

        VCard({ title: 'Text and Icon Button' }) {
          MultiCapsuleSegmentButtonV2({
            items: this.hybridItems,
            selectedIndexes: this.hybridSelectedIndexes!!,
          })
        }

        VCard({ title: 'Custom Button' }) {
          MultiCapsuleSegmentButtonV2({
            items: this.freeItems,
            selectedIndexes: this.freeSelectedIndexes!!,
          })
        }
      }
      .constraintSize({ minHeight: '100%' })
      .justifyContent(FlexAlign.Start)
      .padding(16)
    }
    .backgroundColor('#f1f3f5')
    .width('100%')
    .height('100%')
  }
}

@Builder
function Noop() {
}

@Component
export struct VCard {
  @Prop
  title: ResourceStr;
  @BuilderParam
  content: () => void = Noop;

  build() {
    Column({ space: 8 }) {
      if (this.title) {
        Text(this.title)
          .maxLines(1)
          .textOverflow({ overflow: TextOverflow.Ellipsis })
          .constraintSize({ maxWidth: '80%' })
      }
      this.content()
    }
    .backgroundColor(Color.White)
    .borderRadius(8)
    .padding(8)
    .width('100%')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
