SegmentButton

SegmentButton is a versatile component containing a group of related items, which can be tab-style, single-select, and multi-select buttons.

NOTE

This component and its child components are supported since API version 11. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { SegmentButton, SegmentButtonOptions, SegmentButtonItemOptionsArray } from '@kit.ArkUI';

Child Components

Not supported

SegmentButton

SegmentButton({ options: SegmentButtonOptions, selectedIndexes: number[], onItemClicked: Callback<number>, maxFontScale: number |Resource })

Decorator: @Component

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

The SegmentButton component does not support the universal attributes. The component takes up the maximum width allowed by the content area, and evenly allocates the width among its items. It adapts its height automatically to the content (text and image), the minimum height being 28 vp.

SegmentButtonOptions

Provides initial data and custom properties for the SegmentButton component.

Decorator Type: @Observed

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

constructor

constructor(options: TabSegmentButtonOptions|CapsuleSegmentButtonOptions)

A constructor used to create a SegmentButtonOptions instance.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

tab

static tab(options: TabSegmentButtonConstructionOptions): SegmentButtonOptions

Creates a SegmentButtonOptions object for the SegmentButton component consisting of tab-style buttons.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

capsule

static capsule(options: CapsuleSegmentButtonConstructionOptions): SegmentButtonOptions

Creates a SegmentButtonOptions object for the SegmentButton component consisting of single-select or multi-select buttons.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

DimensionNoPercentage

type DimensionNoPercentage = PX|VP|FP|LPX|Resource

Represents the length union type that does not support values in percentage.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

CommonSegmentButtonOptions

Defines the attributes that can be customized for the segment button.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

TabSegmentButtonConstructionOptions

Represents options for creating a SegmentButton component consisting of tab-style buttons.

It inherits CommonSegmentButtonOptions.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

CapsuleSegmentButtonConstructionOptions

Represents options for creating a SegmentButton component consisting of single-select or multi-select buttons.

It inherits CommonSegmentButtonOptions.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

ItemRestriction

type ItemRestriction<T> = [T, T, T?, T?, T?]

Represents a tuple used to store button information.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

A SegmentButton component supports two to five buttons.

SegmentButtonItemTuple

type SegmentButtonItemTuple = ItemRestriction<SegmentButtonTextItem>|ItemRestriction<SegmentButtonIconItem>|ItemRestriction<SegmentButtonIconTextItem>

Represents the tuple union type used to store button information.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

SegmentButtonItemArray

type SegmentButtonItemArray = Array<SegmentButtonTextItem>|Array<SegmentButtonIconItem>|Array<SegmentButtonIconTextItem>

Represents the array union type used to store button information.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

SegmentButtonItemOptionsArray

Represents an array for storing button information.

Decorator Type: @Observed

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons.

constructor

constructor(elements: SegmentButtonItemTuple)

A constructor used to create a SegmentButtonItemOptionsArray instance.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

push

push(…items: SegmentButtonItemArray): number

Adds the specified elements to the end of this array and returns the new length of the array.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons. If the number limit is reached, this API will not work.

pop

pop(): SegmentButtonItemOptions|undefined

Removes the last element from this array and returns that element.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons. If the number limit is reached, this API will not work.

shift

shift(): SegmentButtonItemOptions|undefined

Removes the first element from this array and returns that element.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons. If the number limit is reached, this API will not work.

unshift

unshift(…items: SegmentButtonItemArray): number

Adds the specified elements to the beginning of this array and returns the new length of the array.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons. If the number limit is reached, this API will not work.

splice

splice(start: number, deleteCount: number, …items: SegmentButtonItemOptions[]): SegmentButtonItemOptions[]

Changes the contents of this array by removing the specified number of elements from the specified position and adding new elements in place. This API returns an array containing the removed elements.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

NOTE

A SegmentButton component supports two to five buttons. As such, a SegmentButtonItemOptionsArray object stores information about only two to five buttons. If the number limit is reached, this API will not work.

create

static create(elements: SegmentButtonItemTuple): SegmentButtonItemOptionsArray

Creates a SegmentButtonItemOptionsArray object.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Return value

TabSegmentButtonOptions

Provides the options of the SegmentButton component consisting of tab-style buttons. It inherits TabSegmentButtonConstructionOptions.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

CapsuleSegmentButtonOptions

Provides the options of the SegmentButton component consisting of single-select or multi-select buttons. It inherits CapsuleSegmentButtonConstructionOptions.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

SegmentButtonTextItem

Provides text button information.

System capability: SystemCapability.ArkUI.ArkUI.Full

SegmentButtonIconItem

Provides icon button information.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

For the settings to take effect, both icon and selectedIcon must be set.

SegmentButtonIconTextItem

Provides icon+text button information.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

NOTE

For the settings to take effect, both icon and selectedIcon must be set.

SegmentButtonItemOptions

Describes options of the items in the SegmentButton component.

Decorator Type: @Observed

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

constructor

constructor(options: SegmentButtonItemOptionsConstructorOptions)

A constructor used to create a SegmentButtonItemOptions instance.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

SegmentButtonItemOptionsConstructorOptions

Describes the constructor parameters of SegmentButtonItemOptions.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

Example

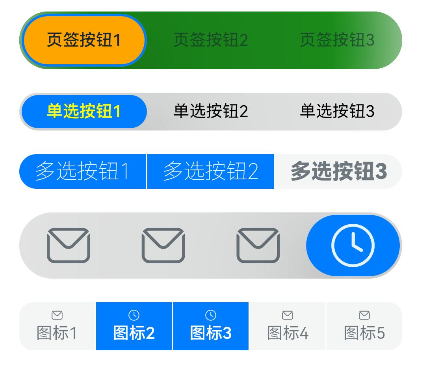

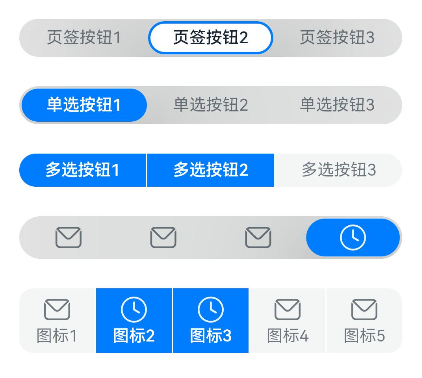

Example 1: Setting the Type of the SegmentButton component

This example demonstrates how to create two different types of SegmentButton components by configuring SegmentButtonOptions with tab and capsule types.

// xxx.ets
import {
  ItemRestriction,
  SegmentButton,
  SegmentButtonItemTuple,
  SegmentButtonOptions,
  SegmentButtonTextItem
} from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State tabOptions: SegmentButtonOptions = SegmentButtonOptions.tab({
    buttons: [{ text: 'Tab 1' }, { text: 'Tab 2' }, {
      text: 'Tab 3'
    }] as ItemRestriction<SegmentButtonTextItem>,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State singleSelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Single-select 1' }, { text: 'Single-select 2' }, { text: 'Single-select 3' }] as SegmentButtonItemTuple,
    multiply: false,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State multiplySelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Multi-select 1' }, { text: 'Multi-select 2' }, { text: 'Multi-select 3' }] as SegmentButtonItemTuple,
    multiply: true
  })
  @State iconCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ] as SegmentButtonItemTuple,
    multiply: false,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State iconTextCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 2', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 3', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 4', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 5', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ] as SegmentButtonItemTuple,
    multiply: true
  })
  @State tabSelectedIndexes: number[] = [1]
  @State singleSelectCapsuleSelectedIndexes: number[] = [0]
  @State multiplySelectCapsuleSelectedIndexes: number[] = [0, 1]
  @State singleSelectIconCapsuleSelectedIndexes: number[] = [3]
  @State multiplySelectIconTextCapsuleSelectedIndexes: number[] = [1, 2]

  build() {
    Row() {
      Column() {
        Column({ space: 25 }) {
          SegmentButton({ options: this.tabOptions,
            selectedIndexes: $tabSelectedIndexes })
          SegmentButton({ options: this.singleSelectCapsuleOptions,
            selectedIndexes: $singleSelectCapsuleSelectedIndexes })
          SegmentButton({
            options: this.multiplySelectCapsuleOptions,
            selectedIndexes: $multiplySelectCapsuleSelectedIndexes })
          SegmentButton({ options: this.iconCapsuleOptions,
            selectedIndexes: $singleSelectIconCapsuleSelectedIndexes })
          SegmentButton({ options: this.iconTextCapsuleOptions,
            selectedIndexes: $multiplySelectIconTextCapsuleSelectedIndexes })
        }.width('90%')
      }.width('100%')
    }.height('100%')
  }
}

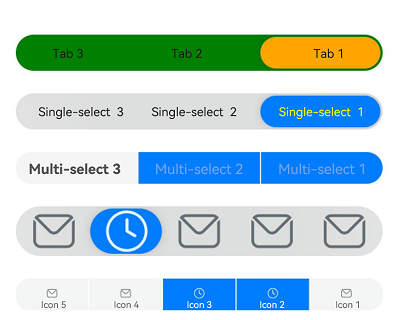

Example 2: Setting the Style of the SegmentButton component

This example demonstrates how to use CommonSegmentButtonOptions to customize the text and background style of the SegmentButton component.

// xxx.ets
import {
  ItemRestriction,
  SegmentButton,
  SegmentButtonItemTuple,
  SegmentButtonOptions,
  SegmentButtonTextItem
} from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State tabOptions: SegmentButtonOptions = SegmentButtonOptions.tab({
    buttons: [{ text: 'Tab 1' }, { text: 'Tab 2' }, {
      text: 'Tab 3'
    }] as ItemRestriction<SegmentButtonTextItem>,
    backgroundColor: 'rgb(213,213,213)',
    selectedBackgroundColor: 'rgb(112,112,112)',
    textPadding: {
      top: 10,
      right: 10,
      bottom: 10,
      left: 10
    },
  })
  @State singleSelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Single-select 1' }, { text: 'Single-select 2' }, { text: 'Single-select 3' }] as SegmentButtonItemTuple,
    multiply: false,
    fontColor: 'rgb(0,74,175)',
    selectedFontColor: 'rgb(247,247,247)',
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State multiplySelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Multi-select 1' }, { text: 'Multi-select 2' }, { text: 'Multi-select 3' }] as SegmentButtonItemTuple,
    multiply: true,
    fontSize: 18,
    selectedFontSize: 18,
    fontWeight: FontWeight.Bolder,
    selectedFontWeight: FontWeight.Lighter,
  })
  @State iconCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ] as SegmentButtonItemTuple,
    multiply: false,
    imageSize: { width: 40, height: 40 },
    buttonPadding: {
      top: 6,
      right: 10,
      bottom: 6,
      left: 10
    },
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State iconTextCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 2', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 3', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 4', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 5', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ] as SegmentButtonItemTuple,
    multiply: true,
    imageSize: { width: 10, height: 10 },
  })
  @State tabSelectedIndexes: number[] = [0]
  @State singleSelectCapsuleSelectedIndexes: number[] = [0]
  @State multiplySelectCapsuleSelectedIndexes: number[] = [0, 1]
  @State singleSelectIconCapsuleSelectedIndexes: number[] = [3]
  @State multiplySelectIconTextCapsuleSelectedIndexes: number[] = [1, 2]

  build() {
    Row() {
      Column() {
        Column({ space: 20 }) {
          SegmentButton({ options: this.tabOptions, selectedIndexes: $tabSelectedIndexes })
          SegmentButton({
            options: this.singleSelectCapsuleOptions,
            selectedIndexes: $singleSelectCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.multiplySelectCapsuleOptions,
            selectedIndexes: $multiplySelectCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.iconCapsuleOptions,
            selectedIndexes: $singleSelectIconCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.iconTextCapsuleOptions,
            selectedIndexes: $multiplySelectIconTextCapsuleSelectedIndexes
          })
        }.width('90%')
      }.width('100%')
    }.height('100%')
  }
}

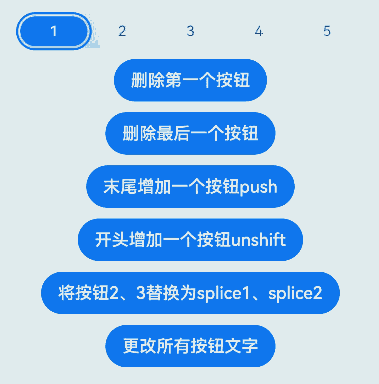

Example 3: Performing Array Operations on the SegmentButton Component

This example shows how to perform operations such as adding and removing segmented buttons using array functions like pop, shift, and unshift.

import {
  SegmentButton,
  SegmentButtonOptions,
  SegmentButtonItemOptionsArray,
  SegmentButtonItemTuple,
  SegmentButtonItemOptions
} from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State singleSelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: '1' }, { text: '2' }, { text: '3' },
      { text: '4' }, { text: '5' }] as SegmentButtonItemTuple,
    multiply: false,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State capsuleSelectedIndexes: number[] = [0]

  build() {
    Row() {
      Column() {
        Column({ space: 10 }) {
          SegmentButton({ options: this.singleSelectCapsuleOptions,
            selectedIndexes: $capsuleSelectedIndexes })
          Button("Delete First Item")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons.shift()
            })
          Button("Delete Last Item")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons.pop()
            })
          Button("Add to End")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons.push({ text: 'push' })
            })
          Button("Add to Beginning")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons.unshift(({ text: 'unshift' }))
            })
          Button("Replace Items 2 and 3 with splice1 and splice2")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons.splice(1, 2, new SegmentButtonItemOptions({
                text: 'splice1'
              }), new SegmentButtonItemOptions({ text: 'splice2' }))
            })
          Button("Change All Button Text")
            .onClick(() => {
              this.singleSelectCapsuleOptions.buttons =
              SegmentButtonItemOptionsArray.create([{ text: 'a' }, { text: 'b' },
                { text: 'c' }, { text: 'd' }, { text: 'e' }])
            })
        }.width('90%')
      }.width('100%')
    }.height('100%')
  }
}

Example 4: Implementing a Mirroring Effect

This example shows how to implement a mirroring effect by configuring the direction property of the SegmentButton component.

// xxx.ets
import { LengthMetrics, SegmentButton, SegmentButtonOptions } from '@kit.ArkUI'


@Entry
@Component
struct Index {
  @State tabOptions: SegmentButtonOptions = SegmentButtonOptions.tab({
    buttons: [{ text: 'Tab 1' }, { text: 'Tab 2' }, {
      text: 'Tab 3'
    }],
    direction: Direction.Rtl,
    backgroundColor: Color.Green,
    selectedBackgroundColor: Color.Orange,
    localizedTextPadding: {
      end: LengthMetrics.vp(10),
      start: LengthMetrics.vp(10)
    },
  })
  @State singleSelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Single-select 1' }, { text: 'Single-select 2' }, { text: 'Single-select 3' }],
    multiply: false,
    direction: Direction.Rtl,
    fontColor: Color.Black,
    selectedFontColor: Color.Yellow,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State multiplySelectCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [{ text: 'Multi-select 1' }, { text: 'Multi-select 2' }, { text: 'Multi-select 3' }],
    multiply: true,
    direction: Direction.Rtl,
    fontSize: 18,
    selectedFontSize: 18,
    fontWeight: FontWeight.Bolder,
    selectedFontWeight: FontWeight.Lighter,
  })
  @State iconCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ],
    multiply: false,
    direction: Direction.Rtl,
    imageSize: { width: 40, height: 40 },
    localizedButtonPadding: {
      end: LengthMetrics.vp(10),
      start: LengthMetrics.vp(10)
    },
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State iconTextCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 2', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 3', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 4', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') },
      { text: 'Icon 5', icon: $r('sys.media.ohos_ic_public_email'), selectedIcon: $r('sys.media.ohos_ic_public_clock') }
    ],
    multiply: true,
    direction: Direction.Rtl,
    imageSize: { width: 10, height: 10 },
  })
  @State tabSelectedIndexes: number[] = [0]
  @State singleSelectCapsuleSelectedIndexes: number[] = [0]
  @State multiplySelectCapsuleSelectedIndexes: number[] = [0, 1]
  @State singleSelectIconCapsuleSelectedIndexes: number[] = [3]
  @State multiplySelectIconTextCapsuleSelectedIndexes: number[] = [1, 2]

  build() {
    Row() {
      Column() {
        Column({ space: 20 }) {
          SegmentButton({ options: this.tabOptions, selectedIndexes: $tabSelectedIndexes })
          SegmentButton({
            options: this.singleSelectCapsuleOptions,
            selectedIndexes: $singleSelectCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.multiplySelectCapsuleOptions,
            selectedIndexes: $multiplySelectCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.iconCapsuleOptions,
            selectedIndexes: $singleSelectIconCapsuleSelectedIndexes
          })
          SegmentButton({
            options: this.iconTextCapsuleOptions,
            selectedIndexes: $multiplySelectIconTextCapsuleSelectedIndexes
          })
        }.width('90%')
      }.width('100%')
    }.height('100%')
  }
}

Example 5: Setting Accessibility

This example showcases how to implement accessibility features for the SegmentButton component by configuring properties such as accessibilityLevel and selectedIconAccessibilityText.

// xxx.ets
import {
  ItemRestriction,
  SegmentButton,
  SegmentButtonItemTuple,
  SegmentButtonOptions,
  SegmentButtonTextItem,
  SegmentButtonItemOptions
} from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State tabOptions: SegmentButtonOptions = SegmentButtonOptions.tab({
    buttons: [{ text: 'Tab 1', accessibilityLevel: 'yes', accessibilityDescription: 'Tab 1 usage hints' },
      { text: 'Tab 2', accessibilityLevel: 'yes', accessibilityDescription: 'Tab 2 usage hints' },
      { text: 'Tab 3', accessibilityLevel: 'yes', accessibilityDescription: 'Tab 3 usage hints'
    }] as ItemRestriction<SegmentButtonTextItem>,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State iconCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
      accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconItem usage hints'},
      { icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconItem usage hints'},
      { icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconItem usage hints'},
      { icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconItem usage hints'}
    ] as SegmentButtonItemTuple,
    multiply: false,
    backgroundBlurStyle: BlurStyle.BACKGROUND_THICK
  })
  @State iconTextCapsuleOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconTextItem usage hints'},
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconTextItem usage hints'},
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconTextItem usage hints'},
      { text: 'Icon 1', icon: $r('sys.media.ohos_ic_public_email'), iconAccessibilityText: 'Accessibility text for the unselected icon',
        selectedIcon: $r('sys.media.ohos_ic_public_clock'), selectedIconAccessibilityText: 'Accessibility text for the selected icon',
        accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonIconTextItem usage hints'}
    ] as SegmentButtonItemTuple,
    multiply: true
  })
  @State tabSelectedIndexes: number[] = [1]
  @State singleSelectIconCapsuleSelectedIndexes: number[] = [3]
  @State multiplySelectIconTextCapsuleSelectedIndexes: number[] = [1, 2]

  build() {
    Row() {
      Column() {
        Column({ space: 25 }) {
          SegmentButton({ options: this.tabOptions,
            selectedIndexes: $tabSelectedIndexes })
          SegmentButton({ options: this.iconCapsuleOptions,
            selectedIndexes: $singleSelectIconCapsuleSelectedIndexes })
          SegmentButton({ options: this.iconTextCapsuleOptions,
            selectedIndexes: $multiplySelectIconTextCapsuleSelectedIndexes })
          Button("Replace Items 2 and 3 with splice1 and splice2")
            .onClick(() => {
              this.iconTextCapsuleOptions.buttons.splice(1, 2, new SegmentButtonItemOptions({
                text: 'splice1', accessibilityLevel: 'yes', accessibilityDescription: 'SegmentButtonItemOptions usage hints'
              }), new SegmentButtonItemOptions({ text: 'splice2', icon: $r('sys.media.ohos_ic_public_email'),
                iconAccessibilityText: 'Accessibility text for the unselected icon', selectedIcon: $r('sys.media.ohos_ic_public_clock'),
                selectedIconAccessibilityText: 'Accessibility text for the selected icon', accessibilityLevel: 'yes',
                accessibilityDescription: 'SegmentButtonIconTextItem usage hints' }))
            })
        }.width('90%')
      }.width('100%')
    }.height('100%')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
