FoldSplitContainer

FoldSplitContainer is a layout container designed to manage regions for two-panel and three-panel arrangements on a foldable device across various states, including the expanded state, the hover state, and the folded state.

NOTE

This component is supported since API version 12. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { FoldSplitContainer } from '@kit.ArkUI';

Child Components

Not supported

FoldSplitContainer

FoldSplitContainer({ primary: Callback<void>, secondary: Callback<void>, extra?: Callback<void>, expandedLayoutOptions: ExpandedRegionLayoutOptions, hoverModeLayoutOptions: HoverModeRegionLayoutOptions, foldedLayoutOptions: FoldedRegionLayoutOptions, animationOptions?: AnimateParam, onHoverStatusChange?: OnHoverStatusChangeHandler })

Creates a FoldSplitContainer component to manage regions for two-panel and three-panel arrangements on a foldable device across various states, including the expanded state, the hover state, and the folded state.

Decorator: \@Component

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

ExpandedRegionLayoutOptions

Defines the layout information for the expanded state.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

HoverModeRegionLayoutOptions

Defines the layout information for the hover state.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

1. When the device is in the hover state, there is an avoid area, and layout calculations need to account for the impact of the avoid area on the layout. 2 In the hover state, the upper half screen is used for display, and the lower half is used for interaction.

FoldedRegionLayoutOptions

Defines the layout information for the folded state.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

OnHoverStatusChangeHandler

type OnHoverStatusChangeHandler = (status: HoverModeStatus) => void

Implements a handler for the onHoverStatusChange event.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

HoverModeStatus

Provides information about the device or application’s folding, rotation, and window state.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

ExtraRegionPosition

Provides the position information of the extra region.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

PresetSplitRatio

Enumerates the split ratios.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

Example 1: Setting Up a Two-Panel Layout

This example demonstrates how to control the region for a two-panel layout on a foldable screen across different states: folded, expanded, and hover.

import { FoldSplitContainer } from '@kit.ArkUI';

@Entry
@Component
struct TwoColumns {
  @Builder
  privateRegion() {
    Text("Primary")
      .backgroundColor('rgba(255, 0, 0, 0.1)')
      .fontSize(28)
      .textAlign(TextAlign.Center)
      .height('100%')
      .width('100%')
  }

  @Builder
  secondaryRegion() {
    Text("Secondary")
      .backgroundColor('rgba(0, 255, 0, 0.1)')
      .fontSize(28)
      .textAlign(TextAlign.Center)
      .height('100%')
      .width('100%')
  }

  build() {
    RelativeContainer() {
      FoldSplitContainer({
        primary: () => {
          this.privateRegion()
        },
        secondary: () => {
          this.secondaryRegion()
        }
      })
    }
    .height('100%')
    .width('100%')
  }
}

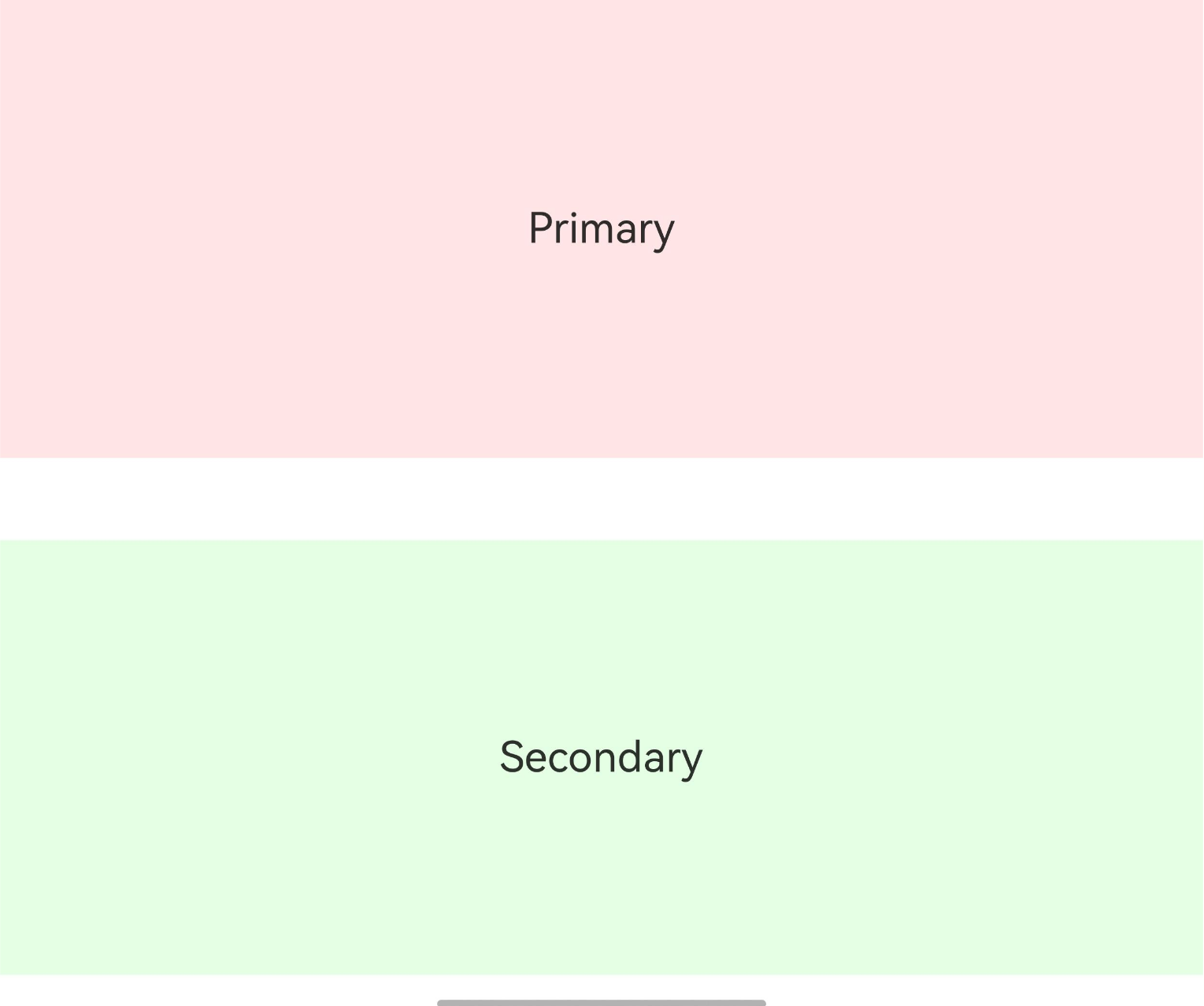

Folded	Expanded	Hover

Example 2: Setting Up a Three-Panel Layout

This example demonstrates how to control the region for a three-panel layout on a foldable screen across different states: folded, expanded, and hover.

import { FoldSplitContainer } from '@kit.ArkUI';

@Entry
@Component
struct ThreeColumns {
  @Builder
  privateRegion() {
    Text("Primary")
      .backgroundColor('rgba(255, 0, 0, 0.1)')
      .fontSize(28)
      .textAlign(TextAlign.Center)
      .height('100%')
      .width('100%')
  }

  @Builder
  secondaryRegion() {
    Text("Secondary")
      .backgroundColor('rgba(0, 255, 0, 0.1)')
      .fontSize(28)
      .textAlign(TextAlign.Center)
      .height('100%')
      .width('100%')
  }

  @Builder
  extraRegion() {
    Text("Extra")
      .backgroundColor('rgba(0, 0, 255, 0.1)')
      .fontSize(28)
      .textAlign(TextAlign.Center)
      .height('100%')
      .width('100%')
  }

  build() {
    RelativeContainer() {
      FoldSplitContainer({
        primary: () => {
          this.privateRegion()
        },
        secondary: () => {
          this.secondaryRegion()
        },
        extra: () => {
          this.extraRegion()
        }
      })
    }
    .height('100%')
    .width('100%')
  }
}

Folded	Expanded	Hover

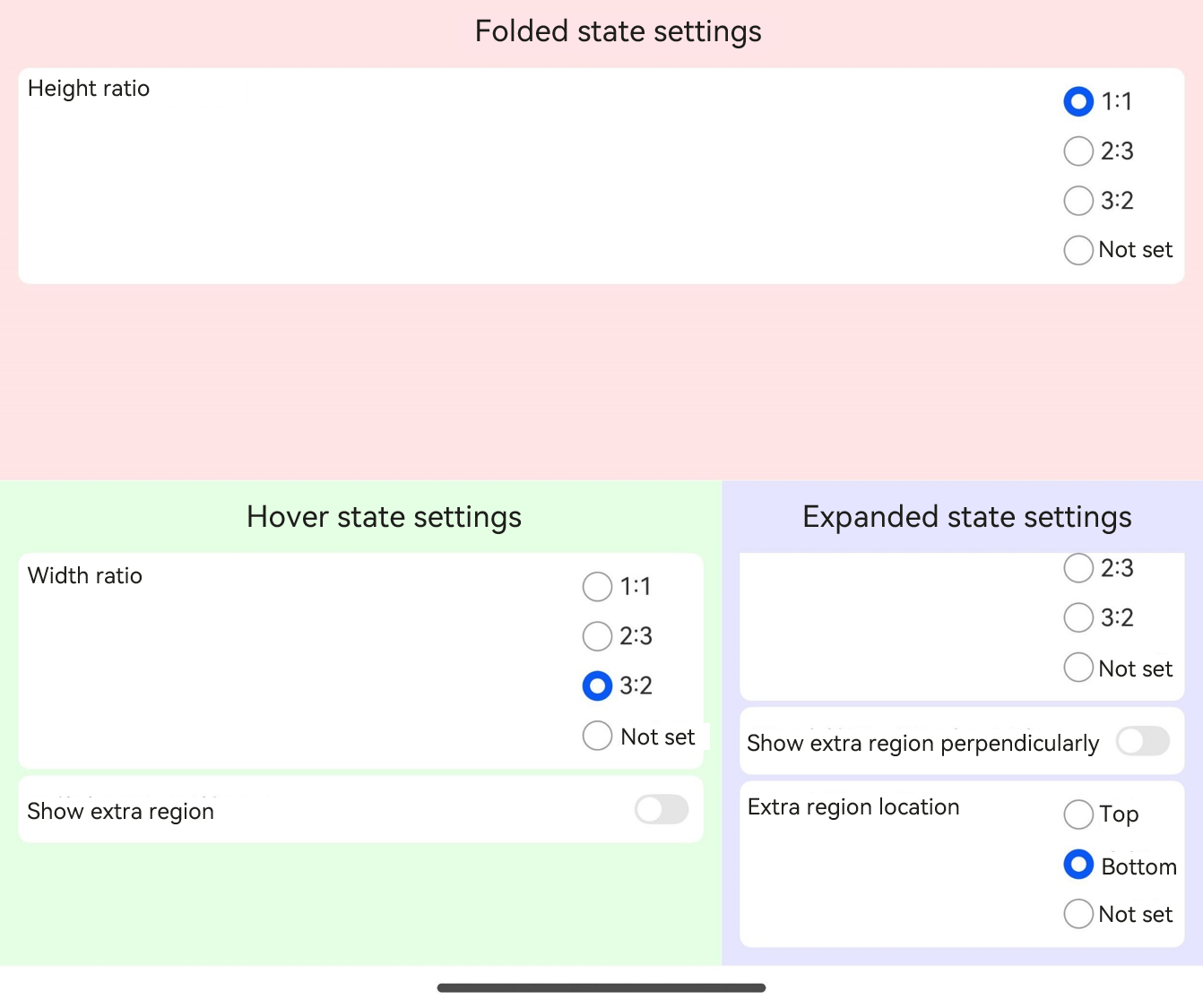

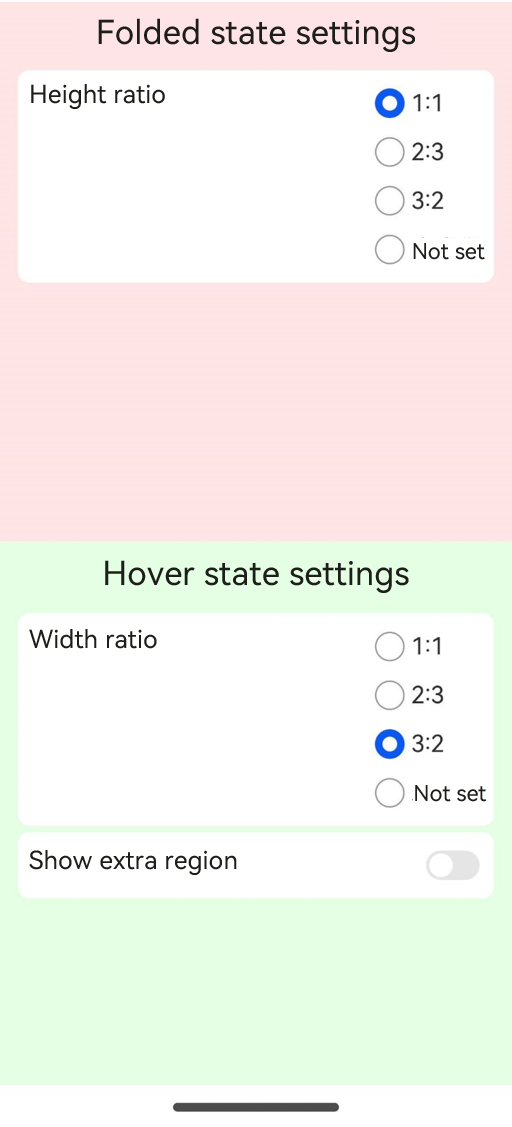

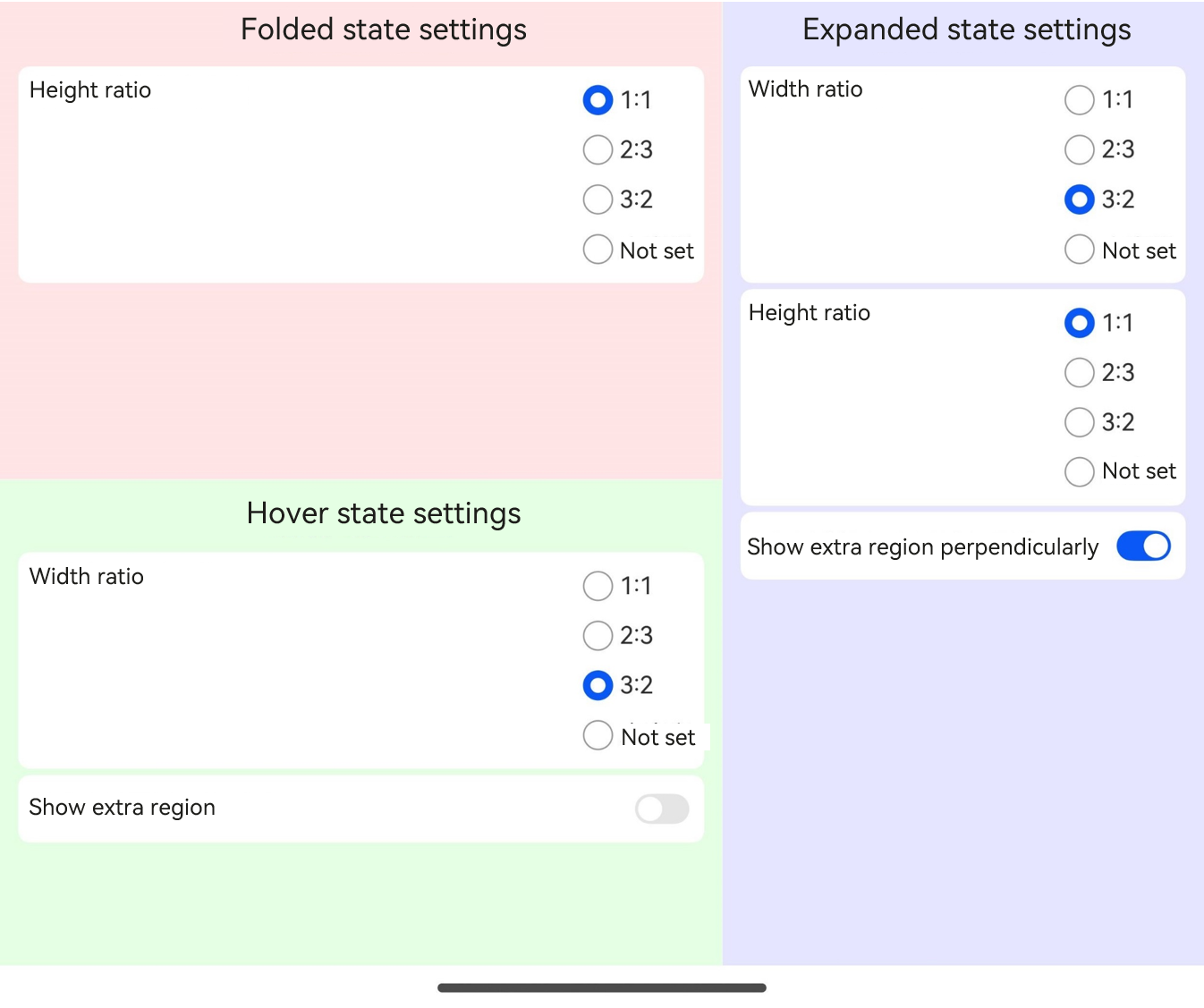

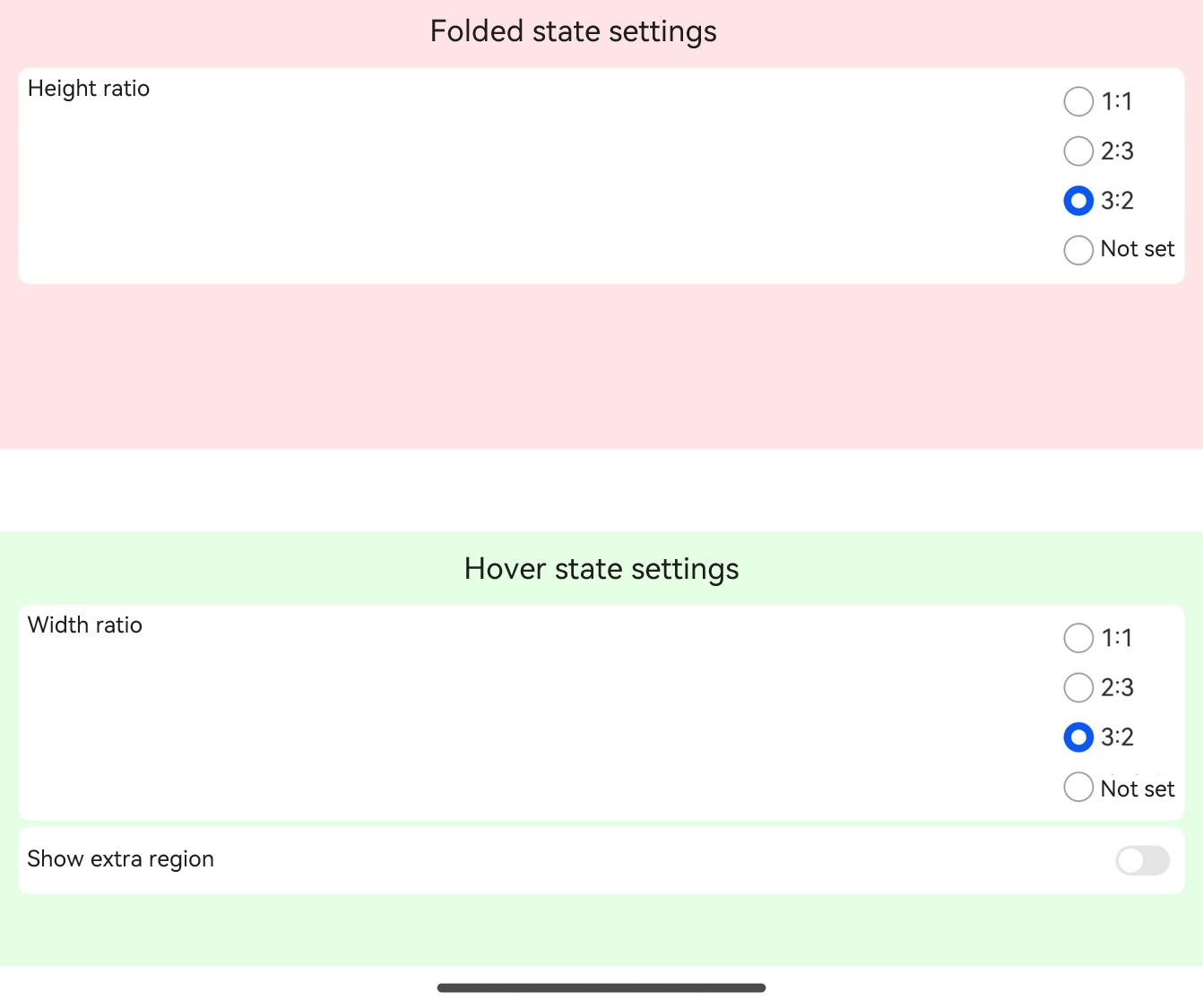

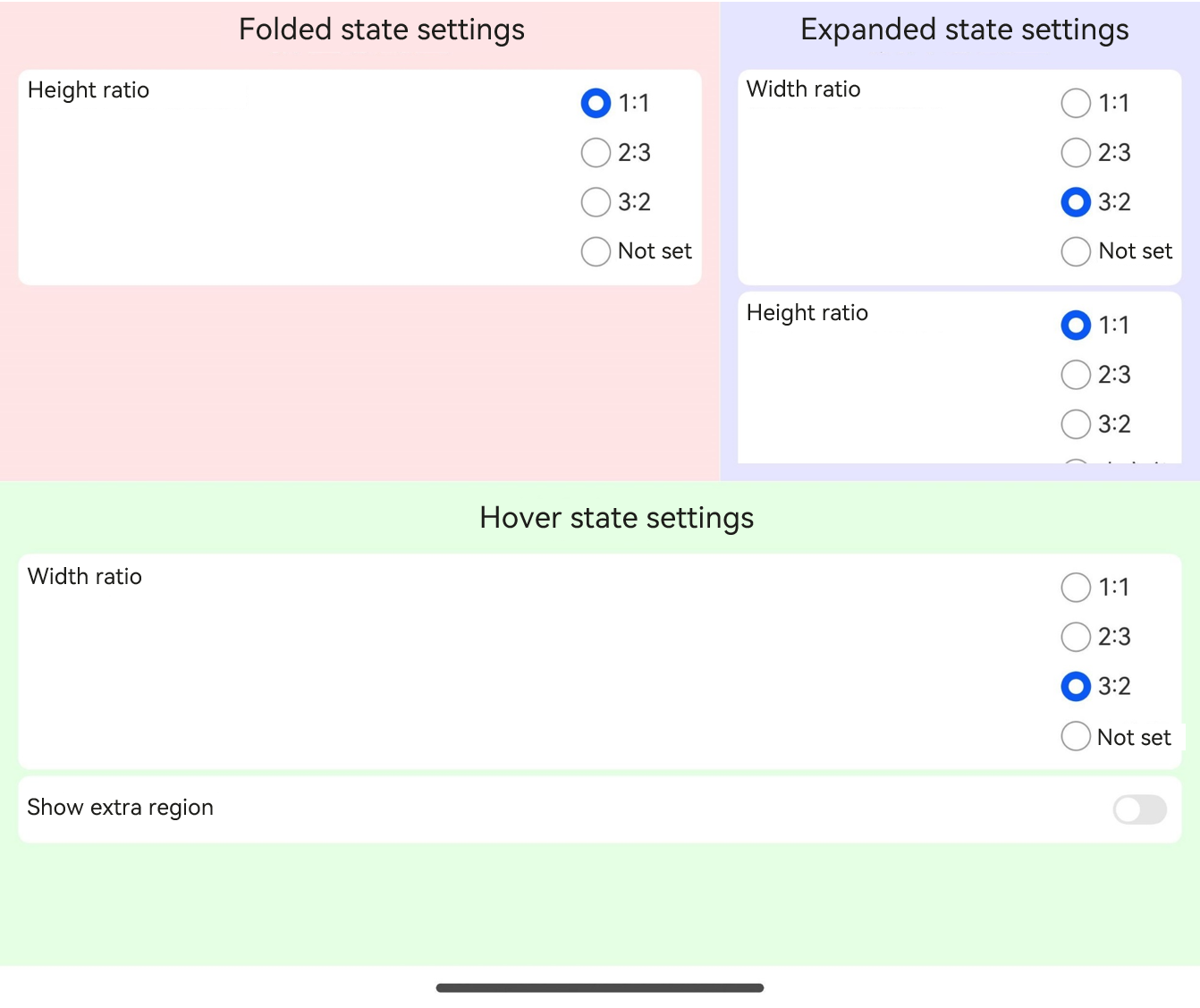

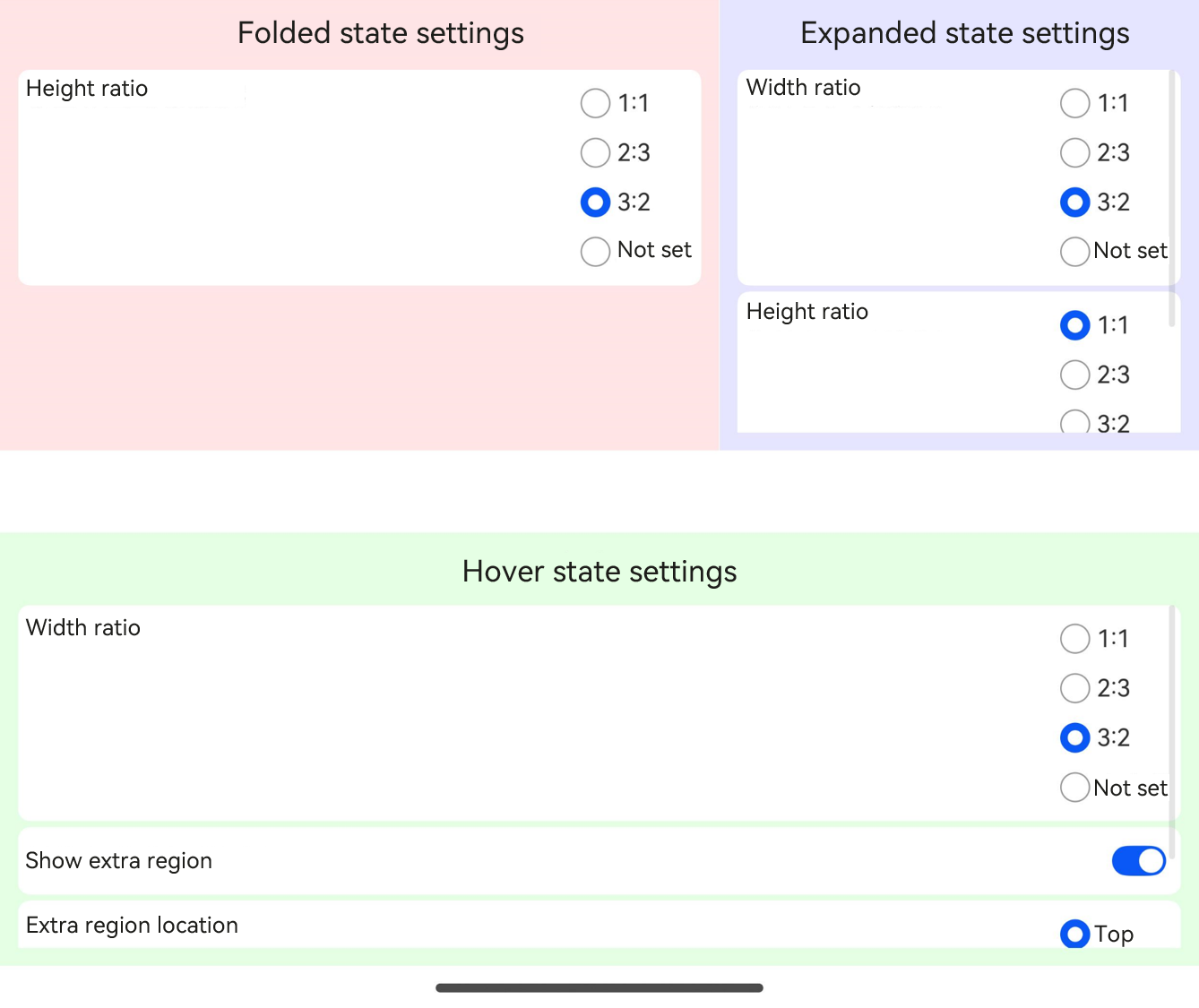

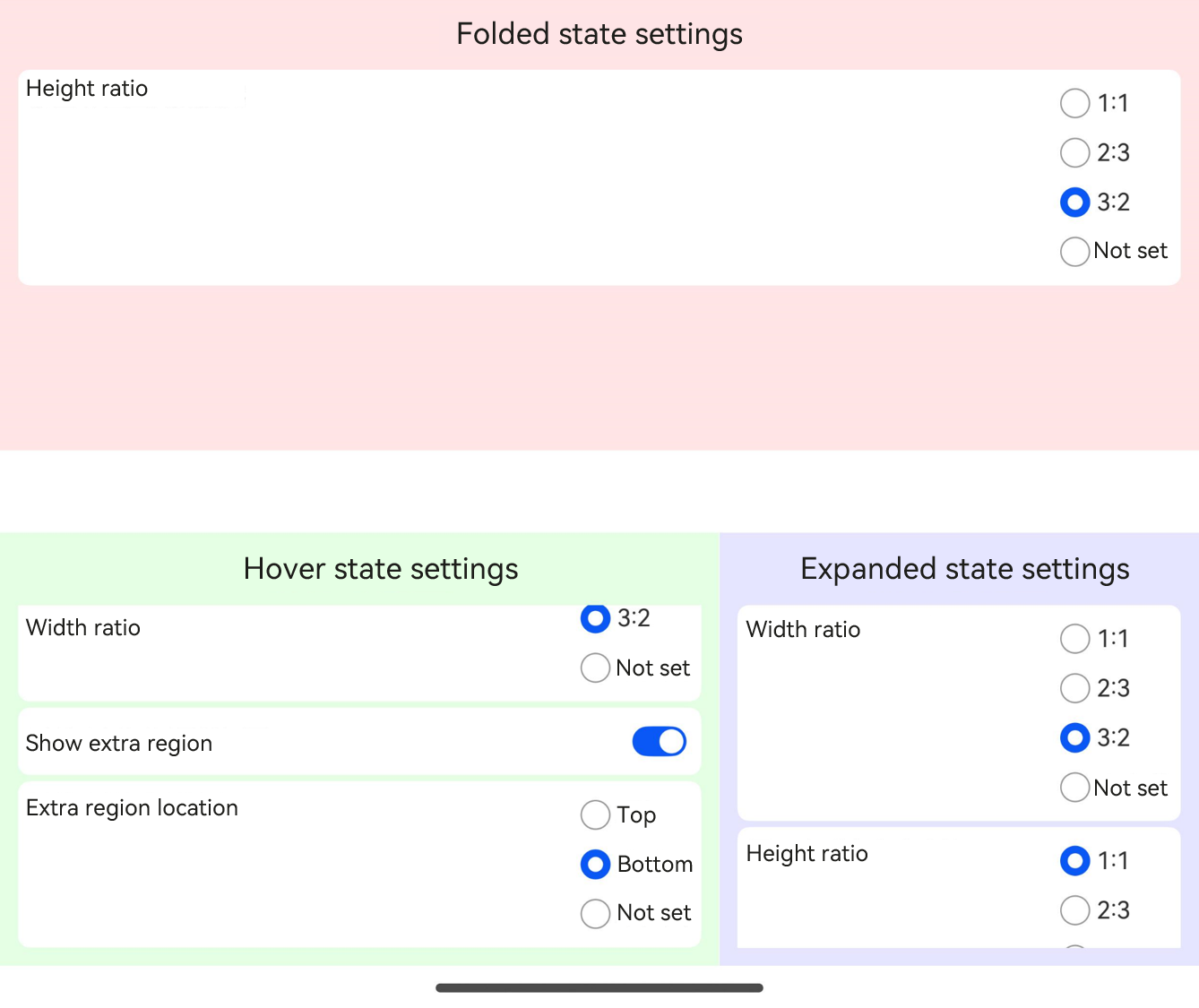

Example 3: Setting Layout Information in Expanded State

This example illustrates how to configure ExpandedRegionLayoutOptions to set the layout information for a foldable screen when it is in the expanded state.

import {
  FoldSplitContainer,
  PresetSplitRatio,
  ExtraRegionPosition,
  ExpandedRegionLayoutOptions,
  HoverModeRegionLayoutOptions,
  FoldedRegionLayoutOptions
} from '@kit.ArkUI';

@Component
struct Region {
  @Prop title: string;
  @BuilderParam content: () => void;
  @Prop compBackgroundColor: string;

  build() {
    Column({ space: 8 }) {
      Text(this.title)
        .fontSize("24fp")
        .fontWeight(600)

      Scroll() {
        this.content()
      }
      .layoutWeight(1)
      .width("100%")
    }
    .backgroundColor(this.compBackgroundColor)
    .width("100%")
    .height("100%")
    .padding(12)
  }
}

const noop = () => {
};

@Component
struct SwitchOption {
  @Prop label: string = ""
  @Prop value: boolean = false
  public onChange: (checked: boolean) => void = noop;

  build() {
    Row() {
      Text(this.label)
      Blank()
      Toggle({ type: ToggleType.Switch, isOn: this.value })
        .onChange((isOn) => {
          this.onChange(isOn);
        })
    }
    .backgroundColor(Color.White)
    .borderRadius(8)
    .padding(8)
    .width("100%")
  }
}

interface RadioOptions {
  label: string;
  value: Object|undefined|null;
  onChecked: () => void;
}

@Component
struct RadioOption {
  @Prop label: string;
  @Prop value: Object|undefined|null;
  @Prop options: Array<RadioOptions>;

  build() {
    Row() {
      Text(this.label)
      Blank()
      Column({ space: 4 }) {
        ForEach(this.options, (option: RadioOptions) => {
          Row() {
            Radio({
              group: this.label,
              value: JSON.stringify(option.value),
            })
              .checked(this.value === option.value)
              .onChange((checked) => {
                if (checked) {
                  option.onChecked();
                }
              })
            Text(option.label)
          }
        })
      }
      .alignItems(HorizontalAlign.Start)
    }
    .alignItems(VerticalAlign.Top)
    .backgroundColor(Color.White)
    .borderRadius(8)
    .padding(8)
    .width("100%")
  }
}

@Entry
@Component
struct Index {
  @State expandedRegionLayoutOptions: ExpandedRegionLayoutOptions = {
    horizontalSplitRatio: PresetSplitRatio.LAYOUT_3V2,
    verticalSplitRatio: PresetSplitRatio.LAYOUT_1V1,
    isExtraRegionPerpendicular: true,
    extraRegionPosition: ExtraRegionPosition.TOP
  };
  @State foldingRegionLayoutOptions: HoverModeRegionLayoutOptions = {
    horizontalSplitRatio: PresetSplitRatio.LAYOUT_3V2,
    showExtraRegion: false,
    extraRegionPosition: ExtraRegionPosition.TOP
  };
  @State foldedRegionLayoutOptions: FoldedRegionLayoutOptions = {
    verticalSplitRatio: PresetSplitRatio.LAYOUT_1V1
  };

  @Builder
  MajorRegion() {
    Region({
      title: "Folded state settings",
      compBackgroundColor: "rgba(255, 0, 0, 0.1)",
    }) {
      Column({ space: 4 }) {
        RadioOption({
          label: "Height ratio",
          value: this.foldedRegionLayoutOptions.verticalSplitRatio,
          options: [
            {
              label: "1:1",
              value: PresetSplitRatio.LAYOUT_1V1,
              onChecked: () => {
                this.foldedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_1V1
              }
            },
            {
              label: "2:3",
              value: PresetSplitRatio.LAYOUT_2V3,
              onChecked: () => {
                this.foldedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_2V3
              }
            },
            {
              label: "3:2",
              value: PresetSplitRatio.LAYOUT_3V2,
              onChecked: () => {
                this.foldedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_3V2
              }
            },
            {
              label: "Not set",
              value: undefined,
              onChecked: () => {
                this.foldedRegionLayoutOptions.verticalSplitRatio = undefined
              }
            }
          ]
        })
      }
      .constraintSize({ minHeight: "100%" })
    }
  }

  @Builder
  MinorRegion() {
    Region({
      title: "Hover state settings",
      compBackgroundColor: "rgba(0, 255, 0, 0.1)"
    }) {
      Column({ space: 4 }) {
        RadioOption({
          label: "Width ratio",
          value: this.foldingRegionLayoutOptions.horizontalSplitRatio,
          options: [
            {
              label: "1:1",
              value: PresetSplitRatio.LAYOUT_1V1,
              onChecked: () => {
                this.foldingRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_1V1
              }
            },
            {
              label: "2:3",
              value: PresetSplitRatio.LAYOUT_2V3,
              onChecked: () => {
                this.foldingRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_2V3
              }
            },
            {
              label: "3:2",
              value: PresetSplitRatio.LAYOUT_3V2,
              onChecked: () => {
                this.foldingRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_3V2
              }
            },
            {
              label: "Not set",
              value: undefined,
              onChecked: () => {
                this.foldingRegionLayoutOptions.horizontalSplitRatio = undefined
              }
            },
          ]
        })

        SwitchOption({
          label: "Show extra region",
          value: this.foldingRegionLayoutOptions.showExtraRegion,
          onChange: (checked) => {
            this.foldingRegionLayoutOptions.showExtraRegion = checked;
          }
        })

        if (this.foldingRegionLayoutOptions.showExtraRegion) {
          RadioOption({
            label: "Extra region location,"
            value: this.foldingRegionLayoutOptions.extraRegionPosition,
            options: [
              {
                label: "Top,"
                value: ExtraRegionPosition.TOP,
                onChecked: () => {
                  this.foldingRegionLayoutOptions.extraRegionPosition = ExtraRegionPosition.TOP
                }
              },
              {
                label: "Bottom,"
                value: ExtraRegionPosition.BOTTOM,
                onChecked: () => {
                  this.foldingRegionLayoutOptions.extraRegionPosition = ExtraRegionPosition.BOTTOM
                }
              },
              {
                label: "Not set",
                value: undefined,
                onChecked: () => {
                  this.foldingRegionLayoutOptions.extraRegionPosition = undefined
                }
              },
            ]
          })
        }
      }
      .constraintSize({ minHeight: "100%" })
    }
  }

  @Builder
  ExtraRegion() {
    Region({
      title: "Expanded state settings,"
      compBackgroundColor: "rgba(0, 0, 255, 0.1)"
    }) {
      Column({ space: 4 }) {
        RadioOption({
          label: "Width ratio,"
          value: this.expandedRegionLayoutOptions.horizontalSplitRatio,
          options: [
            {
              label: "1:1",
              value: PresetSplitRatio.LAYOUT_1V1,
              onChecked: () => {
                this.expandedRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_1V1
              }
            },
            {
              label: "2:3",
              value: PresetSplitRatio.LAYOUT_2V3,
              onChecked: () => {
                this.expandedRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_2V3
              }
            },
            {
              label: "3:2",
              value: PresetSplitRatio.LAYOUT_3V2,
              onChecked: () => {
                this.expandedRegionLayoutOptions.horizontalSplitRatio = PresetSplitRatio.LAYOUT_3V2
              }
            },
            {
              label: "Not set",
              value: undefined,
              onChecked: () => {
                this.expandedRegionLayoutOptions.horizontalSplitRatio = undefined
              }
            },
          ]
        })

        RadioOption({
          label: "Height ratio",
          value: this.expandedRegionLayoutOptions.verticalSplitRatio,
          options: [
            {
              label: "1:1",
              value: PresetSplitRatio.LAYOUT_1V1,
              onChecked: () => {
                this.expandedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_1V1
              }
            },
            {
              label: "2:3",
              value: PresetSplitRatio.LAYOUT_2V3,
              onChecked: () => {
                this.expandedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_2V3
              }
            },
            {
              label: "3:2",
              value: PresetSplitRatio.LAYOUT_3V2,
              onChecked: () => {
                this.expandedRegionLayoutOptions.verticalSplitRatio = PresetSplitRatio.LAYOUT_3V2
              }
            },
            {
              label: "Not set",
              value: undefined,
              onChecked: () => {
                this.expandedRegionLayoutOptions.verticalSplitRatio = undefined
              }
            }
          ]
        })

        SwitchOption({
          label: "Show extra region perpendicularly,"
          value: this.expandedRegionLayoutOptions.isExtraRegionPerpendicular,
          onChange: (checked) => {
            this.expandedRegionLayoutOptions.isExtraRegionPerpendicular = checked;
          }
        })

        if (!this.expandedRegionLayoutOptions.isExtraRegionPerpendicular) {
          RadioOption({
            label: "Extra region location,"
            value: this.expandedRegionLayoutOptions.extraRegionPosition,
            options: [
              {
                label: "Top,"
                value: ExtraRegionPosition.TOP,
                onChecked: () => {
                  this.expandedRegionLayoutOptions.extraRegionPosition = ExtraRegionPosition.TOP
                }
              },
              {
                label: "Bottom,"
                value: ExtraRegionPosition.BOTTOM,
                onChecked: () => {
                  this.expandedRegionLayoutOptions.extraRegionPosition = ExtraRegionPosition.BOTTOM
                }
              },
              {
                label: "Not set",
                value: undefined,
                onChecked: () => {
                  this.expandedRegionLayoutOptions.extraRegionPosition = undefined
                }
              },
            ]
          })
        }
      }
      .constraintSize({ minHeight: "100%" })
    }
  }

  build() {
    Column() {
      FoldSplitContainer({
        primary: () => {
          this.MajorRegion()
        },
        secondary: () => {
          this.MinorRegion()
        },
        extra: () => {
          this.ExtraRegion()
        },
        expandedLayoutOptions: this.expandedRegionLayoutOptions,
        hoverModeLayoutOptions: this.foldingRegionLayoutOptions,
        foldedLayoutOptions: this.foldedRegionLayoutOptions,
      })
    }
    .width("100%")
    .height("100%")
  }
}

Folded	Expanded	Hover

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
