CheckboxGroup

The CheckboxGroup component is used to select or deselect all check boxes in a group.

NOTE

This component is supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

Not supported

APIs

CheckboxGroup(options?: CheckboxGroupOptions)

Creates a check box group so that you can select or deselect all check boxes in the group at once. Check boxes and check box groups that share the same group name belong to the same group.

When this API is used with components that come with a pre-loading mechanism, such as the List component, those check boxes that have not been created yet need to be manually selected or unselected.

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
options CheckboxGroupOptions No Check box group parameters.

CheckboxGroupOptions

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Mandatory Description
group string No Group name.
NOTE
If there are multiple check box groups with the same group name, only the first check box group takes effect.

Attributes

In addition to the universal attributes, the following attributes are supported.

selectAll

selectAll(value: boolean)

Sets whether to select all. If the select attribute is set for a Checkbox component in the same group, the setting of the Checkbox has a higher priority.

Since API version 10, this attribute supports two-way binding through $$. Since API version 18, this attribute supports two-way binding through !!.

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value boolean Yes Whether to select all.
Default value: false
true: Select all check boxes in the group. false: Do not select any check box in the group.

selectAll18+

selectAll(isAllSelected: Optional<boolean>)

Sets whether to select all. If the select attribute is set for a Checkbox component in the same group, the setting of the Checkbox has a higher priority. Compared to selectAll, this API supports the undefined type for the isAllSelected parameter.

This attribute supports two-way binding through $$ or !!.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
isAllSelected Optional<boolean> Yes Whether to select all.
If isAllSelected is set to undefined, the default value false is used.
true: Select all check boxes in the group. false: Do not select any check box in the group.

selectedColor

selectedColor(value: ResourceColor)

Sets the color of the selected check box.

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value ResourceColor Yes Color of the selected check box.
Default value: $r(‘sys.color.ohos_id_color_text_primary_activated’)
An invalid value is handled as the default value.

selectedColor18+

selectedColor(resColor: Optional<ResourceColor>)

Sets the color of the selected check box. Compared to selectedColor, this API supports the undefined type for the resColor parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
resColor Optional<ResourceColor> Yes Color of the selected check box.
If resColor is set to undefined, the default value $r(‘sys.color.ohos_id_color_text_primary_activated’) is used.
An invalid value is handled as the default value.

unselectedColor10+

unselectedColor(value: ResourceColor)

Sets the border color of the check box when it is not selected.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value ResourceColor Yes Border color of the check box when it is not selected.
Default value: $r(‘sys.color.ohos_id_color_switch_outline_off’)

unselectedColor18+

unselectedColor(resColor: Optional<ResourceColor>)

Sets the border color of the check box when it is not selected. Compared to unselectedColor10+, this API supports the undefined type for the resColor parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
resColor Optional<ResourceColor> Yes Border color of the check box when it is not selected.
If resColor is set to undefined, the default value $r(‘sys.color.ohos_id_color_switch_outline_off’) is used.

mark10+

mark(value: MarkStyle)

Sets the check mark style of the check box.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value MarkStyle Yes Check mark style of the check box.

mark18+

mark(style: Optional<MarkStyle>)

Sets the check mark style of the check box. Compared to mark10+, this API supports the undefined type for the style parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
style Optional<MarkStyle> Yes Check mark style of the check box.
If style is set to undefined, the previous value is retained.

checkboxShape12+

checkboxShape(value: CheckBoxShape)

Sets the check box shape of the check box group.

Widget capability: This API can be used in ArkTS widgets since API version 12.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value CheckBoxShape Yes Check box shape of the check box group.
Default value: CheckBoxShape.CIRCLE
NOTE
The shape of the check box group component follows the settings configured.
All check boxes within the check box group that do not have an individual shape set will conform to the shape of the check box group.
If a check box within the check box group has an individual shape set, that shape takes precedence over the check box group’s shape.

checkboxShape18+

checkboxShape(shape: Optional<CheckBoxShape>)

Sets the check box shape of the check box group. Compared to checkboxShape12+, this API supports the undefined type for the shape parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
shape Optional<CheckBoxShape> Yes Check box shape of the check box group.
If shape is set to undefined, the default value CheckBoxShape.CIRCLE is used.
NOTE
The shape of the check box group component follows the settings configured.
All check boxes within the check box group that do not have an individual shape set will conform to the shape of the check box group.
If a check box within the check box group has an individual shape set, that shape takes precedence over the check box group’s shape.

Events

In addition to the universal events, the following events are supported.

onChange

onChange(callback: OnCheckboxGroupChangeCallback)

Triggered when the selected status of the check box group or any check box wherein changes.

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
callback OnCheckboxGroupChangeCallback Yes Information about the check box group.

onChange18+

onChange(callback: Optional<OnCheckboxGroupChangeCallback>)

Triggered when the selected status of the check box group or any check box wherein changes. Compared to onChange, this API supports the undefined type for the callback parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
callback Optional<OnCheckboxGroupChangeCallback> Yes Information about the check box group.
If callback is set to undefined, the callback function is not used.

OnCheckboxGroupChangeCallback18+

type OnCheckboxGroupChangeCallback = (value: CheckboxGroupResult) => void

Information about the check box group.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name Type Mandatory Description
value CheckboxGroupResult Yes Information about the check box group.

CheckboxGroupResult

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Type Read Only Optional Description
name Array&lt;string&gt; No No Names of all the selected check boxes in the group.
status SelectStatus No No Selected status.

SelectStatus

Widget capability: Since API version 9, this feature is supported in ArkTS widgets.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name Description
All All check boxes in the group are selected.
Part Some check boxes in the group are selected.
None None of the check boxes in the group are selected.

Example

Example 1: Setting a Check Box Group

This example demonstrates how to control the state of a group of check boxes to achieve a “select all” or “deselect all” effect.

// xxx.ets
@Entry
@Component
struct CheckboxExample {
  build() {
    Scroll() {
      Column() {
        // Select All button
        Flex({ justifyContent: FlexAlign.Start, alignItems: ItemAlign.Center }) {
          CheckboxGroup({ group: 'checkboxGroup' })
            .checkboxShape(CheckBoxShape.ROUNDED_SQUARE)
            .selectedColor('#007DFF')
            .onChange((itemName: CheckboxGroupResult) => {
              console.info("checkbox group content" + JSON.stringify(itemName))
            })
          Text('Select All').fontSize(14).lineHeight(20).fontColor('#182431').fontWeight(500)
        }

        // Option 1
        Flex({ justifyContent: FlexAlign.Start, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox1', group: 'checkboxGroup' })
            .selectedColor('#007DFF')
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox1 change is' + value)
            })
          Text('Checkbox1').fontSize(14).lineHeight(20).fontColor('#182431').fontWeight(500)
        }.margin({ left: 36 })

        // Option 2
        Flex({ justifyContent: FlexAlign.Start, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox2', group: 'checkboxGroup' })
            .selectedColor('#007DFF')
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox2 change is' + value)
            })
          Text('Checkbox2').fontSize(14).lineHeight(20).fontColor('#182431').fontWeight(500)
        }.margin({ left: 36 })

        // Option 3
        Flex({ justifyContent: FlexAlign.Start, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox3', group: 'checkboxGroup' })
            .selectedColor('#007DFF')
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox3 change is' + value)
            })
          Text('Checkbox3').fontSize(14).lineHeight(20).fontColor('#182431').fontWeight(500)
        }.margin({ left: 36 })
      }
    }
  }
}

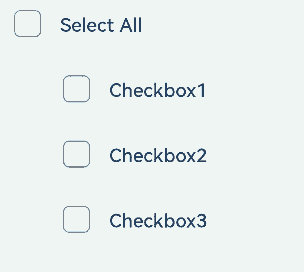

checkboxGroup

Example 2: Customizing Check Mark Style

This example shows how to customize the check mark style for a check box group by configuring the mark attribute.

// xxx.ets
@Entry
@Component
struct Index {

  build() {
    Row() {
      Column() {
        Flex({ justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
          CheckboxGroup({ group: 'checkboxGroup' })
            .checkboxShape(CheckBoxShape.ROUNDED_SQUARE)
            .selectedColor(Color.Orange)
            .onChange((itemName: CheckboxGroupResult) => {
              console.info("checkbox group content" + JSON.stringify(itemName))
            })
            .mark({
              strokeColor:Color.Black,
              size: 40,
              strokeWidth: 5
            })
            .unselectedColor(Color.Red)
            .width(30)
            .height(30)
          Text('Select All').fontSize(20)
        }.margin({right:15})
        Flex({ justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox1', group: 'checkboxGroup' })
            .selectedColor(0x39a2db)
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox1 change is'+ value)
            })
            .mark({
              strokeColor:Color.Black,
              size: 50,
              strokeWidth: 5
            })
            .unselectedColor(Color.Red)
            .width(30)
            .height(30)
          Text('Checkbox1').fontSize(20)
        }
        Flex({ justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox2', group: 'checkboxGroup' })
            .selectedColor(0x39a2db)
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox2 change is' + value)
            })
            .width(30)
            .height(30)
          Text('Checkbox2').fontSize(20)
        }
        Flex({ justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
          Checkbox({ name: 'checkbox3', group: 'checkboxGroup' })
            .selectedColor(0x39a2db)
            .shape(CheckBoxShape.ROUNDED_SQUARE)
            .onChange((value: boolean) => {
              console.info('Checkbox3 change is' + value)
            })
            .width(30)
            .height(30)
          Text('Checkbox3').fontSize(20)
        }
      }
      .width('100%')
    }
    .height('100%')
  }
}

checkboxGroup

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://m.seaxiang.com/blog/TtExtx
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
