Rating

The Rating component provides a rating bar.

NOTE

This component is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

Not supported

APIs

Rating(options?: RatingOptions)

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Attributes

stars

stars(value: number)

Sets the total number of ratings (stars). If the value set is less than or equal to 0, the default value is used.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

stars¹⁸⁺

stars(starCount: Optional<number>)

Sets the total number of ratings (stars). If the value set is less than or equal to 0, the default value is used. Compared to stars, this API supports the undefined type for the starCount parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

stepSize

stepSize(value: number)

Sets the step for rating. A value less than 0.1 evaluates to the default value.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

stepSize¹⁸⁺

stepSize(size: Optional<number>)

Sets the step for rating. A value less than 0.1 evaluates to the default value. Compared to stepSize, this API supports the undefined type for the size parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

starStyle

starStyle(options: StarStyleOptions)

Sets the star style. For details about the supported image types, see Image.

Local and online images are supported, but not PixelMap and Resource objects.

By default, the image is loaded in asynchronous mode. Synchronous loading is not supported.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

starStyle¹⁸⁺

starStyle(options: Optional<StarStyleOptions>)

Sets the star style. For details about the supported image types, see Image.

Local and online images are supported, but not PixelMap and Resource objects.

By default, the image is loaded in asynchronous mode. Synchronous loading is not supported.

Compared to starStyle, this API supports the undefined type for the options parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NOTE

The drawing area of each rating image is [width/stars, height], wherein width and height indicate the width and height of the Rating component, respectively.

To specify the drawing area as a square, you are advised to customize the width and height in this format: [height * stars, height], width = height * stars.

contentModifier¹²⁺

contentModifier(modifier: ContentModifier<RatingConfiguration>)

Creates a content modifier.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

contentModifier¹⁸⁺

contentModifier(modifier: Optional>)

Creates a content modifier. Compared to contentModifier, this API supports the undefined type for the modifier parameter.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Events

onChange

onChange(callback:(value: number) =&gt; void)

Triggered when the rating value changes.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

onChange¹⁸⁺

onChange(callback:Optional<OnRatingChangeCallback>)

Triggered when the rating value changes. Compared to onChange, this API supports the undefined type for the callback parameter.

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

OnRatingChangeCallback¹⁸⁺

type OnRatingChangeCallback = (rating: number) => void

Triggered when the rating value changes.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Sequential Keyboard Navigation Specifications

RatingConfiguration¹²⁺

You need a custom class to implement the ContentModifier API.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

RatingOptions¹⁸⁺

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

StarStyleOptions¹⁸⁺

Widget capability: This API can be used in ArkTS widgets since API version 18.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

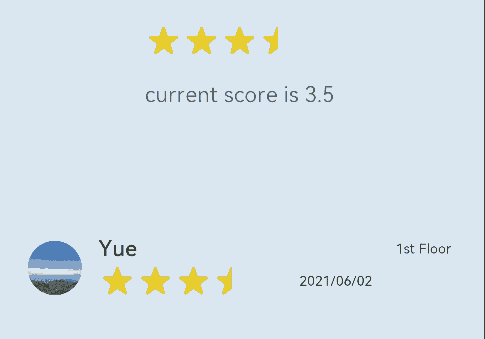

Example 1: Setting the Default Rating Style

This example demonstrates how to set the default star rating style.

// xxx.ets
@Entry
@Component
struct RatingExample {
  @State rating: number = 3.5

  build() {
    Column() {
      Column() {
        Rating({ rating: this.rating, indicator: false })
          .stars(5)
          .stepSize(0.5)
          .margin({ top: 24 })
          .onChange((value: number) => {
            this.rating = value
          })
        Text('current score is ' + this.rating)
          .fontSize(16)
          .fontColor('rgba(24,36,49,0.60)')
          .margin({ top: 16 })
      }.width(360).height(113).backgroundColor('#FFFFFF').margin({ top: 68 })

      Row() {
        Image('common/testImage.jpg')
          .width(40)
          .height(40)
          .borderRadius(20)
          .margin({ left: 24 })
        Column() {
          Text('Yue')
            .fontSize(16)
            .fontColor('#182431')
            .fontWeight(500)
          Row() {
            Rating({ rating: 3.5, indicator: false }).margin({ top: 1, right: 8 })
            Text('2021/06/02')
              .fontSize(10)
              .fontColor('#182431')
          }
        }.margin({ left: 12 }).alignItems(HorizontalAlign.Start)

        Text('1st Floor')
          .fontSize(10)
          .fontColor('#182431')
          .position({ x: 295, y: 8 })
      }.width(360).height(56).backgroundColor('#FFFFFF').margin({ top: 64 })
    }.width('100%').height('100%').backgroundColor('#F1F3F5')
  }
}

Example 2: Customizing the Rating Style

This example demonstrates how to configure starStyle to use custom image links for stars.

// xxx.ets
@Entry
@Component
struct RatingExample {
  @State rating: number = 3.5

  build() {
    Column() {
      Rating({ rating: this.rating, indicator: false })
        .stars(5)
        .stepSize(0.5)
        .starStyle({
          backgroundUri: '/common/imag1.png', // The common folder is at the same level as pages.
          foregroundUri: '/common/imag2.png',
          secondaryUri: '/common/imag3.png'
        })
        .margin({ top: 24 })
        .onChange((value: number) => {
          this.rating = value
        })
      Text('current score is ' + this.rating)
        .fontSize(16)
        .fontColor('rgba(24,36,49,0.60)')
        .margin({ top: 16 })
    }.width('100%').height('100%').backgroundColor('#F1F3F5')
  }
}

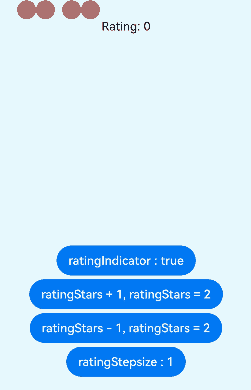

Example 3: Implementing a Custom Rating Bar

This example implements a custom rating bar, with each circle representing 0.5 point. If ratingIndicator is set to true, the rating bar is used only as an indicator, and the rating cannot be changed. if it is set to false, the rating can be changed. ratingStars sets the rating value. ratingStepsize sets the step for rating.

// xxx.ets
class MyRatingStyle implements ContentModifier<RatingConfiguration> {
  name: string = ""
  style: number = 0
  constructor(value1: string, value2: number) {
    this.name = value1
    this.style = value2
  }
  applyContent() : WrappedBuilder<[RatingConfiguration]> {
    return wrapBuilder(buildRating)
  }
}

@Builder function buildRating(config: RatingConfiguration) {
  Column() {
    Row() {
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 0.4 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            if (config.stepSize = 0.5) {
              config.triggerChange(0.5);
              return
            }
            if (config.stepSize = 1) {
              config.triggerChange(1);
              return
            }
          }
        }).visibility(config.stars >= 1 ? Visibility.Visible : Visibility.Hidden)
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 0.9 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            config.triggerChange(1);
          }
        }).visibility(config.stars >= 1 ? Visibility.Visible : Visibility.Hidden)
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 1.4 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            if (config.stepSize = 0.5) {
              config.triggerChange(1.5);
              return
            }
            if (config.stepSize = 1) {
              config.triggerChange(2);
              return
            }
          }
        }).visibility(config.stars >= 2 ? Visibility.Visible : Visibility.Hidden).margin({left:10})
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 1.9 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            config.triggerChange(2);
          }
        }).visibility(config.stars >= 2 ? Visibility.Visible : Visibility.Hidden)
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 2.4 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            if (config.stepSize = 0.5) {
              config.triggerChange(2.5);
              return
            }
            if (config.stepSize = 1) {
              config.triggerChange(3);
              return
            }
          }
        }).visibility(config.stars >= 3 ? Visibility.Visible : Visibility.Hidden).margin({left:10})
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 2.9 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            config.triggerChange(3);
          }
        }).visibility(config.stars >= 3 ? Visibility.Visible : Visibility.Hidden)
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 3.4 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            if (config.stepSize = 0.5) {
              config.triggerChange(3.5);
              return
            }
            if (config.stepSize = 1) {
              config.triggerChange(4);
              return
            }
          }
        }).visibility(config.stars >= 4 ? Visibility.Visible : Visibility.Hidden).margin({left:10})
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 3.9 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            config.triggerChange(4);
          }
        }).visibility(config.stars >= 4 ? Visibility.Visible : Visibility.Hidden)
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 4.4 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            if (config.stepSize = 0.5) {
              config.triggerChange(4.5);
              return
            }
            if (config.stepSize = 1) {
              config.triggerChange(5);
              return
            }
          }
        }).visibility(config.stars >= 5 ? Visibility.Visible : Visibility.Hidden).margin({left:10})
      Circle({ width: 25, height: 25 })
        .fill(config.rating >= 4.9 ? Color.Black : Color.Red)
        .onClick((event: ClickEvent) => {
          if (!config.indicator) {
            config.triggerChange(5);
          }
        }).visibility(config.stars >= 5 ? Visibility.Visible : Visibility.Hidden)
    }
    Text("Rating: "+ config.rating)
  }
}

@Entry
@Component
struct ratingExample {
  @State rating: number = 0;
  @State ratingIndicator: boolean = true;
  @State ratingStars: number = 0;
  @State ratingStepsize: number = 0.5;
  @State ratingEnabled: boolean = true;
  build() {
    Row() {
      Column() {
        Rating({
          rating: 0,
          indicator: this.ratingIndicator
        })
          .stepSize(this.ratingStepsize)
          .stars(this.ratingStars)
          .backgroundColor(Color.Transparent)
          .width('100%')
          .height(50)
          .onChange((value: number) => {
            console.info('Rating change is'+ value);
            this.rating = value
          })
          .contentModifier(new MyRatingStyle("hello", 3))
        Button(this.ratingIndicator ? "ratingIndicator : true" : "ratingIndicator : false")
          .onClick((event) => {
            if (this.ratingIndicator) {
              this.ratingIndicator = false
            } else {
              this.ratingIndicator = true
            }
          }).margin({top : 5})

        Button(this.ratingStars < 5 ? "ratingStars + 1, ratingStars = " + this.ratingStars : "Maximum value of ratingStars: 5")
          .onClick((event) => {
            if (this.ratingStars < 5) {
              this.ratingStars += 1
            }
          }).margin({top : 5})

        Button(this.ratingStars > 0 ? "ratingStars - 1, ratingStars = " + this.ratingStars : "Values less than or equal to 0 are handled as 5")
          .onClick((event) => {
            if (this.ratingStars > 0) {
              this.ratingStars -= 1
            }
          }).margin({top : 5})

        Button(this.ratingStepsize == 0.5 ? "ratingStepsize : 0.5" : "ratingStepsize : 1")
          .onClick((event) => {
            if (this.ratingStepsize == 0.5) {
              this.ratingStepsize = 1
            } else {
              this.ratingStepsize = 0.5
            }
          }).margin({top : 5})
      }
      .width('100%')
      .height('100%')
      .justifyContent(FlexAlign.Center)
    }
    .height('100%')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
