Popup

The Popup component is used to display popups in a specific style.

NOTE

This component is supported since API version 11. Updates will be marked with a superscript to indicate their earliest API version.

Use this component with the custom popup features in popup control for best results.

Modules to Import

import { Popup, PopupOptions, PopupTextOptions, PopupButtonOptions, PopupIconOptions } from '@kit.ArkUI';

Child Components

Not supported

Popup

Popup(options: PopupOptions): void

Decorator: @Builder

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
options	PopupOptions	Yes	Parameters of the popup.

PopupOptions

Defines the style parameters of the popup.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
icon	PopupIconOptions	No	Icon of the popup. NOTE The icon is not displayed when size is set to an invalid value or 0. Atomic service API: This API can be used in atomic services since API version 12.
title	PopupTextOptions	No	Title of the popup. Atomic service API: This API can be used in atomic services since API version 12.
message	PopupTextOptions	Yes	Content of the popup. NOTE fontWeight is not available for messages. Atomic service API: This API can be used in atomic services since API version 12.
showClose	boolean \|Resource	No	Whether to show the close button. Default value: true Atomic service API: This API can be used in atomic services since API version 12.
onClose	() => void	No	Callback for the popup close button. Atomic service API: This API can be used in atomic services since API version 12.
buttons	[PopupButtonOptions?,PopupButtonOptions?]	No	Buttons of the popup. A maximum of two buttons can be set. Atomic service API: This API can be used in atomic services since API version 12.
direction¹²⁺	Direction	No	Layout direction. Default value: Direction.Auto Atomic service API: This API can be used in atomic services since API version 12.
maxWidth¹⁸⁺	Dimension	No	Maximum width of the popup. This API allows you to display the popup with a custom width. Default value: 400 vp Atomic service API: This API can be used in atomic services since API version 18.

PopupTextOptions

Defines the text parameters of the popup.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
text	ResourceStr	Yes	Text content.
fontSize	number \|string \|Resource	No	Text font size. Default value: $r(‘sys.float.ohos_id_text_size_body2’) The string value must be convertible to a number (for example, ‘10’) or include a length unit (for example, ‘10px’); percentage-based strings are not supported. Value range of number values: (0, +∞)
fontColor	ResourceColor	No	Text font color. Default value: $r(‘sys.color.ohos_id_color_text_secondary’)
fontWeight	number \|FontWeight \|string	No	Text font weight. For the number type, the value ranges from 100 to 900, at an interval of 100. A larger value indicates a heavier font weight. The default value is 400. For the string type, only strings of the number type are supported, for example, “400”, “bold”, “bolder”, “lighter”, “regular”, and “medium”, which correspond to the enumerated values in FontWeight. Default value: FontWeight.Regular

PopupButtonOptions

Defines the button attributes and events.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
text	ResourceStr	Yes	Text of the button.
action	() => void	No	Click callback of the button.
fontSize	number \|string \|Resource	No	Font size of the button text. Default value: $r(‘sys.float.ohos_id_text_size_button2’)
fontColor	ResourceColor	No	Font color of the button text. Default value: $r(‘sys.color.ohos_id_color_text_primary_activated’)

PopupIconOptions

Defines the attributes of the icon (in the upper left corner).

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
image	ResourceStr	Yes	Icon content.
width	Dimension	No	Icon width. Default value: 32VP
height	Dimension	No	Icon height. Default value: 32VP
fillColor	ResourceColor	No	Icon fill color. NOTE This property applies only to an SVG image.
borderRadius	Length \|BorderRadiuses	No	Rounded corner of the icon. Default value: $r(‘sys.float.ohos_id_corner_radius_default_s’)

Example

Example 1: Setting the Popup Style

This example demonstrates how to customize the style of a popup by configuring PopupIconOptions, PopupTextOptions, and PopupButtonOptions.

// xxx.ets
import { Popup, PopupTextOptions, PopupButtonOptions, PopupIconOptions } from '@kit.ArkUI';

@Entry
@Component
struct PopupExample {

  build() {
    Row() {
      // Define a popup.
      Popup({
        // Set the icon through PopupIconOptions.
        icon: {
          image: $r('app.media.icon'),
          width:32,
          height:32,
          fillColor:Color.White,
          borderRadius: 16
        } as PopupIconOptions,
        // Set the text through PopupTextOptions.
        title: {
          text: 'This is a popup with PopupOptions',
          fontSize: 20,
          fontColor: Color.Black,
          fontWeight: FontWeight.Normal
        } as PopupTextOptions,
        // Set the text through PopupTextOptions.
        message: {
          text: 'This is the message',
          fontSize: 15,
          fontColor: Color.Black
        } as PopupTextOptions,
        showClose: false,
        onClose: () => {
          console.info('close Button click')
        },
        // Set the button through PopupButtonOptions.
        buttons: [{
          text: 'confirm',
          action: () => {
            console.info('confirm button click')
          },
          fontSize: 15,
          fontColor: Color.Black,
        },
          {
            text: 'cancel',
            action: () => {
              console.info('cancel button click')
            },
            fontSize: 15,
            fontColor: Color.Black
          },] as [PopupButtonOptions?, PopupButtonOptions?]
      })
    }
    .width(300)
    .height(200)
    .borderWidth(2)
    .justifyContent(FlexAlign.Center)
  }
}

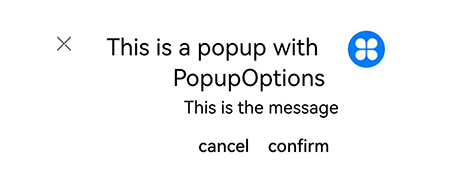

Example 2: Implementing a Mirror Effect

This example shows how to achieve a mirror effect for a popup by configuring direction.

// xxx.ets
import { Popup, PopupTextOptions, PopupButtonOptions, PopupIconOptions } from '@kit.ArkUI'

@Entry
@Component
struct PopupPage {
  @State currentDirection: Direction = Direction.Rtl

  build() {
    Column() {
      // Define a popup.
      Popup({
        // Set the icon through PopupIconOptions.
        direction: this.currentDirection,
        icon: {
          image: $r('app.media.icon'),
          width: 32,
          height: 32,
          fillColor: Color.White,
          borderRadius: 16,
        } as PopupIconOptions,
        // Set the text through PopupTextOptions.
        title: {
          text: 'This is a popup with PopupOptions',
          fontSize: 20,
          fontColor: Color.Black,
          fontWeight: FontWeight.Normal,

        } as PopupTextOptions,
        // Set the text through PopupTextOptions.
        message: {
          text: 'This is the message',
          fontSize: 15,
          fontColor: Color.Black,
        } as PopupTextOptions,
        showClose: true,
        onClose: () => {
          console.info('close Button click')
        },
        // Set the button through PopupButtonOptions.
        buttons: [{
          text: 'confirm',
          action: () => {
            console.info('confirm button click')
          },
          fontSize: 15,
          fontColor: Color.Black,

        },
          {
            text: 'cancel',
            action: () => {
              console.info('cancel button click')
            },
            fontSize: 15,
            fontColor: Color.Black,
          },] as [PopupButtonOptions?, PopupButtonOptions?],
      })

    }
    .justifyContent(FlexAlign.Center)
    .width('100%')
    .height('100%')
  }
}

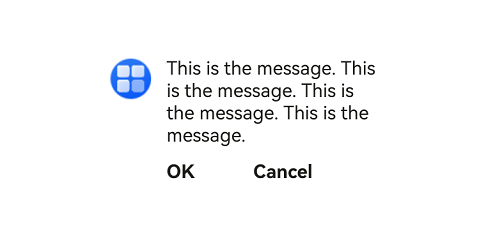

Example 3: Setting the Custom Width

This example demonstrates how to set the custom width for a popup using maxWidth.

// xxx.ets
import { Popup, PopupTextOptions, PopupButtonOptions, PopupIconOptions } from '@kit.ArkUI'

@Entry
@Component
struct PopupPage {
  @State currentDirection: Direction = Direction.Rtl

  build() {
     Row() {
       // Define a popup.
       Popup({
         // Set the custom width.
         maxWidth:'50%',
         // Set the icon through PopupIconOptions.
         icon: {
           image: $r('app.media.startIcon'),
           width: 32,
           height: 32,
           fillColor: Color.White,
           borderRadius: 16,
         } as PopupIconOptions,
         // Set the text through PopupTextOptions.
         message: {
           text: 'This is the message. This is the message. This is the message. This is the message.',
           fontSize: 15,
           fontColor: Color.Black
         } as PopupTextOptions,
         showClose: false,
         onClose: () => {
           console.info('close Button click')
         },
         // Set the button through PopupButtonOptions.
         buttons: [{
           text: 'OK',
           action: () => {
             console.info('confirm button click')
           },
           fontSize: 15,
           fontColor: Color.Black,
         },
           {
             text: 'Cancel',
             action: () => {
               console.info('cancel button click')
             },
             fontSize: 15,
             fontColor: Color.Black
           },] as [PopupButtonOptions?, PopupButtonOptions?]
       })
     }
     .width(400)
     .height(200)
     .borderWidth(2)
     .justifyContent(FlexAlign.Center)
   }
}
