NavRouter

The NavRouter component provides default processing logic for responding to clicks, eliminating the need for manual logic definition.

NOTE

This component is deprecated since API version 13. You are advised to use NavPathStack in conjunction with the navDestination attribute for page routing.

This component is supported since API version 9. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

This component must contain two child components, the second of which must be NavDestination.

NOTE

1. If there is only one child component, the navigation to the NavDestination component does not work.
2. If there is only the NavDestination child component, the navigation does not work.
3. If there are more than two child components, the excess child components are not displayed.
4. If the second child component is not NavDestination, the navigation does not work.

APIs

NavRouter

NavRouter()

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NavRouter¹⁰⁺

NavRouter(value: RouteInfo)

Provides route information so that clicking the NavRouter component redirects the user to the specified navigation destination page.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Attributes

In addition to the universal attributes, the following attributes are supported.

mode¹⁰⁺

mode(mode: NavRouteMode)

Sets the route mode used for redirecting the user from the NavRouter component to the specified navigation destination page.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

RouteInfo¹⁰⁺

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NavRouteMode¹⁰⁺

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Events

onStateChange

onStateChange(callback: (isActivated: boolean) => void)

Called when the component activation status changes. onStateChange(true) is called when the NavRouter component is activated and its NavDestination child component is loaded. onStateChange(false) is called when the NavDestination child component is not displayed.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

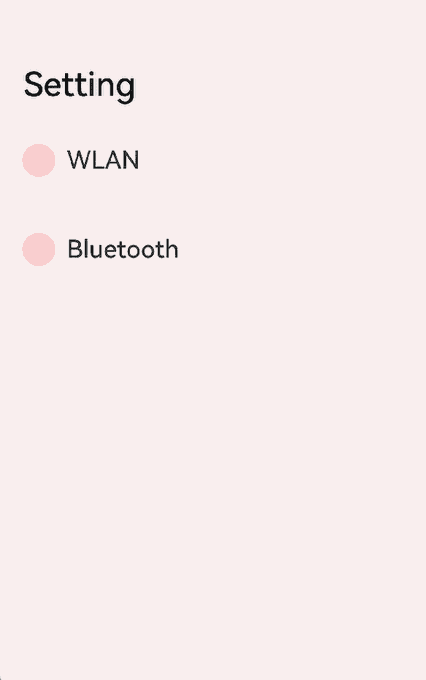

Example

// xxx.ets
@Entry
@Component
struct NavRouterExample {
  @State isActiveWLAN: boolean = false
  @State isActiveBluetooth: boolean = false

  build() {
    Navigation() {
      NavRouter() {
        Row() {
          Row()
            .width(30)
            .height(30)
            .borderRadius(30)
            .margin({ left: 3, right: 10 })
            .backgroundColor(Color.Pink)
          Text(`WLAN`)
            .fontSize(22)
            .fontWeight(500)
            .textAlign(TextAlign.Center)
        }
        .width('90%')
        .height(60)

        NavDestination() {
          Flex({ direction: FlexDirection.Row }) {
            Text('No WLAN available.').fontSize(30).padding({ left: 15 })
          }
        }.title("WLAN")
      }
      .margin({ top: 10, bottom: 10 })
      .backgroundColor(this.isActiveWLAN ? '#ccc' : '#fff')
      .borderRadius(20)
      .mode(NavRouteMode.PUSH_WITH_RECREATE)
      .onStateChange((isActivated: boolean) => {
        this.isActiveWLAN = isActivated
      })

      NavRouter() {
        Row() {
          Row()
            .width(30)
            .height(30)
            .borderRadius(30)
            .margin({ left: 3, right: 10 })
            .backgroundColor(Color.Pink)
          Text(`Bluetooth`)
            .fontSize(22)
            .fontWeight(500)
            .textAlign(TextAlign.Center)
        }
        .width('90%')
        .height(60)

        NavDestination() {
          Flex({ direction: FlexDirection.Row }) {
            Text('No Bluetooth device available.').fontSize(30).padding({ left: 15 })
          }
        }.title("Bluetooth")
      }
      .margin({ top: 10, bottom: 10 })
      .backgroundColor(this.isActiveBluetooth ? '#ccc' : '#fff')
      .borderRadius(20)
      .mode(NavRouteMode.REPLACE)
      .onStateChange((isActivated: boolean) => {
        this.isActiveBluetooth = isActivated
      })
    }
    .height('100%')
    .width('100%')
    .title('Settings')
    .backgroundColor("#F2F3F5")
    .titleMode(NavigationTitleMode.Free)
    .mode(NavigationMode.Auto)
  }
}
