Alert Dialog Box (AlertDialog)

You can set the text content and response callback for an alert dialog box.

NOTE

The APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

The functionality of this module depends on UI context. This means that the APIs of this module cannot be used where the UI context is unclear. For details, see UIContext.

Since API version 10, you can use the showAlertDialog API in UIContext, which ensures that the alert dialog box is shown in the intended UI instance.

AlertDialog

show

static show(value: AlertDialogParamWithConfirm|AlertDialogParamWithButtons|AlertDialogParamWithOptions)

Shows an alert dialog box.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

AlertDialogParam

System capability: SystemCapability.ArkUI.ArkUI.Full

LevelOrder¹⁸⁺

type LevelOrder = LevelOrder

Defines the display order of the dialog box.

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

AlertDialogParamWithConfirm

Inherits from AlertDialogParam.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Priorities of the confirm parameters: fontColor and backgroundColor > style > defaultFocus

AlertDialogParamWithButtons

Inherits from AlertDialogParam.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

AlertDialogParamWithOptions¹⁰⁺

Inherits from AlertDialogParam.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

AlertDialogButtonOptions¹⁰⁺

Inherits from AlertDialogButtonBaseOptions.

System capability: SystemCapability.ArkUI.ArkUI.Full

AlertDialogButtonBaseOptions¹⁸⁺

Atomic service API: This API can be used in atomic services since API version 18.

System capability: SystemCapability.ArkUI.ArkUI.Full

DialogButtonDirection¹⁰⁺

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

DialogAlignment

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Rectangle⁸⁺

The Rectangle type is used to represent a mask area of a dialog box.

Widget capability: This API can be used in ArkTS widgets since API version 9.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

x and y can be set to a positive or negative percentage value. When x is set to ‘100%’, the mask area is moved rightward by the window width. When x is set to ’-100%’, the mask area is moved leftward by the window width. When y is set to ‘100%’, the mask area is moved downward by the window height. When y is set to ’-100%’, the mask area is moved upward by the window height.

width and height can be set in percentage and can only be set to positive values. If they are set to negative values, the default values are used instead.

The percentage is calculated based on the width and height of the window.

DismissDialogAction¹²⁺

Provides information about the action to dismiss the dialog box.

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Properties

TextStyle¹²⁺

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

Example

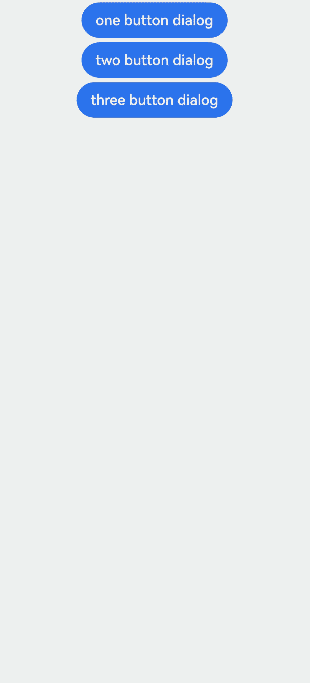

Example 1: Displaying Dialog Boxes with Different Numbers of Buttons

NOTE

To avoid confusion with AlertDialog instances, it is recommended that you obtain a UIContext instance using the getUIContext API, and then use the showAlertDialog API to invoke the instance’s AlertDialog.show() method.

This example demonstrates how to display dialog boxes with one, two, and three buttons.

// xxx.ets
@Entry
@Component
struct AlertDialogExample {
  build() {
    Column({ space: 5 }) {
      Button('one button dialog')
        .onClick(() => {
          // You are advised to use this.getUIContext().showAlertDialog().
          AlertDialog.show(
            {
              title: 'title',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Bottom,
              offset: { dx: 0, dy: -20 },
              gridCount: 3,
              confirm: {
                value: 'button',
                action: () => {
                  console.info('Button-clicking callback')
                }
              },
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
                console.log("dialog onWillDismiss")
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss()
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss()
                }
              }
            }
          )
        })
        .backgroundColor(0x317aff)
      Button('two button dialog')
        .onClick(() => {
          // You are advised to use this.getUIContext().showAlertDialog().
          AlertDialog.show(
            {
              title: 'title',
              subtitle: 'subtitle',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Bottom,
              gridCount: 4,
              offset: { dx: 0, dy: -20 },
              primaryButton: {
                value: 'cancel',
                action: () => {
                  console.info('Callback when the first button is clicked')
                }
              },
              secondaryButton: {
                enabled: true,
                defaultFocus: true,
                style: DialogButtonStyle.HIGHLIGHT,
                value: 'ok',
                action: () => {
                  console.info('Callback when the second button is clicked')
                }
              },
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
                console.log("dialog onWillDismiss")
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss()
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss()
                }
              }
            }
          )
        }).backgroundColor(0x317aff)
        Button('three button dialog')
        .onClick(() => {
          // You are advised to use this.getUIContext().showAlertDialog().
          AlertDialog.show(
            {
              title: 'title',
              subtitle: 'subtitle',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Bottom,
              gridCount: 4,
              offset: { dx: 0, dy: -20 },
              buttonDirection: DialogButtonDirection.HORIZONTAL,
              buttons: [
                {
                  value: 'Button',
                  action: () => {
                    console.info('Callback when button1 is clicked')
                  }
                },
                {
                  value: 'Button',
                  action: () => {
                    console.info('Callback when button2 is clicked')
                  }
                },
                {
                  value: 'Button',
                  enabled: true,
                  defaultFocus: true,
                  style: DialogButtonStyle.HIGHLIGHT,
                  action: () => {
                    console.info('Callback when button3 is clicked')
                  }
                },
              ],
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
                console.log("dialog onWillDismiss")
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss()
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss()
                }
              }
            }
          )
        }).backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

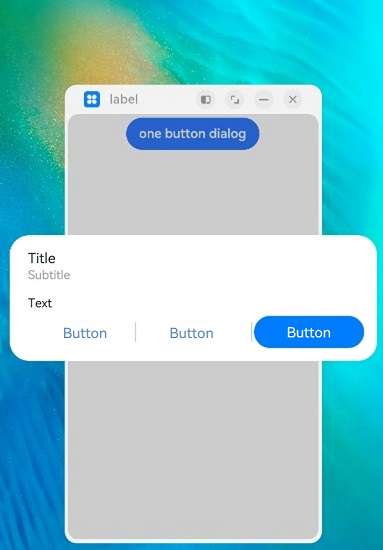

Example 2: Opening a Dialog Box Outside the Main Window

This example demonstrates how to configure a dialog box to display outside the main window on a 2-in-1 device by setting showInSubWindow to true.

NOTE

To avoid confusion with AlertDialog instances, it is recommended that you obtain a UIContext instance using the getUIContext API, and then use the showAlertDialog API to invoke the instance’s AlertDialog.show() method.

// xxx.ets
@Entry
@Component
struct AlertDialogExample {
  build() {
    Column({ space: 5 }) {
      Button('one button dialog')
        .onClick(() => {
          // You are advised to use this.getUIContext().showAlertDialog().
          AlertDialog.show(
            {
              title: 'title',
              subtitle: 'subtitle',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Center,
              gridCount: 4,
              showInSubWindow: true,
              isModal: true,
              offset: { dx: 0, dy: -20 },
              buttonDirection: DialogButtonDirection.HORIZONTAL,
              buttons: [
                {
                  value: 'Button',
                  action: () => {
                    console.info('Callback when button1 is clicked')
                  }
                },
                {
                  value: 'Button',
                  action: () => {
                    console.info('Callback when button2 is clicked')
                  }
                },
                {
                  value: 'Button',
                  enabled: true,
                  defaultFocus: true,
                  style: DialogButtonStyle.HIGHLIGHT,
                  action: () => {
                    console.info('Callback when button3 is clicked')
                  }
                },
              ],
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss: (dismissDialogAction: DismissDialogAction) => {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
                console.log("dialog onWillDismiss")
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss()
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss()
                }
              }
            })
        })
    }.width('100%').margin({ top: 5 }).backgroundColor(0x317aff)
  }
}

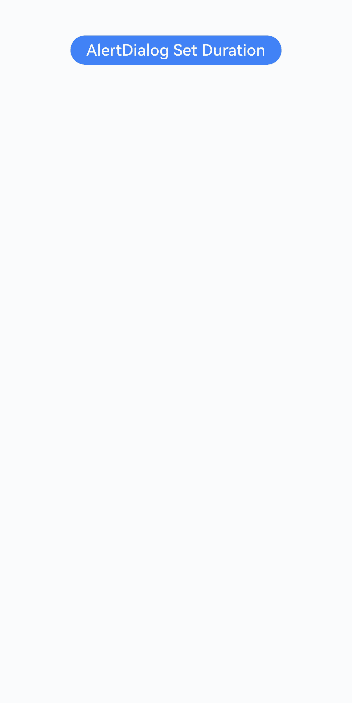

Example 3: Setting the Dialog Box Animation

This example illustrates how to use the transition API to create custom animation effects for the dialog box’s appearance and disappearance.

NOTE

To avoid confusion with AlertDialog instances, it is recommended that you obtain a UIContext instance using the getUIContext API, and then use the showAlertDialog API to invoke the instance’s AlertDialog.show() method.

// xxx.ets
@Entry
@Component
struct AlertDialogExample {
  build() {
    Column({ space: 5 }) {
      Button('AlertDialog Set Duration')
        .onClick(()=>{
            // You are advised to use this.getUIContext().showAlertDialog().
            AlertDialog.show(
              {
                title: 'AlertDialog 1',
                message: 'Set Animation Duration open 3 second, close 100ms',
                autoCancel: true,
                alignment: DialogAlignment.Top,
                offset: { dx: 0, dy: -20 },
                gridCount: 3,
                transition:TransitionEffect.asymmetric(TransitionEffect.OPACITY
                  .animation({ duration: 3000, curve: Curve.Sharp }).combine(TransitionEffect.scale({x: 1.5, y: 1.5}).animation({duration: 3000, curve: Curve.Sharp})),
                  TransitionEffect.OPACITY.animation({ duration: 100, curve: Curve.Smooth })
                    .combine(TransitionEffect.scale({x: 0.5, y: 0.5}).animation({duration: 100, curve: Curve.Smooth}))),
                confirm: {
                  value: 'button',
                  action: () => {
                    console.info('Button-clicking callback')
                  }
                },
                cancel: () => {
                  console.info('Closed callbacks')
                }
              }
            )
        })
        .backgroundColor(0x317aff).height("88px")
    }.width('100%').margin({ top: 5 })
  }
}

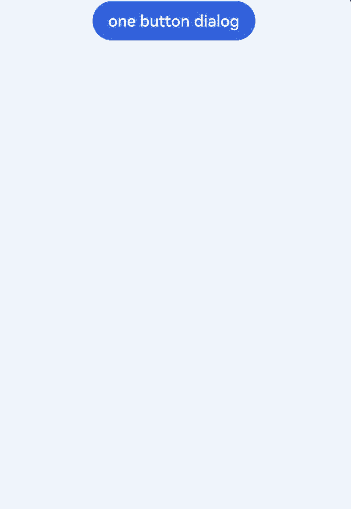

Example 4: Setting the Dialog Box Style

This example demonstrates how to set styles of an alert dialog box, including the width, height, background color, and shadow.

NOTE

To avoid confusion with AlertDialog instances, it is recommended that you obtain a UIContext instance using the getUIContext API, and then use the showAlertDialog API to invoke the instance’s AlertDialog.show() method.

// xxx.ets
@Entry
@Component
struct AlertDialogExample {
  build() {
    Column({ space: 5 }) {
      Button('one button dialog')
        .onClick(() => {
          // You are advised to use this.getUIContext().showAlertDialog().
          AlertDialog.show(
            {
              title: 'title',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Center,
              offset: { dx: 0, dy: -20 },
              gridCount: 3,
              width: 300,
              height: 200,
              cornerRadius: 20,
              borderWidth: 1,
              borderStyle: BorderStyle.Dashed,// borderStyle must be used with borderWidth in pairs.
              borderColor: Color.Blue,// borderColor must be used with borderWidth in pairs.
              backgroundColor: Color.White,
              shadow: ({ radius: 20, color: Color.Grey, offsetX: 50, offsetY: 0}),
              textStyle: { wordBreak: WordBreak.BREAK_ALL },
              confirm: {
                value: 'button',
                action: () => {
                  console.info('Button-clicking callback')
                }
              },
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason))
                console.log("dialog onWillDismiss")
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss()
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss()
                }
              }
            }
          )
        })
        .backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

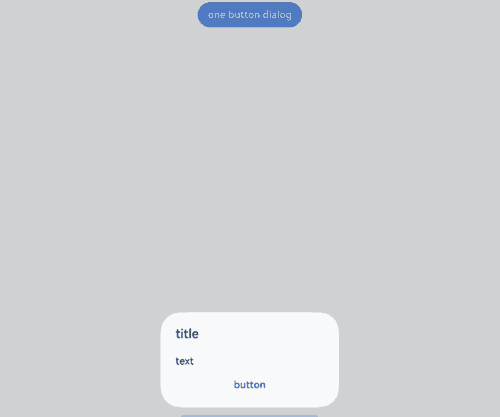

Example 5: Configuring a Dialog Box in the Hover State

This example demonstrates how to set the layout area of a dialog box in hover mode on a foldable device.

@Entry
@Component
struct AlertDialogExample {
  build() {
    Column({ space: 5 }) {
      Button('one button dialog')
        .onClick(() => {
          AlertDialog.show(
            {
              title: 'title',
              message: 'text',
              autoCancel: true,
              alignment: DialogAlignment.Bottom,
              gridCount: 3,
              confirm: {
                value: 'button',
                action: () => {
                  console.info('Button-clicking callback')
                }
              },
              cancel: () => {
                console.info('Closed callbacks')
              },
              onWillDismiss:(dismissDialogAction: DismissDialogAction)=> {
                console.info("reason=" + JSON.stringify(dismissDialogAction.reason));
                console.log("dialog onWillDismiss");
                if (dismissDialogAction.reason == DismissReason.PRESS_BACK) {
                  dismissDialogAction.dismiss();
                }
                if (dismissDialogAction.reason == DismissReason.TOUCH_OUTSIDE) {
                  dismissDialogAction.dismiss();
                }
              },
              enableHoverMode: true,
              hoverModeArea: HoverModeAreaType.TOP_SCREEN
            }
          )
        })
        .backgroundColor(0x317aff)
    }.width('100%').margin({ top: 5 })
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton
